Biolayer Interferometry (BLI) to Quantify RALF1–Pectin Interactions

Materials and reagents

Reagents

1. Biotinylated RALF1 peptide: synthetic, mature RALF1 peptide containing an N-terminal biotin modification; sequence: ATTKYISYQSLKRNSVPCSRRGASYYNCQNGAQANPYSRGCSKIARCRS; custom-synthesized (Peptide Specialty Laboratory GmbH, Heidelberg, Germany)

2. Charge-altered biotinylated RALF1-KR peptide: synthetic RALF1 peptide with reduced net positive charge containing an N-terminal biotin modification; sequence:

ATTSYISYQSLTSNSVPCSDTGASYYNCQNGAQANPYSDGCSYIASCRS; custom-synthesized (Peptide Specialty Laboratory GmbH, Heidelberg, Germany)

3. Pectin/galacturonan oligosaccharides (OGs), average DP 25-50 (Biosynth AG, Staad, Switzerland, catalog number: OG59705)

4. Dimethyl sulfoxide (DMSO) (Sigma-Aldrich, catalog number: 276855)

5. MilliQ water

6. Di-Potassium hydrogen phosphate (Carl Roth, catalog number: 6875.1)

7. Sodium dihydrogen phosphate dihydrate (Carl Roth, catalog number: T879.3)

8. Sodium chloride (Carl Roth, catalog number: 9265.2)

9. Potassium chloride (Carl Roth, catalog number: 6781.1)

10. Albumin fraction V/bovine serum albumin (BSA) (Carl Roth, catalog number: 8076.2)

11. BLI binding buffer: phosphate buffer saline (10 mM phosphate buffer, 137 mM NaCl, 2.7 mM KCl), pH 7.4, and 25 μg/mL BSA

Laboratory supplies

1. Octet^® streptavidin (SA) biosensors (Sartorius, catalog number: 18-5019)

2. Microplate 96 well, PS, F-bottom, black (Greiner, catalog number: 655900)

3. Microtube 1.5 mL (Sarstedt AG & Co.KG, catalog number: 72.690.001)

4. Microtube 2.0 mL (Sarstedt AG & Co.KG, catalog number: 72.691)

Equipment

1. Biolayer Interferometry (Fortebio-PALL Life Sciences, Sartorius, model: Octet^® RED96)

Software and datasets

1. Octet Data Acquisition software (Sartorius, version 8.0.2.5)

2. Octet Data Analysis software (Sartorius, version 8.0.2.3)

3. GraphPad Prism^® (Dotmatics, version 6.07)

Procedure

Information on the measurement protocol is described in the Fortebio manuals (Fortebio Inc., 2011, Octet System Data Analysis User Guide, see [4]). Additional details on the streptavidin biosensor can be found in the Streptavidin (SA) biosensors guide (Fortebio Inc. [5]).

A. Sensor and sample preparation

1. Prepare all components shown in Figure 2, including the plate lid (1), green sensor rack (2), sensor plate (3), rack base (4), and sample plate (5). Two plates are used for the BLI measurement: the sensor plate (3), which is used to soak the sensors prior to measurement, and the sample plate (5), which is used for sample analysis.

2. Place the required number of streptavidin biosensors into the green sensor rack (2). In the sensor plate (3), dispense 200 μL of BLI binding buffer into the wells corresponding to the sensor positions (see Figure 2). Keep the sensor rack (2) and sensor plate (3) separated while setting up the acquisition parameters in the software.

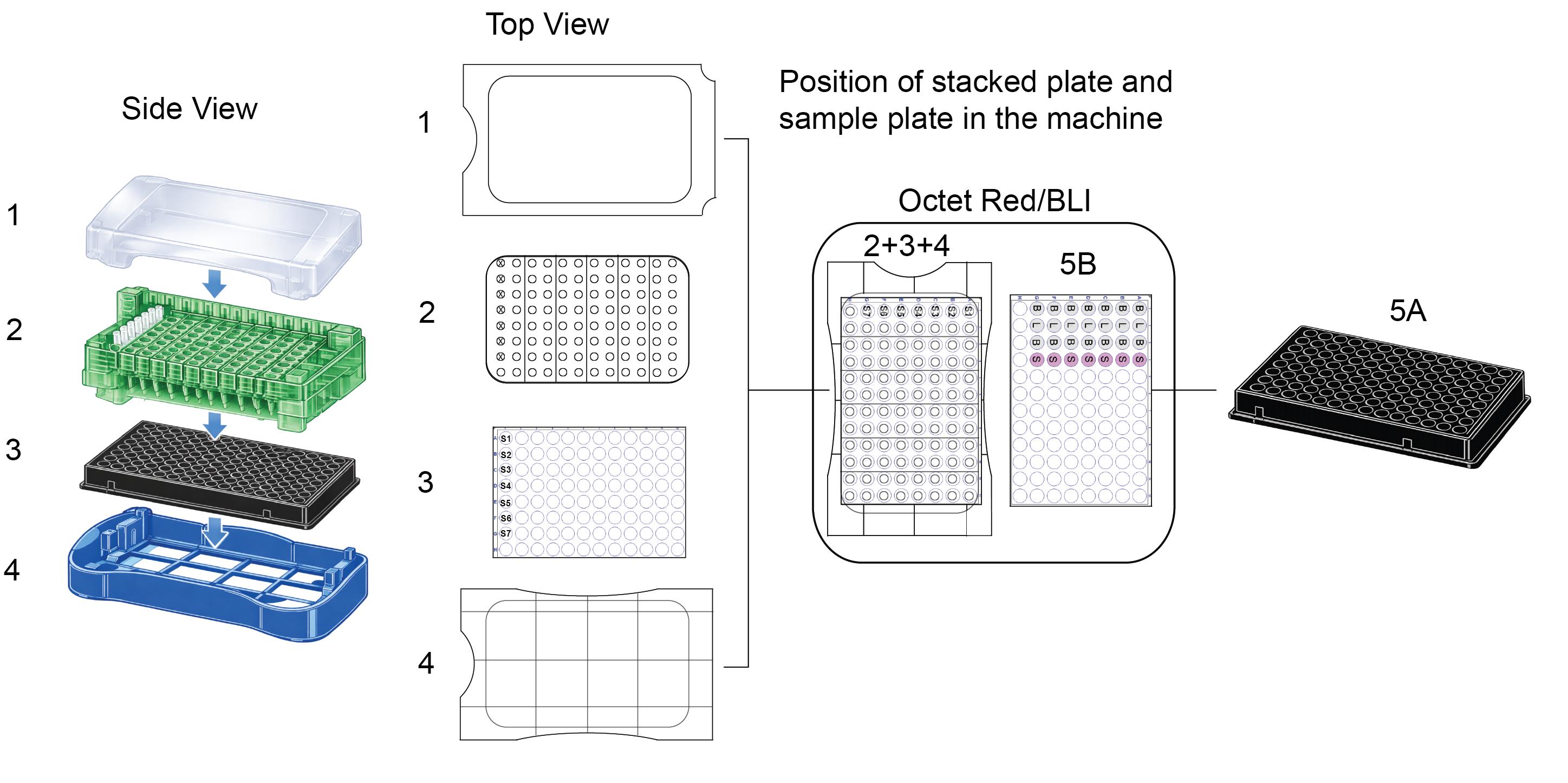

Figure 2. Assembly of the sensor rack and sample plate used for biolayer interferometry (BLI) measurements. (1) Lid. (2) Sensor rack with sensors. (3) Sensor plate. (4) Rack base. (5A) Overview of the sample plate. (5B) Positions of buffer and samples within the sample plate. The arrow indicates the order of assembly of the sensor rack components. The assembled sensor rack consists of the rack base, sensor plate, sensor rack, and sensors (2+3+4), which, together with the sample plate (5), are placed into the Octet BLI device. 3D representations are AI-generated (ChatGPT4.5) and subsequently edited in Adobe Illustrator.

3. Prepare the ligand (of biotinylated RALF1/RALF1-KR) and analyte (OG25–50) solutions and fill the sample plate:

a. Dissolve the entire purchased vial of powdered RALF1 and RALF1-KR in DMSO to obtain 11 mg/mL stock solutions. Aliquot 20 μL portions into Eppendorf tubes and store at -20 °C prior to use. Dilute biotinylated RALF1 or RALF1-KR in BLI binding buffer to a working concentration of 5 μg/mL. Keep the solution on ice prior to pipetting onto the plate.

b. Dissolve the entire purchased vial of powdered OG25–50 in Milli-Q water to obtain 10 mg/mL stock solutions. Aliquot 50 μL portions into Eppendorf tubes and store at -20 °C prior to use. Prepare analyte solutions in BLI binding buffer at the following concentrations: 0, 0.5, 1, 2, 3, 4, and 5 μM. Keep the solutions on ice prior to pipetting onto the plate.

c. Begin assembling the 96-well flat-bottom black plate according to the layout shown in Figure 3, ensuring that all wells are prepared to a final volume of 200 μL.

d. In column 1, dispense 200 μL of BLI binding buffer (Figure 3). The BLI buffer in column 2 is used to establish the baseline for the sensors prior to loading.

e. In column 2, dispense 200 μL (5 μg/mL) of RALF1 or RALF1-KR into each well (Figure 3).

f. In column 3, dispense 200 μL of BLI binding buffer (Figure 3). BLI buffer in column 3 is used to measure the baseline after loading, as well as the dissociation step.

g. In column 4, dispense 200 μL of the OG25–50 solutions at their respective concentrations (Figure 3).

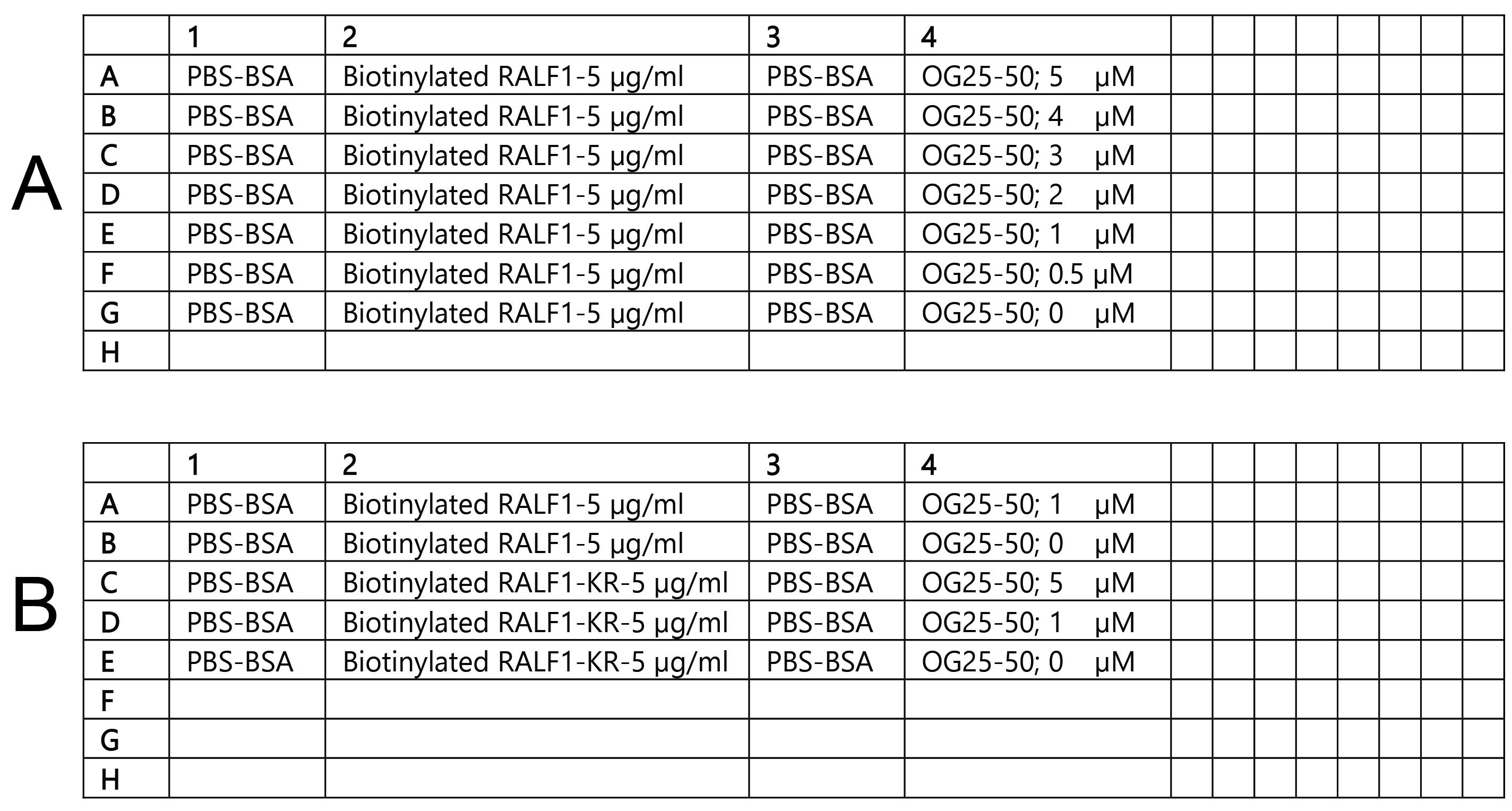

Figure 3. Solution positions in the sample plates. Two experimental setups are shown: (A) Sample plate layout for the binding analysis between RALF1 and OG25–50; (B) sample plate layout for the comparative binding analysis of RALF1 and RALF1-KR with OG25–50.

B. Software setup and running experiment

Note: Switch on the Octet RED96 instrument ~40 min before the run to allow initialization and temperature equilibration. In the Experiment Wizard, select Basic Kinetics as the experiment mode.

1. Plate definition

a. Open the Plate Definition tab and define the well types according to your sample layout (Figure 4). Use the right mouse button to assign each column as Buffer, Loading, or Sample, matching the positions of buffer, ligand, and analyte in the experimental plate.

b. Enter the Sample ID and the corresponding concentration for each well in the Plate Table on the right. Ensure that all entries accurately reflect the 96-well plate prepared in Section A so that the software setup matches the physical experiment.

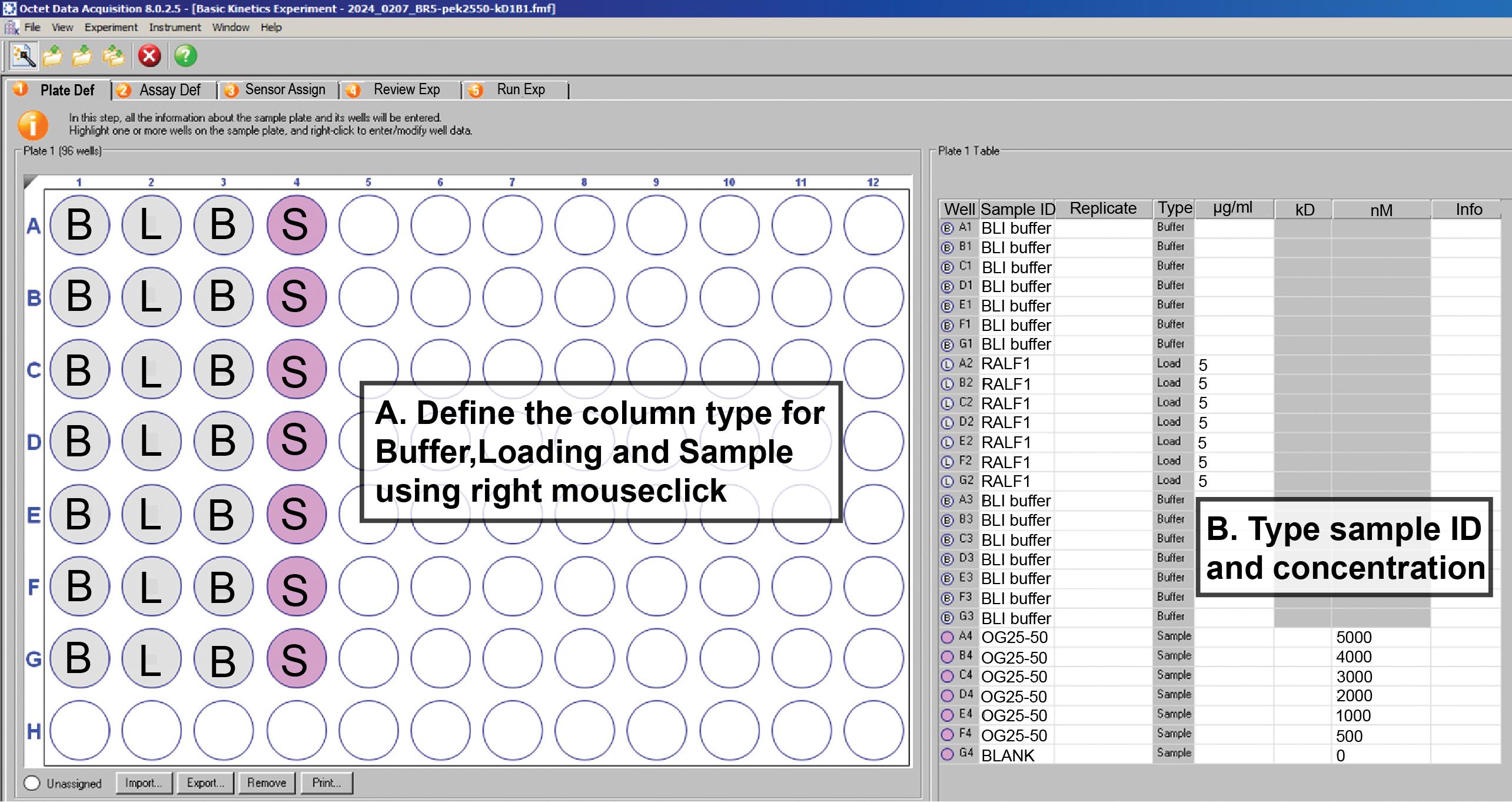

Figure 4. Plate definition setup in the Octet Data Acquisition software. Well types are assigned using the letters B (buffer), L (loading/ligand), and S (sample/analyte). The plate layout on the left shows the well assignments, while the table on the right lists the corresponding sample IDs, types, and concentrations entered for each position.

2. Assay definition

a. In the Assay Definition tab (Figure 5), configure the kinetic assay by completing the Step Data List and the Assay Steps List.

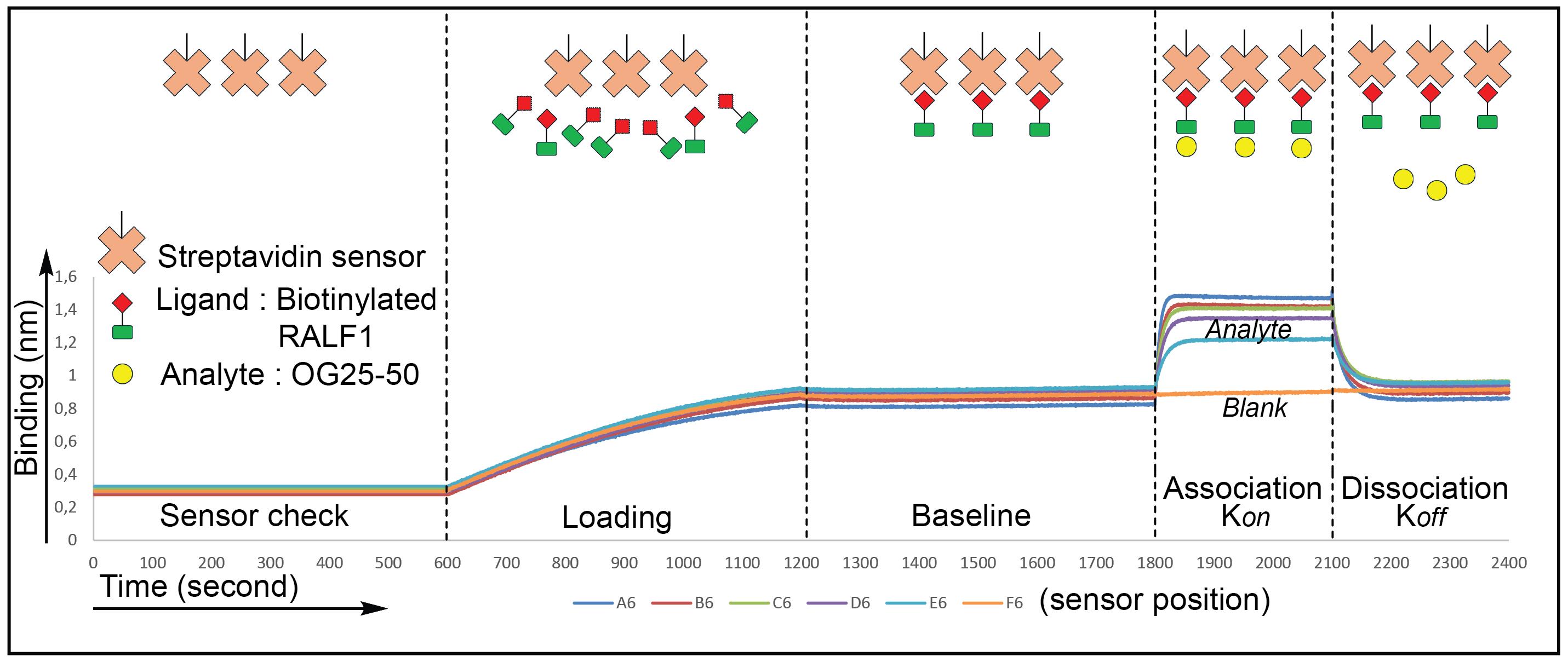

b. In the Step Data List panel (upper right), define the individual steps that will be used to build the assay sequence. Create the following steps in the order shown in Figure 5: sensorcheck, Loading, Baseline, Association, and Dissociation, ensuring that the timing and shake speed parameters match the values displayed in the Step Data List. In this experiment, the Loading, Baseline, Association, and Dissociation steps are each set to a duration of 600 s, while the shake speed is kept at the default setting of 1000 rpm

c. In the Assay Steps List panel (lower right), assemble the predefined steps into the full experimental workflow. First, click New Assay to create a new sequence. Then, assign the appropriate Sample column, Step Name, Step Type, and Sensor Type for each step, as shown in Figure 5. Arrange the steps in the following order: sensorcheck → Loading → Baseline → Association → Dissociation. Finally, confirm that each step is linked to the correct well type (buffer, ligand, or analyte) as defined in the Plate Definition.

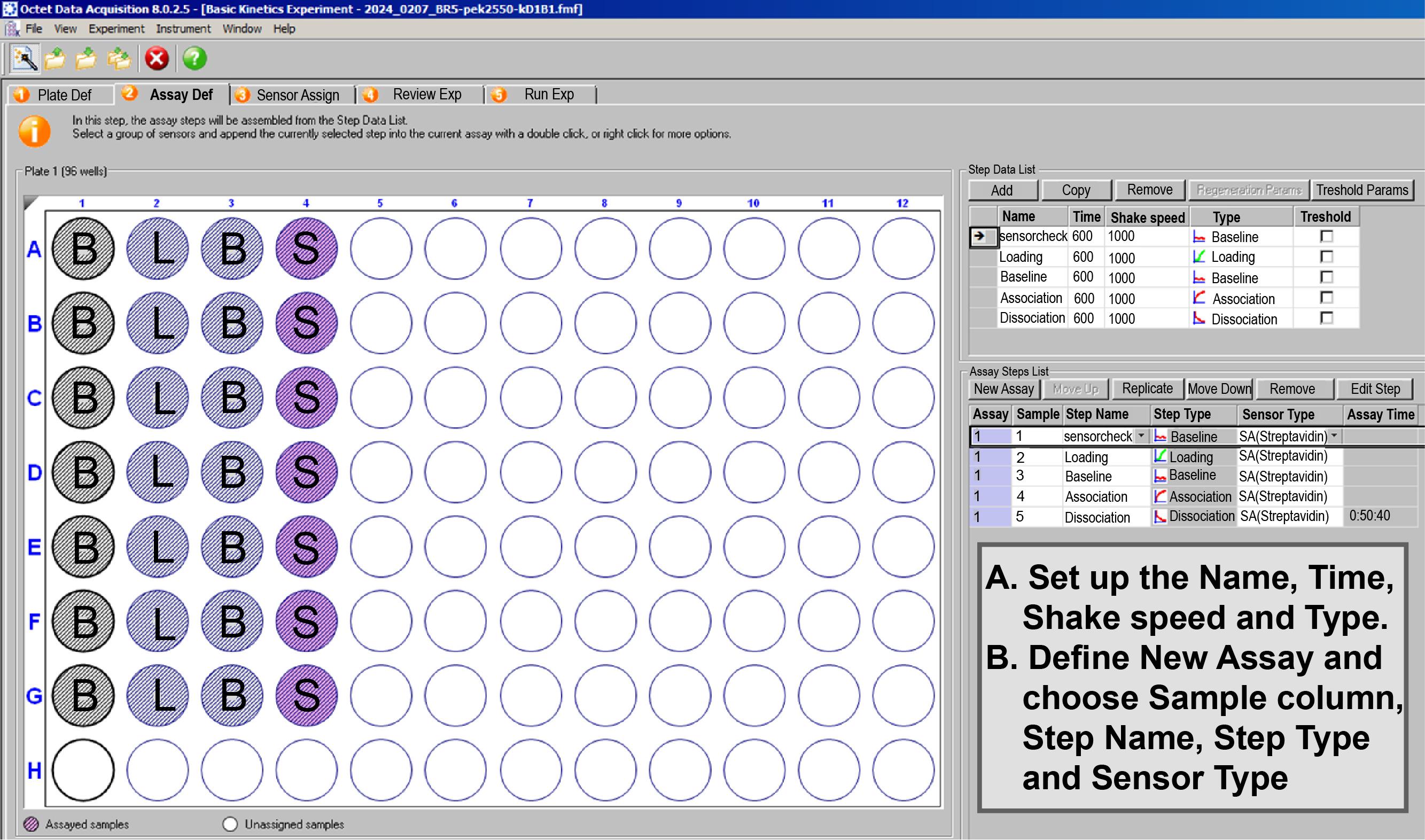

Figure 5. Assay definition. On the right, definition of measurement step and time.

3. Sensor assignment. In the Sensor Assignment tab (Figure 6), assign the biosensors to the wells defined in the Plate Definition.

a. Select the positions for the sensors in the Sensor Tray. Highlight the sensors in positions A1–G1, as shown in Figure 6. Remove any unwanted or unused positions.

b. Right-click on the highlighted sensors to define the Sensor Type and select SA (streptavidin) from the list. The assigned sensors will appear in the Sensor Table on the right.

c. Ensure that the number and arrangement of sensors correspond exactly to the experimental layout prepared in Section A.

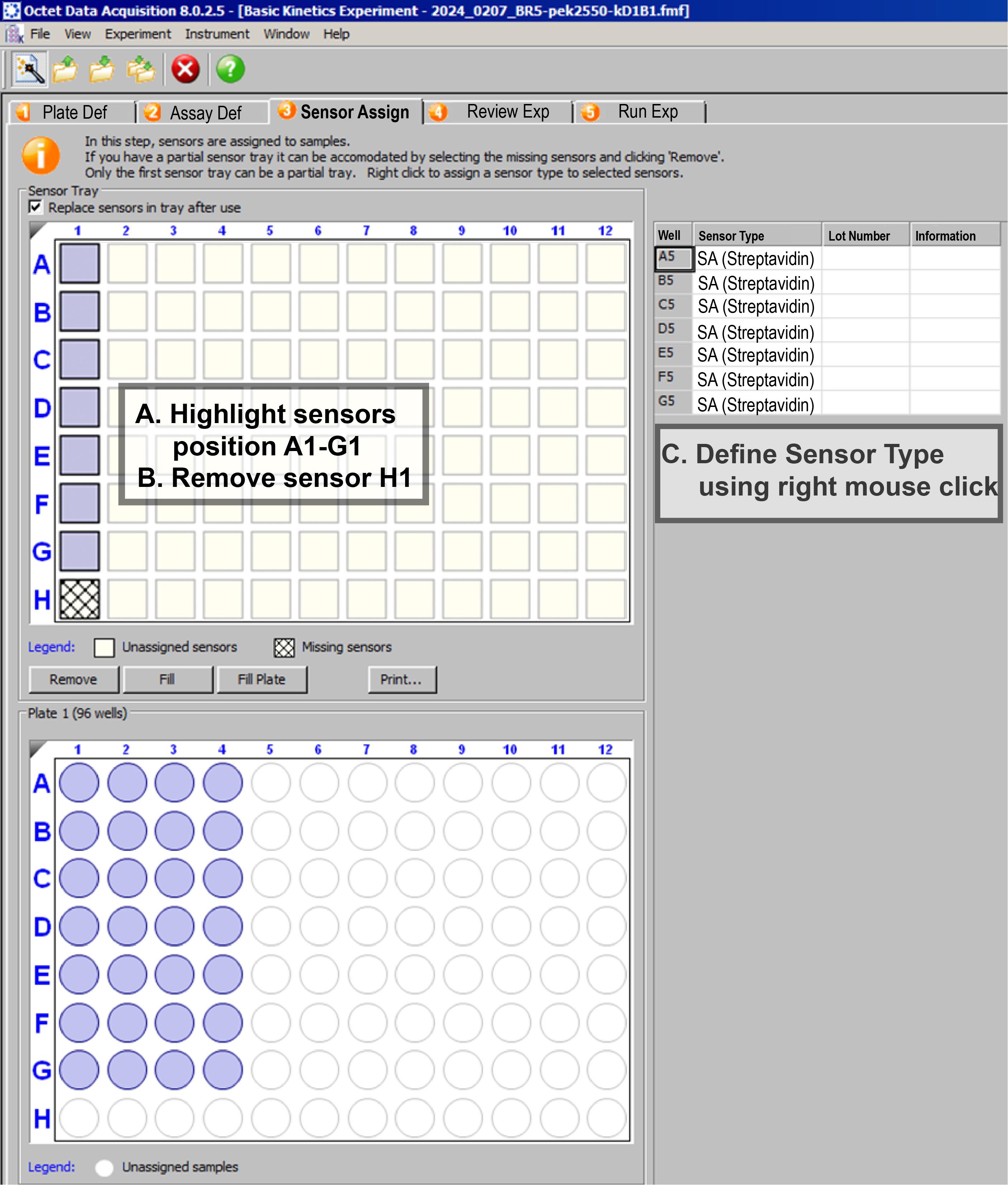

Figure 6. Sensor assignment in the Octet software

4. Review experiment. In the Review Experiment tab (Figure 7), verify that steps (A), (B), and (C) have been completed correctly.

a. Sensor Assignment (left panel): Confirm that sensors are assigned to positions A1–G1 and that unused sensors (e.g., H1) are removed.

b. Plate Definition (right panel): Check that buffer, ligand, and sample wells, as well as sample IDs and concentrations, match the layout prepared in Section A.

c. Assay Definition (bottom panel): Verify that the step order is correct: sensorcheck → Loading → Baseline → Association → Dissociation.

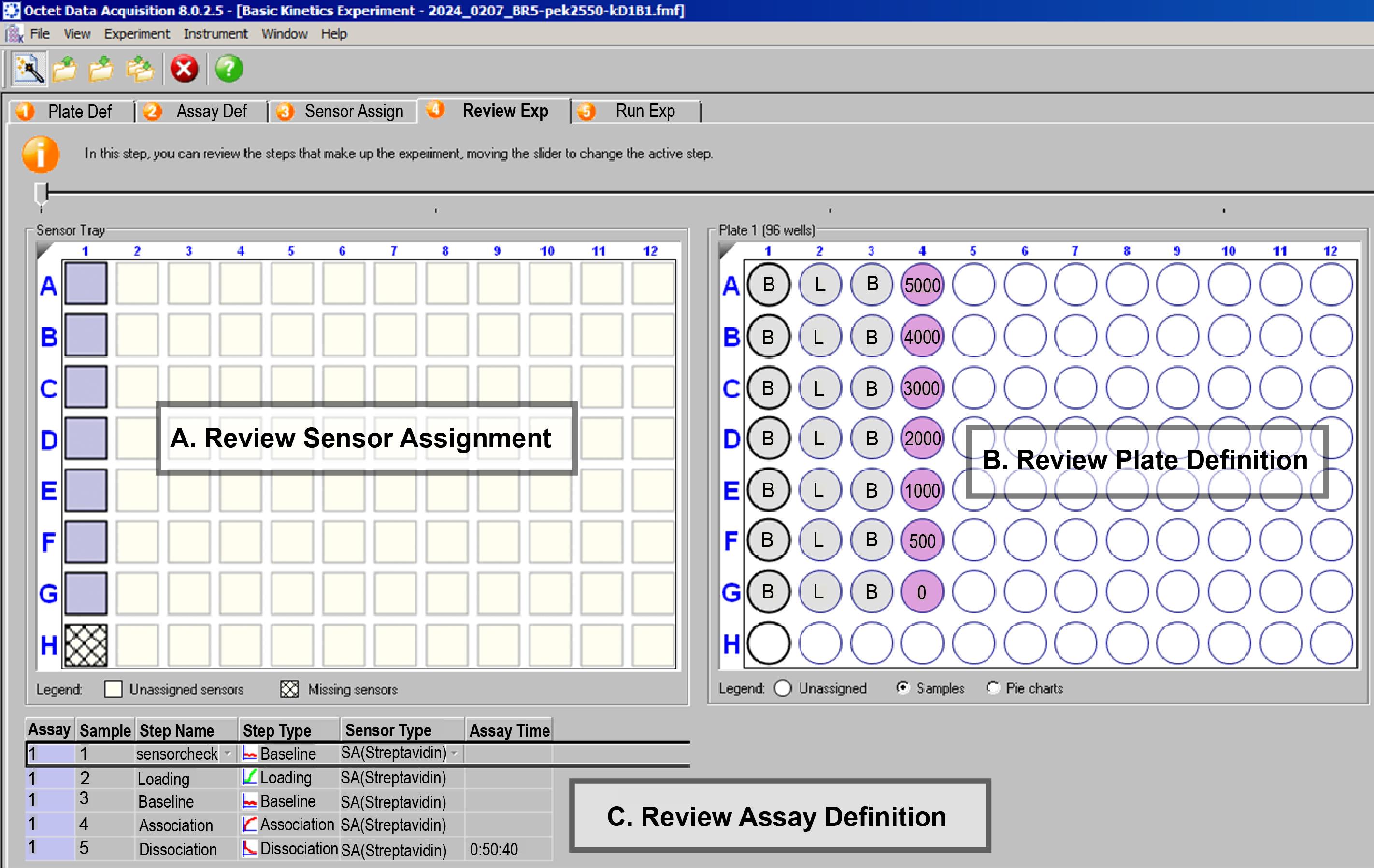

Figure 7. Review Experiment tab summarizes all configurations before the run

5. Running experiment

a. In the Run Experiment tab (Figure 8), choose the directory where the data will be saved and enter an experiment name and file prefix.

b. Review the run settings (plate temperature, shake mode, acquisition rate) to ensure they match your assay requirements.

c. Prepare the sensor hardware by stacking the sensor rack (including the pre-mounted sensors), sensor plate, and rack base as shown in Figure 2 (positions 2, 3, and 4).

d. Insert the stacked sensor hardware/left side and the prepared sample plate/right side (Figure 2, see position of stacked plate (2 + 3 + 4) and sample plate (5B) in the machine) into the matching position in the instrument as illustrated in Figure 9.

e. Press GO to start the measurement.

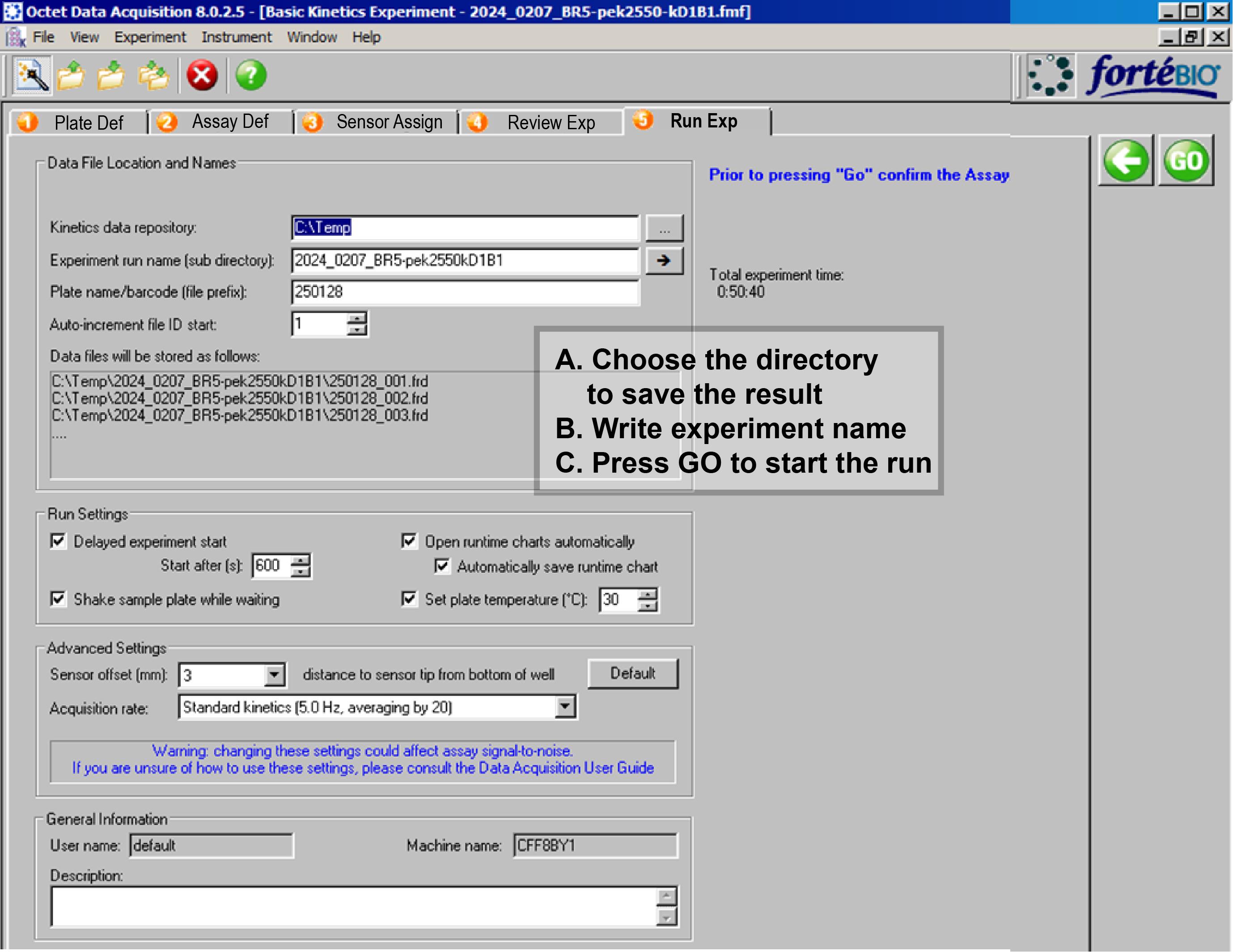

Figure 8. Run experiment. Location of data storage and name of file.

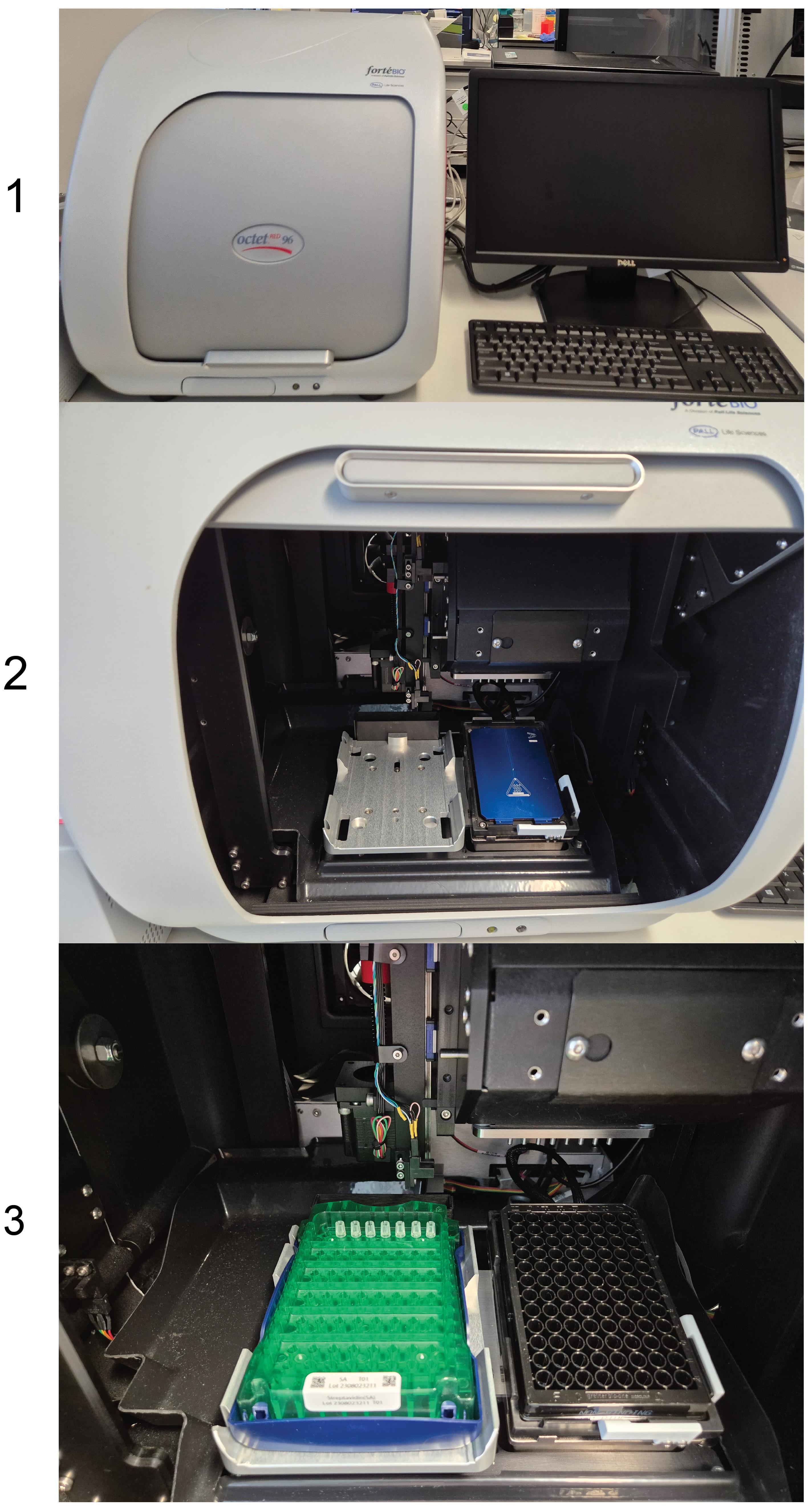

Figure 9. Loading the sensor stack and sample plate into the Octet RED96. (1) Octet RED96 instrument connected to a desktop computer. (2) Instrument in the open position. (3) Instrument with the stacked sensor rack and sample plate inserted, ready to start the run.

C. Data analysis

1. Data selection

a. Launch the Octet Data Analysis software.

b. In the Data Selection window, navigate to the directory in which the experiment was saved and select the corresponding data file (Figure 10).

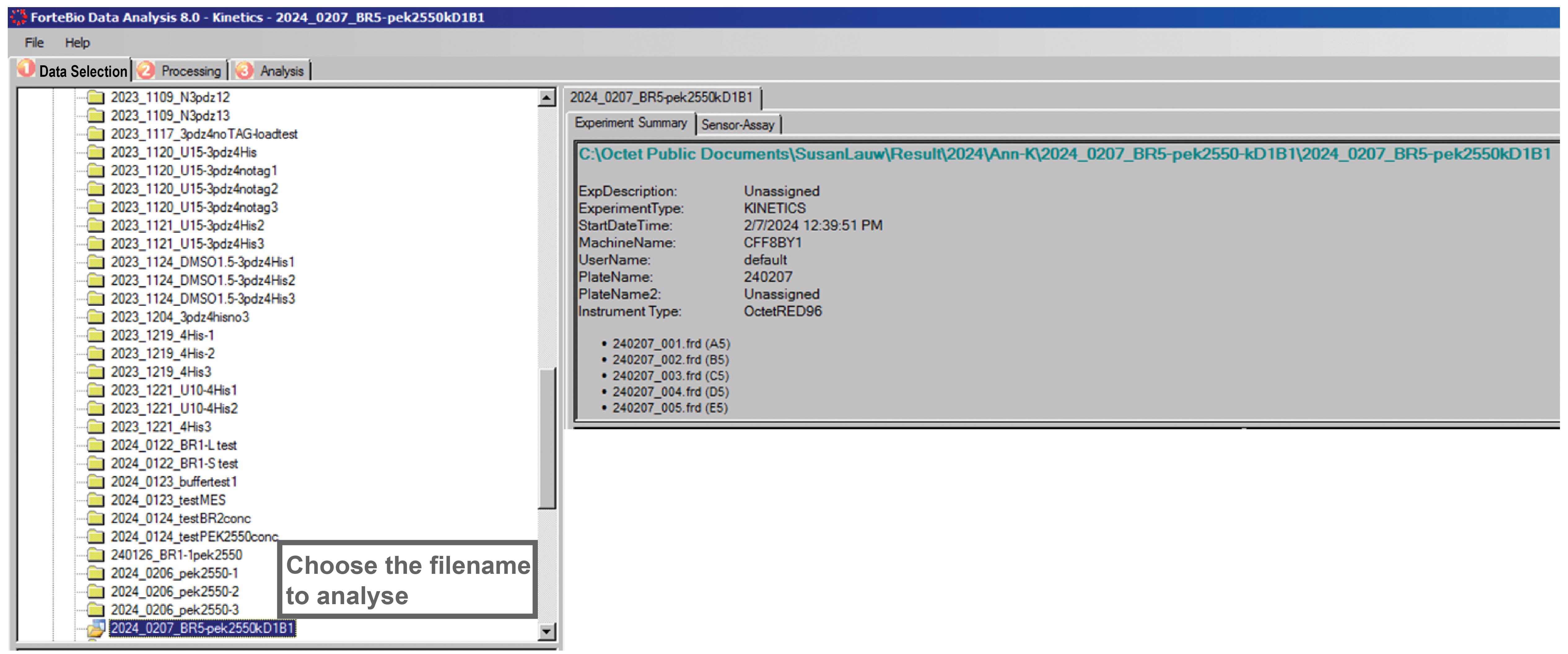

Figure 10. Data selection for analysis

2. Data processing. Complete the steps below as shown in Figure 11:

a. Select Raw Data View to load the unprocessed sensorgrams (Figure 11a).

b. Assign each sensor as Ligand or Reference (Figure 11b).

c. Activate Customize (Figure 11c).

d. In the Customize Sensor Subtraction window (Figure 12), perform reference subtraction for each ligand sensor by selecting: Ligand sensor → ‘–’ → Reference sensor → ‘=’.

e. Each subtraction will appear in the Subtractions panel (Figure 12, right). This step removes nonspecific bulk signal and ensures that only ligand–analyte binding contributes to the response. Enable Align Y Axis (Figure 11d) to normalize all curves to a common zero baseline.

f. Select Align to Dissociation (Figure 11e) to correct for minor baseline offsets between kinetic steps.

g. Apply Savitzky–Golay Filtering (Figure 11f) to smooth noise while preserving the kinetic shape of the curves.

h. Inspect the processed traces in the View Results panel to verify correct subtraction and alignment.

i. Save the processed sensorgrams using Save Raw Data (Figure 11g) for recordkeeping and downstream fitting.

j. Click Process Data to transfer the corrected curves into the Analysis tab (Figure 11h).

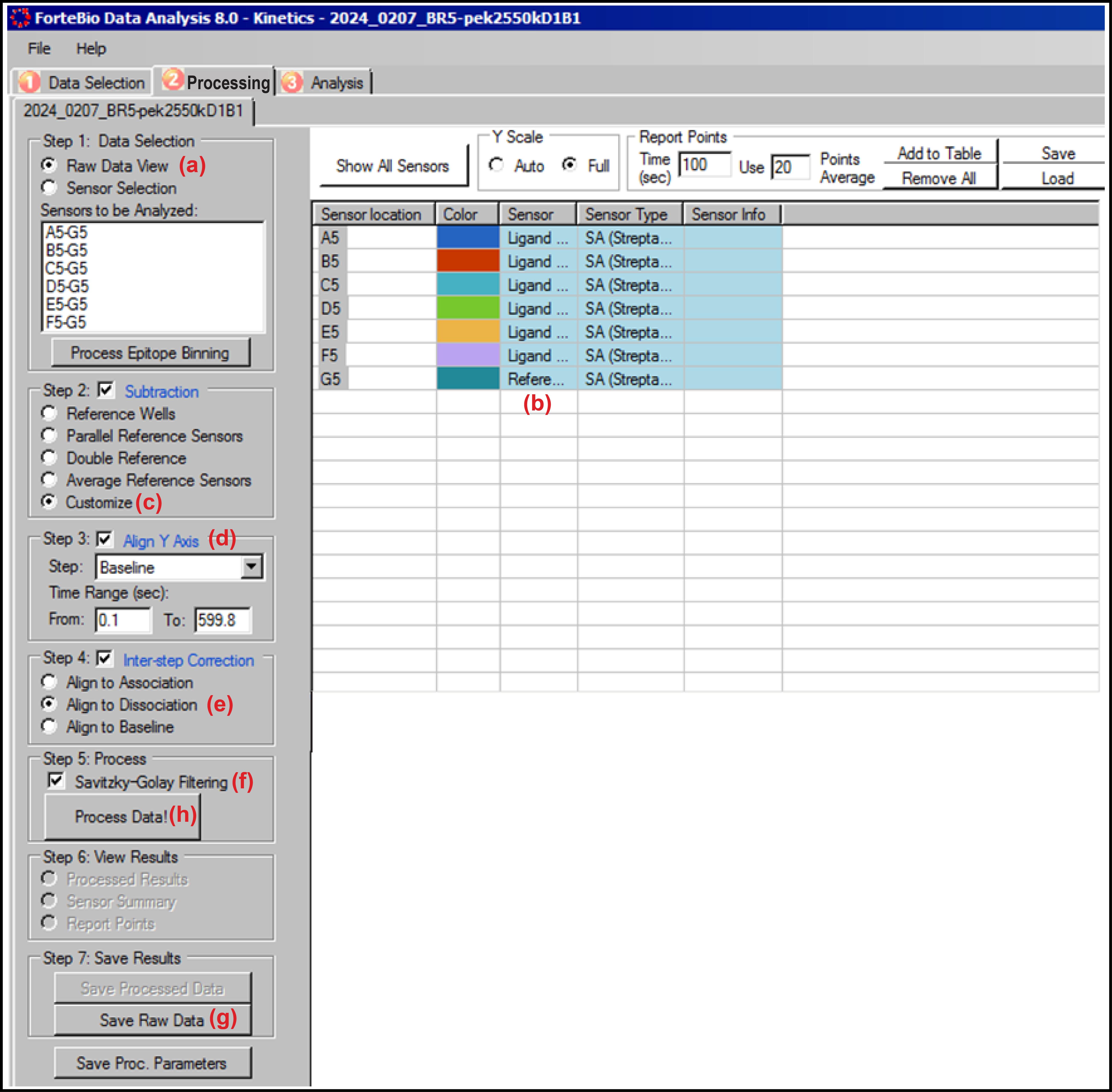

Figure 11. Data processing steps performed before kinetic analysis. (a) Data selection. (b) Sensor classification as ligand or reference sensors. (c) Performing subtraction. (d) Y-axis alignment step. (e) Inter-step correction. (f) Checkbox selection for Savitzky–Golay filtering. (g) Option to save raw data. (h) Execute data processing step.

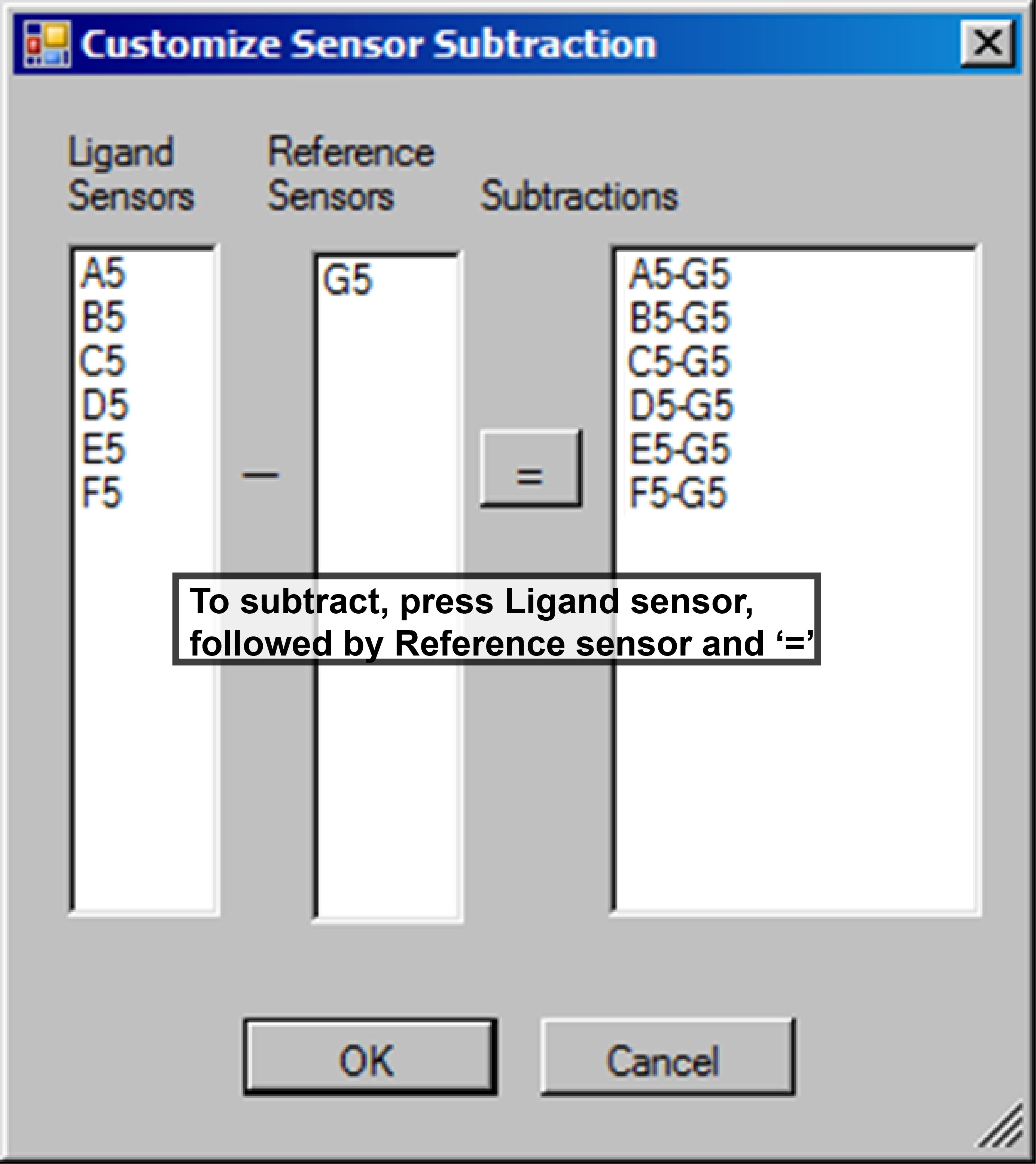

Figure 12. Sensor subtraction window

3. Define analysis parameters. Complete the steps below as shown in Figure 13:

a. Select Association and Dissociation under Step to Analyze to include both phases of the sensorgram in the fit (Figure 13a).

b. Choose a 1:1 binding model from the Model dropdown menu to calculate k_on, k_off, and KD assuming a simple bimolecular interaction (Figure 13b).

c. Select Global (Full) fitting to fit all analyte concentrations simultaneously (Figure 13c). This approach increases robustness and is recommended for multi-concentration kinetic datasets.

d. Set Rmax Unlinked By Sensor to allow each sensor to have an independent maximum response value (Figure 13d).

e. Verify that the Association and Dissociation windows cover the full measurement period (default: 0–600 s for each).

f. Click Fit Curves! to generate kinetic fits, residuals, and extracted rate constants (Figure 13e).

g. Export the fitted results, including KD values, sensor-specific fits, residual plots, and fitting tables, using Save Report (Figure 13f).

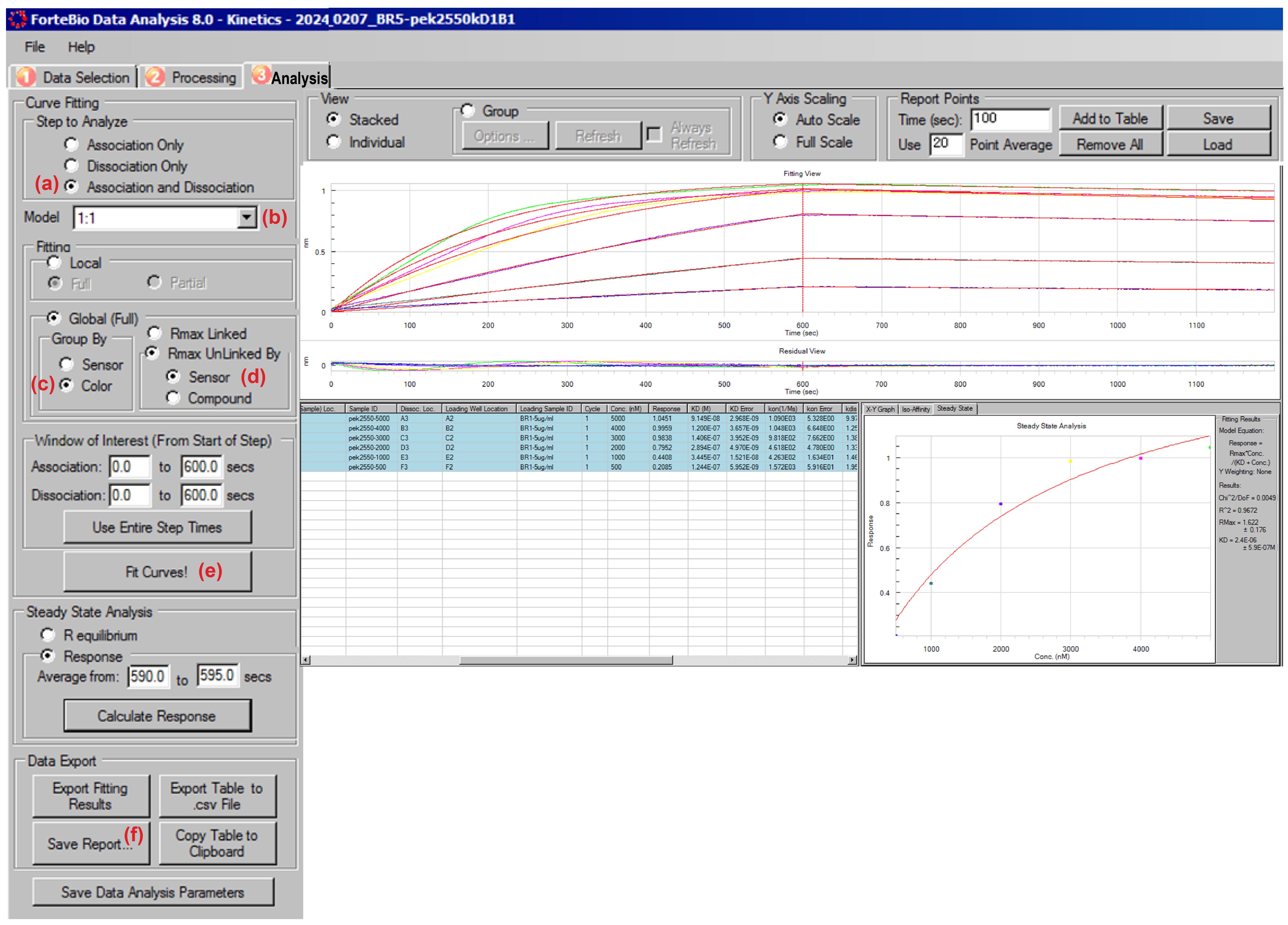

Figure 13. Analysis setup for kinetic curve fitting in the Octet Data Analysis software. (a) Selection of the step to be used for analysis. (b) Selection of the appropriate kinetic model. (c) Color-based selection of the global full group. (d) Rmax-linked sensor selection. (e) Choosing the fit curve. (f) Choosing save report.

4. Raw data normalization and GraphPad Prism visualization: To improve figure resolution and ensure proper annotation, the data are normalized and then transferred to GraphPad Prism for plotting. An overview of the steps is provided in Figure 14 and detailed below:

a. Reference subtraction: For each time point (t), the signal from the reference (blank) sensor is subtracted from the signal of the ligand-bound sensor.

B_corr (t)= B_ligand (t)-B_ref (t)

b. Baseline normalization: After reference subtraction, B_corr is expected to be 0 at time point t = 0. In practice, however, a small offset often remains, for example due to minor differences between sensors, imperfect reference matching, or slight baseline drift during measurement. To normalize the trace, the value of Bcorr(t = 0) is therefore subtracted from B_corr all time points (t).

B_norm(t)= B_corr (t)-B_corr (t₀)

c. Time normalization: Because the association and dissociation phases are the relevant parts of the BLI measurement, the time axis is shifted with the start of the association defined as time point 0. In other words, we reset the x-axis to 0.

t_corr=t-t₀

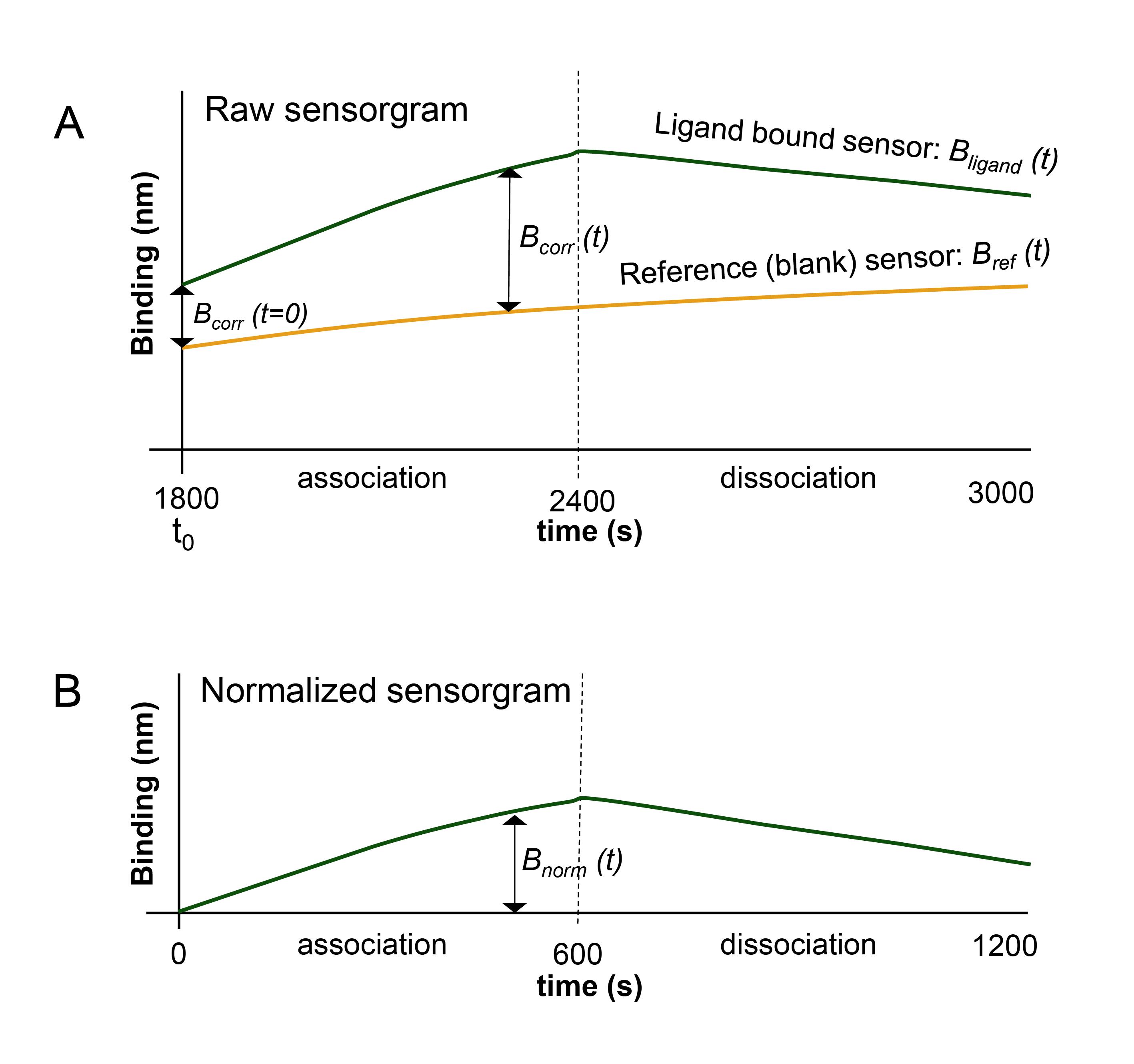

Figure 14. Schematic of data normalization and visualization steps. (A) Graph before normalization and associated steps. (B) Graph after normalization. The calculations for the normalization process are provided in the supplemental material.

Validation of protocol

A. Binding analysis of RALF1 and OG25–50

To confirm that the protocol reproduces known interaction behavior, we first applied it to the RALF1–OG25–50 system previously characterized in [3]. Under the conditions described here, RALF1 showed a strong and characteristic binding response to OG25–50, including a steep association phase and a stable plateau, consistent with earlier kinetic measurements.

B. Binding analysis of RALF1-KR and OG25–50

We further validated the assay by reproducing a published comparison of RALF1 with a charge-neutralized mutant, RALF1-KR, as described in [3]. While wild-type RALF1 showed robust binding to OG25–50, RALF1-KR exhibited no detectable interaction at either 1 or 5 μM analyte, resulting in flat sensorgrams (Figure 15). This published dataset confirms that electrostatic properties are essential for RALF–pectin binding and demonstrates that the protocol sensitively distinguishes peptides with altered charge profiles.

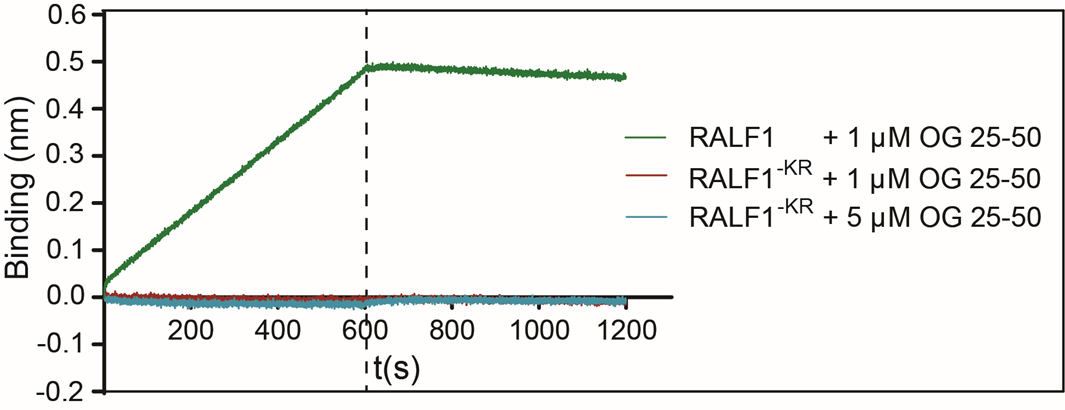

Figure 15. Biolayer interferometry (BLI) measurement between RALF1-KR/RALF1 (ligand) and OG25–50

General notes and troubleshooting

General notes

1. The measurement requires optimization before performing the final measurements and analysis. Optimization parameters for BLI assay are as follows:

a. The Octet RED96 system uses only flat-bottom, 96-well black plates to reduce background interference and optical crosstalk.

b. Buffer composition (salt, BSA, pH): Buffer conditions strongly influence ligand–analyte binding, especially for charged molecules such as RALF peptides and OGs. Optimize pH, buffer strength, and salt concentration to identify conditions that support binding while minimizing background noise. BSA (25 μg/mL) is included to prevent nonspecific adsorption of peptides or OGs to the biosensor or plate surfaces. Prepare fresh buffer and use it within two days.

c. Concentration of ligand and analyte: Optimize ligand loading by testing concentrations between 0.5 and 20 μg/mL. Select a ligand concentration that yields sensorgrams approaching saturation during loading without exceeding recommended capture levels (0.5–2.0 nm). Use a range of analyte concentrations to obtain sensorgrams with well-defined association (the recommended range is 0.1–0.5 nm) and dissociation phases, enabling reliable global fitting and determination of kinetic parameters. A minimum signal-to-noise ratio (S/N) of 5:1 is recommended for appropriate analysis.

d. Timing for the baseline, association, and dissociation steps: Adjust the duration of each step so that the baseline is stable and flat, the association phase approaches saturation, and the dissociation phase extends long enough to observe clear decay kinetics. A well-optimized assay should yield similar KD values at different ligand loading levels and produce smooth, concentration-dependent association and dissociation curves suitable for global fitting.

e. Assess nonspecific binding using appropriate controls. The extent of nonspecific binding can be influenced by multiple factors. Examples and potential solutions include:

i. Ni-NTA sensors are prone to nonspecific binding of analytes lacking a His-tag. It is therefore recommended to include a control ligand with a comparable size and the same number of histidine residues in the His-tag.

ii. Streptavidin sensors have a lower propensity for nonspecific binding; however, it is still recommended to evaluate nonspecific interactions using a biotinylated negative control of similar size, in order to exclude nonspecific binding of the analyte to the streptavidin sensor during assay optimization.

iii. Analyte control: Use a molecule of similar size to assess nonspecific binding to the ligand.

iv. Electrostatic interactions are often nonspecific due to the general nature of charge–charge attraction. When a control ligand and an analyte have similar ionic properties, nonspecific binding is likely to occur. In the experiment comparing RALF1 and RALF1-KR binding to OG25–50, the results indicate that the positive charge of RALF1 is responsible for the observed interaction. Neutralization of this positive charge significantly reduced binding, resulting in a flat response. However, it cannot be excluded that positively charged RALF1 may also interact with other negatively charged compounds.

Troubleshooting

Problem 1: Post-regeneration measurements yielded inconsistent results.

Possible cause: Inefficient dissociation of the analyte from the immobilized ligand during repeated sensor reuse, leading to residual binding and altered sensor performance.

Recommended solution: Use streptavidin biosensors only once. Regeneration of SA sensors is not recommended—even during assay optimization—as partial analyte carryover can compromise baseline stability, reduce apparent binding capacity, and distort kinetic traces.

Acknowledgments

This work was supported by the German Science Fund (CIBSS – EXC-2189 Project ID 390939984 to SL and EB). The protocol used in this study was previously described in [3].

Competing interests

The authors declare no competing interests.

References

1. Stegmann, M., Monaghan, J., Smakowska-Luzan, E., Rovenich, H., Lehner, A., Holton, N., Belkhadir, Y. and Zipfel, C. (2017). The receptor kinase FER is a RALF-regulated scaffold controlling plant immune signaling. Science (1979). 355(6322): 287–289. https://doi.org/10.1126/science.aal2541
2. Abarca, A., Franck, C. M. and Zipfel, C. (2021). Family-wide evaluation of RAPID ALKALINIZATION FACTOR peptides. Plant Physiol. 187(2): 996–1010. https://doi.org/10.1093/plphys/kiab308
3. Rößling, A.-K., Dunser, K., Liu, C., Lauw, S., Rodriguez-Franco, M., Kalmbach, L., Barbez, E., Kleine-Vehn, J. (2024). Pectin methylesterase activity is required for RALF1 peptide signalling output. eLife. RP96943. https://doi.org/10.7554/eLife.96943.3
4. Fortebio, Inc. (2011). Octet System Data Analysis User Guide. Release 7.1. https://manualzz.com/doc/4172481/fortebio-7.1-octet-system-data-analysis-user-guide
5. Fortebio, Inc. (2011). Streptavidin (SA) Biosensors. https://www.yumpu.com/en/document/view/11926050/streptavidin-sa-biosensors-fortebio
