Testing Bone Formation Induction by Calvarial Injection Assay in vivo

Materials and Reagents

1. Plastic flat-bottomed box
2. Plastic zip-loc bag
3. Hammer
4. Thick rubber gloves

5. Glass bottles for reagents–the methyl-methacrylate will dissolve plastic
6. Microscope slides (Hurst scientific catalog number: 7107 )

7. Coverslips (Hurst scientific catalog number: CG12450 )
8. Glass Scintillation Vials (PerkinElmer catalog number: 6000097 )–methyl-methacrylate will dissolve plastic
9. Grinding paper (smooth) CarbiMet S SiC P400 (ThermoFisher, catalog number: 16080320 )

10. Grinding paper (rough) CarbiMet S, 60 P60 (ThermoFisher, catalog number: 16080060 )
11. Insulin syringe (29 G BD Ultra-fine^TM Clifford Hallam, catalog number: 1323684 )
12. Microfuge tubes 1.5 ml (Pacific labs, Axygen catalog number: MCT175CI )
13. 6-week old C57BL/6 mice (10 mice per group)
14. Positive Control: Recombinant mouse Oncostatin M (OSM) (R&D Systems catalog number: 495-MO-025 ) with 2% heat-inactivated mouse serum (made in house)
15. Your preferred agents/treatments for testing
16. Phosphate buffered saline (Sigma-Aldrich, catalog number: D8537 )
17. Isoflurane inhalant anaesthetic (FORTHANE^®, AbbVie)
18. Ethanol
19. Calcein (Sigma-Aldrich, catalog number: C0875-5G )
20. Sodium Bicarbonate (Sigma-Aldrich, catalog number: S6014 )
21. Sodium hydroxide (NaOH)
22. Acetone
23. Paraformaldehyde (Sigma-Aldrich, catalog number: 158127-500 g )
24. Methyl methacrylate (Sigma-Aldrich, catalog number: M55909-500 ml )
25. Destabilised methylmethacrylate (dMMA)
26. Dibutyl Phthalate (Merck, catalog number: 800919 )
27. Granular calcium choride anhydrous (Sigma-Aldrich, catalog number: C-1016 )
28. Chromium (III) potassium sulphate (Sigma-Aldrich, catalog number: 243361 )
29. Gelatin from bovine skin (Sigma-Aldrich, catalog number: G9391 )
30. Butanol (Merck, catalog number: 8222641000 )
31. Toluene (Crown Scientific, catalog number: 2867322 )
32. Depex mountant (Crown Scientific, catalog number: 360294H )
33. Tris (Astral Scientific, catalog number: BIO3094T)
34. Xylenol orange (Sigma-Aldrich, catalog number: X3500 )
35. Xylenol Orange Stain (see Recipes)


Equipment

1. 100 ml beaker
2. 2 L glass separating funnel
3. Fume hood
4. Incubator
5. Microwave oven
6. Grinder/Polisher (Buehler Phoenix beta, or equivalent)
7. Automated microtome, RM2265 Leica, equipped with tungsten carbide blade, or equivalent microtome
8. Fluorescence microscope equipped with Osteomeasure image analysis system (or equivalent), (Osteometrics, https://www.osteometrics.com/)


Software

1. Osteomeasure histomorphometry system (Osteometrics, https://www.osteometrics.com/), or equivalent

Procedure

1. Preparation of cytokines and animals for study
   1. Gain ethics approval from your Institutional Review Board before commencing
      Order mice and allow them to acclimatize to your facility for 2 weeks prior to the experiment. We use C57BL/6 mice at 6 weeks of age (after acclimatization). We use a minimum of 6 mice per treatment group to detect a difference in calvarial thickness of 10%, based on data from our original publication (Walker et al., 2010).
   2. For labelling active bone formation sites, prepare calcein for injections, as follows (see Figure 1 for times at which calcein is injected):
      A solution of 0.01 g sodium bicarbonate plus 0.02 g calcein is made in 10 ml of 0.9% sterile saline (final concentration 2 mg/ml). This solution is injected intraperitoneally or subcutaneously using Insulin syringes (29 G needles) at 0.1ml per 10 g body weight (for a dose of 20 mg/kg). Calcein can be stored in frozen aliquots ready for thawing at the time of use.

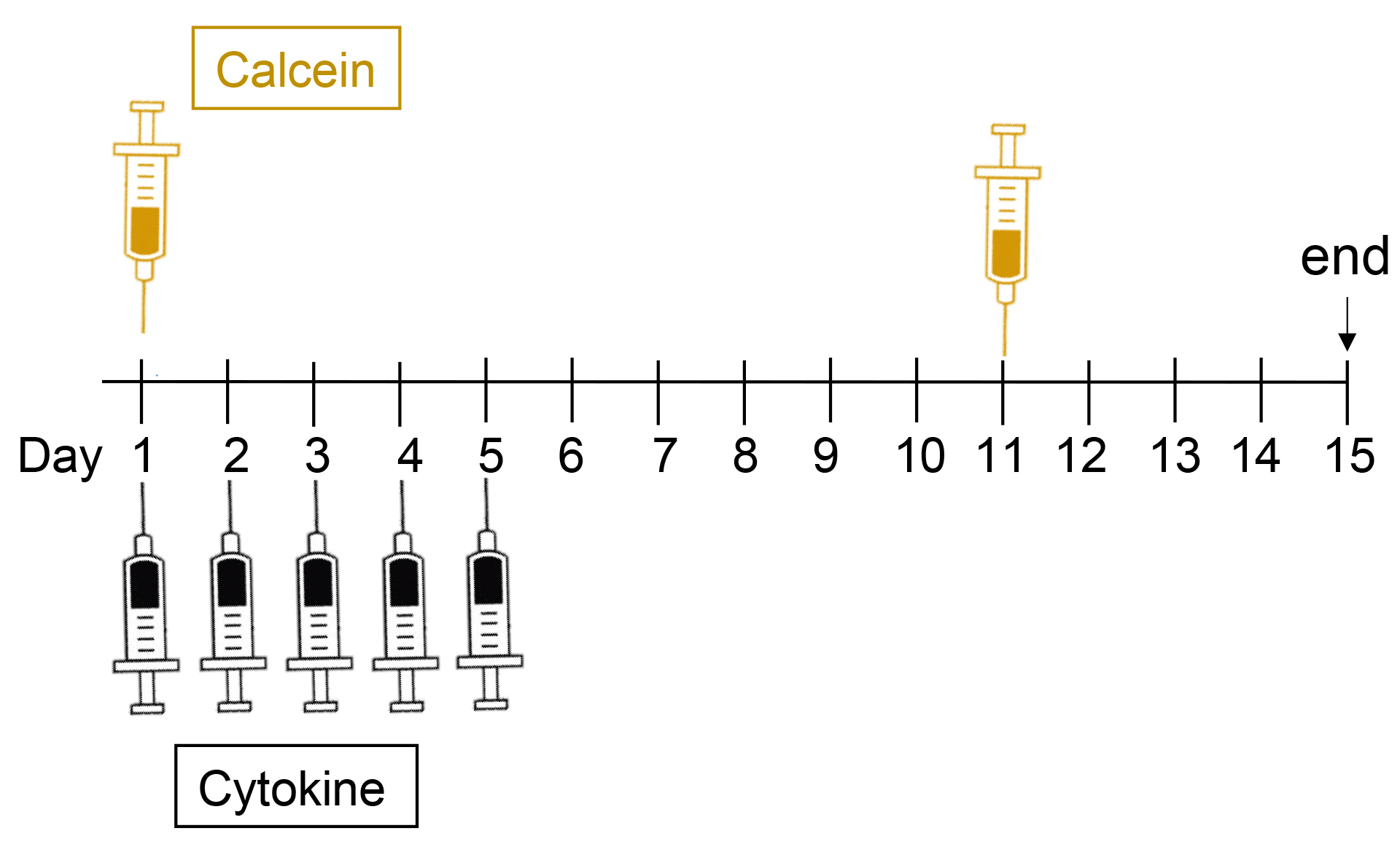

      Figure 1. Example of the treatment protocol, showing days of calcein and cytokine injections and tissue collection (end)


   3. Prepare 25 µl aliquots of agents to be tested by calvarial injection
      We recommend making up your agent into 25 µl aliquots (larger and smaller volumes have not been tested). As an example, we use 0.2 µg murine Oncostatin M in a volume of 25 µl for 5 consecutive days as a positive control for all our experiments, including 2% heat-inactivated serum as a carrier. Before commencing we make up sufficient aliquots for the full experiment and freeze 5 aliquots with sufficient for all mice in the treatment group ready for each day of injections.



2. Injection protocol
   1. Cytokine injections
      Figure 1 shows a time course of the injection protocol. On days 1 to 5 (e.g., Monday to Friday), anaesthetise mouse with 2% isoflurane and 1 L/min oxygen (or anaesthetic as approved by your Institutional Review Board). Using an insulin syringe inject 25 µl cytokine subcutaneous over the skull (between the ears) of the animal (see Figure 2). The subcutaneous injection will form a bubble over the left and right parietal bones.
   2. Calcein injections
      On days 1 and 11, using an insulin syringe inject 0.1 ml per 10 g body weight (i.e., a 20 g mouse will receive 0.2 ml) via intraperitoneal injection. On day 1 this can be done while the animal is still anaesthetized for the calvarial injection.
   3. Before tissue collection
      Make sufficient paraformaldehyde to fix samples (approximately 10 ml per sample). Heat 500 ml PBS to 55 °C (it is quickest to use a microwave oven). Dissolve 2 g paraformaldehyde in the solution, keeping warm on a heater-stirrer. While stirring, add sufficient NaOH to raise pH to 8.0; this is required for the paraformaldehyde to dissolve. Cool to 4 °C before use. Prepare labelled scintillation vials for each animal to be collected.
   4. Collection of tissues for histological analysis
      On day 15, cull mice according to the method approved by your institution. Dissect out the calvaria, using the sagittal and lambdoid suture lines as landmarks (Figure 2A). Place the tissue in 4% paraformaldehyde in PBS for 24 h at 4 °C. On the next day, tip off and dispose of the paraformaldehyde solution and store the samples in 70% ethanol until ready to embed the calvarial tissue in methylmethacrylate.
   5. Preparation of calvarial samples for histological analysis
      When tissue has been fixed, dissect out the back half of the calvariae containing the lambdoid suture to the midpoint of the sagittal suture (see Figure 2B).

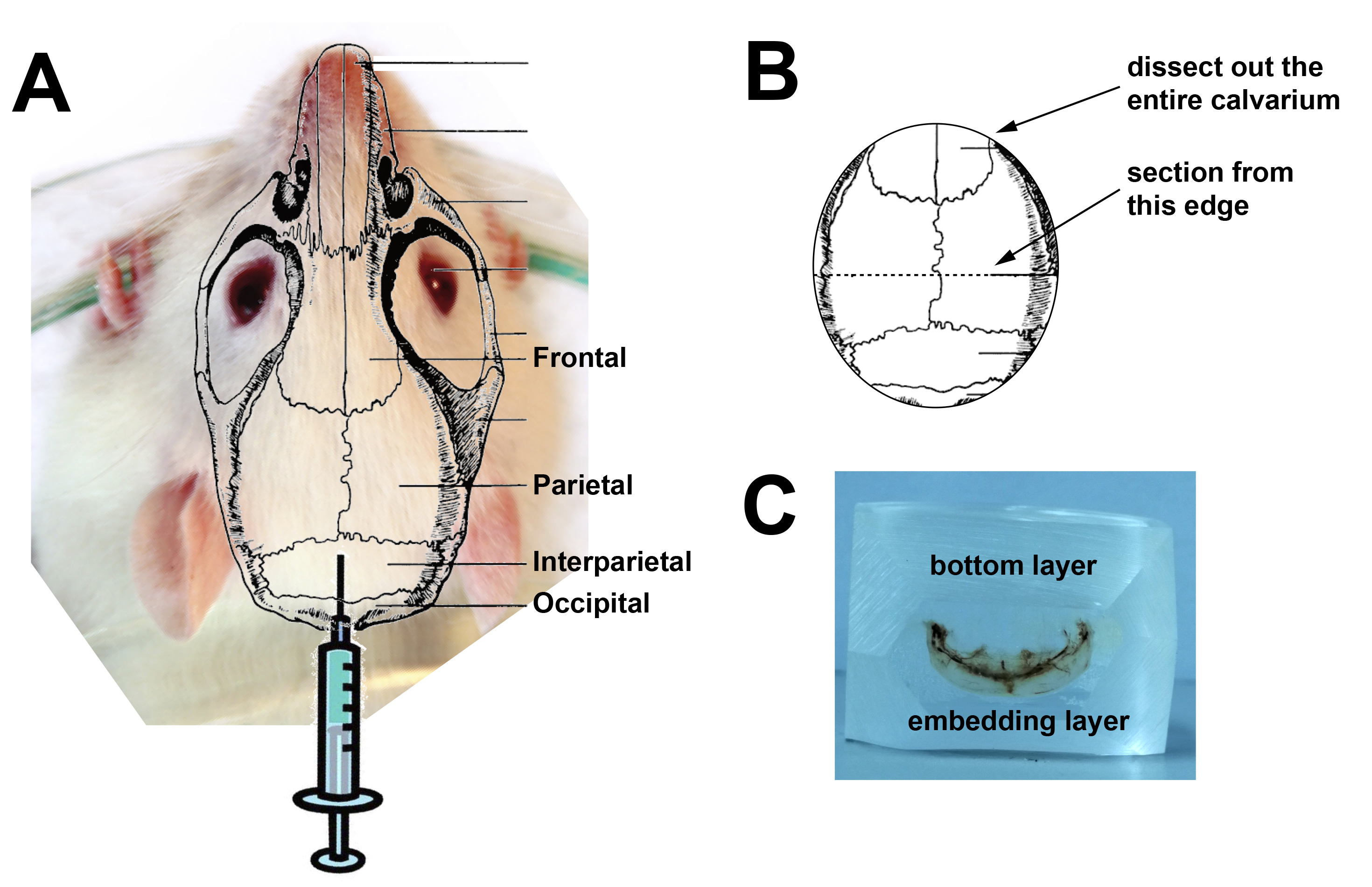

      Figure 2. Location of injection site, instructions for dissection and image of the sectioning face of an embedded calvarium. A. Superimposition of calvarial structure over an image of a mouse head showing injection site; B. diagram of a dissected calvarium showing the cutting lines for dissection. C. A calvarial block ready for sectioning. Although we use C57BL/6 mice, we have used an image of a white mouse for clarity.



3. Preparation of reagents for embedding samples in methyl methacrylate
   1. Destabilization of methyl-methacrylate (dMMA)
      This step is necessary to remove monomethyl hydroquinone, the stabilizing agent in MMA that suppresses polymerisation. Note that all steps using MMA must be conducted in a fume hood, and since MMA will dissolve plastic, all steps need to be conducted using glass vials, funnels, and bottles. All vials, funnels, and bottles must be dry, and MMA should be filtered through granular calcium chloride before use to remove water which will disrupt the embedding process.

      1. Make up 1 L of 0.5% sodium hydroxide (NaOH) by dissolving 0.5 g NaOH in 1 L of distilled water.
      2. Place a large separating funnel into a retort stand in a fume hood.
      3. Pour approximately 500 ml MMA into the large separating funnel.
      4. Add approximately 300 ml 0.5% NaOH to the MMA in the separating funnel.
      5. Shake the separating funnel vigorously for at least 30 sec to mix the NaOH and MMA thoroughly.
      6. Place in retort stand and allow the layers to settle.
      7. When layers have settled, and while the separating funnel is still in the retort stand, use the tap to drain off the lower layer (NaOH) into a beaker. Discard the NaOH according to your Institution’s protocol for waste disposal (we dispose in the sink with ample tap water).
      8. Repeat Steps C1d to C1g twice; this will use up all the 5% NaOH you made.
      9. Then repeat Steps C1d to C1g three times, using 500 ml distilled water each time, instead of NaOH (water will also settle to the bottom layer).
      10. Finally, place about a 100 ml beaker full of calcium chloride into a folded filter paper in large glass funnel on the retort stand. Place a clean bottle for the destabilized MMA (dMMA) under it.
      11. Slowly transfer the dMMA from the separating funnel through the calcium chloride into the clean bottle. The calcium chloride will remove all traces of water.
      12. Add a small amount of calcium chloride to the clean dMMA to absorb excess water. Store dMMA at 4 °C.
   2. Make up graded acetones
      Make up at least 250 ml each of 70% acetone in water, and 90% acetone in water.
   3. Make up infiltrating solution (total of at least 5 ml per sample)
      Working in a fume hood, mix 90% dMMA with 10% dibutylphthalate (DBP) and 0.05% benzoyl peroxide (BPO). For example, for 10 samples, make up approximately 70 ml, using 63 ml dMMA, 7ml DBP and 0.35 g BPO. Stir until BPO is dissolved, and filter through filter paper containing calcium chloride in a glass funnel to remove any water. Store at 4 °C indefinitely.
   4. Make embedding solution (approximately 20 ml per sample)
      Mix 85% dMMA with 15% dibutylphthalate (DBP) and 4% benzoyl peroxide (BPO). For example, for 10 samples, make up 200 ml, using 170 ml dMMA, 30 ml DBP and 8 g BPO. Stir until BPO is dissolved, and filter through filter paper containing calcium chloride in a glass funnel to remove any water. Store at 4 °C maximum of 1 week.
   5. Make bases for embedding samples. In clean glass scintillation vials, add 2.5 ml embedding solution. To reduce waste, you can make this up using previously used infiltration solution for the bases. Place these, spaced apart from each other in a 37 °C incubator until set.



4. Infiltrating the calvarial samples in methyl methacrylate:
   Note: Samples should be sheltered from light when not being handled.
   1. Dehydrate samples through graded acetones

      1. Tip off 70% ethanol from all samples, and replace with 70% acetone, store at 4 °C for at least 1 h (up to overnight)
      2. Tip off 70% acetone from all samples, and replace with 90% acetone, store at 4 °C for at least 1 h (up to overnight)
      3. Tip off 90% acetone from all samples, and replace with 100% acetone, store at 4 °C for at least 1 h (up to overnight)
      4. Tip off 100% acetone from all samples, and replace with fresh 100% acetone, store at 4 °C for at least 1 h (up to overnight)
   2. Filter embedding solution
      While samples are in 100% acetone, allow embedding solution (made in Step C3) to come to room temperature in a fume hood. When at room temperature, working in the fume hood, filter the solution through filter paper containing calcium chloride in a glass funnel to remove any water.
   3. Infiltrate samples
      Working in the fume hood, tip 100% acetone off all samples and replace it with approximately 5 ml embedding solution. Store at 4 °C in the dark for at least 3 nights before embedding.



5. Embedding the calvarial samples in methyl methacrylate
   1. When bases have set, you can embed the calvarial samples.
   2. Allow samples, embedding solution, and bases to come to room temperature in a fume hood.
   3. In a fume hood, place 15 ml fresh embedding solution on enough bases for all the calvarial samples you need to embed. Allow the bases to soften by leaving them at room temperature for about 20-30 min.
   4. In the fume hood, when base has softened, transfer bone and sample label to vials containing bases and embedding solution. Place the calvaria close to the side of the vial and orient the samples in the base with the superior side of the calvariae up. Used infiltration solution can be stored at 4 °C and used to make bases for future samples (Step C5).
   5. Place vials in a plastic flat-bottomed box with sufficient water to reach the same level as the MMA in the vials to distribute generated heat. Be sure to space vials at least 5 mm apart so that heat can dissipate. Leave at 37 °C overnight or until plastic has set.
   6. When plastic has set, place samples in freezer for 1 h.
   7. To remove glass vials from samples, place each scintillation vial into a sealed plastic bag and hit with a hammer to break the glass. Wearing thick gloves to protect fingers, remove the plastic embedded bone from the broken glass vial.



6. Preparing Fol’s coated slides
   1. In a 500 ml bottle, dissolve 6 g gelatin in 288 ml dH₂O at 60 °C; heat the water quickly in a microwave oven.
   2. Make up solution of 4 g chromium potassium sulphate in 20 ml dH₂O.
   3. Once gelatin is cool, add 120 ml 95% ethanol.
   4. Then add dissolved chromium potassium sulphate.
   5. To coat rack up slides in a slide holder/rack and dip for 30 sec per rack.
   6. Dry overnight but leave for 2 nights if placing them in boxes for use (otherwise the slides stick together).



7. Prepare Xylenol Orange Stain (see Recipes)


8. Sectioning calvarial samples
   1. On the grinder-polisher, using P60 grinding paper, grind the sample down until you have reached the surface of the bone to be sectioned. Then smooth it over with the 320 grinder paper. Grind the top and bottom of the sample so that it can be held in your microtome’s sample holder, and grind the edges for sectioning (see Figure 2C).
   2. On the microtome, using the tungsten carbide blade with 70% ethanol to float the samples, take 5-10 micron coronal sections from the midpoint of the sagittal suture and place on Fols coated slides. Once section is on the slide, use a drop of 95% ethanol to make the sample more flexible and gently stretch it along the slide to remove folds. Place a small piece of bagging plastic on top of the section, and a clean dry microscope slide on top of that. Clamp sections together (with a large bulldog clip) and bake overnight at 37 °C.
   3. The next day, remove sections from clamps, stain with xylenol orange, dehydrate, and coverslip with DePex mountant.



9. Staining calvarial samples
   While it is possible to analyse the sections without stain, the Xylenol Orange stain provides a good contrast and makes it easier to see the samples.
   1. Deplasticise in two changes of cellosolve acetate for 25 min each.
   2. Rehydrate in graded ethanols, as follows:
      100% x 3 min
      100% x 3 min
      80% x 3 min
      60% x 3 min
      Tap water x 5 min
   3. Stain sections in xylenol orange for 3 min.
   4. Rinse in dH₂O.
   5. Blot both sides of samples thoroughly.
   6. Pass sections through the following solutions in order:
      Butanol x 2
      1:1 Butanol/Toluene x 1
      Toluene x 2
   7. Coverslip with DePex.
   8. Allow to dry, sheltered from light.



10. Measuring calvarial thickness and bone formation rates, using Osteomeasure or similar image analysis software
    1. Measure coverslipped tissue sections with a 20x objective. Measure the total calvarial thickness and both single and double labelled surface on the superior side of the calvaria (the injected side). Do not measure the central 800 microns containing the sagittal suture. Measure 8-12 fields on both sides of the sagittal suture.
    2. Download bone thickness, double labelled surface, bone surface, and single labelled surface, and calculate mineral appositional rate and calvarial thickness. Since the entire surface is usually covered with double label, we usually do not calculate bone formation rate, but if your agent reduces bone formation this may be important. If any samples completely lack double calcein labelling throughout the sample, they should be excluded from analysis as this likely reflects a lack of calcein injection.

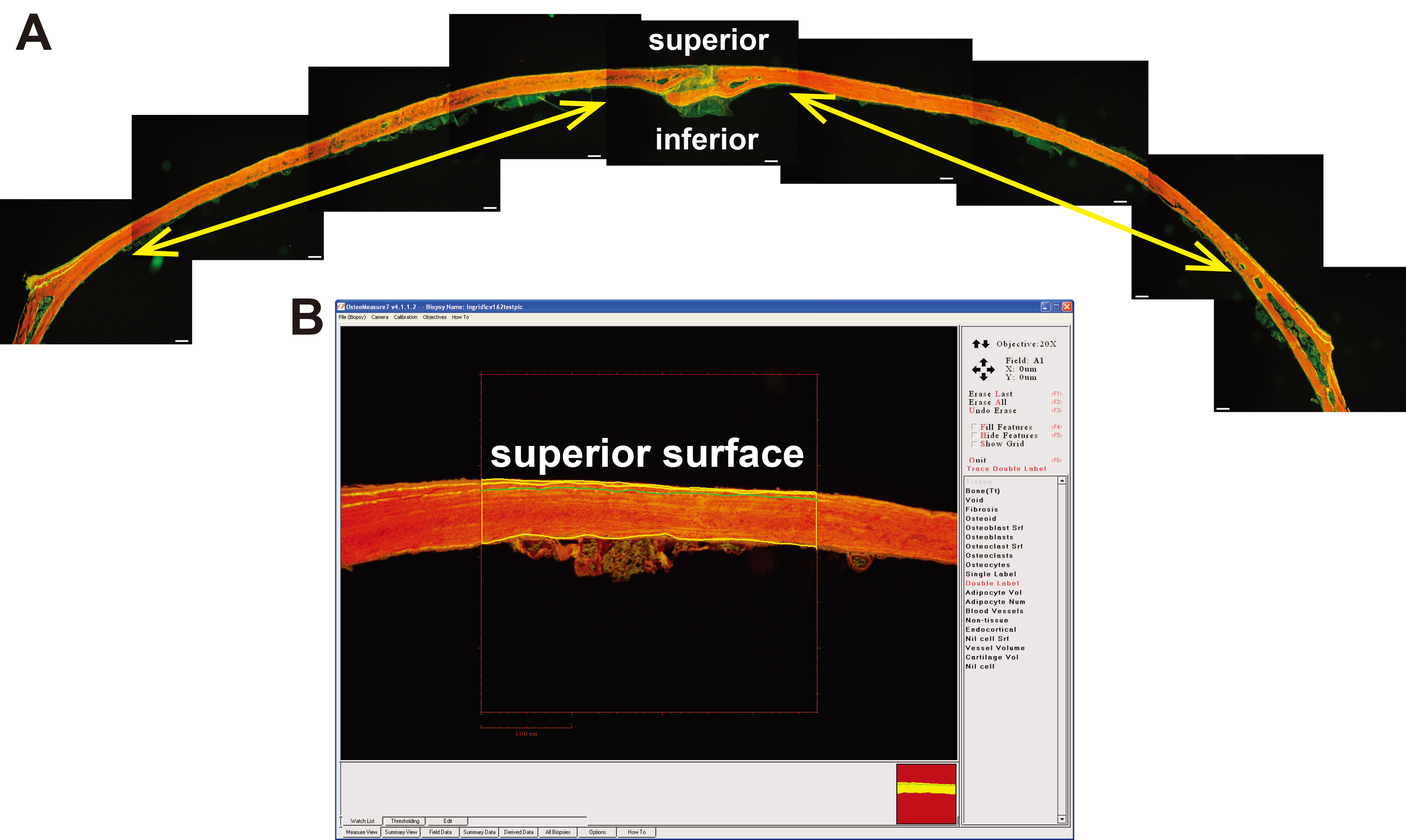

       Figure 3. Imaging and measurement of calvarial sample. A. Composite image of a single calvarial section stained with Xylenol Orange showing the calcein labels; scale bar = 50 μm. Yellow arrows show approximate region of measurement that would be used for this sample. B. Example of a sample being measured, showing measurement of double labels on the superior surface of a calvarial section.

Data analysis

Compare calvarial thickness and mineral apposition rate data between groups by one-way ANOVA to compare multiple treatment groups.

Recipes

1. Xylenol Orange Stain

   1. Make up 0.5 M Tris buffer: dissolve 6.06 g Tris in 100 ml distilled water
   2. Add 1 g Xylenol Orange
   3. Adjust pH to 9.0
   4. Store in a sealed bottle at room temperature indefinitely

Acknowledgments

The authors thank the staff of the St. Vincent’s Health Bioresources Centre for excellent animal care and assistance, and Joshua Johnson who helped in developing methods for analysis. This work was supported by NHMRC Grants 1120978 and 1058625. NAS is supported by an NHMRC Senior Research Fellowship. St Vincent’s Institute acknowledges the support of the Victorian State Government OIS program. This protocol was based on an initial study by Cornish et al. (1993).

Competing interests

The authors have no financial or non-financial competing interests.

Ethics

This protocol was approved by the St. Vincent’s Health Melbourne Animal Ethics Committee AEC#005/16 valid May 2016, December 2019.
