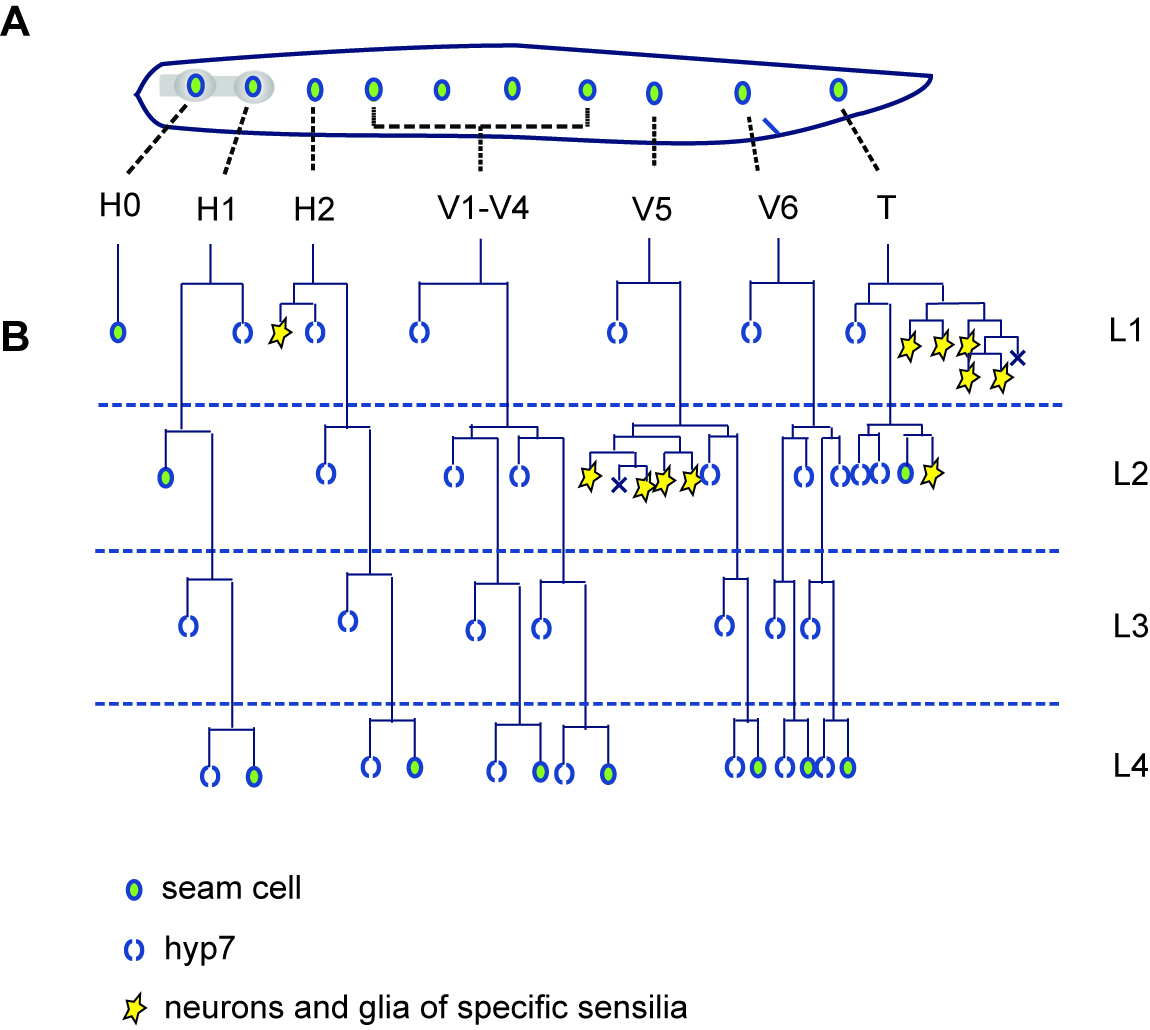

Heterochronic Phenotype Analysis of Hypodermal Seam Cells in Caenorhabditis elegans

Materials and Reagents

1. 60 mm Petri dishes (Fisher Scientific, Fisherbrand^TM, catalog number: AS4051)
2. 100 mm Petri dishes (Fisher Scientific, Fisherbrand^TM, catalog number: FB0875712)
3. Syringe Filter Unit, 0.22 μm (Millipore Sigma, Millex^®-GV, catalog number: SLGV033RS)
4. Frosted microscope slides 25 x 75 x 1.0 mm (Fisher Scientific, Fisherbrand^TM, catalog number: 12-552-3)
5. Microscopic cover glass 18 x 18 mm (Fisher Scientific, Fisherbrand^TM, catalog number: 12-542A)
6. C. elegans wild type: N2 Bristol strain from C. elegans Genetic Center
7. JR672 wIs54 [Pscm::gfp] V; wIs54 is the integration allele of the seam cell-specific transcriptional GFP reporter that is expressed in all of the seam cells at all developmental stages (Terns et al., 1997; Koh and Rothman, 2001)
8. E. coli OP50-1: streptomycin resistant strain from C. elegans Genetic Center
9. Levamisole (Sigma-Aldrich, catalog number: L9756)
10. NaCl (Fisher Scientific, Fisherbrand, catalog number: S271, CAS 7647-14-5)
11. Agar, Bacteriological, Ultrapure (Thermo Scientific, catalog number: J10906, CAS 9002-18-0)
12. Peptone (BD Bioscience, BD Bacto^TM, catalog number: 211677)
13. Calcium Chloride hexahydrate (Sigma-Aldrich, catalog number: 442909)

14. Magnesium sulfate (Sigma-Aldrich, catalog number: 208094)
15. Potassium phosphate dibasic (Sigma-Aldrich, catalog number: P3786)
16. Potassium phosphate monobasic (Sigma-Aldrich, catalog number: P0662)
17. Cholesterol (Sigma-Aldrich, catalog number: C75209)
18. Pure alcohol 200 proof (Pharmco products, catalog number: 111000200)
19. Tryptone (BD Bioscience, BD Bacto^TM, catalog number: 211705)
20. Yeast Extract (BD Bioscience, BD Bacto^TM, catalog number: 212750)
21. Nail polish
22. Nematode Growth Media (NGM) Agar (see Recipes)
23. 1 M CaCl₂ (see Recipes)
24. 0.5 M MgSO₄ (see Recipes)
25. 1 M Potassium phosphate (pH 6) (see Recipes)
26. 5 mg/ml cholesterol (see Recipes)
27. LB agar (see Recipes)
28. LB (see Recipes)
29. OP50-1 culture (see Recipes)


Equipment

1. Amsco^® Century SV-120 Scientific Prevacuum Sterilizer (STERIS)
2. 4 L flask
3. Stir bar
4. Stir plate
5. PourBoy^® 4 Sterile Media Dispenser (Tritech^TM Research)
6. Home-made cell spreader (made with glass Pasteur pipets by bent by heating, spreader size is less than 1 inch.)
7. 37 °C incubator (VWR, model: 1535)
8. Incubator Shaker (Eppendorf, New Brunswick Scientific, model: I2500, catalog number: M1284-0000)
9. 20 °C incubator for C. elegans culture (Intellus control system) (PERCIVAL, model: I-36NL)
10. A home-made worm picker with a 5¾ glass Pasteur pipet (Fisher Scientific, Fisherbrand^TM, catalog number: 13-678-6A) and a platinum wire (Scientific Instrument Services, Inc., catalog number: W414)
11. Fluorescent Stereo Microscope (Leica Microsystems, model: Leica M165FC) with Leica PLANAPO 2.0x objective lens
12. Confocal laser scanning microscopy platform (Leica Microsystems, model: Leica TCS SP8) with Leica CTR6500 electronics box


Software

1. GraphPad Prism 7.0a (GraphPad Software, Inc., www.graphpad.com)
2. Leica Application Suite Advanced Fluorescence (Leica Microsystems)


Procedure

1. Synchronize the populations and grow the worms (Figure 2A)

   1. Transfer twenty one-day-old adult worms, which have approximately ten eggs in the uterus, onto 60 mm NGM plates seeded with E. coli (OP50-1).
      Note: If your mutant of interest has smaller brood size or egg-laying defects, you may need to transfer more worms onto each plate.
   2. Make 5 replicates of plates per strain.
   3. Let them lay eggs for two hours. More than fifty eggs per plate are needed. If you have less than fifty eggs per plate, go back to Step A1 and increase the number of adult worms in each plate.
   4. Remove the adult worms.
   5. Let the offspring grow until they reach the L4 stage (~48 h) at 20 °C. The L4 stage can be distinguished by a small white crescent spot in the vulva area as well as the size of the worms (Fielenbach and Antebi, 2008).


2. Analyzing the vulva phenotypes (Figure 2B)

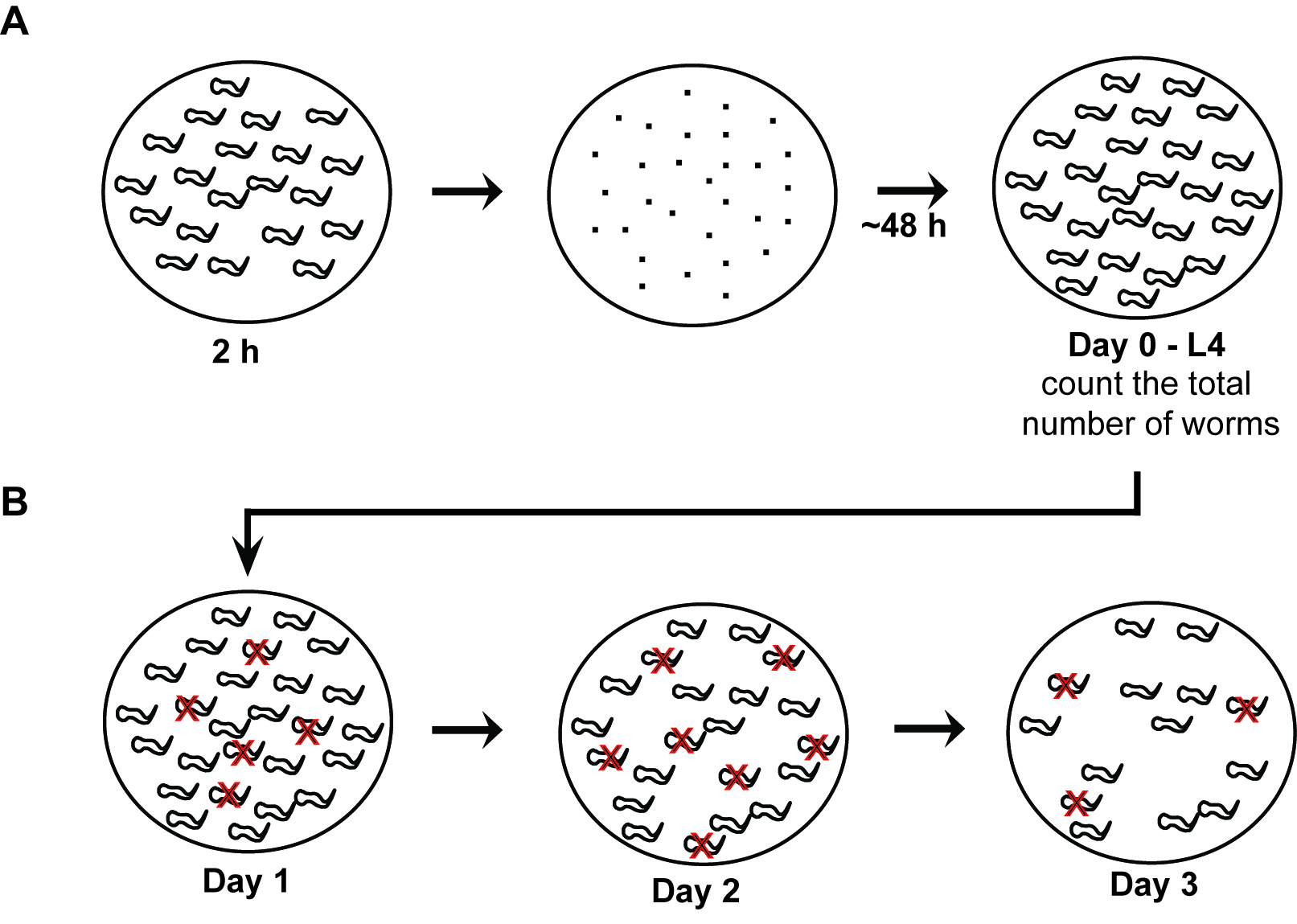

   Figure 2. The flow chart of vulva phenotype analysis. A. Synchronization of the worm population. Eggs are collected from young adult worms for two hours, then they are cultured for approximately 48 h until they reach the L4 stage. B. Analysis of vulva phenotype. Count the total number of worms on Day 0. Red X indicates the worms that show vulva phenotype. Count the worms that show the vulva defects and remove them to avoid repeated counting on following days.


   1. Count the total number of L4 worms as soon as they reach the L4 stage. Typically, each plate has approximately one hundred worms.
   2. After 24 h, censor and remove the worms that show protruded vulva or bagging. Continue with counting and censoring for 3 days.
   3. Calculate the percentages of vulva defects (Zhang et al., 2018).

Data analysis

1. More than 250 worms should be analyzed for each strain, and three independent experiments should be performed.
2. Calculate the percentage of worms having vulva defects using the following equation:




3. Enter the value into GraphPad Prism and analyze the mean with SEM and P-value with two-tailed Student’s t-test.


Procedure

1. Synchronize the worms as described above.

2. Transfer either young adult or the L3 animals to a new plate. Place ten animals per plate. Make five replicates per strain.
3. Analyze the alae phenotype. Under the stereomicroscope, focus on the upper side of each worm under the 24x objective lens. You will see the protruding ridge of the alae on the upper side of the worm from the head to the tail. Observe the alae and record whether they are intact, discontinued, or absent in each individual animal. Refer to Slack et al., 2000 for the alae phenotypes. In the adult stage, discontinued or absent alae are abnormal, while the presence of alae is abnormal at the L3 stage.
4. Count the number of worms that have intact, discontinued, or absent alae (Zhang et al., 2018).

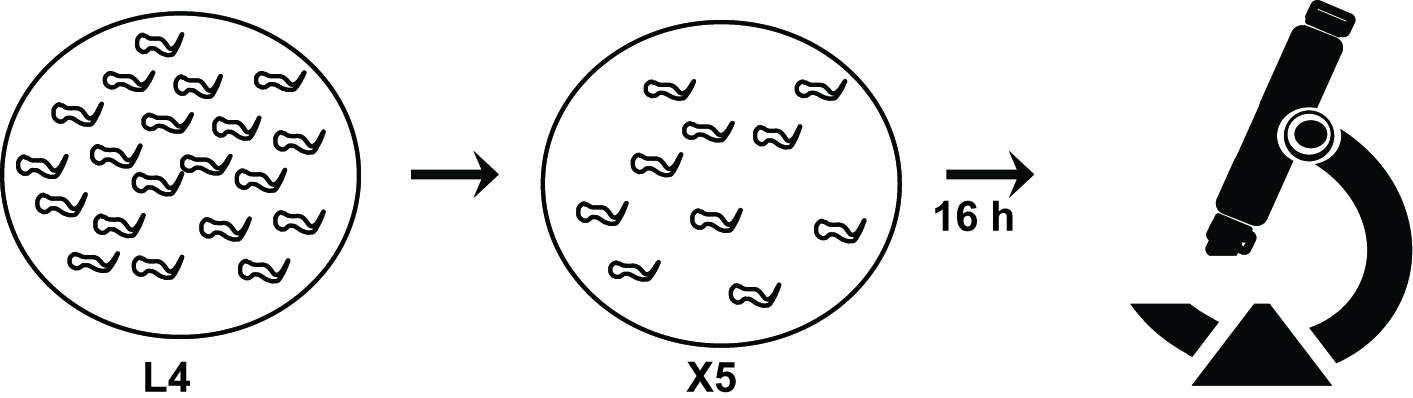

   Figure 3. The flow chart of alae phenotype analysis. When synchronized worms reach the specific stage, ten worms are transferred into the new plate and the alae phenotypes are analyzed under the microscope.


Data analysis

1. For each strain, at least 50 worms are observed and three independent experiments are performed.
2. Calculate the percentage of worms having abnormal alae.

3. Means with SEM and P-value with two-tailed Student’s t-test are calculated using GraphPad Prism.


Procedure

1. Generating the desired strains expressing Pscm::gfp using JR672 (Figure 4)

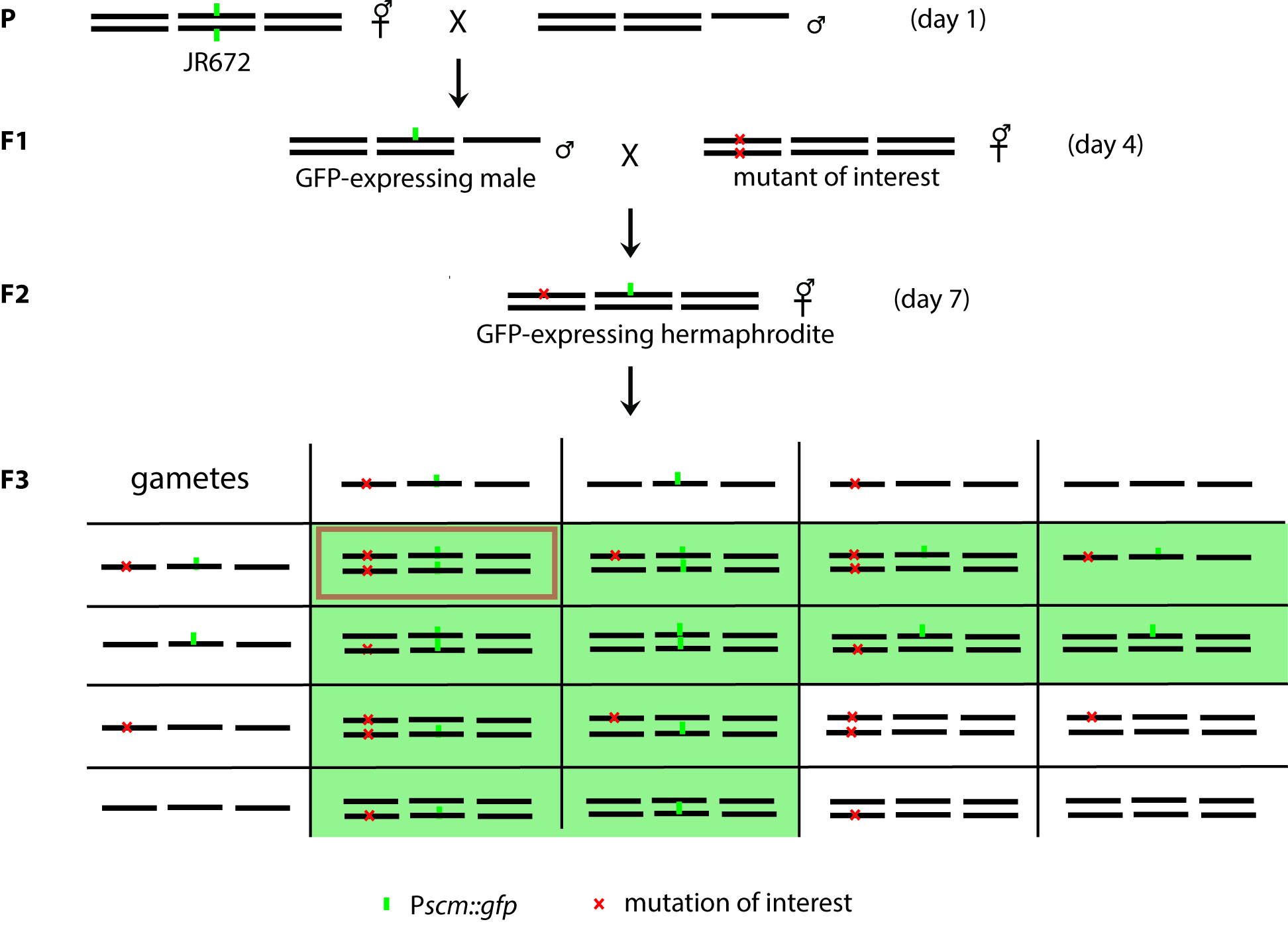

   Figure 4. Schematic diagrams of genetic crosses for Pscm::gfp expressing mutants. JR672 is crossed with wild-type males to get the GFP-expressing heterozygote males, which are mated with mutants of interests on Day 4. Then, the GFP-expressing hermaphrodites in the F2 generation are the double heterozygotes. With the Mendelian Segregation, the double heterozygotes from the F2 generation would give rise to double homozygotes with a 1/16 chance, when two mutations are not linked. However, since we select only the GFP-expressing worms, the chance for the double homozygotes is increased to 1/12. The green boxes in F3 indicate the possible genotypes of GFP-expressing worms and the red box indicates the genotype of the double mutant.


   1. Prepare NGM plates for the crosses by seeding 20 μl of OP50 in the middle of 60 mm plates. By making a small bacterial lawn, the chances of worm mating are increased.
   2. Cross hermaphrodite of the strain JR672 with N2 males. Hermaphrodite to male ratio for the crosses is usually 1:3.
   3. On Day 3, remove the parent worms to avoid mixing of two generations.
   4. On Day 4, select F1 males, which are GFP-positive heterozygote to set up a cross with hermaphrodites of your mutant of interest. Keep the hermaphrodite to male ratio 1:3.
   5. On Day 6, remove the parent worms from the plate. Now, it is expected to have only the F2 generation as larvae or eggs in the plate.
   6. On Day 7, select the hermaphrodites that express GFP in the hypodermal seam cells. There is a 50% chance to get the GFP-expressing hermaphrodites if the mating is successful. Clone out a couple of GFP-expressing hermaphrodites, one animal per seeded plate.
   7. On Day 9, remove the parent worm from the plate.
   8. On Day 10, chose one plate which has a good number of worms. Discard the rest of the plates. From the chosen plate, single out GFP-expressing worms. The chance to get the double mutant is one out of twelve if the mutation is not in the same linkage group as the GFP locus, because only the GFP-expressing worms are selected for analysis. Based on the chance to getting double mutants, select the appropriate number of F3 worms. To increase probability of getting double mutants, pick three to four times number of worms. We usually select forty worms if the mutation of interest is not linked with Pscm::gfp. Note that Pscm::gfp is located on linkage group V.
   9. On Day 12, genotype F3 worms for the mutation of interest and select the plates which have homozygotes. Check the plates that have homozygous mutants and identify the ones with all F4 animals positive for GFP expression. If desired, GFP homozygotes can be selected by PCR in F3 generation.


2. Synchronizing and preparing the worms for microscopy

   1. To obtain a synchronized population of animals, allow ten to twenty of fertile adult worms to lay eggs for two hours and let them grow until they reach the L4 stages at 20 °C as described in Part I Procedure A.
   2. Prepare the 2% agarose pads on the imaging slide as described before (Huynh et al., 2018).
   3. Place ten L4 worms in 7 μl of 10 mM levamisole on the 2% agarose pad, put a coverslip and stabilize the coverslip by painting four corners of coverslip with transparent nail polish.
   4. Under the 40x objective lens, check the GFP signals. GFP is expressed in the nuclei of hypodermal seam cells. Wild-type worms have sixteen hypodermal seam cells on each side at L4 stage (Figure 5), thus the total number of hypodermal seam cells per worm is 32. By focusing up and down, count the number of hypodermal seam cells on each side. In the tail, the focal planes of right and left hypodermal seam cells are closer than others. Thus it is easier to count the total number of hypodermal seam cells by counting one side of cells from the head to tail and the other side from tail to head.

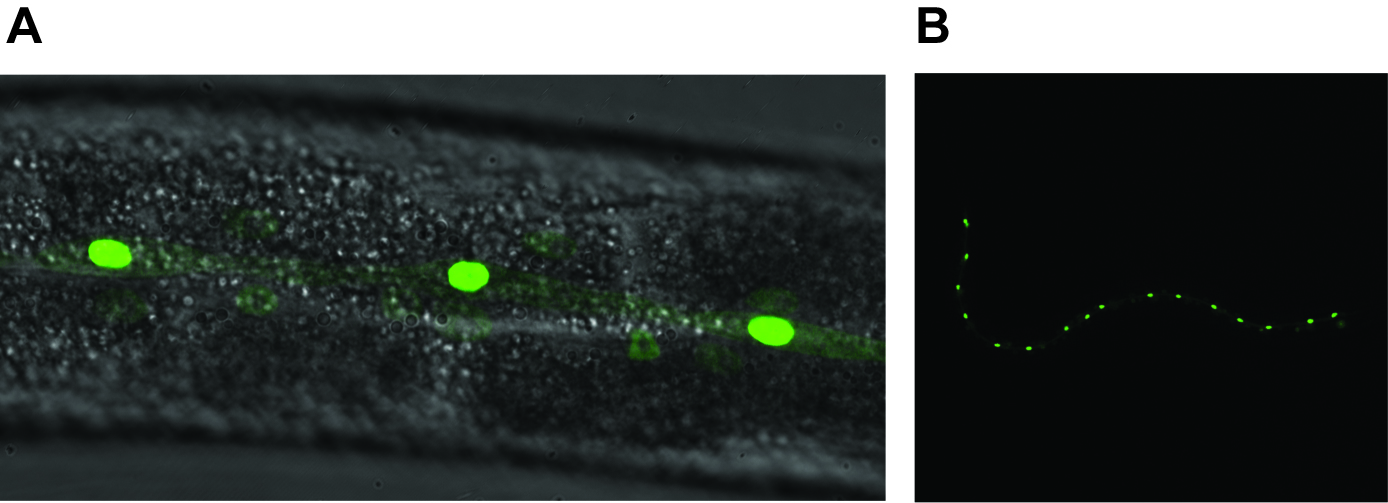

      Figure 5. GFP-expression pattern of Pscm::gfp in wild-type C. elegans. A. GFP is expressed in the nuclei of hypodermal seam cells. A 40x objective lens was used in this image. B. Sixteen hypodermal seam cells are shown in wild-type C. elegans under the 10x objective lens. The smear GFP signal is from the other side of hypodermal seam cells (Zhang et al., 2018).

Data analysis

1. Analyze at least 30 worms per strain to count the seam cells, and three independent experiments are performed.
2. Count the total numbers of hypodermal seam cells per worm and calculate the average, SEM, and P-value with two-tailed Student’s t-test using GraphPad Prism.


Notes

1. The genotype of JR672 is wIs54 [Pscm::gfp] V. Note that Pscm::gfp transgene is located on chromosome V.
2. The GFP signal is stronger in the larval stage than in adults. Thus, select the GFP-expressing worm as soon as they reached the L4 stage.


Recipes

1. Nematode Growth Media (NGM) Agar (2 L)

   1. Add the following ingredients in a 4 L flask:
      NaCl 6.0 g
      Agar, Bacteriological, Ultrapure 34 g
      Bacto peptone 5 g
      dH₂O 1,950 ml
      Note: Worms do not grow well on plates prepared with agar of lower grade.
   2. Add a stir bar and mix well. Leave the stir bar inside of the flask
   3. Prepare 1 L of dH₂O to wash the tubes for PourBoy^® 4 Sterile Media Dispenser, and wrap the tubes with aluminum foil
   4. Autoclave NGM, dH₂O and the tubes for PourBoy^® 4 Sterile Media Dispenser using liquid 45 min cycle in Amsco^® Century SV-120 Scientific Prevacuum Sterilizer
   5. Cool down the NGM on the stir plate until it reaches approximately 55 °C. Meanwhile, prepare 200 of 60 mm Petri-dishes
   6. Once NGM cools down, add the following ingredients:
      2 ml of 1 M CaCl₂
      4 ml of 0.5 M MgSO₄
      50 ml of Potassium Phosphate (pH 6) and 2 ml Cholesterol (5 mg/ml in ethanol)
   7. Mix well by stirring. It is okay that NGM turns cloudy
   8. Dispense 10 ml of NGM into 60 mm Petri-dish using PourBoy^® 4 Sterile Media Dispenser. The NGM plates are dried for a couple of days at RT
   9. Seed OP50-1 as a food source for C. elegans. Add approximately 100 μl of OP50-1 in each plate and spread the bacteria using a home-made cell spreader to make a small circle of bacterial lawn. The bacterial lawn should not touch the edge of the plate. Then, culture the OP50-1 overnight at RT
2. 1 M CaCl₂

   1. Dissolve 21.9 g of Calcium chloride hexahydrate (CaCl₂•6H₂O) in 90 ml dH₂O
   2. Once it is dissolved, add more dH₂O to make 100 ml of 1 M CaCl₂
   3. Sterilize it by filtering using 0.22 μm filter units
3. 0.5 M MgSO₄

   1. Dissolve 12.03 g of Magnesium sulfate (MgSO₄) in 90 ml dH₂O
   2. Once it is dissolved, add more dH₂O to make 100 ml of 0.5 M MgSO₄
   3. Autoclave it with a liquid 45 min cycle in Amsco^® Century SV-120 Scientific Prevacuum Sterilizer
4. 1 M Potassium phosphate (pH 6)

   1. Prepare 100 ml of 1 M K₂HPO₄ by dissolving 17.42 g of potassium phosphate dibasic in dH₂O
   2. Prepare 100 ml of 1 M KH₂PO₄ by dissolving 13.61 g of potassium phosphate monobasic in dH₂O
   3. Take 13.2 ml of 1 M K₂HPO₄ and add 86.8 ml of 1 M KH₂PO₄ to make 1 M Potassium phosphate
   4. Autoclave 1 M potassium phosphate with a liquid 45 min cycle in Amsco^® Century SV-120 Scientific Prevacuum Sterilizer
5. 5 mg/ml cholesterol
   Dissolve 0.5 g of cholesterol in 100 ml of ethanol
6. LB agar

   1. Add the following ingredients:
      NaCl 2.5 g
      Tryptone 2.5 g
      Yeast Extract 1.25 g
      Agar 3.75 g
      dH₂O up to 250 ml
   2. Mix well with a stir bar and autoclave with a liquid 45 min cycle
   3. Cool it down to 55 °C and add 250 μl of 50 mg/ml streptomycin
   4. Stir it on the stir plate and pour into 100 mm Petri-dish
   5. Dry the plates on the bench overnight
7. LB

   1. Add the following ingredients:
      NaCl 10 g
      Tryptone 10 g
      Yeast Extract 5 g
      dH₂O up to 1 L
   2. Dissolve by stirring and autoclave with a liquid 45 min cycle
8. OP50-1 culture

   1. Streak OP50-1 on the LB agar plate containing streptomycin
   2. Culture OP50-1 in 37 °C incubator overnight
   3. Pick one colony of OP50-1 from the LB agar plate and culture in 20 ml of LB containing streptomycin at the final concentration of 50 μg/ml at 37 °C shaking incubator overnight

Acknowledgments

This work was supported by grants from NIH (NS074324, NS089616), The Robert Packard Center for ALS Research at Johns Hopkins, The ALS Association, and The Muscular Dystrophy Association.

Competing interests

The authors have no conflicts of interest or competing interests to declare.
