Binding Assay of Cytosolic Proteins to the Cytoskeleton

Materials and Reagents

1. Ethylene glycol-bis(2-aminoethylether)-N,N,N’,N’-tetraacetic acid (EGTA) (≥ 97.0%) (Sigma-Aldrich, catalog number: E3889 )

2. Guanosine 5’-triphosphate sodium salt hydrate (GTP) (≥ 95%) (Sigma-Aldrich, catalog number: G8877 )

3. DL-Dithiothreitol (DTT) (≥ 99.0%) (Sigma-Aldrich, catalog number: 43819 )

4. Adenosine 5’-triphosphate magnesium salt (ATP) (95-98%) (Sigma-Aldrich, catalog number: A0770 )

5. PIPES disodium salt (≥ 99%) (Sigma-Aldrich, catalog number: P3768 )

6. Glycerol (≥ 99%) (Sigma-Aldrich, catalog number: G5516 )

7. MgCl₂ (≥ 98%) (anhydrous) (Sigma-Aldrich, catalog number: M8266 )

8. Sucrose (≥ 99.5%) (Sigma-Aldrich, catalog number: S9378 )

9. Taxol (Paclitaxel from Taxus brevifolia) (≥ 95%) (Sigma-Aldrich, catalog number: T7402 )

10. Bovine Tubulin (lyophilized, > 99% pure) (CYTOSKELETON, catalog number: TL238-B )

11. Actin protein from rabbit skeletal muscle (lyophilized, > 99% pure) (CYTOSKELETON, catalog number: AKL99 )

12. 2D Quant Kit (General Electric Company) or Bradford Protein Assay kit (Bio-Rad Laboratories)

13. Tubulin Dilution Buffer (TDB) (see Recipes)

14. Glycerol buffer (GB) (see Recipes)

15. “Sucrose cushion” buffer (SC) (see Recipes)

16. General actin buffer (A-buffer) (see Recipes)

17. Polymerization Inducer (PI) (see Recipes)

18. Cushion buffer for F-actin (see Recipes)


Equipment

1. Apparatus for the lysis of cells and tissues (the type of apparatus for cell lysis depends on the cellular system with which one is working; animal cells can be lysed easily while plant cells, because of the presence of the cell wall, require more energetic methods such as freezing under liquid nitrogen and powdering with pestle and mortar. It is therefore not possible to give precise indications but we prefer to leave the choice to individual operators.)

2. Electrophoretic apparatus (Mini-PROTEAN^® II Electrophoresis Cell) (Bio-Rad Laboratories)

3. Ultracentrifuge (Beckman Coulter, model: Optima LE-80 K) equipped with a 70 Ti fixed-angle rotor and adapters for 4-ml polyallomer tubes

4. Bio-Rad Mini-Trans-Blot Cell Apparatus (optional)


Software

1. ImageJ or Bio-Rad Quantity One

Procedure

1. Microtubule binding assay
   1. Preparation of the soluble (cytoplasmic) extract
      1. This step necessarily depends on the cells or tissues on which one is working. In theory, soft tissues (such as animal tissues) can be lysed directly in the lysis buffer using either plastic Eppendorf pestles or an Ultra-Turrax homogenizer in case of complex tissues. For plant cells, it is preferable to freeze the tissue of interest under liquid nitrogen and then grind it with pestle and mortar. After the tissue was completely powdered, the liquid nitrogen is allowed to evaporate. The tissue powder is moved to a suitable tube, like eppendorf tubes or 15-ml conical tubes (depending on the amount of starting material). The lysis buffer is added and the sample is incubated at 4 °C or on ice for 15 min with gentle agitation. At the end, the sample is centrifuged at high speed (> 100,000 x g) for pelleting cellular debris and for getting cytosolic proteins in the supernatant. Although the extract of soluble proteins can be frozen under liquid nitrogen and stored at -80 °C, we always prefer to work with fresh material because it is difficult to estimate the temporal stability of the extract. The composition of lysis buffer may be adjusted from species to species, please refer to the literature on the specific tissue in order to determine the best lysis buffer.

      2. Determine protein concentration of the cytoplasmic extract in order to mix known protein quantities. Several commercial kits are available for determination of protein concentration (such as the 2D Quant Kit or the Bradford Protein Assay kit). Always take an aliquot for electrophoresis.

   2. Preparation of microtubules
      1. Thaw one aliquot of lyophilized tubulin (animal or plant source, 1 mg), then add 200 μl of TDB so that the final concentration is 5 mg/ml.

      2. Add 25 μl of GB and incubate at 35 °C for 20 min.

      3. Mix 1.8 ml of TDB with 81 μl of 500 μM taxol (TDB-T). Incubate at 35 °C for 15-20 min in such a way that the temperature of the taxol solution is the same of tubulin.

      4. At the end of incubation, add 1.8 ml of TDB-T to 225 μl of the tubulin sample. Mix gently. Tubulin is now in a final volume of ≈ 2 ml at a concentration of 0.5 mg/ml.

      5. Prepare additional TDB-T by mixing 1.8 ml of TDB with 81 μl of 500 μM taxol.

   3. Preparing the binding mix.
      Mix the cytosolic extract (in variable amounts, for example from 0 to 40 microliters, in order to work with a range of 10-100 micrograms of protein) with a constant volume of the microtubule sample (40 microliters). Use the remaining volume for the addition of other substances (i.e. inhibitors), and then adjust the volume to 100 microliters with TDB-T buffer. Volumes can be increased correspondingly to accommodate for different rotors and tubes.

   4. Incubate the samples at room temperature for 30 min.
      The test temperature can be adjusted if it is a variable examined in the experiment.
   5. Separation of cytoskeletal filaments
      1. Centrifuge the samples at 100,000 x g for 40 min at 20 °C over 0.5 ml of sucrose cushion buffer.

      2. After centrifugation, the supernatant is located above the sucrose cushion and may therefore be removed with a pipette without touching the sucrose cushion. Process the supernatants for electrophoresis.

      3. Resuspend the pellets directly into a denaturing buffer suitable for electrophoretic analysis (e.g. Laemmli buffer) (max. 100 microliters).

   6. Analysis
      Test individual fractions (supernatants and pellets) by electrophoresis (SDS-PAGE) and possibly by western blot, the latter being required to identify specifically and to quantify the protein of interest.


2. Actin filament binding assay
   1. Preparation of cell lysate
      1. It depends on the particular tissue or cells on which one is working. See the previous protocol for more details.

      2. Determine the protein concentration of samples using commercial kits (such as the 2D Quant Kit or the Bradford Protein Assay kit) and always collect one aliquot for electrophoresis.

   2. Preparation of actin filaments
      1. Thaw one aliquot of lyophilized actin (animal or plant sources, 1 mg).

      2. Dilute the actin to a concentration of 10 mg/ml by adding 100 μl of A-buffer. Remove solution from the tube (usually an Eppendorf tube) and place in 5-ml or 15-ml tubes.

      3. Dilute the actin at a concentration of 0.4 mg/ml with A-buffer (100 μl of actin + 2.4 ml of A-buffer). Incubate on ice for 1 h (agitation is not required).

      4. Add the Polymerization Inducer 1x final: 2.25 ml + 0.25 ml of actin Polymerization Inducer 10x. Incubate at room temperature for 1 h.

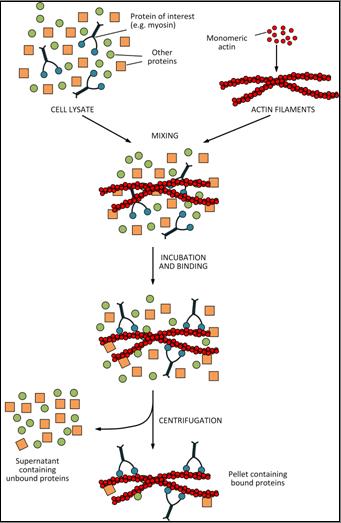

   3. Preparing the binding mix.
      Mix the cytosolic extract (in variable amounts, for example from 0 to 40 microliters, in order to work with a range of 10-100 micrograms of protein) with a constant volume of the actin filament sample (50 microliters). Use the remaining volume for the addition of other substances (i.e. inhibitors), and then adjust the volume to 100 microliters with the A-buffer/Polymerization Inducer mix (which is the same buffer of the actin solution). Volumes can be increased correspondingly to accommodate for different rotors and tubes.

   4. Incubate samples at room temperature for 30-60 min.
      The test temperature can be adjusted if it is a variable examined in the experiment.

   5. Separation of cytoskeletal filaments
      1. Centrifuge samples at 150,000 x g for 60-90 min at 20 °C over 0.5 ml of the cushion buffer for F-actin.

      2. Take the supernatants and process them for electrophoresis.

      3. Resuspend the pellets in 100 μl of a denaturing buffer suitable for electrophoretic analysis (e.g. Laemmli buffer).

   6. Analysis

      1. Test individual fractions (supernatants and pellets) by electrophoresis (SDS-PAGE) and possibly by western blot, the latter being required to identify specifically and to quantify the protein of interest (Figure 1).

      2. In both cases, the relative quantification of bands after western blot analysis can be performed using image acquisition systems and specific software (free like ImageJ or paid such as the Bio-Rad Quantity One).

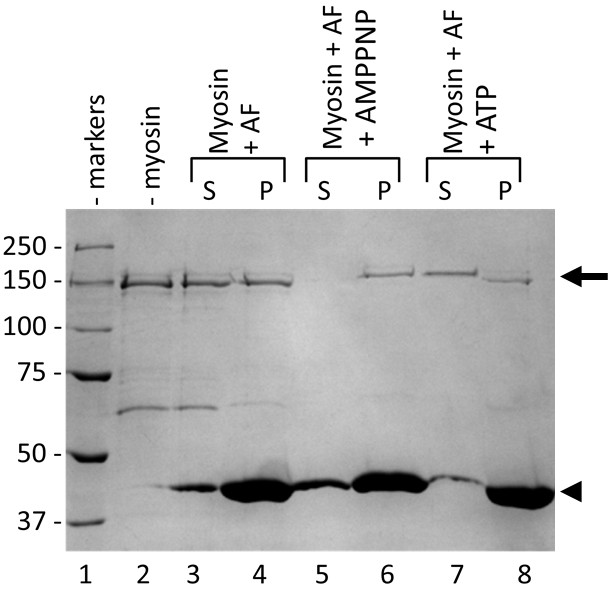

         Figure 1. Example of binding analysis with actin filaments. Specifically, the protein myosin from rabbit skeletal muscle (arrow) was incubated with filamentous actin (arrowhead). S and P indicate the supernatants and pellets, respectively. Lane 1, molecular weight standard, the value of which is indicated by numbers on the left. Lane 2, myosin (commercially available). Lanes 3-4, supernatant and pellet obtained after incubation of myosin with actin filaments. Lanes 5-6, supernatant and pellet obtained after incubation of myosin with actin filaments in the presence of 5′-adenylyl-β,γ-imidodiphosphate (AMPPNP, a non-hydrolyzable analogue of ATP). Lanes 7-8, supernatant and pellet obtained after incubation of myosin with actin filaments in the presence of ATP. Note that myosin binds weakly in the presence of ATP but very strongly in the presence of AMPPNP.


Recipes

1. Tubulin Dilution Buffer (TDB)
   80 mM Pipes, pH 6.8
   1 mM EGTA
   1 mM MgCl₂
   2 mM GTP

2. Glycerol buffer (GB)
   80 mM Pipes, pH 6.8
   1 mM EGTA
   1 mM MgCl₂
   60% (w/v) glycerol

3. “Sucrose cushion” buffer (SC)
   80 mM Pipes, pH 6.8
   1 mM EGTA
   1 mM MgCl₂
   10% (w/v) sucrose
   20 μM taxol

4. General actin buffer (A-buffer)
   5 mM Tris-HCl pH 8.0
   0.2 mM CaCl₂
   0.2 mM ATP
   0.5 mM DTT

5. 10x Polymerization Inducer (PI)
   500 mM KCl
   20 mM MgCl₂
   10 mM ATP

6. Cushion buffer for F-actin
   5 mM Tris-HCI pH 8.0
   2 mM MgCl₂
   50 mM KCl
   10% (v/v) glycerol


Acknowledgments

The protocol was adapted from a previously published paper: Del Duca et al. (2013). The work was supported by PRIN 2007 (grant no. 2007RZCW5S_003) and PRIN 2008 (grant no. 2008BK7RXB), funded by the Italian Ministry of University and Research, and by Bologna University (RFO 2010 [grant no. RFO10DELDU] and RFO 2011 [grant no. RFO11DELDU]) to S.D.D.

References

1. Cai, G., Faleri, C., Del Casino, C., Emons, A. M. and Cresti, M. (2011). Distribution of callose synthase, cellulose synthase, and sucrose synthase in tobacco pollen tube is controlled in dissimilar ways by actin filaments and microtubules. Plant Physiol 155(3): 1169-1190.

2. Del Duca, S., Faleri, C., Iorio, R. A., Cresti, M., Serafini-Fracassini, D. and Cai, G. (2013). Distribution of transglutaminase in pear pollen tubes in relation to cytoskeleton and membrane dynamics. Plant Physiol 161(4): 1706-1721.
3. Del Duca, S., Serafini-Fracassini, D., Bonner, P., Cresti, M. and Cai, G. (2009). Effects of post-translational modifications catalysed by pollen transglutaminase on the functional properties of microtubules and actin filaments. Biochem J 418(3): 651-664.
