Optical Tissue Clearing and Small-Molecule Labeling of Paraffin-Embedded Breast Cancer and Axillary Lymph Node Human Tissue Samples

Materials and reagents

Biological materials

1. Human breast cancer samples of surgical specimens of the primary tumor site within the breast, preserved as FFPE tissue blocks, obtained from the Pathology Department of Maastricht University Medical Center+

2. Human lymph node samples of surgical specimens from breast cancer patients undergoing axillary surgery, preserved as FFPE tissue blocks, obtained from the Pathology Department of Maastricht University Medical Center+

Note: After the clearing process, tissue samples are stored in ethyl cinnamate in Falcon tubes at room temperature (RT) until imaging or in the cold room at 4 °C for longer storage.

Reagents

1. Liquid paraffin (histological grade) (Carl Roth, catalog number: 9190.1)

2. Xylene (Laboratorium Discounter, catalog number: XY834.1)

3. Ethanol, absolute (100%) (Carl Roth, catalog number: t913.2)

4. Methanol, absolute (100%) (Carl Roth, catalog number: 4627.4)

5. Milli-Q water

6. Phosphate-buffered saline (PBS), 0.1 M (Carl Roth, catalog number: 9143.2)

7. Thymol (Carl Roth, catalog number: 5391.1)

8. Triton^TM X-100 (octylphenol ethoxylate) (Sigma-Aldrich, catalog number: X100)

9. 30% hydrogen peroxide (H₂O₂) (Carl Roth, catalog number: cp26.1)

10. Potassium disulfite (K₂S₂O₅) (Carl Roth, catalog number: 7995.1)

11. Disodium hydrogen phosphate dihydrate (Na₂HPO₄·2H₂O) (Carl Roth, catalog number: 27ke.1)

12. Citric acid monohydrate (C₆H₈O₇·H₂O) (Carl Roth, catalog number: 3958.2)

13. Neutral Red (NR) (Carl Roth, catalog number: T122.3)

14. Methyl Green (MG) (Sigma-Aldrich, catalog number: M8884)

15. Eosin Y (Morphisto, catalog number: 12199.00100)

16. 4′,6-Diamidino-2-phenylindole (DAPI) stock (1 mg/mL) (Carl Roth, catalog number: 6843.3)

17. Dichloromethane (DCM) (Carl Roth, catalog number: 8424.2)

18. Ethyl cinnamate (ECi) (Sigma-Aldrich, catalog number: 112372)

19. Chloroform (trichloromethane) (Carl Roth, catalog number: 6340.1)

Solutions

1. 50% (v/v) ethanol (see Recipes)

2. 70% (v/v) ethanol (see Recipes)

3. 20% (v/v) methanol (see Recipes)

4. 40% (v/v) methanol (see Recipes)

5. 50% (v/v) methanol (see Recipes)

6. 60% (v/v) methanol (see Recipes)

7. 80% (v/v) methanol (see Recipes)

8. 5% (v/v) hydrogen peroxide (H₂O₂) (see Recipes)

9. 50% (w/w) potassium disulfite solution (see Recipes)

10. McIlvaine buffer (phosphate-citrate buffer), pH 4.0 (see Recipes)

11. NR stock solution, 0.1% (w/v) (see Recipes)

12. MG stock solution, 4% (w/v) (see Recipes)

13. DAPI stock solution, 1 mg/mL (v/v) (see Recipes)

14. Dichloromethane:methanol (DCM) (2:1, v/v) (see Recipes)

15. 0.1 M PBS + 0.2% (v/v) Triton X-100 (see Recipes)

Recipes

See General note 1.

1. 50% (v/v) ethanol

First, measure absolute ethanol (100%) using a graduated cylinder and dilute with Milli-Q water to the final volume. Then, mix thoroughly by gentle agitation. Prepare at the laboratory bench, away from ignition sources, due to ethanol flammability. Store absolute ethanol and all ethanol dilutions at RT in tightly closed, clearly labeled containers in a flammable-liquids storage cabinet, according to institutional safety regulations. Keep containers away from heat sources and open flames.

2. 70% (v/v) ethanol

3. 20% (v/v) methanol

First, measure absolute methanol (100%) using a graduated cylinder and dilute with Milli-Q water to the final volume. Then, mix thoroughly by gentle agitation. Prepare in a chemical fume hood due to methanol toxicity and volatility. Store absolute methanol and all methanol dilutions at RT in tightly closed, clearly labeled containers in a flammable-liquids storage cabinet, according to institutional safety regulations. Due to methanol toxicity and volatility, ensure containers are clearly labeled and minimize opening time during use.

4. 40% (v/v) methanol

5. 50% (v/v) methanol

6. 60% (v/v) methanol

7. 80% (v/v) methanol

8. 5% (v/v) H₂O₂

To prepare a 5% (v/v) hydrogen peroxide solution, measure the required volume of 30% stock using a volumetric pipette and dilute in pre-cooled methanol. Add hydrogen peroxide slowly to the methanol while gently mixing by agitation. Prepare the solution in a chemical fume hood due to the strong oxidative properties of hydrogen peroxide and the potential release of oxygen gas. Protect the solution from light at all times. Prepare the diluted hydrogen peroxide solution immediately prior to use. It is not advised to store diluted solutions, as hydrogen peroxide rapidly decomposes upon dilution and light exposure. Store 30% (v/v) hydrogen peroxide stock at 4 °C in its original, vented, light-protected container, according to the manufacturer’s instructions.

9. 50% (w/v) potassium disulfite solution

First, weigh K₂S₂O₅ using an analytical balance and then add Milli-Q water until just before the final volume. Stir with a magnetic stir while heating the solution up to approximately 60–70 °C. When dissolved, add the remaining Milli-Q to the final volume. Please note that the solution is oversaturated and the salt will precipitate again over time. Avoid inhalation of dust. Store at RT in a tightly sealed glass container. Directly before use, it is advised to stir the solution and heat it up on a magnet stirrer to dissolve the precipitate. This is followed by filtering the clear dissolved solution.

10. McIlvaine buffer (phosphate-citrate buffer), pH 4.0

Prepare 0.2 M Na₂HPO₄ and 0.1 M citric acid stock solutions separately by weighing salts on an analytical balance and dissolving them in Milli-Q water to the required volumes by mixing on a magnetic stir. Combine the two solutions in the specified ratio to achieve pH 4.0 and mix thoroughly. Prepare at the laboratory bench. Store the buffer at 4 °C.

See General note 2.

Step 1. 0.2 M Na₂HPO₄ stock solution

Step 2. 0.1 M C₆H₈O₇·H₂O stock solution

Step 3. Final phosphate-citrate buffer

11. NR stock solution, 0.1% (w/v)

First, prepare a 0.1% (0.1 mg/mL) stock solution by weighing NR using an analytical balance and dissolving it in McIlvaine buffer (pH 4.0). Mix gently until fully dissolved. Dilute the stock dilution 1:100 in McIlvaine buffer (pH 4.0) to obtain the final 0.001% working concentration. Prepare at the laboratory bench under reduced light conditions. Protect from light and store at 4 °C. Store NR powder at RT in a tightly closed container, protected from light and moisture. See General note 3.

12. MG stock solution, 4% (w/v)

First, prepare a highly concentrated 4% MG aqueous stock solution according to [13]. Remove crystal violet impurities by extractions with chloroform in a separation funnel, thereby discarding the lower (violet) phase until the lower chloroform phase no longer contains the violet color. Dilute the stock solution 1:5,000 in McIlvaine buffer (pH 4.0). Prepare at the laboratory bench under reduced light conditions. Protect from light and store at 4 °C. Store MG powder at RT in a tightly sealed container, protected from light and humidity. See General note 3.

13. DAPI stock solution, 1 mg/mL (v/v)

First, prepare a 1 mg/mL stock solution by weighing DAPI using an analytical balance and dissolving it in McIlvaine buffer (pH 4.0). Mix gently until fully dissolved and minimize light exposure. Store DAPI stock solutions at -20 °C, protected from light, according to the manufacturer’s instructions. Dilute the DAPI stock solution 1:1,000 in McIlvaine buffer (pH 4.0) to obtain the final 1 μg/mL working solution. Prepare at the laboratory bench immediately prior to use. See General note 3.

14. DCM (2:1, v/v)

Measure DCM and methanol using glass graduated cylinders and combine in a 2:1 (v/v) ratio. It is advised to prepare this strictly in a chemical fume hood due to the high volatility and toxicity of both dichloromethane and methanol. Stir until the inhomogeneities disappear. Store dichloromethane in tightly closed, chemically compatible containers at RT in a dedicated halogenated-solvent storage cabinet, separate from flammable solvents. Ensure containers are clearly labeled and kept away from heat sources. See General notes 4 and 5.

15. 0.1 M PBS + 0.2% (v/v) Triton X-100

Prepare 0.1 M PBS using MilliQ water. Triton X-100 is highly viscous, which can complicate pipetting. To facilitate handling, the end of the pipette tip may be cut. Solutions containing Triton X-100 should not be shaken; instead, gently stir and allow the detergent to dissolve passively, which may take up to 1 h.

Laboratory supplies

1. Glass containers, 100, 250, and 500 mL

2. Glass Petri dish

3. Beakers, 50 and 200 mL

4. Erlenmeyer flask, 50 mL

5. Graduated cylinders, 25, 50, 100, 250, and 500 mL

6. 50 mL Falcon tubes

7. Six-well cell culture plates

8. Pipettes, 0.2, 1, and 5 mL, with compatible pipette tips

9. Forceps

10. Filter paper

11. Funnel

12. Millimeter paper

13. Nitrile gloves

Equipment

1. Water bath, set to 60 °C (Gesellschaft für Labortechnik mbH, model: 1002)

2. Fume hood (Vinitex Laboratoriuminrichtingen B.V., model: L1K1-GR+51)

3. Chemical waste disposal system (institutional facility)

4. Orbital shaker (Polymax, model: 1040)

5. Cold room or refrigerated storage, 4 °C

6. Analytical balance (Mettler Toledo, model: PG2002-S DeltaRange)

7. Magnetic stirrer (Framo®-Gerätetechnik, model: M21/1)

8. Led-light pad (optional) (Crafts & Co, Karsten International, catalog number: 973)

9. Two-photon (2P) laser scanning microscope (Leica TCS SP5 MP, Leica Mikrosysteme Vertrieb GmbH)

10. UltraMicroscope II light-sheet microscope (La Vision Biotech, Miltenyi)

Software and datasets

1. Leica Application Suite Advanced Fluorescence (Leica Microsystems), for Leica 2-photon microscopy data

2. Imaris Biplane 11.0, for 2-photon microscopy and LSFM 3D volume data

3. FIJI (open-source Bio-image analysis software)

Procedure

Note: See General notes 6 and 7.

A. Deparaffinization of human FFPE breast and lymph node samples

1. Place each FFPE tissue sample in 50 mL of liquid paraffin in a glass container.

2. Incubate samples for 24–48 h in a water bath preheated to 60 °C until the paraffin is dissolved. The exact duration depends on paraffin thickness, so checking regularly is advised.

3. Transfer samples to a glass container containing 50 mL of xylene and incubate at RT on an orbital shaker (30 rpm) for 1 h.

4. Replace the xylene with fresh 50 mL of xylene and incubate for an additional 1 h at RT on a shaker (30 rpm).

5. Replace the xylene once more with fresh 50 mL of xylene and incubate overnight at RT on a shaker (30 rpm).

See General note 8.

6. Rehydrate samples by sequential incubation in 50 mL of ethanol solutions (see Recipes 1 and 2) prepared in distilled water, each for 1 h at RT on a shaker (30 rpm), using glass containers throughout, in the following order: 100% ethanol (twice), 70% ethanol, and 50% ethanol.

7. For overnight storage, incubate samples in 50 mL of 0.1 M PBS in a glass container at RT to ensure efficient and even equilibration on a shaker (30 rpm).

See General note 9.

B. Clearing and labeling of deparaffinized human breast and lymph node samples

B1. Methanol pretreatment and bleaching

1. Transfer samples to the six-well plates.

2. Dehydrate samples by sequential incubation in 8 mL of ascending methanol concentrations (see Recipes 3, 4, 6, and 7) prepared in distilled water, each for 1 h at RT on a shaker (30 rpm), as follows: 20% methanol, 40% methanol, 60% methanol, and 80% methanol.

3. Incubate samples in 8 mL of 100% methanol for 1 h at RT on a shaker (30 rpm) to maximize the dehydration step. Next, transfer the samples in fresh 100% methanol to the cold room for 1 h to stabilize the tissue before the oxidative bleaching (again, shake at 30 rpm).

4. Prepare a fresh 5% H₂O₂ solution (see Recipe 8).

5. Bleach samples overnight at 4 °C on a shaker (30 rpm) in 8 mL per sample of 5% H₂O₂ solution.

6. Allow samples to re-equilibrate to RT.

7. Rehydrate samples through descending methanol concentrations, each for 1 h at RT on a shaker (30 rpm), as follows: 60% methanol, 40% methanol, and 20% methanol.

8. Complete the methanol removal with a detergent-mediated 1-h incubation with 8 mL per sample of 0.1 M PBS containing 0.2% (v/v) Triton X-100 (pH 7.4) (see Recipe 15), followed by overnight incubation in a fresh solution, both at RT on a shaker (30 rpm).

B2. Labeling with small molecule dyes

1. Incubate samples in 8 mL of freshly filtered 50% (w/v) potassium disulfite solution (see Recipe 9) for 1 h at RT on a shaker (30 rpm).

See General notes 10 and 11.

2. Rinse samples five times briefly with distilled water.

3. Incubate samples in 8 mL of distilled water for 1 h at RT on a shaker (30 rpm).

4. Prepare the following staining solutions in phosphate-citrate buffer (McIlvaine buffer, pH 4.0) (see Recipe 10):

a. 0.001% Neutral Red → dilute the 0.1% stock solution 1:100 (see Recipe 11).

b. 0.00025% Methyl Green → dilute the 4% stock solution 1:5,000 (see Recipe 12).

c. 0.00025% eosin Y → dilute the commercial 0.5% stock solution 1:2,000.

d. 1 μg/mL DAPI → dilute the stock solution of 1 mg/mL 1:1,000 (see Recipe 13).

5. Incubate samples in 8 mL per sample of the selected dye solution for 4 days at RT on a shaker (30 rpm).

See General note 12.

6. Flip samples halfway through the incubation period to ensure uniform staining.

B3. Clearing and refractive index matching with ECi

1. Wash samples twice in 8 mL of McIlvaine buffer (pH 4.0) for 1 h each at RT on a shaker (30 rpm).

2. Dehydrate samples through ascending methanol concentrations prepared in distilled water, each for 1 h at RT on a shaker (30 rpm), as follows: 20% methanol, 50% methanol (see Recipe 5), 80% methanol, and 100% methanol (twice).

3. Transfer samples to 50 mL conical centrifuge tubes (Falcon tubes).

4. Incubate samples overnight in 33% methanol/66% DCM (v/v) (see Recipe 14) at RT on a shaker (30 rpm) for delipidation. Completely fill up the Falcon tube to reduce tissue browning through oxidation.

See General notes 4 and 5.

5. Remove residual methanol by incubating samples twice in 35 mL of 100% DCM, each for 1 h at RT sideways on a shaker (30 rpm) to facilitate optimal mixing.

See General notes 4 and 5.

6. Immerse the samples in ECi for refractive index matching and again completely fill the Falcon tube with ECi to reduce oxidation-induced tissue browning. Store the samples at RT until further processing or imaging. The samples can be stored at 4 °C for long-term storage.

See General note 13.

C. Imaging samples with a two-photon (2P) microscope and a light-sheet microscope (LSM)

After optical tissue clearing and labeling, samples can be imaged with various microscopes. The samples described in this protocol were both imaged with a two-photon microscope (TPM) and a light-sheet fluorescence microscope (LSFM). Other microscopes, such as confocal laser scanning microscopes (CLSM), are suitable as well. The choice of imaging modality is based on lab infrastructure and research questions, e.g., whether the needed resolution for assessment of structures is in the micrometer range (LSFM) or the submicron range (TPM).

1. TPM

A two-photon laser scanning microscope (Leica TCS SP5 MP, Leica Mikrosysteme Vertrieb GmbH, Wetzlar, Germany), equipped with an HCX APO L 20×/1.00 W water immersion objective, was used. Working distance of the objective was 2 mm, and the excitation source was a 140-fs pulsed Ti:sapphire laser (Chameleon Ultra II, Coherent Inc., Santa Clara, CA, USA), mode-locked at 800 nm, to image the cleared human breast and lymph node samples. Fluorescence emission was detected using photomultiplier tubes (Hamamatsu, R9624, Japan) in three wavelength ranges: 385–489 nm (blue), 489–563 nm (green), and 568–700 nm (red). Imaging settings were optimized for stained structures and Second-Harmonic collagen. Images and image stacks were acquired with Leica Application Suite Advanced Fluorescence (Leica Microsystems). The samples were transferred from the Falcon tube (end of the optical tissue clearing protocol) and imaged in a glass Petri dish, carefully covered with a coverslip and a water drop on the coverslip. This allows for imaging of MASH-cleared samples using a water immersion objective (RI 1.33). Here, shrinkage in thickness was minimal, and final tissue thicknesses ranged from 1 to 3 mm.

2. LSFM

Light-sheet fluorescence microscopic imaging was performed with the Ultramicroscope II (La Vision Biotech, Bielefeld, Germany), equipped with a SuperK Extreme Supercontinuum white light laser (EXW-12, NKT Photonics, Birkerød, Denmark). The objective used was an MVPLAPO 2× C/0.5 NA objective with dipping cap (Olympus, Japan), a working distance of 5.7 mm, and an RI range of 1.33–1.56. The optically cleared samples were fully immersed in ethyl cinnamate (ECi), ranging from 500 to 700 mL, depending on the size of the sample. Eci has been used as the imaging medium to maintain proper refractive index matching (RI 1.56).

Data analysis

A. Tissue shrinkage analysis

In order to analyze the successful clearing and labeling of the breast and lymph node tissue samples, we first analyzed tissue shrinkage. During tissue processing, pictures of samples were taken after every key step, with the samples placed on millimeter paper on a light pad to provide a scale reference. Images were imported into FIJI (ImageJ), and tissue boundaries were manually outlined as regions of interest (ROIs) according to the instructions below.

Step-by-step FIJI instructions:

1. Importing the image: FIJI → File → Open → Select image → Open.

2. Setting measurements: Analyze → Set Measurements → tick Area → tick Area Fraction → OK.

3. Outlining the ROI: Toolbar → Freehand Selection tool → manually trace around tissue.

4. Measuring ROI: Analyze → Measure.

5. Exporting results: Results window → File → Save As → .csv.

B. Fluorescence intensity analysis

To validate the dyes used in our 3D microscopy approach, we measured the fluorescence intensity as a function of the imaging depth. Image stacks were imported into FIJI (ImageJ), where fluorescence intensity measurements were performed within defined ROIs according to the workflow below.

Step-by-step FIJI instructions:

1. Import the image stack: FIJI → File → Open → Select image stack → Open.

2. Verify stack dimensions: Image → Properties → Confirm that the voxel depth (slice spacing) corresponds to the acquisition settings of the respective image stack → OK.

3. Define the ROI: Select the region of interest using the appropriate selection tool.

4. Generate the z-axis profile: Image → Stacks → Plot Z-axis Profile.

5. View the profile: A plot window will display the mean fluorescence intensity within the selected ROI as a function of imaging depth.

6. Export numerical data: Plot window → List → Save As → Save as .csv.

Validation of protocol

To assess the preservation of tissue morphology, we assessed the tissue deformation that was introduced by the clearing protocol. Tissue shrinkage was evaluated for seven separate tissue samples by comparing the two-dimensional surface area of the samples before and after processing (see detailed steps in the Data analysis section). The tissue area fraction relative to the total image area was measured for all tissue samples (Table 1). Each sample was outlined and measured three times to improve measurement reliability, and the mean value was used for further calculations. Figure 1 illustrates some examples of the ROI outlining used for this analysis. Absolute tissue area was calculated based on the known dimensions of the millimeter paper reference.

Table 1. Quantification of tissue area before and after clearing and the resulting tissue shrinkage in breast tissue and lymph node samples

Across all seven samples that were used to validate the protocol, the mean tissue surface area decreased from 317.80 ± 135.61 mm² before processing to 296.51 ± 136.19 mm² after treatment, corresponding to an average reduction of 21.29 ± 13.88 mm², or approximately 6.7% of the original surface area. This level of tissue shrinkage falls within the range reported for comparable optical tissue clearing protocols [3,9,14], suggesting that the protocol preserves overall tissue morphology within acceptable limits. Tissue depths were also approximated visually using millimeter paper; however, due to the imprecision of the method and varying tissue thicknesses across the tissue area, the 3D tissue shrinkage analysis was not performed.

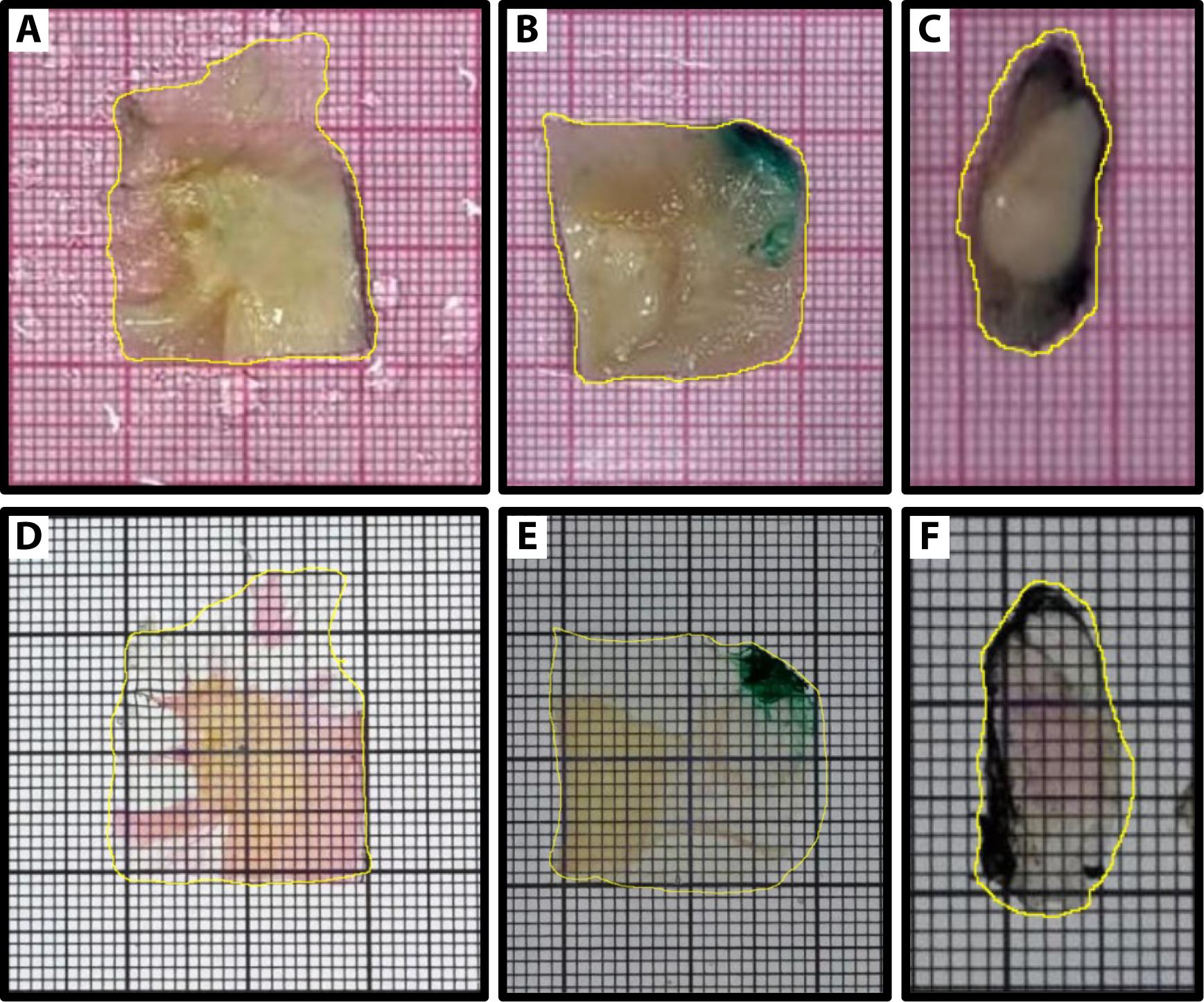

Figure 1. Region of interest (ROI)-based outlining of tissue samples for two-dimensional shrinkage analysis. (A) Breast tissue sample 1, before clearing. (B) Breast tissue sample 1, after clearing. (C) Breast tissue sample 2, before clearing. (D) Breast tissue sample 2, after clearing. (E) Lymph node tissue sample 1, before clearing. (F) Lymph node tissue sample 2, after clearing.

Furthermore, fluorescence intensity was quantified as a function of imaging depth to assess signal distribution and penetration throughout the tissue volume. Image stacks were analyzed in FIJI (ImageJ) according to the steps described in the Data analysis section, and fluorescence intensity measurements were performed within regions where cells were present in the whole field of view. For LSFM datasets, the fluorescence signals of MASH-MG, MASH-NR, and eosin Y were analyzed, while DAPI fluorescence was quantified from TPM images. Mean fluorescence intensity values within the selected ROI were obtained across the z-axis using the Plot Z-axis Profile function, generating depth-dependent fluorescence intensity profiles. The resulting fluorescence intensity and depth data were exported to Microsoft Excel, normalized to the maximum intensity of each small molecule dye, and subsequently plotted using GraphPad Prism version 8.2.1 (GraphPad Software, San Diego, CA, USA). These analyses enabled evaluation of signal distribution throughout the tissue thickness, providing insight into dye penetration and depth-dependent signal attenuation. Representative depth-dependent fluorescence intensity profiles are shown in Figure 2.

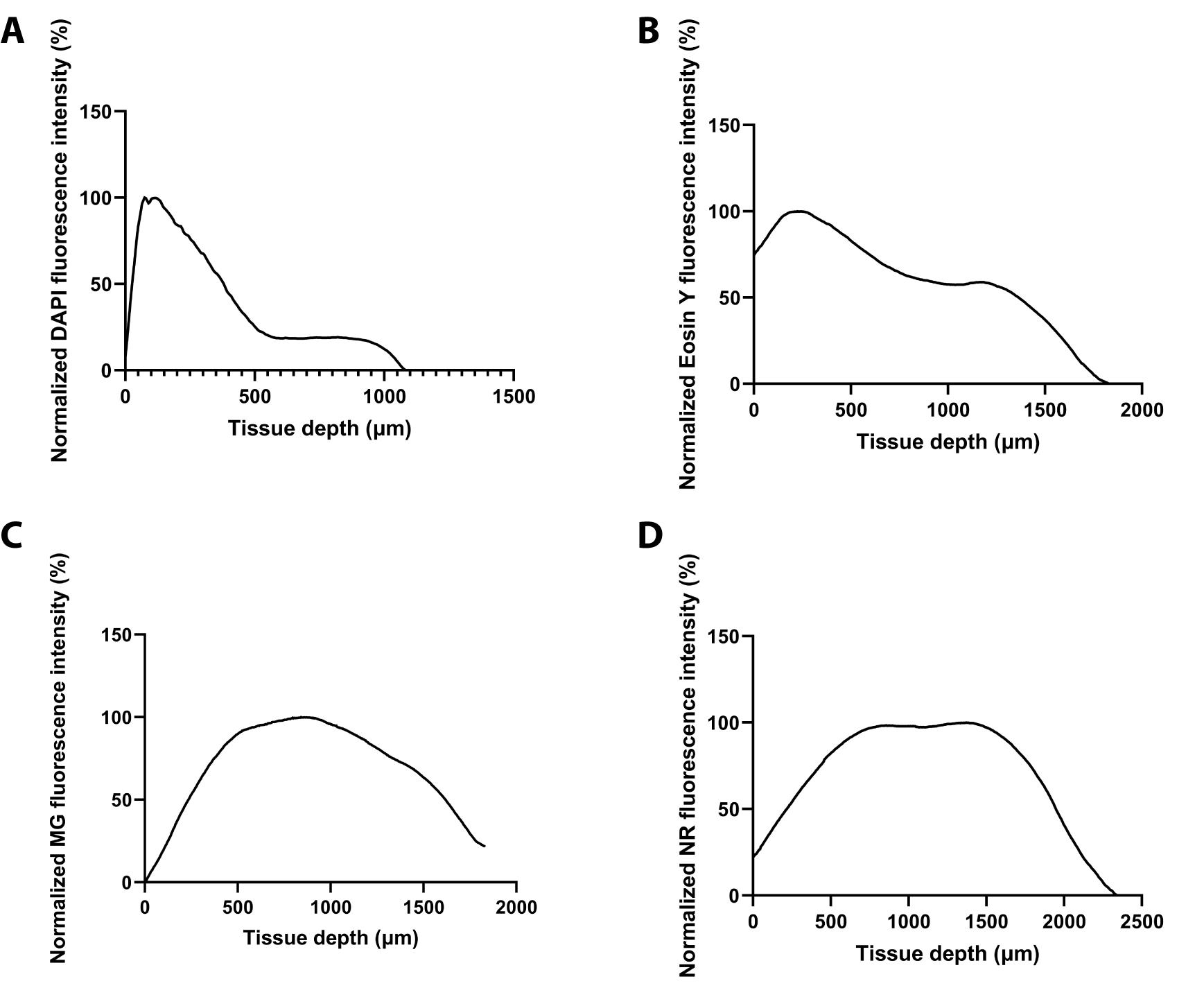

Figure 2. Depth-dependent fluorescence intensity profiles of tissue-clearing dyes and nuclear stains. Normalized fluorescence intensity was measured within defined regions of interest (ROIs) across the imaging depth of cleared breast tissue samples. (A) DAPI fluorescence quantified from two-photon microscopy (TPM) images. (B) Eosin Y fluorescence quantified from light-sheet fluorescence microscopy (LSFM) images. (C) Multiscale architectonic staining of human cortex (MASH)-Methyl Green (MG) fluorescence quantified from LSFM images. (D) MASH–Neutral Red (NR) fluorescence quantified from LSFM images. The profiles illustrate signal distribution and attenuation as a function of imaging tissue depth, ranging from 1,500 to 2,500 μm.

The fluorescence intensity profiles demonstrated that signal distribution varied across imaging depth and differed between dyes. All profiles showed an initial increase in fluorescence intensity, which may be explained by surface-related artifacts, including tissue edge effects, handling-induced damage, refractive index mismatch at the tissue-medium interface, or incomplete representation of tissue within the selected ROI near the sample surface. The decrease in signal at greater depths is consistent with depth-dependent attenuation caused by light scattering, absorption, shadowing, and reduced fluorescence detection in deeper tissue regions. The different peak positions observed between DAPI, eosin Y, MASH-MG, and MASH-NR likely reflects differences in the spatial distribution of the structures labeled by each dye, as well as the local tissue heterogeneity within the selected ROIs. In addition, the absolute intensity ranges differed substantially between channels, which is expected because fluorescence intensity is affected by fluorophore brightness, dye concentration, staining efficiency, laser power, detector sensitivity, exposure settings, and background signal. Therefore, absolute signal intensities cannot be directly compared between dyes without normalization and standardized acquisition settings. Overall, these profiles indicate that the staining signal was detectable throughout a large portion of the tissue volume, while the decline at larger depths is expected due to the optical limitations of deep-tissue fluorescence imaging.

To qualitatively validate the clearing and staining protocol, high-resolution images were acquired using two-photon microscopy. A zoomed-in region and a 3D example of non-malignant breast tissue and an axillary lymph node (without metastasis) are shown in Figure 3.

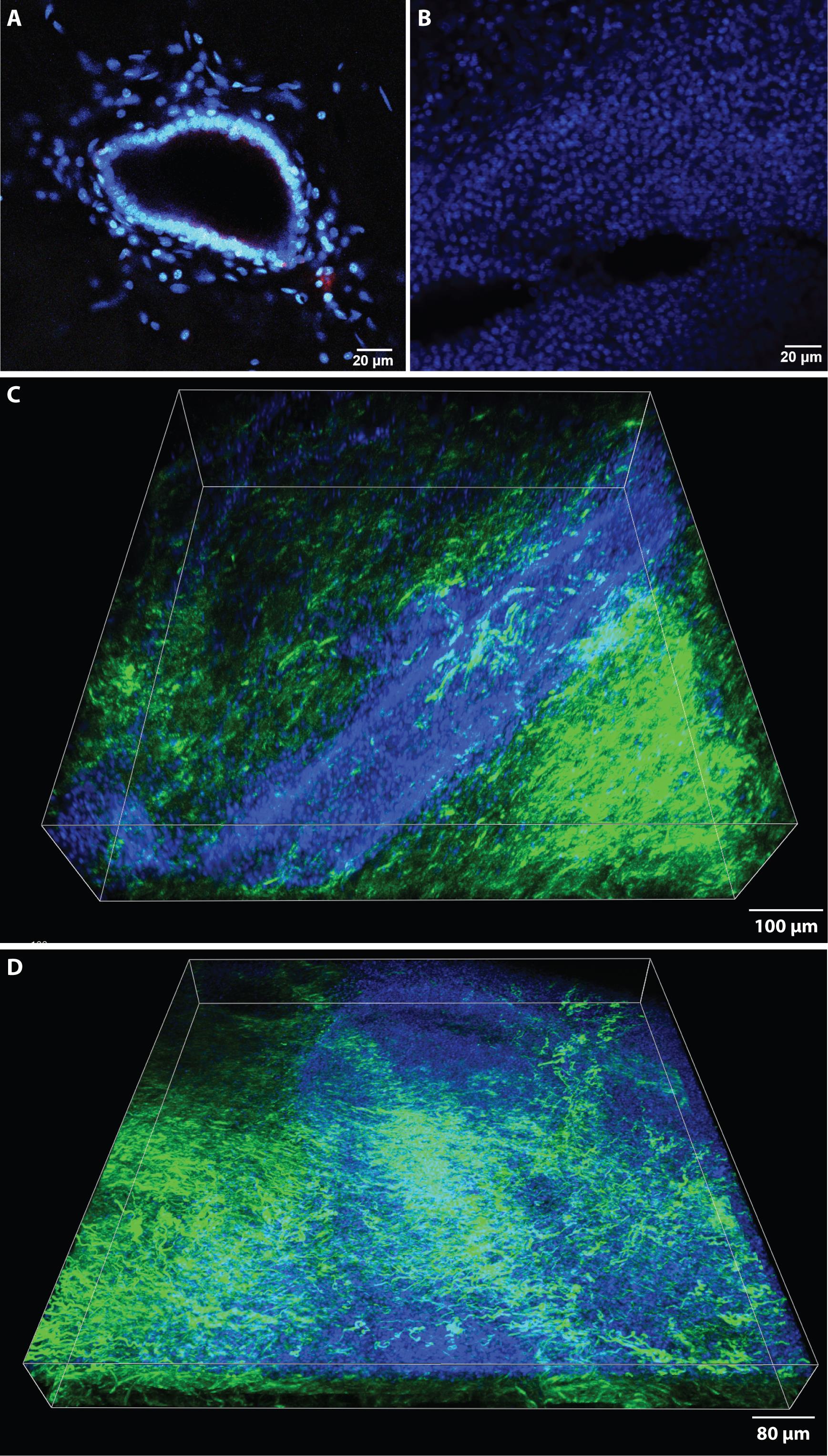

Figure 3. High-resolution two-photon microscopy images after clearing and staining. (A) Vasculature structure of a non-malignant breast tissue and (C) the respective 3D volume. (B) Structural organization of a non-metastatic lymph node tissue and (D) its respective 3D volume. DAPI signal (blue) labels cell nuclei, and the second harmonic generation signal is represented in green (e.g., collagen). Scale bars, 20 µm (A–B), 100 µm (C), and 80 µm (D).

General notes and troubleshooting

General notes

1. The volumes listed in the Recipes section are based on a total volume of 100 mL, unless otherwise indicated. Required volumes may need to be adjusted depending on the size and number of samples, but are also dependent on the container the sample is in.

2. For Recipe 10 (McIlvaine buffer, pH 4.0), the provided recipe yields 100 mL. The actual volume required will depend on the number of samples processed and the dye(s) selected.

3. In Recipes 11–13, actual dye volumes required will depend on the number of samples being processed. In addition, alternative dyes not covered within the scope of this article may be prepared as needed. Please note that the DAPI staining will not be useful for LSFM, but can be used in TPM.

4. DCM should be handled while wearing two pairs of nitrile gloves. DCM readily permeates many common glove materials, including nitrile, and can rapidly pass through a single glove layer, leading to skin exposure. Double gloving provides limited additional protection by increasing breakthrough time and allowing removal of the outer glove in the event of contamination. If contact with DCM occurs, both glove layers should be removed immediately and replaced with new gloves to minimize dermal exposure.

5. DCM should only be handled and stored in glass containers or compatible fluorinated/polypropylene conical tubes (e.g., Falcon tubes). DCM can dissolve, swell, or extract plasticizers from many common laboratory plastics, which may lead to container deformation, leakage, and sample contamination. Therefore, contact of DCM with non-compatible plastic laboratory equipment should be avoided.

6. Thin tissue sections should be handled with smooth forceps and extreme care, as they are prone to mechanical damage. The usage of a spatula could assist in the careful lifting of the delicate tissues.

7. An average dimension of 30 × 20 × 3 mm for the breast tissues and 20 × 10 × 2 mm for the lymph nodes is assumed for the volumes and incubation times described in the procedure. For larger tissues, different containers are recommended, and the volumes and incubation times have to be adjusted accordingly (see also [15] for MASH-based clearing of larger samples and the required large-scale tissue clearing equipment). The tissues should remain completely submerged at all times.

8. During deparaffinization, incubation times in xylene may vary depending on tissue thickness and fixation. Samples are considered sufficiently deparaffinized once they lose their hard, rigid texture. In some cases, overnight incubation is therefore not required. Prolonged incubation in xylene does not compromise tissue integrity.

9. For temporary storage, samples should be kept in PBS supplemented with thymol to prevent microbial growth.

10. The potassium disulfite solution is reusable and should not be discarded after use. After incubation, the solution can be recovered by filtering through filter paper and returned to the original container.

11. When reusing previously prepared potassium disulfite solution, it should be filtered prior to use to remove any crystals that may have formed during storage.

12. Samples can be incubated with multiple dye working solutions simultaneously. Please note that eosin Y and Neutral Red are not compatible due to the spectral overlap.

13. A similar MASH protocol has been used for brain and prostate samples with larger dimensions, so bigger tissue samples of a different origin could be subjected to this optical tissue clearing and labeling protocol [7,9]. A broader applicability to other FFPE tissues is therefore expected but has to be verified.

Troubleshooting

Acknowledgments

A.S.: Conceptualization, Supervision, Funding acquisition, Investigation, Methodology, Resources, Writing—original draft, Writing—review & editing. L.D.J.S.: Visualization, Writing—original draft, Writing—review & editing. U.P.: Investigation, Methodology/all experimental work, Visualization, Writing—original draft, Writing—review & editing. A.B.: Lab supervision, Writing—Review & Editing. S.H.: Methodology, Resources. T.J.A.N.: Resources, Clinical expertise. L.F.S.K.: Resources, Clinical expertise.

This work was supported by the funding source University Fund Limburg, SWOL. Funding number: CoBes24.074. Awarded to A. Schueth in 2024.

Competing interests

L.F.S. Kooreman received an educational fee not associated with the content of this study. L.F.S. Kooreman reports participation in a medical advisory board meeting for Sakura and Sectra, not related to the content of this study. T.J.A. van Nijnatten reports speaker honoraria, institutional grant support, and participation in medical advisory board meetings for Bayer and GE Healthcare, not related to the current manuscript. T.J.A. van Nijnatten reports a medical advisory board for Screenpoint Medical, not related to the current manuscript. T.J.A. van Nijnatten reports speaker honoraria for Hologic Inc. The other authors declare no conflicts of interest.

Ethical considerations

All human breast cancer and lymph node samples were retrieved from the Department of Pathology, Maastricht University Medical Centre (MUMC+) in the Netherlands, with approval of the Medical Ethics Review Committee. All specimens were collected and studied in accordance with the protocol of the Dutch Code of Conduct for Observational Research with Personal Data and Tissue (2004). Tissue was obtained from the Maastricht Pathology Tissue Collection (MPTC). Collection, storage, and use of tissue and patient data were performed in agreement with the “Code for Proper Secondary Use of Human Tissue in the Netherlands.” The specimens were received for diagnostic purposes and processed according to the internal standard operating procedures, according to the national and international recommendations.

References

1. Kim, J., Harper, A., McCormack, V., Sung, H., Houssami, N., Morgan, E., Mutebi, M., Garvey, G., Soerjomataram, I. and Fidler-Benaoudia, M. M. (2025). Global patterns and trends in breast cancer incidence and mortality across 185 countries. Nat Med. 31(4): 1154–1162. https://doi.org/10.1038/s41591-025-03502-3
2. De Schepper, M., Vincent-Salomon, A., Christgen, M., Van Baelen, K., Richard, F., Tsuda, H., Kurozumi, S., Brito, M. J., Cserni, G., Schnitt, S., et al. (2022). Results of a worldwide survey on the currently used histopathological diagnostic criteria for invasive lobular breast cancer. Mod Pathol. 35(12): 1812–1820. https://doi.org/10.1038/s41379-022-01135-2
3. Sabdyusheva Litschauer, I., Becker, K., Saghafi, S., Ballke, S., Bollwein, C., Foroughipour, M., Gaugeler, J., Foroughipour, M., Schavelová, V., László, V., et al. (2020). 3D histopathology of human tumours by fast clearing and ultramicroscopy. Sci Rep. 10(1): e1038/s41598–020–71737–w. https://doi.org/10.1038/s41598-020-71737-w
4. Tainaka, K., Kuno, A., Kubota, S. I., Murakami, T. and Ueda, H. R. (2016). Chemical Principles in Tissue Clearing and Staining Protocols for Whole-Body Cell Profiling. Annu Rev Cell Dev Biol. 32(1): 713–741. https://doi.org/10.1146/annurev-cellbio-111315-125001
5. Barner, L. A., Glaser, A. K., Mao, C., Susaki, E. A., Vaughan, J. C., Dintzis, S. M. and Liu, J. T. C. (2022). Multiresolution nondestructive 3D pathology of whole lymph nodes for breast cancer staging. J Biomed Opt. 27(3): e036501. https://doi.org/10.1117/1.jbo.27.3.036501
6. Paavolainen, O., Peurla, M., Koskinen, L. M., Pohjankukka, J., Saberi, K., Tammelin, E., Sulander, S. R., Valkonen, M., Mourao, L., Boström, P., et al. (2024). Volumetric analysis of the terminal ductal lobular unit architecture and cell phenotypes in the human breast. Cell Rep. 43(10): 114837. https://doi.org/10.1016/j.celrep.2024.114837
7. Hildebrand, S., Schueth, A., Herrler, A., Galuske, R. and Roebroeck, A. (2019). Scalable Labeling for Cytoarchitectonic Characterization of Large Optically Cleared Human Neocortex Samples. Sci Rep. 9(1): e1038/s41598–019–47336–9. https://doi.org/10.1038/s41598-019-47336-9
8. Renier, N., Wu, Z., Simon, D. J., Yang, J., Ariel, P. and Tessier-Lavigne, M. (2014). IDISCO: A simple, rapid method to immunolabel large tissue samples for volume imaging. Cell. 159(4): 896–910. https://doi.org/10.1016/j.cell.2014.10.010
9. Schueth, A., Hildebrand, S., Samarska, I., Sengupta, S., Kiessling, A., Herrler, A., zur Hausen, A., Capalbo, M. and Roebroeck, A. (2023). Efficient 3D light-sheet imaging of very large-scale optically cleared human brain and prostate tissue samples. Commun Biol. 6(1): e1038/s42003–023–04536–4. https://doi.org/10.1038/s42003-023-04536-4
10. iDISCO method. (2026, June). Validated antibodies. Retrieved from https://idisco.info/validated-antibodies/
11. Tomer, R., Khairy, K. and Keller, P. J. (2012). Light Sheet Microscopy in Cell Biology. Methods Mol Biol. 931: 123–137. https://doi.org/10.1007/978-1-62703-056-4_7
12. McGranahan, N. and Swanton, C. (2015). Biological and Therapeutic Impact of Intratumor Heterogeneity in Cancer Evolution. Cancer Cell. 27(1): 15–26. https://doi.org/10.1016/j.ccell.2014.12.001
13. Prieto, D., Aparicio, G., Morande, P. E. and Zolessi, F. R. (2014). A fast, low cost, and highly efficient fluorescent DNA labeling method using methyl green. Histochem Cell Biol. 142(3): 335–345. https://doi.org/10.1007/s00418-014-1215-0
14. Vigouroux, R. J., Belle, M. and Chédotal, A. (2017). Neuroscience in the third dimension: shedding new light on the brain with tissue clearing. Mol Brain. 10(1): e1186/s13041–017–0314–y. https://doi.org/10.1186/s13041-017-0314-y
15. Hildebrand, S., Franz, J., Sengupta, S., Schueth, A., Herrler, A. and Roebroeck, A. (2025). ht-MASH: a high-throughput, cost-effective, and robust protocol for microscopic 3D imaging of human angio- and cytoarchitecture in large human brain samples. Anat Sci Int. 100(4): 498–513. https://doi.org/10.1007/s12565-025-00859-w
