An Optimized Protocol for the Characterization of Zebrafish ApoB-Containing Lipoproteins Using the LipoGlo System

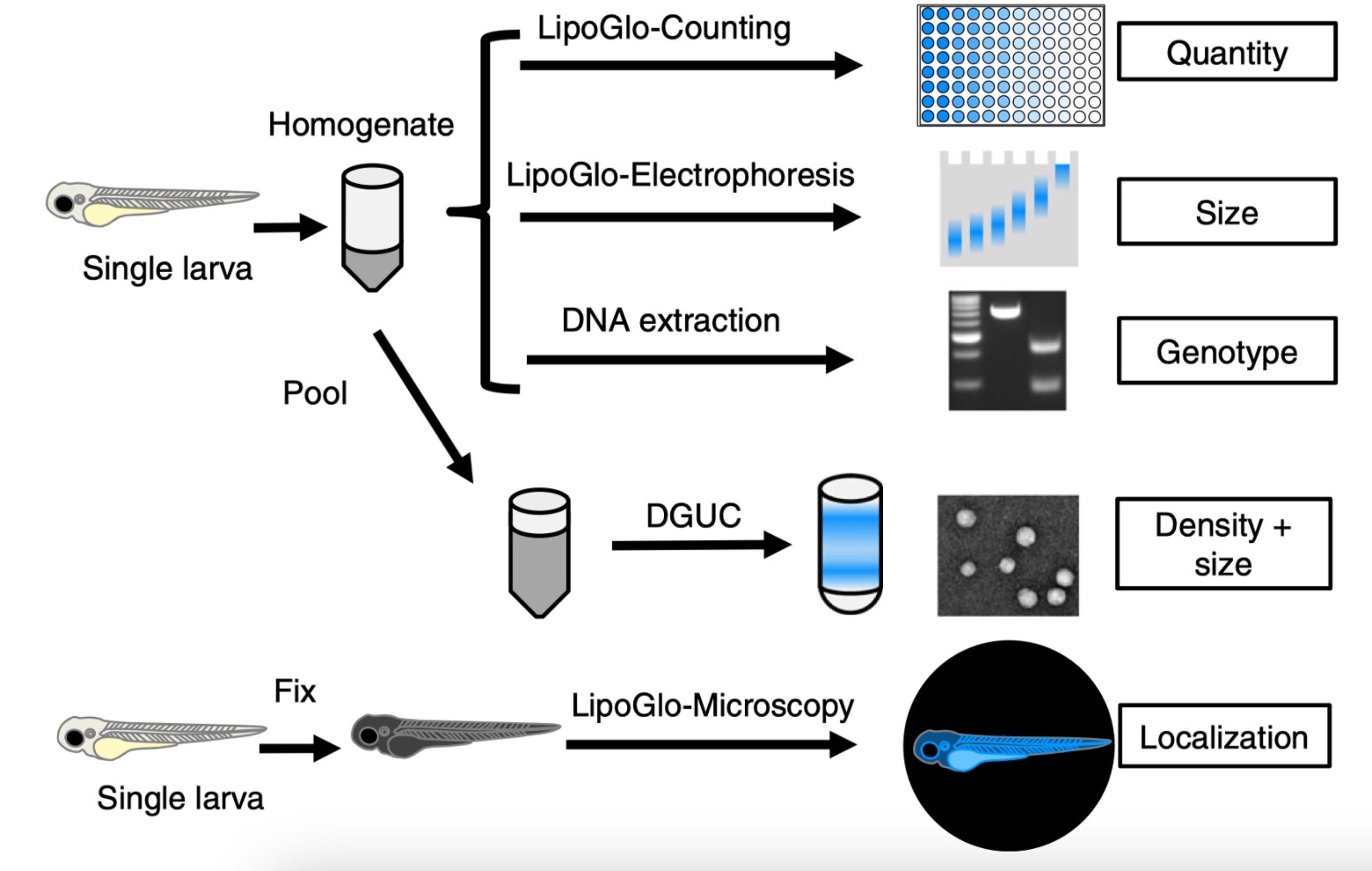

Materials and reagents

Biological materials

Zebrafish stocks were maintained at 27 °C in a circulating aquarium facility. Adult zebrafish were fed once daily with ~2% body weight Gemma 300 (Skretting USA). Natural spawnings were used to obtain embryos, which were kept in embryo medium at 28 °C on a 14/10 h light/dark cycle until 7 dpf, unless noted otherwise. All experiments in this work were performed in larvae between 1 and 7 dpf. However, it should be noted that this protocol is optimized for 1–15 dpf [1] and has not been tested on earlier or later time points.

1. Zebrafish mutant line ldlra^sd52, generated by the Yury Miller Lab, ZFIN ID ZDB-ALT-170913–3 [15]

2. Zebrafish mutant line apoC2^sd38, generated by the Yury Miller Lab, ZFIN ID ZDB-ALT-151110–1 [6]

3. Zebrafish reporter line Fus(ApoBb.1-nluc), generated in the Farber Lab, ZFIN ID ZDB-ALT-191218–4 [1]

Reagents

1. Ammonium persulfate (APS) (Bio-Rad, catalog number: 1610700)

2. Anhydrous calcium chloride (CaCl₂) (Sigma, catalog number: C5670)

3. Boric acid (Sigma, catalog number: B0394)

4. Bromophenol blue (Sigma, catalog number: 114391)

5. Complete mini EDTA-free protease inhibitor cocktail (Sigma, catalog number: 11836170001)

6. Complete protease inhibitor cocktail (Sigma, catalog number: 11697498001)

7. Ethylene glycol-bis(2-amino-ethylether)-N,N,N,N’-tetraacetic acid (EGTA) (Sigma, catalog number: E3889)

8. Ethylenediaminetetraacetic acid (EDTA) (Sigma, catalog number: E9884)

9. Ethly 3-aminobenzonate methanesulfonate (tricaine, ms-222) (Sigma, catalog number: E10521)

10. HEPES (Goldbio, catalog number: H-400-100)

11. Low-density lipoprotein from human plasma, DiI complex (DiI-LDL) (Thermo Fischer, catalog number: L3482)

12. Low-melt agarose (Thermo Fischer, catalog number: BP165)

13. Magnesium sulfate anhydrous (MgSO₄) (Sigma, catalog number: M7506)

14. Nano-Glo luciferase assay system (contains Nano-Glo^® luciferase assay substrate and Nano-Glo^® luciferase assay buffer) (Promega, catalog number: N1110)

15. OptiPrep density gradient medium (Sigma, catalog number: D1556)

16. Phosphate buffer saline (PBS) (Sigma, catalog number: 08057-12TAB-F)

17. Potassium chloride (KCl) (Sigma, catalog number: 7447-40-7)

18. Potassium phosphate monobasic (KH₂PO₄) (Sigma, catalog number: P8709)

19. Rain X original treatment (Walmart, catalog number: 800002242W)

20. Sodium bicarbonate (NaHCO₃) (Sigma, catalog number: 1613655)

21. Sodium chloride (NaCl) (Sigma, catalog number: 1064040500)

22. Sodium hydroxide (NaOH) (Sigma, catalog number: 221465)

23. Sodium phosphate dibasic anhydrous (Na₂HPO₄) (Sigma, catalog number: S9763)

24. Sucrose (VWR, catalog number: BDH9308)

25. Tetramethylethylenediamine (TEMED) (Thermo Fisher, catalog number: 17919)

26. Tris Bas, (Thermo Fisher, catalog number: BP152-500)

27. Tris hydrochloride (Roche, catalog number: 10812846001)

28. Tween-20 (Sigma, catalog number: P1379)

29. 32% paraformaldehyde aqueous solution (PFA) (Electron Microscopy Sciences, catalog number: 15714)

30. 40% Acrylamide:Bis solution 19:1 (Bio-Rad, catalog number: 1610144)

Solutions

1. 20× embryo medium (see Recipes)

2. 1× embryo medium (see Recipes)

3. Tricaine (see Recipes)

4. 2× ApoB-LP stabilization buffer (see Recipes)

5. 2× ApoB-LP stabilization buffer (no sucrose) (see Recipes)

6. 0.5 M EGTA (see Recipes)

7. LipoGlo reaction buffer (see Recipes)

8. DNA lysis buffer (see Recipes)

9. 3% Native-PAGE gel (see Recipes)

10. 5× TBE (see Recipes)

11. 1× TBE (see Recipes)

12. Native-PAGE gel loading dye (see Recipes)

13. Native-PAGE gel imaging solution (see Recipes)

14. Low-density lipoprotein from human plasma (DiI-LDL) (see Recipes)

15. HEPES-buffered saline (HBS) (see Recipes)

16. 1 M HEPES buffer pH 7.4 (see Recipes)

17. 9% iodixanol solution (see Recipes)

18. 12% iodixanol solution (see Recipes)

19. 4% PFA (see Recipes)

Recipes

1. 20× embryo medium

Store at 4 °C.

2. 1× embryo medium

Store at room temperature.

3. Tricaine

Adjust pH to 7.0 with sodium bicarbonate and store at room temperature.

4. 2× ApoB-LP stabilization buffer

When making a 10 mL total volume, use one complete EDTA-free protease inhibitor tablet.

5. 2× ApoB-LP stabilization buffer (no sucrose)

When making a 10 mL total volume, use one complete EDTA-free protease inhibitor tablet.

6. 0.5 M EGTA

Store at room temperature.

7. LipoGlo reaction buffer

*Reagents from Nano-Glo luciferase assay system.

Make fresh for each experiment.

8. DNA lysis buffer

Store at room temperature.

9. 3% Native-PAGE gel

10. 5× TBE

Filter-sterilize and store at 4 °C.

11. 1× TBE

12. Native-PAGE gel loading dye

Store at -20 °C.

13. Native-PAGE gel imaging solution

Make fresh for each experiment.

14. DiI-LDL

Store aliquots at -80 °C.

15. HBS

16. 1 M HEPES buffer (pH 7.4)

Adjust pH to 7.4 and store at room temperature.

17. 9% iodixanol solution

18. 12% iodixanol solution

19. 4% PFA

Laboratory supplies

1. 96-well black OptiPlate (Perkin-Elmer, catalog number: 6005290)

2. Microseal B PCR plate sealing film (Bio-Rad, catalog number: MSB1001)

3. Template 96-well non-skirted PCR plate (USA Scientific, catalog number: 1402-9598)

4. 50 mL conical sterile polypropylene centrifuge tubes (Thermo Fisher, catalog number: 339653)

5. 15 mL conical sterile polypropylene centrifuge tubes (Thermo Fisher, catalog number: 339650)

6. 1.5 mL tubes (Thermo Fischer, catalog number: 3401-DLB)

7. 100 mm × 20 mm polystyrene Petri dishes (Sigma, catalog number: P5606-400EA)

8. Staples high-capacity heavyweight sheet protectors (Staples, catalog number: 15944)

9. Dumont No. 5 forceps (Sigma, catalog number: F6521-1EA)

Equipment

1. Microplate-horn system (QSONICA, model: Q700MPXC)

2. Labnet Mini PCR plate spinner centrifuge (Spectra Services, model: C1000)

3. 4.9 mL OptiSeal^TM polypropylene tube, 13 mm × 51 mm (Beckman Coulter, catalog number: 362185)

4. 200 μL tapered round gel loading tip (USA Scientific, catalog number: 1252-0610)

5. Mini-PROTEAN^® Tetra cell casting module (Bio-Rad, catalog number: 1658021)

6. Mini-PROTEAN^® Tetra vertical electrophoresis cell (Bio-Rad, catalog number: 1658004)

7. Bausch & Lomb benchtop refractometer (Wazobia Scientific, catalog number: 33.467.10)

8. Beckman Coulter Optima XL 80K ultracentrifuge (Beckman Coulter, catalog number: A99833)

9. Rotor VTi65.2 (Beckman Coulter, catalog number: 362754)

10. Petri dishes 100 mm × 20 mm (Fisher Scientific, catalog number: FB0875711Z)

11. Zeiss AxioZoom microscope (Zeiss, model: V16)

12. Zeiss AxioCam MRm (Coastal Microscopes, catalog number: 51322K)

13. Zeiss BG40 IR blocking filter (Edmund Optics, catalog number: 16-367)

14. BioTek Syngery H1 microplate reader (Agilent, model: H1MF-SI)

15. Odyssey Fc imager (LI-COR Bioscience, model: Fc)

Software and datasets

1. FIJI imaging processing software (NIH/http://fiji.sc/Fiji) [16]

2. Excel (Microsoft)

3. Prism (version 10.4.1 (532) GraphPad)

Procedure

A. Larval homogenate preparation for LipoGlo assays

Note: The homogenates produced in section A will be used in the LipoGlo counting assay (section B) and the LipoGlo electrophoresis assay (section C).

1. Collect zebrafish embryos and keep n = 100 embryos in a 100 mm × 20 mm Petri dish with 70 mL of embryo media (EM) stored in an incubator at 28 °C with a light/dark cycle of 14/10 h.

2. Manually de-chorinate embryos still in their chorions with #5 forceps.

3. Pre-chill sonication horn with ice.

4. Pipette 50 μL of 2× ApoB-LP stabilization buffer into each well of an un-skirted 96-well PCR plate, keeping the plate on ice.

Note: It is not essential to fill all of the wells of the plate; if using fewer wells, it is best to skip putting embryos into the outer wells of the plate, as these often have more issues sonicating fully.

5. Add 1 mL of tricaine to the Petri dish to anesthetize the larvae before transferring them into the 96-well PCR plate.

Note: It is important to follow the anesthetizing/euthanizing protocols approved for your lab by your institution’s Animal Care Committee. It is unknown whether fully euthanizing the larvae initially before plating and sonicating could lead to erroneous LipoGlo results. The goal is to minimize the time between death and sonication.

6. To transfer the larvae, use a p200 pipette with the end of the pipette tip cut off and individually pipette one embryo in 50 μL of EM into each well, making the total volume in each well 100 μL. The pipette tip is cut so the embryos are not damaged during this process.

7. When the 96-well plate is full, use a Kimwipe to dry any droplets from embryo transfer before covering with a micro seal B plastic cover. Keep the plate on ice.

8. Add ice-cold water to the ice in the sonication horn chamber and measure to 17 mm in water depth. Remove all ice pieces before sonication.

9. Put the 96-well plate in the sonication horn, making sure there are no air bubbles trapped under the plate.

10. Use the following settings for sonication:

a. Amplitude 100%

b. Process time 30 s

c. Pulse-on 2 s

d. Pulse-off 1 s

11. After starting the protocol, pause sonication after every 4 pulses and rotate the plate 90° clockwise. One full round of the sonication protocol results in 16 total pulses: 4 pulses at each of 4 plate orientations.

12. After sonication, visually inspect the embryos/larvae and note wells that are not sonicated, as these will need to be eliminated from analyses. Wells that are not sonicated will still have a whole or mostly intact embryo/larvae and will be clearly visible compared to the sonicated samples.

13. Put the 96-well plate back on ice after sonication and use a micro-PCR plate centrifuge set to 2,500 rpm (500× g) for 15–20 s to spin down the homogenate. Return to ice following the spin.

14. If samples need to be genotyped:

a. In a new non-skirted 96-well plate, prepare the gDNA (genomics deoxyribonucleic acid) by adding 10 μL of 50 mM NaOH to each well, followed by 10 μL of the respective homogenate sample from the original 96-well plate.

b. Cover the gDNA plate with a micro seal B plastic cover and incubate at 95 °C for 20 min, cool to room temperature, add 1/10th volume of 1 M Tris buffer pH 8.0, and use 1–2 μL for PCR reactions.

c. For best PCR results, set up the PCR reaction the same day.

Note: Due to shearing of the gDNA during sonication, PCR products 200 bp or smaller are recommended.

15. For the most accurate LipoGlo Counting assay results, continue immediately to section B.

16. Alternatively, these homogenate plates can proceed to the LipoGlo electrophoresis assay in section C or be stored at -20 °C for future assays.

Note: Do not exceed three freeze-thaw homogenate cycles, as it was shown in the original publication that three freeze-thaw cycles provide consistent luminescence [1].

B. LipoGlo counting assay

1. Pipette 76 μL of freshly prepared LipoGlo reaction buffer (see Recipe 7) into each required well of a flat-bottom 96-well black OptiPlate.

2. Add 4.0 μL of homogenate made in section A into each corresponding well of the black Optiplate.

3. Incubate on a horizontal shaker at low speed for 3–5 min at room temperature.

Note: Do not exceed 15 min of incubation time, as luminescence decreases over time (Figure 1A–C).

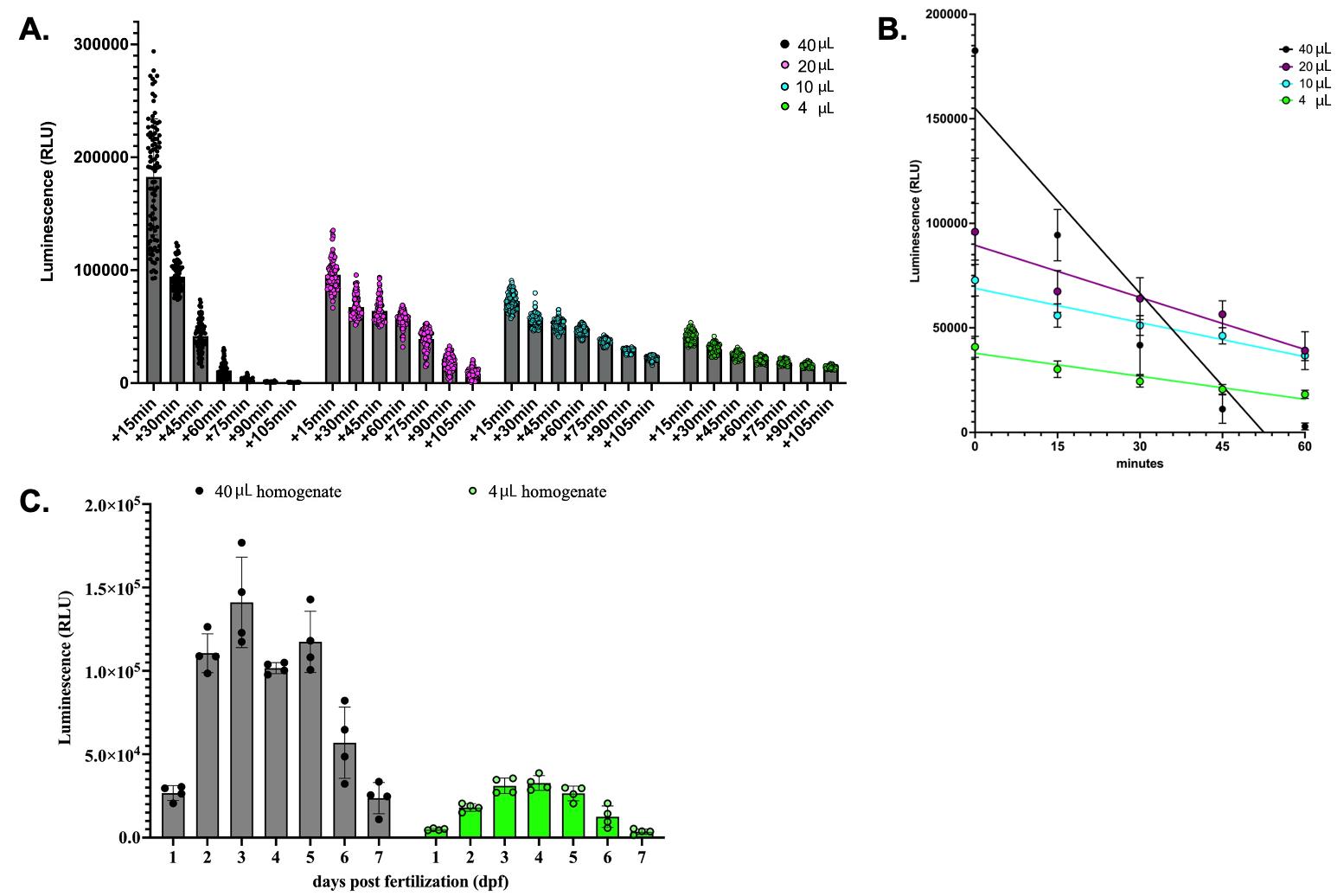

Figure 1. LipoGlo counting assay: optimizing tissue homogenate volume used in the assay. (A) LipoGlo counting data from assays with varying amounts of 4 days post-fertilization (dpf) larval homogenate (40.0, 20.0, 10.0, and 4.0 μL). Luminescence was measured in a plate reader (20 ms integration time) every 15 min for 1.5 h. N = 4, n = 384. (B) Linear regression of the luminescence signal vs. time for each volume of homogenate (40.0, 20.0, 10.0, and 4.0 μL) measured every 15 min for 1.5 h. Error bars indicate overall mean ± SD of three independent experiments. (C) LipoGlo counting assay using 40 or 4 μL of 4-dpf homogenate with luminescence measured over larval development from 1 to 7 dpf. N = 4 clutches, n = 384. Error bars indicate overall mean ± SD of three independent experiments.

4. Use a BioTek Syngery H1 plate reader with Gen5 software (version 3.05) and the following settings for plate reading:

a. Select all wells that have samples in them.

b. Select Luminescence and set the Integration time to 20 ms.

c. Select Start to read the plate.

5. Save data as an Excel file for subsequent data analysis.

6. Store the sealed 96-well plate of homogenate at -20 °C or on ice if continuing to the LipoGlo electrophoresis assay the same day.

Note: Do not exceed three freeze-thaw homogenate cycles, as it was shown in the original publication that three freeze-thaw cycles provide consistent luminescence [1].

C. LipoGlo electrophoresis assay

Note: Before starting, pre-treat the mini-PROTEAN short plates front and back with Rain-X; this aids in the easy removal of the short plate for imaging purposes.

1. Following Recipe 9 for Native-PAGE gel, mix the top three ingredients in a 50 mL conical tube.

2. Degas this solution for 30 min.

3. During the degassing step, assemble the mini-PROTEAN short plate and 1.0 mm mini-PROTEAN spacer plate in a Bio-Rad mini-gel casting frame and casting stand.

4. Add the required volume of 10% APS and TEMED to the conical tube and mix by gently inverting the tube; do not make bubbles (see Recipe 9).

5. Use a transfer pipette to fill each casting plate to the top and insert a multi-well comb with the desired number of wells.

6. Gels will set up at room temperature within 1 h and can be used immediately.

7. Equilibrate PAGE gel by running at 50 V for 30 min at 4 °C.

8. To prepare samples, start by thawing homogenate samples, prepared in section A, on ice.

9. Thaw an aliquot of DiI-LDL (see Recipe 14) on ice.

10. Pipette 12.0 μL of the desired homogenate samples into separate PCR tubes.

11. Mix the DiI-LDL aliquot by pipetting up and down, then pipette 12.0 μL of DiI-LDL into a separate PCR tube.

12. Add 3.0 μL of native PAGE loading dye (see Recipe 12) to all samples, including the DiI-LDL.

13. For loading PAGE gels, load 12.5 μL using a P20 pipette, but only pipette to the first stop of the pipette to avoid dispensing bubbles.

14. Set the electrophoresis power box to 50 V and run for 30 min.

15. After 30 min, increase the voltage to 125 V and run for 2 h.

16. Remove gels from the electrode assembly and take them to the imaging station.

17. Using a cassette opener, remove the short plate. The Rain-X treatment should help this process without damaging the gel on the large plate.

18. Pipette 1 mL of native-PAGE gel imaging solution (see Recipe 13) onto the gel and use a plastic sheet protector cut to the size of the large plate to spread the solution evenly over the gel.

19. Cover the gel, protecting it from light, and incubate at room temperature for 5 min before imaging.

20. Image using the Odyssey Fc (LICOR Biosciences) gel imaging system with Image Studio Software (version 6.2) and image in the chemiluminescence channel for 2 min (NanoLuc detection) and then the 600 channel for 30 s (DiI-LDL standard detection).

21. Export the raw images in a .zip file for subsequent analysis.

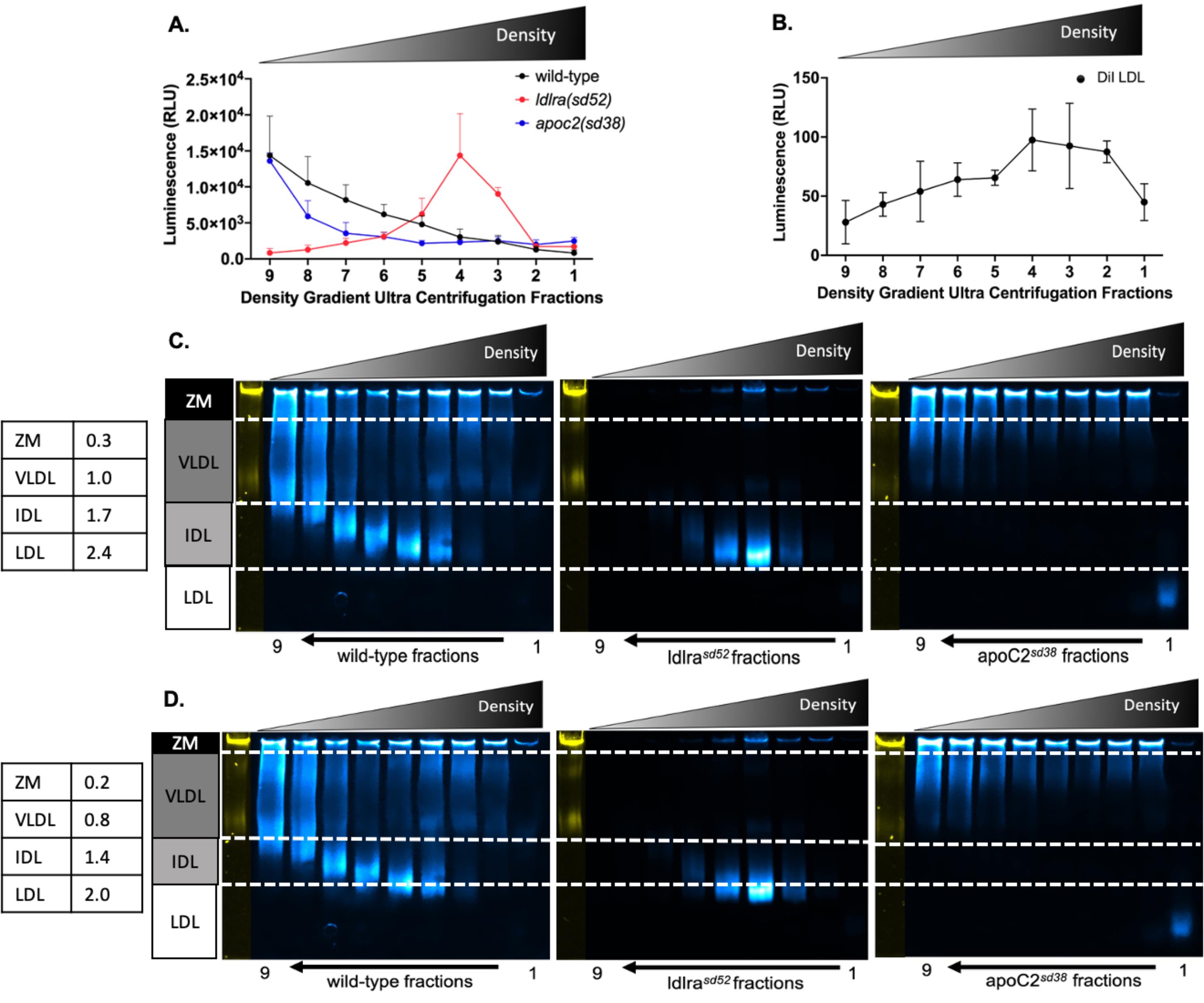

D. Density gradient ultra-centrifugation (DGUC) assay and analysis

1. Collect zebrafish embryos and keep n = 100 embryos in a 100 mm × 20 mm Petri dish with 70 mL of embryo media (EM) stored in an incubator at 28 °C with a light/dark cycle of 14/10 h.

2. Embryos still in their chorions need to have the chorions removed manually with #5 forceps.

3. Pre-chill sonication horn with ice.

4. Pipette 50 μL of 2× ApoB-LP stabilization buffer into each well of an un-skirted 96-well PCR plate, keeping the plate on ice.

Note: It is not essential to fill all wells of the plate; if using fewer wells, it is best to skip putting embryos into the outer wells of the plate, as these often have more issues sonicating fully.

5. Add 1 mL of tricaine to the Petri dish to anesthetize the larvae before transferring them into the 96-well PCR plate.

6. Use a p200 pipette with the end of the pipette tip cut off and individually pipette one embryo in 50 μL of EM into each well, making the total volume in each well 100 μL. The pipette tip is cut so the embryos are not damaged during this process.

7. When the 96-well plate is full, use a Kimwipe to dry any droplets from embryo transfer before covering with a micro seal B plastic cover. Keep the plate on ice.

8. Add ice-cold water to the ice in the sonication horn chamber and measure to 17 mm in water depth. Remove all ice pieces before sonication.

9. Put the 96-well plate in the sonication horn, making sure that there are no air bubbles trapped under the plate.

10. Use the following settings for sonication:

a. Amplitude 100%

b. Process time 30 s

c. Pulse-on 2 s

d. Pulse-off 1 s

11. After starting the protocol, pause sonication after every 4 pulses and rotate the plate 90° clockwise. One full round of the sonication protocol results in 16 total pulses: 4 pulses at each of 4 plate orientations.

12. After complete sonication, visually inspect the embryos/larvae and note wells that are not sonicated, as these will need to be eliminated from analyses.

13. Put the 96-well plate back on ice after sonication and use a micro-PCR plate centrifuge set to 2,500 rpm (500× g) and spin for 15–20 s to spin down the homogenate. Return to ice following the spin.

14. Pool together n = 15 homogenate samples into one 1.5 mL microcentrifuge tube.

15. Spin down the microcentrifuge tube at 6,000× g for 5 min.

16. During the 5-min spin, prepare a new microcentrifuge tube containing 500 μL of OptiPrep density gradient medium.

17. Following the 5-min spin, pipette 1 mL of the resulting supernatant into the tube prepared in step D16, yielding a 20% iodixanol solution.

18. In a 4.9 mL OptiSeal tube, add 1.5 mL of 9% iodixanol (see Recipe 17) in HBS solution (see Recipe 15).

19. Underlay with 1.5 mL of the 12% iodixanol solution (see Recipe 18) using a p1000 tip fitted with a tapered gel loading tip.

Note: To underlay, gently insert the tapered gel loading tip on the bottom of the 4.9 mL OptiSeal tube and slowly pipette out each layer, careful to avoid pipetting any bubbles.

20. Underlay again with 1.5 mL of the 20% iodixanol solution (from step D16) containing the homogenate.

21. Top off with 500 μL of HBS (see Recipe 15) so that no air remains in the tube and seal with the provided cap.

22. Load tubes in a VTi65.2 rotor and centrifuge at 60,000 rpm (327,000× g) for 3 h in a Beckman Optima XL 80K ultracentrifuge set to 4 °C with maximum acceleration and deceleration rates.

23. Following centrifugation, carefully pierce a hole in the bottom of the OptiSeal tube with a thumbtack and collect the desired number of fractions in a clean microcentrifuge tube. Store on ice.

24. Using a Bausch & Lomb refractometer, measure the refractive index of each fraction by adding 30 μL of each fraction to the prism while the light is on.

25. Using the focus knobs, align the semi-circle of light such that it bisects the middle of the crosshair markings visible in the eyepiece.

26. Turn on the switch on the back of the refractometer to illuminate the scale bars and record the refractive index of the fraction. Clean the prism with a Kimwipe and repeat.

27. Calculate solution density using the following formula:

Density = 3.3508 × (refractive index) - 3.4675

28. While the fractions are fresh, it is best to perform the LipoGlo electrophoresis assay (section C) as soon as possible.

E. LipoGlo microscopy imaging

1. Fix larvae in room-temperature 4% PFA diluted in PBS (see Recipe 19) for 3 h at room temperature.

2. Rinse larvae three times in PBS containing 0.1% Tween-20 for 15 min each.

3. Larvae should be imaged within the next 12 h to capture the maximum luminescence.

4. Prepare low-melt agarose with 0.1 g of low-melt agarose in 10 mL of 1× TBE and make 1 mL aliquots or smaller.

5. Keep low-melt agarose aliquots in liquid form at 42 °C in a heat block.

6. Just prior to mounting, supplement the low-melt agarose aliquot with 1% LipoGlo substrate (add 1 μL of substrate per 100 μL of low-melt agarose aliquot).

7. On a Petri dish lid, pipette an individual fixed larvae from the wash solution into a droplet and remove excess liquid with a pipette.

8. Quickly cover the larvae with a 50 μL droplet of low-melt agarose supplemented with 1% LipoGlo substrate.

9. Orient larvae as desired with a flexible poker until agarose is solidified. For most purposes, larvae will be arrayed laterally with the head pointed to the left.

10. Repeat this process for up to five larvae on one Petri dish lid before imaging.

11. Image using a Zeiss AxioZoom V16 with ZEN imaging software (version 2.5), equipped with a Zeiss AxioCam MRm set to the following specifications:

a. 30× magnification.

b. 2 × 2 binning.

c. 2× gain (to increase sensitivity).

d. Program to collect a single brightfield exposure (2.4 ms, 10% light intensity).

e. Follow with two chemiluminescent images (10 and 30 s, respectively).

12. Save images for subsequent analysis using Fiji.

Caution: For the best images, eliminate as many sources of light as possible in the imaging room being used. For example, any sources of light on the microscope should be covered with aluminum foil, and the entire microscope should be wrapped in a black curtain; room lights and computer screens should be turned off for all imaging.

Caution: To overcome the high background with the long exposure, place a Zeiss BG40 IR blocking filter in front of the camera. This step is especially important as there is an LED inside the light path in this microscope.

Data analysis

A. LipoGlo counting assay analysis

To measure the difference in LipoGlo quantities from the counting assay, import the data obtained from the plate reader into GraphPad Prism or other graphing software, and use the group or column plot tool to visualize them graphically. See Figure 1 for an example.

Note: For larval samples older than 7 dpf, or if fed exogenously, normalize the data using a Bradford protein assay.

B. LipoGlo electrophoresis assay analysis

To quantify the different sizes of lipoproteins on the PAGE gels, we applied the following step-by-step procedure:

1. Open File S1: PAGE_gel_analysis_templet.xlsx.

2. After collecting the PAGE gel images, open the 600.tif and Chemi.tif images on a computer or laptop with Fiji installed by clicking Plugins > Bio-formats > Bio-formats importer > navigate to the 600.tif file and select open.

3. Repeat for the Chemi.tif file.

4. Adjust the display on the 600.tif file so the outline of the bottom glass plate is visible by clicking Image > Adjust > Brightness/contrast and slide the maximum bar to the left until the bottom glass plate is visible.

5. Rotate the 600.tif image so the short side of the glass plate is perfectly vertical by clicking Image > Transform > Rotate > Select preview to get crosshairs on the image. Once the image is square, record the Angle value in the Gel image rotation (degree) box in the PAGE_gel_analysis_templet.

6. Enable the Vertical Profile option by clicking Edit > Options > Plots and select Vertical Profile.

7. On the 600.tif image, draw a region of interest (ROI) around the DiI-LDL sample column.

8. Select Edit > Selection > Specify and set the height to 500; if a 10-well comb was used, set the width to 50; if a 15-well comb was used, set the width to 30.

9. Using the arrow keys, move the ROI so the top of the box is in the middle of the loading well for the DiI-LDL, and arrow up 20 key strokes.

10. Select Edit > Selection > Specify and record the Y-axis value from this box in the Excel worksheet in the “ROI Y-coordinate (pixels)” box.

11. Select Analyze > Plot profile > List > Edit > Select all > Edit and copy and paste these values into the first two rows under the “Paste ladder + raw data” table.

12. Now, working with the Chemi.tif file, adjust the brightness of the image to see all the lanes; then, rotate the image using the recorded ‘Angle’ value from the 600.tif image in the “Gel image rotation (degree)” box in the PAGE_gel_analysis_templet.

13. On the Chemi.tif image, draw a region of interest (ROI) around the first sample column.

14. Select Edit > Selection > Specify and set the height to 500; if a 10-well comb was used, set the width to 50; if a 15-well comb was used, set the width to 30.

15. Set the y-coordinate to the value recorded for the 600.tif image.

16. Using the arrow keys, move the ROI so the top of the box is in the middle of the loading well for the first sample, and arrow up 20 key strokes.

Note: The y-coordinate for the ROI does not change.

17. Select Analyze > Plot profile > List > Edit > Select all > Edit and copy and paste these values into the next rows under the “Paste ladder + raw data” tab in the Excel worksheet.

18. Use the arrow keys to move the ROI box rightward and center it on the second sample lane. Select Analyze > Plot profile > List > Edit > Select all > Edit and copy and paste these values into the next rows under the “Paste ladder + raw data” tab in the Excel worksheet. Repeat this process for all sample lanes.

19. When all plot profiles are pasted into the “Paste ladder + raw data” tab, select all the “Distance_microns” columns and delete them.

20. Select all remaining “Gray_value” columns and copy and paste them into the “Calculations” tabs, starting in A1.

21. This will allow for the automatic population of the remaining boxes in the “Calculations” table.

22. These data can then be graphed in Prism using a group chart type.

Note: The ZM was left in File S1: PAGE_gel_analysis_templet.xlsx, but it is suggested not to include it when graphing the results.

C. LipoGlo microscopy analysis

1. Open the whole-mount images with Fiji.

2. Open the ROI manager by selecting Analyze > Tools > ROI Manager.

3. On the image, use the freehand selection tool to trace the ROI (Figure 2A) and add it to the ROI manager by selecting Add on the ROI Manager window.

4. Once all ROIs have been defined, select all of them and click “Measure” to get a popup window with the following measurements:

a. Area

b. Mean

c. IntDen

d. RawIntDen

5. Copy and paste all values into a new Excel sheet for calculating the total percent luminescence for each ROI.

6. For each set of ROIs, calculate the sum total of the RawIntDen values and divide each individual ROI’s RawIntDen value by the sum total to get the total percent luminescence for each ROI.

7. These values can then be graphed using Prism or other graphing software (Figure 2B).

Critical: The total in this analysis will not sum to 100% because the heart was not included in any of the ROIs for this experiment.

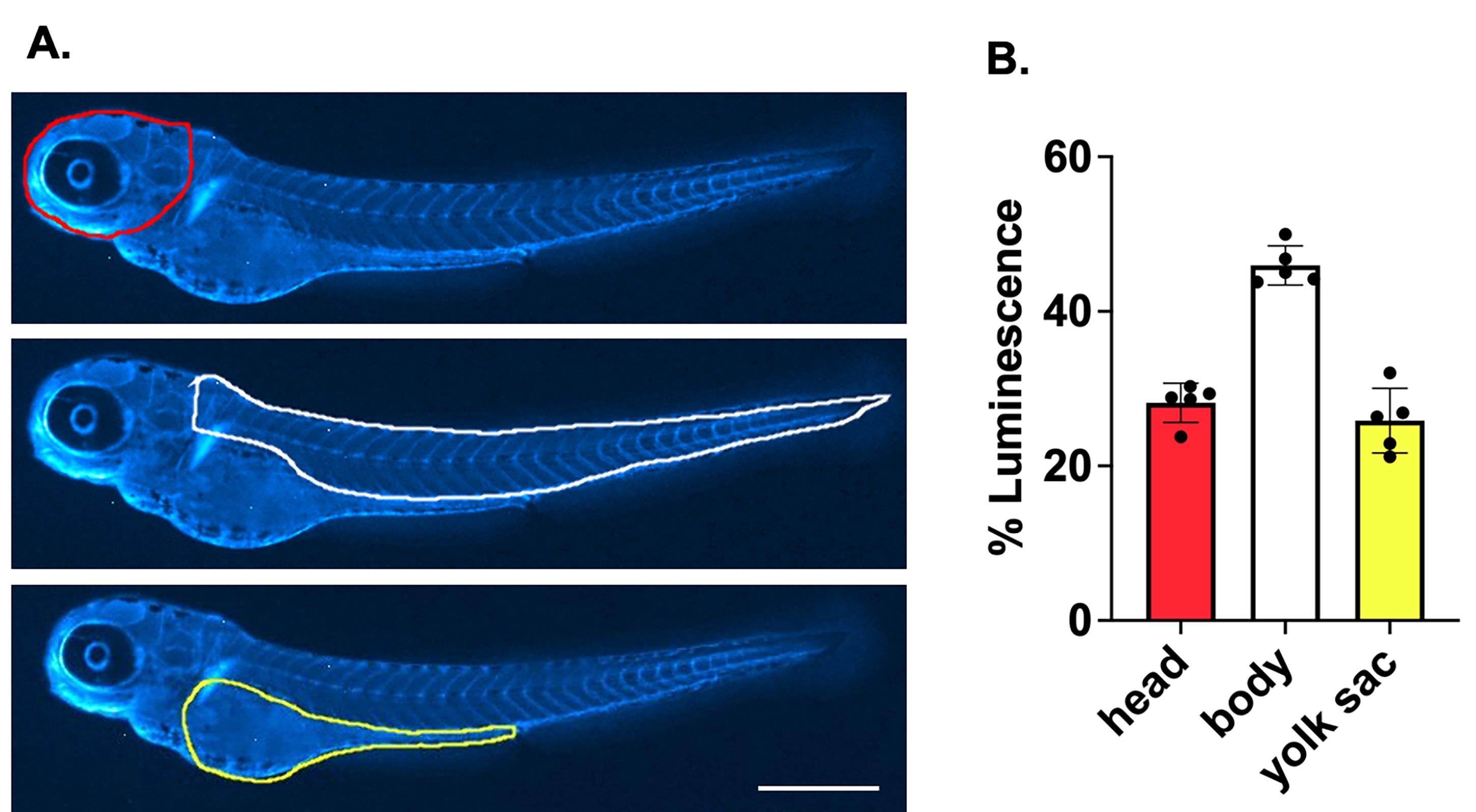

Figure 2. LipoGlo microscopy assay: luminescence quantified from different anatomical regions of a 3-day post-fertilization (dpf) zebrafish larvae. (A) Fiji can be used to outline regions of interest (ROI) and measure the total luminescence in the defined region. The red ROI is the head, white is the body, and yellow is the yolk sac region. Scale bar, 500 μm. (B) Total percent luminescence for each ROI (N = 2, n = 5 larvae analyzed for each ROI). Error bars indicate overall mean ± SD of two independent experiments.

Validation of protocol

To interrogate and validate our updated protocol, we began by optimizing the amount of LipoGlo substrate needed in a typical LipoGlo counting assay. These data are required to determine if sufficient substrate is available for typical assay amounts and the time required to perform the plate reader assay. For these experiments, 4-dpf larvae homozygous for the LipoGlo reporter were used. Each LipoGlo plate was read every 15 min for the duration of this experiment (1 h and 5 min) using varying amounts of homogenate (40, 20, 10, and 4 μL). From these data, 4 μL of homogenate provided the best LipoGlo counting assay performance (Figure 1A), producing the most linear response over the time points measured (Figure 1B). Next, we aimed to verify that 4 μL of homogenate, compared with the original 40 μL, was ideal when measuring total ApoB-LPs over zebrafish larval development from 1 to 7 dpf. Homogenate from 4-dpf larvae homozygous for the reporter was used at 40 or 4 μL in a LipoGlo counting assay for each day of larval development from 1 to 7 dpf (Figure 1C). These data indicate that using 4 μL of homogenate is superior to using 40 μL of homogenate for the LipoGlo counting assay.

Next, we wanted to measure the levels of ApoB-LPs in the three genotypes of our reporter line, Fus(ApoBb.1-nluc). For each day of development (1–6 dpf), a 96-well plate of larval homogenate from an in-cross of Fus(ApoBb.1-nluc)^+/- adults was used for a LipoGlo counting assay. To confirm the linearity of the assay response and ensure that sufficient substrate is available to accommodate a 2-fold increase in enzyme levels, we compared 4 μL of homozygous Fus(ApoBb.1-nluc)-/- larvae homogenate to 4 μL of heterozygous sibling homogenate. Each 96-well plate was genotyped for the presence of ApoBb.1-nluc (e.g., WT, heterozygous ApoBb.1-nluc and homozygous ApoBb.1-nluc). A 2-fold increase of ApoB-LP luminescence was seen with each day of development (Figure 3), confirming that the assay is linear for at least a 2-fold increase in enzyme.

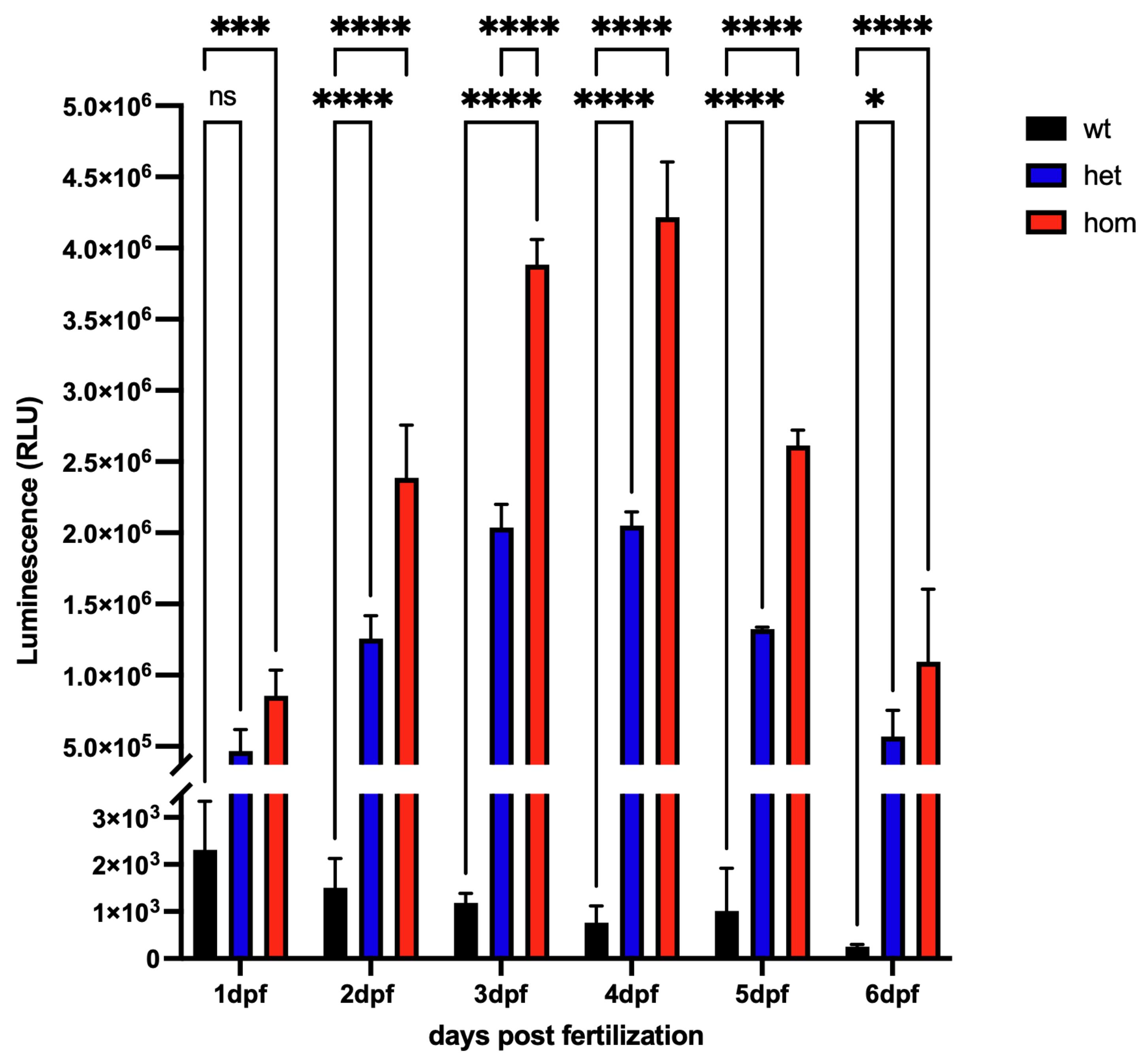

Figure 3. LipoGlo counting assay: zebrafish larvae homozygous for the LipoGlo reporter have a 2-fold increase in Apolipoprotein B–containing lipoproteins (ApoB-LPs). Zebrafish heterozygous for the ApoBb.1 reporter are in blue (het), homozygous animals are in red (hom), and wild type are in black (wt). There is nearly a 2-fold increase in luminescence between heterozygous and homozygous animals at each day of development measured. N = 3, n = 8–52. Error bars indicate overall mean ± SD of three independent experiments. Two-way ANOVA with Šidák’s multiple comparison test, *p < 0.0269, ***p < 0.0002, ****p < 0.0001, ns, non-significant.

For the LipoGlo electrophoresis assay, it was previously noted that human DiI-LDL had a slower migration rate due to the presence of the DiI [1]. Since the development of the assay, we have observed that the human DiI-LDL band migrates differently from lot to lot. This difference in migration distance is important because it was used in the analysis to account for gel variation in the quantification of the PAGE signal used to quantify ApoB-LP particle sizes. To re-validate our assay, we first needed to verify that human DiI-LDL and zebrafish LipoGlo LDL were similar in size, and second, we needed to provide a method to recalibrate the LipoGlo electrophoresis assay when using a new lot of DiI-LDL. To address these issues, we used density gradient ultra-centrifugation (DGUC) to measure which fraction of the human DiI-LDL and zebrafish LDL was detected (if their densities/sizes are the same, they should concentrate in the same fraction). For this experiment, we used human DiI-LDL, 5-dpf Fus(ApoBb.1-nluc)^+/+, 7-dpf ldlra^sd52 zebrafish mutants enriched in small LDL particles, and 7-dpf apoC2^sd38 zebrafish mutants with high levels of large VLDL particles. The time points selected for sampling were determined as when each fish had the strongest ApoBb.1 phenotype. The DGUC assay was performed as described in section D, and 10 fractions were collected for each sample. When the fractions were subjected to the LipoGlo electrophoresis assay, one key observation was that the LDL fractions for ldlra^sd52 and the human DiI-LDL both eluted in the fourth fraction (Figure 4A, 4B). To recalibrate the LipoGlo size analysis, we ran all the fractions on a PAGE gel and observed that when the original cutoff bins from the publication were used, there was obvious underrepresentation of LDL (Figure 4C). When the cutoff bins were manually adjusted to reflect where the ldlra^sd52 mutants’ small particles ran and where the apoC2^sd38 mutants’ large particles ran (Figure 4D), all ApoB-LP classes were more accurately measured.

In the original publication describing the LipoGlo electrophoresis assay [1], we always observed LipoGlo signal at the base of the loading well, which we referred to as the zero-mobility (ZM) fraction. We assumed that this fraction was composed of a mixture of tissue aggregates and extremely large lipoproteins like those produced by the intestine after a high-fat meal (chylomicrons). We now know that following DGUC of tissue extracts, each size fraction produces a zero-mobility signal. These data are consistent with aggregation occurring when the gel is run, since it is occurring in each fraction (Figure 4D), representing 20%–40% of the signal in each fraction. Fractions with larger particles have a higher percentage of zero mobility signal than those from the smallest particle fractions (see File S2). While the ZM fraction is calculated in our File S1: PAGE_gel_analysis_templet.xlsx, it might be best to exclude it when describing and graphing the distribution of particle sizes, since it likely represents aggregates from all size fractions.

Figure 4. Density gradient ultra-centrifugation (DGUC) assay: validating the use of human DiI-LDL as the standard control and PAGE gel analysis recalibration. (A) LipoGlo apolipoprotein B–containing lipoprotein (ApoB-LP) count assays from DGUC fractions 9–1 for wild-type 4 dpf, ldlra^sd52 7dpf and apoC2^sd36 7 dpf mutant zebrafish lines, N = 3 clutches, n = 15 larvae/clutch. Error bars indicate overall mean ± SD of two independent experiments (B) Fluorescent plate read assay with DGUC fractions collected from the human DiI-LDL migration standard, N = 2. (C) LipoGlo electrophoresis results showing the nine fractions for 5-dpf wild-type larvae, 7-dpf ldlra^sd52 larvae, and apoC2^sd36 7-dpf larvae. Original cutoff bins and their associated ApoB-LP type are indicated on the left with white dashed lines. (D) LipoGlo electrophoresis results showing the nine fractions for 5-dpf wild-type larvae, 7-dpf ldlra^sd52 larvae, and apoC2^sd36 7-dpf larvae. Recalibrated cutoff bins and their associated ApoB-LP type are indicated on the left with white dashed lines.

General notes and troubleshooting

Supplementary information

The following supporting information can be downloaded here:

1. LipoGlo PAGE Analysis Template (File S1: PAGE_gel_analysis_templet.xlsx)

2. Density gradient PAGE gel analysis (File S2: PAGE_gel_DGUC_Analysis.xlsx)

Acknowledgments

M.R.H. designed and performed experiments, analyzed data, prepared figures, and wrote the manuscript. S.A.F. designed and supervised experiments and contributed to the writing and revision of the manuscript. S.A.F. had full access to all the data in the study and takes responsibility for its integrity and the data analysis. We want to especially thank Julia Kiefer and Meredith Wilson for their careful reading of the protocol and their helpful suggestions. This work was supported by the National Institutes of Health grants to S.A.F. (R01DK093399, R01HL158054, R01GM63904, and R01DK138195). The content is solely the authors’ responsibility and does not necessarily represent the official views of the National Institutes of Health (NIH). This protocol was originally developed, validated, and published in Thierer et al. [1]. However, here we describe some new improvements to those assays.

Competing interests

The authors declare no competing interests.

Ethical considerations

All zebrafish (Danio rerio) protocols were approved by the Carnegie Institution Department of Embryology Animal Care and Use Committee (Protocol #139).

References

1. Thierer, J. H., Ekker, S. C. and Farber, S. A. (2019). The LipoGlo reporter system for sensitive and specific monitoring of atherogenic lipoproteins. Nat Commun. 10(1): 3426. https://doi.org/10.1038/s41467-019-11259-w
2. Tabas, I., Williams, K. J. and Borén, J. (2007). Subendothelial Lipoprotein Retention as the Initiating Process in Atherosclerosis. Circulation. 116(16): 1832–1844. https://doi.org/10.1161/circulationaha.106.676890
3. Berneis, K. K. and Krauss, R. M. (2002). Metabolic origins and clinical significance of LDL heterogeneity. J Lipid Res. 43(9): 1363–1379. https://doi.org/10.1194/jlr.r200004-jlr200
4. Chasman, D. I., Paré, G., Mora, S., Hopewell, J. C., Peloso, G., Clarke, R., Cupples, L. A., Hamsten, A., Kathiresan, S., Mälarstig, A., et al. (2009). Forty-Three Loci Associated with Plasma Lipoprotein Size, Concentration, and Cholesterol Content in Genome-Wide Analysis. PLos Genet. 5(11): e1000730. https://doi.org/10.1371/journal.pgen.1000730
5. Shim, H., Chasman, D. I., Smith, J. D., Mora, S., Ridker, P. M., Nickerson, D. A., Krauss, R. M. and Stephens, M. (2015). A multivariate genome-wide association analysis of 10 LDL subfractions, and their response to statin treatment, in 1868 Caucasians. PLoS One. 10(4): e0120758. https://doi.org/10.1101/011270
6. Liu, C., Gates, K. P., Fang, L., Amar, M. J., Schneider, D. A., Geng, H., Huang, W., Kim, J., Pattison, J., Zhang, J., et al. (2015). Apoc2 loss-of-function zebrafish mutant as a genetic model of hyperlipidemia. Dis Model Mech. 8(8): 989–998. https://doi.org/10.1242/dmm.019836
7. Otis, J. P., Zeituni, E. M., Thierer, J. H., Anderson, J. L., Brown, A. C., Boehm, E. D., Cerchione, D. M., Ceasrine, A. M., Avraham-Davidi, I., Tempelhof, H., et al. (2015). Zebrafish as a model for apolipoprotein biology: comprehensive expression analysis and a role for ApoA-IV in regulating food intake. Dis Model Mech. 8(3): 295–309. https://doi.org/10.1242/dmm.018754
8. Tall, A. (1993). Plasma cholesteryl ester transfer protein. J Lipid Res. 34(8): 1255–1274. https://doi.org/10.1016/s0022-2275(20)36957-1
9. Hogarth, C. A., Roy, A. and Ebert, D. L. (2003). Genomic evidence for the absence of a functional cholesteryl ester transfer protein gene in mice and rats. Comp Biochem Physiol B: Biochem Mol Biol. 135(2): 219–229. https://doi.org/10.1016/s1096-4959(03)00046-0
10. Kimmel, C. B., Ballard, W. W., Kimmel, S. R., Ullmann, B. and Schilling, T. F. (1995). Stages of embryonic development of the zebrafish. Dev Dyn. 203(3): 253–310. https://doi.org/10.1002/aja.1002030302
11. Schlegel, A. (2016). Zebrafish Models for Dyslipidemia and Atherosclerosis Research. Front Endocrinol (Lausanne). 7: e00159. https://doi.org/10.3389/fendo.2016.00159
12. O'Hare, E. A., Wang, X., Montasser, M. E., Chang, Y. P., Mitchell, B. D. and Zaghloul, N. A. (2014). Disruption of ldlr causes increased LDL-c and vascular lipid accumulation in a zebrafish model of hypercholesterolemia. J Lipid Res. 55(11): 2242–2253. https://doi.org/10.1194/jlr.m046540
13. Hall, M. P., Unch, J., Binkowski, B. F., Valley, M. P., Butler, B. L., Wood, M. G., Otto, P., Zimmerman, K., Vidugiris, G., Machleidt, T., et al. (2012). Engineered Luciferase Reporter from a Deep Sea Shrimp Utilizing a Novel Imidazopyrazinone Substrate. ACS Chem Biol. 7(11): 1848–1857. https://doi.org/10.1021/cb3002478
14. Elovson, J., Chatterton, J. E., Bell, G. T., Schumaker, V. N., Reuben, M. A., Puppione, D. L., Reeve, J. R. and Young, N. L. (1988). Plasma very low density lipoproteins contain a single molecule of apolipoprotein B. J Lipid Res. 29(11): 1461–1473. https://doi.org/10.1016/s0022-2275(20)38425-x
15. Liu, C., Kim, Y. S., Kim, J., Pattison, J., Kamaid, A. and Miller, Y. I. (2018). Modeling hypercholesterolemia and vascular lipid accumulation in LDL receptor mutant zebrafish. J Lipid Res. 59(2): 391–399. https://doi.org/10.1194/jlr.d081521
16. Schindelin, J., Arganda-Carreras, I., Frise, E., Kaynig, V., Longair, M., Pietzsch, T., Preibisch, S., Rueden, C., Saalfeld, S., Schmid, B., et al. (2012). Fiji: an open-source platform for biological-image analysis. Nat Methods. 9(7): 676–682. https://doi.org/10.1038/nmeth.2019
