Low Angle Ring Illumination Stereomicroscopy (LARIS) Method for High-Contrast Imaging of Drosophila Compound Eyes

Materials and reagents

Biological materials

1. Adult flies (3 days old) of desired genotypes; we used GMR-GAL4/+; +/+, GMR-GAL4/+; UAS-HttQ138-mRFP/+, and GMR-GAL4/+; UAS-FUS^WT/+ lines for adult eye imaging in this study.

Laboratory supplies

1. Glass slide (Blue Star microslide, 75 mm × 25 mm)

2. Transparent nail polish (Shade-40)

3. Fine forceps (Dumont Tweezer, catalog number: 72701-D)

4. Dissection needle (Syringes 31G)

5. Round synthetic paintbrush (Round paintbrush Size 4)

6. Ether (SRL, catalog number: 25049)

7. Etherizer (Tarson, catalog numbers: 630020 and 500043)

Equipment

1. Stereomicroscope (Nikon, model: SMZ800N)

2. Ring illuminator (AmScope LED-144B-ZK Black 144 PCS Adjustable LED Ring Light)

3. Microscope camera (Nikon, model: DS-Fi3)

Software and datasets

1. NIS, Elements Imaging Software, Basic Research (BR)

2. Fiji/ImageJ software (NIH, USA) (Java 6, available at imagej.nih.gov/ij)

Procedure

A. Sample preparation

1. Set up the egg laying of desired genetic crosses of parental flies (5 male and 5 female) and allow them to lay eggs for 12 h in vials with standard cornmeal food.

2. Transfer the parental flies to another food vial and culture the F1 (first filial generation) larvae and pupae at 24 °C with 12/12 h light/dark cycles in an incubator until the flies emerge.

3. Collect 3-day-old adult F1 flies and transfer them to an empty clean vial for 10–20 min to allow them to remove food debris particles from their eyes, if attached.

4. Transfer 3–5 male/female flies to the etherizer and incubate them until they stop moving (fully anaesthetized).

5. Transfer the F1 flies immediately from the etherizer to a glass slide and decapitate their heads using a fine dissection needle or forceps by holding the fly at the thorax region with one forceps and detaching the head from the thorax with the help of another forceps.

6. Hold the mouthparts of the fly head with fine forceps and place one side of the fly head, specifically the eye region, on a small drop of nail polish (Figure 2A).

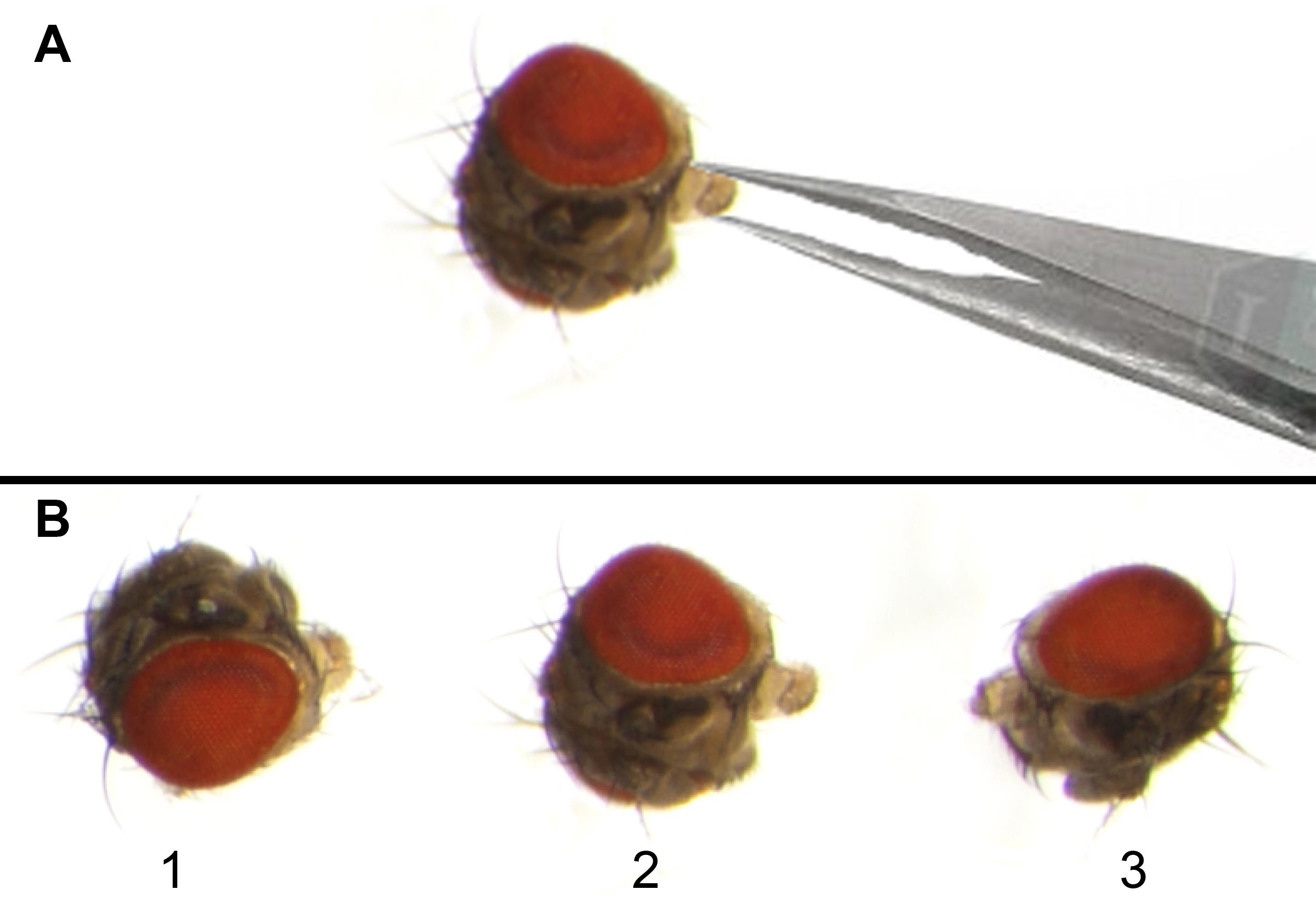

Figure 2. Adult Drosophila eye mounting on a glass slide for imaging. (A) Forceps holding the mouth part of the adult fly head so that one eye region can be dipped in nail polish and then attached to the glass slide, while the second eye remains clearly visible under the microscope. (B) Microphotographs of adult Drosophila heads (1–3) placed on the mid part of the glass slide for eye imaging. Eyes should be mounted with a proper gap so that the imaging of one eye will not interfere with that of neighboring eyes.

7. Place the fly head on a glass slide with the eye region covered in nail polish adhering to the glass slide, leaving the opposite eye surface facing upward and clearly visible for imaging.

8. Use a fine needle/forceps to align the head to keep the central part of the visible side of the eye in focus with the microscope.

9. Allow the nail polish to dry for 3–5 min. The eye is ready for imaging (Figure 2B).

B. Microscope alignment

1. Place a flat plate with a black surface on the stage for taking the images. A white background generates some glare and thus compromises image contrast.

2. Carefully place the slide with eye samples at the center of the stereomicroscope stage.

3. Place the ring illuminator at the stage, keeping the imaging area of the slide at its center. This will ensure equal illumination to the eye from every side.

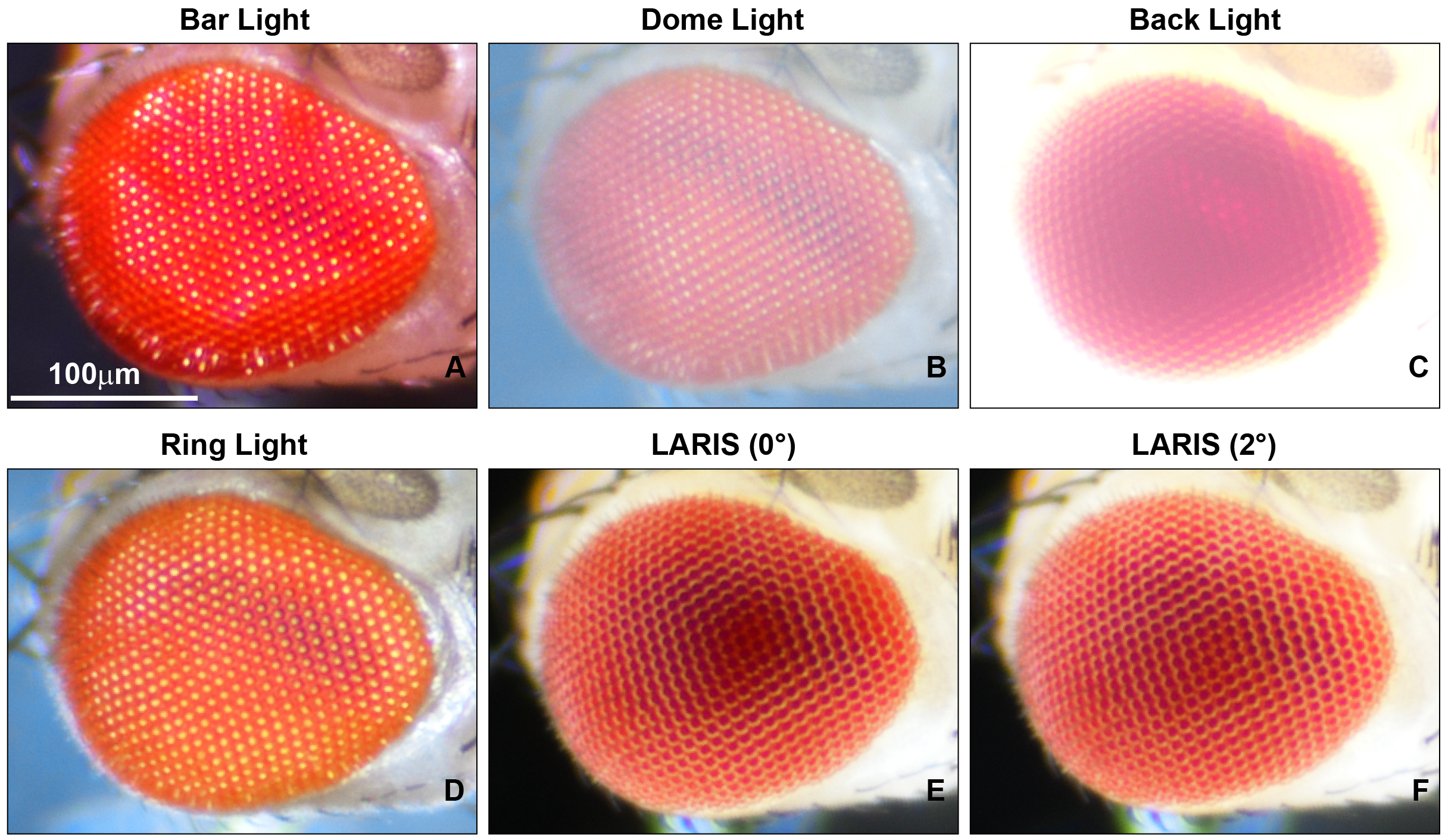

4. Make a 2–3° angle (slight incline) from the light source to the eye (by putting a 2–3 mm block below the ring illuminator) to stop the formation of a shadow at the center of the compound eye (Figure 1E–F).

5. Set the stereomicroscope at maximum magnification (8× magnification in the SMZ800N).

C. Image acquisition

1. Use NIS-Element software for imaging.

2. Bring the sample to the center and adjust the focus to ensure the maximum portion of the eye surface is visible.

3. Concentrate on the central part of the eye while ensuring that as much of the eye as possible remains in focus. Since the eye is a three-dimensional curved structure, a single image cannot entirely bring the eye into focus.

4. Adjust the image brightness by changing the exposure time to 300 ms and gain to 1.0× in the NIS software.

5. Before imaging, perform white balance, keeping the same background without any sample. Do not make any adjustments to settings after white balance.

6. Capture the image with no binning to get a high-resolution image.

D. Image analysis

1. Capture 50 eyes of each genotype at a minimum, keeping all the imaging parameters constant to maintain similar brightness and color temperature across genotypes and replicates.

2. Eye defects can be quantified by a degeneration score, which takes into account eye size, the number and size of necrotic patches, pigmentation level, and ommatidial alignment and fusion.

3. Using these parameters, the eye degeneration score can be calculated to illustrate the rescuing or exacerbating effects of the targeted molecule on neurodegeneration in the Drosophila compound eye.

Data analysis

We compared conventional and LARIS imaging methods to examine the differences in structural details in the eyes of normal or a neurodegeneration model of Drosophila. We used GMR-GAL4/+; +/+ [8] fly line as a control, GMR-GAL4/+; UAS-HttQ138-mRFP/+ [9] as the Huntington’s disease model, and GMR-GAL4/+; UAS-FUS^WT/+ [10] as the ALS disease model (Figure 3). Under conventional imaging, the wildtype eye has only an array of bright dots without enough structural details (Figure 3A, A’). The same eye under LARIS shows distinct ommatidia aligned in rows (Figure 3D, D’). In neurodegeneration lines, where the conventional method provides images with no distinct information on ommatidial structure and arrangement (Figure 3B, B’, C, C’), LARIS images showed ommatidial fusion in GMR-GAL4/+; UAS-HttQ138-mRFP/+ flies (Figure 3E, E’) and an apparent loss of ommatidial structure at the central part of the GMR-GAL4/+; UAS-FUS^WT/+ flies (Figure 3F, F’). The abnormalities in ommatidial structure and arrangement in degenerating eyes are even more distinct in a magnified view of the LARIS image. We quantified the degeneration score by scoring various parameters of eye phenotype [11] and found that the degeneration score of the neurodegeneration lines is significantly higher compared to control flies (Figure 3G). Our study showed that LARIS is a straightforward, reliable, and robust method for capturing high-contrast images of insect compound eyes. This technique is particularly beneficial for imaging the three-dimensional microscopic structures with highly reflective cuticles found in Drosophila and other organisms. We believe that LARIS will create new opportunities for high-contrast imaging of insect eyes.

Figure 3. Comparative analysis of conventional and LARIS imaging methods of adult Drosophila eyes. Microphotographs of adult Drosophila compound eye of GMR-GAL4/+; +/+ (A, D), GMR-GAL4/+; UAS-HttQ138-mRFP/+ (B, E), and GMR-GAL4/+; UAS-FUS^WT/+ (C, F) using conventional (A–C) or LARIS (D–F) imaging at the same magnification (5×). A magnified view of conventional images (A’–C’) and LARIS images (D’–F’) is shown below their respective images. (G) Drosophila compound eye degeneration score, calculated from eye images captured using the LARIS method, showing statistically significant high neurodegeneration in GMR-GAL4/+; UAS-HttQ138-mRFP/+ and GMR-GAL4/+; UAS-FUS^WT/+ lines compared to control flies. An ordinary one-way ANOVA with Sidak’s multiple comparisons test was used to calculate statistical significance. ****p < 0.0001, n = 25 for each genotype (middle line of violin plot indicates the median of the degeneration score).

Validation of protocol

We tested the LARIS method for eye imaging of different genotypes; validation of the protocol is provided in Figures 1 and 3.

General notes and troubleshooting

General notes

1. A standard CO₂ fly pad can be used in place of ether to anaesthetize the adult flies.

2. The forceps should not touch the eye during decapitation of the head. Some eyes with neurodegeneration shrink within the head region and thus can generate an artifact.

3. Use a tiny drop of nail polish, which is sufficient for attaching one side of the eye to a glass slide. An excess amount may allow the head to get merged in nail polish, creating a layer of nail polish on the imaging eye and thus affecting image quality.

4. A proper alignment of the head on the slide is crucial to focus the image on the central part and thus cover the maximum area of the eye.

5. Keep the ring illuminator at maximum brightness. Adjust the imaging light intensity by adjusting the exposure time to 300 ms and gain to 1.0× in the NIS Elements software.

6. The 2–3 mm block, which is required to make an angle between the ring illuminator and the eye sample, can be made by stacking 2–3 glass slides.

7. White balance is a function used in microscopy and imaging to correct the color temperature of an image, making white objects appear true white by adjusting the red, green, and blue components. This ensures that colors are an accurate representation of the specimen, free from the color cast of the illumination source.

8. The imaging table should be vibration-free. Do not touch the microscope or table during image capturing.

9. Since the Drosophila compound eye is a curved structure, getting a complete eye image requires multiple images of the same eye with different focus points. This series of images can be used to create a completely focused eye image by using an extended depth of field (EDF) application in imaging software https://www.nisoftware.net/NikonSaleApplication/Help/Docs-D/eng_d/edf.step.by.step.html.

10. Keep all imaging parameters constant for comparative imaging.

Troubleshooting

1. Eyes with complete loss of pigmentation may exhibit some glare with the LARIS method. Keep the ring illuminator parallel to the object (0° angle) to minimize glare.

2. Eyes with a high level of degeneration may invaginate within 20–30 min of incubation after decapitation. To avoid such artifacts in the eye image, perform imaging immediately after mounting.

3. To ensure consistent eye image color intensity, perform white balance with a black background before starting imaging.
