Visualizing Diverse RNA Functions in Living Cells With Spinach^TM Family of Fluorogenic Aptamers

Materials and reagents

Biological materials

1. HeLa human cervical epithelial cells (ATCC, catalog number: CRM-CRL-2)

2. HEK293T human kidney epithelial cells (ATCC, catalog number: CRL-3216)

3. COS-7 monkey fibroblasts (ATCC, catalog number: CRL-1651)

Reagents

1. DMEM, high glucose, GlutaMax^TM, pyruvate, phenol red (ThermoFisher, catalog number: 10569010)

2. Fetal bovine serum (FBS) (ThermoFisher, catalog number: 26140079)

3. Penicillin-streptomycin solution (pen-strep) (ThermoFisher, catalog number: 15140122)

4. TrypLE^TM, no phenol red (ThermoFisher, catalog number: 12563011)

5. GlutaMax^TM supplement (ThermoFisher, catalog number: 35050061)

6. Cell culture-grade water (Millipore Sigma, catalog number: W3500-6X500ML)

7. Phosphate-buffered saline, 1× (PBS) (Corning, catalog number: 21-040-CV)

8. Trypan Blue, 0.4% solution (Thomas Scientific, catalog number: C838W29)

9. Poly-L-lysine solution, 0.1 mg/mL (PLL) (Millipore Sigma, catalog number: A-005-C)

10. Human plasma fibronectin, 5 mg (Corning, catalog number: 356008)

11. FuGENE^® HD (Promega, catalog number: E2311)

12. Opti-MEM (ThermoFisher, catalog number: 31985062)

13. FluoroBrite^TM DMEM (ThermoFisher, catalog number: A1896702)

14. Hoechst 33342, 10 mg/mL (ThermoFisher, catalog number: H3570)

15. SYTOX^TM red dead cell stain, 5 μM (ThermoFisher, catalog number: S34859)

16. Plasmids:

a. pcDNA3.1-mCherry-48xBroccoli-polyA₁₅₀ (generated in-house)

b. pAV-U6-Corn (Addgene, catalog number: 106233)

c. pAV-U6-F30-2xdBroccoli (Addgene, catalog number: 66842)

d. pAV-U6-Squash (Addgene, catalog number: 177913)

e. pcDNA3.1-MAPT-4xSquash (generated in-house)

f. pcDNA3.1-CUG₁₂-2xSquash (generated in-house)

g. pcDNA3.1-CUG₂₄₀-2xSquash (generated in-house)

h. pcDNA3.1-CGG₆₀-Spinach2 (generated in-house)

i. pEGFP (Addgene, catalog number: 165830)

17. BI fluorophore (Lucerna, catalog number: 600-1mg)

18. DFHO fluorophore (Lucerna, catalog number: 500-1mg)

19. Dimethyl sulfoxide, cell culture grade (DMSO) (VWR, catalog number: IC0219605580)

20. Nikon Immersion Oil Type F, N = 1.516 (Morrell Instrument Co., catalog number: MXA22168)

21. HiScribe^® T7ARCA mRNA kit (NEB, catalog number: E2060S)

22. RNA clean & concentrator (Zymo, catalog number: R1018)

Solutions

1. Cell culture media (see Recipes)

2. Fibronectin stock solution (see Recipes)

3. BI fluorophore stock solution (see Recipes)

4. DFHO fluorophore stock solution (see Recipes)

5. 1× live-cell imaging solution (see Recipes)

Recipes

1. Cell culture media

2. Fibronectin stock solution

Note: Store fibronectin stock solutions in 50 μL aliquots at -80 °C. Avoid multiple freeze-thaw cycles.

3. BI fluorophore stock solution

Note: Store BI stock solutions at -20 °C in the dark.

4. DFHO fluorophore stock solution

Note: Store DFHO stock solutions at -20 °C in the dark.

5. 1× live-cell imaging media

Note: 0.5 mL is sufficient for one well. Determine the total volume needed by multiplying the total number of wells needed by 0.5 mL and adding a 10% excess.

*Fluorophore(s) selection should correspond to the Spinach^TM tag(s) used (see Table 1). If multiplexing, two spectrally separated fluorophores should be used (e.g., Broccoli and Squash).

Table 1. Properties of Spinach^TM tags

Laboratory supplies

1. Glass-bottom, 24-well plate (VWR, catalog number: 82050-898) or 4-well dish (VWR, catalog number: 890135-976)

2. Microcentrifuge tubes, 1.5 mL (USA Scientific, catalog number: 1615-5500)

3. Sterile centrifuge tube, 15 mL (CELLTREAT, catalog number: 667015B)

4. Sterile centrifuge tube, 50 mL (CELLTREAT, catalog number: 229421)

5. Parafilm (Bemis, catalog number: PM999)

6. T-75 flasks w/ filter cap (USA Scientific, catalog number: CC7682-4875)

7. Serologic pipette, 2 mL individually wrapped (Fisher, catalog number: 13-678-11C)

8. Serologic pipette, 5 mL individually wrapped (Fisher, catalog number: 13-678-11D)

9. Serologic pipette, 10 mL individually wrapped (Fisher, catalog number: 13-678-11E)

10. Serologic pipette, 25 mL individually wrapped (Fisher, catalog number: 13-678-11)

11. Serologic pipette, 50 mL individually wrapped (Fisher, catalog number: 13-678-11F)

12. Pipette tips w/ filters, P2 (Denville, catalog number: 1159M41)

13. Pipette tips w/ filters, P20 (Denville, catalog number: 1159M43)

14. Pipette tips w/ filters, P200 (Denville, catalog number: 1159M40)

15. Pipette tips w/ filters, P1000 (Denville, catalog number: 1159M42)

Equipment

1. Certified type A2 biosafety cabinet (VWR, catalog number: 89413-128)

2. Pipette, single-channel P2 (Eppendorf, model: Research Plus)

3. Pipette, single-channel P20 (Eppendorf, model: Research Plus)

4. Pipette, single-channel P200 (Eppendorf, model: Research Plus)

5. Pipette, single-channel P1000 (Eppendorf, model: Research Plus)

6. Pipette fillers (ThermoFisher, model: S1 pipet fillers)

7. 4 °C refrigerator (Summit, model: FF7BIADA)

8. -40 °C ultra-low temperature freezer (VWR, catalog number: 76307-990)

9. -80 °C ultra-low temperature freezer (ThermoFisher, model: RLE50086A)

10. Water jacket tissue-culture incubator (VWR, model: 3015)

11. Biological microscope (Bioimager, model: BIM500FL)

12. Cell counter (Corning, catalog number: 6749)

13. Inverted wide-field fluorescence microscope (Nikon, model: Eclipse Ti-E)

14. Microcentrifuge (Eppendorf, model: 5424)

15. Centrifuge (Eppendorf, model: 5702R)

16. Cell counter (Corning, model: 6749)

17. Counting chamber (Corning, catalog number: 480200)

18. Water bath, 37 °C (Fisher Scientific, catalog number: 15-460-10)

19. Metallic water bath beads (Thomas Scientific, catalog number: 1220U61)

20. Stage top environmental chamber with flow control (Tokai Hit, model: INUTIZ)

21. Motorized stage (Nikon, model: TiSER)

22. High-numerical aperture (high-NA) fluorescence objective (Nikon, catalog model: CFI Plan Lambda Apo, 60×/1.4, oil)

23. sCMOS camera (Andor Technology, model: Zyla 5.5)

24. For imaging Hoechst 33342: DAPI filter cube with a sputter-coated excitation filter 395/25, dichroic mirror 425 (beamsplitter), and emission filter 460/50 (Chroma, model: 49028 ET)

25. For imaging Broccoli: FITC/GFP filter cube with a sputter-coated excitation filter 470/40, dichroic mirror 495 (beamsplitter), and emission filter 525/50 (Chroma, model: 49002 ET)

26. For imaging Corn and Squash: YFP filter cube with a sputter-coated excitation filter 500/20, dichroic mirror 515 (long pass), and emission filter 535/30 (Chroma, model: 49003 ET)

27. For imaging Squash: TRITC filter cube with a sputter-coated excitation filter 555/23, dichroic mirror 574 (beamsplitter), and emission filter 609/54 (Semrock, model: LED-TRITC-B-000)

28. For imaging mCherry: DsRed filter cube with a sputter-coated excitation filter 545/30, dichroic mirror 570 (long pass), and emission filter 620/30 (Chroma, model: 49005 ET)

29. For imaging SYTOX^TM red: Cy5 filter cube with a sputter-coated excitation filter 620/60, dichroic mirror 660 (long pass), and emission filter 700/75 (Chroma, model: 49006 ET)

Software and datasets

1. ApE plasmid editor (https://jorgensen.biology.utah.edu/wayned/ape/) [23]

2. NUPACK nucleic acid analysis and design software (https://www.nupack.org/) [24]

3. UNAFold package (https://www.unafold.org/)

4. NIS Elements Advanced Research image acquisition software with High Content Analysis module (Nikon, version 5.4). Free alternative: ImageJ image analysis software with Fiji package (https://fiji.sc/), or similar image analysis software [25]

5. Prism graphing and statistical software (GraphPad, version 10). Free alternative: ggplot2 (https://ggplot2.tidyverse.org/) [26]

Procedure

A. Design and generation of Spinach^TM-tagged RNA expression constructs

1. Select an aptamer–dye pair. Use Table 1 to choose the RNA aptamer/fluorophore best suited to your goals (e.g., cell type, available filter sets, multiplexing needs).

2. Plan tag placement. Spinach^TM tags have been widely used to label diverse RNAs [14–21]. In most cases, tags are inserted in the 5′ UTR and/or 3′ UTR of the target RNA. Published Spinach^TM tag sequences are listed in Table 2. Model the sequence insertion in a plasmid editor (e.g., ApE, SnapGene) to ensure it does not disrupt essential elements or functions.

• If inserting in the 5′ UTR: Avoid introducing a start codon; do not interrupt the Shine–Dalgarno sequence in bacteria; do not impede eukaryotic ribosomal scanning.

• If inserting in the ORF: Avoid creating premature termination signals or altering the encoded amino acid sequence.

• If inserting in the 3′ UTR (after the stop codon): Do not disrupt transcription termination or trigger unintended RNA degradation.

• If critical RNA structures are required for function, evaluate the full chimeric sequence in an RNA folding program (e.g., mFold, NUPACK) to check for misfolding.

Table 2. Spinach^TM tag sequences

3. Choose an expression system. Select a vector that can express the Spinach^TM-tagged RNA under the desired promoter:

• Eukaryotic RNA polymerase II (e.g., CMV, CAG, EF1α) for mRNA expression

• Eukaryotic RNA polymerase III (e.g., 5S, U6, tRNA) for ncRNA expression

• Prokaryotic RNA polymerase promoters (e.g., T7, SP6, lac) for bacterial expression

• See the Addgene promoter overview for additional guidance: https://tinyurl.com/48ntd9ue.

4. Construct generation. Build Spinach^TM-tagged RNA expression plasmids using standard molecular cloning. Include a negative-control construct in which the Spinach^TM tag is replaced with a non-fluorophore-binding sequence of similar length (e.g., a scrambled insert).

5. Sequence verification. Confirm correct insertion by DNA sequencing.

6. DNA preparation for transfection. From a sequence-verified single colony, purify plasmid DNA with a chromatography kit matched to the required yield/purity. Use endotoxin-free formats for mammalian transfection.

CRITICAL: Create a bacterial glycerol stock for each sequence-verified plasmid for long-term storage and easy propagation. See Addgene for a bacterial glycerol stock protocol: https://tinyurl.com/7ckajfx9.

PAUSE POINT: Purified plasmids can be stored at -20 °C until ready to use.

B. Preparation of extracellular matrix (ECM) coated glass-bottom plates

General consideration: ECM is a non-cellular network of proteins and carbohydrates that improves the attachment and spreading of adherent cells on glass-bottom plates or dishes. Common ECMs include fibronectin, collagen, poly-L-lysine (PLL), and laminin. Optimal conditions should be determined empirically for each cell line and application.

CRITICAL: Perform all sterile cell–related work in a certified biosafety cabinet using proper aseptic technique. Additionally, glass-bottom plates or dishes are required for fluorescence imaging since they provide the necessary optical clarity and flatness for high-numerical-aperture objectives, while plastic-bottom dishes can cause optical distortion, reduced resolution, and compromise image quality.

1. PLL coat. Add 0.5 mL of PLL to each glass-bottom well and incubate for ≥2 h at 37 °C or overnight at 4 °C.

• Wells in 24-well plates and 4-well dishes each hold ~0.5 mL.

• Multiple plates may be coated in parallel. Wrap in sterile parafilm and store at 4 °C.

• PLL can be reused at least three times; store used PLL at 4 °C.

2. Rinse. Aspirate PLL and rinse wells three times with 0.5 mL of ddH₂O.

PAUSE POINT: PLL-coated plates (either dried or wet) can be stored for up to 24 h at room temperature or up to 1 week at 4 °C. Unused wells can be used in future experiments.

3. Sterilize. Remove residual water, leave plates uncovered in the hood, and UV-irradiate for ≥15 min.

4. Prepare fibronectin. Dilute thawed 1 mg/mL stock 1:50 in PBS to make a 20 μg/mL working solution; prepare sufficient volume for 0.3 mL per well.

5. Fibronectin coat. Add 0.3 mL of 20 μg/mL fibronectin to each PLL-coated well and incubate for ≥2 h at 37 °C.

6. Dry. Aspirate fibronectin completely and allow wells to dry. Plates are ready for cell plating.

CAUTION: Remove excess fibronectin thoroughly, as residual fibronectin can impair cell health.

C. Transfection of adherent mammalian cells

1. Subculture adherent cells at passages ~P5–P20 when cultures reach ~80% confluency.

CRITICAL: Passage at regular intervals to maintain reproducible behavior. Adjust seeding density until growth rate and yield are consistent. Plan experiments around the subculture schedule when possible.

2. When the new passage reaches ~80% confluency, dissociate HeLa cells with TrypLE following standard adherent-cell procedures. Determine cell concentration, manually or with an automated counter, using Trypan Blue.

3. Determine the total number of wells needed and prepare a cell suspension sufficient to dispense 0.5 mL per well. Seed enough cells to ensure that cells will reach 60%–80% confluency at the time of transfection.

CRITICAL: Optimal density is cell line–specific. Titrate seeding density to achieve healthy growth in the presence of transfection reagents, with full spreading and minimal clumping at 24 h post-transfection (Figure 1).

Figure 1. Representative cell density. Cells seeded too sparsely show poor spreading and stressed morphology. Cells at optimal density form an even, well-spread monolayer with minimal overlap. Cells seeded too densely cluster into clumps and multilayer islands, which impairs transfection and imaging. Scale bar: 100 μm.

4. After 24 h, prepare the transfection mix according to the FuGENE^® HD protocol: 0.5 μg of Spinach^TM-tagged RNA expression construct, 1.5 μL of FuGENE^® HD, and Opti-MEM to a final volume of 40 μL per well.

• Always include a scrambled aptamer control or negative expression control (FuGENE^® HD + Opti-MEM only). In the presence of fluorophores, these controls can be used to measure background fluorescence.

• In separate wells, 0.1 μg of pEGFP may be used as a transfection control, and 0.5 μg of plasmids expressing aptamers alone (pAV-U6-Corn, pAV-U6-F30-2xdBroccoli, pAV-U6-Squash) can be used as positive aptamer controls.

• To save time, reverse transfection can be performed the day of cell plating. But testing should be done prior to the experiment to confirm that reverse transfection did not reduce cell viability of the cell line. A protocol for reverse transfection with FuGENE^® HD can be found at https://tinyurl.com/4s2aprw5.

CRITICAL: The amount of plasmid DNA and transfection reagent used should be empirically determined to obtain optimal expression and a high signal-to-background ratio.

D. Live-cell imaging of Spinach^TM-tagged RNAs

General consideration: Imaging experiments described here were performed on a Nikon Eclipse Ti-E inverted fluorescent microscope in a motorized temperature-controlled chamber. Equivalent inverted fluorescence systems with comparable sensitivity and environmental control are also suitable. For the acquisition steps described below, use the corresponding controls in the software/hardware for your imaging system.

1. Image cells ~24–48 h post-transfection.

Note: The optimal imaging time depends on the expression kinetics of the tagged RNA (promoter strength, cell type, RNA stability). Run a brief time-course and adjust earlier (6–12 h) or later (up to ~72 h) as needed.

2. Prepare 1× live-cell imaging medium 1 h before imaging and keep at 37 °C. For extended time-lapse experiments (>6 h), add 10% FBS and 1% GlutaMAX^TM to support cell health.

3. Replace culture medium with prewarmed imaging medium 30 min before imaging. Tilt the plate ~45° and gently aspirate without touching cells. Add 0.5 mL of imaging medium dropwise.

4. Pre-equilibrate the microscope environmental chamber to 37 °C and 5% CO₂ for ≥30 min.

5. Place the plate in the chamber. Add immersion oil to the 60× objective and focus on adherent cells using phase illumination.

Note: Use immersion oil that is suited for fluorescence microscopy and compatible with the objective used.

6. In the software, access the acquisition settings menu by clicking View > Acquisition Controls > Acquisition.

7. Switch to the DAPI filter to begin fluorescence acquisition. Determine the proper exposure time for each channel by acquiring images from 100 ms to 2 s exposure time. The optimal exposure time should allow the highest possible signal without any pixel saturation.

8. Optimize exposure for all required filter sets (e.g., FITC/GFP, YFP, TRITC, Cy5).

CRITICAL: To minimize photobleaching/phototoxicity, limit light between acquisitions, lengthen intervals as needed, and, when possible, acquire from longer to shorter wavelengths (red → yellow → green).

9. Access the ND Acquisition menu by clicking Applications > Define/Run ND Acquisition. This feature allows for automated acquisitions with defined time points, defined positions in the well, simultaneous acquisition of any fluorescent channels and brightfield, and the ability to stitch adjacent fields in one image.

10. In the “λ” tab, select filters based on the Spinach^TM tag and any co-labels:

• Cy5 filter: To visualize dead cells with SYTOX^TM red stain, suggested exposure 300 ms to 1 s.

• TRITC filter: To visualize Squash-tagged RNA, suggested exposure 300 ms to 1 s.

• YFP filter: To visualize Corn-tagged RNA, suggested exposure 300 ms to 1 s.

• FITC/GFP filter: To visualize Broccoli-tagged RNA, suggested exposure 300 ms to 1 s.

• DAPI filter: To visualize Hoechst-stained nuclei, suggested exposure 100–200 ms.

Note: DAPI stain is not recommended for live-cell imaging due to low permeability and cell toxicity issues.

11. (Optional) In the “λ” tab, also check the box for Close Active Shutter during Filter Change and Use PFS. This will help prevent bleedover of light when switching fluorescent channels and help with maintaining accurate overlays of images in different channels during acquisition.

Note: Perfect focus system (PFS) is a hardware/software Nikon component that continuously maintains focus during live imaging by detecting the coverslip interface with infrared light and automatically correcting Z-drift in real time.

12. (Optional) In the Large Image tab, select the following settings to create a large, stitched image:

• Scan area: 7 × 7

• Overlap: 15%

• Stitching via: Blending

• Check the boxes for Close Active Shutter during Stage Movement and Use PFS.

Note: This step is only necessary if taking many neighboring images for quantification purposes.

13. For each well, select 2–3 fields near the center with adequate cell density (at least 2 cells per 60× field) and clearly defined cell borders. Acquire brightfield and fluorescence images using ND Acquisition.

Data analysis

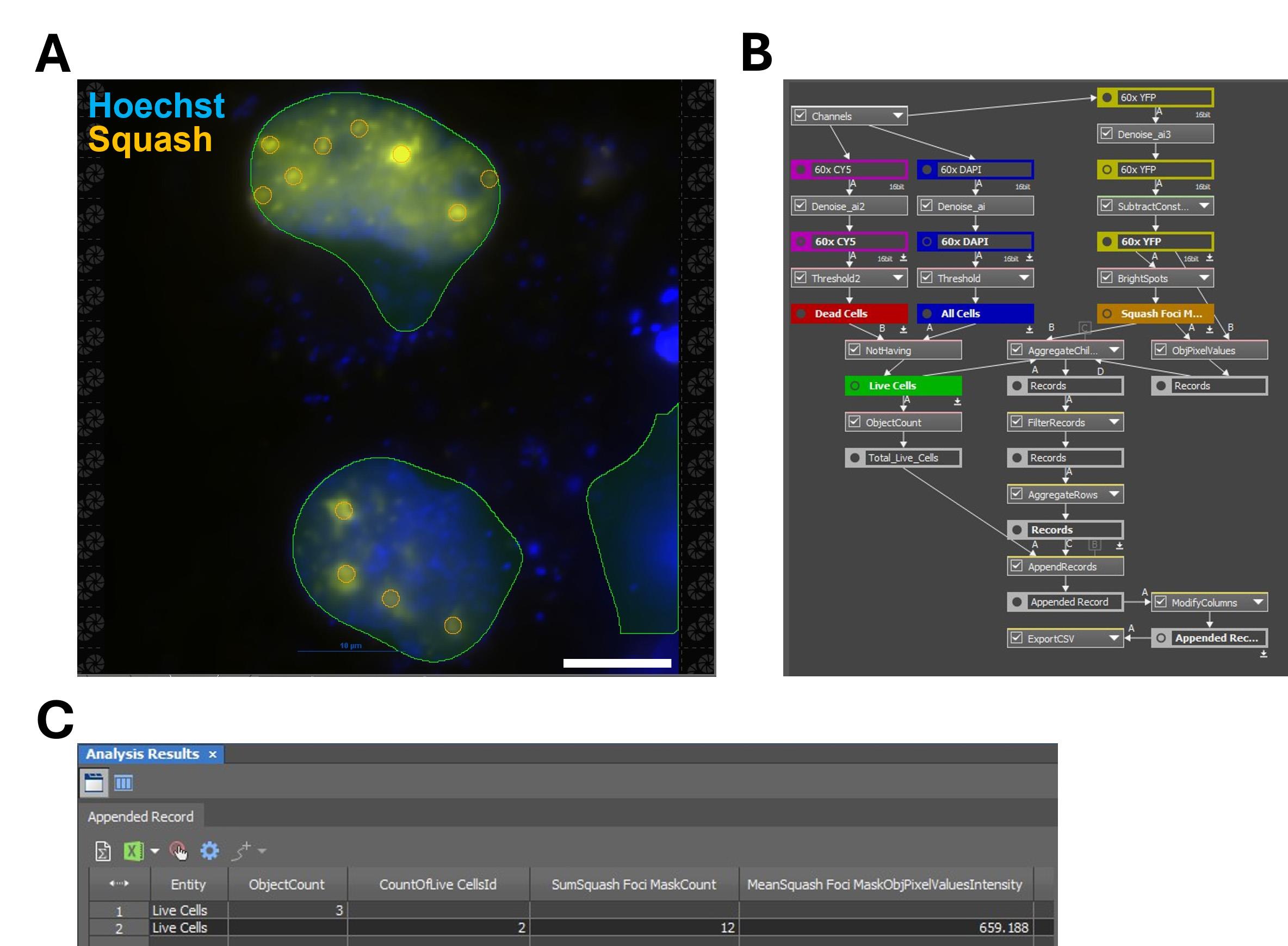

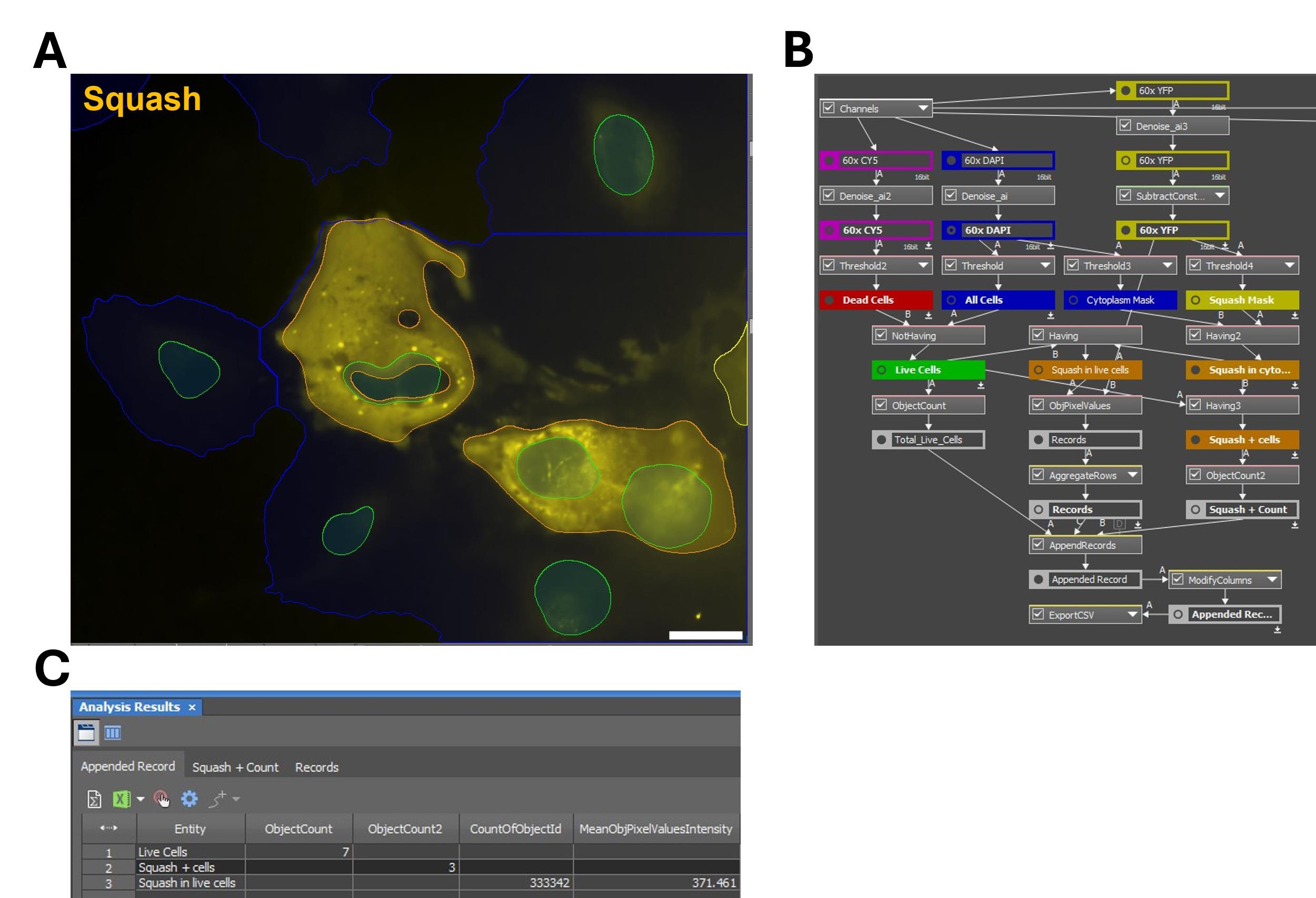

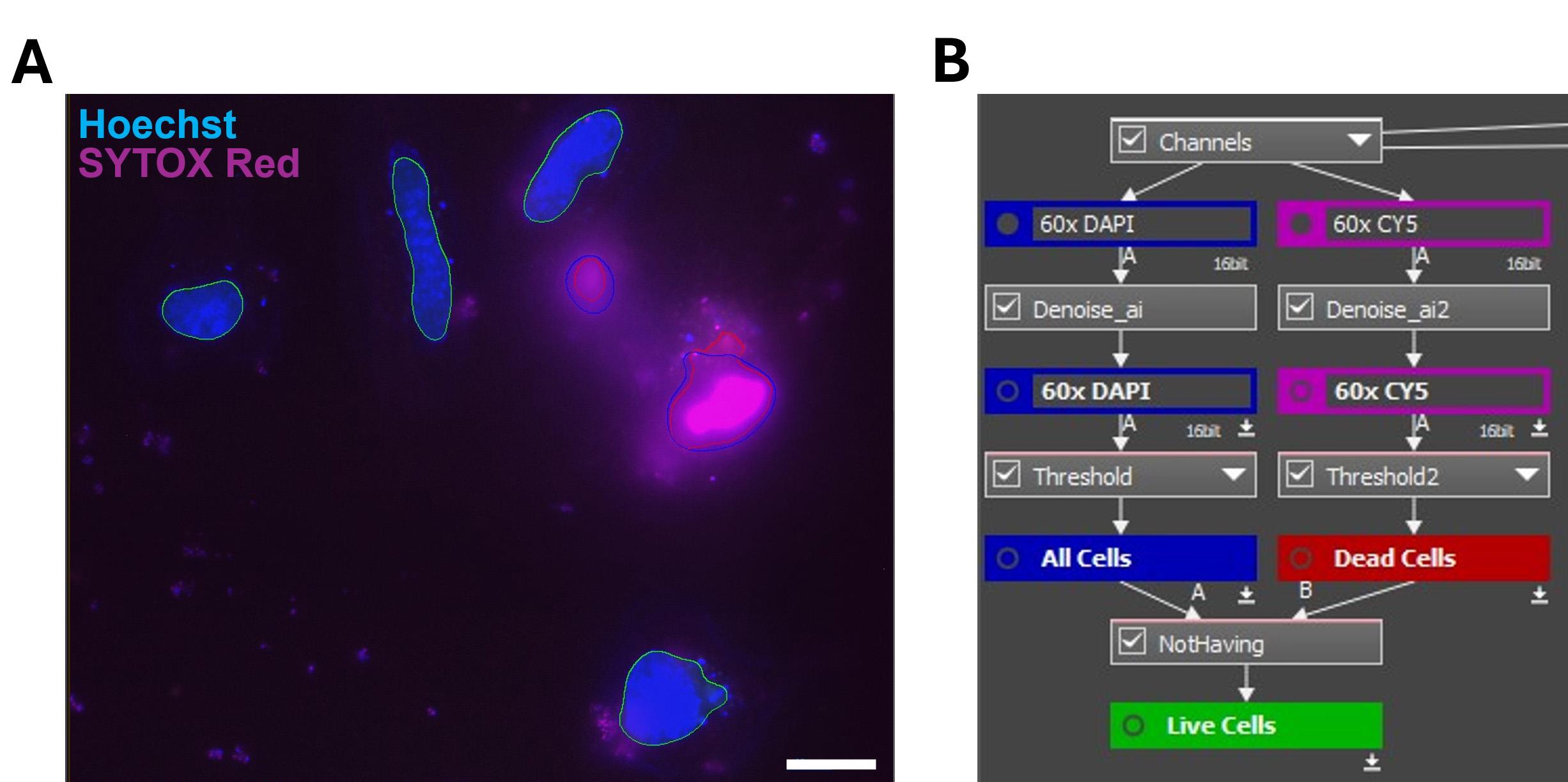

The NIS Elements Advanced Research image acquisition software includes modules to preprocess images, export TIFF (.tif) images, and quantify fluorescence at defined subcellular locations. With the General Analysis 3 (GA3) module, signals within the correct subcellular locations can be masked and analyzed to obtain mean fluorescence intensity per cell. Alternatively, exported .tif images can be quantified in Fiji or ImageJ software using the Freehand selection tool as described in [27]. Group comparisons can be evaluated with a two-tailed t-test (two groups) or one-way ANOVA followed by Tukey’s multiple comparisons test (>2 groups) to determine statistical significance with a P < 0.05 threshold using the Prism software. If multiple images of the same field were acquired over a time course, these values can be used to measure stability and half-life of RNA transcripts and aggregates.

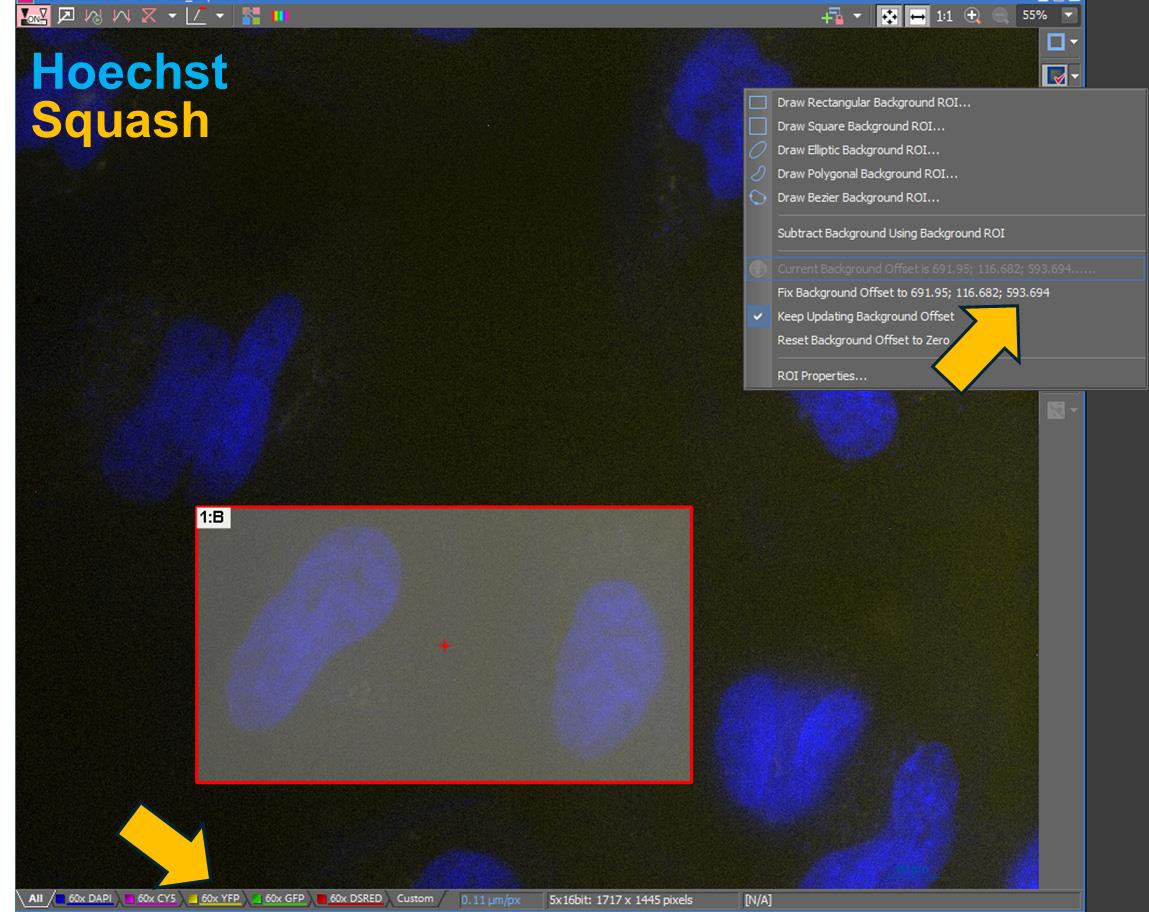

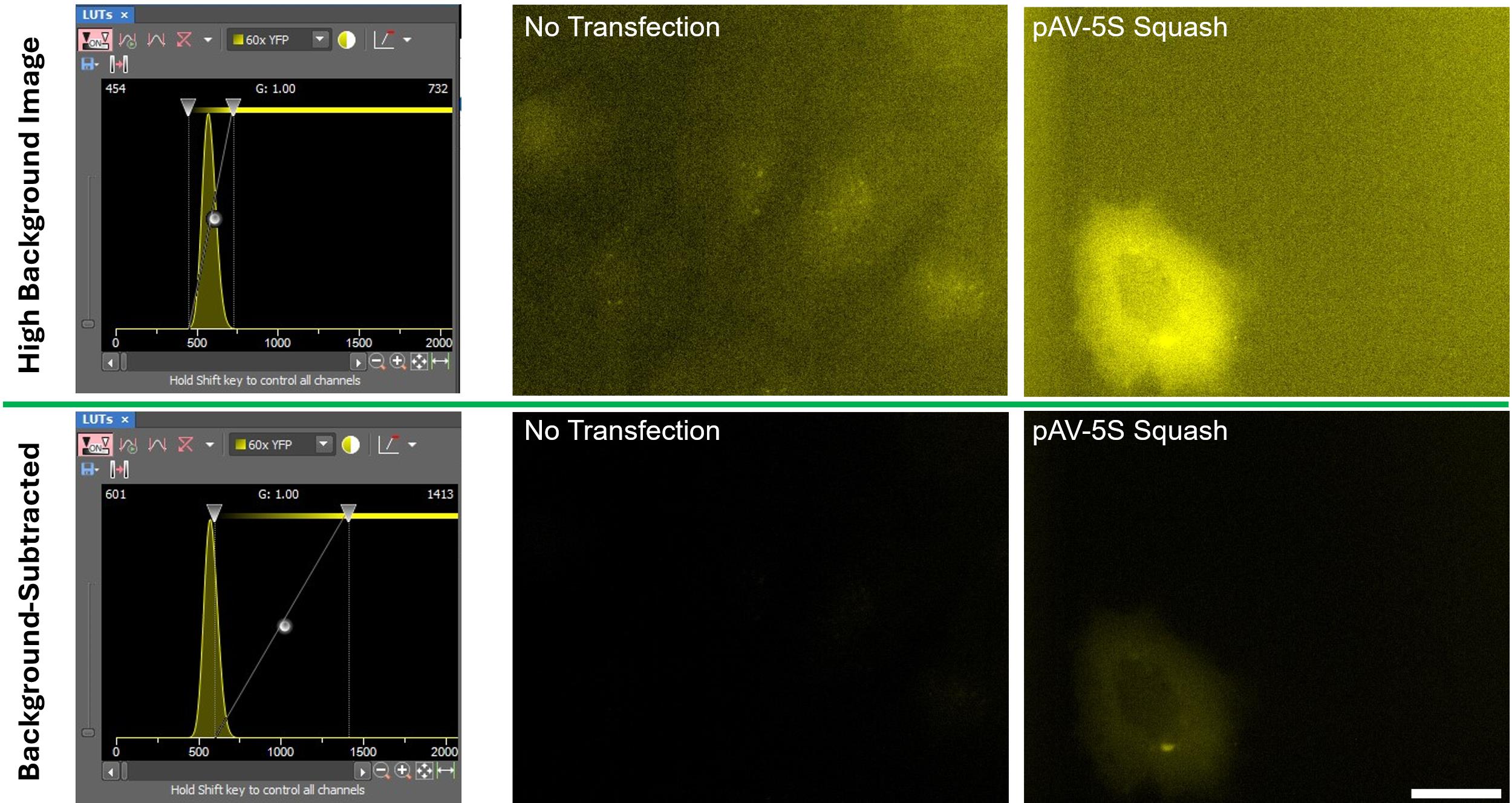

A. Background subtraction using NIS Elements software

1. With the negative expression control images for each fluorophore open, access the LUT panel by clicking View > Image > View LUTs.

2. For each fluorescent channel, move the left LUT slider to the left half of the histogram peak and raise the right LUT slider until fluorescence within cells is no longer visible (Figure 2).

Figure 2. Background subtraction. Cells expressing Squash from the pAV-5S-Squash vector or a negative expression control were imaged with the YFP filter set. The top panels show LUT settings that yield high background (left) and the corresponding images (middle and right). The bottom panels show LUT settings that remove background (left) and the corresponding background-subtracted images (middle and right). By moving the left slider partway into the histogram peak and the right slider further to the right, background-subtracted images can be obtained for any high-background datasets. Scale bar = 20 µm.

3. Save these settings, apply them to the remaining images, save the .nd2 files with these LUTs, and export images as .tif files. If the background subtraction is done correctly, the mean intensity of fluorophore-negative cells will be ~0 when measuring this in Fiji or ImageJ software.

4. If the fluorescence intensity is to be measured with GA3, a constant for background subtraction must be determined using the Turn Background ROI On/Off function, and then recording the Background Offset value (Figure 3).

CRITICAL: LUT changes affect display scaling. Always retain raw data for auditing.

Figure 3. Determining a background constant. This example illustrates how to measure a background constant for GA3 when quantifying Squash fluorescence. The image is from a negative expression control sample with no Squash fluorescence. In the Turn Background ROI On/Off menu, draw a Rectangular Background ROI over Squash-negative cells. After defining the ROI, retrieve the background constant from the Fix Background Offset… option for each channel. Use this value only in the SubtractConstant function for the fluorescent channel that requires background subtraction for quantitative analysis.

B. Calculate mean fluorescence intensity per cell with GA3

GA3 is a highly customizable image analysis software that can be tailored to measure fluorescent events based on size, shape, intensity, and subcellular localization. This allows for quick and more unbiased measurement of fluorescence intensity of fluorogenic RNA aptamers over many fields and large stitched images. However, the GA3 recipes are complicated and lengthy. A summary of the functions needed to extract a mean fluorescence intensity from images will be described instead. Similar functions can be found on Fuji/ImageJ as well. A tutorial for analyzing images on GA3 and exporting the mean fluorescence intensity data can be found at https://www.youtube.com/watch?v=k6TopfhQzPk.

1. Open the background-subtracted images of samples with fluorescent cells. Then, open the GA3 menu by clicking Image > New GA3 Recipe.

2. Link a Denoise function to each fluorescent channel. For the fluorescent channel that will be analyzed quantitatively, link a SubtractConstant function to Denoise. This function is how GA3 performs background subtraction.

3. Dead cells that are SYTOX^TM-red-stain-positive (strong red fluorescent signals in the nucleus) can be excluded from analysis with a Not Having function (Figure 4).

• Link a Threshold function to each of the Denoise functions for DAPI and Cy5 channels.

• Within Threshold, use the Intensity, Smooth, Separation, Size, and Circularity functions to create a mask over fluorescent positive pixels.

• Take the thresholded DAPI mask and use Not Having for thresholded Cy5 mask. This will create a mask for live cells and exclude dead cells.

Figure 4. Excluding dead cells from analysis. An example of using masking in GA3 to distinguish live and dead cells. (A) During analysis, nuclei masks from cells stained with Hoechst (blue) are colocalized with nuclei masks of dead cells stained with SYTOX^TM Red (red). Overlapping masks identify dead cells to be excluded, while nuclei in the green masks represent live cells that will be used for further analysis. Scale bar = 20 µm. (B) Schematic of the GA3 workflow to highlight live cells. Denoise_ai helps maximize the signal-to-background, Threshold is the function for masking positive fluorescent events, and Not Having excludes colocalized masks.

4. For measuring fluorescent RNA foci in the nucleus (Figures 5 and 6):

a. Input the value from the Background Offset (obtained from Data analysis, step A4) into the SubtractConstant function.

b. Small fluorescent foci should be masked with the Contrast and Typical Diameter functions with BrightSpots.

c. Combine the live cell and BrightSpots masks using the Aggregate Children function, then filter out nuclei with fewer than four foci with the Filter Records function. This record will contain the integrated fluorescence intensity for each foci in each cell with more than four foci. Setting a four-foci minimum helps exclude auto-fluorescent cell debris being counted as positive foci.

d. Using the AggregatedRows function on this data will yield the mean fluorescence intensity per cell.

Figure 5. Measuring a mean fluorescence intensity for fluorescent RNA foci. Images of COS-7 cells expressing a Squash-tagged 240× CUG repeat RNA were analyzed in GA3 to quantify nuclear foci formation. (A) Example images and GA3 masks. Masks of live-cell nuclei (green) and RNA foci (orange) are overlaid on images acquired with DAPI (Hoechst) and YFP (Squash) channels. Scale bar = 10 µm. (B) Schematic of the GA3 workflow to quantify mean fluorescence intensity of nuclear RNA foci in live cells. Background-subtraction constants are entered in SubtractConstant. Foci are detected with the BrightSpots function. ObjPixelValues calculates per-pixel intensity, and AggregateChildren retains pixels that fall within nuclear foci of live cells. FilterRecords sets the minimum foci-per-cell threshold for inclusion. Background-only cells typically have fewer than four foci. (C) Representative output table. ObjectCount is the total number of live cells, CountOfLive CellsId is the number of cells meeting the minimum foci threshold, SumSquash Foci MaskCount is the total number of fluorescent nuclear foci, and MeanSquash Foci MaskObjPixelValuesIntensity is the mean fluorescence intensity of the RNA foci for the sample.

Figure 6. Expanded Squash-tagged CUG repeats form large bright RNA foci in the nucleus. To compare normal and pathogenic repeat lengths, plasmids encoding Squash-tagged DMPK 3′-UTR constructs bearing 12 (CUG12) or 240 (CUG240) repeats were transfected into cells (pcDNA3.1-CUG₁₂-2xSquash and pcDNA3.1-CUG₂₄₀-2xSquash). In COS-7 fibroblasts loaded with DFHO and imaged using a YFP filter set, CUG₁₂ produced diffuse cytoplasmic Squash fluorescence (yellow), whereas CUG₂₄₀ yielded bright nuclear puncta. Nuclei were counterstained with Hoechst 33342 (blue) and nonviable cells with SYTOX^TM Red (red). These patterns recapitulate the localization of endogenous DMPK transcripts observed by fluorescence in situ hybridization. Scale bar = 10 µm.

5. For measuring fluorescent RNA in the cytoplasm (Figures 7 and 8):

a. Input the value from the Background Offset (obtained from Data analysis, step A4) into the SubtractConstant function.

b. Expression of fluorescent RNA in the cytoplasm tends to yield larger fluorescent objects (>10 μm). These should be masked with the Intensity, Smooth, Separation, Size, and Circularity functions with Threshold.

c. Threshold should be used to create a mask over the entire cell in the DAPI channel. Hoechst strongly stains nuclei, but by decreasing the LUT enough to reveal dim signals, it also reveals cell borders. Create a mask with DAPI thresholding comparable to the brightfield image. Verify that a mask with DAPI thresholding matches the brightfield image.

d. Combine the masks using the Having function, then measure the total fluorescence of each cell with the ObjPixelValuesfunction.

e. Using the AggregatedRows function on this data will yield the mean fluorescence intensity per cell.

Figure 7. Measuring mean fluorescence intensity for cytoplasmic fluorescent RNA. Images of HeLa cells expressing Squash-tagged MAPT RNA were analyzed in GA3. (A) Example images and GA3 masks. Masks of live cell nuclei (green) and Squash fluorescence (yellow) are overlaid on the YFP (Squash) channel. A cytoplasmic mask derived from the DAPI-thresholding method (blue) and a mask of Squash signal in live cells (orange) are indicated. Scale bar = 20 µm. (B) Schematic of the GA3 workflow to quantify the mean fluorescence intensity of Squash RNA in live cells. One notable difference from Figure 5B is the use of Having functions to measure Squash signal specifically within the cytoplasm of live cells. (C) Representative output table. ObjectCount is the total number of live cells, ObjectCount2 is the number of live cells expressing Squash, CountOfObjectID counts the total number of Squash-positive pixels, and MeanObjPixelValuesIntensity is the mean cytoplasmic Squash fluorescence for the sample.

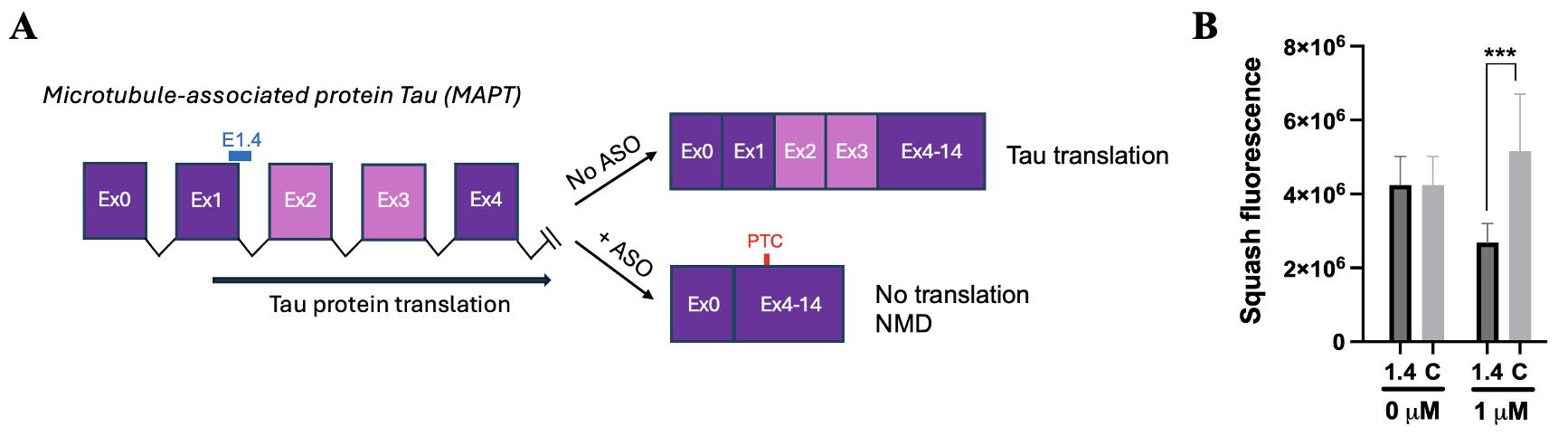

Figure 8. Squash reporter quantified ASO-triggered MAPT transcript NMD levels in cells. (A) MAPT contains 16 exons, with exons 2, 3, 6, 8, and 10 (light purple) undergoing alternative splicing. The splicing of exon 2 or exon 3 introduces a premature termination codon (PTC) that triggers NMD. (B) To monitor degradation, a MAPT exon 0–4 minigene reporter was constructed with a Squash tag inserted 3′ of exon 4. The reporter (pcDNA3.1-MAPT-4xSquash) was expressed in HeLa cells, and Squash signals were acquired with a YFP filter. E1.4 is an antisense oligonucleotide (ASO) previously shown to induce exon 1 skipping and engage NMD. E1.4 treatment significantly reduced Squash fluorescence, indicating ASO-induced degradation of MAPT transcripts. The ASO-induced decreases in MAPT transcripts were confirmed by qPCR. Statistical significance was calculated from the Student’s two-tailed t-test. Error bar = SEM, 1.4 is E1.4, and C is no ASO control. Squash fluorescence is the mean fluorescence intensity per cell for n = 124 cells (0 μM E1.4 and C), n = 16 cells (1 μM E1.4), and n = 102 cells (1 μM C) identified as expressing Squash over four technical replicates.

C. Using mean fluorescence intensity per cell to measure RNA stability and half-life

1. Criteria for including mean fluorescence intensity per cell data from samples:

• Within a 7 × 7 field stitched image, GA3 was able to mask and measure at least 20 fluorescent positive cells that were not dead.

• Having data from at least two 7 × 7 field stitched images per well for technical replicates.

• Having two biological replicates.

2. Please refer to [28] for details on making fluorescence-based trajectory plots and calculating RNA half-life. An example of the fluorescence-based RNA half-life plots can be found in Figure 9B.

D. Application examples

1. Imaging of expanded CUG-repeat RNA foci

Myotonic dystrophy type 1 (DM1) is an autosomal dominant multisystem disorder caused by CTG expansion in DMPK. Expanded alleles are transcribed into toxic CUG-repeat RNA. Normal DMPK transcripts contain ~10–37 repeats, whereas DM1 alleles produce ~50–5,000 repeats that correlate with earlier onset and greater severity and assemble into nuclear RNA foci. These foci sequester MBNL proteins and disrupt alternative splicing; imaging them enables direct visualization and quantification of the pathogenic inclusions [29].

The RNA-mediated pathogenesis model has been described in other trinucleotide-repeat disorders, such as fragile X-associated tremor/ataxia syndrome (FXTAS), which is caused by expanded CGG repeats. In Strack et al. [27], a Spinach2-tagged CGG₆₀ reporter (pcDNA3.1-CGG₆₀-Spinach2) was used to image CGG foci dynamics in the presence of two CGG-binding compounds. Tautomycin, but not compound 1a, induced disaggregation of pre-formed CGG foci.

2. Single-molecule imaging of in vitro–transcribed mRNA in cells

Single-molecule imaging of in vitro transcribed mRNA in cells enables direct study of mRNA-therapeutic delivery and translation, resolving endosomal escape, cytosolic release, trafficking, and decay in real time.

3. Imaging of RNA transcription activity in cells

Imaging RNA transcription in living cells provides a direct, time-resolved view of gene activation, quantifying initiation, pausing, and termination, and enables single-cell assessment of the potency and heterogeneity of transcription activators and inhibitors.

Figure 4A in Song et al. [28] described how the Corn aptamer was inserted into an expression construct under the control of U6 small nuclear RNA (snRNA) promoter. In the presence of the DFHO fluorophore, Corn fluorescence (yellow) reports U6 promoter activity. Corn signals in transfected HEK293T cells transfected with pAV-U6-Corn were recorded over time with a YFP filter set. Actinomycin D (pan-transcriptional inhibitor) produced rapid, global repression of Corn signals, consistent with acute inhibition of U6 promoter output. Figure 5B in Song et al. [28] showed that temsirolimus (mTOR inhibitor) elicited heterogeneous responses, with some cells showing rapid repression and others displaying delayed inhibition.

4. Imaging of microtubule-associated protein tau (MAPT) mRNA degradation

MAPT encodes tau, a microtubule-stabilizing protein essential for neuronal structure and axonal transport. Its dysregulation contributes to neurodegenerative disease. Imaging MAPT mRNA degradation provides time-resolved, single-cell readouts of transcript turnover and target engagement by ASOs, siRNA, or nonsense-mediated decay (NMD)-based strategies.

Validation of protocol

This protocol (or parts of it) has been used and validated in the following research article(s):

• Paige et al. [13]. RNA mimic of green fluorescence protein. Science 333, 642 (Figure 4B).

• Li et al. [30]. Fluorophore-promoted RNA folding and photostability enable imaging of single Broccoli-tagged mRNAs in live mammalian cells. Angew Chem Int Ed Engl 59(11) (Figures S15 and 16).

• Song et al. [28]. Imaging RNA polymerase III transcription using a photostable RNA-fluorophore complex. Nat Chem Biol 13(11) (Figures 4 and 5).

• Strack et al. [17]. A superfolding Spinach2 reveals the dynamic nature of trinucleotide repeat-containing RNA. Nat Methods 10(12) (Figures 5 and 6).

General notes and troubleshooting

General notes

1. Always validate the localization and functions of Spinach^TM-tagged RNAs using established cellular markers or tool compounds.

2. Spinach^TM-tagged RNA can be delivered into mammalian cells by either transfection or electroporation. Transfection is typically preferred for plasmid constructs because it is simple, equipment-free, and scalable. Electroporation is recommended when the cargo is in vitro–transcribed mRNA or when rapid, transcription-independent expression or difficult-to-transfect cell types are the goal.

3. The Spinach^TM family fluorogens are generally cell-permeant in 2D mammalian cultures and produce a fluorogenic signal within minutes to tens of minutes after addition. Permeability and steady-state levels depend on cell type, serum binding, and transporter activity. Consequently, brief titration of dye concentration and incubation time is recommended. For 3D cultures or organoids, slower diffusion and potential efflux can reduce intracellular dye levels. Therefore, longer loading periods, increased dye concentration in the imaging solution, gentle agitation/perfusion, or thinner specimens can improve signal. It is important to monitor for cytotoxicity at higher dye concentrations, and balance wash steps against the need to maintain intracellular dye equilibrium.

Troubleshooting

Problem 1: High background fluorescence.

Possible causes: Suboptimal transfection conditions, dye concentration, or acquisition settings.

Solution 1: Optimize the DNA amount and the DNA:FuGENE^® HD ratio transfected to increase expression without significantly causing more cytotoxicity. The cell density may need to be adjusted to maximize transfection efficiency and reduce cytotoxicity. Use high-quality, endotoxin-reduced DNA.

Solution 2: The dyes themselves may contribute to the background. Consider using 2–5 μM of dyes instead.

Solution 3: Optimize the acquisition settings in NIS-Elements. Determine exposure time empirically and avoid pixel saturation. Adjust LUT values to keep the background low while maximizing the signal. Verify that the filter set matches the aptamer–dye pair and rule out bleed-through with single-label controls.

Problem 2: Observed high cytotoxicity after transfection.

Possible cause: Suboptimal transfection conditions or improper placements of the Spinach^TM tags.

Solution 1: High concentrations of FuGENE^® HD are toxic to cells. Reduce FuGENE^® HD to 1–2 μL per 24-well. Cytotoxicity from FuGENE^® HD can also be mitigated by transfecting a higher density of cells. Also, consider changing the media 8–24 h post-transfection.

Solution 2: Improper placement of the aptamer tag relative to the gene of interest can produce aberrant, cytotoxic RNAs or proteins, especially when overexpressed in cells. If toxicity occurs, test alternative tag locations following step A2 to identify positions that reduce cytotoxicity, or lower the amount of expression vector used.

Problem 3: Spinach^TM-tagged RNA does not show the expected localization or displays unexpected intracellular distribution.

Possible cause: The Spinach tag was inadvertently inserted into a critical region.

Solution: Double-check literature and perform database search (e.g., RBMmap, Rfam, UTRdb, RegRNA 2.0) to identify potential RNA motifs. Move tags away from known regulatory elements and/or add a neutral linker.

Problem 4: Blurry or partially unfocused images during acquisition.

Possible causes: PFS focusing issues, insufficient oil on the objective lens, or obstructed automated stage issues.

Solution 1: NIS-Elements PFS system autofocuses when moving from field to field during acquisition of a large-stitched image. If the plate is unevenly placed in the chamber or if there is too much debris in the well, the PFS will have trouble autofocusing, resulting in blurry images. Reseat and level the plate and reduce debris with an additional 1× PBS rinse before imaging.

Solution 2: Insufficient immersion oil on the objective lens will also cause images to be out of focus. Replenish immersion oil between wells as needed.

Solution 3: The automated stage must rapidly move with accuracy to provide clear images between fields. Verify stage movement is smooth and unobstructed. Re-home axes if stitching drifts.

Problem 5: Inconsistent fluorescent and cell morphologies during live-cell imaging.

Possible cause: Cells are slowly dying during live imaging.

Solution 1: Check that the plate chamber is maintaining the 37 °C and 5% CO₂ conditions over the duration of the imaging acquisition.

Solution 2: For extended time-lapse experiments, supplement the live-cell imaging media with 10% FBS and 1% GlutaMAX^TM to support cell health.

Problem 6: GA3 mean-intensity results do not match images taken.

Possible cause: Improper masking was set in GA3.

Solution: Validate that the thresholds set on GA3 properly mask the correct fluorescent events over multiple fields and in multiple wells. If there are abundant false negatives, the restrictions on intensity, size, and circularity might be too stringent and should be broadened. Masks that include too much background may be adjusted to have more stringent settings.

Acknowledgments

K.W. and R.O. wrote the original draft, edited the manuscript, and prepared the figures. This protocol is adapted from Paige et al. [13], where the experiments were performed by K.W. The validation of this protocol was performed in collaboration with the first authors listed in Strack et al. [17], Song et al. [28], and Li et al. [30]. This work was supported by NIH grants to R.O. (R43AG085837) and K.Y.W. (R44MH096366, R43GM122166, and R43AT001099).

Competing interests

K.W. is the co-founder of Lucerna. Both R.O. and K.W. are employees of Lucerna. Lucerna has licensed commercialization of the technology related to Spinach^TM family of fluorogenic RNA and fluorophores.

References

1. Chen, L. L. and Kim, V. N. (2024). Small and long non-coding RNAs: Past, present, and future. Cell. 187(23): 6451–6485. https://doi.org/10.1016/j.cell.2024.10.024
2. Mudge, J. M., Carbonell-Sala, S., Diekhans, M., Martinez, J. G., Hunt, T., Jungreis, I., Loveland, J. E., Arnan, C., Barnes, I., Bennett, R., et al. (2024). GENCODE 2025: reference gene annotation for human and mouse. Nucleic Acids Res. 53: D966–D975. https://doi.org/10.1093/nar/gkae1078
3. Mao, Y. S., Zhang, B. and Spector, D. L. (2011). Biogenesis and function of nuclear bodies. Trends Genet. 27(8): 295–306. https://doi.org/10.1016/j.tig.2011.05.006
4. Holt, C. E., Martin, K. C. and Schuman, E. M. (2019). Local translation in neurons: visualization and function. Nat Struct Mol Biol. 26(7): 557–566. https://doi.org/10.1038/s41594-019-0263-5
5. Martin, K. C. and Zukin, R. S. (2006). RNA Trafficking and Local Protein Synthesis in Dendrites: An Overview. J Neurosci. 26(27): 7131–7134. https://doi.org/10.1523/jneurosci.1801-06.2006
6. Volpati, D., Aoki, P. H. B., Johansson, T. B., Munita, R., Ekstrand, F., Ruhrmann, S., Bacos, K., Ling, C. and Prinz, C. N. (2024). Monitoring the Intracellular Fate of Molecular Beacons: The Challenge of False Positive Signals. Adv NanoBiomed Res. 4(5): e202300147. https://doi.org/10.1002/anbr.202300147
7. Tutucci, E., Vera, M., Biswas, J., Garcia, J., Parker, R. and Singer, R. H. (2017). An improved MS2 system for accurate reporting of the mRNA life cycle. Nat Methods. 15(1): 81–89. https://doi.org/10.1038/nmeth.4502
8. Armitage, B. A. (2011). Imaging of RNA in live cells. Curr Opin Chem Biol. 15(6): 806–812. https://doi.org/10.1016/j.cbpa.2011.10.006
9. Ai, Y., Liang, D. and Wilusz, J. E. (2022). CRISPR/Cas13 effectors have differing extents of off-target effects that limit their utility in eukaryotic cells. Nucleic Acids Res. 50(11): e65. https://doi.org/10.1093/nar/gkac159
10. Chen, M., Sui, T., Yang, L., Qian, Y., Liu, Z., Liu, Y., Wang, G., Lai, L. and Li, Z. (2022). Live imaging of RNA and RNA splicing in mammalian cells via the dcas13a-SunTag-BiFC system. Biosens Bioelectron. 204: 114074. https://doi.org/10.1016/j.bios.2022.114074
11. Braselmann, E., Rathbun, C., Richards, E. M. and Palmer, A. E. (2020). Illuminating RNA Biology: Tools for Imaging RNA in Live Mammalian Cells. Cell Chem Biol. 27(8): 891–903. https://doi.org/10.1016/j.chembiol.2020.06.010
12. Warner, K. D., Chen, M. C., Song, W., Strack, R. L., Thorn, A., Jaffrey, S. R. and Ferré-D'Amaré, A. R. (2014). Structural basis for activity of highly efficient RNA mimics of green fluorescent protein. Nat Struct Mol Biol. 21(8): 658–663. https://doi.org/10.1038/nsmb.2865
13. Paige, J. S., Wu, K. Y. and Jaffrey, S. R. (2011). RNA mimics of green fluorescent protein. Science. 333(6042): 642–646. https://doi.org/10.1126/science.1207339
14. Song, W., Strack, R. L. and Jaffrey, S. R. (2013). Imaging bacterial protein expression using genetically encoded RNA sensors. Nat Methods. 10(9): 873–875. https://doi.org/10.1038/nmeth.2568
15. Strack, R. L., Song, W. and Jaffrey, S. R. (2013). Using Spinach-based sensors for fluorescence imaging of intracellular metabolites and proteins in living bacteria. Nat Protoc. 9(1): 146–155. https://doi.org/10.1038/nprot.2014.001
16. You, M., Litke, J. L. and Jaffrey, S. R. (2015). Imaging metabolite dynamics in living cells using a Spinach-based riboswitch. Proc Natl Acad Sci USA. 112(21): e1504354112. https://doi.org/10.1073/pnas.1504354112
17. Strack, R. L. and Jaffrey, S. R. (2015). Live-Cell Imaging of Mammalian RNAs with Spinach2. Meth Enzymol. 550: 129–146. https://doi.org/10.1016/bs.mie.2014.10.044
18. DasGupta, S., Shelke, S. A., Li, N. s. and Piccirilli, J. A. (2015). Spinach RNA aptamer detects lead(ii) with high selectivity. Chem Commun. 51(43): 9034–9037. https://doi.org/10.1039/c5cc01526j
19. Litke, J., You, M. and Jaffrey, S. (2016). Developing Fluorogenic Riboswitches for Imaging Metabolite Concentration Dynamics in Bacterial Cells. Methods Enzymol. 572: 315–333. https://doi.org/10.1016/bs.mie.2016.03.021
20. Burch, B. D., Garrido, C. and Margolis, D. M. (2017). Detection of human immunodeficiency virus RNAs in living cells using Spinach RNA aptamers. Virus Res. 228: 141–146. https://doi.org/10.1016/j.virusres.2016.11.031
21. Chandler, M., Lyalina, T., Halman, J., Rackley, L., Lee, L., Dang, D., Ke, W., Sajja, S., Woods, S., Acharya, S., et al. (2018). Broccoli Fluorets: Split Aptamers as a User-Friendly Fluorescent Toolkit for Dynamic RNA Nanotechnology. Molecules. 23(12): 3178. https://doi.org/10.3390/molecules23123178
22. Tang, H., Peng, J., Peng, S., Wang, Q., Jiang, X., Xue, X., Tao, Y., Xiang, L., Ji, Q., Liu, S. M., et al. (2022). Live-cell RNA imaging using the CRISPR-dCas13 system with modified sgRNAs appended with fluorescent RNA aptamers. Chem Sci. 13(47): 14032–14040. https://doi.org/10.1039/d2sc04656c
23. Davis, M. W. and Jorgensen, E. M. (2022). ApE, A Plasmid Editor: A Freely Available DNA Manipulation and Visualization Program. Front Bioinf. 2: e818619. https://doi.org/10.3389/fbinf.2022.818619
24. Zadeh, J. N., Steenberg, C. D., Bois, J. S., Wolfe, B. R., Pierce, M. B., Khan, A. R., Dirks, R. M. and Pierce, N. A. (2010). NUPACK: Analysis and design of nucleic acid systems. J Comput Chem. 32(1): 170–173. https://doi.org/10.1002/jcc.21596
25. Schindelin, J., Arganda-Carreras, I., Frise, E., Kaynig, V., Longair, M., Pietzsch, T., Preibisch, S., Rueden, C., Saalfeld, S., Schmid, B., et al. (2012). Fiji: an open-source platform for biological-image analysis. Nat Methods. 9(7): 676–682. https://doi.org/10.1038/nmeth.2019
26. Wickham, H. (2016). ggplot2: Elegant Graphics for Data Analysis. Springer-Verlag New York.
27. Strack, R. L., Disney, M. D. and Jaffrey, S. R. (2013). A superfolding Spinach2 reveals the dynamic nature of trinucleotide repeat–containing RNA. Nat Methods. 10(12): 1219–1224. https://doi.org/10.1038/nmeth.2701
28. Song, W., Filonov, G. S., Kim, H., Hirsch, M., Li, X., Moon, J. D. and Jaffrey, S. R. (2017). Imaging RNA polymerase III transcription using a photostable RNA–fluorophore complex. Nat Chem Biol. 13(11): 1187–1194. https://doi.org/10.1038/nchembio.2477
29. Brook, J., McCurrach, M. E., Harley, H. G., Buckler, A. J., Church, D., Aburatani, H., Hunter, K., Stanton, V. P., Thirion, J. P., Hudson, T., et al. (1992). Molecular basis of myotonic dystrophy: Expansion of a trinucleotide (CTG) repeat at the 3′ end of a transcript encoding a protein kinase family member. Cell. 68(4): 799–808. https://doi.org/10.1016/0092-8674(92)90154-5
30. Li, X., Kim, H., Litke, J. L., Wu, J. and Jaffrey, S. R. (2020). Fluorophore‐Promoted RNA Folding and Photostability Enables Imaging of Single Broccoli‐Tagged mRNAs in Live Mammalian Cells. Angew Chem Int Ed. 59(11): 4511–4518. https://doi.org/10.1002/anie.201914576
