A Practical CRISPR-Based Method for Rapid Genome Editing in Caulobacter crescentus

Materials and reagents

Biological materials

1. C. crescentus NA1000 (Lucy Shapiro lab, Department of Developmental Biology, Stanford University School of Medicine)

2. Trans5α chemically competent cell (Transgen Biotech, catalog number: CD201-01)

3. pSJX016 plasmid (our lab, Shenzhen Institute of Synthetic Biology, Shenzhen Institutes of Advanced Technology)

Reagents

1. PCR primers (Sangon Biotech), standard 25–50 nmol scale

2. 2× Phanta Flash Master Mix (Vazyme, catalog number: P520-01/02/03)

3. KOD One^TM PCR Master Mix (TOYOBO, catalog number: 450800)

4. Agarose (Baygene Biotech, catalog number: 232475)

5. Bacto^TM peptone (BD, catalog number: 211677)

6. Bacto^TM yeast extract (BD, catalog number: 212750)

7. Bacto^TM agar (BD, catalog number: 214010)

8. Magnesium sulfate (MgSO₄) (Sigma, catalog number: 10034-99-8)

9. SYBR^TM Safe DNA gel stain (Invitrogen, catalog number: 2978645)

10. Ethanol absolute (Macklin, catalog number: 64-17-5)

11. 50× TAE (Sangon Biotech, catalog number: B548101-0500)

12. LB broth (Huankai Microbial, catalog number: 028324)

13. LB agar (Huankai Microbial, catalog number: 028334)

14. Gel Extraction kit (Omega, catalog number: D2500020000E20Y090)

15. EasyPure Plasmid MiniPrep kit (TransGen Biotech, catalog number: EM101-02)

16. ClonExpress MultiS One Step Cloning kit (Vazyme, catalog number: C113-01/02)

17. FastDigest DpnI (Thermo Scientific, catalog number: FD1704)

18. 10× FastDigest buffer (Thermo Scientific, catalog number: FD1704)

19. DNA marker (Accurate Biology, catalog number: AG11909)

20. Kanamycin (Sangon Biotech, catalog number: A600286-0025)

21. ddH₂O

22. Vanillic acid (Sigma, catalog number: 34770-10G)

23. MgSO₄ (Sigma, catalog number: 10043-52-4)

24. CaCl₂ (Sigma, catalog number: 10034-99-8)

Solutions

1. Kanamycin stock solution (50 mg/mL) (see Recipes)

2. LB agar medium (see Recipes)

3. LB liquid medium (see Recipes)

4. Peptone yeast extract (PYE) agar medium (see Recipes)

5. PYE liquid medium (see Recipes)

Recipes

1. Kanamycin stock solution (50 mg/mL)

a. Dissolve 0.5 g of kanamycin (powder) in 10 mL of distilled water at room temperature and filter the solution through a 0.2 μm filter. Then, aliquot the solution into 1 mL fractions and store in a -20 °C freezer.

b. When necessary, supplement media with kanamycin at the following concentrations: 5/25 and 50/50 (liquid/solid media for C. crescentus and for E. coli, respectively, in μg/mL).

2. LB agar medium

3. LB liquid medium

4. PYE agar medium

5. PYE liquid medium

Laboratory supplies

1. Petri dishes (Fisher Scientific, catalog number: FB0875712)

2. 0.22 μm Millipore filter (Millipore, catalog number: R7MA69670)

3. 0.2 mL PCR tube (Corning Life Sciences, catalog number: PCR-0208-C)

4. 1.5 mL microtube (Axygen, catalog number: MCT-150-C)

5. Electroporation cuvette (Bio Rad, catalog number:1652082)

6. Polypropylene round-bottom tube (Falcon, catalog number: 352059)

7. Disposable cell spreader (BKMAMLAB, catalog number: 110305003)

8. Erlenmeyer flask (HEQI GLASS, catalog number: B-000204)

9. High-temperature resistant tissue sealing film (BKMAMLAB, catalog number: 110104005)

10. Pipette tips (KIRGEN, catalog number: KG1333)

11. Cuvettes (Loikaw, catalog number: B-002016)

12. Spectrophotometer (SHST, Model: SH-NanoOne)

Equipment

1. Pipettes (any source)

2. PCR thermocycler (Thermo Fisher Scientific, model: ProFlexTM Base)

3. DNA electrophoresis apparatus (Guangzhou Dao Yi Science and Technology Co., Ltd, model: EPHC 400)

4. Gel image analysis system (Tanon, model: MINI SPACE 960)

5. Nanodrop spectrophotometer (Shenhua Science Technology, model: SH-NnoOne)

6. Centrifuge (Eppendorf, model: 5425)

7. Bacterial incubator (Shanghai Bluepard Instruments)

8. Shaker (Shanghai Chuzhi Biotechnology, model: ZQLY-180ES)

9. Water bath (Shanghai Bluepard Instruments, model: DK-8D)

10. Electroporator (Bio-Rad, model: MicroPulser)

11. Blue-light lamp (MIULAB, model: DUT-48)

Software and datasets

1. Snapgene^®4.3.6 (GSL Biotech)

2. Adobe Illustrator, 2021

3. GraphPad Prism 8

4. CHOPCHOP (https://chopchop.cbu.uib.no/)

5. TargetFinder algorithm (https://github.com/ ECBCgit/targetFinder)

Procedure

A. gRNA design

1. Design gRNA in CHOPCHOP sgRNA designer (https://chopchop.cbu.uib.no/) [1] using C. crescentus NA1000 as the target organism.

2. Search for the gene of interest in the genome of C. crescentus NA1000. Here, we selected spmX as the gene of interest (Figure 1).

3. Click the Target box and paste the gene sequence of spmX in FASTA format.

4. Click the In box and select Caulobacter crescentus (NA1000).

5. Click the Using box and select CRISPR/Cas9.

6. Click the Using box and select knockout.

7. Click the button Find Target Sites! (All the parameters in the options are default parameters).

8. The length of the gRNA sequence is 20 bp, and the protospacer adjacent motif (PAM) for Streptococcus pyogenes Cas9 (SpCas9) is 5’-NGG-3’ (Table 1).

9. The spacer sequence may be located on the non-transcribed strand or the transcribed strand.

10. Select gRNAs based on computational predictions of high on-target editing efficiency (efficiency score > 60), while excluding sequences with potential self-complementarity or off-target genomic binding.

11. The three most promising gRNAs should be selected.

Figure 1. Design gRNAs in CHOPCHOP. (A) C. crescentus NA1000 was selected as the target organism, and spmX was selected as the gene of interest. (B, C) The gene sequence of spmX was pasted in the target box in fasta format on the CHOPCHOP web interface (https://chopchop.cbu.uib.no/). The following parameters were used: “Caulobacter crescentus (NA1000)” was selected in the In field, “CRISPR/Cas9” was chosen in the Using field, and “Knockout” was specified in the For field. After clicking the Find Target Sites! button, a list of all potential gRNA sequences was generated within spmX. From these output results, the most promising gRNAs with relatively high predicted on-target editing efficiencies (>60) were selected for further use.

Table 1. gRNAs for spmX editing, designed by CHOPCHOP

MM0 = 0 mismatches, MM1 = 1 mismatches, MM2 = 2 mismatches, MM3 = 3 mismatches. The regions in bold font represent the PAM sequences of the target DNA.

B. Editor plasmid construction

1. Design H-arms according to the target gene. H-arms consist of upstream (UA) and downstream arms (DA). Select the upstream sequence (2,000 bp) of the start codon as the UA and the downstream sequence (2,000 bp) of the stop codon as DA.

2. Preparation of linearized vector, H-arms, and sgRNA fragments: The primers used to amplify the linearized fragments are listed in Table 2.

Table 2. Primers used in editor plasmid construction

a. Amplify the linearized vector via PCR using pSJX016 (Figure 2) as the template (Figure 3).

Figure 2. Map of starting editor plasmid pSJX016. pSJX016 is used for genome editing in C. crescentus and confers kanamycin resistance in the host cells. It contains the codon-optimized SpCas9M that is driven by an inducible promoter (P_van, working concentration: 50 µM vanillic acid), the reporter gene, sfgfp, which is fused to the C terminus of SpCas9M via a flexible HRSAT linker to prescreen the clones normally expressing SpCas9M, the sgRNA that is driven by a constitutive promoter (P_J23119), and the H-arms, which are used for homologous recombination. To generate new knockout constructs, both gRNA and H-arms can be efficiently replaced using Gibson assembly.

b. Amplify the linearized UA and DA fragments via PCR using C. crescentus NA1000 genomic DNA as the template (Figure 3).

c. Amplify the linearized sgRNA fragment via PCR using pSJX016 (Figure 2) as the template. Add gRNA sequence as the homologous region to the upstream of the gRNA scaffold (Figures 2 and 3).

d. Conduct the PCR in a 40 μL reaction mixture consisting of 20 μL of KOD One^TM PCR Master Mix, 2 μL of forward primer (10 μM), 2 μL of reverse primer (10 μM), 1 μL of template DNA, and 15 μL of H₂O. Amplification is conducted under the following PCR program: 98 °C for 5 min; 28 cycles of 98 °C for 10 s, 60 °C for 5 s, and 68 °C for 1–6 min (2 kb/min); and a final 68 °C for 5 min.

3. Construct the editor plasmids through the Gibson assembly method [19] (Figure 3) in a 20 μL reaction mixture: 0.03 pmol linearized vector, 0.03 pmol linearized sgRNA, 0.03 pmol linearized UA and DA, 4 μL of 5× CE MultiS Buffer, 2 μL of Exnase MultiS, and H₂O up to 20 μL. Then, incubate the 20 μL mixture at 37 °C for 50 min.

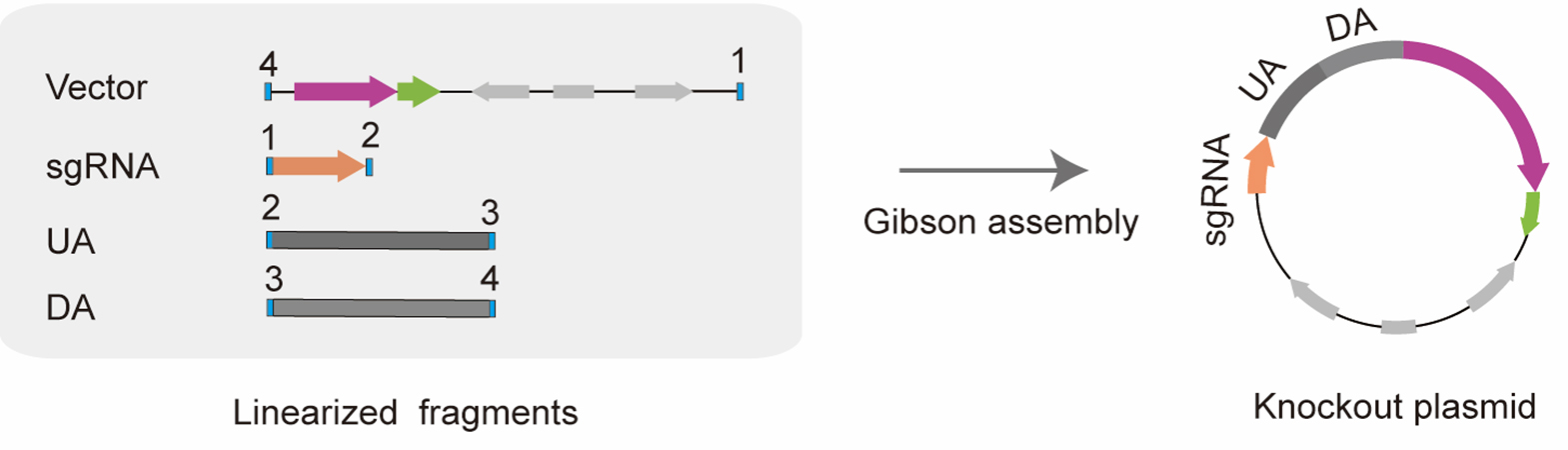

Figure 3. Diagram of constructing editor plasmid by Gibson assembly. By introducing homologous sequences at the 5' end of specific primers, linearized fragments with homologous regions at both ends could be amplified via PCR. Using Gibson assembly, the four linearized fragments could be assembled into a new editor plasmid by sequential homologous recombination with one another. The box filled with blue represents homologous regions (20 bp), and the homologous regions between adjacent fragments are represented by the same number.

C. Competent cells preparation

1. Inoculate 5 μL of bacterial culture of C. crescentus NA1000 onto a PYE plate at 30 °C for 2–3 days.

2. Pick the mono-clone, inoculate it in 3 mL of PYE liquid medium, and grow overnight at 30 °C, 200 rpm.

3. Transfer 1 mL of culture into 100 mL of PYE liquid medium and culture it to a final OD₆₀₀ of 0.7–1.0 at 30 °C.

4. Collect the culture into a sterilized ice-cold 50 mL centrifuge tube and centrifuge it at 6,000× g for 10 min at 4 °C.

5. Discard the supernatant and resuspend the pellets in 40 mL of cold distilled water; then, centrifuge it at 6,000× g for 10 min at 4 °C.

6. After washing three times, resuspend the pellets in 1 mL of cold distilled water and then separate it into 100 μL aliquots.

D. Electroporation

1. Mix 1 μg of editor plasmid into 100 μL of competent cells for 20 min on ice.

2. Transfer the mixture to an ice-cold Bio-Rad Gene Pulser cuvette and subject it to a 2.5 kV electric shock.

3. Set the capacitor to 25 µF and the resistance on the pulse controller to 200 ohms.

4. After the electric shock, transfer the cells from the cuvette to a 1.5 mL tube containing 1 mL of PYE liquid medium for recovery (30 °C). During the recovery period, add the inducer of P_van, vanillic acid, to the PYE liquid medium. The working concentration of vanillic acid is 50 µM.

5. After a 3-h recovery period at 30 °C, plate the C. crescentus cells onto the appropriate selective PYE plates.

E. Genome editing analysis

1. Pick a single clone from plates and suspend it in 20 μL of reaction mixture, containing 10 μL of 2× Phanta Flash Master Mix, 1 μM primer, and 8 μL of H₂O.

2. Design the primer pairs for genome editing analysis (Figure 4B). The forward primer was located within the UA region, and the reverse primer was located downstream of the DA region.

3. Separate the PCR products by 1% agarose gels and stain with SYBR Safe. Negative controls (usually wild-type cells) and experimental samples were analyzed in parallel to identify nonspecific bands.

4. Verify the PCR products by Sanger sequencing to further confirm the knockout results.

Figure 4. Analysis of spmX knockout. (A) The clones normally expressing SpCas9M (indicated by red arrows) were prescreened by the indication of fluorescent sfGFP under a blue-light lamp. (B) The edited clones were finally confirmed by colony PCR and Sanger sequencing.

F. Editor plasmid curing

1. Culture the correct knockout clone of C. crescentus in 5 mL of PYE liquid medium (without any antibiotics) at 30 °C, 200 rpm.

2. After 15–18 h, collect the cells and dilute into 1:1,000 in fresh PYE liquid medium.

3. Spread 50 μL of diluted culture on PYE plates without antibiotics and then incubate at 30 °C for about 2 days.

4. Pick the single clones and replica-spot them on PYE plates with no antibiotics and on PYE plates with antibiotics.

5. Select the clones that grew only on the antibiotic-free plates as the cured strains.

Validation of protocol

This protocol has been used and validated in the following research article:

1. Sun et al. [18]. A CRISPR/SpCas9M-reporting system for efficient and rapid genome editing in Caulobacter crescentus. Nucleic acids research (Figure 1, Figure 2, and Figure 3).

General notes and troubleshooting

General notes

1. Editing efficiency varies from 10% to 80% depending on the target, with some genes being far more difficult to edit than others. For essential genes, the conventional knockout is not possible because their loss results in non-viable cells.

2. Due to the significant variation in editing efficiency among different gRNAs, three or more gRNAs need to be selected to ensure successful knockout.

3. To minimize CRISPR escape events, clones exhibiting brighter green fluorescence could be prioritized for colony PCR detection. This pre-selection strategy can improve apparent editing efficiency.

4. The method is still effective for large gene deletions, including a gene as large as 7.7 kb, which was successfully knocked out in this study.

5. Curing efficiencies were usually high, up to 100% within one round.

6. Several common pitfalls, such as low electroporation efficiency, weak GFP expression, and PCR false positives, also influence the results of genome editing, and the corresponding troubleshooting advice is provided in Table 3.

Troubleshooting

Table 3. Troubleshooting advice for common pitfalls
