Transplantation of Cultured Myoblasts Into Intact Skeletal Muscle and Analysis of Muscle Contraction Force in Mice Model

Materials and reagents

Biological materials

1. C57BL/6 wild-type mice (8–16 weeks old, from Japan SLC, Inc.)

2. CAG-EGFP mice (8–16 weeks old, from Japan SLC, Inc.)

Reagents

1. Type 1 collagenase (Worthington Biochemical Corporation, catalog number: LS004196)

2. DMEM GlutaMAX (Gibco, catalog number: 10569044)

3. Penicillin-Streptomycin-Amphotericin B suspension (Fujifilm Wako, catalog number: 161-23181)

4. Bovine serum albumin (BSA) (Sigma, catalog number: A9418)

5. Phosphate-buffer saline (PBS) (Gibco, catalog number: 18912014)

6. Accutase (Innovative Cell Technologies, catalog number: AT104)

7. Matrigel (Corning, catalog number: 354230)

8. DMEM, no glucose, no glutamine, no phenol red (Gibco, catalog number: A1443001)

9. Fetal bovine serum (FBS) (Gibco, catalog number: 10437-028)

10. GlutaMAX (Thermo Fisher, catalog number: 35050061)

11. Chicken embryo extract (USBiological Life Sciences, catalog number: C3999)

12. FGF-basic, murine, recombinant (Pepro Tech Inc., catalog number: 450-33)

13. Trypsin-EDTA (Gibco, catalog number: 25200072)

14. NaCl (Wako, catalog number: 196-01671)

15. Domitor (ZENOAQ, catalog number: AHE1)

16. Mitazolam (Maruishi Pharmaceutical Corporation, catalog number: 1124401A1052)

17. Butorphanol (Meiji Animal Health Corporation, catalog number: VETLI5-B)

18. Anti-anesthetic (ZENOAQ, catalog number: AHC1)

19. Tissue-Tek O.C.T (Sakura Finetek, catalog number: 45833)

20. 4% paraformaldehyde (Nacalai Tesque, catalog number: 09154-85)

21. Goat serum (Vector Laboratories, catalog number: S-1000-20)

22. Laminin-alpha2 antibody (Enzo Life Sciences, catalog number: ALX-804-190, from rat)

23. Alexa Fluor 594 anti-rat (Invitrogen, catalog number: A-11007)

24. VectaShield mounting medium with DAPI (Vector Laboratories, catalog number: H-1200)

25. KCl (Wako, catalog number: 163-03545)

26. CaCl₂·2H₂O (Wako, catalog number: 035-00455)

27. KH₂PO₄ (Wako, catalog number: 169-04245)

28. MgSO₄·7H₂O (Wako, catalog number: 138-00415)

29. NaHCO₃ (Wako, catalog number: 191-01305)

30. Disinfectants (Orimatsu, catalog number: WK-Ⅱ-75)

Solutions

1. Myofiber isolation medium (see Recipes)

2. BSA solution (see Recipes)

3. Collagenase solution (see Recipes)

4. Saline (see Recipes)

5. Myoblast growth medium (see Recipes)

6. Myoblast transplantation solution (see Recipes)

7. Anesthetic (see Recipes)

8. Anti-anesthetic (see Recipes)

9. Immunohistochemistry blocking solution (see Recipes)

10. KRB buffer (see Recipes)

Recipes

1. Myofiber isolation medium

Prepare under a clean bench. Add the Penicillin-Streptomycin-Amphotericin B suspension directly to the DMEM GlutaMAX bottle and store at 4 °C.

Reagent	Final concentration	Quantity or Volume
Penicillin-Streptomycin-Amphotericin B suspension	1.0%	5.0 mL
DMEM GlutaMAX (500 mL bottle)		500 mL

2. BSA solution

Add 5 g of BSA powder to 80 mL of PBS. The final volume will be approximately 100 mL after dissolution. After dissolving BSA, inactivate at 60 °C for 30 min. After the solution cools down at room temperature (RT), separate the solution into approximately 10 mL in a 25 mL tube using a 0.22-μm filter and store at 4 °C.

Reagent	Final concentration	Quantity or Volume
BSA	5.0%	5.0 g
PBS		80 mL

3. Collagenase solution

Dissolve collagenase in a 5 mL tube and sterilize with a 0.22-μm filter. Transfer the solution to a 15 mL tube for the myofiber incubation. Use 2.5 mL per two extensor digitorum longus (EDL) muscles from one mouse. Warm to 37 °C before use.

Reagent	Final concentration	Quantity or Volume
Type 1 collagenase	0.25%	6.25 mg
Myofiber isolation medium		2.5 mL

4. Saline

Make in a glass bottle and autoclave at 121 °C for 20 min. Store at 4 °C.

Reagent	Final concentration	Quantity or Volume
NaCl	0.9%	0.9 g
H2O	99.1%	80 mL
Total	Adjust the final volume with H2O	100 mL

5. Myoblast growth medium

Store the medium at 4 °C. We recommend using it within 1 week [13]. Warm the medium at 37 °C before use.

Reagent	Final concentration	Quantity or Volume
FBS	30.0%	30.0 mL
Chicken embryo extract	1.0%	1.0 mL
Penicillin-Streptomycin-Amphotericin B suspension	1.0%	1.0 mL
Basic-FGF (stock: 50 µg/mL)	10 ng/mL	20.0 μL
GlutaMAX	1.0%	1.0 mL
No glucose DMEM	67.0%	67.0 mL
Total		100 mL

6. Myoblast transplantation solution

Prepare on ice as the original concentration of Matrigel easily gellifies at RT.

Reagent	Final concentration	Quantity or Volume
Matrigel (original: 8.2 mg/mL)	2.5 mg/mL	30.49 μL
DMEM GlutaMAX		19.51 μL
Saline		50.00 μL
Total		100 μL

7. Anesthetic

Use sterilized saline, store at 4 °C, and cover with aluminum foil to block the light.

Reagent	Final concentration	Quantity or Volume
Domitor	1.0 mg/mL	0.75 mL
Mitazolam	5.0 mg/mL	2.00 mL
Butorphanol	5.0 mg/mL	2.50 mL
Saline		7.25 mL
Total		12.50 mL

8. Anti-anesthetic

Use sterilized saline, store at 4 °C, and cover with aluminum foil to block the light.

Reagent	Final concentration	Quantity or Volume
Anti-anesthetic	5.0 mg/mL	1.20 mL
Saline		8.80 mL
Total		10.0 mL

9. Immunohistochemistry blocking solution

Store at 4 °C.

Reagent	Final concentration	Quantity or Volume
Goat serum	20.0%	400 μL
PBS		1,600 μL
Total		2.0 mL

10. KRB buffer

Prepare each stock solution in advance and store at 4 °C. Mix the reagents in co-washed containers. Make fresh and warm at 37 °C before use.

Caution: If it contains impurities, the liquid turns white.

Reagent	Final concentration	Quantity or Volume
5.0 M NaCl	117 mM	0.171 g
1.0 M KCl	4.7 mM	118 μL
1.0 M CaCl2·2H2O	2.5 mM	63 μL
0.5 M KH2PO4	1.2 mM	60 μL
0.5 M MgSO4·7H2O	1.2 mM	60 μL
1.0 M NaHCO3	24.6 mM	0.052 g
Total	Adjust the final volume with H2O	25 mL

Laboratory supplies

1. 0.22 μm filter (MERCK, catalog number: SLGVR33RB)

2. Glass Pasteur pipette (Iwaki, catalog number: IK-PAS-5P)

3. 100 mm cell culture dishes (Iwaki, catalog number: 3020-100)

4. 50 mm deep dishes (Thermo Fisher, catalog number: 124-17)

5. Serological pipettes, 5 mL (FastGene, catalog number: FG3007)

6. Serological pipettes, 10 mL (FastGene, catalog number: FG3008)

7. Serological pipettes, 25 mL (FastGene, catalog number: FG3009)

8. Serological pipettes, 50 mL (FastGene, catalog number: FG3010)

9. Pipettes (SARTORIUS, catalog number: LH-729010/20/30/50/60/70)

10. 10 μL filter pipette tips (BMBio, catalog number: WEF-10RS)

11. 100 μL filter pipette tips (BMBio, catalog number: WEF-100RS)

12. 200 μL filter pipette tips (BMBio, catalog number: WEF-200RS)

13. 1,250 μL filter pipette tips (NICHIRYO, catalog number: 00-LRT-F1250RB)

14. 1.5 mL tubes (Watson, catalog number: 131-715C)

15. 5.0 mL tubes (SANSYO Co., Ltd, catalog number: ST-500)

16. 15 mL centrifuge tubes (Iwaki, catalog number: 2325-015N)

17. 25 mL centrifuge tubes (Iwaki, catalog number: 2362-025N)

18. 50 mL centrifuge tubes (Iwaki, catalog number: 2345-050N)

19. 100 mL centrifuge tubes (Iwaki, catalog number: 2355-100N)

20. Cell counter (OneCell, catalog number: 2-7124-02)

21. Surgical tape (NICHIBAN, catalog number: No. 25)

22. Twenty-six-gauge, 1 mL capacity plastic syringe (JMS Co., Ltd., catalog number: JS-VM2613R)

23. CO₂ gas (Nissan TANAKA, catalog number: 87799)

24. APS coated slide glass (Matsunami, catalog number: 83-1631)

25. Cork stand (Uchiyama Manufacturing Corp., catalog number: 56735254)

26. Cover glass (Matsunami, catalog number: 83-0223/83-0225)

Equipment

1. Ultrapure water production equipment (SARTORIUS, catalog number: H2O mm-T)

2. High-pressure steam sterilizer (TOMY, catalog number: LPS-300)

3. Stereomicroscope (Leica, catalog number: M165 C)

4. Bio clean bench (PHCbi, catalog number: MCV-B131F)

5. Bio-shaker (TAITEC, catalog number: BR-40LF)

6. CO₂ incubator (PHCbi, catalog number: MCO-170AICUVD)

7. Inverted microscope (EVIDENT, catalog number: CKX53)

8. Centrifuge for 15 mL tubes (HERMLE, catalog number: Z 207 A)

9. Centrifuge for 1.5 mL tubes (KUBOTA, catalog number: 3520)

10. Cryostat (Leica, catalog number: CM 1950)

11. Fluorescence microscope (KEYENCE, catalog number: BZ-810)

12. Mouse muscle tension measurement system (Uchida Denshi)

13. Electronic stimulator (Nihon Kohden, catalog number: SEN-3401)

Software and datasets

1. KEYENCE BZ-X series Image Analyzer (KEYENCE, version: BZ-X800_Analyzer.exe, 1.1.2.4)

2. ImageJ-Fiji (Version: 2.16.0/1.54p)

Procedure

A. Myofiber isolation and myoblast culture

1. The myofibers are isolated using protocols developed previously [14–16].

2. Prepare a myofiber isolation medium on a clean bench. Store the prepared medium at 4 °C in a refrigerator.

3. Prepare 0.25% collagenase solution in a tissue culture hood, filter sterilize with a 0.22 μm filter, and warm at 37 °C in a bio-shaker.

4. Euthanize GFP mice by cervical dislocation and remove the EDL muscle. Immerse EDL muscles in collagenase solution at 45 rpm for 2 h at 37 °C.

5. Prepare a glass Pasteur pipette. Coat a 50 mm deep dish and the glass Pasteur with 5% BSA to avoid myofiber adhesion.

6. Separate muscle tissue into single myofibers using a glass Pasteur pipette. Transfer only single muscle fibers to a new dish.

7. Coat Matrigel to a 100 mm dish and incubate at RT for at least 30 min. Start warming the cell culture medium at 37 °C.

8. (Continuation from step A6) Collect all single myofibers from one GFP mouse in a 25 mL tube and let it stand for 5 min to precipitate myofibers and remove the myofiber isolation medium (less than 500 μL).

9. Add 1.0 mL of accutase to the 25 mL tube containing single myofibers and let it react at RT for 10 min on a clean bench.

10. Add 5.0 mL of culture medium to a 100 mm dish from step A7 in advance to keep it wet. Add 5.0 mL of the medium to the 25 mL tube containing the myofibers, mix, and slowly transfer to the 100 mm dish.

11. After 2 min, transfer the dish into an incubator (37 °C, 5% CO₂).

12. Change the culture medium every 24 h, starting on the third day after seeding the myofibers.

B. Myoblast transplantation into intact tibialis anterior (TA) muscle

1. Wash the culture dish twice with PBS.

2. Add 1.0 mL of trypsin-EDTA and incubate at 37 °C for 2 min.

3. After the detachment of myoblasts from the culture dish, add 6–8 mL of the culture medium, pipette gently, and collect the cells in a 15 mL tube. Centrifuge at 800× g for 5 min.

4. Remove the supernatant. Add 1 mL of new culture medium, resuspend, and collect the cells in a 1.5 mL tube.

5. Dilute the cell suspension solution to 1/10 or 1/20 and count the number of cells.

6. Transfer 1.4 million myoblasts into a 1.5 mL tube.

7. Centrifuge the 1.5 mL tube containing the cells at 500× g for 5 min and discard the supernatant. Then, gently suspend the cells in 70 μL of saline or Matrigel solution (1.0 million cells/50 μL).

Note: Prepare a larger volume of cell suspension, as some may be lost during collection with a syringe.

8. Anesthetize mice on a hot plate.

9. Measure the weight of WT mouse and intraperitoneally inject 5 μL of anesthetizing solution per gram of body weight into the mouse.

10. Wipe the mouse limb with 70% ethanol and shave the hair near the tibialis anterior (TA) muscle with a shaver.

11. Fix the 5 mL tube with surgical tape and place the foot of the mouse on it (Figure 1A). At this point, the TA muscle should bulge toward the experimenter. Apply surgical tape to bind the back of the foot and the 5 mL tube to fix the mouse’s foot. Set the foot, TA muscle, and knee horizontally (Figure 1B).

Figure 1. Fix the mouse for myoblast injection into the tibialis anterior (TA) muscle. (A) Image from above: lay the mouse on the hot plate and place the hind leg on a 5.0 mL tube. Fix the leg using surgical tape. The broken white line indicates the area of the TA muscle; white arrows indicate the TA distal tendon. (B) Image from the side: place the TA muscle horizontally to the hot plate.

12. Rinse the syringe with saline 10 times by aspirating and releasing saline.

Note: Do not neglect this step because the new syringe may have some residuals or coatings on the surface, which may affect the myoblast engraftment.

13. Inject myoblasts into the intact TA muscle. Load 50 μL of myoblast transplantation solution from step B7 and insert the syringe needle 2 mm above the distal tendon of the TA muscle, 1–2 mm next to the tibia (Figure 2A). At this point, with the needle inserted, bevel up toward the muscle surface.

14. Push the needle straight to the knee side, parallel to the tibia (Figure 2B), and hold for 10 s.

Note: If the needle is barely visible through the TA muscle tissue, the depth of the needle is approximately 500 μm from the muscle surface (Figure 2C).

Figure 2. Starting position and direction of syringe injection. (A) Starting position of the injection from above: start the injection 1–2 mm above the distal tibialis anterior (TA) muscle tendon. (B) The end of a syringe insertion. Push the needle parallel to the tibia and horizontally to the muscle. Be sure not to penetrate the TA muscle. (C) Ideal depth of the needle. When the needle is barely visible from outside the body, it is approximately 500 μm below the surface of the TA muscle.

15. Once the needle is fully inserted, withdraw it slightly and inject the solution gradually, using an approximate rate of 10 μL per 1 mm. Then, expel all the solution before removing the needle from the muscle tissue. Complete this process within 1–2 min.

16. Check if any solution has leaked after injection.

17. Repeat steps B9–15 for transplantation to the opposite leg.

Note: We usually compare conditions within the same mouse; for example, the left TA muscle is injected with myoblasts mixed with saline, and the right TA muscle is injected with myoblasts mixed with Matrigel.

18. After complete transplantation, wake the mouse by an intraperitoneal injection of an anti-anesthetic agent in the same dose as the anesthetics.

19. Euthanize mice by cervical dislocation 21 days after transplantation.

20. Remove the TA muscle and measure muscle weight. Detailed protocols for cryosectioning and immunostaining are described in previous studies [12,17]

21. Cut both edges of the TA muscle with a razor blade and let the TA muscle stand on a 1 × 1 cm cork stand, cut using scissors. The knee side of the muscle should be in contact with the cork stand.

22. Submerge the muscle with O.C.T. and freeze it quickly with isopentane cooled in liquid nitrogen. Then, dry the tissue in a cryostat at -25 °C and store it at -80 °C until use.

Note: Cool isopentane using liquid nitrogen; when it starts changing into a solid state, the temperature is suitable for freezing. Put the TA muscle tissue into cold isopentane and shake it rapidly to freeze completely.

23. Cutting the sections and attaching them to the glass slide should be done in a cryostat. Attach the sample stand to the cryostat, and place the glass slide on the section cut by the cryostat (Figure 3).

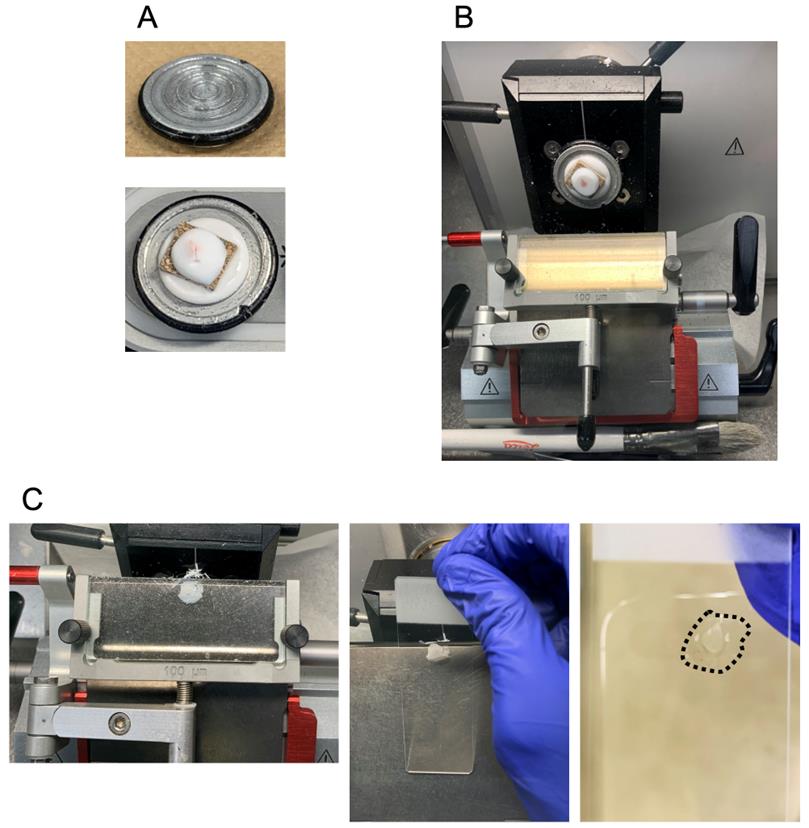

Figure 3. Preparation of a tibialis anterior (TA) muscle cryosection with a cryostat. (A) Mount a cork stand on the sample holder with O.C.T. The upper and lower images show the sample holder and mounting process, respectively. (B) TA muscle tissue sectioning. (C) Attaching the TA muscle section to the glass slide. The left image shows 10-µm TA muscle cryosections. The middle image indicates the process of attaching a cryosection to the glass slide, and the attached section is shown as a black broken line in the right image.

24. After attaching the sections to the glass slide, place the slide at RT with light-shielding using aluminum foil while cutting other samples.

Note: If the sections are not shielded from light, autofluorescence will increase and make it difficult to detect the GFP signal. It is also better to shorten the time between cutting the muscle sections and obtaining the GFP signal.

25. Capture the GFP image with a fluorescence microscope. The sections are then stored at -80 °C until staining.

26. Laminin-α2 and DAPI are stained using the method from previous studies [12,17].

27. Laminin-α2, DAPI, and GFP images are then merged using KEYENCE BZ-810 microscopy analysis software (Figure 4).

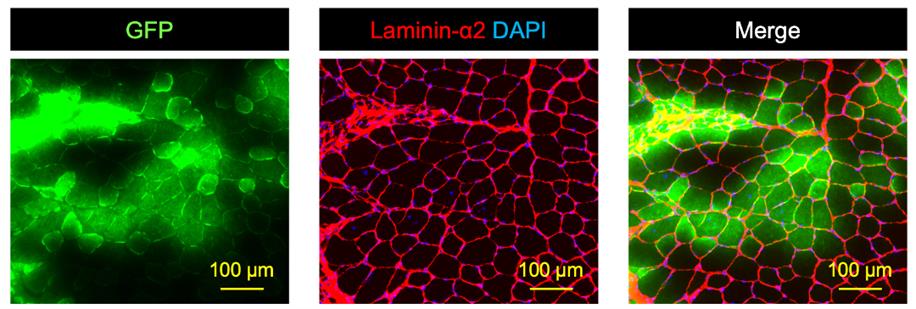

Figure 4. Original GFP signal, immunostaining of Laminin-α2 mounting with DAPI, and merged image of the two. The left image shows the original GFP (green) signal taken using a fluorescent microscope immediately after cryosectioning. The middle image, which is the same section as the left image, is an immunostaining of laminin-α2 (red) mounting with DAPI (blue). The right image indicates the merged image of GFP, laminin-α2, and DAPI. Scale bars are 100 µm.

28. Quantify the number of GFP+ muscle fibers surrounded by laminin-α2 with ImageJ.

C. TA muscle contraction

1. Measure muscle strength 21 days after transplantation [12].

2. Prepare the KRB buffer and heat it to 37 °C in the heat block.

3. Turn on the hot heater of the contraction system and software (Figure 5). The hot heater maintains the system at 37 °C during an experiment (Figure 5A).

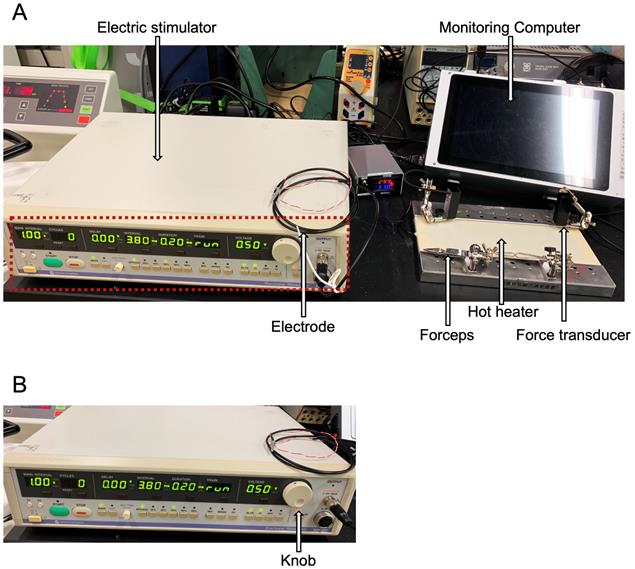

Figure 5. Tibialis anterior (TA) muscle contraction system. (A) Overview of the TA muscle contraction system. An electric stimulator, electrode, monitoring computer, forceps, hot heater, and force transducer are indicated by white arrows. (B) Expanded image of an electric stimulator made by Nihon Kohden shown in the red broken line in panel A; the value of a stimulation voltage or train can be changed with a knob shown by a white arrow.

4. Calibrate 200× g to 10.0 V with a calibration weight (Figure 6).

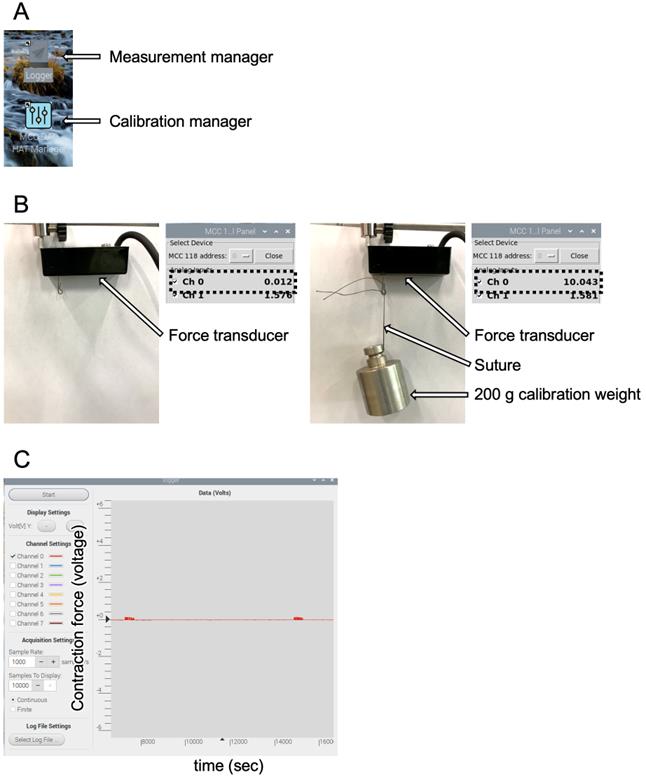

Figure 6. Monitoring computer software. (A) Applications made by Uchida Denshi. (B) Calibration process with a calibration manager. The left image shows the basal value adjusted to 0.0 V (shown by a broken black line), and the right image shows the force transducer calibrated for 10.0 V to 200 g with a calibration weight pointed by white arrows. The adjusted voltages are shown as broken black lines. (C) Measurement manager; the vertical axis is the contraction force (voltage) and the horizontal axis is time (seconds).

5. Anesthetize the mouse as described in Section B.

6. Incise the skin of the mouse's hind leg. At this time, there will be bleeding; wipe it off with paper to ensure visibility. Be careful not to damage the muscle, tendon, or nerve.

7. Prepared a suture to connect the distal TA tendon and the force transducer. Make a loop with a diameter of 3 mm (Figure 7A). Pass the suture between the TA and EDL tendons (Figure 7B, C).

8. Tie an overhand knot around the TA tendon, repeating this twice. Make sure to connect the string strongly so that it does not come off from the TA tendon during the contraction force measurement (Figure 7B, C).

Figure 7. The suture used for connecting the tibialis anterior (TA) distal tendon and the force transducer. (A) Loop with a diameter of 3 mm with the suture. (B, C) The suture is tied to the distal tendon of the TA muscle, shown from above (B) and from the side (C). The loop sits in front of the TA muscle.

9. Cut the distal TA tendon with a scalpel. Using tweezers, pull out only the TA tendon from the ankle side.

10. Cover the TA muscle with paper moistened with KRB buffer. Do not wet the suture and avoid drying out the TA muscle during measurement.

Caution: Wetting the suture may affect the measurement of muscle contraction force.

Carefully expose the common peroneal nerve. Remove the flesh from below the knee toward the outside of the hind. Any debris that might be attached to the nerve should be removed without damaging the nerve (Figure 8).

Note: If some debris remains around the nerve, the response to electrical stimulation will be poor.

Figure 8. The common peroneal nerve that will be attached to an electrode. The common peroneal nerve can be exposed from next to the edge of the tibialis anterior (TA) muscle and the knee.

11. Once the nerve is exposed, secure the knee with forceps and connect the suture to the force transducer. Set the suture wire so that the transducer, tendon, TA muscle, and knee are in a straight line. Apply electrical stimulation to contract the muscle and verify that the direction of muscle contraction is aligned with the setup (Figure 9 and Video 1).

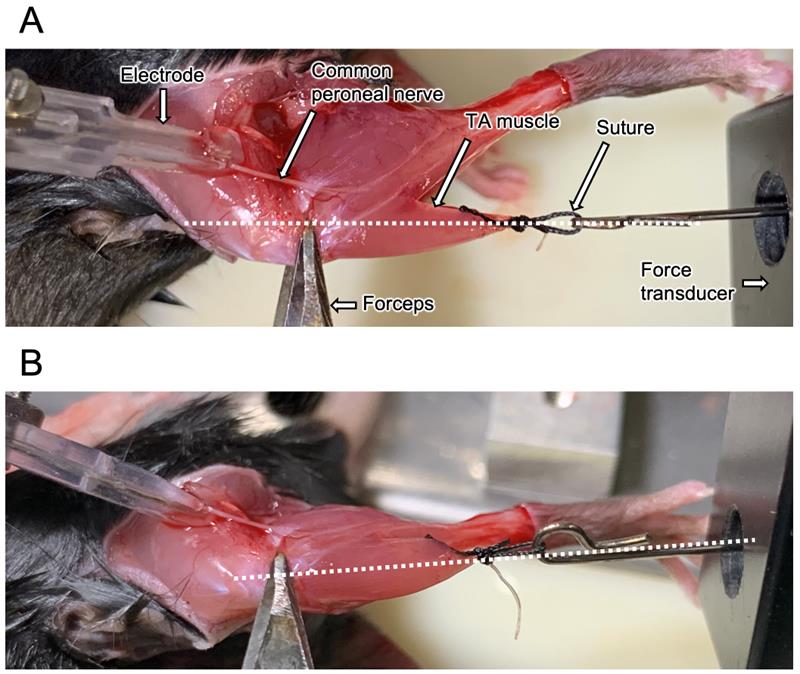

Figure 9. Position to measure the tibialis anterior (TA) muscle contraction force. Place the knee, TA muscle, and force transducer on the same straight line shown as a broken line. (A) Top and (B) side views. Some components are demonstrated by white arrows.

12. Set the value of TRAIN = 60 (values for Nihon Kohden stimulation device, Figure 5B). This condition will avoid exhausting the TA muscle because it contracts and immediately relaxes. In this stimulation, only the contraction peak appears. Gradually increase the stimulation voltage to find the voltage at which the contraction force reaches its peak (Figure 10).

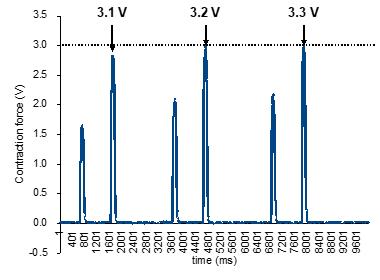

Figure 10. The contraction waves reach a peak following strength stimulation. Set the stimulation voltage to a level that elicits the peak of contraction waves without causing muscle fatigue. Increase the stimulation voltage from 3.1 to 3.3 V, as pointed out by the arrows; at 3.2 V, maximum contraction is reached, being equal to the value of contraction force at 3.3 V, marked with the broken line. In this case, 3.2 V should be used as the stimulation voltage for measuring the maximum contraction force.

13. Allow the muscle to recover without electric stimulation for 1–2 min.

14. Set the value of TRAIN = run (values for Nihon Kohden stimulation device, Figure 5B) to contract muscle completely, as shown in Supplementary Figure 3B of [12]. Stimulate with the voltage defined in step C12 for 10 s and check the form of the contraction wave. Define the peak value of the first contraction wave as the maximum contraction force.

Validation of protocol

This protocol has been used and validated in the following research article:

1. Dohi et al. [12] Achieving myoblast engraftment into intact skeletal muscle via extracellular matrix. Front Cell Dev Biol (Figures 4A and 5B and Supplementary Figures 1 and 3).

General notes and troubleshooting

General notes

1. When 1.0 × 10⁶ myoblasts per 50 μL are transplanted into intact TA muscle tissue, GFP+ fibers can be detected at approximately 1,200 counts, and the GFP+ area occupies almost 10% of the total TA area 21 days after cell injection. We recommend using as many cells as possible for transplantation (at least 5.0 × 10⁵ cells) as the high number of transplanted cells shows a clear result of their engraftment efficiency.

2. Because cell viability decreases when it passes the syringe needle, we suggest that the injection should be done as slowly as possible.

3. The contraction force of the TA muscle affects how the electrode contacts the nerve; if the muscle does not contract, changing the direction of the electrode should be effective.

Troubleshooting

Problem 1: GFP+ fibers cannot be detected 21 days after transplantation (Figure 11).

Possible cause: The cells were injected into the EDL muscle but not the TA.

Solution: The needle should be injected closer to the tibia and TA muscle surface.

Figure 11. Tissue sections of failed and successful injections. The section in which the needle did not pass the center of the TA muscle (left panel) vs. the section injected in the right position (at approximately 500 μm below the surface of the TA muscle) (right panel). Color indicates GFP (green), laminin-α2 (red), and DAPI (blue). Scale bars, 500 μm.

Problem 2: The TA muscle does not contract even if the direction of the electrode changes.

Possible cause: The fixation of the knee prevents muscle contraction.

Solution: Fix the knee again and provide some electric stimulation.

Acknowledgments

This study was supported by a Japan Society for the Promotion of Science (JSPS) KAKENHI Grant-in-Aid for JSPS Fellows (grant number 24KJ1872) to KD, the Japan Science and Technology Agency via the Fusion Oriented Research for Disruptive Science and Technology program (JST FOREST Program number JPMJFR205K) to YF, a Tokyo Metropolitan Government Advanced Research Grant (R2-2) to Y.F., and TMU Young Selection Research Support for Promising Research awarded to Y.F. This protocol is same to the our previous work [12].

Competing interests

The authors declare no conflicts of interest.

Ethical considerations

The animal study was conducted with the acceptance of the Experimental Animal Committee of Tokyo Metropolitan University (A6-9 and A7-11). The study was conducted in accordance with the local legislation and institutional requirements.

References

1. Partridge, T. A., Morgan, J. E., Coulton, G. R., Hoffman, E. P. and Kunkel, L. M. (1989). Conversion of mdx myofibres from dystrophin-negative to -positive by injection of normal myoblasts. Nature. 337(6203): 176–179. https://doi.org/10.1038/337176a0
2. Ono, Y., Boldrin, L., Knopp, P., Morgan, J. E. and Zammit, P. S. (2010). Muscle satellite cells are a functionally heterogeneous population in both somite-derived and branchiomeric muscles. Dev Biol. 337(1): 29–41. https://doi.org/10.1016/j.ydbio.2009.10.005
3. Yin, H., Price, F. and Rudnicki, M. A. (2013). Satellite Cells and the Muscle Stem Cell Niche. Physiol Rev. 93(1): 23–67. https://doi.org/10.1152/physrev.00043.2011
4. Ikemoto, M., Fukada, S. i., Uezumi, A., Masuda, S., Miyoshi, H., Yamamoto, H., Wada, M. R., Masubuchi, N., Miyagoe-Suzuki, Y., Takeda, S., et al. (2007). Autologous Transplantation of SM/C-2.6+ Satellite Cells Transduced with Micro-dystrophin CS1 cDNA by Lentiviral Vector into mdx Mice. Mol Ther. 15(12): 2178–2185. https://doi.org/10.1038/sj.mt.6300295
5. Montarras, D., Morgan, J., Collins, C., Relaix, F., Zaffran, S., Cumano, A., Partridge, T. and Buckingham, M. (2005). Direct Isolation of Satellite Cells for Skeletal Muscle Regeneration. Science. 309(5743): 2064–2067. https://doi.org/10.1126/science.1114758
6. Sacco, A., Doyonnas, R., Kraft, P., Vitorovic, S. and Blau, H. M. (2008). Self-renewal and expansion of single transplanted muscle stem cells. Nature. 456(7221): 502–506. https://doi.org/10.1038/nature07384
7. Azzag, K., Bosnakovski, D., Tungtur, S., Salama, P., Kyba, M. and Perlingeiro, R. C. R. (2022). Transplantation of PSC-derived myogenic progenitors counteracts disease phenotypes in FSHD mice. npj Regener Med. 7(1): 43. https://doi.org/10.1038/s41536-022-00249-0
8. Hekmatnejad, B. and Rudnicki, M. A. (2022). Transplantation to study satellite cell heterogeneity in skeletal muscle. Front Cell Dev Biol. 10: e902225. https://doi.org/10.3389/fcell.2022.902225
9. Mueller, A. L. and Bloch, R. J. (2019). Skeletal muscle cell transplantation: models and methods. J Muscle Res Cell Motil. 41(4): 297–311. https://doi.org/10.1007/s10974-019-09550-w
10. Fuchs, E. and Blau, H. M. (2020). Tissue Stem Cells: Architects of Their Niches. Cell Stem Cell. 27(4): 532–556. https://doi.org/10.1016/j.stem.2020.09.011
11. Schüler, S. C., Liu, Y., Dumontier, S., Grandbois, M., Le Moal, E., Cornelison, D. and Bentzinger, C. F. (2022). Extracellular matrix: Brick and mortar in the skeletal muscle stem cell niche. Front Cell Dev Biol. 10: e1056523. https://doi.org/10.3389/fcell.2022.1056523
12. Dohi, K., Manabe, Y., Fujii, N. L. and Furuichi, Y. (2025). Achieving myoblast engraftment into intact skeletal muscle via extracellular matrix. Front Cell Dev Biol. 12: e1502332. https://doi.org/10.3389/fcell.2024.1502332
13. Furuichi, Y., Kawabata, Y., Aoki, M., Mita, Y., Fujii, N. L. and Manabe, Y. (2021). Excess Glucose Impedes the Proliferation of Skeletal Muscle Satellite Cells Under Adherent Culture Conditions. Front Cell Dev Biol. 9: e640399. https://doi.org/10.3389/fcell.2021.640399
14. Pasut, A., Jones, A. E. and Rudnicki, M. A. (2013). Isolation and Culture of Individual Myofibers and their Satellite Cells from Adult Skeletal Muscle. J Visualized Exp. 73: e3791/50074. https://doi.org/10.3791/50074
15. Lim, C. L., Ling, K. H. and Cheah, P. S. (2018). Isolation, cultivation and immunostaining of single myofibers: An improved approach to study the behavior of satellite cells. J Biol Methods. 5(1): 1. https://doi.org/10.14440/jbm.2018.219
16. Hüttner, S. S., Ahrens, H. E., Schmidt, M., Henze, H., Jung, M. J., Schüler, S. C. and von Maltzahn, J. (2019). Isolation and Culture of Individual Myofibers and Their Adjacent Muscle Stem Cells from Aged and Adult Skeletal Muscle. Methods Mol Biol. 2045: 25–36. https://doi.org/10.1007/7651_2019_209
17. Motohashi, N., Minegishi, K., Imamura, M. and Aoki, Y. (2023). Techniques for Injury, Cell Transplantation, and Histological Analysis in Skeletal Muscle. Methods Mol Biol. 2640: 193–205. https://doi.org/10.1007/978-1-0716-3036-5_14
