Annotated Bioinformatic Pipelines for Genome Assembly and Annotation of Mitochondrial Genomes

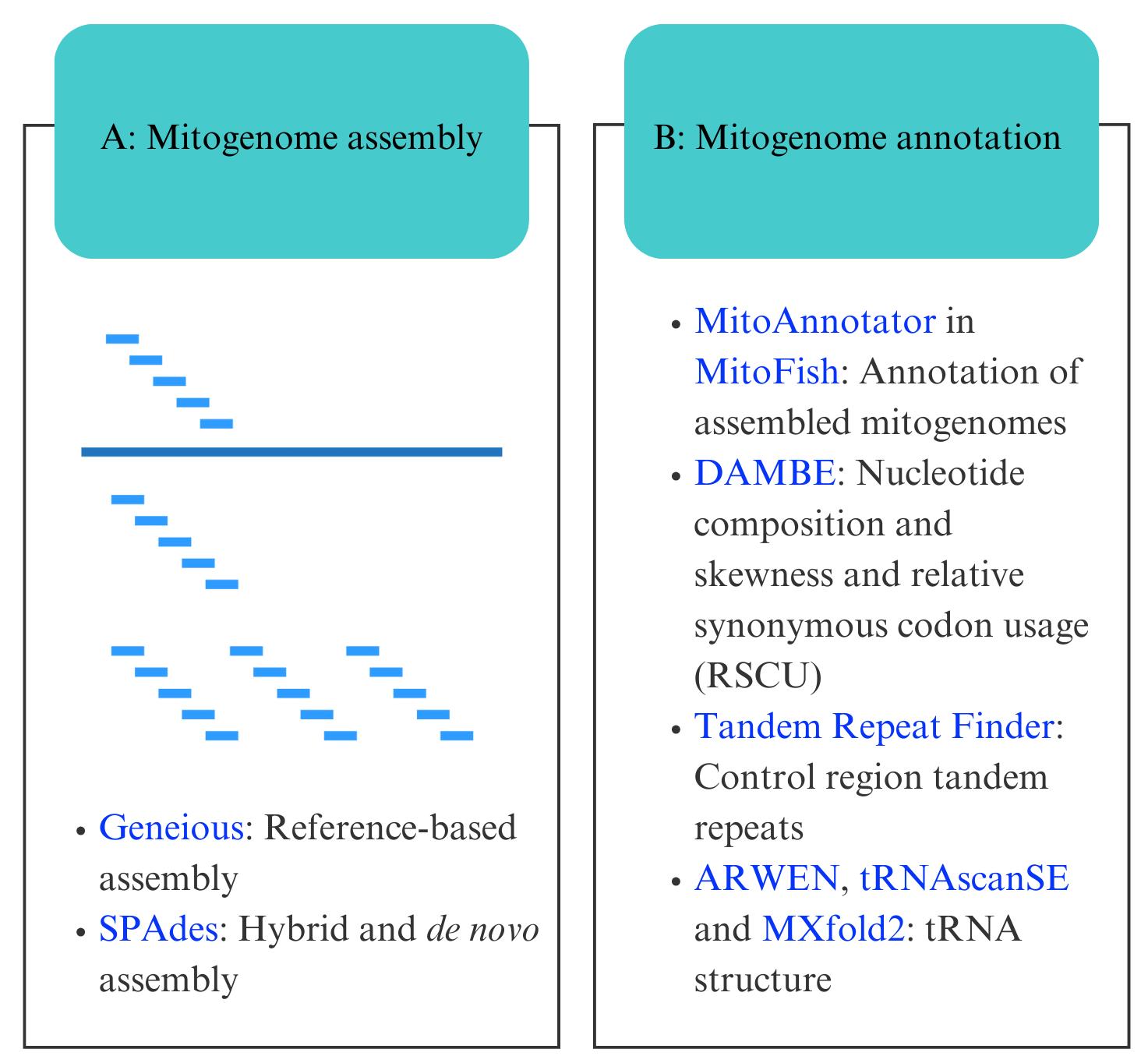

Software and datasets

Most of the software programs listed below can be used on Windows 7/8/10/11, Mac OS 10.11 (current versions), and Linux (Ubuntu Desktop LTS, last two supported versions). A 64-bit Linux system or Mac OS (with Python 2.7 and Python 3: 3.2 and higher to be pre-installed on it) is required to run SPAdes and Quast. If you do not have Linux on your device, you can use MobaXTerm v.24.4 (https://mobaxterm.mobatek.net/download.html, last accessed 1/12/2025) for Windows or Tabby Terminal v.1.0.216 (https://tabby.sh/, last accessed 1/12/2025) for Mac to run a command line code.

We used a machine with a multi-core central processing unit (CPU) allowing for parallel processing to speed up some of our analyses. The amount of RAM depends on the size of the dataset, but at least 8 GB is recommended. If high-performance computing (HPC) resources are not available, the CIPRES (Cyberinfrastructure for Phylogenetic Research) Science Gateway portal v.3.3 at the San Diego Supercomputer Centre [30] (https://www.phylo.org/, last accessed 1/12/2025) is an online platform that provides a user-friendly web interface for performing computationally intensive phylogenetic analyses. SPAdes can be run through CIPRES, and there is a Geneious plugin too. Users can subscribe to a three-month free trial with 1,000 CPU hours; thereafter, CPU hours can be purchased.

A. Mitogenome assembly

1. FastQC version (v).12.0 (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/, last accessed 1/12/2025) for quality control of sequencing files. It requires a suitable Java runtime environment (https://adoptium.net/, last accessed 1/12/2025)

2. Geneious Prime v.2023.2 [19] (https://www.geneious.com/download/, last accessed 1/12/2025) for reference-based assembly and assembly editing and comparison. Note that although reference assembly using the Geneious assembly tool is available in the free version, a paid license is required to edit assemblies or alignments. Mega11 [31] (https://www.megasoftware.net/, last accessed 1/12/2025) is an alternative software that can be used for sequence visualisation and editing. Geneious also provides licenses for students doing courses (see https://www.geneious.com/free-course-license, last accessed 1/12/2025). Alternatively, there are other programs available for reference-based mitogenome assembly (e.g., GetOrganelle [32] and MITObim [24]). The Burrows-Wheeler Alignment tool [15] can also be used to extract mitogenome reads via alignment to a reference, which can then be assembled in SPAdes. Remember to select the software most suited to your organism under study

3. SPAdes v.3.15 [22] (https://github.com/ablab/spades, last accessed 1/12/2025) for hybrid and de novo assembly. SPAdes can now be run in the latest version of Geneious. When you run the SPAdes assembler for the first time, Geneious provides instructions for installing the necessary Windows or Mac features onto your device

4. Quast v.5.0.2 [33] (https://github.com/ablab/quast/releases, last accessed 1/12/2025) for assembly quality checking

5. FinchTV 1.5 (https://digitalworldbiology.com/FinchTV, last accessed 1/12/2025) for sequence trimming for Sanger sequences

6. Our raw Ion Torrent bam files for mitogenome assembly are available on the SRA database (BioProject repository):

a. Data identification number: PRJNA997468 (BioSample accessions: SAMN36680060, SAMN36680061, SAMN36680062, SAMN36680063, SAMN36680064)

b. Direct URL to data (last accessed 1/12/2025): https://www.ncbi.nlm.nih.gov/bioproject/997468; https://www.ncbi.nlm.nih.gov/biosample/36680060; https://www.ncbi.nlm.nih.gov/biosample/36680061; https://www.ncbi.nlm.nih.gov/biosample/36680062; https://www.ncbi.nlm.nih.gov/biosample/36680063; https://www.ncbi.nlm.nih.gov/biosample/36680064

c. Alternatively, filtered reads for the mitogenome can be found in the folder 1_Raw_Ion Torrent_NGS_data: Data_1_Galeorhinus_galeus_Ion Torrent_Filtered_RawData, Data_2_Mustelus_asterias_Ion Torrent_Filtered_RawData, Data_3_Mustelus_mosis_Ion Torrent_Filtered_RawData, Data_4_Mustelus_palumbes_Ion Torrent_Filtered_RawData, Data_5_Triakis_megalopterus_Ion Torrent_Filtered_RawData on the Dryad Digital Repository (doi: 10.5061/dryad.sj3tx969h, last accessed 1/12/2025)

B. Mitogenome annotation

1. MitoAnnotator in MitoFish v.3.72 webserver [34,35] (http://mitofish.aori.u-tokyo.ac.jp/annotation/input/, last accessed 1/12/2025) for mitogenome annotation

2. Sequence Manipulation Suite 2 [36] (https://www.bioinformatics.org/sms2/translate.html, last accessed 1/12/2025) for checking the reading frame of protein-coding genes

3. GenBank [37] submission platform (https://www.ncbi.nlm.nih.gov/WebSub/, last accessed 1/12/2025) for submission of GenBank files

4. DAMBE v.7.0.35 [38,39] (http://dambe.bio.uottawa.ca/DAMBE/dambe.aspx, last accessed 1/12/2025) for calculating nucleotide composition and skewness and relative synonymous codon usage

5. R (https://cran.r-project.org/, last accessed 1/12/2025) and R Studio (https://posit.co/products/open-source/rstudio/, last accessed 1/12/2025) for constructing nucleotide composition, skewness, and RSCU plots

6. ARWEN v.1.2.3 webserver [40] (http://130.235.244.92/ARWEN/, last accessed 1/12/2025), tRNAscanSE webserver v.2.0 [41] (http://lowelab.ucsc.edu/cgi-bin/tRNAscan-SE2.cgi, last accessed 1/12/2025), and MXfold2 [42] webserver (http://ws.sato-lab.org/mxfold2/, last accessed 1/12/2025) for checking tRNA folding

7. Tandem Repeat Finder [43] (https://tandem.bu.edu/trf/trf.html, last accessed 1/12/2025) for characterising repeats in the control region

8. Mitogenome sequence files for our Triakidae mitogenomes can be found on GenBank. Data identification numbers: ON075075, ON075076, ON075077, ON652873, and ON652874. Direct URL to data (last accessed 1/12/2025): https://www.ncbi.nlm.nih.gov/nuccore/ON075075; https://www.ncbi.nlm.nih.gov/nuccore/ON075076; https://www.ncbi.nlm.nih.gov/nuccore/ON075077; https://www.ncbi.nlm.nih.gov/nuccore/ON652873; https://www.ncbi.nlm.nih.gov/nuccore/ON652874

a. Alternatively, these have been uploaded to the folder 2_Galeomorphii_mitogenome_sequences: Data_8_ON652873_Mustelus_asterias, Data_9_ON652874_Galeorhinus_galeus, Data_10_ON075075_Triakis_megalopterus, Data_11_ON075076_Mustelus_palumbes, Data_12_ON075077_Mustelus_mosis in on our Dryad Digital Repository (doi: 10.5061/dryad.sj3tx969h, last accessed 1/12/2025)

Procedure

A. Mitogenome assembly

The mitogenome assembly and annotation pipeline was used to assemble Ion Torrent sequencing reads in bam format in a three-step approach to detect deviations in mitogenome structure. Although the pipeline here is demonstrated using Ion Torrent unpaired reads, it will also work with paired-end/high-quality mate-paired Ion Torrent reads, Illumina paired-end/high-quality mate-paired/unpaired reads, and PacBio Circular Consensus Sequencing (CCS) reads [22]. Refer to the SPAdes manual (https://home.cc.umanitoba.ca/~psgendb/doc/spades/manual.html) for input format requirements and k-mer adjustments for different read types. SPAdes works by progressively refining the assembly by iterating through De Bruijn graphs of increasing k-mer sizes. This allows the assembler to balance between smaller k-mers, which provide better coverage and connection across repetitive regions, and larger k-mers, which increase specificity and help resolve repeats and reduce ambiguity [22]. The graphs from different k-mer sizes are then merged and used for assembly. This approach is best suited for small to medium genomes and shorter sequencing reads. Alternative programs utilizing Overlap-Layout-Consensus (OLC) assembly are preferable for more complex genomes and long sequencing reads, which include PacBio HiFi and Oxford Nanopore Technologies (ONT) reads.

Raw reads are used as input files for de novo and reference-based assembly to a high-quality assembled mitogenome of a closely related species. We also developed a hybrid assembly approach that improves on the base call ambiguities and length biases of reference assembly with short reads while reducing the computational requirements that come with de novo assembly. Nevertheless, we show that for identifying and characterising large structural rearrangements, a de novo assembly is beneficial. Large duplications and/or rearrangements can be confirmed with a basic Sanger sequencing approach. The hybrid assembly approach can help detect when there is a region that could be investigated further with de novo assembly. However, in cases where a region is duplicated more than once with minor differences between the duplicates, short reads, generated with Ion Torrent and Illumina sequencing, may still cluster together to form one consensus sequence, revealing only one duplicate. Long-read technologies such as PacBio and Nanopore sequencing would be useful for addressing this challenge. SPAdes is able to assemble short reads with long reads to close gaps and resolve repeats if you have additional long-read sequences available.

The read depth required for accurate mitogenome assembly depends on the type of analysis being conducted, as different applications demand varying levels of coverage [44]. A minimum read depth of 15× is cited as suitable for whole-genome assembly with Ion Torrent reads for non-clinical applications [13]. However, it is important to note that read depth will vary across the assembly. Read depth varied from 4× to 154× in our assemblies. Galeorhinus galeus (ON652874) is used as the example mitogenome for this protocol, and Mustelus mustelus (NC_039629.1 [45]) is used as the reference mitogenome for reference-based assembly. Replace these species identifiers with your own species ID when using the pipeline for your own samples.

1. Reference-based assembly

a. Import the raw sequencing reads in bam format [our raw Ion Torrent bam files are available on the SRA database (BioProject PRJNA997468)] and the representative reference mitogenome of a closely related species in GenBank format to Geneious. This can be retrieved from the nucleotide database on NCBI (https://www.ncbi.nlm.nih.gov/nucleotide/).

b. Assemble the reads to the reference mitogenome using the Geneious read mapper with medium sensitivity settings and five iterations (Figure 1). These are the default settings for the Geneious read mapper and, for most situations, using the default sensitivity is recommended.

The highest sensitivity is intended for use with smaller numbers of Sanger reads (1,000 or less), and medium or medium-low sensitivity is usually the best option for large numbers (e.g., 100,000 or more) of next-generation sequencing reads [19]. Iterative fine-tuning maps reads to the consensus sequence from the previous iteration and converts the reads back to mappings relative to the reference sequence, repeating the process until the maximum number of iterations is reached. Iterative assembly greatly improves results around regions that differ from the reference sequence. Later iterations generally map a higher fraction of reads as the mapping extends into regions where reads were previously un-mappable. Geneious recommends using five iterations. Decreasing this will increase the assembly speed.

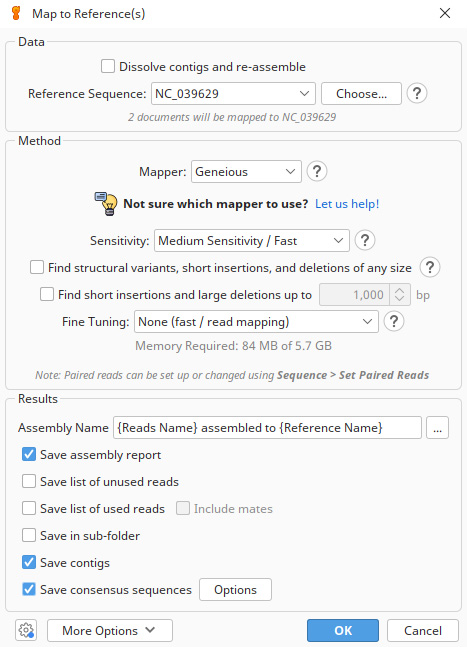

Figure 1. Parameters used for the reference-based assembly of Galeorhinus galeus Ion Torrent bam reads. Reads were mapped to the mitogenome of Mustelus mustelus (NC_039629 [45]) in Geneious Prime v.2024.0.2 [19] using medium sensitivity settings and five iterations; all other parameters were left at their default settings.

2. Hybrid assembly

a. In Geneious, select your reference assembly, click Export | Export Documents, and choose to save the file in bam format by selecting Export BAM index file (Figure 2).

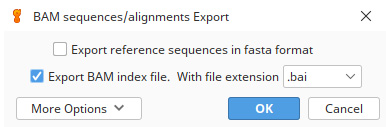

Figure 2. Selections for saving reads in bam format in Geneious Prime v.2024.0.2 [19]. These filtered reads that mapped to a reference mitogenome can now be used as input for de novo assembly (hybrid assembly approach).

b. Feed the bam reads into a de novo pipeline in SPAdes with the input set for unpaired Ion Torrent reads with eight threads, k-mers 21,33,55,77,99,127, the careful option to reduce the number of mismatches and short indels, and all other parameters left as default. For datasets with high GC content or low or uneven coverage, consider enabling the single-cell mode (setting –sc option) and use k-mer lengths of 21,33,55. Shorter k-mers can help mitigate the increased sequencing error rate that often occurs in these cases. Use Quast to generate an assembly report. If you are running SPAdes in Geneious, select your reference assembly and click Align/Assemble | De Novo Assemble. Select SPAdes as your assembler. You can also paste these parameters in the Custom SPAdes Options bar.

work = ./Spades_hybrid_assembly

spades.py \

-k 21,33,55,77,99,127 \

-t 8 \

-m 250 \

--Ion Torrent \

-s $work/Data_1_Galeorhinus_galeus_Ion Torrent_Filtered_RawData.bam \

--careful \

-o $work/G_galeus_Hybrid_Assembly \

quast.py \

-o $work/G_galeus_Hybrid_Assembly/Quast_G_galeus \

$work/G_galeus_Hybrid_Assembly/contigs.fasta \

3. De novo assembly

a. Directly map the raw reads (in bam format) de novo and generate an assembly report. See step A2b above for k-mer setting adjustments.

work = ./Spades_de_novo_assembly

spades.py \

-k 21,33,55,77,99,127 \

-t 8 \

-m 250 \

--Ion Torrent \

-s $work/IonCode_G_galeus_rawlib.basecaller.bam \

--careful \

-o $work/G_galeus_Denovo_Assembly \

quast.py \

-o $work/G_galeus_Denovo_Assembly/Quast_G_galeus \

$work/G_galeus_Denovo_Assembly/contigs.fasta \

4. Assembly comparison

a. Open the Assembly Report file produced during assembly in Geneious in step A1 and note the number of reads that mapped to the reference mitogenome and the size of the contigs produced. Open the Quast files titled report.pdf in the de novo and hybrid assembly folders from steps A2 and A3 above. Note the total number of contigs produced and the size of the largest contig. Is this contig within the expected size range of the mitogenome of the species you are investigating? Is there a substantial difference between the reference, hybrid, and de novo assembly contig sizes? A comparison of the assembly statistics for our Triakidae mitogenomes is presented in Table 1 for reference.

Table 1. Summary of reference-based, hybrid, and de novo assembly statistics for five newly assembled Triakidae mitogenomes assembled using Ion Torrent sequence reads in bam format. # reads mapped, number of reads that mapped to the reference mitogenome (NC) or to each other; bp, base pairs; # of contigs, number of contigs created for hybrid and de novo assembly. Reference-based assembly was conducted in Geneious Prime v.2023.2 [19] and hybrid and de novo assembly were conducted using SPAdes v.3.15 [22].

b. Sometimes, the de novo assembly may produce more than one contig for the mitogenome, which needs to be mapped together to produce a complete assembly as evident for M. mosis and M. palumbes. Very long de novo consensus sequences, like the one produced for M. palumbes, are often the result of large overlaps at each end. Circular consensus sequences can be produced by circularising de novo assemblies as described in Section B.

c. Align the three assemblies to each other using the Geneious alignment tool with default parameters.

d. Check the alignment for discrepancies in Geneious. If the assemblies are consistent with each other, save the alignment consensus sequence in fasta format for annotation in Section B. If there is a significant discrepancy between the three alignments (see Figure 3 as an example), further investigation is warranted, as described next.

Figure 3. 714-base pair mismatch region in the sequence alignment of the reference-based, hybrid (baited), and de novo mitogenome assemblies of Galeorhinus galeus. Green bars indicate matching regions in all assemblies, gold bars indicate matching regions in two of the assemblies, and black lines indicate alignment gaps.

5. As evident from Figure 3, a comparison of the assemblies for G. galeus revealed large gaps and base-pair mismatches in a section located before the control region, whereas alignment of our other mitogenome assemblies showed almost perfect agreement between the three different assemblies, with very few single base-pair mismatches. It is important to first ensure that you have high-quality sequences with good coverage of the mitogenome because this can also influence assembly quality. However, disagreement between reference, hybrid, and de novo assemblies can also occur when there is a large structural deviation in the mitogenome you are assembling that is missing from the reference mitogenome used for reference-based assembly. In order to investigate this further, we conducted Sanger sequencing on this region and compared the Sanger sequencing fragment to our three assemblies in Geneious. When there is a significant deviation in mitogenome structure compared to what is expected based on the mitogenomes of closely related species, it is good practice to confirm the anomaly before submitting annotated mitogenomes to GenBank.

a. Use a standard PCR and Sanger sequencing protocol, optimised to suit your primers, and extracted DNA samples to amplify and sequence the suspected duplication or rearrangement. We designed primers for G. galeus based on the de novo mitogenome assembly sequence to cover the duplicated region present in the assembly: Cytb CC F (5'-ACTTGAATTGGAGGGCAACC-3') and Dloop Gga R (5'-AGGGTATGTGGGCCATATCA-3').

b. After sequencing, manually trim the sequences in Finch TV (Figure 4) by selecting the noisy peaks at the beginning of the sequence (click on the first nucleotide, click and hold ctrl + A, click on the last nucleotide with a noisy peak, and then right-click and select delete). Do the same for the last ~20–30 nucleotides at the end of the sequence.

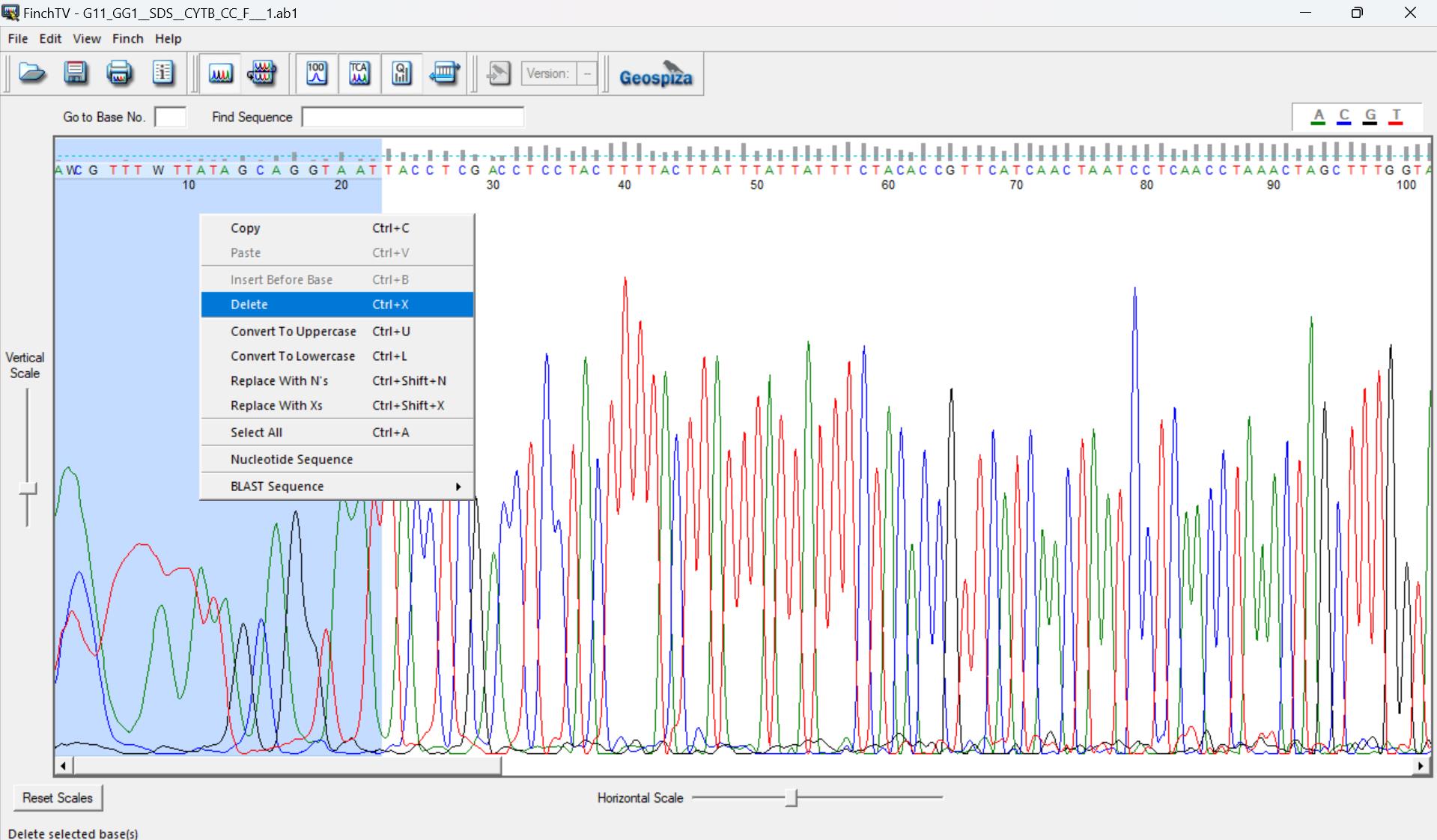

Figure 4. Trimming poor base calls from the ends of Sanger sequences in Finch TV 1.5 (https://digitalworldbiology.com/FinchTV, last accessed 1/12/2025). The first and last ~20–30 nucleotides often show noisy peaks, where the base call is not definitive, and there are a few small, loopy peaks rather than tall, sharp peaks as seen from the 20th nucleotide to the 100th nucleotide. These bases must be removed from the sequence. Red peaks, thymine; green, adenine; blue, cytosine; black, guanine.

c. Align the trimmed sequences to the de novo, reference, and hybrid assemblies of the mitogenome under investigation in Geneious read mapper using the same approach described in step A4c above to confirm the presence of the duplication. Note whether the Sanger sequence matches with ~100% similarity to any of the assemblies. The alignment of the Sanger sequence fragment to the de novo assembly of G. galeus is shown in Figure 5. The Sanger sequence matches perfectly with this assembly but reveals a missing segment in the hybrid and reference assemblies, confirming the presence of the additional segment detected in the de novo assembly.

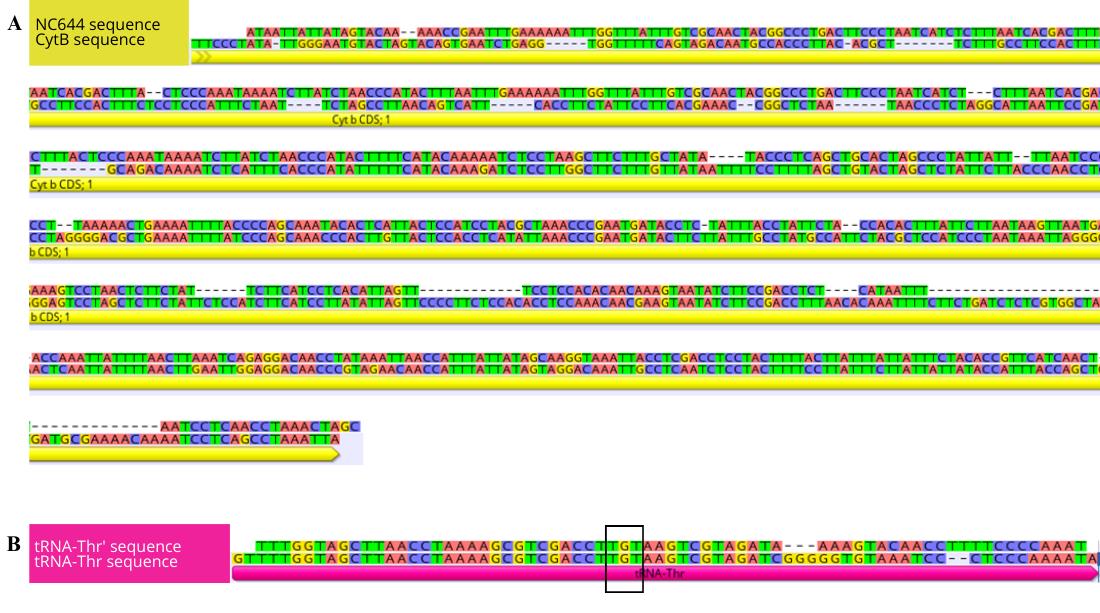

Figure 5. Sequence alignment of a section of the 714-base pair duplication in the de novo Galeorhinus galeus assembly (top sequence) and the sequence fragment obtained with Sanger sequencing (bottom sequence). The blue line marks the end of the duplicated cytochrome b (Cytb) section and the start of tRNA^Thr’ (thyronine). The red line marks the end of tRNA^Thr’ and the start of the D-loop (mitochondrial displacement loop).

d. To confirm which portion of the mitogenome has undergone duplication, align the trimmed sequences with the reference genome assembly (which does not contain the duplication) using the Geneious read mapper with medium sensitivity settings and five iterations to predict which genes were duplicated (Figure 6). Annotation and functional investigation of the duplication are described in Section B.

Figure 6. Sequence alignment of the duplication located between tRNA^Pro (proline) and the D-loop (mitochondrial displacement loop) of Galeorhinus galeus with the tRNA^Thr (thyronine) and cytochrome b (Cytb) genes. (A) Alignment of NC₆₄₄ and the partial Cytb gene. (B) Alignment of tRNA^Thr’ and the tRNA^Thr gene. The black box indicates the anticodon sequences of the tRNAs.

e. Alignment of the duplicated region to the reference assembly revealed that the duplication is made up of a 646 bp non-coding (NC₆₄₆) fragment of the cytochrome b (Cytb) gene at the 5'-end and a 68 bp tRNA^Thr’ at the 3'-end of the H-strand. This signifies a tandem duplication and random loss (TDRL) mutation, where the Cytb gene and tRNA^Thr were duplicated, and the redundant paralogs underwent random deletion events to form non-coding regions that were then inserted into the control region [46,47]. Based on the TDRL and intramitochondrial recombination model, we speculate that Cytb and tRNA^Thr underwent tandem duplication to form a Cytb-tRNA^Thr-Cytb’-tRNA^Thr’ dimeric block [48]. Secondly, a random deletion occurred, resulting in the loss of redundant fragments of Cytb’ and tRNA^Thr’ and consequently a loss in function of these genes. Lastly, the remnants of the duplication recombined into the D-loop. To view the location of the duplication in the mitogenome, see Figure 8 in Section B below.

f. The reference-based assembly was unable to assemble the duplication and collapsed all similar reads together. Reference assembly is biased by the structure of the reference mitogenome used, which makes it unsuitable for detecting structural deviations when assembling short reads. This is easier to avoid when longer PacBio and ONT reads are used for assembly to a reference mitogenome. The hybrid assembly approach assembled a portion of the duplicated region but not all of it. Only de novo assembly was able to properly assemble the duplication, as confirmed by the Sanger sequences. In this case, we proceeded with the de novo assembly consensus sequence (exported in fasta format) and used it for mitogenome annotation in Section B.

B. Mitogenome annotation

In this section, we present a pipeline to annotate and characterise mitogenome features for comparison of newly assembled mitogenomes to other mitogenomes of closely related species. Calculations are performed using default settings unless otherwise stated; when applicable, make sure to select the correct genetic code for your species. In our case, we used the vertebrate mitochondrial setting (Table 2). The programs give multiple data output files. We present the tables and figures we created for Galeorhinus galeus as an example using this data, but there are other statistics to explore too (consult the manuals linked throughout the protocol).

1. Open MitoAnnotator on your preferred web browser (http://mitofish.aori.u-tokyo.ac.jp/annotation/input/, last accessed 1/12/2025). Select your mitogenome consensus sequence (saved in fasta format in Section A) as the input file and click Annotate (Figure 7).

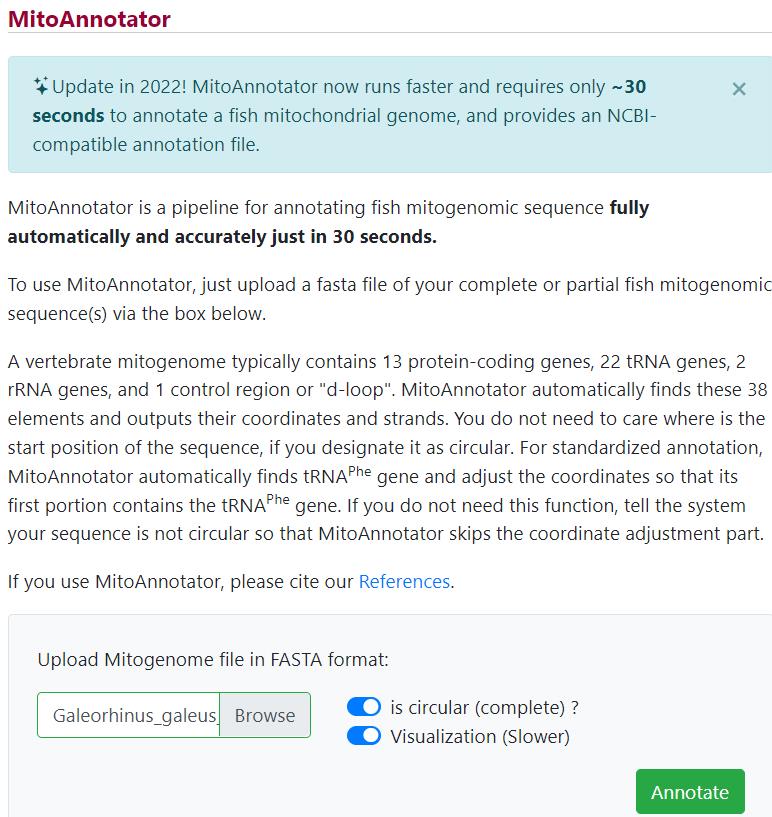

Figure 7. Annotating mitogenome consensus sequences in MitoAnnotator in MitoFish v.3.72 webserver (http://mitofish.aori.u-tokyo.ac.jp/annotation/input/, last accessed 1/12/2025) [8,40]

a. Download and save the zip folder produced by MitoAnnotator containing the annotated mitogenome, gene sequences in fasta format, and the annotated mitogenome in GenBank format. Edit and enlarge gene names with a PDF editor of choice and include protein-coding genes (PCGs), transfer (t)RNA and ribosomal (r)RNA counts, the total mitogenome length, and species-specific images [ours were obtained from the Food and Agriculture Organization website (www.fishbase.se, last accessed 1/12/2025)] (see Figure 8).

Figure 8. Annotated mitogenome of Galeorhinus galeus (Linnaeus 1758) generated with MitoAnnotator in MitoFish v.3.72 webserver (http://mitofish.aori.u-tokyo.ac.jp/annotation/input/, last accessed 1/12/2025) [34,35]. In the outermost ring, the inner genes are transcribed clockwise, while the outer genes are transcribed counterclockwise. The middle grey circle shows the GC content. The inner number indicates base pairs (bp). The species sketch was retrieved from the Food and Agriculture Organization (FAO) website (www.fishbase.se, last accessed 1/12/2025).

b. Open the gene feature file containing separate sequences for all PCGs, rRNAs, and tRNAs in one file (.FA file with the extension _genes) in the MitoAnnotator folder saved in step B1a above, copy and paste its contents into Sequence Manipulation Suite 2, and select the correct genetic code for your species. The output window generated shows the translated version of each gene. Check that the reading frame is correct for each PCG (Figure 9). There should be no internal stop codons (indicated by asterisks). The number of nucleotides in each PCG should be a multiple of three for translation to occur correctly. Gaps in the alignment can cause reading frame shifts, resulting in stop codons within coding sequences. You would expect to find stop codons in the tRNAs and rRNAs because they do not contain three-letter codons. If there are stop codons within the PCG sequences, go back to the assembly alignment in step A4d and check to see whether ambiguities in the consensus sequence need to be edited. If this is the case, the edited consensus sequence will need to be reannotated in MitoAnnotator and checked again in Sequence Manipulation Suite to ensure reading frame shifts have been corrected before proceeding to the next step.

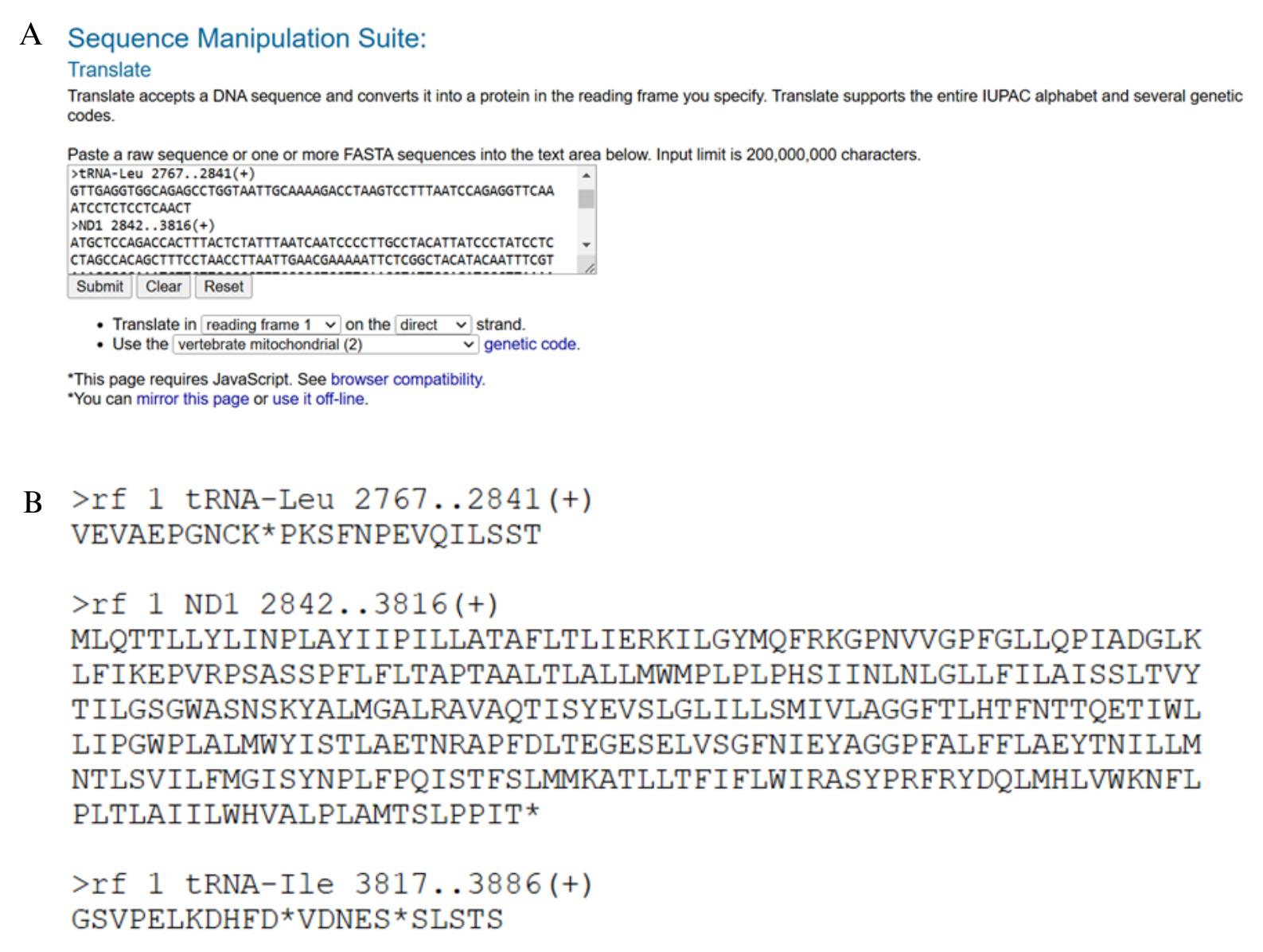

Figure 9. Checking the reading frame of protein coding genes in Sequence Manipulation Suite 2 (https://www.bioinformatics.org/sms2/translate.html, last accessed 1/12/2025) [36]. The input file containing the nucleotide sequence of each protein-coding gene from MitoAnnotator is pasted into the translation box (A) and produces an output window with the amino acid code for each gene (B). Protein-coding genes can be checked for internal stop codons, which may indicate a reading frame shift and error in the consensus sequence during mitogenome assembly. Remember to select the correct genetic code for your species (vertebrate mitochondrial Table 2 was selected here).

c. Import the GenBank file generated by MitoAnnotator (available in the zip folder downloaded in step A1a above) into Geneious and check the annotated sequences to ensure completeness and manually count overlapping regions and intergenic spaces between PCGs, rRNAs, tRNAs, and non-coding regions (Figure 10).

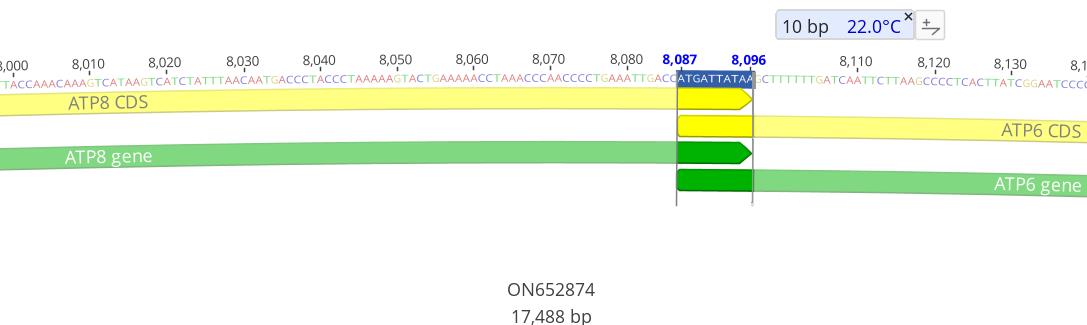

Figure 10. An example of a 10-base pair overlap between ATP8 and ATP6 in the mitogenome of Galeorhinus galeus

2. After confirming that each region of the mitogenome has been correctly annotated, submit the GenBank file to GenBank by following the guidelines for submission using BankIt (https://www.ncbi.nlm.nih.gov/WebSub/, last accessed 1/12/2025).

3. Calculate mitogenome statistics (Table 2).

a. Calculate A+T and G+C content of each separate PCG, all tRNAs, and the whole mitogenome in DAMBE. Use the fasta file Galeorhinus_galeus_genes.fa generated by MitoAnnotator as the input file. Click Seq. Analysis|Nucleotide & di-nuc Frequency. Place the gene of interest into the input file panel to calculate statistics separately or put them all into the input panel to calculate them together.

b. Calculate base composition skewness from the nucleotide composition results with the following formula: AT-skew = [A - T]/[A + T] and GC-skew = [G - C]/[G + C] [49].

Table 2. Nucleotide composition and skewness values for the mitogenome genes of Galeorhinus galeus calculated in DAMBE v.7.0.35 [38,39]. A: number of adenine nucleotides; C: cytosine; G: guanine; T: thymine. AT-content: percentage of A and T nucleotides relative to the total number of nucleotides in the mitogenome sequence; GC-content: percentage of G and C nucleotides. Base composition skewness was calculated from the nucleotide composition results using the following formula: AT-skew = [A - T]/[A + T] and GC-skew = [G - C]/[G + C] [49]. The highest positive and lowest negative values are indicated in bold.

c. Construct graphs for nucleotide composition and skewness in R (Figure S1). Use Table 2 as the input data.

# Path to output PDFs

pdfPath <- './Nucleotide Composition Plot/'

# Import the data

library(readxl)

G_galeus <- read_excel("./Nucleotide Composition Plot/Nucleotide Composition.xlsx", sheet = "Galeorhinus galeus")

# Initialise PDF

pdf(paste(pdfPath, '/Nucleotide_Composition.pdf', sep=''), width=8, height=6)

library(ggplot2)

# G_galeus: Nucleotide composition

ggplot(G_galeus) +

geom_line(aes(x=Gene, y=AT_content, group=1), color = "coral", size=1) +

geom_line(aes(x=Gene, y=GC_content, group=1), color = "darkturquoise", size=1) +

labs(title = "Galeorhinus galeus", x="Gene", y="Content(%)") +

theme_minimal() +

theme(plot.title = element_text(hjust=0.5, size=18, face='italic')) +

theme(axis.text.x = element_text(angle = 52, size=9))

# G_galeus: Nucleotide skewness

ggplot(G_galeus) +

geom_line(aes(x=Gene, y=AT_skew, group=1), color = "coral", size=1) +

geom_line(aes(x=Gene, y=GC_skew, group=1), color = "darkturquoise", size=1) +

labs(title="Galeorhinus galeus", x="Gene", y="Skewness") +

theme_minimal() +

theme(plot.title = element_text(hjust=0.5, size=18, face='italic')) +

theme(axis.text.x = element_text(angle = 52, size=9))

.=dev.off()

d. Calculate the amino acid composition and relative synonymous codon usage (RSCU) of all PCGs in DAMBE (Table 3). RSCU is the ratio of the observed frequency of codons to the expected frequency given that all the synonymous codons for the same amino acids are used equally. Use the complete mitogenome fasta file generated by MitoAnnotator as the input file. Click Seq. Analysis|Codon Usage|Relative synonymous codon usage. Place all PCGs in the right-hand panel and click Run.

Table 3. Total amino acid counts and relative synonymous codon usage (RSCU) for the mitogenome genes of Galeorhinus galeus calculated in DAMBE v.7.0.35 [38,39]. RSCU is the ratio of the observed frequency of codons to the expected frequency given that all the synonymous codons for the same amino acids are used equally. The highest and lowest RSCU values are indicated in bold. Codon: one letter codon code; Codon2: three letter codon code; N: number of occurrences of the codon in the mitogenome; %: percentage occurrences of the codon out of all codon occurrences; Fraction: proportion of a specific codon out of all codons for a specific amino acid.

e. Construct amino acid composition and RSCU plots in R using Table 3 as the input data (Figure S2).

# Path to output PDFs

pdfPath <- './Codon Usage'

# Import the data

library(readxl)

G_galeus <- read_excel("./Codon Usage/Codon Usage.xlsx", sheet = "Galeorhinus galeus")

# Initialise PDF

pdf(paste(pdfPath, '/AA_composition.pdf', sep=''), width=8, height=6)

library(ggplot2)

# G_galeus: Amino acid composition

ggplot(G_galeus, aes(x = Amino_Acid, y = N)) +

geom_bar(stat = "identity", fill = 4) +

theme_minimal() +

theme(plot.title = element_text(hjust=0.5, size=20, face='italic'))

# G_galeus : RSCU

ggplot(G_galeus, aes(x = Amino_Acid, y=RSCU, fill=Codon, label=Codon2)) +

geom_bar(stat = "identity") + geom_text(size = 3, position = position_stack(vjust = 0.5)) +

theme_minimal() +

theme(plot.title = element_text(hjust=0.5, size=20, face='italic')) +

theme(legend.position="none") +

scale_fill_manual('Codon', values=c('#FFA54F', '#00C1AA', '#FF69B4', '#9370DB'))

.=dev.off()

4. Use the complete mitogenome sequence in fasta format as the input file, search for mammalian mitochondrial tRNA genes (-mtmam), and predict tRNA secondary structure using the mammalian mitochondrial genetic code (-gcmam) in the ARWEN v.1.2.3 webserver [40] (http://130.235.244.92/ARWEN/, last accessed 1/12/2025). Alternatively, select the correct genetic code for your study organism. Note that ARWEN is specifically designed for metazoan mitochondrial genomes. Investigate other software for plant mitogenomes and plastids (e.g., MFannot [50] and Mitofy [51]). tRNA annotation can also be conducted using the tRNAscanSE webserver v.2.0 [41] (http://lowelab.ucsc.edu/cgi-bin/tRNAscan-SE2.cgi, last accessed 1/12/2025). We selected the sequence source as vertebrate mitochondrial and uploaded the input mitogenome file in fasta format.

a. MXfold2 [42] can be used to verify the secondary structure of duplicated tRNAs. We used it to compare the secondary structure of the duplicated tRNA^Thr’ to that of tRNA^Thr in Galeorhinus galeus (Figure S3). Simply navigate to the MXfold2 server (http://ws.sato-lab.org/mxfold2/, last accessed 1/12/2025), paste your tRNA sequence in fasta format into the search box, and click Predict.

[Tip 1] tRNA-Scan has been trained using a broad set of vertebrate mitochondrial tRNAs. However, because it is an algorithmic model, rich parameterisation can cause overfitting to the training data, preventing robust predictions [52]. MXFold2 is a hybrid method that integrates folding scores calculated by a deep neural network trained with a large quantity of data but avoids overfitting rich-parameterised weight parameters to the training data by resorting to the thermodynamic parameters for assessing previously unobserved substructures [42]. MXfold2 produces a less stable secondary structure for tRNA^Thr’ than for tRNA^Thr.

5. Characterisation of the control region using Tandem Repeat Finder (https://tandem.bu.edu/trf/trf.html, last accessed 1/12/2025)

a. Navigate to the Tandem Repeat Finder webpage and click Submit Sequence in the top menu bar. Select the Basic Options to run parameters on default. If you want to modify a specific parameter, select Advanced Options. Select your mitogenome consensus sequence as the input and click Submit sequence. Click on the Tandem Repeats Report to access the information presented in Table 4.

Table 4. Description of tandem repeats found in the control region of the Triakidae mitogenomes

6. Compile the statistics calculated from the various mitogenome characterisation techniques described in Section B into a summary table to compare the features of your mitogenomes with other closely related species (Table 5). Gene positions and sizes (in bp) can be obtained from GenBank files generated during the submission process.

Table 5. Features of the complete mitochondrial genome of Galeorhinus galeus. IGN values represent intergenic nucleotides and overlapping nucleotides (−). Start, start codon; Stop, stop codons; H-strand, heavy strand; L-strand, low strand; bp, base pairs.

Validation of protocol

This full protocol has been used and validated in the following research article:

• Winn et al. [56]. A comprehensive phylogenomic study unveils evolutionary patterns and challenges in the mitochondrial genomes of Carcharhiniformes: A focus on Triakidae. Genomics. 116(1): 110771. doi: 10.1016/j.ygeno.2023.110771

In summary, a total of 38,889,488 unpaired raw reads with an average of 315 bp per read were generated from the whole genome shotgun sequencing of five triakid species with the Ion GeneStudio^TM S5 Prime System (available as a BioProject on the SRA database; PRJNA997468). Although sequencing output was generated for the whole genome, we only assembled the mitogenomes for this study (filtered mitogenome reads are available as Data 1–5 on Dryad; doi: 10.5061/dryad.sj3tx969h). Mitogenome assembly was conducted using the three-step approach described in Section A: mapping reads to the reference mitogenome of a closely related species (Mustelus mustelus, NC 039629) in Geneious, extracting the reads that mapped to the reference and assembling them de novo in SPAdes, and assembling the reads entirely de novo. The number of reads that mapped to the reference mitogenome, contig sizes, and total number of contigs produced in the de novo assemblies are shown in Table 1. A 714 base pair duplication between the control region and tRNA^Pro was detected in the mitogenome of Galeorhinus galeus, which was determined to be a tandem duplication repeat of the Cytb gene and tRNA^Thr. The five newly assembled mitogenomes were then annotated as described in Section B, and the functionality of the duplicated tRNA^Thr for G. galeus was explored in depth using different tRNA folding models (see Figure S3 and Figure 4 in the original research article). It was found that the duplicated tRNA^Thr was likely non-functional. Mitogenome sequence files for our Triakidae mitogenomes are available on GenBank (ON075075, ON075076, ON075077, ON652873, and ON652874) or Dryad (Data 8–12).

General notes and troubleshooting

General notes

The mitogenome is a small portion of an organism’s genomic material that is easy to obtain and characterise. Nevertheless, harnessing the full potential of this molecular tool necessitates a meticulous approach to assembling and characterising each protein-coding gene, tRNA, rRNA, and even non-coding regions like the control region. Our bioinformatic pipeline serves as a comprehensive guide to facilitate the successful execution of these actions.

1. Detecting structural deviations in the mitogenome

Section A covers the assembly procedure necessary to reveal deviations from the expected mitogenome structure, reducing computational requirements while mitigating the bias that may arise from reference-based assembly alone by incorporating the hybrid assembly technique. Table 1 shows how the hybrid assembly method resulted in complete contigs that differed in size from the reference assembly. This is largely due to the high variability of the control region, which can contain very different repeat patterns and numbers, even in closely related species [53–55]. The hybrid assembly technique allows for these differences to be detected. We suggest starting with reference-based and hybrid assembly and comparing these two assemblies to each other if you want to avoid the computational requirements of de novo assembly. If there are large discrepancies between the two assemblies as demonstrated in Figure 3, then de novo assembly should be used to investigate the full extent of structural change. It is important to note that complex multi-copy duplications may not be detected when assembling short reads de novo and long-read technologies would be valuable in this regard. Annotate the de novo assembly in MitoAnnotator as described in Section B; if the annotation results in a complete mitogenome sequence with a structural deviation, sequence the region of interest to confirm its presence. Use a high-quality assembly as the reference mitogenome and make sure it is as closely related to your study species as possible.

2. Comparative mitogenomics

Section B details an annotation pipeline that can be followed to characterise and compare new mitogenomes to other closely related mitogenomes. Figures S1 and S2 are examples of nucleotide composition and relative synonymous codon usage plots for a mitogenome. These plots can be generated for newly assembled mitogenomes and publicly available mitogenomes of closely related species, as well as those of more distantly related species. Look for large deviations in AT/GC content/skewness and RSCU for each gene in your mitogenomes and compare these statistics to the mitogenomes of both closely and more distantly related species. Always confirm first whether there is an annotation or calculation error before drawing any conclusions regarding unusual mitogenome patterns.

Troubleshooting

Problem 1: Disagreement between reference-based, hybrid, and de novo alignments.

Possible causes: The reference mitogenome is of low quality or too distantly related to the mitogenome you are assembling.

If this is not the case, there may be a deviation in structure from the reference genome.

Solution: Select a high-quality assembly as the reference mitogenome and make sure it is as closely related to your sequenced mitogenome as possible. If there is still disagreement between the three assembly approaches, annotate the de novo assembly. If annotation results in a complete mitogenome sequence with a structural deviation such as a duplication or a deletion, sequence the region of interest to confirm its presence (Section A).

Problem 2: Mitogenome annotation yields unusual signatures (significant deviations from closely related mitogenomes).

Possible causes: The reading frames for a PCG are incorrect, or the genes are not in the correct orientation. If this is not the case, there may be a deviation in structure from the reference genome.

Solution: Check the assemblies in Geneious, correct reading frame errors, and make sure gene orientation is correct in alignments and input files for DAMBE. Sequence and confirm structural deviations (Section A).

Supplementary information

The following supporting information can be downloaded here:

1. Figure S1. Nucleotide composition (A) and skewness (B) plots for the mitogenome of Galeorhinus galeus constructed using ggplot2 in R Studio (https://posit.co/products/open-source/rstudio/).

2. Figure S2. Amino acid composition (A) and relative synonymous codon usage (B) plots for the mitogenome of Galeorhinus galeus constructed using ggplot2 in R Studio (https://posit.co/products/open-source/rstudio/).

3. Figure S3. Annotation and folding prediction of tRNA^Thr’ (thyronine) (A) and tRNA^Thr (B) in Galeorhinus galeus with the MXfold2 webserver [42] (http://ws.sato-lab.org/mxfold2/).

Acknowledgments

The authors wish to thank the following individuals, organisations, and institutions for providing biological samples: the South African Department of Forestry, Fisheries and Environment (DFFE), the Reel Science Coalition, Dr. Edward D. Farrell (University College Dublin; Killybegs Fishermen’s Organisation), Dr. Mikhail V. Chesalin (A.O. Kovalevsky Institute of Biology of the Southern Seas of RAS, Russian Federation). We also extend our gratitude to Dr. Julianna Klein for assisting with DNA extractions of samples used in our study and to the Central Analytical Facility at Stellenbosch University for conducting the library preparation and Ion Torrent sequencing of all specimens. This study was funded by the National Research Foundation of South Africa. Data used in this paper was obtained from the study by Winn et al. [56].

Competing interests

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

1. D'Erchia, A. M., Atlante, A., Gadaleta, G., Pavesi, G., Chiara, M., De Virgilio, C., Manzari, C., Mastropasqua, F., Prazzoli, G. M., Picardi, E., et al. (2015). Tissue-specific mtDNA abundance from exome data and its correlation with mitochondrial transcription, mass and respiratory activity. Mitochondrion. 20: 13–21. https://doi.org/10.1016/j.mito.2014.10.005
2. Karnkowska, A., Vacek, V., Zubáčová, Z., Treitli, S. C., Petrželková, R., Eme, L., Novák, L., Žárský, V., Barlow, L. D., Herman, E. K., et al. (2016). A Eukaryote without a Mitochondrial Organelle. Curr Biol. 26(10): 1274–1284. https://doi.org/10.1016/j.cub.2016.03.053
3. Kolesnikov, A. A. and Gerasimov, E. S. (2012). Diversity of mitochondrial genome organization. Biochem Mosc. 77(13): 1424–1435. https://doi.org/10.1134/s0006297912130020
4. Boore, J. L. (1999). Animal mitochondrial genomes. Nucleic Acids Res. 27(8): 1767–1780. https://doi.org/10.1093/nar/27.8.1767
5. Galtier, N., Nabholz, B., Glémin, S., Hurst, G. D. D. (2009). Mitochondrial DNA as a marker of molecular diversity: a reappraisal. Mol Ecol. 18(22): 4541–4550. https://doi.org/10.1111/j.1365-294x.2009.04380.x
6. Wang, Y., Liu, X., Garzón‐Orduña, I. J., Winterton, S. L., Yan, Y., Aspöck, U., Aspöck, H. and Yang, D. (2017). Mitochondrial phylogenomics illuminates the evolutionary history of Neuropterida. Cladistics. 33(6): 617–636. https://doi.org/10.1111/cla.12186
7. Miya, M. and Nishida, M. (2000). Use of Mitogenomic Information in Teleostean Molecular Phylogenetics: A Tree-Based Exploration under the Maximum-Parsimony Optimality Criterion. Mol Phylogenet Evol. 17(3): 437–455. https://doi.org/10.1006/mpev.2000.0839
8. Fenn, J. D., Song, H., Cameron, S. L. and Whiting, M. F. (2008). A preliminary mitochondrial genome phylogeny of Orthoptera (Insecta) and approaches to maximizing phylogenetic signal found within mitochondrial genome data. Mol Phylogenet Evol. 49(1): 59–68. https://doi.org/10.1016/j.ympev.2008.07.004
9. França, L. T. C., Carrilho, E. and Kist, T. B. L. (2002). A review of DNA sequencing techniques. Q Rev Biophys. 35(2): 169–200. https://doi.org/10.1017/s0033583502003797
10. Gretzinger, J., Molak, M., Reiter, E., Pfrengle, S., Urban, C., Neukamm, J., Blant, M., Conard, N. J., Cupillard, C., Dimitrijević, V., et al. (2019). Large-scale mitogenomic analysis of the phylogeography of the Late Pleistocene cave bear. Sci Rep. 9(1): e1038/s41598–019–47073–z. https://doi.org/10.1038/s41598-019-47073-z
11. Kistler, L., Ratan, A., Godfrey, L. R., Crowley, B. E., Hughes, C. E., Lei, R., Cui, Y., Wood, M. L., Muldoon, K. M., Andriamialison, H., et al. (2015). Comparative and population mitogenomic analyses of Madagascar's extinct, giant ‘subfossil’ lemurs. J Hum Evol. 79: 45–54. https://doi.org/10.1016/j.jhevol.2014.06.016
12. Liu, L., Li, Y., Li, S., Hu, N., He, Y., Pong, R., Lin, D., Lu, L. and Law, M. (2012). Comparison of Next-Generation Sequencing Systems. J Biomed Biotechnol. 1–11. https://doi.org/10.1155/2012/251364
13. Quail, M., Smith, M. E., Coupland, P., Otto, T. D., Harris, S. R., Connor, T. R., Bertoni, A., Swerdlow, H. P. and Gu, Y. (2012). A tale of three next generation sequencing platforms: comparison of Ion torrent, pacific biosciences and illumina MiSeq sequencers. BMC Genomics. 13(1): 341. https://doi.org/10.1186/1471-2164-13-341
14. The Vertebrate Genomes Project Consortium, Formenti, G., Rhie, A., Balacco, J., Haase, B., Mountcastle, J., Fedrigo, O., Brown, S., Capodiferro, M. R., Al-Ajli, F. O., et al. (2021). Complete vertebrate mitogenomes reveal widespread repeats and gene duplications. Genome Biol. 22(1): 120. https://doi.org/10.1186/s13059-021-02336-9
15. Li, H. and Durbin, R. (2009). Fast and accurate short read alignment with Burrows–Wheeler transform. Bioinformatics. 25(14): 1754–1760. https://doi.org/10.1093/bioinformatics/btp324
16. Langmead, B. (2010). Aligning Short Sequencing Reads with Bowtie. Curr Protoc Bioinformatics. 32(1): ebi1107s32. https://doi.org/10.1002/0471250953.bi1107s32
17. Li, H. (2018). Minimap2: pairwise alignment for nucleotide sequences. Bioinformatics. 34(18): 3094–3100. https://doi.org/10.1093/bioinformatics/bty191
18. Bushnell, B. (2014). BBMap: A Fast, Accurate, Splice-Aware Aligner. Lawrence Berkeley National Laboratory, Office of Scientific and Technical Information, Department of Energy, United States.
19. Kearse, M., Moir, R., Wilson, A., Stones-Havas, S., Cheung, M., Sturrock, S., Buxton, S., Cooper, A., Markowitz, S., Duran, C., et al. (2012). Geneious Basic: An integrated and extendable desktop software platform for the organization and analysis of sequence data. Bioinformatics. 28(12): 1647–1649. https://doi.org/10.1093/bioinformatics/bts199
20. Wang, P., Meng, F., Moore, B. M. and Shiu, S. H. (2021). Impact of short-read sequencing on the misassembly of a plant genome. BMC Genomics. 22(1): 99. https://doi.org/10.1186/s12864-021-07397-5
21. Treangen, T. J. and Salzberg, S. L. (2012). Repetitive DNA and next-generation sequencing: computational challenges and solutions. Nat Rev Genet. 13(1): 36–46. https://doi.org/10.1038/nrg3117
22. Prjibelski, A., Antipov, D., Meleshko, D., Lapidus, A. and Korobeynikov, A. (2020). Using SPAdes De Novo Assembler. Curr Protoc Bioinformatics. 70(1): e102. https://doi.org/10.1002/cpbi.102
23. Meng, G., Li, Y., Yang, C. and Liu, S. (2019). MitoZ: a toolkit for animal mitochondrial genome assembly, annotation and visualization. Nucleic Acids Res. 47(11): e63–e63. https://doi.org/10.1093/nar/gkz173
24. Hahn, C., Bachmann, L. and Chevreux, B. (2013). Reconstructing mitochondrial genomes directly from genomic next-generation sequencing reads—a baiting and iterative mapping approach. Nucleic Acids Res. 41(13): e129–e129. https://doi.org/10.1093/nar/gkt371
25. Uliano-Silva, M., Ferreira, J. G. R. N., Krasheninnikova, K., Blaxter, M., Mieszkowska, N., Hall, N., Holland, P., Durbin, R., Richards, T., Kersey, P., et al. (2023). MitoHiFi: a python pipeline for mitochondrial genome assembly from PacBio high fidelity reads. BMC Bioinf. 24(1): 288. https://doi.org/10.1186/s12859-023-05385-y
26. Dierckxsens, N., Mardulyn, P. and Smits, G. (2017). NOVOPlasty:de novoassembly of organelle genomes from whole genome data. Nucleic Acids Res. 45: e18. https://doi.org/10.1093/nar/gkw955
27. Eid, J., Fehr, A., Gray, J., Luong, K., Lyle, J., Otto, G., Peluso, P., Rank, D., Baybayan, P., Bettman, B., et al. (2009). Real-Time DNA Sequencing from Single Polymerase Molecules. Science. 323(5910): 133–138. https://doi.org/10.1126/science.1162986
28. Kanwar, N., Blanco, C., Chen, I. A. and Seelig, B. (2021). PacBio sequencing output increased through uniform and directional fivefold concatenation. Sci Rep. 11(1): 18065. https://doi.org/10.1038/s41598-021-96829-z
29. Linck, H. (1790). Versuch einer Eintheilung der Fische nach den Ziihnen. Mag Neuste Phys Naturgesch. 6: 28–38.
30. Miller, M. A., Pfeiffer, W. and Schwartz, T. (2010). Creating the CIPRES Science Gateway for inference of large phylogenetic trees. In: 2010 Gateway Computing Environments Workshop (GCE). pp. 1–8. IEEE, New Orleans, LA, USA. https://doi.org/10.1109/gce.2010.5676129
31. Tamura, K., Stecher, G. and Kumar, S. (2021). MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol Biol Evol. 38(7): 3022–3027. https://doi.org/10.1093/molbev/msab120
32. Jin, J. J., Yu, W. B., Yang, J. B., Song, Y., dePamphilis, C. W., Yi, T. S. and Li, D. Z. (2020). GetOrganelle: a fast and versatile toolkit for accurate de novo assembly of organelle genomes. Genome Biol. 21(1): 241. https://doi.org/10.1186/s13059-020-02154-5
33. Gurevich, A., Saveliev, V., Vyahhi, N. and Tesler, G. (2013). QUAST: quality assessment tool for genome assemblies. Bioinformatics. 29(8): 1072–1075. https://doi.org/10.1093/bioinformatics/btt086
34. Iwasaki, W., Fukunaga, T., Isagozawa, R., Yamada, K., Maeda, Y., Satoh, T. P., Sado, T., Mabuchi, K., Takeshima, H., Miya, M., et al. (2013). MitoFish and MitoAnnotator: A Mitochondrial Genome Database of Fish with an Accurate and Automatic Annotation Pipeline. Mol Biol Evol. 30(11): 2531–2540. https://doi.org/10.1093/molbev/mst141
35. Sato, Y., Miya, M., Fukunaga, T., Sado, T. and Iwasaki, W. (2018). MitoFish and MiFish Pipeline: A Mitochondrial Genome Database of Fish with an Analysis Pipeline for Environmental DNA Metabarcoding. Mol Biol Evol. 35(6): 1553–1555. https://doi.org/10.1093/molbev/msy074
36. Stothard, P. (2000). The Sequence Manipulation Suite: JavaScript Programs for Analyzing and Formatting Protein and DNA Sequences. Biotechniques. 28(6): 1102–1104. https://doi.org/10.2144/00286ir01
37. Sayers, E. W., Cavanaugh, M., Clark, K., Ostell, J., Pruitt, K. D. and Karsch-Mizrachi, I. (2019). GenBank. Nucleic Acids Res. gkz956. https://doi.org/10.1093/nar/gkz956
38. Xia, X. (2001). DAMBE: Software Package for Data Analysis in Molecular Biology and Evolution. J. Hered. 9 2(4): 371–373. https://doi.org/10.1093/jhered/92.4.371
39. Xia, X. (2018). DAMBE7: New and Improved Tools for Data Analysis in Molecular Biology and Evolution. Mol Biol Evol. 35(6): 1550–1552. https://doi.org/10.1093/molbev/msy073
40. Laslett, D. and Canbäck, B. (2008). ARWEN: a program to detect tRNA genes in metazoan mitochondrial nucleotide sequences. Bioinformatics. 24(2): 172–175. https://doi.org/10.1093/bioinformatics/btm573
41. Lowe, T. M. and Chan, P. P. (2016). tRNAscan-SE On-line: integrating search and context for analysis of transfer RNA genes. Nucleic Acids Res. 44: W54–W57. https://doi.org/10.1093/nar/gkw413
42. Sato, K., Akiyama, M. and Sakakibara, Y. (2021). RNA secondary structure prediction using deep learning with thermodynamic integration. Nat Commun. 12(1): 941. https://doi.org/10.1038/s41467-021-21194-4
43. Benson, G. (1999). Tandem repeats finder: a program to analyze DNA sequences. Nucleic Acids Res. 27(2): 573–580. https://doi.org/10.1093/nar/27.2.573
44. Sims, D., Sudbery, I., Ilott, N. E., Heger, A. and Ponting, C. P. (2014). Sequencing depth and coverage: key considerations in genomic analyses. Nat Rev Genet. 15(2): 121–132. https://doi.org/10.1038/nrg3642
45. Hull, K. L., Maduna, S. N. and Bester-van der Merwe, A. E. (2018). Characterization of the complete mitochondrial genome of the common smoothhound shark, Mustelus mustelus (Carcharhiniformes: Triakidae). Mitochondrial DNA Part B. 3(2): 962–963. https://doi.org/10.1080/23802359.2018.1507642
46. Moritz, C. and Brown, W. M. (1986). Tandem Duplication of D-Loop and Ribosomal RNA Sequences in Lizard Mitochondrial DNA. Science. 233(4771): 1425–1427. https://doi.org/10.1126/science.3018925
47. San Mauro, D., Gower, D. J., Zardoya, R. and Wilkinson, M. (2006). A Hotspot of Gene Order Rearrangement by Tandem Duplication and Random Loss in the Vertebrate Mitochondrial Genome. Mol Biol Evol. 23(1): 227–234. https://doi.org/10.1093/molbev/msj025
48. Wang, C., Lai, T., Ye, P., Yan, Y., Feutry, P., He, B., Huang, Z., Zhu, T., Wang, J., Chen, X., et al. (2022). Novel duplication remnant in the first complete mitogenome of Hemitriakis japanica and the unique phylogenetic position of family Triakidae. Gene. 820: 146232. https://doi.org/10.1016/j.gene.2022.146232
49. Perna, N. and Kocher, T. (1995). Patterns of nucleotide composition at fourfold degenerate sites of animal mitochondrial genomes. J Mol Evol. 41(3): e1007/bf00186547. https://doi.org/10.1007/bf00186547
50. Lang, B. F., Beck, N., Prince, S., Sarrasin, M., Rioux, P. and Burger, G. (2023). Mitochondrial genome annotation with MFannot: a critical analysis of gene identification and gene model prediction. Front Plant Sci. 14: e1222186. https://doi.org/10.3389/fpls.2023.1222186
51. Alverson, A. J., Wei, X., Rice, D. W., Stern, D. B., Barry, K. and Palmer, J. D. (2010). Insights into the Evolution of Mitochondrial Genome Size from Complete Sequences of Citrullus lanatus and Cucurbita pepo (Cucurbitaceae). Mol Biol Evol. 27(6): 1436–1448. https://doi.org/10.1093/molbev/msq029
52. Rivas, E., Lang, R. and Eddy, S. R. (2012). A range of complex probabilistic models for RNA secondary structure prediction that includes the nearest-neighbor model and more. RNA. 18(2): 193–212. https://doi.org/10.1261/rna.030049.111
53. Jamandre, B. W., Durand, J. D. and Tzeng, W. N. (2014). High Sequence Variations in Mitochondrial DNA Control Region among Worldwide Populations of Flathead MulletMugil cephalus. Int J Zool. 2014: 1–9. https://doi.org/10.1155/2014/564105
54. Lee, W. J., Conroy, J., Howell, W. and Kocher, T. (1995). Structure and evolution of teleost mitochondrial control regions. J Mol Evol. 41(1): e1007/bf00174041. https://doi.org/10.1007/bf00174041
55. McMillan, W. O. and Palumbi, S. R. (1997). Rapid Rate of Control-Region Evolution in Pacific Butterflyfishes (Chaetodontidae). J Mol Evol. 45(5): 473–484. https://doi.org/10.1007/pl00006252
56. Winn, J. C., Maduna, S. N. and Bester-van der Merwe, A. E. (2024). A comprehensive phylogenomic study unveils evolutionary patterns and challenges in the mitochondrial genomes of Carcharhiniformes: A focus on Triakidae. Genomics. 116(1): 110771. https://doi.org/10.1016/j.ygeno.2023.110771
