Identification of Neurons Containing Calcium-Permeable AMPA and Kainate Receptors Using Ca²⁺ Imaging

Materials and reagents

Biological materials

1. Postnatal (P0-2) Wistar male rats (branch of the M.M. Shemyakin and Yu.A. Ovchinnikov Institute of Bioorganic Chemistry of the Russian Academy of Sciences)

Reagents

1. Poly(ethyleneimine) solution 50% w/v in water (Sigma-Aldrich, catalog number: P3143); stock and working solutions are stored at 4 °C

2. (±)-Verapamil hydrochloride (Sigma-Aldrich, catalog number: V4629); powder is stored at 4 °C, whereas aliquots are stored at -20 °C

3. Penicillin–streptomycin 100× solution (Sigma-Aldrich, catalog number: P4333); aliquots stored at -20 °C

4. L-Glutamine (Sigma-Aldrich, catalog number: G85402); powder is stored at 4 °C, whereas aliquots are stored at -20 °C

5. (S)-5-Fluorowillardiine (Sigma-Aldrich, catalog number: F2417); powder and aliquots are stored at -20 °C

6. Neurobasal-A medium (Life Technologies, catalog number: 10888022); stored at 4 °C.

7. 50× B27 supplement (Life Technologies, catalog number: 17504044); aliquots of stock solution (we recommend using 1 mL aliquots) are stored at -20 °C

8. Trypsin 2.5% (Life Technologies, catalog number: 15090046); stock solution and working solution aliquots are stored at -20 °C

9. Fura-2 AM (Molecular Probes, catalog number: F1221); undissolved dye and aliquots of the stock solution are stored at -20 °C; the stock solution should be bubbled with argon (recommended) or nitrogen and tightly sealed before freezing

10. Bicuculline (Cayman Chemical, catalog number: 11727); the powder is stored at 4 °C, whereas aliquots are stored at -20 °C

11. UBP310 (Tocris Bioscience, catalog number: 3621); powder and aliquots are stored at -20 °C

12. Domoic acid (Tocris Bioscience, catalog number: 0269); powder and aliquots are stored at -20 °C

13. NASPM trihydrochloride (Tocris Bioscience, catalog number: 2766); powder and aliquots are stored at -20 °C

14. ATPA [(RS)-2-Amino-3-(3-hydroxy-5-tert-butylisoxazol-4-yl)propanoic acid] (Tocris Bioscience, catalog number: 1107); powder and aliquots are stored at -20 °C

15. D-AP5 (D-2-Amino-5-phosphopentanoic acid) (Alomone Labs, catalog number: D-145); powder and aliquots are stored at -20 °C

16. HEPES [4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid] (AppliChem Panreac, catalog number: A3268); room temperature storage

17. Sodium chloride (NaCl) (USP, BP, Ph. Eur., JP) pure, pharma grade (AppliChem Panreac, catalog number: 141659); room temperature storage

18. Sodium phosphate dibasic (Na₂HPO₄) (Sigma-Aldrich, catalog number: S5136); room temperature storage

19. Potassium phosphate monobasic (KH₂PO₄) (Sigma-Aldrich, catalog number: P5156); room temperature storage

20. Potassium chloride (KCl) (USP, BP, Ph. Eur.) pharma grade (AppliChem Panreac, catalog number: 191494); room temperature storage

21. Sodium bicarbonate (NaHCO₃) (Sigma-Aldrich, catalog number: P5761); room temperature storage

22. D-(+)-Glucose (Sigma-Aldrich, catalog number: G7021); room temperature storage

23. EDTA [2,2',2'',2'''-(Ethane-1,2-diyldinitrilo)tetraacetic acid] (AppliChem Panreac, catalog number: A5097); room temperature storage

24. Magnesium sulfate 7-hydrate (USP, BP, Ph. Eur.) pure, pharma grade (MgSO₄·7H₂O) (AppliChem Panreac, catalog number: 141404); room temperature storage

25. Calcium chloride (CaCl₂) 1 M in H₂O (Sigma-Aldrich, catalog number: 21115); store at 4 °C

26. Isoflurane (IsoNic) (Vetoquinol, 1,000 mg/g); store at 4 °C (the cap of the opened vial should be sealed with Parafilm M or another appropriate material)

27. Dimethyl sulfoxide (DMSO) (USP, BP, Ph. Eur.) (AppliChem Panreac, catalog number: 191954), store at room temperature in the dark

28. Trypan blue (Sigma-Aldrich, catalog number: 302643)

Solutions

1. Polyethyleneimine (PEI) solution (see Recipes)

2. Versene solution (see Recipes)

3. Hank’s balanced salt solution (HBSS) (see Recipes)

4. Neuron-glial cell culture growth medium (see Recipes)

5. Trypan blue 0.4% (w/v) solution (see Recipes)

Recipes

1. Polyethyleneimine (PEI) solution 1 mg/mL

Stock polyethyleneimine solution (M_n ~60,000; M_w 750,000) is jelly-like. Weigh the stock solution in a glass beaker, applying the substance on the beaker walls using a spatula. After weighing, add the required volume of double-distilled water and stir the solution for at least 30 min at room temperature using a magnetic stirrer. Then, filter the obtained PEI solution through a 0.22 μm membrane syringe filter for sterilization. Store the working solution at 4 °C and avoid freezing.

2. Versene solution

Reagent	Final concentration
NaCl	137 mM
KCl	2.7 mM
KH2PO4	2 mM
Na2HPO4 EDTA	8 mM 0.6 mM

After EDTA addition, the solution should be heated to 40–50 °C at constant stirring to dissolve this chelator. To obtain a sterile Versen solution, it should be filtered through a 0.22 μm sterile syringe filter after dilution of all components. Double-distilled water is used to prepare the Versene solution. The prepared solution can be stored at room temperature or 4 °C.

3. Hank’s balanced salt solution

Reagent	Final concentration
NaCl	137 mM
KCl	3 mM
Na2HPO4	0.35 mM
KH2PO4	1.25 mM
NaHCO3	4.2 mM
D-(+)-Glucose	10 mM
HEPES	10 mM
MgSO4·7H2O	0.8 mM
CaCl2	1.4 mM

Adjust pH to 7.35 using 10 M NaOH (the temperature of the solution during the pH adjustment must correspond to the temperature at which imaging experiments will be performed; in our studies, we perform all experiments at 28 °C). Since the neurons are sensitive to the pH of the extracellular solution, check the pH of HBSS before the experiments if HBSS is stored at 4 °C or more than one day at room temperature (slight alkalization is observed).

4. Neuron-glial cell culture growth medium

Reagent	Final concentration
Neurobasal A-medium	n/a
50× B27 supplement	2% (v/v)
L-glutamine	0.5 mM
100× Penicillin-streptomycin	1% (v/v)

L-glutamine is unstable in aqueous solutions. Add L-glutamine immediately before the cell culture preparation or use stable analogs. Due to the instability of some components, we recommended preparing small portions of neuron-glial cell culture growth medium (50–100 mL) and storing them at 4 °C for no more than 1 week.

5. Trypan blue 0.4% (w/v) solution

Trypan blue 0.4% working solution is prepared by dissolving the weighed powder in phosphate-buffered saline (PBS). PBS composition is listed below (pH 7.35). Before the application, the solution was filtered through a syringe filter with a pore size of 0.22 μm to remove undissolved aggregates.

Reagent	Final concentration
NaCl	137 mM
KCl	2.7 mM
KH2PO4	2 mM
Na2HPO4	8 mM

Laboratory supplies

1. Cell culture dishes 35 mm (SPL Lifesciences, catalog number: 11035)

2. Cell culture dishes 60 mm (SPL Lifesciences, catalog number: 11060)

3. Cell culture dishes 150 mm (SPL Lifesciences, catalog number: 10151)

4. Sterile microcentrifuge tube 1.5 mL (GenFollower, catalog number MCTB015)

5. Sterile centrifuge tubes 50 mL (GenFollower, catalog number B-2SCTB50YE)

6. Low-retention pipette tips 200 μL (GenFollower, catalog number E-FTR200-L-S)

7. Low-retention pipette tips 1000 μL (GenFollower, catalog number E-FTR1000-L-S)

8. Round cover glasses 25 mm (VWR, catalog number 630-2122)

9. Syringe filter 0.22 μm (Membrane Solutions, catalog number MS-SFPES025022SI)

10. Cover glasses 24 × 24 (Minimed, catalog number 12003316)

Equipment

1. Thermoshaker (Biosan, model: TS-100, catalog number BS-010120-AAI) with thermoblock SC-18/02 (Biosan, catalog number BS-010120-CK)

2. High-speed centrifuge (DLab, model: D2012, catalog number 9032002121)

3. Laminar flow hood (Lamsystems, model: BMB-II-"Laminar-S."-1,2 NEOTERIC, catalog number 2E-B.001-12)

4. Trinocular inverted microscope (Nikon, model: Eclipse TS100)

5. Stereo microscope (Leica Microsystems, model: EZ4D)

6. CO₂ incubator (N-Biotek, model: NB-203XL)

7. Epifluorescent inverted microscope (Leica Microsystems, DMI 6000B) with CCD-camera (Hammamatsu, model: 9100C) and illuminator (Leica Microsystems, model: EL6000)

8. Analytical scale (Ohaus, model: Explorer EX324)

9. pH meter (Mettler Tolledo, model: S20 SevenEasy)

10. Magnetic stirrer with a hot plate (Biosan, model: MSH-300)

11. Bidistiller (GFL, model: 2104)

12. Multi-output animal anesthesia machine (RWD Life Science, model: R550)

13. Drying and heating chamber with natural convection (Binder Inc., model: ED23)

14. Neubauer chamber (JVLAB, catalog number: 1103)

15. Instruments for tissue extraction and preparation: dental curved tweezers 150 mm (catalog number: 10-94), dental spatula (catalog number: 10-97), and medical blunt-pointed straight scissors (catalog number: 4-26) from Mozhaisk Medical Supplies Factory; curved scissors (catalog number: ТН-06-041-11,3) and scalpel (catalog number: TC-02-051-15) from Tumbotino Medical Supplies Factory; sharp-pointed straight (catalog number: ST-14) and curved (catalog number: ST-15) tweezers from NAGARAKU, Shanghai Xijian Electronic Technology Co., Ltd.

Software and datasets

1. ImageJ v1.53s (https://imagej.net/ij/, May 2022)

2. OriginLab Pro 2016 version b9.3.226 (commercially available software, license required; other free software for plot creation can be used as an alternative, October 2015)

Procedure

A. Hippocampal cell culture preparation

1. Coat the round cover glasses with polyethyleneimine solution.

a. Sterilize the glasses in a dry heat sterilizer (or using a laboratory burner).

Note: Sterilization in a dry heat sterilizer should be performed for 2 h at a temperature of 150 °C. In the case of the laboratory burner, use tweezers and hold a cover glass in the flame for no more than 1 s each side. After that, hold for 10–20 s away from the flame to allow it to cool. If the cover glass is overheated, it can crack during cooling. Hence, sterilization with a dry heat sterilizer is preferable.

b. Coat sterile glasses with 1–2 mL of polyethyleneimine solution and leave it in a laminar hood for 1 h (fan should be turned off to prevent drying; on-board UV lamp can be turned on).

Note: You can simultaneously coat dozens of cover glasses placed in large sterile Petri dishes (≥120–150 mm in diameter) or another appropriate bath. For these purposes, both dishes and lids can be used. Approximately 15–18 cover glasses (25 mm diameter) can be arranged in a 150 mm Petri dish.

c. Wash the glasses three times with sterile (boiled for 15 min and cooled to room temperature) double-distilled water and leave them for 12 h in a laminar hood to dry completely.

Note: If the Petri dishes are used for the arrangement of the cover glasses during PEI treatment, sterile water can be added to the dish during the washing procedures. The volume of water used for each wash step depends on the used bath but, to efficiently wash the cover glasses, the level of water in the bath has to be 3–5 mm higher than the surface of the cover glasses.

d. Place the PEI-treated dry glasses in the sterile 35 mm cell culture dishes.

2. Before the hippocampus extraction, prepare the sterile instruments (medical scissors, scalpel, dental spatula, and tweezers) and a small bath with ice.

3. Place in the bath the 60 mm cell culture dish with the Versene solution (8–10 mL) and two microcentrifuge tubes (one with 1 mL of neuron-glial cell culture growth medium and the second one with Versene solution).

4. To euthanize the animal, put it in the preconditioning (induction) chamber and fill the chamber with isoflurane (5%) or another appropriate inhaled anesthetic.

Note: The incubation time depends on the anesthesia used and the weight and strain of the used animal.

5. After incubation, take the euthanized animal from the chamber and thoroughly treat it with 70% ethanol (it is better to use a pulverizer for this purpose).

6. Then, using sharp medical scissors, quickly decapitate the animal.

7. Carefully cut the skull using sharp scissors (curved nail scissors are recommended for this procedure).

8. Extract the brain using a dental spatula and put it into the 60 mm cell culture dish with the ice-cold Versene solution.

9. Cut hemispheres along the line from the cerebellum to the olfactory bulb with a scalpel.

Note: It is better to use curve tweezers to hold the brain during making the cut and further procedures.

10. Remove the parts of the hippocampus from both hemispheres and put them into the 1.5 mL microcentrifuge tube with ice-cold Versene solution.

Note: We recommend using a dental spatula and tweezers to remove the hippocampus.

11. Cut the tissue in the tube into 0.5–2 mm fragments using sterile scissors.

12. Replace the Versene solution in the tube with 500 μL of 1% trypsin solution.

Note: To obtain the working trypsin solution, dilute the stock in Versene.

13. Incubate the hippocampal fragments with trypsin at 37 °C at constant stirring for 10 min (stirring rate of 500 rpm, 0.6× g).

Note: A laboratory shaker with a heater can be used for this purpose.

14. Remove the trypsin solution and wash the tissue fragments two times with 500 μL of cold neuron-glial cell culture growth medium to inactivate trypsin.

Note: Avoid the trituration of tissue fragments when replacing the medium in the tube. Pipette tips produced from plastic with low retention are recommended since the trypsinized tissue fragments are sticky.

15. Add 1 mL of room-temperature neuron-glial cell culture growth medium and gently triturate tissue fragments using a 1 mL pipette tip.

16. Wait for 30–60 s until the non-triturated fragments sediment; then, carefully remove them.

17. Carefully remove the non-sedimented film-like tissue fragments using a 200 μL pipette tip.

18. Centrifuge the obtained cell suspension at 2,000× g for 3 min at room temperature.

19. Remove the supernatant and resuspend the pellet to obtain a cell suspension with a cell quantity of 10⁶10⁷ cells/mL.

Note: The cells can be counted manually with different counting chambers or automatically using cell counters. We used the Neubauer chamber for cell counting. For the staining, the “stock” cell suspension was diluted 10 times with neurobasal medium to expedite the counting procedure, and this dilution factor was considered in calculations of average cell quantity. Before counting, the diluted cell suspension was mixed in proportion 1:1 with 0.4% trypan blue solution (5 min staining).

20. Dilute the obtained suspension if necessary and drop the aliquots of the cell suspension on the PEI-treated round cover glasses. The optimal cell density is 30,000–50,000 cells/mm².

Note: To concentrate the cells in the restricted area of the cover glass, we use the sterile glass cylinders placed on the cover glasses lying in 35 mm cell culture dishes (Figure 1A). The height used in the study cylinders was 6 mm, and the internal diameter was 5 mm; the working volume ≈ 100 μL. The cylinders can be produced from glass serological pipettes, for instance. After cell attachment, the cylinders are carefully removed with the curved tweezers. Twenty-four hours after the preparation, the representative image of the hippocampal cell culture (Figure 1B) demonstrates the average cell density that can be achieved using glass cylinders.

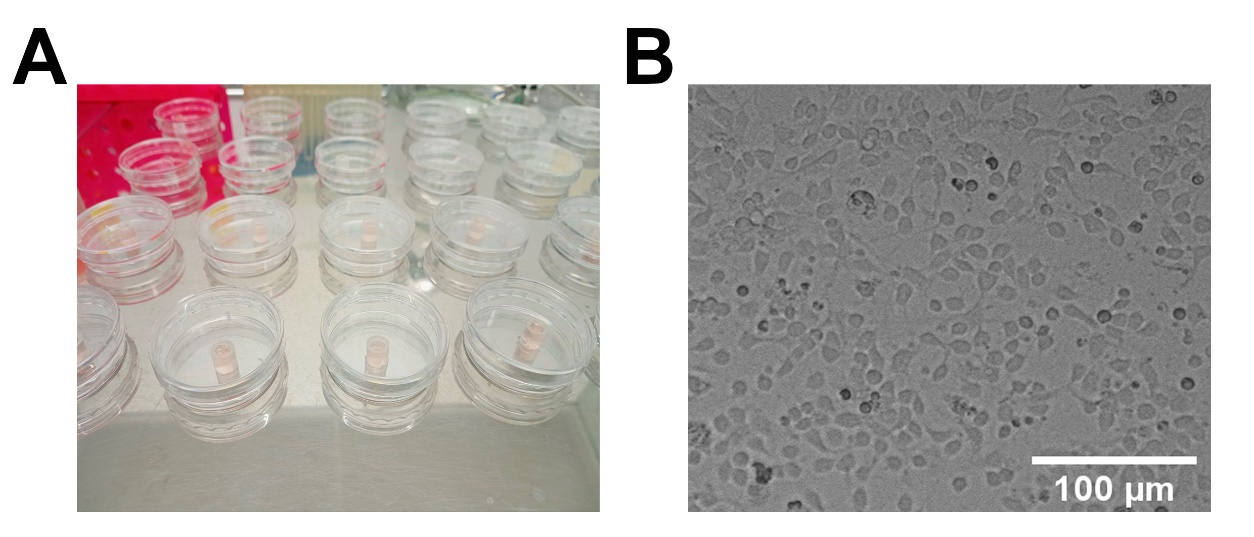

Figure 1. Hippocampal cell attachment. A. Glass cylinders used during cell culture preparation. B. Brightfield images of a representative cell culture 24 h after cell attachment.

21. Put the cell culture dishes with the cylinders in the CO₂ incubator for 30–60 min for cell attachment.

22. Remove the dishes with the cell cultures and add 2 mL of the neuron-glial cell culture growth medium (temperature ≈ 37 °C) in each cell culture dish. If the glass cylinders were used, carefully remove them (use curve tweezers) before the addition of the growth medium.

Note: The average passage of the hippocampal cell cultures obtained from one animal includes 12–14 cell cultures (cell culture dishes with the PEI-treated glasses covered with the hippocampal cells).

23. Cultivate the cultures in a CO₂ incubator at 37 °C in an atmosphere containing 5% CO₂ (humidity ≥ 95%) for 12–14 days and use in experiments.

Note: Frequent cell culture medium replacement affects the quality of neuronal networks in the cell culture. Replace 1/2 of the medium volume at 5–6 DIV (days in vitro) and keep the humidity in the incubator at ≥ 95% (this is important).

B. Staining of the cultures with Fura-2

1. Dissolve Fura-2 AM stock solution (1 mM in DMSO) to a working concentration of 3 μM and incubate the cell cultures with the working solution for 40 min at 28 °C in the dark.

Note: To decrease the consumption of Fura-2, the glasses with the cell cultures can be transferred from the cell culture dishes to their lids and covered with 200 µL of the working solution. This volume is enough for cell staining.

2. Remove the dishes with 12–14 DIV neuron-glial cell cultures from the CO₂ incubator, wash them twice with HBSS solution (2 mL per wash), wait for 10 min, and wash once again (2 mL).

Note: The pause between washes is required to allow the non-esterified probe to flow from the cells to the extracellular medium.

3. Mount the cover glass with the cell culture into the chamber for measurements.

4. Choose the area with the monolayer to record the signal from the maximal number of cells. The optimal ratio between magnification and the number of cells in the view field can be achieved with 10.0× and 20.0× objectives (Figure 2A).

5. Use a perfusion system providing a 10 mL/min flow rate to effectively and quickly replace the medium in the microscope chamber.

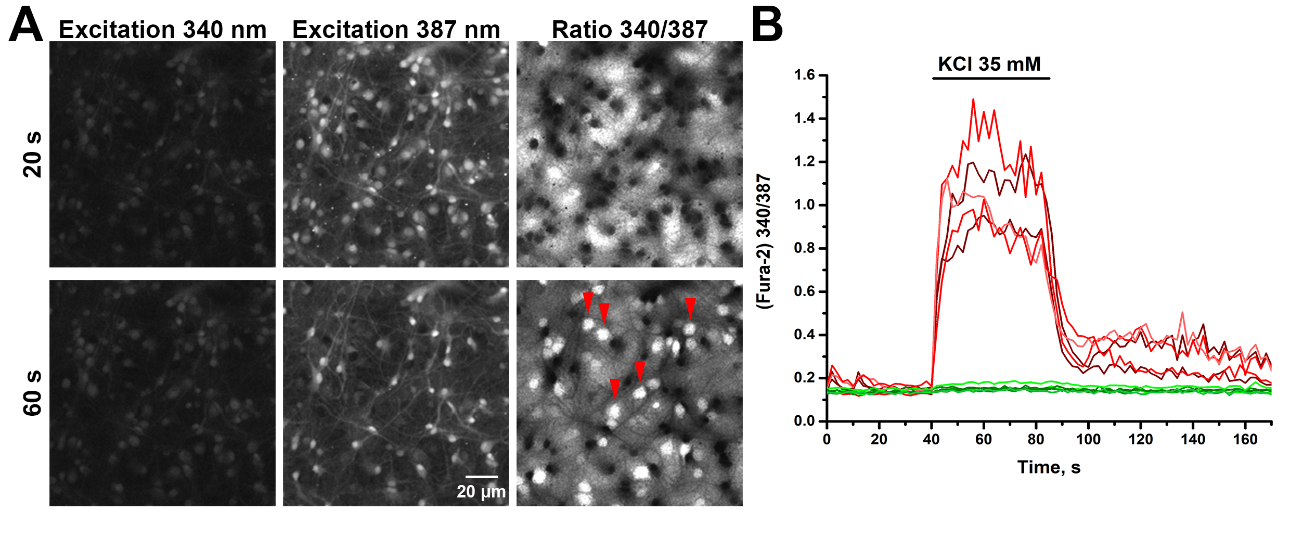

Figure 2. Fura-2 imaging. A. Representative image of Fura-2-stained rat hippocampal cell culture. Objective HC PL FLUOTAR 10.0 × 0.30 DRY with an additional 1.6 magnification lens. Red arrows show the neurons whose changes in intracellular Ca²⁺ concentration are shown in panel B. Images show the fluorescence of cells before (20 s) and during (60 s) the KCl application (see panel B). Excitation 340 nm: maximum of the excitation spectrum of Ca²⁺-bound form of Fura-2; 387 nm: maximum of the excitation spectrum of Ca²⁺-free form of Fura-2. B. Changes of intracellular Ca²⁺ concentration in cells of the neuron-glial culture in response to KCl (35 mM) application. Red curves correspond to neurons, while green curves correspond to glial cells.

C. Identification of neurons in hippocampal cell culture

1. To visualize the neurons stained with a Ca²⁺-sensitive fluorescent probe (Fura-2 AM in this case), perform the application of 35 mM KCl.

Note: As shown in previous works, KCl application (35 mM) depolarizes the neurons and stimulates the release of neurotransmitters, particularly glutamate. Depolarization induced by KCl and activation of ionotropic glutamate receptors (AMPARs, NMDARs, and KARs) promotes the opening of voltage-gated Ca²⁺ channels (VGCC) [13,14], mediating Ca²⁺ inflow into the soma of neurons. These Ca²⁺ changes are detected with different Ca²⁺-sensitive probes, such as Fura-2, Fluo-3, Fluo-4, or Fluo-8. Neurons quickly restore calcium homeostasis after KCl application. Therefore, this method of identification of all neurons in a view field can be used in routine calcium imaging experiments.

2. The cells responding with a sustained increase in intracellular Ca²⁺ concentration ([Ca²⁺]_i) to KCl application are neurons (Figure 2B).

Note: Using a combination of live cell fluorescent calcium imaging and post-vital immunostaining, we have previously demonstrated that cells responding to KCl application contain the neuronal marker, NeuN [15].

D. Identification of neurons containing Ca²⁺-permeable AMPA receptors

1. To identify neurons containing the calcium-permeable AMPA receptors, perform the application of selective AMPAR agonist (5-fluorowillardiine, AMPA, etc.) in the presence of non-selective blocker of VGCC (verapamil or diltiazem, for example), antagonists of NMDA and kainate receptors [16].

Note: As shown in Figure 3A, [Ca²⁺]_i elevation in neurons in the presence of AMPAR agonists is mediated in most neurons by VGCC, NMDARs, and KARs. The sustained elevation in the presence of the appropriate antagonists/blockers remains only in a minor population of neurons.

2. The cells responding with sustained [Ca²⁺]_i elevation to the application of AMPAR agonists in the presence of VGCC blockers and NMDAR and KAR antagonists can be attributed to neurons containing calcium-permeable AMPA receptors (CP-AMPAR-neurons).

Note: This [Ca²⁺]_i elevation is sensitive to the antagonist of Ca²⁺-permeable AMPARs, NASPM (Figure 3B).

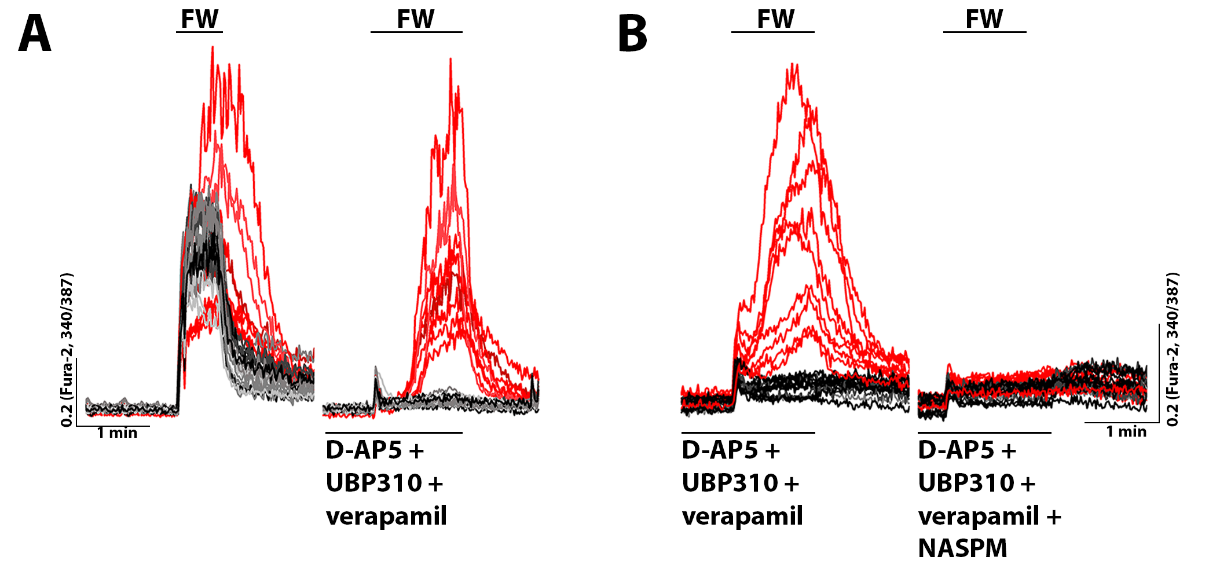

Figure 3. Identification of neurons containing CP-AMPARs. A. Responses of neurons in rat hippocampal neuron-glial cell cultures to the application of selective AMPAR agonist, 5-fluorowillardiine (FW, 500 nM) in the absence and presence of the blocker of voltage-gated calcium channels (verapamil, 300 μM) and NMDAR and KAR antagonists (D-AP5, 10 μM and UBP310, 10 μM, respectively). Red curves: neurons containing CP-AMPARs; grey curves: other neurons. B. Effect of NASPM (selective antagonist of CP-AMPARs, 30 μM) on the [Ca²⁺]_i elevation induced by AMPAR activation in neurons containing CP-AMPARs.

D. Identification of neurons containing Ca²⁺-permeable KA receptors

1. To identify neurons containing the calcium-permeable KA receptors, perform two applications of KAR/AMPAR agonist, domoic acid (DoA, 200–500 nM), in the presence and absence of NASPM (30 μM).

Note: We have shown in our previous works that in rat hippocampal neuron-glial cultures, the neurons containing CP-AMPARs and CP-KARs are GABAergic [16,17], and their selective activation suppresses the activity of the innervated glutamatergic neurons. Due to insufficient GABA-mediated innervation, GABAergic neurons [16], including neurons containing CP-KARs, respond earlier to depolarizing stimuli. To eliminate the effects associated with GABA-mediated inhibition and the identification of neurons containing CP-KARs, DoA applications should be performed in the presence of GABA(A)R antagonists [the contribution of GABA(B)R is less pronounced in this case]. We used bicuculline (10 μM) for this purpose, but other GABA(A)R antagonists, such as gabazine or picrotoxin, can also be used. Notably, the application of GABA(A)R antagonists induces epileptiform activity manifested as oscillations of [Ca²⁺]_i.

2. The neurons insensitive to NASPM (Figure 4, green curves) can be attributed to neurons containing calcium-permeable KARs.

Note: We have demonstrated that neurons containing CP-KARs and neurons containing CP-AMPARs also respond with [Ca²⁺]_i elevation to the application of selective agonist of GluK1/GluK3 containing KARs, ATPA (300–500 nM) [16]. Since ATPA demonstrates lower excitotoxicity than DoA or selective AMPAR agonists, ATPA-induced [Ca²⁺]_i elevations can be considered an additional marker of GABAergic neurons containing CP-KARs or CP-AMPARs.

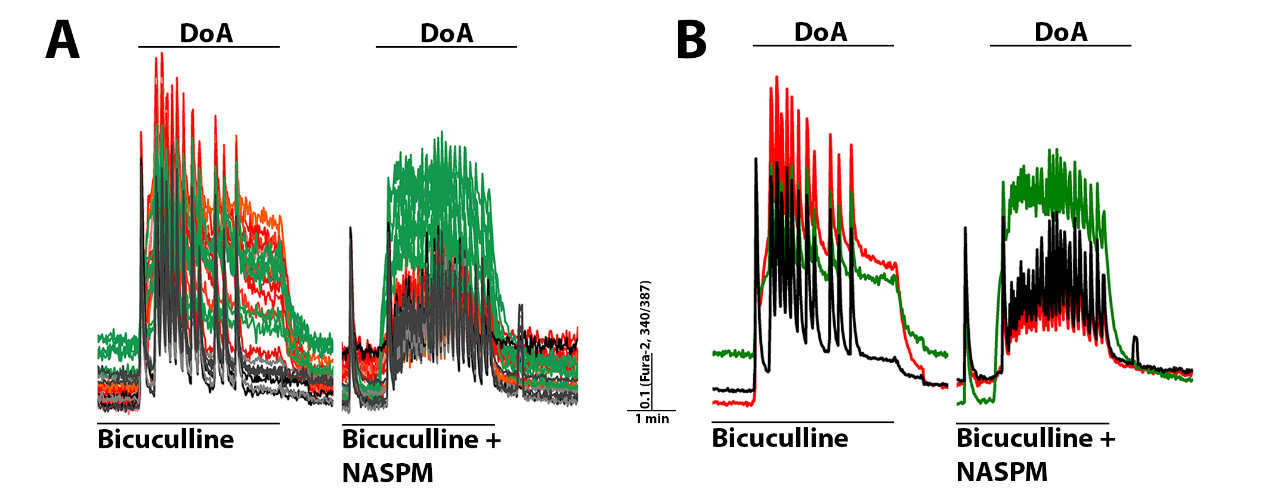

Figure 4. Identification of neurons containing CP-KARs. A. Responses of representative neurons to AMPAR/KAR antagonist, domoic acid (DoA 200 nM) in the presence or absence of NASPM (30 μM). Both DoA applications were performed in the presence of GABA(A)R antagonist, bicuculline (10 μM). Green curves correspond to neurons insensitive to NASPM and expressing CP-KARs. The neurons in which the amplitude of the sustained DoA-induced [Ca²⁺]_i elevation decreases in the presence of NASPM (red curves) contain CP-AMPARs. Grey curves: other neurons without CP-AMPARs. B. Averaged responses of neurons from panel A.

Data analysis

1. The series of fluorescent images can be analyzed with free software ImageJ.

2. To subtract background noise, use the Subtract Background function in ImageJ (Process → Subtract Background). The variable parameter Rolling ball radius should be chosen in the range of 30–50 pixels (depending on magnification).

3. To calculate time-lapse changes in the fluorescence intensity of cells, place ROIs on the soma without covering processes to avoid capturing the background fluorescence (Figure 5).

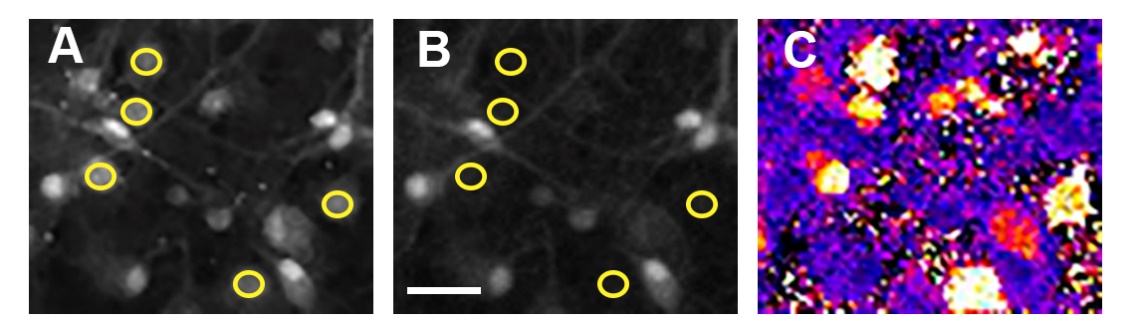

Figure 5. Analysis of representative Fura-2 images. A, B. Fura-2 fluorescence upon 387 nm excitation (Ca²⁺-free form of the probe) before (A) and during (B) KCl application. C. 340/387 Fura-2 ratio during KCl application; “Fire” lookup table. Yellow circles demonstrate the regions of interest (ROIs) where the average signal intensity was measured. Scale bar 20 μm.

4. In the case of ratiometric probes, such as used Fura-2, the series of images corresponding to the channels with excitation 340 nm have to be divided by the appropriate series of images corresponding to the channel with excitation 387 nm (Process → Image Calculator; 32-bit option should be chosen).

5. To calculate the mean Fura-2 340/387 ratio (reflects the changes in [Ca²⁺]_i) for cells in a view field, perform the command in ROI Manager More → Multi Measure. Set Mean Grey Value as the calculated parameter (Analyze → Set Measurements).

6. Copy or export obtained results and draw plots using any appropriate software (e.g., OriginLab Pro).

7. In the case of non-ratiometric Ca²⁺-sensitive fluorescent probes (Fluo-4 family or others), use similar algorithms excluding step 4.

Validation of protocol

This protocol or parts of it have been used and validated in the following research articles:

1. Zinchenko et al. [17]. Properties of GABAergic Neurons Containing Calcium-Permeable Kainate and AMPA-Receptors. Life (Basel) (Figures 1–5).

2. Gaidin et al. [16]. A novel approach for vital visualization and studying of neurons containing Ca2+ -permeable AMPA receptors. J Neurochem (Figures 1–6).

3. Maiorov et al. [10]. Peculiarities of ion homeostasis in neurons containing calcium-permeable AMPA receptors. Arch Biochem Biophys (Figures 1–4).

4. Zinchenko et al. [18]. Participation of calcium-permeable AMPA receptors in the regulation of epileptiform activity of hippocampal neurons. Front synaptic neurosci (Figure 3).

General notes and troubleshooting

General notes

1. The proposed methods can be used not only in cell cultures but also in brain slices.

2. Any Ca²⁺-sensitive fluorescent cell-permeant probes can be used in the experiments.

3. The method allows combining with electrophysiological measurements or immunostaining.

4. The described approaches allow the expressed identification of many neurons in a view field.

5. Since permeability for Ca²⁺ is determined in the case of AMPARs and KARs not only by the subunit composition but also by Q/R editing of pre-mRNA encoding GluA2, GluK1, GluK2 subunits, we suppose that the described approach allows identification of receptors consisting of non-edited subunits.

6. We suppose that the suggested approaches allow the identification only of neurons containing a significant number of CP-AMPARs and CP-KARs. If the percentage of the calcium-permeable receptors in a neuron is low, the signals of the Ca²⁺-sensitive probes can be negligible.

Troubleshooting

Problem 1: Low-amplitude response to DoA (or the absence of the response) or slow restoration of [Ca²⁺]_i after washout.

Possible cause: Inappropriate concentration of the agonist.

Solution: Change the concentration (the optimal ranges are listed above).

Problem 2: Absence of response to AMPAR agonists in the presence of NMDAR, KAR antagonists, and VGCC blockers.

Possible cause: Disturbances of the neuronal network formation and death of neurons at early stages of the cultivation.

Solution: Increase cell density during the culture preparation to improve the viability of neurons and promote synaptogenesis and maturation. Hold the humidity in a CO₂ incubator at ≥ 95% to prevent excessive evaporation from the cell culture dishes and shift the osmolarity of the neuron-glial culture medium.

Acknowledgments

The previously obtained results underlying the proposed methods of identification were supported by the Ministry of Science and Higher Education of the Russian Federation in the framework of state assignment of PSCBR RAS 075-01512-22-02/075-00609-24-01 (No 1022080100047-5-1.6.4, Neuroprotective drugs of a new generation) (animal facility resources, technical support for the experimental studies and cell culture preparations) and by the Science Committee of the Ministry of Science and Higher Education of the Republic of Kazakhstan (Grant No. AP19678607; Grant no. AP05133528; Grant no. AP19680470). The current work was funded by a grant from the Science Committee of the Ministry of Science and Higher Education of the Republic of Kazakhstan Grant No. AP19678607.

Competing interests

The authors declare no conflict of interest.

Ethical considerations

All animal procedures were approved by the Bioethics Committee of the Institute of Cell Biophysics (ICB) and carried out according to Act708n (August 23, 2010) of the Russian Federation National Ministry of Public Health, which states the rules of laboratory practice for the care and use of laboratory animals, and the Council Directive 2010/63 EU of the European Parliament on the protection of animals used for scientific purposes. ICB RAS Animal Facility provided the animals for experiments in accordance with the applications approved by the Commission on Biosafety and Bioethics of Institute of Cell Biophysics (Permission No. 6, 12 December 2017; Permission No. 2, 12 June 2020, Permission No. 3, 12 April 2021; Permission No. 4, 17 July 2021, Permission No. 3, February 12, 2022; Permission No. 4, 17 June 2022, Permission No. 3, March 12, 2023).

References

1. Park, P., Kang, H., Sanderson, T. M., Bortolotto, Z. A., Georgiou, J., Zhuo, M., Kaang, B. K. and Collingridge, G. L. (2018). The Role of Calcium-Permeable AMPARs in Long-Term Potentiation at Principal Neurons in the Rodent Hippocampus. Front Synaptic Neurosci. 10: e00042. https://doi.org/10.3389/fnsyn.2018.00042
2. Sanderson, J. L., Gorski, J. A. and Dell’Acqua, M. L. (2016). NMDA Receptor-Dependent LTD Requires Transient Synaptic Incorporation of Ca 2+ -Permeable AMPARs Mediated by AKAP150-Anchored PKA and Calcineurin. Neuron. 89(5): 1000–1015. https://doi.org/10.1016/j.neuron.2016.01.043
3. Gaidin, S. G. and Kosenkov, A. M. (2023). Calcium-permeable AMPA receptors. Neural Regen Res. 18(12): 2669–2670. https://doi.org/10.4103/1673-5374.373714
4. Guo, C. and Ma, Y. Y. (2021). Calcium Permeable-AMPA Receptors and Excitotoxicity in Neurological Disorders. Front Neural Circuits. 15: e711564. https://doi.org/10.3389/fncir.2021.711564
5. Azarnia Tehran, D., Kochlamazashvili, G., Pampaloni, N. P., Sposini, S., Shergill, J. K., Lehmann, M., Pashkova, N., Schmidt, C., Löwe, D., Napieczynska, H., et al. (2022). Selective endocytosis of Ca ²⁺ -permeable AMPARs by the Alzheimer’s disease risk factor CALM bidirectionally controls synaptic plasticity. Sci Adv. 8(21): eabl5032. https://doi.org/10.1126/sciadv.abl5032
6. Martinez, T. P., Larsen, M. E., Sullivan, E., Woolfrey, K. M. and Dell’Acqua, M. L. (2024). Amyloid-β-Induced Dendritic Spine Elimination Requires Ca²⁺-Permeable AMPA Receptors, AKAP-Calcineurin-NFAT Signaling, and the NFAT Target Gene Mdm2. eNeuro. 11(3). https://doi.org/10.1523/eneuro.0175-23.2024
7. Kobylecki, C., Cenci, M. A., Crossman, A. R. and Ravenscroft, P. (2010). Calcium‐permeable AMPA receptors are involved in the induction and expression of l‐DOPA‐induced dyskinesia in Parkinson’s disease. J Neurochem. 114(2): 499–511. https://doi.org/10.1111/j.1471-4159.2010.06776.x
8. Zhang, J., Wang, Y., Sun, Y. N., Li, L. B., Zhang, L., Guo, Y., Wang, T., Yao, L., Chen, L., Liu, J., et al. (2019). Blockade of calcium-permeable AMPA receptors in the lateral habenula produces increased antidepressant-like effects in unilateral 6-hydroxydopamine-lesioned rats compared to sham-lesioned rats. Neuropharmacology. 157: 107687. https://doi.org/10.1016/j.neuropharm.2019.107687
9. Coombs, I., Bats, C., Sexton, C. A., Studniarczyk, D., Cull-Candy, S. G. and Farrant, M. (2023). Enhanced functional detection of synaptic calcium-permeable AMPA receptors using intracellular NASPM. eLife. 12: e66765. https://doi.org/10.7554/elife.66765
10. Maiorov, S., Zinchenko, V., Gaidin, S. and Kosenkov, A. (2021). Potential mechanism of GABA secretion in response to the activation of GluK1-containing kainate receptors. Neurosci Res. 171: 27–33. https://doi.org/10.1016/j.neures.2021.03.009
11. Lalanne, T., Oyrer, J., Mancino, A., Gregor, E., Chung, A., Huynh, L., Burwell, S., Maheux, J., Farrant, M., Sjöström, P. J., et al. (2015). Synapse‐specific expression of calcium‐permeable AMPA receptors in neocortical layer 5. J Physiol. 594(4): 837–861. https://doi.org/10.1113/jp271394
12. Rajasekaran, K., Todorovic, M. and Kapur, J. (2012). Calcium‐permeable AMPA receptors are expressed in a rodent model of status epilepticus. Ann Neurol. 72(1): 91–102. https://doi.org/10.1002/ana.23570
13. Laryushkin, D. P., Maiorov, S. A., Zinchenko, V. P., Gaidin, S. G. and Kosenkov, A. M. (2021). Role of L-Type Voltage-Gated Calcium Channels in Epileptiform Activity of Neurons. Int J Mol Sci. 22(19): 10342. https://doi.org/10.3390/ijms221910342
14. Gaidin, S. G., Zinchenko, V. P., Teplov, I. Y., Tuleukhanov, S. T. and Kosenkov, A. M. (2019). Epileptiform activity promotes decreasing of Ca2+ conductivity of NMDARs, AMPARs, KARs, and voltage-gated calcium channels in Mg2+-free model. Epilepsy Res. 158: 106224. https://doi.org/10.1016/j.eplepsyres.2019.106224
15. Gaidin, S. G., Zinchenko, V. P., Sergeev, A. I., Teplov, I. Y., Mal'tseva, V. N. and Kosenkov, A. M. (2019). Activation of alpha‐2 adrenergic receptors stimulates GABA release by astrocytes. Glia. 68(6): 1114–1130. https://doi.org/10.1002/glia.23763
16. Gaidin, S. G., Maiorov, S. A., Laryushkin, D. P., Zinchenko, V. P. and Kosenkov, A. M. (2022). A novel approach for vital visualization and studying of neurons containing Ca²⁺‐permeable AMPA receptors. J Neurochem. 164(5): 583–597. https://doi.org/10.1111/jnc.15729
17. Zinchenko, V. P., Kosenkov, A. M., Gaidin, S. G., Sergeev, A. I., Dolgacheva, L. P. and Tuleukhanov, S. T. (2021). Properties of GABAergic Neurons Containing Calcium-Permeable Kainate and AMPA-Receptors. Life 11(12): 1309. https://doi.org/10.3390/life11121309
18. Zinchenko, V. P., Teplov, I. Y., Kosenkov, A. M., Gaidin, S. G., Kairat, B. K. and Tuleukhanov, S. T. (2024). Participation of calcium-permeable AMPA receptors in the regulation of epileptiform activity of hippocampal neurons. Front Synaptic Neurosci. 16: e1349984. https://doi.org/10.3389/fnsyn.2024.1349984
