Versatile Cloning Strategy for Efficient Multigene Editing in Arabidopsis

Materials and reagents

Biological materials

1. pHEE401E plasmid (Addgene, catalog number: 71287)

2. pGTR plasmid (Addgene, catalog number: 63143)

3. pFRm43GW plasmid (Addgene, catalog number: 133748)

4. p4P1R_EC1.2en-EC1.1p plasmid (Addgene, catalog number: 213912)

5. pDONR221_zCas9 plasmid (Addgene, catalog number: 213913)

6. pDONR^TM P2R-P3 (Thermo Fisher Scientific, catalog number: 12537-023)

7. One Shot^TM TOP10 chemically competent E. coli (Thermo Fisher Scientific, catalog number: C404010)




List of primers common to all strategies

Order common and specific primers according to the following features:

Synthesis scale: 0.05 μmol; purification: cartridge; format: in solution (water); concentration: 100 μM.

(Supplier: Merck, but could be another one)

Fw-Primer 1: 5′- GGGGACAGCTTTCTTGTACAAAGTGGAACGACTTGCCTTCCGCACAATAC - 3’

Rev-Primer 2: 5′- atggtctcaTGTTAATCACTACTTCGACTCTAG - 3′

Fw-Primer 3: 5′- taggtctccAACAAAGCACCAGTGGTCTAGTGG - 3′

Rev-Primer 12: 5′- atggtctcaAAGCACCGACTCGGTGCCACTTTTTC - 3′

Fw-Primer 13: 5′- taggtctccGCTTTTTTTTGCAAAATTTTCCAGTCG - 3′

Rev-Primer 14: 5′- GGGGACAACTTTGTATAATAAAGTTGATATTGGTTTATCTCATCGGAAC - 3′

M13-Fw (–20): 5′- GTAAAACGACGGCCAG - 3′

M13-Rev: 5′- CAGGAAACAGCTATGAC - 3′

Reagents

Enzymes for molecular biology

1. Q5^® high-fidelity DNA polymerase (NEB, catalog number: M0491)

2. OneTaq 2× Master Mix with standard buffer (NEB, catalog number: M0482)

3. BsaI-HF restriction enzyme (NEB, catalog number: R3733)

4. T4 DNA ligase (Thermo Fisher Scientific, catalog number: 15224025)

5. Gateway^TM BP Clonase^TM II (Thermo Fisher Scientific, catalog number: 11789020)

6. Gateway^TM LR Clonase^TM II (Thermo Fisher Scientific, catalog number: 11791020)




Reagents for molecular biology

1. Cutsmart buffer (NEB, catalog number: B6004)

2. dNTP solution MIX 10 mM (NEB, catalog number: N0447)

3. TAE (Tris-Acetate-EDTA buffer) (Euromedex, catalog number: EU0202)

4. SYBR^TM Safe DNA gel stain (Thermo Fisher Scientific, catalog number: S33102)

5. Agarose (Euromedex, catalog number: LE-8200)

6. DNase-free water (autoclaved at 110 °C for 30 min)




Reagents for microbiology

1. LB Miller (Euromedex, catalog number: AE-0103)

2. Bacteriological agar (Euromedex, catalog number: 1330)

3. Kanamycin bisulfate (Euromedex, catalog number: EU0420)

4. Spectinomycin dihydrochloride pentahydrate (Merck, catalog number: S4014)




Kit for molecular biology

1. Monarch^® PCR & DNA Cleanup kit (NEB, catalog number: T1030)

2. NucleoSpin^® Plasmid kit (Macherey Nagel, catalog number: 740588)




Solutions

1. Kanamycin bisulfate stock solution (25 mg/mL) (see Recipes)

2. Spectinomycin dihydrochloride pentahydrate stock solution (50 mg/mL) (see Recipes)

3. LB Miller media (see Recipes)




Recipes

1. Kanamycin bisulfate stock solution (25 mg/mL)

   Reagent	Final concentration	Amount
   Kanamycin bisulfate	25 mg/mL	0.25 g
   ddH2O	n/a	10 mL
   Total	n/a	10 mL

   Filter with a 0.22 μm filter, aliquot by 1 mL, and store at -20 °C.




2. Spectinomycin dihydrochloride pentahydrate stock solution (50 mg/mL)

   Reagent	Final concentration	Amount
   Spectinomycin dihydrochloride pentahydrate	50 mg/mL	0.5 g
   ddH2O	n/a	10 mL
   Total	n/a	10 mL

   Filter with a 0.22 μm filter, aliquot by 1 mL, and store at -20 °C.




3. LB Miller media

   Reagent	Final concentration	Amount
   LB Miller	25 g/L	25 g
   Bacteriological agar	20 g/L	20 g
   ddH2O	n/a	1,000 mL
   Total	n/a	1,000 mL
   Autoclave at 110 °C for 30 min

   Wait until the temperature of the media is at approximately 60 °C and add the antibiotic (final concentration: kanamycin bisulfate 25 μg/mL or spectinomycin dihydrochloride pentahydrate 50 μg/mL).




Laboratory supplies

1. Reaction tubes, 0.5 mL, PP (SARSTEDT, catalog number: 72699)

2. Reaction tubes, 1.5 mL, PP (SARSTEDT, catalog number: 72690001)

3. Petri dishes, Ø 90 mm (VWR, catalog number: 391-0556)

4. Wooden toothpicks length 80 mm (DUTSCHER, catalog number: 505802)

5. Glass beads, Ø 5 mm (DUTSCHER, catalog number: 068503)

6. 10/20 μL XL graduated TipOne^® tips (STARLAB, catalog number: S1110-3700-C)

7. 200 μL UltraPoint® graduated TipOne^® tips (STARLAB, catalog number: S1113-1700-C)

8. 1250 μL XL graduated TipOne^® tips (STARLAB, catalog number: S1112-1720-C)

9. Microtubes 0.2 mL + flat caps (DUTSCHER, catalog number: 010208)

Equipment

1. Thermocycler (BIORAD, C1000 Touch Thermal Cycler, catalog number: 1851148)

2. Complete Vortex Genie 2 (DOMINIQUE DUTSCHER, catalog number: 079008)

3. Electrophoresis chamber Mupid ONE (DOMINIQUE DUTSCHER, catalog number: 088900)

4. Water bath (VWR, catalog number: IKAA20004382)

5. Shaking incubator, digital, benchtop, ES-20 (VWR, catalog number: 444-0936)

6. Oven (DOMINIQUE DUTSCHER, catalog number: 485134)

7. NanoDrop 2000 (THERMOFISHER SCIENTIFIC, catalog number: ND-2000)

Software and datasets

1. Web application tool CRISPR-P (v1.0, 2014) (http://crispr.hzau.edu.cn/CRISPR/) [18]

Procedure

1. Design SgRNA sequences and primers

   1. Use the web application tool CRISPR-P to choose sgRNA (http://crispr.hzau.edu.cn/CRISPR/).

   2. Select start design and choose the target genome [Arabidopsis thaliana (TAIR10)].

   3. Enter the locus tag (e.g., At3g57880 for AtMCTP3).

   4. Choose a sequence guide (protospacer) according to several criteria:

      1. Choose the best location to target your gene of interest. Refer to the sgRNA target on the gene map (highlighted in yellow, Figure 2a).

      2. The guide score must be as close to 100% as possible (the higher the score, the more effective and specific the sgRNA is) (Figure 2b); we recommend a 98% cutoff guide score value for an effective and specific sgRNA.

      3. Avoid sgRNA with possible off-target effects; if this is not possible, proscribe the potential off-target in exon (refer to the number of off-target sites, Figure 2c).

      4. Identify the 20-nucleotide sequence of the selected protospacer [refer to guide sequence, Figure 2c; the PAM (protospacer adjacent motif) sequence is highlighted in green].

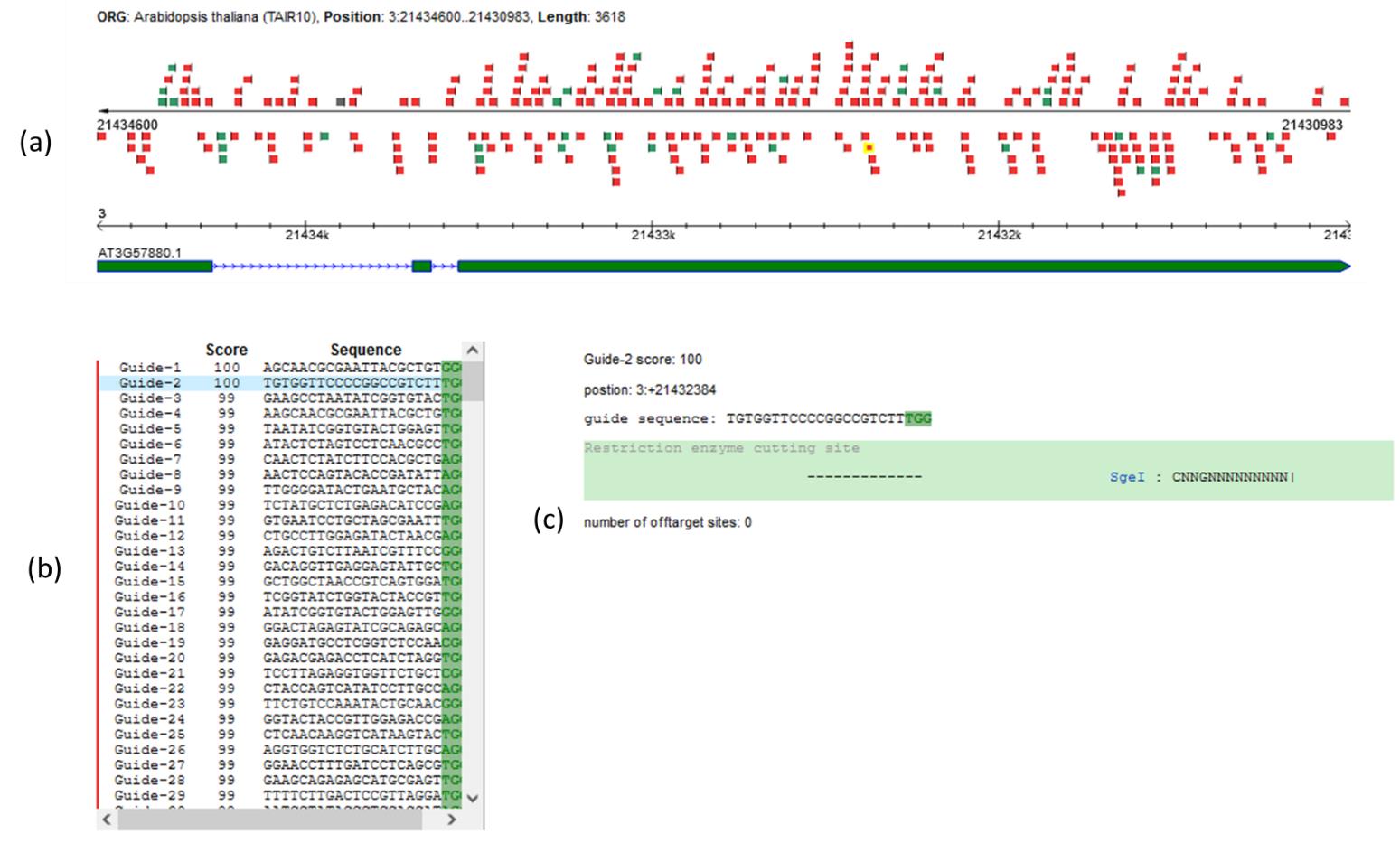

      Figure 2. CRISPR sgRNA design using the web application tool CRISPR-P [18]. Use the web application tool CRISPR-P to choose the best guides according to their location (a), specificity (b), and possible off-target effects (c). Here, we present data corresponding to the protospacer used in sgRNA3 designed to target the AtMCTP3 gene, described in Appendix 1.




2. Construction of the polycistronic gene

   Note: The protocol described here is inspired by the already published sgRNA multiplexing system coupled with the endogenous tRNA processing system [4].

   The polycistronic gene is made of the same repeated modules (t-RNA, sgRNA scaffold) regularly interspaced by several guide sequences (spacers) designed with the CRISPR-P web application tool. In this protocol, we describe how to produce a molecular construction allowing the assembly of four sgRNAs (Figure 3); however, the design is the same to clone more sgRNA, and numbers of t-RNA and sgRNA scaffold modules just have to be implemented.





   Figure 3. CRISPR sgRNA multiplexing in tRNA-sgRNA polycistronic gene. Multiple PCR reactions are necessary to obtain all the elements of the polycistronic gene (promoter, fusions of tRNA-guide-sgRNA scaffold, terminator). After purification, all the elements are assembled by digestion/ligation according to the Golden Gate cloning method to form the polycistronic gene, which is then ready to clone in entry vector pDONR^TM P2R-P3 using Gateway^® Technology.




   1. Primers design

      All modules are assembled according to the Golden Gate cloning system. Spacers are the only unique sequences in the polycistronic gene. Their sequences are used to design primers containing overhang extremities to perform the Golden Gate reaction (Figure 4; refer also to [4] Sup. Data Figure S6). In addition, the final Golden Gate reaction product is then cloned in an acceptor vector according to the Gateway^® Technology Cloning. For that, recombination sequences are required at the extremities.

      See Appendix 2 for details of amplified elements and primer sequences required for the assembly of the polycistronic gene targeting AtMCTP3, AtMCTP4.

      Note: The primer design method described here is from the previously published sgRNA multiplexing system coupled with the endogenous tRNA processing system (Xie et al., PNAS 2015, Sup. Data Figure S6). Adaptations were made to include the AtU6-26 promoter, U6-26 terminator, and attB sequences at the ends of the polycistronic gene for recombination into the entry vector pDONR^TM P2R-P3.

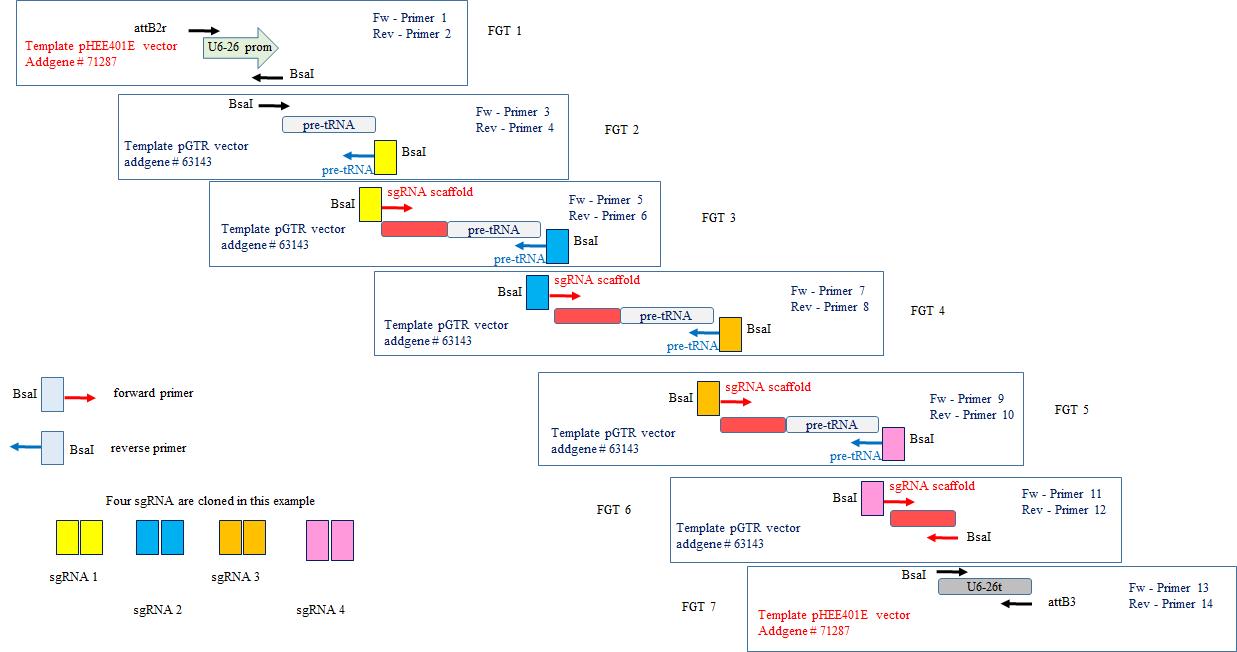

      Figure 4. Primers design and example of PCR product. A. The polycistronic gene consists of a succession of pre-tRNA sequences, guide sequences used for targeting, and gRNA scaffolds. The guide sequences used for the Golden Gate cloning multiplexing strategy have to be included in the primers allowing the amplification of the sgRNA scaffold and pre-tRNA modules. An example of an amplification product is shown in the red box. B. Structure of the forward and reverse primers designed for the construction of a guide sequence (spacer n). A BsaI site is added at 5' of each primer for Golden Gate cloning. Nucleotides 9–12 of the guide sequence will serve as the sticky end after digestion with BsaI (green box). The 3' end of the forward primer is complementary to the start of the sgRNA scaffold, while the 3' end of the reverse primer is inversely complementary to the end of the pre-tRNA module.




      Part of the primers shown in Figure 3 will be common to all editing strategies; see below:

      (attB2r and attB3 recombination sites: bold; BsaI restriction sites: underline; overhang site for Golden Gate cloning: italics)




      Fw-Primer 1: 5′- GGGGACAGCTTTCTTGTACAAAGTGGAACGACTTGCCTTCCGCACAATAC - 3′
      Rev-Primer 2: 5′- atggtctca TGTT AATCACTACTTCGACTCTAG - 3′
      Fw-Primer 3: 5′- taggtctcc AACA AAGCACCAGTGGTCTAGTGG - 3′
      Rev-Primer 12: 5′- atggtctca AAGC ACCGACTCGGTGCCACTTTTTC - 3′
      Fw-Primer 13: 5′- taggtctcc GCTT TTTTTTGCAAAATTTTCCAGTCG - 3′
      Rev-Primer 14: 5′- GGGGACAACTTTGTATAATAAAGTTGATATTGGTTTATCTCATCGGAAC - 3′




      The other primers (from 4 to 11 in this example, Figure 3), which are necessary for the synthesis of the guide sequence, must be designed according to the indications below:

      (N1 to N20 correspond to the 20 nucleotides of the gRNA spacer)

      Note: Be careful to avoid any guide sequence containing a BsaI restriction site. This would make polycistronic gene assembly impossible.

      Forward primer: Fw_n, containing BsaI restriction site and the second half part of the guide sequence [nucleotides 9 to 20 (forward sequence)] fused to the 5′ end sequence of the gRNA scaffold (forward sequence).

      5′- taggtctcn-N9N10N11N12N13N14N15N16N17N18N19N20-gttttagagctagaa-3’

      Reverse primer: Rev_n, containing BsaI restriction site and the first half part of the guide sequence [nucleotides 1 to 12 (reverse complement sequence)] fused to the 3’ end sequence of the pre tRNA (reverse complement sequence).

      5′- cgggtctcn-N12N11N10N9N8N7N6N5N4N3N2N1-tgcaccagccggg-3’




   2. Cloning of the polycistronic gene

      The polycistronic gene will be synthesized by assembling various PCR products whose ends are made cohesive after digestion. The assembly of these modules is done in an orderly manner according to the cohesive ends designed for the Golden Gate cloning strategy.

      The steps consist of the amplification of each module by PCR, the purification of the PCR products, the assembly by a succession of digestions and ligations according to the Golden Gate cloning method, and then the cloning into an entry vector using Gateway^® Technology.

      These steps are detailed below. We take the example of a molecular construction allowing the assembly of 4 sgRNAs (Figure 3).

      1. Amplification of each module by PCR (See Table 1 for the list of modules that will be amplified, refer to Table 2 and Table 3 for the PCR protocol and program).




         Table 1. List of modules to amplify. For each module, the template, the primers, and the size of the PCR product are detailed. See Appendix 2 for the sequence of amplified elements and primers used.

         Module ID	Template	Forward primer	Reverse primer	PCR product size
         U6-26 promoter	pHEE401E (Addgene, catalog number: 71287)	Fw-Primer1	Rev-Primer2	465 bp
         Pre-tRNA(1)	pGTR (Addgene, catalog number: 63143)	Fw-Primer3	Rev-Primer4	107 bp
         sgRNA(1)-pre-tRNA(2)	pGTR (Addgene, catalog number: 63143)	Fw-Primer5	Rev-Primer6	195 bp
         sgRNA(2)-pre-tRNA(3)	pGTR (Addgene, catalog number: 63143)	Fw-Primer7	Rev-Primer8	195 bp
         sgRNA(3pre-tRNA(4)	pGTR (Addgene, catalog number: 63143)	Fw-Primer9	Rev-Primer10	195 bp
         sgRNA(4)	pGTR (Addgene, catalog number: 63143)	Fw-Primer11	Rev-Primer12	108 bp
         U6-26 terminator	pHEE401E (Addgene, catalog number: 71287)	Fw-Primer13	Rev-Primer14	230 bp


         Material needed

         10 μM diluted primers

         Q5^® High-Fidelity DNA Polymerase

         dNTP solution MIX 10 mM

         pHEE401E plasmid

         pGTR plasmid

         DNase-free water

         Agarose

         TAE (Tris-Acetate-EDTA buffer)

         SYBR^TM Safe DNA gel stain

         Monarch^® PCR & DNA Cleanup kit

         Table 2. PCR protocol for one reaction

         Components	Volume
         Template (4 ng/µL)	1 μL
         5× Q5 reaction buffer	10 μL
         dNTP (10 mM)	1 μL
         Forward primer (10 μM)	1 μL
         Reverse primer (10 μM)	1 μL
         Q5 DNA polymerase	0.5 μL
         DNase-free water	35.5 μL




         Table 3. PCR program (inspired by NEB’s instructions)

         Temperature	Time	Nb of cycles
         98 °C	30 s	1×
         98 °C	10 s	25×
         TM °C	30 s
         72 °C	1 min/kb
         72 °C	2 min	1×
         12 °C	Hold




         Troubleshooting: These reaction conditions are optimal, but if despite everything no amplification is obtained, it is recommended to use new solutions (buffer, dNTP), to re-dilute the primers, and to use a new aliquot of DNase-free water.




      2. PCR product purification

         i. 5 μL of each PCR product is checked by electrophoresis on agarose gel (1%) – TAE 0.05% – SYBR^TM Safe 0.005%.

         ii. If the amplification is specific and leads to a single band on an agarose gel, the PCR products can then be purified using a suitable purification kit (e.g., Monarch® PCR & DNA Cleanup kit).

         iii. Elute in 10 µL of elution buffer; samples with higher DNA yield can be diluted after PCR purification.

      3. Assembly of purified PCR products using the Golden Gate cloning system

         The protocol consists of a succession of digestions and ligations of the purified PCR products in order to construct the polycistronic gene with the attB2r and attB3 recombination sites at its ends (See Table 4 and 5 for Golden Gate reaction and incubation conditions)..




         Material needed

         Purified PCR products

         BsaI-HF restriction enzyme

         10× Cutsmart buffer

         T4 DNA ligase

         DNase-free water




         Table 4. Golden Gate reaction

         Components	Volume
         Purified PCR products 1	2 μL
         Purified PCR products 2	2 μL
         Purified PCR products 3	2 μL
         Purified PCR products 4	2 μL
         Purified PCR products 5	2 μL
         Purified PCR products 6	2 μL
         Purified PCR products 7	2 μL
         10× Cutsmart buffer	2 μL
         BsaI-HF	1 μL
         T4 DNA ligase	1.5 μL
         DNase-free water	1.5 μL


         Use a thermocycler to perform successive digestion and ligation according to the program below:


         Table 5. Golden Gate incubation conditions

         Temperature	Time	Nb of cycles
         40 °C	10 min	3×
         16 °C	10 min
         50 °C	10 min	1×
         80 °C	20 min	1×

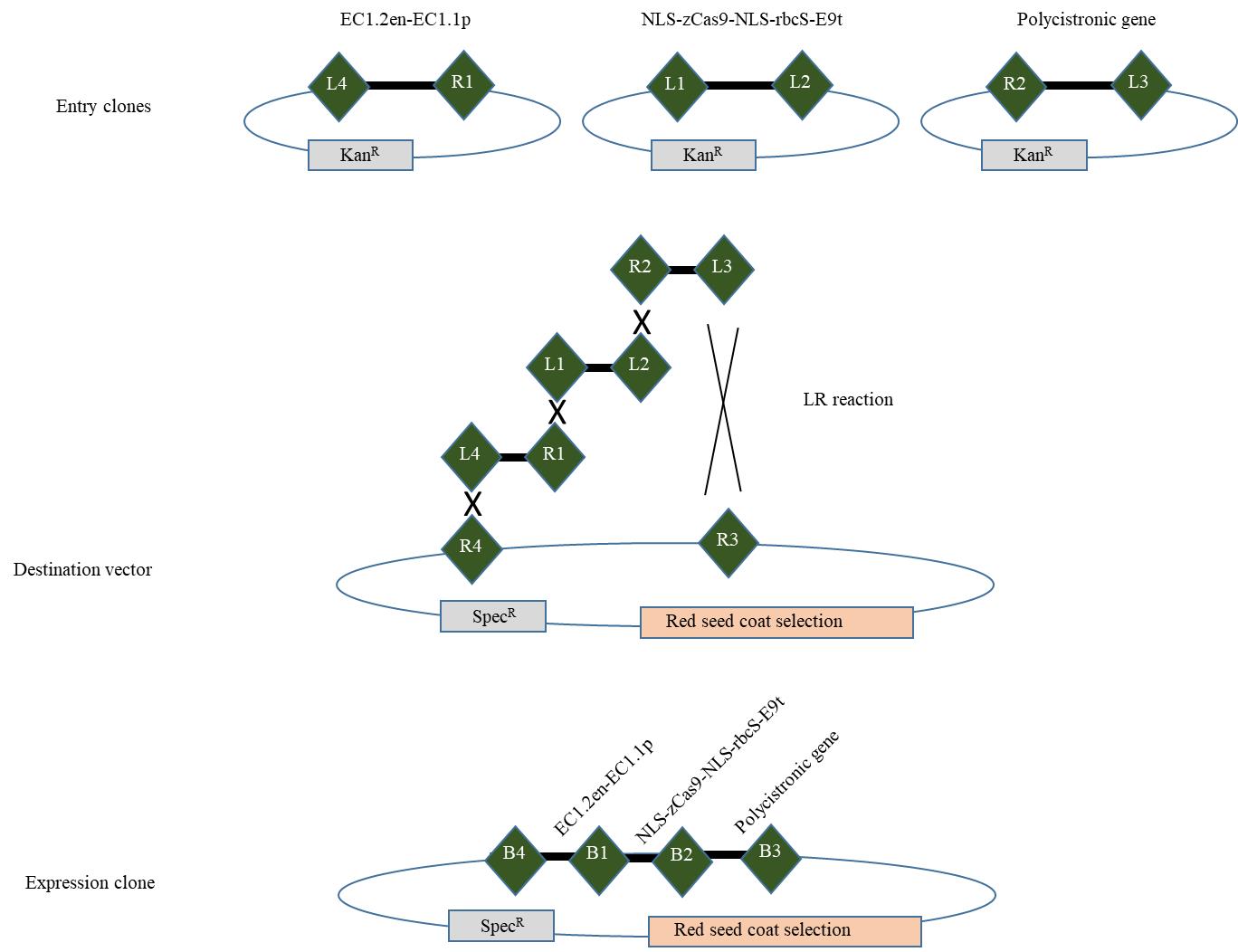

      4. Cloning of the polycistronic gene into the pDONR^TM P2R-P3 vector

         The recombination sites flanked Golden Gate reaction product are integrated into the pDONR^TM P2R-P3 vector according to the Multisite Gateway^® Technology protocol and various recombination protein activities (Figure 5)(See Table 6 for BP reaction conditions).

         Note: Some minor modifications were made to the Multisite Gateway® Technology protocol. Namely, BP recombination reaction volume is reduced from 10 to 5 μL, we do not work with an equimolar ratio between insert and entry vector but systematically add 3 μL of Golden Gate reaction product regardless of the concentration, and no Proteinase K treatment is necessary after the BP recombination reaction.

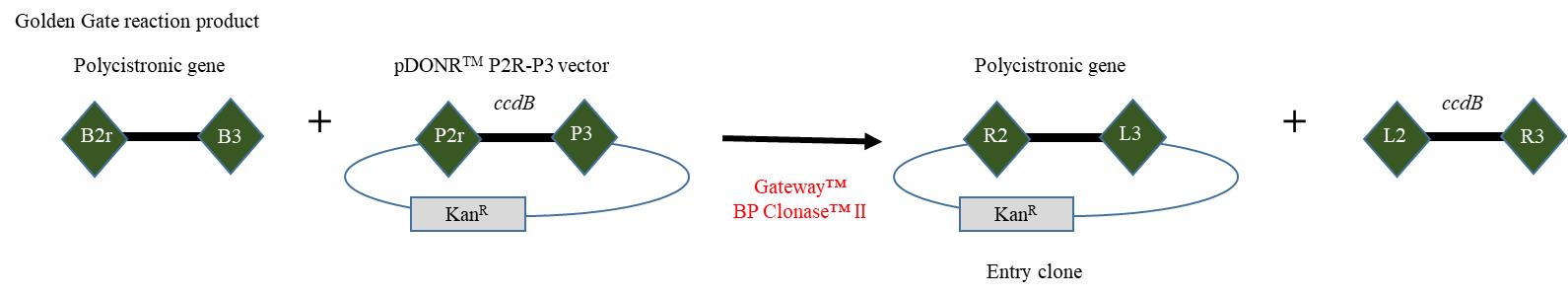

         Figure 5. Generating the entry clone containing the polycistronic gene. Figure adapted from the user guide “MultiSite Gateway^® Three-Fragment Vector Construction Kit.” A BP recombination reaction is performed between the attB2r and attB3-flanked polycistronic gene and pDONR™ P2R-P3 to generate an entry clone.




         Material needed

         attB2r-Golden Gate reaction product-attB3

         Purified plasmid DNA pDONR^TM P2R-P3 (150 ng/μL)

         Gateway^TM BP Clonase^TM II

         One Shot^TM TOP10 chemically competent E. coli

         LB Miller media

         Kanamycin bisulfate

         Bacteriological agar




         Table 6. BP reaction conditions

         Components	Volume
         Golden Gate reaction product	3 μL
         pDONRTM P2R-P3	1 μL
         GatewayTM BP ClonaseTM II	1 μL




         Note: Be sure to keep the BP Clonase^®II enzyme mix on ice while preparing the recombination reaction. Return the enzyme mix to -20 °C immediately after use.


         Incubate overnight at 25 °C.

         The day after, use all the BP reaction to transform chemically competent cells:

         i. Add 5 μL of BP reaction to 50 μL of One Shot^TM TOP10 chemically competent E. coli (e.g.).

         ii. Incubate for 30 min on ice.

         iii. Heat shock for 1 min 30 s at 37 °C.

         iv. Transfer on ice for 2 min.

         v. Add 1 mL of LB Miller media.

         vi. Shake for 45 min at 37 °C.

         vii. Spread with glass beads on LB Miller agar plate containing kanamycin (25 µg/mL).

         viii. Incubate the plate overnight at 37 °C.




         Troubleshooting: If no colony is obtained after transformation, repeat the reaction under the same conditions. If the problem persists, this is probably due to the enzyme mixture, which may have been stored on ice for too long before being returned to -20 °C during the previous use.

      5. Screening positive colonies by PCR

         Prepare a PCR reaction mix (conditions for one reaction are described in Table 7. See also Table 8 for PCR program) and use colonies as templates to check whether or not they contain the construct.


         Material needed

         10 μM diluted primers

         Use universal primers (see below) or specific primers for the polycistronic gene:

         M13 Forward (-20): 5'-GTAAAACGACGGCCAG-3'

         M13 Reverse: 5'-CAGGAAACAGCTATGAC-3'

         OneTaq 2× Master Mix with standard buffer




         Table 7. PCR Protocol

         Components	Volume
         OneTaq 2× Master	12.5 μL
         Forward primer (10 μM)	1 μL
         Reverse primer (10 μM)	1 μL
         DNase-free water	10.5 μL


         i. Use a toothpick to pick a colony and spread it on an LB Miller agar (25 g/L) with kanamycin (25 μg/mL) plate.

         ii. Directly afterward, dip the toothpick into the PCR reaction to transfer a very small number of cells (this step is critical, too many cells could inhibit the PCR reaction).

         iii. Proceed in this way for each colony to be tested

         iv. Incubate the plate overnight at 37 °C and run the PCR in the thermocycler using the following conditions:




         Table 8. PCR program (adapted from NEB’s instructions)

         Temperature	Time	Nb of cycles
         94 °C	30 s	1×
         94 °C	30 s	25×
         TM °C	30 s
         68 °C	1 min/kb
         68 °C	5 min	1×
         12 °C	Hold




         v. 20 μL of each PCR product are checked by electrophoresis on agarose gel (1%) – TAE 0.05% – SYBR^TM Safe 0.005%.

         vi. Pick corresponding positive colonies on the plate with a toothpick and inoculate 5 mL of LB Miller + kanamycin (25 μg/mL) for each.

         vii. Incubate culture and shake overnight at 37 °C.

         viii. Perform plasmid extraction and purification for each clone using a suitable kit (e.g., NucleoSpin^® Plasmid kit, Macherey Nagel).

         ix. Elute plasmid DNA according to the supplier’s instructions.

         x. Using a spectrophotometer, determine the sample concentration (A260 nm) and check the DNA purity (A260/A280 nm ratio should be comprised between 1.8 and 2.0).

         xi. Perform sequencing using the universal primers below and verify the integrity of the polycistronic gene sequence.

         M13 Forward (-20): 5'-GTAAAACGACGGCCAG-3'

         M13 Reverse: 5'-CAGGAAACAGCTATGAC-3'


         Troubleshooting: If no amplification is obtained after PCR reaction, repeat the reaction under the same conditions but taking care to resuspend only a very small quantity of bacteria in the reaction medium because too many cells could inhibit the reaction.




3. Assembly in destination vector

   The promoter, ZCas9, and the polycistronic gene cloned independently into entry vectors are then assembled using Gateway^® Cloning technology to form a final plasmid ready for plant transformation (Figure 6). All these elements, flanked by compatible recombination sequences, will assemble in an orderly manner thanks to the integrase and excisionase activity of a mixture of enzymes according to the Multisite Gateway^® Technology protocol (see Table 9 for LR reaction conditions).

   Note: Some minor modifications were made to the Multisite Gateway^® Technology protocol. Namely, LR recombination reaction volume is reduced from 10 to 5 μL, we do not take into account the molarity but the concentration of the plasmids in ng/µL, and no Proteinase K treatment is necessary after the LR recombination reaction.

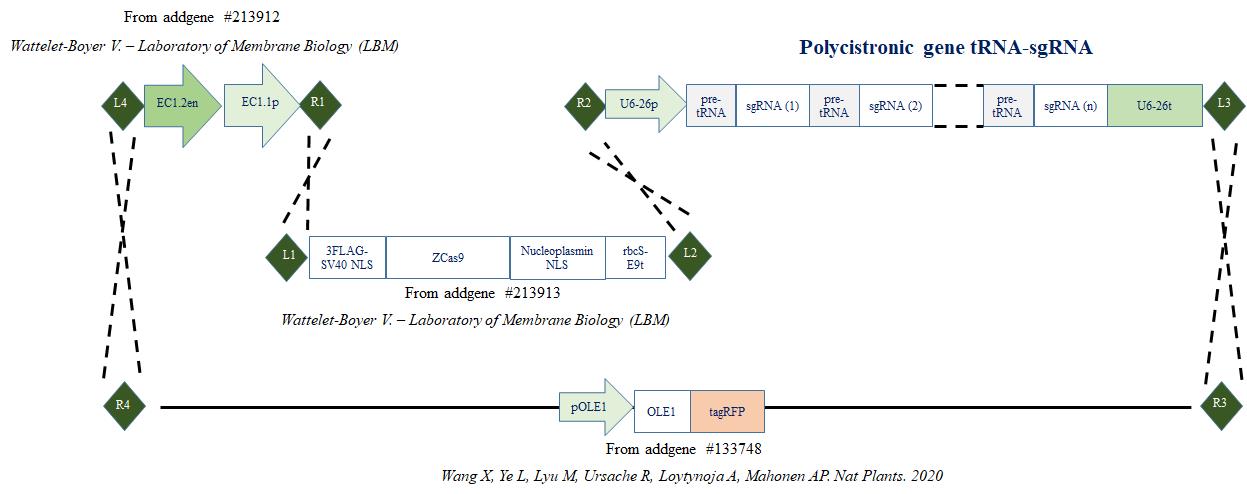

   Figure 6. Generating the expression clone containing the promoter, zCas9, and the polycistronic gene (adapted from the user guide “MultiSite Gateway^® Three-Fragment Vector Construction Kit”).




   1. Homologous recombination reaction

      Material needed

      Purified plasmid DNA of your attL4 and attR1-flanked entry clone (supercoiled, 80 ng/μL)

      Purified plasmid DNA of your attL1 and attL2-flanked entry clone (supercoiled, 80 ng/μL)

      Purified plasmid DNA of your attR2 and attL3-flanked entry clone (supercoiled, 80 ng/μL)

      Purified plasmid DNA pFRm43GW (150 ng/μL)

      Gateway^TM LR Clonase^TM II

      One Shot^TM TOP10 chemically competent E. coli

      LB Miller media

      Spectinomycin dihydrochloride pentahydrate

      Bacteriological agar




      Table 9. LR reaction conditions

      Components	Volume
      attL4 and attR1-flanked entry clone	1 μL
      attL1 and attL2-flanked entry clone	1 μL
      attR2 and attL3-flanked entry clone	1 μL
      pFRm43GW	1 μL
      GatewayTM LR ClonaseTM II	1 μL




      Note: Be sure to keep the LR Clonase^® II enzyme mix on ice while preparing the recombination reaction. Return the enzyme mix to -20 °C immediately after use.


      Incubate overnight at 25 °C.

      The day after, use all the LR reaction to transform chemically competent cells:

      i. Add 5 μL of LR reaction to 50 μL of One Shot^TM TOP10 chemically competent E. coli (e.g.).

      ii. Incubate for 30 min on ice.

      iii. Heat shock for 1 min 30 s at 37 °C.

      iv. Transfer on ice for 2 min.

      v. Add 1 mL of LB Miller media.

      vi. Shake for 45 min at 37 °C.

      vii. Spread on LB Miller agar plate containing spectinomycin (50 μg/mL).

      viii. Incubate the plate overnight at 37 °C.




      Troubleshooting: If no colony is obtained after transformation, repeat the reaction under the same conditions. If the problem persists, this is probably due to the enzyme mixture, which may have been stored on ice for too long before being returned to -20 °C during the previous use.

   2. Screening positive colonies by PCR

      Perform PCR screening as described in step B2e. Use various couples of primers to verify the integrity of the vector (Table 10); see Figure 7 for primers details.

      Troubleshooting: If no amplification is obtained after PCR reaction, repeat the reaction under the same conditions but taking care to resuspend only a very small quantity of bacteria in the reaction medium, because too many cells could inhibit the reaction.




      Table 10. List of primers needed for the PCR screening

      Primer ID	Primer sequence 5’ > 3’	Size of the PCR product
      EC1.2en-fw	TTGCGTTTGGTTTATCATTGCG	400 bp
      EC1.2en-rv	AGTGTTGTCGATGTGTCATGT
      Zcas9-fw	GGATGATGATGACAAGATGG	450 bp
      Zcas9-rv	GTGGTAGGCAACCTCGTC
      U6-26p-fw	GATTAGGCATCGAACCTTC	750 bp
      U6-26t-rv	GTTTATCTCATCGGAACTGC





      Figure 7. Performing PCR to check the integrity of the vector. Little arrows represent primers used to check that the promoter, zCas9, and the polycistronic gene were cloned into the destination vector.




      For colonies that were positives for the three PCR reactions:

      Perform plasmid extraction and purification as described in step B2e [use LB Miller + spectinomycin (50 µg/mL) to inoculate positive colonies in order to perform plasmid extraction and purification].

   3. Sequencing

      Perform sequencing using the primers below and verify the integrity of the destination vector (Table 11); see Figure 8 for primers details.




      Table 11. List of primers needed for the destination vector sequencing

      Primer ID	Primer sequence 5’ > 3’
      pEC1.2en-seq-F	GGAGCGCTACTGATTCAAC
      Cas9Seq_658_678	GTTGACAAGCTGTTCATCCAG
      Cas9Seq_1520_1539	AGTCAGAGGAGACGATCACG
      Cas9Seq_2330_2349	TGCAGACCGTGAAGGTTGTG
      Cas9Seq_3163_3186	TACGATGTGAGGAAGATGATCGCC
      U6-26p-seq-F	TGTCCCAGGATTAGAATGATTAGGC





      Figure 8. Performing sequencing to check the integrity of the vector. Little arrows represent primers used to check by sequencing that promoter, zCas9, and the polycistronic gene were assembled into the destination vector.




      After sequencing and checking, the plasmid is ready to transform Agrobacterium tumefaciens (strain C58C1). The transformed strain will be used for Arabidopsis thaliana transformation by the floral dip method [19]. Transformants are then selected according to seed tagRFP fluorescence (red seed coat selection) [20].

Validation of protocol

AtMCTP3 and AtMCTP4 genes belong to the multiple C2 domains and transmembrane region protein (MCTP) multigenic family. Associated proteins are key regulators of cell-to-cell signaling in plants and act as ER-PM tethers specifically at plasmodesmata. The previously characterized Atmctp3/Atmctp4 loss of function mutant induces plant developmental defects and impaired plasmodesmata function and composition [21]. This mutant is strongly affected in its development; thus, AtMCTP3 and AtMCTP4 genes are excellent candidates to validate a multi-targeting genome editing protocol.

The protocol we described allowed us to edit simultaneously AtMCTP3 and AtMCTP4 genes using two guides per targeted gene and to obtain the Atmctp3/Atmctp4 double mutant–associated phenotype (Figure 9B). We compare also with the same cloning strategy using only one guide per targeted gene. Our strategy allowed us to obtain at least 15% of biallelic CRISPR Atmctp3/Atmctp4 mutants using one guide per gene, and 20% CRISPR Atmctp3/Atmctp4 mutants using two guides per gene (either homozygous or biallelic mutants depending on the guide) (Table 12). Most of the time, the "two guides per gene" strategy led to big deletions for AtMCTP3 gene (around 440 bp deletion depending on the line), while only 1 or 2 bp indels were obtained for AtMCTP4 gene.

Figure 9. AtMCTP3 and AtMCTP4 genes targeting and associated phenotype. (A) SgRNA targeting zone in AtMCTP3 and AtMCTP4 genes. (B) CRISPR double mutant Atmctp3/Atmctp4 associated phenotype (yellow arrow) compared to wild type on the side. Both black and red SgRNA were used for two guides per gene strategy. Only red guides were used for the single guide per gene strategy.

Table 12. roportion of CRISPR Atmctp3/Atmctp4 mutants for both strategies and type of mutation obtained for each sgRNA. NA = not applicable.

	Atmctp3, Atmctp4 phenotype	Atmctp3 homozygous mutation		Atmctp3 biallelic mutation		Atmctp4 homozygous mutation		Atmctp4 biallelic mutation
		SgRNA4	SgRNA3	SgRNA4	SgRNA3	SgRNA2	gRNA1	SgRNA2	SgRNA1
1 guide strategy n = 19	3/19 15.78%	NA	0/3	NA	3/3	NA	0/3	NA	3/3
2 guides strategy n = 24	5/24 20.83%	5/5	4/5	0/5	0/5	0/5	2/5	2/5	3/5

Highlighting versatility and adaptability to inducible or cell type-specific editing

Here, we described a cell type–specific editing system that avoids mosaicism by using the egg cell promoter to control zCas9 expression. Depending on the biological question, other cell type–specific editing strategies may be necessary (e.g., if one wants to target only the quiescent center, cortex in the root). These questions can be assessed using cell type–specific promoters. These promoters can also be used in an inducible version in association with the XVE module to allow induction with β-estradiol. To do this, the promoter of interest must be cloned in pDONR^TM P4-P1R vector according to Thermo Fisher’s recommendations.

Briefly, the promoter should be amplified with primers containing attB4 and attB1r recombination sites (see below for primer sequences). The PCR product is then cloned into the entry clone via a BP recombination reaction (with the same conditions as described in section B2d for cloning the polycistronic gene into pDONR^TM P2R-P3 vector). Classical steps of E. coli transformation, screening, and sequencing are carried out as described previously.

Primer sequences for promoter amplification:

attB4 5’ - GGGG-ACA-ACT-TTG-TAT-AGA-AAA-GTT-GNN--(template-specific sequence)-3’

attB1r 5’ – GGGG-AC-TGC-TTT-TTT-GTA-CAA-ACT-TGN--(template-specific sequence)-3’

Finally, the newly designed vector is used for final LR recombination in association with the attL1 and attL2-flanked entry clone (encoding for the Cas9) and the attR2 and attL3-flanked entry clone (encoding for the polycistronic gene pre-tRNA/sgRNA) (following the conditions described previously).

Acknowledgments

This work was supported by the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation program (project 772103-BRIDGING to E.M.B.).

Competing interests

The authors declare no competing interests.

References

1. Doudna, J. A. and Charpentier, E. (2014). The new frontier of genome engineering with CRISPR-Cas9. Science (1979). 346(6213): e1258096. https://doi.org/10.1126/science.1258096
2. Karvelis, T., Gasiunas, G., Miksys, A., Barrangou, R., Horvath, P. and Siksnys, V. (2013). crRNA and tracrRNA guide Cas9-mediated DNA interference in Streptococcus thermophilus. RNA Biol. 10(5): 841–851. https://doi.org/10.4161/rna.24203
3. Ma, X., Zhang, Q., Zhu, Q., Liu, W., Chen, Y., Qiu, R., Wang, B., Yang, Z., Li, H., Lin, Y., et al. (2015). A Robust CRISPR/Cas9 System for Convenient, High-Efficiency Multiplex Genome Editing in Monocot and Dicot Plants. Mol Plant. 8(8): 1274–1284. https://doi.org/10.1016/j.molp.2015.04.007
4. Xie, K., Minkenberg, B. and Yang, Y. (2015). Boosting CRISPR/Cas9 multiplex editing capability with the endogenous tRNA-processing system. Proc Natl Acad Sci USA. 112(11): 3570–3575. https://doi.org/10.1073/pnas.1420294112
5. Ursache, R., Fujita, S., Dénervaud Tendon, V. and Geldner, N. (2021). Combined fluorescent seed selection and multiplex CRISPR/Cas9 assembly for fast generation of multiple Arabidopsis mutants. Plant Methods. 17(1): e1186/s13007–021–00811–9. https://doi.org/10.1186/s13007-021-00811-9
6. Ordon, J., Kiel, N., Becker, D., Kretschmer, C., Schulze-Lefert, P. and Stuttmann, J. (2023). Targeted gene deletion with SpCas9 and multiple guide RNAs in Arabidopsis thaliana: four are better than two. Plant Methods. 19(1): e1186/s13007–023–01010–4. https://doi.org/10.1186/s13007-023-01010-4
7. Wolabu, T. W., Park, J. J., Chen, M., Cong, L., Ge, Y., Jiang, Q., Debnath, S., Li, G., Wen, J., Wang, Z., et al. (2020). Improving the genome editing efficiency of CRISPR/Cas9 in Arabidopsis and Medicago truncatula. Planta. 252(2): e1007/s00425–020–03415–0. https://doi.org/10.1007/s00425-020-03415-0
8. Wang, Z. P., Xing, H. L., Dong, L., Zhang, H. Y., Han, C. Y., Wang, X. C. and Chen, Q. J. (2015). Egg cell-specific promoter-controlled CRISPR/Cas9 efficiently generates homozygous mutants for multiple target genes in Arabidopsis in a single generation. Genome Biol. 16(1): e1186/s13059–015–0715–0. https://doi.org/10.1186/s13059-015-0715-0
9. Yan, L., Wei, S., Wu, Y., Hu, R., Li, H., Yang, W. and Xie, Q. (2015). High-Efficiency Genome Editing in Arabidopsis Using YAO Promoter-Driven CRISPR/Cas9 System. Mol Plant. 8(12): 1820–1823. https://doi.org/10.1016/j.molp.2015.10.004
10. Geng, H., Wang, Y., Xu, Y., Zhang, Y., Han, E., Peng, Y., Geng, Z., Liu, Y., Qin, Y., Ma, S., et al. (2023). Data-driven optimization yielded a highly-efficient CRISPR/Cas9 system for gene editing in Arabidopsis. bioRxiv 2023.10.09.561629. https://doi.org/10.1101/2023.10.09.561629
11. Magnani E, Bartling L, Hake S. (2006). From Gateway to MultiSite Gateway in one recombination event. BMC Mol Biol. 7:46. https://doi.org/10.1186/1471-2199-7-46.
12. Engler, C., Kandzia, R. and Marillonnet, S. (2008). A One Pot, One Step, Precision Cloning Method with High Throughput Capability. PLoS One. 3(11): e3647. https://doi.org/10.1371/journal.pone.0003647
13. Siligato, R., Wang, X., Yadav, S. R., Lehesranta, S., Ma, G., Ursache, R., Sevilem, I., Zhang, J., Gorte, M., Prasad, K., et al. (2015). MultiSite Gateway-Compatible Cell Type-Specific Gene-Inducible System for Plants. Plant Physiol. 170(2): 627–641. https://doi.org/10.1104/pp.15.01246
14. Decaestecker, W., Buono, R. A., Pfeiffer, M. L., Vangheluwe, N., Jourquin, J., Karimi, M., Van Isterdael, G., Beeckman, T., Nowack, M. K., Jacobs, T. B., et al. (2019). CRISPR-TSKO: A Technique for Efficient Mutagenesis in Specific Cell Types, Tissues, or Organs in Arabidopsis. Plant Cell. 31(12): 2868–2887. https://doi.org/10.1105/tpc.19.00454
15. Wolter, F., Klemm, J. and Puchta, H. (2018). Efficient in planta gene targeting in Arabidopsis using egg cell‐specific expression of the Cas9 nuclease of Staphylococcus aureus. Plant J. 94(4): 735–746. https://doi.org/10.1111/tpj.13893
16. Zhang, Y., Wu, Y., Li, G., Qi, A., Zhang, Y., Zhang, T. and Qi, Y. (2023). Genome-wide investigation of multiplexed CRISPR-Cas12a-mediated editing in rice. Plant Genome. 16(2):e20266. https://doi.org/10.1002/tpg2.20266
17. Grützner, R., Martin, P., Horn, C., Mortensen, S., Cram, E. J., Lee-Parsons, C. W., Stuttmann, J. and Marillonnet, S. (2021). High-efficiency genome editing in plants mediated by a Cas9 gene containing multiple introns. Plant Commun. 2(2): 100135. https://doi.org/10.1016/j.xplc.2020.100135
18. Lei, Y., Lu, L., Liu, H. Y., Li, S., Xing, F. and Chen, L. L. (2014). CRISPR-P: A Web Tool for Synthetic Single-Guide RNA Design of CRISPR-System in Plants. Mol Plant. 7(9): 1494–1496. https://doi.org/10.1093/mp/ssu044
19. Clough SJ, Bent AF. Floral dip: a simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 16(6):735-43. https://doi.org/10.1046/j.1365-313x.1998.00343.x.
20. Shimada, T. L., Shimada, T. and Hara‐Nishimura, I. (2010). A rapid and non‐destructive screenable marker, FAST, for identifying transformed seeds of Arabidopsis thaliana. Plant J. 61(3): 519–528. https://doi.org/10.1111/j.1365-313x.2009.04060.x
21. Brault, M. L., Petit, J. D., Immel, F., Nicolas, W. J., Brocard, L., Gaston, A., Fouché, M., Hawkins, T. J., Crowet, J. M., Grison, M. S., et al. (2019). Multiple C2 domains and Transmembrane region Proteins (MCTPs) tether membranes at plasmodesmata. 20(8):e47182. https://doi.org/10.15252/embr.201847182.

Supplementary information

The following supporting information can be downloaded here

1. Appendix 1. List of protospacers chosen for AtMCTP4 and AtMCTP3 genes targeting.
2. Appendix 2. Details of amplified elements required for the polycistronic gene assembly.
