Method for Large-scale Production of hIPSC Spheroids

Materials and reagents

Biological materials

1. hiPSCs AG08C5 cell line (European hPSCreg as PGNMi001-A) ( https://hpscreg.eu/cell-line/PGNMi001-A) [12]

2. Healthy Control Human iPSC Line, Female, SCTi003-A (STEMCELL, catalog number: 200-0511)




Reagents

1. Maintenance culture media mTeSR^TM Plus kit, cGMP (STEMCELL, catalog number: 100-0276)

2. Vitronectin XF^TM (STEMCELL, catalog number: 100-0763)

3. TrypLE^TM (Thermo Fisher, catalog number: 12604013)

4. Y-27632 (Dihydrochloride), RHO/ROCK pathway inhibitor (STEMCELL, catalog number: 72302)

5. Fetal bovine serum (FBS) (Sigma Aldrich, catalog number:341506)

6. Gibco Dulbecco’s phosphate buffered saline (DPBS) (Thermo Scientific, catalog number: 14190)

7. Soap (e.g., Enzypin, Distrimed, catalog number: 201261)

8. Ethanol 70% (e.g., Fisher Scientific, catalog number: 16320638)




Solutions

1. hiPSC spheroids induction medium (see Recipes)

2. TrypLE^TM inhibition medium (see Recipes)




Recipes

1. hiPSC spheroids induction medium

   Composition	Final concentration	Volume
   mTeSRTM Plus	-	50 mL
   Y-27632 (10 mM)	10 μM	50 μL




2. TrypLE^TM inhibition medium

   Composition	Final concentration	Volume
   mTeSRTM Plus	-	9.8 mL
   FBS	2%	200 μL

   The solutions should be freshly prepared immediately before each experiment, with volumes adjusted according to the specific requirements. Prior to contact with the cells, these solutions must be prewarmed to 37 °C. Antibiotics can be supplemented to the medium according to your culture protocol.




Laboratory supplies

1. P1,000 pipette (e.g., Pipetman 100–1,000 µL, Gilson, catalog number: F144059M).

2. Tips 1,000 µL, (e.g., AmpliPur Expert Tips 100–1,000 µL, Gilson, catalog number: F174401)

3. Acrylic resin (Acrylate-like) (e.g., Stratasys, model: Vero Clear^TM )

4. Silicone (e.g., Elkem Silicones, model: BLUESILTM RTV 3503)

5. Disposable autoclave bag (Sigma-Aldrich, catalog number: Z692212)

6. 6-well plate, round (Thermo Fischer, catalog number: 140675)

7. Falcon 15 mL centrifuge tubes, PET, conical bottom w/plug seal cap (Sigma-Aldrich, catalog number: CLS430055)

8. Falcon 50 mL centrifuge tubes, PET, conical bottom w/plug seal cap (Sigma-Aldrich, catalog number: CLS4558)

9. Petri dish B60 (e.g., Corning, catalog number: BP53-03)

10. Tweezer (e.g., EMS 96, Sigma Aldrich, catalog number: 932922)

11. Disposable hemocytometer (e.g., Millicell^®, Sigma-Aldrich, catalog number: MDH-2N1-50PK)

12. Positive displacement pipette (e.g., Microman 100–1,000 µL, Gilson, catalog number: FD10006)

13. Capillary pistons (e.g., CP1,000ST 2 × 91 TIPACK, Gilson, catalog number: F148180)

14. Microtube Eppendorf 2 mL (Dutscher, catalog number: 033297)

Equipment

1. Inkjet 3D printer (e.g., Stratasys, model: Objects 30 pro)

2. Autoclave (e.g., Sigma-Aldrich, model: BioCLAVE^TM mini digital autoclave, catalog number: Z680109)

3. Centrifuge (e.g., Sigma Aldrich, catalog number: C166500)

4. CO₂ incubator (e.g., MEMMERT, catalog number: I227880)

5. Vacuum drying oven (e.g., Goldbrunn, model: 450)

6. Fluid aspiration systems (e.g., BVC control, Vaccubrand, catalog number: 20727200)

7. 6 well-plate rotor (e.g., Eppendorf A-4-81 Rotor, Marshall Scientific, catalog number: EP-WPB)

Software and datasets

1. MATLAB (2022b, September 20, 2022)

2. Prism v9.0 (GraphPad, October 27, 2020)

Procedure

The aim of the procedure is to generate a biocompatible and autoclavable device, simplifying the induction of spheroids. As illustrated in Figure 1, the experimenter needs only to 3D-print the provided molds using the supplied 3D files (STL) to create an unlimited number of devices.

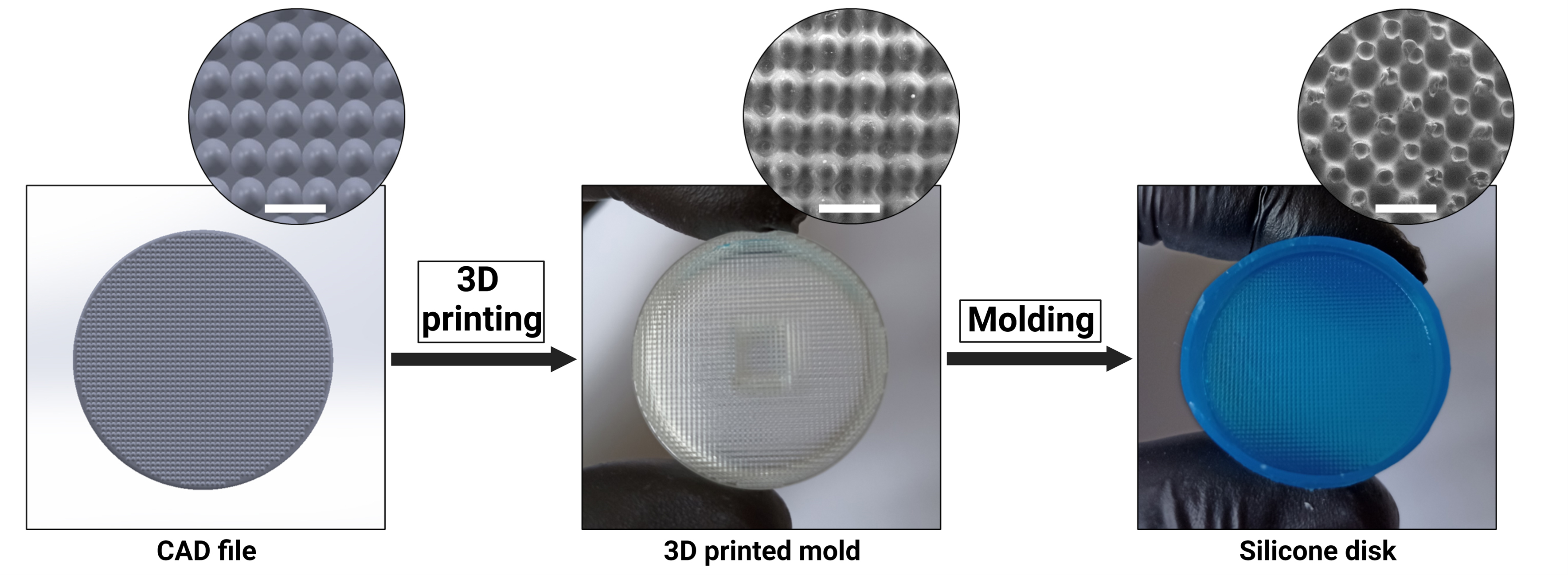

Figure 1. Silicone disc fabrication process. Scale bar = 1 mm. SEM: TM4000 (Itachi, Japan).

1. Mold 3D printing

   1. Use an inkjet 3D printer to produce the acrylic resin molds from the “EBs-mold-base.STL,” “EBs-mold-intern.STL,” and “EBs-mold-extern.STL” STL files (available at https://github.com/Klux1rst/Spheroids-Inducer-Mold-Bioprotocol/tree/main). It is recommended to use the most resolution-enhancing default parameters to achieve a high-quality mold (See General Notes 1).

   2. Perform post-printing cleaning on the 3D printed molds (usually by soaking in 50 mL of EtOH 70% in an open container for 12 h at room temperature but consult your material instructions because the post-printing process is resin dependent). Allow the acrylate mold to dry at room temperature for 30 min before use.




2. Silicone disc production

   Note: The following steps are illustrated in Figure S1.

   1. Handle the basal piece (EBs-mold-base).

   2. Snap the central piece into the basal piece (EBs-mold-intern).

   3. To complete the assembly, snap the external part into the basal piece (EBs-mold-extern).

   4. Confirm proper assembly, ensuring all pieces fit securely. Place the mold in the upper lid of a B60 Petri dish.

   5. Deposit 1 mL of silicone, starting with the peripheral groove between the central and external pieces. A positive displacement pipette is recommended to ensure an accurate volume.

   6. Deposit another 1 mL a second time at the center of the mold.

      Note: If only classic pipettes are available, approximately 2 mL of silicone can be deposited directly. Use a balance for accuracy (approximately 2 g).

   7. Place the assembly in a sealed chamber and create a vacuum for 5 min. This step is crucial to eliminate bubbles resulting from the mixing of the two silicone phases (if RTV silicon) and to ensure silicone penetration into the peripheral groove.

   8. Gently place the lower part of the B60 to smooth the silicone on the mold surface. Starting from one corner, gradually deposit to avoid trapping air. A weight can be placed on top to maintain pressure.

   9. Incubate the assembly at 37–55 °C for 20 min to catalyze crosslinking. Alternatively, incubate for 1.5 h at room temperature (depending on the silicone used).

   10. Retrieve the assembly after complete silicone crosslinking.

   11. Remove the upper part of the B60 (no need to force).

   12. Gently remove (lever from an angle) the lower part of the Petri dish while manually holding the mold.

   13. Using a spatula, lever at the notches located at the base of the external part (EBs-mold-extern) of the mold. Gradually proceed from notch to notch until complete separation from the lower part (EBs-mold-base).

   14. The base (EBs-mold-base) of the mold is completely removed.

   15. Manually remove the external part (EBs-mold-extern) by applying gentle pressure.

   16. The external part (EBs-mold-extern) of the mold is completely removed.

   17. Finally, gently remove the silicone disk from the internal part ( EBs-mold-intern) with your fingers.

   18. The internal part (EBs-mold-intern) of the mold is completely removed.

   19. The molding process is complete. After a soap washing step (optional: use a toothbrush with soft bristle), the resulting disk can be autoclaved (liquid or dry) and used.




3. hiPSCs aggregation

   Note: Perform the culture operation in a level 1 or 2 laboratory in a dedicated laminar airflow cabinet. Use autoclaved tweezers to ensure sterility. After use, store the forceps in a 15 mL Falcon filled with 70% EtOH until the next autoclaving.

   1. Using tweezers, place the silicon discs at the bottom of 6-well plates.

   2. Prepare the hiPSC spheroids induction medium (see Recipe 1) and TrypLE^TM inhibition medium (see Recipe 2).

   3. Culture hiPSCs in mTeSR^TM Plus containing medium on plates coated with Vitronectin XF^TM until cells reach 80%–90% of confluency (Figure 2A).

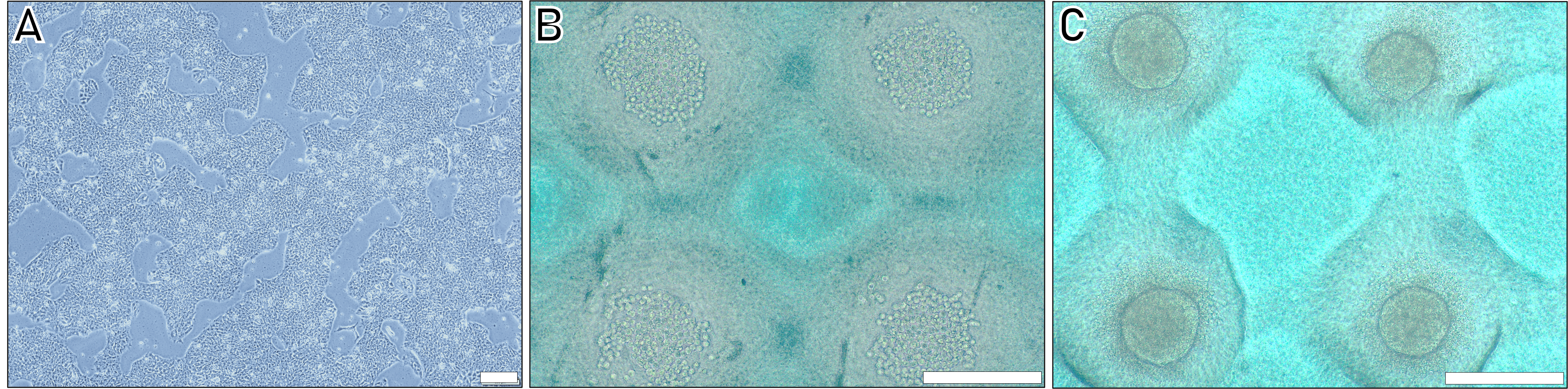

      Figure 2. Different steps of the human induced pluripotent stem cells (hiPSC) spheroids induction protocol. A. Colonies of hIPSCs before trypsination. B. Appearance of cells in wells after plating and centrifugation. C. Aspect of spheroids after 24 h aggregation. Scale bar = 200 µm.




   4. Aspirate the medium from the cells and wash with 2.5 mL of room temperature DPBS. For aspiration, use a vacuum pump with a pipette and appropriate tubing.

   5. Add 2 mL of TrypLE^TM and incubate for 5 min at 37 °C.

   6. After cell detachment, add 2.5 mL of TrypLE^TM inhibition medium. Transfer the total volume to a 15 mL Falcon tube and centrifuge at 200× g for 4 min at room temperature.

   7. Resuspend the cell pellet in 1 mL of hiPSC spheroids induction medium and count the cells (using a hemocytometer).

   8. Transfer the desired cell quantity to a 2 mL Eppendorf tube. Gently mix.

      Note: The diameter of the resulting hiPSC spheroids is directly related to the number of cells deposited on the disc, following linear Equation 1 (example: with 1 × 10⁶ cells, D = 79.4 + 42.6 = 122 μm).

      Equation 1: Spheroid diameter (D) as a function of the number of hIPSCs deposited on the disc.




      D = 79.4x + 42.6




      with D in µm and x the number of cells per disc in 10 ⁵

   9. Distribute the cell solution evenly on the molded disc by depositing drops in a circular motion. To ensure homogeneity, deposit the cell solution across the entire disc rather than locally, preventing strong size variations of the obtained spheroids.

   10. Wait for 1 h in a 37 °C, 5% CO₂ incubator for sedimentation. This step is crucial for ensuring good cell distribution and, consequently, uniformity of the spheroids (Figure 2B ).

   11. Centrifuge at 500× g for 2 min at 20 °C to enhance cell aggregation.

   12. Place the 6-well plate in a 37 °C, 5% CO₂ incubator for 24 h (Figure 2C).




4. Spheroids extraction

   Note: Perform the culture operation in a level 1 or 2 laboratory in a dedicated laminar airflow cabinet. Use autoclaved tweezers to ensure sterility. After use, store the forceps in a 15 mL Falcon filled with 70% EtOH until the next autoclaving.

   1. After 24 h, use a P1000 pipette and 1 mL of DPBS warmed at 37 °C to pipette. Mix by aspiration, dislodging spheroids from the microwells.

   2. Gently invert the silicone discs using fine forceps.

   3. Centrifuge at 200× g for 4 min to extract the spheroids from the microwells.

   4. Collect the culture medium containing spheroids in a 50 mL collection tube for each well.

   5. Flush each disc with 5 mL of DPBS in order to recover any remaining spheroids at the well bottom and add this volume to the collection tube.

   6. Rinse each silicone disc with 2 mL of DPBS. Submerge the discs in EtOH 70% for 30 min. Wash with water and soap, rinse in dezionized water, and autoclave in an autoclave bag for the next experiment.

   7. Check spheroids integrity (refer to Figure 3A and Figure 3B) and gently centrifuge the collection tubes at 50× g for 4 min at 20 °C to obtain a pellet containing the spheroids.

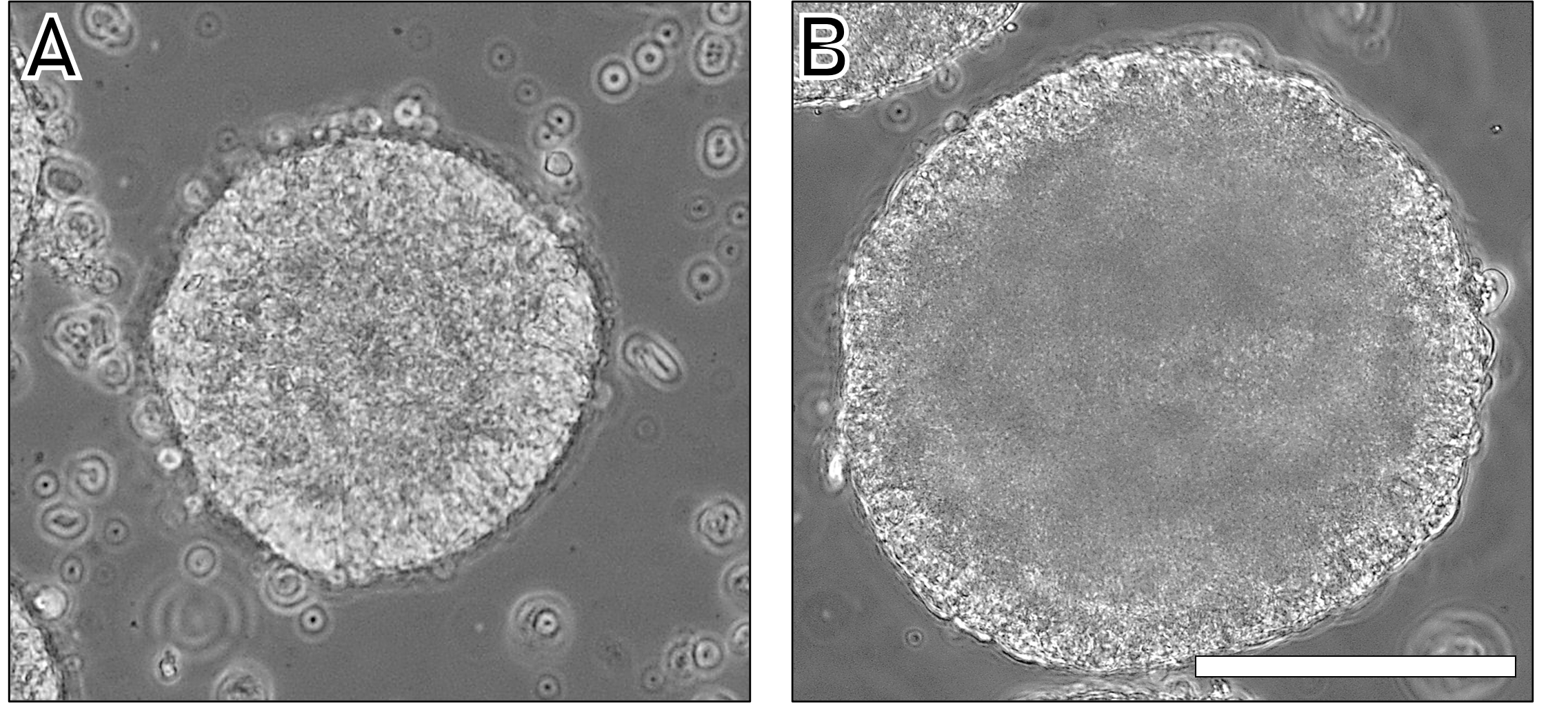

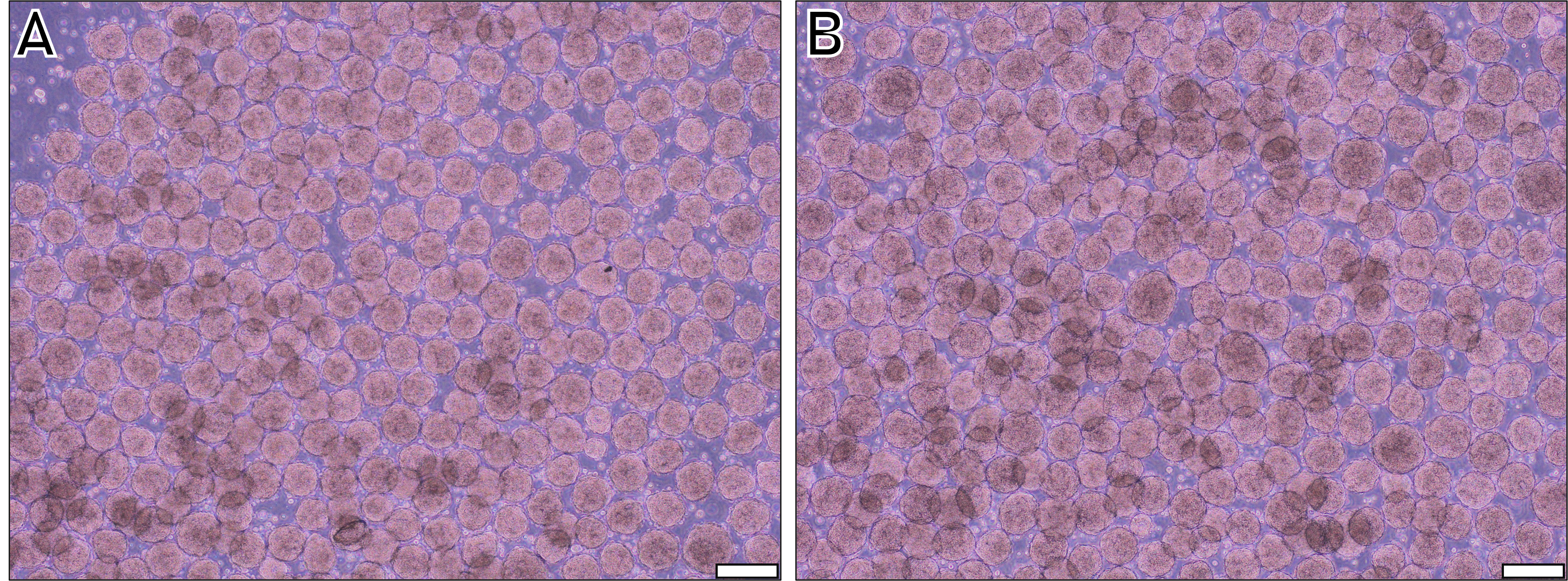

      Figure 3. Spheroids of two different human induced pluripotent stem cells (hiPSC) cell lines 24 h after deposition of 1 × 10⁶ cells per disc. A. Cell line AG08C5. B. Cell line SCTi003-A. Scale bar = 200 µm.




   8. Proceed with your experiment using the hiPSC spheroids.

Data analysis

To demonstrate the robustness of the methodology, varying quantities of hiPSCs were applied onto the discs following the protocol described above (Figure 4).

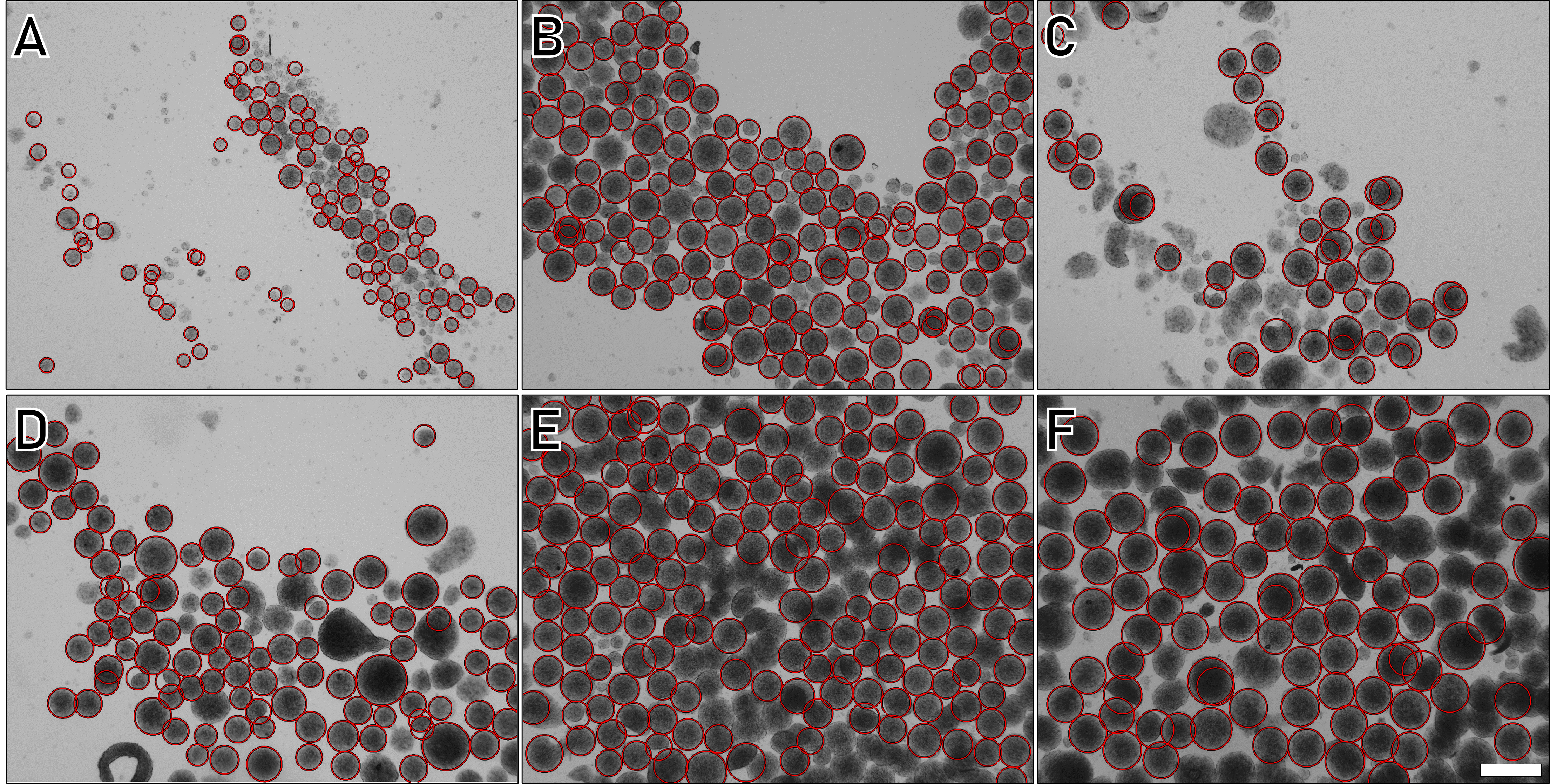

Figure 4. Human induced pluripotent stem cells (hIPSC) spheroids diameter depending on the number of cells deposited. A. 1 × 10⁵. B. 2.5 × 10⁵. C. 5 × 10 ⁵. D. 7.5 × 10⁵. E. 1 × 10⁶. F. 1.5 × 10⁶. Scale bar = 100 µm.

The obtained results were analyzed using a custom image analysis algorithm developed in MATLAB, leveraging the ImFindCircle function, which is relevant for the measurement of spheroid diameters (https://www.mathworks.com/help/images/ref/imfindcircles.html). Although not perfect due to occasional spheroid escape detection, the large number of events analyzed helps mitigate data variability. This analysis reveals a direct relationship between the quantity of cells deposited on a disc (each disc contains approximately 20,00 wells) and the resulting spheroid diameter. Spheroid polydispersity analysis based on each cell’s quantity is depicted in Figure 5.

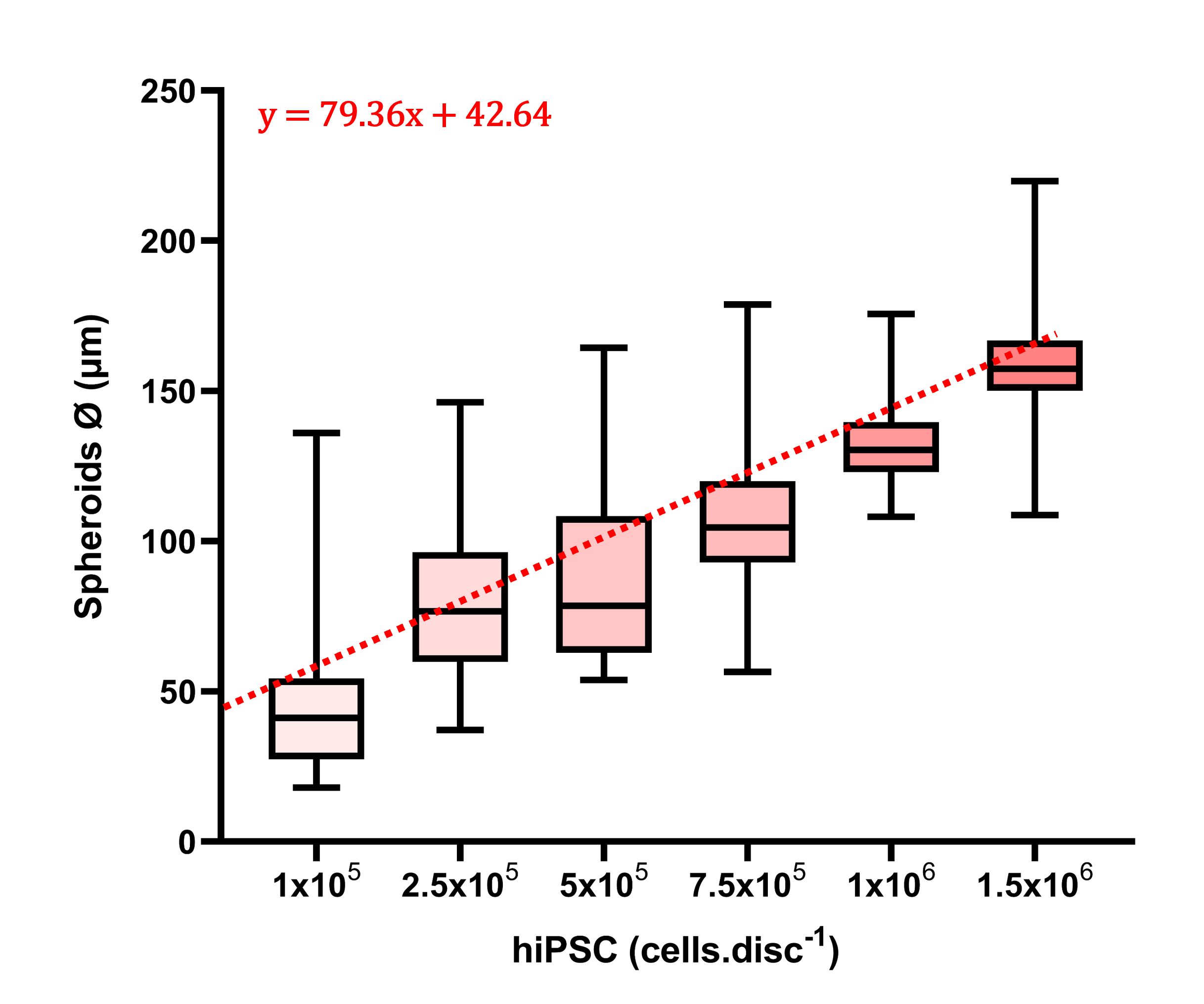

Figure 5. Human induced pluripotent stem cells (hIPSC) spheroids diameter distribution depending on the number of cells deposited (n = 300, D = trend equation, R = 0.87).

These box plots demonstrate the technique's versatility, generating spheroids ranging from 50 to 150 μm in diameter with the same mold by varying only the initial number of cells deposited. Notably, deviation is important for small cell numbers (<1 × 10⁶), reaching a minimum value of 1 × 10⁶ cells per disc. With the designed microwell diameter (approximately 400 µm), this condition appears most suitable for the production of homogeneous spheroids (Figure 4E). This observation can be attributed to a relation between microwell volume and the optimal volume occupied by cells (and hence cell quantity) for reproducible filling.

Moreover, the method demonstrates good reproducibility, with triplicate independent experiments using 1 × 10⁶ cells per disc (approximately 5,000 cells per microwell) showing a deviation of spheroid median diameters of only 10.2 µm (run 1: median 130.2 ± 10.2 μm; run 2: 127.9 ± 9.9 μm; run 3: 128 ± 10.4 μm).

The integrity of hiPSC spheroids produced by the method was observed after extraction (Figure 6A). In all cases, a clear peripheral membrane was observed, indicating good aggregation. After 5 days in culture medium (mTeSR™ Plus), significant growth was observed (Figure 6B), validating the viability and quality of the produced spheroids.

Figure 6. Spheroid diameter for the condition 1 × 10⁶ cells per disc (≃5000 cells per well) at day 1 (A) and day 5 (B). Scale bar = 100 µm.

Validation of protocol

The protocol has been successfully employed in various studies in the lab, as well as in our most recent publication (Lemarié et al, DOI: 10.3390/bioengineering10121418). In this particular study, hiPSC-induced spheroids were incorporated into different alginate-gelatine hydrogels to investigate the impact of viscoelastic properties on the spheroid’s fate in the absence of growth factor.

General notes and troubleshooting

General notes

1. When 3D-printing molds, the nature of the resin is relatively unimportant as long as the post-process is executed correctly. Notably, non-polymerized resins can hinder silicone cross-linking [13]. Regarding printing parameters, it is strongly recommended to employ the maximum resolution (layer height < 50 μm) for the central part (EBs-mold-intern). Low resolution may result in a staircase effect in the microwells, negatively impacting cell aggregation and, consequently, spheroid quality.

2. The extraction of spheroids from the well is a critical step. Turning the disc over followed by centrifugation removes most spheroids, but some may remain in the microwells. The rinsing step with DPBS allows for their recovery. It is recommended to vigorously flush (employ an important backflow rate) the disc during this step. To standardize spheroid diameter more rigorously, a strainer with defined mesh size (usually < 200 μm) can be used to set aside spheroids of excessively large diameter, particularly at the disc’s edge, which can impact spheroid diameter distribution (see Figure S2a and Figure S2b). Silicone discs are, in principle, infinitely reusable if not damaged by handling with fine forceps or during washing steps.

3. The reduced dispersion observed in spheroids induced with a 10⁶ cell deposit aligns with expectations. This deposition corresponds to approximately 500 cells per microwell, an optimal quantity considering the microwell's conical geometry with a depth of 400 μm and a base of 600 μm. The adaptability of this chosen format is elucidated in Figure 4. Note that the suitability of dimensions depends on cell type and quantity, highlighting the versatility of the selected configuration for this study.

4. After a 24 h incubation, hIPSC spheroids show optimal aggregation and structural integrity and do not disaggregate. It is recommended to use them within the first hour post-extraction to prevent fusion. They can be reintegrated into standard cell culture, adhering to the substrate coating and proliferating. Alternatively, they can be incorporated into viscous solutions like Matrigel^® while maintaining integrity. 100 μm hIPSC spheroids were successfully embedded in alginate-gelatin hydrogels with preserved viability (live-dead staining, [10]). Note the increased risk of necrotic core formation with larger spheroid diameters due to diffusion constraints.

5. The 3D model presented here (designed using Autodesk Fusion 360) is the result of several iterations and is considered a very good compromise between the average resolution of inkjet printers currently on the market and the number of spheroids obtained in each experiment.




Troubleshooting

Problem 1: No aggregation.

Possible cause: Quantity of cells.

Solution: Deposit more cells (a minimum quantity is required to allow aggregation depending on cell type).

Problem 2: Spheroids’ diameter homogeneity.

Possible cause: Deposition of cells.

Solution: Achieving a uniform deposition across the entire disc structure, for example through circular motion, is crucial to prevent local cell concentration.

Problem 3: Several spheroids per well.

Possible cause: Bad centrifugation.

Solution: Double the centrifugation time.

Problem 4: Low spheroids yield.

Possible cause: Spheroids stuck in the silicone disc microwells.

Solution: Vigorously flush the disc before flipping and centrifuge the disc.
