Optical Modulation of the Blood-Brain Barrier for Glioblastoma Treatment

Materials and reagents

Biological materials

1. Immunodeficient nude mice Foxn1^nu, 7 weeks old, female, 20–25 g (Jackson Laboratory, catalog number: Nu/J 002019)

2. PS5A1 cell line, generated from Dr. Robert Bachoo’s laboratory at the University of Texas Southwestern Medical Center (Singh et al., 2017; Gao et al., 2020)

3. 73C cell line, generated from Dr. Robert Bachoo’s laboratory at the University of Texas Southwestern Medical Center (Singh et al., 2017; Gao et al., 2020)

4. Anti-JAM-A antibodies BV11, provided by Dr. Monica Giannotta at FIRC Institute of Molecular Oncology Foundation

Reagents

Reagents for glassware cleaning

1. Hydrochloric acid (HCl) 37% w/w (Fisher Scientific, catalog number: 7647-01-0)

2. Nitric acid (HNO₃) 70% w/w (Fisher Scientific, catalog number: 7697-37-2)

1. Gold (III) chloride trihydrate (HAuCl₄·3H₂O) (Sigma-Aldrich, catalog number: 520918-1G)

2. Sodium citrate tribasic dihydrate (Sigma-Aldrich, catalog number: S4641-500G)

3. Hydroquinone (Sigma-Aldrich, catalog number: H9003-100G)

4. OPSS-PEG-SVA 3400 Da (Laysan Bio, Inc., catalog number: OPSS-SVA-3400)

5. mPEG-thiol 1,000 Da (Laysan Bio, Inc., catalog number: M-SH-1K)

6. Cytiva HyClone^TM phosphate-buffered saline (PBS) (Fisher Scientific, catalog number: SH3025801)

7. Pierce^TM borate buffer (20×) (Fisher Scientific, catalog number: PI28341)

8. Endotoxin-free ultrapure water (Sigma-Aldrich, catalog number: TMS-011-A)

Reagent for cell culture

1. Gibco^TM DMEM high glucose GlutaMAX^TM supplement (Fisher Scientific, catalog number: 10-566-016)

2. Gibco^TM DMEM/F-12, no glutamine (Fisher Scientific, catalog number: 21-331-020)

3. Gibco^TM Hanks' Balanced Salt Solution, no calcium, no magnesium, and no phenol red (HBSS) (Fisher Scientific, catalog number: 14-175-095)

4. Epidermal growth factor (EGF) (Sigma-Aldrich, catalog number: E4127)

5. Recombinant human fibroblast growth factor basic (FGF2) (Sigma-Aldrich, catalog number: F0291)

6. Progesterone (Sigma-Aldrich, catalog number: P6149)

7. Gibco^TM B-27^TM supplement (50×), serum-free (Fisher Scientific, catalog number: 17-504-044)

8. Gibco^TM insulin-transferrin-selenium-ethanolamine 100× (Fisher Scientific, catalog number: 51-500-056)

9. Gibco^TM fetal bovine serum (FBS) (Fisher Scientific, catalog number: A3160502)

10. Gibco^TM penicillin-streptomycin (Fisher Scientific, catalog number: 15-140-122)

11. Gibco^TM StemPro^TM Accutase^TM cell dissociation reagent (Fisher Scientific, catalog number: A1110501)

12. Gibco^TM Trypsin-EDTA (0.25%), phenol red (Fisher Scientific, catalog number: 25-200-056)

1. 0.9% saline solution, sterile (Fisher Scientific, catalog number: S5815)

2. Isoflurane USP (Covetrus, catalog number: NDC 66794-017-25)

3. Cremophor^® EL (Millipore Sigma, catalog number: 61791-12-6)

4. Ethanol absolute (Fisher Scientific, catalog number: BP2818100)

5. Taxol Janelia Fluor^® 646 (Tocris Bioscience, catalog number: 6266)

6. Paclitaxel (Sigma-Aldrich, catalog number: T7191)

7. Buprenorphine SR-LAB 5 mL (1 mg/mL) (ZooPharm, catalog number: BSRLAB1)

1. Paraformaldehyde, 4% in PBS (Fisher Scientific, catalog number: AAJ61899AP)

2. Sucrose (Millipore Sigma, catalog number: 57-50-1)

3. Hoechst 33342 solution (Fisher Scientific, catalog number: PI62249)

4. Scigen Tissue-Plus^TM O.C.T. compound (Fisher Scientific, catalog number: 23-730-571)

5. Invitrogen^TM Fluoromount-G^TM mounting medium (Fisher Scientific, catalog number: 50-187-88)

1. HAuCl₄ solution, 1 M (see Recipes)

2. HAuCl₄ solution, 25 mM (see Recipes)

3. Sodium citrate solution, 112.2 mM (see Recipes)

4. Sodium citrate solution, 15 mM (see Recipes)

5. Hydroquinone solution, 25 mM (see Recipes)

6. 2 mM borate buffer stock solution, pH = 8.5 (see Recipes)

7. 10% sucrose stock solution (see Recipes)

8. 20% sucrose stock solution (see Recipes)

9. 30% sucrose stock solution (see Recipes)

Recipes

1. HAuCl₄ solution, 1 M

   *Note: Upon unsealing the bottle, rapidly transfer the HAuCl₄·3H₂O into a tube to measure the weight. Aliquot the stock solution into 0.5 mL Eppendorfs and snap-freeze the solution with liquid nitrogen for future utilization. The stocks can be stored at -80 °C.

   Reagent	Final concentration	Quantity or Volume
   HAuCl4·3H2O	1 M	1 g (see note*)
   Ultrapure H2O	n/a	2.539 mL
   Total (optional)	n/a	n/a




2. HAuCl₄ solution, 25 mM

   Note: This solution should be prepared freshly.

   Reagent	Final concentration	Quantity or Volume
   HAuCl4 (1 M)	25 mM	0.05 mL
   Ultrapure H2O	n/a	1.95 mL
   Total (optional)	n/a	2 mL




3. Sodium citrate solution, 112.2 mM

   Note: This solution should be prepared freshly.

   Reagent	Final concentration	Quantity or Volume
   Sodium citrate	112.2 mM	0.165 g
   Ultrapure H2O	n/a	5 mL
   Total (optional)	n/a	n/a




4. Sodium citrate solution, 15 mM

   Note: This solution should be prepared freshly.

   Reagent	Final concentration	Quantity or Volume
   Sodium citrate	15 mM	0.022 g
   Ultrapure H2O	n/a	5 mL
   Total (optional)	n/a	n/a




5. Hydroquinone solution, 25 mM

   Note: This solution should be prepared freshly.

   Reagent	Final concentration	Quantity or Volume
   Hydroquinone	25 mM	0.0138 g
   Ultrapure H2O	n/a	5 mL
   Total (optional)	n/a	n/a




6. 2 mM borate buffer stock solution, pH = 8.5

   Reagent	Final concentration	Quantity or Volume
   Borate buffer (20×)	2 mM	0.2 mL
   Ultrapure H2O	n/a	99.8 mL
   Total (optional)	n/a	100 mL




7. 10% sucrose stock solution

   *Note: PBS should be added in increments of 10 mL. Allow the solution to mix completely before adding any more PBS.

   Reagent	Final concentration	Quantity or Volume
   Sucrose	10% (w/v)	10 g
   PBS (1×)	n/a	see note*
   Total (optional)	n/a	100 mL




8. 20% sucrose stock solution

   *Note: PBS should be added in increments of 10 mL. Allow the solution to mix completely before adding any more PBS.

   Reagent	Final concentration	Quantity or Volume
   Sucrose	20% (w/v)	20 g
   PBS (1×)	n/a	see note*
   Total (optional)	n/a	100 mL




9. 30% sucrose stock solution (100 mL)

   *Note: PBS should be added in increments of 10 mL. Allow the solution to mix completely before adding any more PBS.

   Reagent	Final concentration	Quantity or Volume
   Sucrose	30% (w/v)	30 g
   PBS (1×)	n/a	see note*
   Total	n/a	100 mL

Laboratory supplies

Supplies for AuNP synthesis and antibody conjugation

1. Fisherbrand^TM polygon stir bars (Fisher Scientific, catalog number: 14-512-127)

2. Fisherbrand^TM Isotemp^TM stirrer (Fisher Scientific, catalog number: S88850200)

3. PYREX^TM short-neck heavy-wall round-bottom boiling flasks, standard taper joints (Fisher Scientific, catalog number: 10-068-1C)

4. PYREX^TM narrow-mouth heavy-duty glass Erlenmeyer flask 250 mL (Fisher Scientific, catalog number: 10-040F)

5. DWK Life Sciences Kimble^TM KIMAX^TM west condensers (Fisher Scientific, catalog number: K452000-2430)

6. PYREX^TM crystallizing dishes (Fisher Scientific, catalog number: 08-741-D)

7. Fisherbrand^TM sterile polystyrene disposable serological pipettes with magnifier stripe 10 mL (Fisher Scientific, catalog number: 13-678-11E)

8. Fisherbrand^TM sterile polystyrene disposable serological pipettes with magnifier stripe 50 mL (Fisher Scientific, catalog number: 13-678-11F)

9. Fisherbrand^TM premium microcentrifuge tubes 2.0 mL (Fisher Scientific, catalog number: 05-408-138)

10. Fisherbrand^TM premium microcentrifuge tubes 1.5 mL (Fisher Scientific, catalog number: 05-408-129)

11. Thermo Scientific^TM low protein binding microcentrifuge tubes 1.5 mL (Fisher Scientific, catalog number: PI90410)

12. Thermo Scientific^TM Nunc^TM 15 mL conical sterile polypropylene centrifuge tubes (Fisher Scientific, catalog number: 12-565-269)

13. Thermo Scientific^TM Nunc^TM 50 mL conical sterile polypropylene centrifuge tubes (Fisher Scientific, catalog number: 12-565-271)

14. 0.22 μm syringe filters (VWR, catalog number: 76479-030)

15. Spectrum^TM trial size kits for biotech-grade CE dialysis membrane tubing (1 m), MWCO: 20 kd (Fisher Scientific, catalog number: 08-801-251)

1. Fisherbrand^TM 384-well polystyrene plates (Fisher Scientific, catalog number: 12-566-625)

2. Fisherbrand^TM disposable cuvettes (Fisher Scientific, catalog number: 14-955-127)

3. Electron microscopy sciences carbon support film 5–6 nm thick on square 200 mesh copper grid (Fisher Scientific, catalog number: NC9044609)

Supplies for cell culture

1. Thermo Scientific^TM Nunc^TM EasYFlask^TM cell culture flasks 75 cm² (Fisher Scientific, catalog number: 12-565-349)

2. Thermo Scientific^TM Nunclon^TM Sphera^TM cell culture flasks 75 cm² (Fisher Scientific, catalog number: 12-566-440)

1. Micropipette puller (Sutter Instrument, catalog number: Co. P-1000)

2. Instech PE-20 tubing (Fisher Scientific, catalog number: 50-890-048)

3. BD Micro-Fine^TM IV insulin syringes (Fisher Scientific, catalog number: 14-829-1D)

4. Med Vet International Exel butterfly infusion set, with 27 G × ¾ in. needle, 12 in. tubing (Fisher Scientific, catalog number: 50-209-2293)

5. Puritan^TM cotton-tipped applicators (Fisher Scientific, catalog number: 22-029-553)

6. Fisherbrand^TM sterile alcohol prep pads (Fisher Scientific, catalog number: 22-363-750)

7. World Precision Instrument mouse dissecting kit (Fisher Scientific, catalog number: 50-822-920)

8. Henkel Loctite 4014 medical device instant adhesive clear (Henkel Adhesives, catalog number: 202152)

9. Body double standard set (Reynolds Advanced Materials)

1. BD Vacutainer^TM eccentric tip syringe (Fisher Scientific, catalog number: B300613)

2. Fisherbrand^TM Superfrost^TM plus microscope slides (Fisher Scientific, catalog number: 12-550-15)

3. Fisherbrand^TM cover glasses: rectangles (Fisher Scientific, catalog number: 12-544-18P)

Equipment

1. New Era Pump Systems Inc single channel syringe pump (Fisher Scientific, catalog number: NC1072839)

2. Fisherbrand^TM accuSpin^TM Micro 17 microcentrifuge (Fisher Scientific, catalog number: 13-100-675)

3. BioTek Synergy 2 plate reader multi-mode (The LabWorld Group, catalog number: 18531)

4. Dynamic light scattering (DLS) zetasizer nano zs (Malvern Panalytical)

5. Electron microscope (JEOL Ltd., model: JEM-1400 plus)

6. Diode-pumped high energy picosecond Nd: YAG lasers (EKSPLA, catalog number: PL2230)

7. Coherent^® LabMax touch power and energy meter (Coherent^®, catalog number: 2256258)

8. Coherent^® EnergyMax laser energy sensors (Coherent^®, catalog number: 1110746)

9. Isoflurane vaporizer (Kent Scientific, catalog number: VetFlo-1231)

10. DC temperature controller system (FHC, catalog number: 40-90-8D)

11. Rectal thermistor probe (FHC, catalog number: 40-90-5D-02)

12. Heating pad (FHC, catalog number: 40-90-2-07)

13. Syringe pump controller (World Precision Instruments, catalog number: micro-2T)

14. Brushless micromotor system (Osada, catalog number: EXL-M40)

15. Dual small animal stereotaxic instrument (KOPF, catalog number: 902)

16. Zeiss Stemi 305 microscope (Zeiss, catalog number: STEMI305-T-B)

17. HM525 NX cryostat (Epredia, catalog number: HM525 NX)

18. Virtual slide microscope (Olympus, model: VS120)

19. Spinning disk super-resolution microscope (Olympus, model: SD-OSR)

20. IVIS^® Lumina Series III (PerkinElmer, catalog number: CLS136334)

Software and datasets

1. ImageJ (version 1.53c, 6/27/2020)

2. GraphPad Prism (version 9.5.0, 12/6/2022)

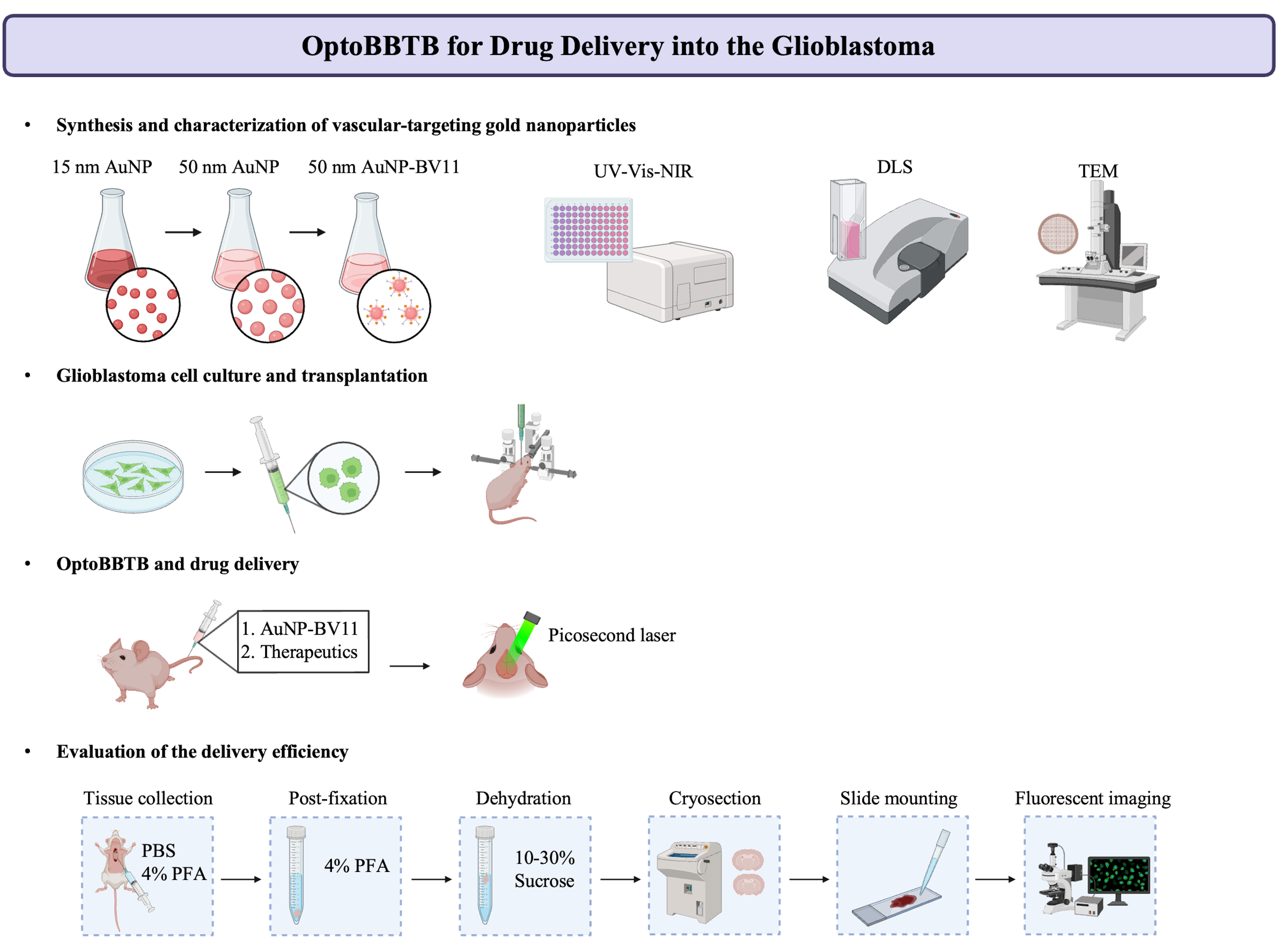

Procedure

1. General preparation for nanoparticle synthesis and conjugation

   1. Prepare fresh aqua regia in the chemical fume hood, by gently mixing 3:1 (v/v) HCl: HNO₃.

   2. Soak the glassware, magnetic stir bar, and condenser in aqua regia for at least 30 min.

      CAUTION: Mishandling of aqua regia can result in significant hazards, including the risk of explosions, skin burns, eye damage upon contact, harm to mucous membranes and the upper respiratory tract if inhaled, as well as potential harm to internal organs if ingested. It is crucial to never seal aqua regia in a closed container, as the gases produced can lead to pressure buildup and potentially over-pressurize the vessel. Proper personal protective equipment (PPE) is essential when working with aqua regia.

   3. Rinse the glassware and magnetic stir bars thoroughly with Millipore-filtered water in the chemical fume hood followed by rinsing with endotoxin-free ultrapure water in the Class 2, type A2 biosafety cabinet.

   4. To reduce the possibility of nanoparticle contamination for further in vivo experiments, the nanoparticle syntheses are performed in the biosafety cabinet by following all strict precautions normally adopted during cell culture.

      CRITICAL STEP: To avoid nanoparticle contamination, all plasticware used in the synthesis should be endotoxin-free certified. All solvents and other reagents used for nanoparticle preparation in this work were strictly opened inside the biosafety cabinet. All the containers (i.e., conical flasks and dialysis containers) should be rinsed with 70% ethanol and Millipore-filtered water and covered properly with a piece of disinfected parafilm. All reagent solutions are filtered through 0.2 μm Millipore syringe filters in the biosafety cabinet before use unless specified.




2. Synthesis of 15 nm gold seeds

   1. Add 98 mL of endotoxin-free ultrapure water to the 250 mL glass round-bottom flask.

   2. Add 1 mL of HAuCl₄ solution (25 mM) to the round-bottle flask.

   3. Boil the solution under reflux and thorough stirring.

      CRITICAL STEP: The thorough and effective mixing is one of the key steps to achieving homogenous nucleation and growth to obtain nanoparticles with high monodispersity.

   4. Add 1 mL of sodium citrate solution (112.2 mM) while stirring.

      CRITICAL STEP: The reducing agent should be added quickly to obtain a homogenous nanoparticle growth and high monodispersity.

   5. Stir and boil the solution for 10 min.

   6. Turn off the heat and allow the system to cool to room temperature (23–25 °C) while stirring. The resulting AuNPs should exhibit a ruby-red color.

   7. Characterize the gold seeds.

      1. Measure nanoparticle size and size distribution using dynamic light scattering (DLS) (zetasizer nano zs). The measured hydrodynamic diameter of the nanoparticles is approximately 17 nm. The polydispersity index (PDI) is approximately 0.05.

         CRITICAL STEP: The hydrodynamic diameter of the seeds should be 17–18 nm with a relatively low PDI (<0.1) to grow larger nanoparticles with the desired size and quality.

         TROUBLESHOOTING: If larger or polydisperse nanoparticle sizes are observed, ensure the solution is boiled before adding the reducing agent. Ensure thorough mixing.

      2. Record UV-Vis-NIR absorption spectra using BioTek Synergy 2 plate reader for concentration measurements (Haiss et al., 2007).

      3. Measure the nanoparticle size and morphology using transmission electron microscopy (JEM-1400 plus electron microscope). The nanoparticle shape should be semi-spherical, and the diameter should be approximately 15 nm.

         PAUSE POINT: The seeds can be stored at 4 °C for two weeks. Characterization is required prior to reusing the seeds.




3. Seed-mediated synthesis of 50 nm AuNPs

   1. Add 95 mL of endotoxin-free ultrapure water to a 250 mL Erlenmeyer flask.

   2. Add 963 μL of HAuCl₄ solution (25 mM).

   3. While stirring at room temperature, add 3.71 mL of the as-prepared gold seeds (2.23 nM).

      CRITICAL STEP: For gold seeds at different concentrations, use the molar calculation to determine the equivalent volume to be added.

   4. Under thorough mixing, quickly add 963 μL of sodium citrate solution (15 mM) and 963 μL of hydroquinone solution (25 mM).

      CRITICAL STEP: These two reducing solutions should be added in quick succession to obtain nanoparticles with high monodispersity.

   5. Stir overnight. Cover the flask with a piece of disinfected parafilm to protect the solution from contamination.

   6. Characterize the nanoparticles.

      1. Measure nanoparticle size and size distribution using DLS (zetasizer nano zs). The measured hydrodynamic diameter of such prepared nanoparticles is approximately 47 nm with a PDI < 0.1.

      2. Record UV-Vis-NIR absorption spectra using BioTek Synergy 2 plate reader.

      3. Measure the nanoparticle size and morphology using transmission electron microscopy (JEM-1400 plus electron microscope). The nanoparticle shape should be spherical, and the diameter should be approximately 50 nm.

         TROUBLESHOOTING: If polydisperse nanoparticle sizes are observed, ensure the reducing agents are freshly prepared. Ensure thorough mixing.

   7. Concentrate the nanoparticles.

      1. Allocate the nanoparticles in 2 mL endotoxin-free Eppendorf and centrifuge the nanoparticles at 1,300× g for 30 min at room temperature.

      2. Discard the supernatant and collect the nanoparticle pellet in a 2 mL endotoxin-free Eppendorf.

   8. Characterize the nanoparticles after the concentration process.

      1. Dilute the nanoparticles 100-fold using endotoxin-free pure water and perform DLS for size measurement. The measured hydrodynamic diameter of such nanoparticles is approximately 50 nm with a PDI < 0.1.

         TROUBLESHOOTING: Larger nanoparticle sizes after centrifugation indicate aggregation during the concentration step. Ensure proper centrifugation time and speed.

      2. Use the diluted nanoparticles to record UV-Vis-NIR absorption spectra for concentration calculation.

         PAUSE POINT: The concentrated nanoparticles can be stored at 4 °C for two weeks. Characterization is required before reusing the nanoparticles.




4. Preparation of polyethylene glycol–antibody conjugates

   1. Thaw the BV11 (anti-JAM-A antibody) on ice, dilute to 0.5 mg/mL in PBS, then dilute in 2 mM borate buffer at pH 8.5 to 0.05 mg/mL.

      CAUTION: The borate buffer and PBS should be cooled on ice before starting the experiment. The antibody solution should be kept on ice. Do not filter the antibody solution.

   2. Dissolve OPSS-PEG-SVA in 2 mM borate buffer and quickly add to the antibody solution at a 125:1 molar ratio.

      CAUTION: The OPSS-PEG-SVA solution should be kept on ice.

   3. Transfer the solution to a 15 mL Falcon tube, vortex briefly, and shake on ice for 3 h.

   4. Remove the unreacted OPSS-PEG-SVA by dialysis.

      1. Disinfect a plastic container with 70% ethanol, followed by rinsing with Millipore-filtered water and then rinsing with endotoxin-free ultrapure water. Fill the container with 3 L of borate buffer (2 mM, pH 8.5). Cover the container with disinfected parafilm and aluminum film. Cool the buffer to 4 °C.

      2. Immerse a 20 kDa MWCO membrane in the borate buffer for at least 30 min to activate the membrane.

      3. Fill the dialysis bag with the antibody-PEG mixture, followed by dialysis at 4 °C overnight to remove free OPSS-PEG-SVA under mild stirring.

         CRITICAL STEP: To ensure the thorough removal of the free OPSS-PEG-SVA, the borate buffer can be replaced after dialysis for 3 h.




5. Functionalization of AuNPs with polyethylene glycol–antibody conjugates

   1. Collect the thiolated antibodies in a 15 mL Falcon tube and mix the solution with concentrated AuNPs at a 200:1 molar ratio. Shake the nanoparticle–antibody solution for 1 h on ice.

   2. Add mPEG-thiol solution (1,000 Da) at 6 PEG/nm² to backfill the empty space of AuNPs. Shake the solution for 1 h on ice.

   3. Purify the resulting AuNP-BV11 conjugates by centrifugation (1,300× g, 30 min, 4 °C) with ice-cold borate buffer (2 mM, pH 8.5). Repeat the process three times to remove excess antibodies.

   4. Dilute the nanoparticles 500-fold using borate buffer (2 mM) and characterize the nanoparticles by DLS and UV-Vis-NIR absorption spectra. The measured diameter of these nanoparticles should be approximately 70 nm and the nanoparticle concentration approximately 20 nM. Representative characterization of AuNP and AuNP-BV11 is shown in Figure 1.

      PAUSE POINT: AuNP-BV11 can be stored at 4 °C for up to two weeks.

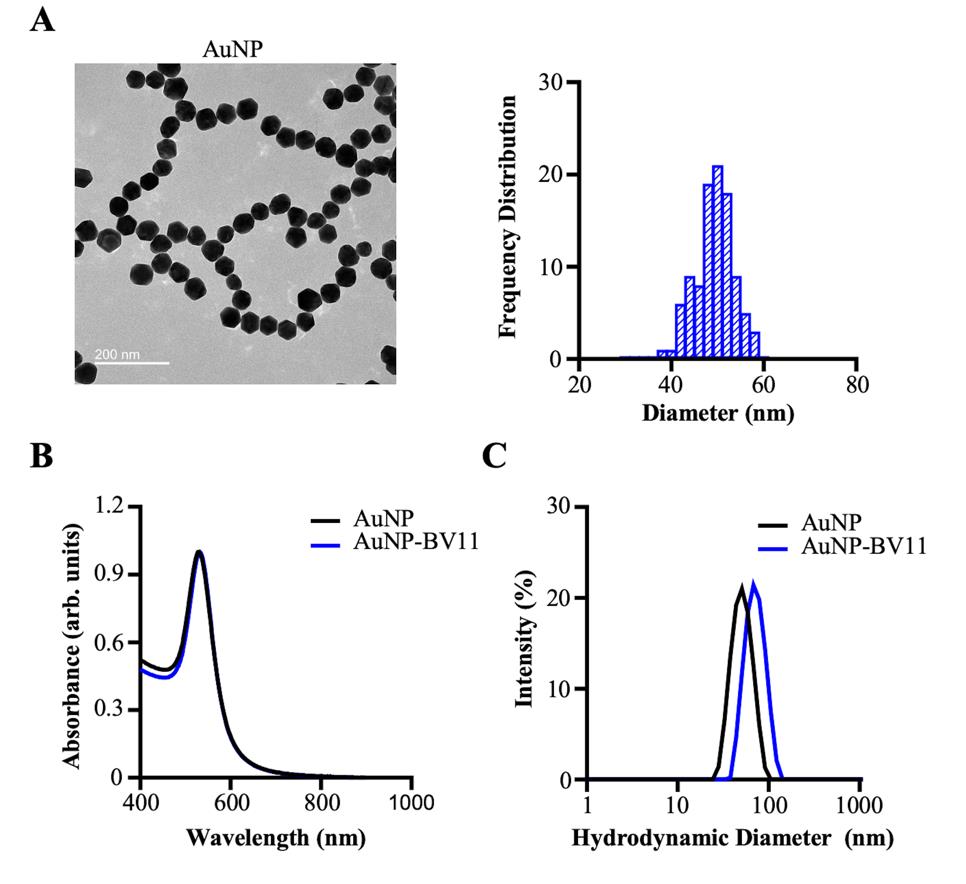

      Figure 1. Characterization of the gold nanoparticles (AuNPs). (A) The morphology and size of the AuNP core are characterized by transmission electron microscopy. The size of the nanoparticles (50 ± 4 nm) was measured with ImageJ by manually counting 100 particles. (B) The localized surface plasmon resonance peaks of AuNP and AuNP-BV11 are characterized by UV-Vis-NIR spectroscopy. (C) The hydrodynamic diameter distribution by the relative intensity of AuNP and AuNP-BV11 is characterized by dynamic light scattering. The Z-average for AuNP and AuNP-BV11 was 49 nm and 69 nm, respectively. The data was plotted using GraphPad Prism software. The data was first published in Cai et al. (2023) and presented with modifications.




6. Glioma cell culture

   1. Culture PS5A1 cells as free-floating neurospheres in DMEM/F12 medium containing B-27 2%, 20 ng/mL EGF, 20 ng/mL FGF2, 20 ng/mL progesterone, and 1% insulin-transferrin-selenium-ethanolamine. Subculture the glioma cells two days before transplantation to reach 70%–80% confluence to use.

   2. Culture 73C glioma cells in DMEM high glucose medium containing 10% FBS and 1% penicillin- streptomycin. Subculture the glioma cells 2 days before transplantation to reach 70%–80% confluence to use.

   3. Before cell transplantation, dissociate the PS5A1 and 73C glioma cells with cell dissociation reagent and Trypsin-EDTA, respectively, and resuspended in HBSS.

   4. Prepare cell suspensions using HBSS solution to achieve a density of 2 × 10⁵ cells/μL.




7. General preoperative procedure

   1. At the start of surgical procedures and between surgeries, sterilize surgical tools (World Precision Instrument mouse dissecting kit) with a bead sterilizer for 15 min.

   2. Clean the operative table with 70% ethanol and cover it with a sterile drape to create a sterile environment for placing sterile tools.

      CRITICAL STEP: Maintain sterility throughout the entire surgical procedure.

   3. For all procedures, anesthetize the mouse with 2%–3% isoflurane (in the air) and keep them on a heating pad at 37 °C.

      CAUTION: Start the experiment once the mouse has become unresponsive to painful stimuli, such as a tail pinch. Improperly managed isoflurane can be harmful; prolonged exposure may result in adverse health effects for the operator, including symptoms like dizziness, headaches, vomiting, and nausea. The use of an exhaust system is imperative to effectively remove excess isoflurane during the surgery.

   4. Cover the mice’s eyes with ophthalmic ointment.




8. Glioma cells transplantation

   1. Subcutaneously inject Buprenorphine (1 mg/kg) into the mice before surgery.

   2. Prepare glass micropipettes with 50 μm tips with a micropipette puller (Figure 2A). Connect the glass micropipette with a nanoinjector and set the injection speed to 30 nL/min.

      CRITICAL STEP: Inject slowly to avoid an acute increase of intracranial pressure and facilitate diffusion of the fluid.

   3. Glioma cells injection:

      1. Stabilize the mouse on the small-animal Stereotaxic instrument with ear bars. Check the stability under the dissection scope by lightly probing with a pair of forceps.

         CRITICAL STEP: There should be no movement of the skull relative to the ear bars.

      2. Disinfect the scalp with an alcohol prep pad.

      3. Make a midline incision of the scalp using small scissors.

      4. Remove the membranes on top of the skull using a sterile cotton swab.

      5. Place a thin layer of glue (Henkel Loctite 4014 medical device instant adhesive clear) on the skull and the surrounding skin. Wait 5–10 min for the glue to be bonded to the skin and skull.

      6. Using a hand-held drill, make a single burr hole in the skull at the injection site (Figure 2B).

         CRITICAL STEP: Use only light motions and avoid direct downward pressure. Stop drilling every 20–30 s to remove bone dust using compressed air.

      7. Fill the glass micropipette with tumor cell suspension. Align the micropipette with the burr hole (Figure 2C).

      8. Lower the micropipette until the tip touches the cortical surface and use this point as zero. Lower the micropipette to the desired depth (0.5 mm below the cortical surface).

      9. Carefully inject 368 nL of PS5A1 glioma cell suspension or 92 nL of 73C glioma cell suspension into the mouse cortex.

      10. After injection, allow 2–5 additional minutes of rest time before starting to withdraw the micropipette.

      11. Seal the burr hole with box wax and apply a layer of body double to the skull for protection (Figure 2D).

   4. House the mouse for three days (73C) to two weeks (PS5A1) to allow tumor growth before starting the experiments.





      Figure 2. Glioblastoma cell transplantation. (A) Glass micropipette. The scale bar represents 50 μm. (B) Mouse with a burr hole in the skull. The arrow indicates the position of the burr hole. (C) Setup for the glioma cell injection. The zoom-in image illustrates the precise alignment of the glass micropipette with the burr hole. (D) Mouse with body double covered on its head after injection.




9. Minimal skin opening and laser stimulation of the brain for optoBBTB

   1. Intravenously inject (tail vein) AuNP-BV11 into the GEMMs (18.5 and 37 μg/g in saline for PS5A1 and 73C GEMM, respectively) using PE-20 tubing and butterfly infusion set with 27G × ¾ in needle.

   2. Procedures for optoBBTB:

      1. One hour after the nanoparticle injection, peel the body double to expose the skull. Keep the skull moisturized using saline.

      2. Align the laser beam to the tumor area using the minimum laser power (1%).

      3. Apply one picosecond laser pulse (532 nm, 40 mJ/cm², 6 mm beam size) through the skull above the tumor area (Figure 3).

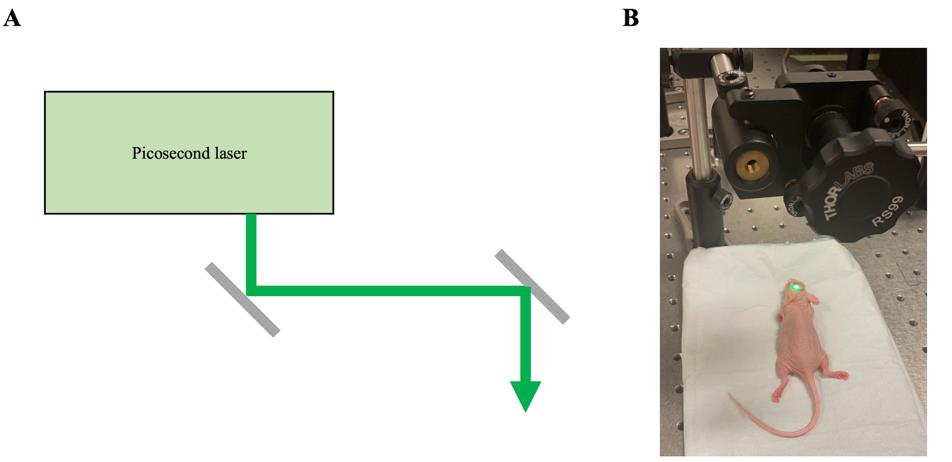

      Figure 3. Setup for optoBBTB. (A) Schematic diagram of a picosecond laser for optoBBTB. (B) Photograph capturing a mouse undergoing laser excitation as part of the optoBBTB procedure. The laser was configured in continuous mode to align its position accurately.




10. Evaluation of the optoBBTB efficiency

    1. Fluorescent imaging of the delivery of Taxol Janelia Fluor® 646 (Taxol646) after optoBBTB (Figure 4A and 4B, left):

       1. Dissolve the Taxol646 in a mixer of Cremophor EL:absolute ethanol (1:1 v/v, as the vehicle) to 6 mg/mL and then dilute to 2 mg/mL with saline.

       2. Immediately after optoBBTB, intravenously inject fluorescent Taxol646 (12.5 mg/kg).

       3. Thirty minutes after the injection, perfuse the mouse with ice-cold PBS (20 mL) followed by 4% PFA (20 mL).

       4. Extract the brain and post-fix the brain with 4% PFA (15 mL) at 4 °C overnight.

       5. Dehydrate the brain with 10 mL of 10%, 20%, and 30% sucrose until it sinks to the bottom of the tube.

          CRITICAL STEP: The brain should be well-fixed with PFA before cryopreservation with sucrose because sucrose solutions above 10% are hypertonic and will cause water to flow out of cells and tissue shrinkage if tissues are not fully fixed.

       6. Snap-freeze the brain on dry ice.

          PAUSE POINT: The brains can be wrapped in aluminum foil and stored at -20 °C.

       7. Put two drops of O.C.T. into a plastic cryomold. Place the brain in the center and pour O.C.T. to embed the brain. Place the mold at -20 °C to freeze.

       8. Slice the brain into 20 μm thick slices using a cryostat.

          PAUSE POINT: The slides can be stored in a slide storage box at -20 °C.

       9. Stain the brain slices with Hoechst staining (1:2,000 in PBS) at room temperature for 10 min, followed by rinsing three times with PBS (5 min for each wash).

       10. Blot excess PBS from the non-sample surface of the glass slide.

       11. Slowly add 150 μL of the mounting medium on the glass slide and cover the glass slide with a cover slip.

           CRITICAL STEP: Avoid creating bubbles when adding the mounting medium and lower the coverslip to its place.

       12. Cure the slides at room temperature for at least 1 h before imaging.

    2. Evaluation of the treatment efficiency of optoBBTB and Paclitaxel (Taxol) delivery in PS5A1 GEMM (Figure 4A, middle, right):

       1. At 14 dpi, randomly divide the mice into four groups: (1) vehicle control; (2) free Taxol control (12.5 mg/kg); (3) optoBBTB+vehicle; (4) optoBBTB+Taxol (12.5 mg/kg). Prepare five mice for each group.

       2. Perform optoBBTB as described above.

       3. Immediately after optoBBTB, intravenously inject vehicle or Taxol into the mice.

       4. Repeat the treatment every four days for three times. Sacrifice the mice at 42 dpi.

       5. Perfuse the mice with PBS, extract the brains, and image the tumor size by fluorescent imaging.

       6. To analyze the survival, use the same treatment groups with seven mice in each group. The tumor-bearing mice should be euthanized if they develop weight loss (>20%), loss of grooming, seizures, or focal motor deficits according to the approved animal protocol.

    3. Evaluation of the treatment efficiency of optoBBTB and Paclitaxel (Taxol) delivery in 73C GEMM (Figure 4B, middle, right):

       1. At 4 dpi, randomly divide the mice into four groups: (1) vehicle control; (2) free Taxol control (12.5 mg/kg); (3) optoBBTB+vehicle; (4) optoBBTB+Taxol (12.5 mg/kg). Prepare five mice for each group.

       2. Perform optoBBTB as described.

       3. Immediately after optoBBTB, intravenously inject vehicle or Taxol into the mice.

       4. Repeat the treatment every four days for three times. Sacrifice the mice at 15 dpi.

       5. Perfuse the mice with PBS, extract the brains, and image the tumor size by fluorescent imaging.

       6. To analyze the survival, use the same treatment groups with seven mice in each group. The tumor-bearing mice should be euthanized if they develop weight loss (>20%), loss of grooming, seizures, or focal motor deficits according to the approved animal protocol.

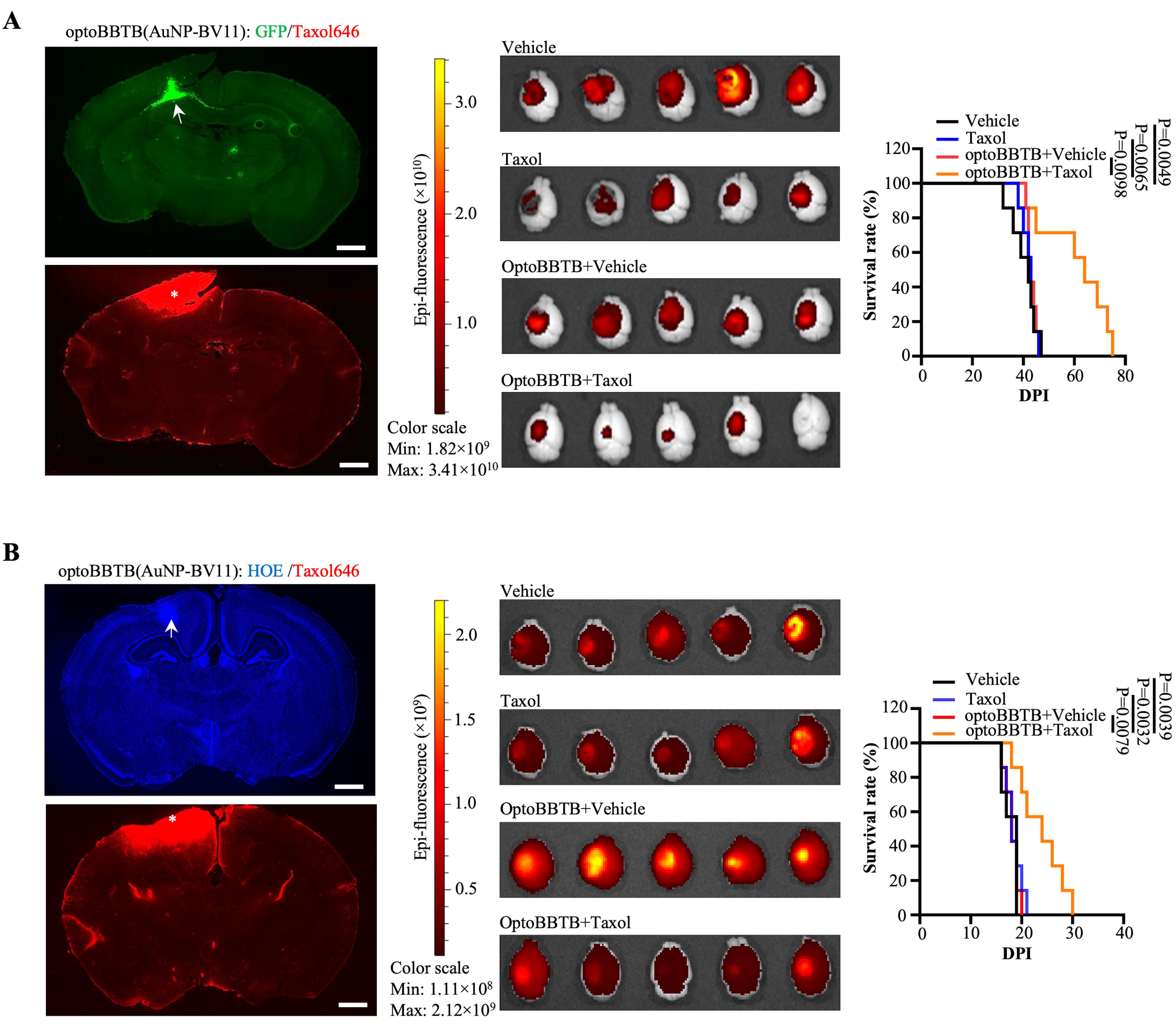

          Figure 4. Evaluation of Taxol delivery after optoBBTB. (A) Left: OptoBBTB facilitates the delivery of Taxol646 in PS5A1 GEMM. The tumor is indicated by GFP fluorescent (arrows), and BBB opening is characterized by Taxol646 leakage (asterisks). The scale bar represents 1 mm. Middle: Tumor size imaging by GFP fluorescent. Right: Kaplan-Meier survival analysis. N = 7 mice in each group. (B) Left: OptoBBTB facilitates the delivery of Taxol646 in 73C GEMM. The tumor is indicated by high density Hoechst staining (arrows), and BBB opening is characterized by Taxol646 leakage (asterisks). The scale bar represents 1 mm. Middle: Tumor size imaging by GFP fluorescent. Right: Kaplan-Meier survival analysis. N = 7 mice in each group. Statistical analyses were performed using GraphPad Prism software. The data was first published in Cai et al. (2023).

    Validation of protocol

    This protocol was validated in Cai et al., Nature Communications (2023), DOI: https://doi.org/10.1038/s41467-023-40579-1.

    Acknowledgments

    This research was partially supported by Cancer Prevention and Research Institute of Texas (CPRIT) grants RP190278 and RP210236, Department of Defense grant W81XWH-21-1-0219, and American Heart Association grant 19CSLOI34770004, National Institute of Health grant RF1NS110499, National Science Foundation grant 2123971, and funds from a Eugene McDermott Professorship to Z.Q. Illustration figures were created with Biorender.com. Figure 1 and Figure 4 were first published in Cai et al. (2023) and modified for this publication.

    Competing interests

    All authors declare no competing interests.

    Ethical considerations

    The animal ethics guidelines of the Institutional Animal Care and Use Committee (IACUC) at the University of Texas at Dallas were strictly followed, ensuring that the mouse was euthanized upon reaching either when its brain tumor surpassed the predetermined maximum volume of 1 cm³ or when its weight loss exceeded 20%.

    References

    1. Belykh, E., Shaffer, K. V., Lin, C., Byvaltsev, V. A., Preul, M. C. and Chen, L. (2020). Blood-Brain Barrier, Blood-Brain Tumor Barrier, and Fluorescence-Guided Neurosurgical Oncology: Delivering Optical Labels to Brain Tumors. Front. Oncol. 10: e00739. doi: 10.3389/fonc.2020.00739
    2. Brunner, J., Ragupathy, S. and Borchard, G. (2021). Target specific tight junction modulators. Adv. Drug Delivery Rev. 171: 266–288. doi: 10.1016/j.addr.2021.02.008
    3. Cai, Q., Li, X., Xiong, H., Fan, H., Gao, X., Vemireddy, V., Margolis, R., Li, J., Ge, X., Giannotta, M., et al. (2023). Optical blood-brain-tumor barrier modulation expands therapeutic options for glioblastoma treatment. Nat. Commun. 14: 4934. doi: 10.1038/s41467-023-40579-1
    4. Gao, X., Zhang, Z., Mashimo, T., Shen, B., Nyagilo, J., Wang, H., Wang, Y., Liu, Z., Mulgaonkar, A., Hu, X. L., et al. (2020). Gliomas Interact with Non-glioma Brain Cells via Extracellular Vesicles. Cell Rep. 30(8): 2489–2500.e2485. doi: 10.1016/j.celrep.2020.01.089
    5. Haiss, W., Thanh, N. T. K., Aveyard, J. and Fernig, D. G. (2007). Determination of Size and Concentration of Gold Nanoparticles from UV−Vis Spectra. Anal. Chem. 79(11): 4215–4221. doi: 10.1021/ac0702084
    6. Rosenblum, D., Joshi, N., Tao, W., Karp, J. M. and Peer, D. (2018). Progress and challenges towards targeted delivery of cancer therapeutics. Nat. Commun. 9(1): e1038/s41467–018–03705–y. doi: 10.1038/s41467-018-03705-y
    7. Sarkaria, J. N., Hu, L. S., Parney, I. F., Pafundi, D. H., Brinkmann, D. H., Laack, N. N., Giannini, C., Burns, T. C., Kizilbash, S. H., Laramy, J. K., et al. (2018). Is the blood–brain barrier really disrupted in all glioblastomas? A critical assessment of existing clinical data. Neuro-Oncology 20(2): 184–191. doi: 10.1093/neuonc/nox175
    8. Singh, D. K., Kollipara, R. K., Vemireddy, V., Yang, X. L., Sun, Y., Regmi, N., Klingler, S., Hatanpaa, K. J., Raisanen, J., Cho, S. K., et al. (2017). Oncogenes Activate an Autonomous Transcriptional Regulatory Circuit That Drives Glioblastoma. Cell Rep. 18(4): 961–976. doi: 10.1016/j.celrep.2016.12.064
    9. Straehla, J. P., Hajal, C., Safford, H. C., Offeddu, G. S., Boehnke, N., Dacoba, T. G., Wyckoff, J., Kamm, R. D. and Hammond, P. T. (2022). A predictive microfluidic model of human glioblastoma to assess trafficking of blood–brain barrier-penetrant nanoparticles. Proc. Natl. Acad. Sci. U.S.A. 119(23): e2118697119. doi: 10.1073/pnas.2118697119
    10. Stupp, R., Mason, W. P., van den Bent, M. J., Weller, M., Fisher, B., Taphoorn, M. J. B., Belanger, K., Brandes, A. A., Marosi, C., Bogdahn, U., et al. (2005). Radiotherapy plus Concomitant and Adjuvant Temozolomide for Glioblastoma. N Engl J Med 352(10): 987–996. doi: 10.1056/NEJMoa043330
    11. van Tellingen, O., Yetkin-Arik, B., de Gooijer, M., Wesseling, P., Wurdinger, T. and de Vries, H. (2015). Overcoming the blood–brain tumor barrier for effective glioblastoma treatment. Drug Resistance Updates 19: 1–12. doi: 10.1016/j.drup.2015.02.002
