Long-term in toto Imaging of Cellular Behavior during Nerve Injury and Regeneration

Materials and Reagents

1. Cover glass–bottomed mini dish (MatTek, catalog number: p35G-1.0-14-c)

2. Petri dishes (Greiner Bio-One, catalog number: G180535A/01889)

3. Plastic strainer (ZM Systems, Product code: teastrain15)

4. Plastic Pasteur pipettes

5. Tricaine (MS-222) (25× stock solution) (PharmQ, UK)

6. Low-melting agarose (1% M/V) (Sigma-Aldrich, catalog number: A9414-100G)

7. Sodium chloride (NaCl) (Merck KGaA, catalog number: 1.06404.5000)

8. Potassium chloride (KCl) (Sigma-Aldrich, P9541-500G)

9. Calcium chloride dihydrate (CaCl₂·2H₂O) (Sigma-Aldrich, catalog number: C3306-250G)

10. Magnesium sulfate (MgSO₄) (Sigma-Aldrich, catalog number: M5921 500G)

11. Trizma (Tris base) (Sigma-Aldrich, catalog number: T1503-1KG)

12. HCl (Sigma-Aldrich, catalog number: H1758-500ML)

13. Plasmids UAS:EGFP, SILL:mCherry; mfap4:EGFP

14. Fish lines: Casper, Tg[UAS:EGFP], Tg[SILL:mCherry], Tg[gSAGFF202A], Tg[ mfap4:EGFP]

15. E3 embryo medium (10×) (see Recipes)

16. Tris-HCl (1 M pH 9.0) (see Recipes)

17. Tricaine (MS-222) (25×) (see Recipes)

18. Low-melting agarose (1% w/v) (see Recipes)

Equipment

1. Incubator set at 28.5 °C

2. Fine forceps

3. Optically-clear polystyrene 90 mm Petri dishes

4. Plastic transfer pipettes

5. Microwave oven

6. 100 mL glass bottle

7. Handmade 1-eyelash brush

8. Microinjection system

9. Microscopes:

   Upright stereomicroscope (e.g., ZEISS Stemi SV 11) equipped with fluorescent-light source and a filter set for GFP and RFP/Cherry.

   Spinning-disk microscope confocal microscope (ZEISS) with an iLasPulse laser system (Roper Scientific SAS) and a temperature-control system.

Procedure

1. Prepare zebrafish larva (Tg[gSAGFF202A:UAS-EGFP; Tg[SILL-mCherry] line for imaging Schwann cells and afferent neurons, or Tg[mfap4:EGFP; Tg[SILL:mCherry] line for imaging macrophages and afferent neurons)

   1. Collect embryos and keep them in the incubator at 28.5 °C for standard development to the 5–6 days-post-fertilization (dpf) larval stage. Embryos should be kept in 90 mm Petri dishes. For optimal survival, keep around 50 embryos per dish.

   2. At 4 dpf, screen specimens using a fluorescence stereomicroscope (Figures 1 and 2).

      Using a transfer pipette, isolate the positive larva expressing the mCherry (red) in the lateralis neurons and EGFP (green) in Schwann cells or macrophages.

      Note: Plastic materials intended for single use can be washed and re-used. This includes Petri dishes and transfer pipettes.

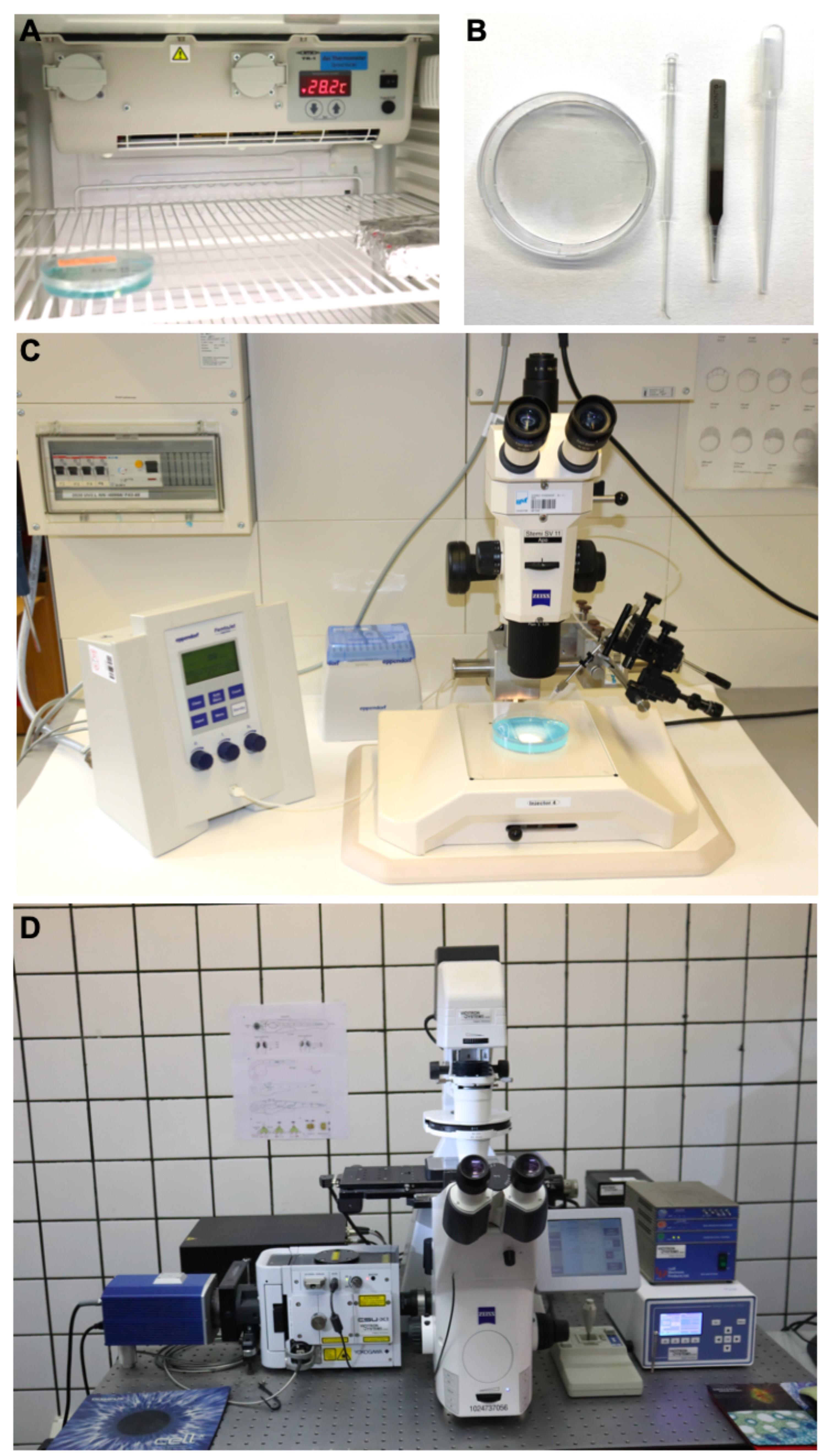

      Figure 1. Main tools for the protocol. A. Photograph exemplifying the placement of a plastic Petri dish containing eggs into an incubator. B. Photograph of a standard Petri dish, glass pipette with a hair loop attached to its tip, a forceps and a plastic transfer pipette. C. Example of a stereomicroscope with a typical microinjection apparatus. D. Photograph of an inverted spinning-disc microscope for long-term imaging.

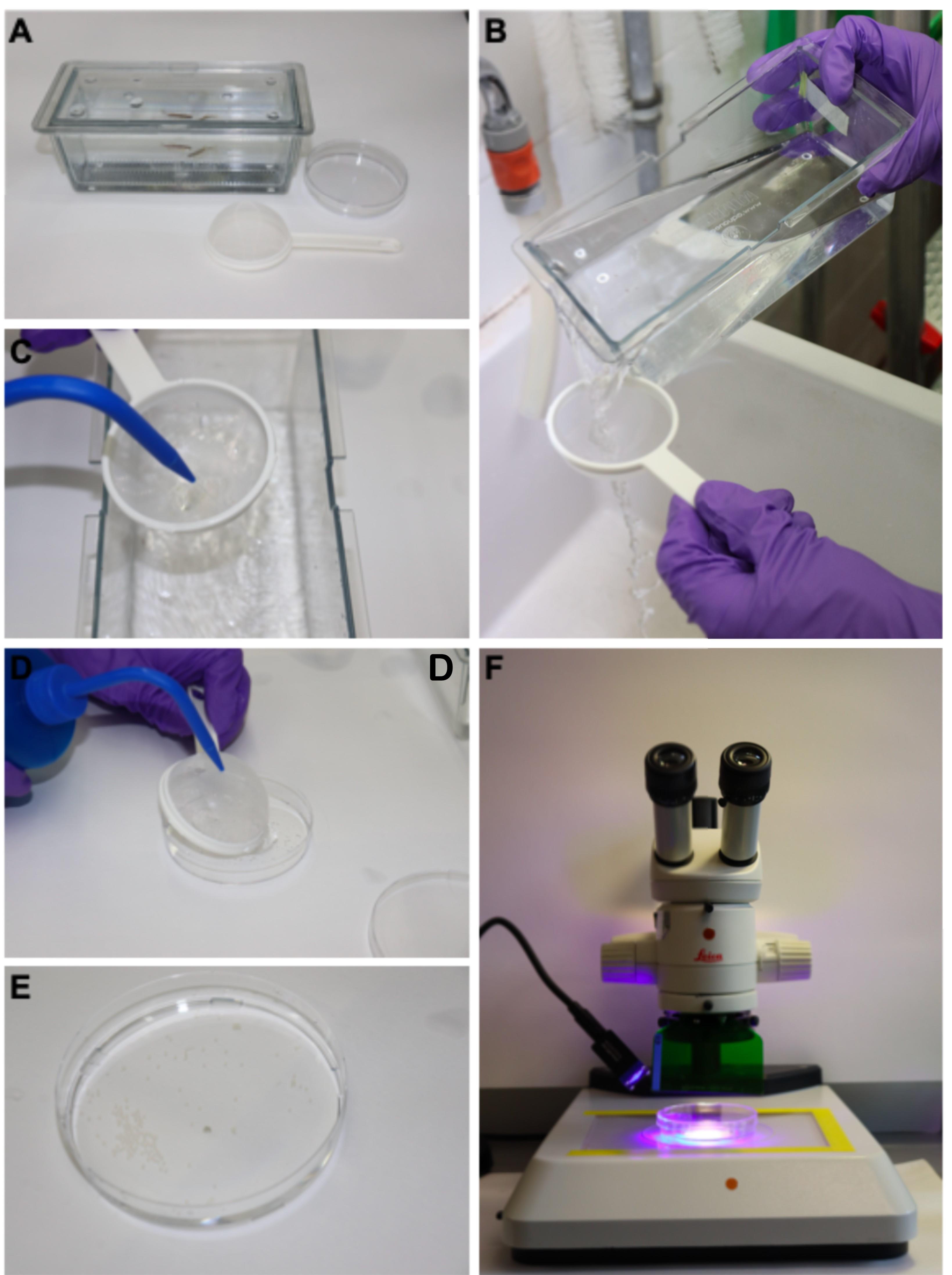

      Figure 2. Procedures for collecting eggs and raising specimens. A. Photograph of a breeding tank, with a bottom grid to enable eggs to fall outside the reach of adult fish (which may otherwise eat them), a Petri dish and an egg-harvesting strainer. B. Once the inner container is removed with the breeding adults, the water with the eggs contained in the breeding tank is gently poured through the strainer to collect eggs. C. The eggs are gently and briefly washed with clean water from the facility system. D. The strainer is then placed inside down onto the inner (bottom) part of the Petri dish and eggs are flushed into this dish applying a gently flow of water using a plastic bottle. E. The eggs will now be visible in the dish. F. The dish with the eggs can then be moved to a stereomicroscope of fluorescence for screening and cleaning.




2. Mosaic-labelling, an alternative to stable transgenics lines for marking a selected population of neurons and Schwann cells or macrophages

   1. Prepare Casper zebrafish eggs from the Tg[gSAGFF202A] driver line for Schwann cells.

   2. Prepare the plasmids for injection. Mix well 20 ng/μL each of the UAS:EGFP and SILL:mCherry plasmids before loading into the capillary for injection.

   3. For macrophage and neurons, mix mfap4:EGFP and SILL:mCherry constructs for injection (10 ng/μL of each plasmids).

   4. Inject around 1–2 nL plasmids into the one-cell stage embryos.

   5. Screen the injected eggs that have developed as morphologically normal larva at 4 dpf and pick the EGFP and mCherry double-positives under a stereomicroscope of fluorescence. Then, transfer the positive larva to a new plate for growth to desired stage (Figure 2).




3. Laser-mediated nerve transection and imaging

   1. Anesthetizing and mounting the larva

      Anesthetize the larva with 1× MS-222 solution (0.016% w/v) diluting with E3 medium. The E3 embryo medium is prepared as a stock solution (10×) from which a working solution (1×) is freshly made (see Recipe 1). Put one large drop (around 100 μL) of 1% low melting agarose (melted at no more than 37 °C) onto the cover glass–bottomed dish. Move the anesthetized larva into the agarose drop using a transfer pipette with the minimal amount of water possible, to prevent too much dilution of the agarose. Using a hair loop glued to the tip of a glass pipette, gently push the larva to the bottom of the dish so that it touches the glass. Then, orient and position the specimen as desired. Generally, the resulting ~1% low melting agarose will allow enough time (30–45 s) for the procedure. With practice, up to three fish can be mounted almost simultaneously.

      After 5 min at room temperature, cover the now solidified agarose with E3 embryo medium containing MS-222.

      Move the dish with extreme care because, if shaken, the agarose block could detach from the glass, rendering the preparation unusable.

      Note: We noticed a significant drop of survival during imaging when more than three fish are mounted on the same dish.

   2. Put the dish containing fish on a holder adapted to the microscope stage. Put the heating system at 28.5 °C (or the ideal temperature for the specific experiment). Use the 20× objective to adjust the position of the dish by looking at the red or green fluorescence.

   3. Transect the axons with a laser beam by using a water-immersion 63× objective (see Notes). It is important to avoid oil-immersion objectives because they will prevent repeating the procedure on multiple fish mounted on the same dish, and also significantly complicate later imaging using lower magnification objectives.

   4. For transection, we use the iLas-Pulse ultraviolet laser system, controlled by VISION software. A 350 nm laser with 400 ps/2.5 μJ per pulse and adjusted to power of 27 mW is used for nerve transections.

   5. Using the VISION software, draw a line or a rectangle to mark the region to be targeted by the laser beam. This can be saved in the system for subsequent equivalent samples. To fully sever the axons, the laser pulses should be applied repeatedly until there is a clear gap in the rectangle region (see Notes). We normally set the pulse at 0.05 ms and hit three times per mouse click. If needed to generate a larger damage, move the line/rectangle to the next position for a new transection. We normally use a distance of 40 µm between multiple transections of the same nerve (Figure 5).

   6. Set up the parameters for intravital imaging

      After ensuring the axons are completely severed, select a 40× (air) or 63× (water) objective for live imaging. Put the region of interest in the center of the field of view and focus to the plane of interest. When Z-stacks’ parameters are fixed, the intervals of one stack can be set to 0.8–1.3 μm. The intervals of imaging are set to 5–10 min.

   7. If long-term imaging (more than 1 h) will be performed, replace the 63× water-immersion objective by an equivalent objective that can tolerate an immersion medium that will not evaporate. Given that high-grade low-melting-point agarose has a refractive index (RI) of 1.33 (similar to water) and that borosilicate glass has a RI of 1.47, the use of 100% glycerol with a RI of 1.47 is optimal.




4. Image quantification

   1. The live imaging raw data is sent to Fiji (https://imagej.net/software/fiji/) for analysis.

   2. Use the plugin “Tracking” to analyze the dynamics of nerve repair and the behavior of Schwann cells or macrophages. Open Plugins – Tracking – Manual Tracking.

   3. Select the cell(s) of interest at the starting point for tracing over the course of the time series. This can be done from a single focal plane or a maximal projection of the entire or partial Z-stack.

   4. With information we got from tracking, we can make conclusions on how many Schwann cells were attracted to the damaged site and how long these cells stayed (Tian et al., 2020b; Figures 3–5, Videos 1 and 2).

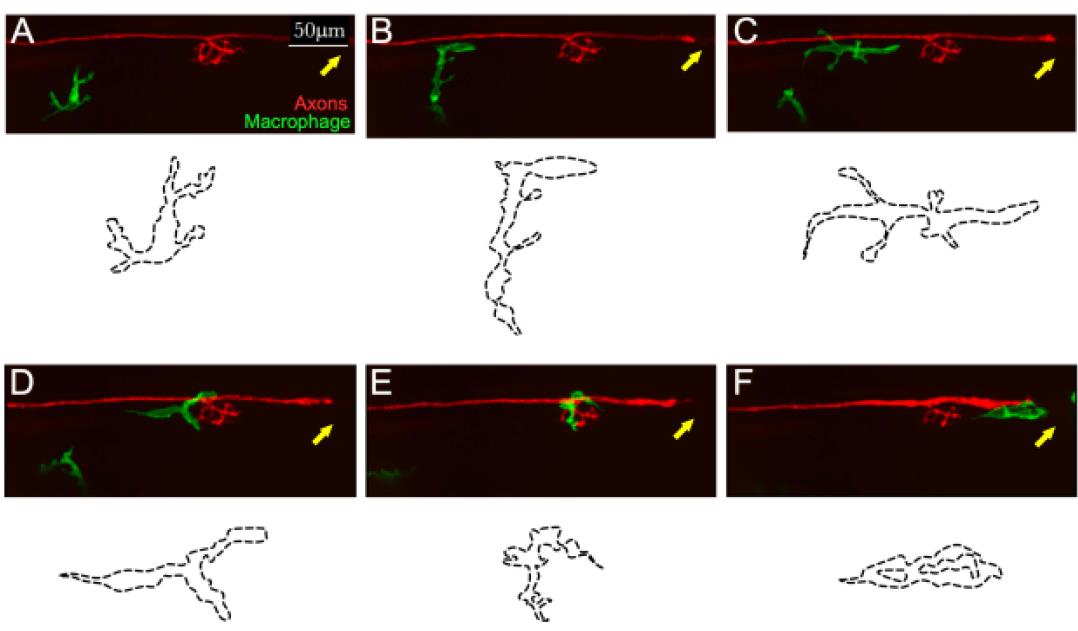

      Figure 3. Example of in toto videomicroscopy of axons and macrophages. A–F. Still images from a high-resolution time-lapse recording of a macrophage (green) and a lateralis sensory nerve (red) in the trunk of a larval zebrafish. A single macrophage is seen migrating towards the nerve immediately after it has been severed with a laser. A second macrophage is seen below, which never makes contact with the nerve. Over time, the macrophage moves along the nerve, surveilling damage (which can be seen as a discontinuity of the nerve on the left-hand side of the panels (C and D). The drawings below each panel (dotted lines) describe the two-dimensional shape changes ofthis single macrophage during the course of videomicroscopic imaging. Scale bars is 50 μm.

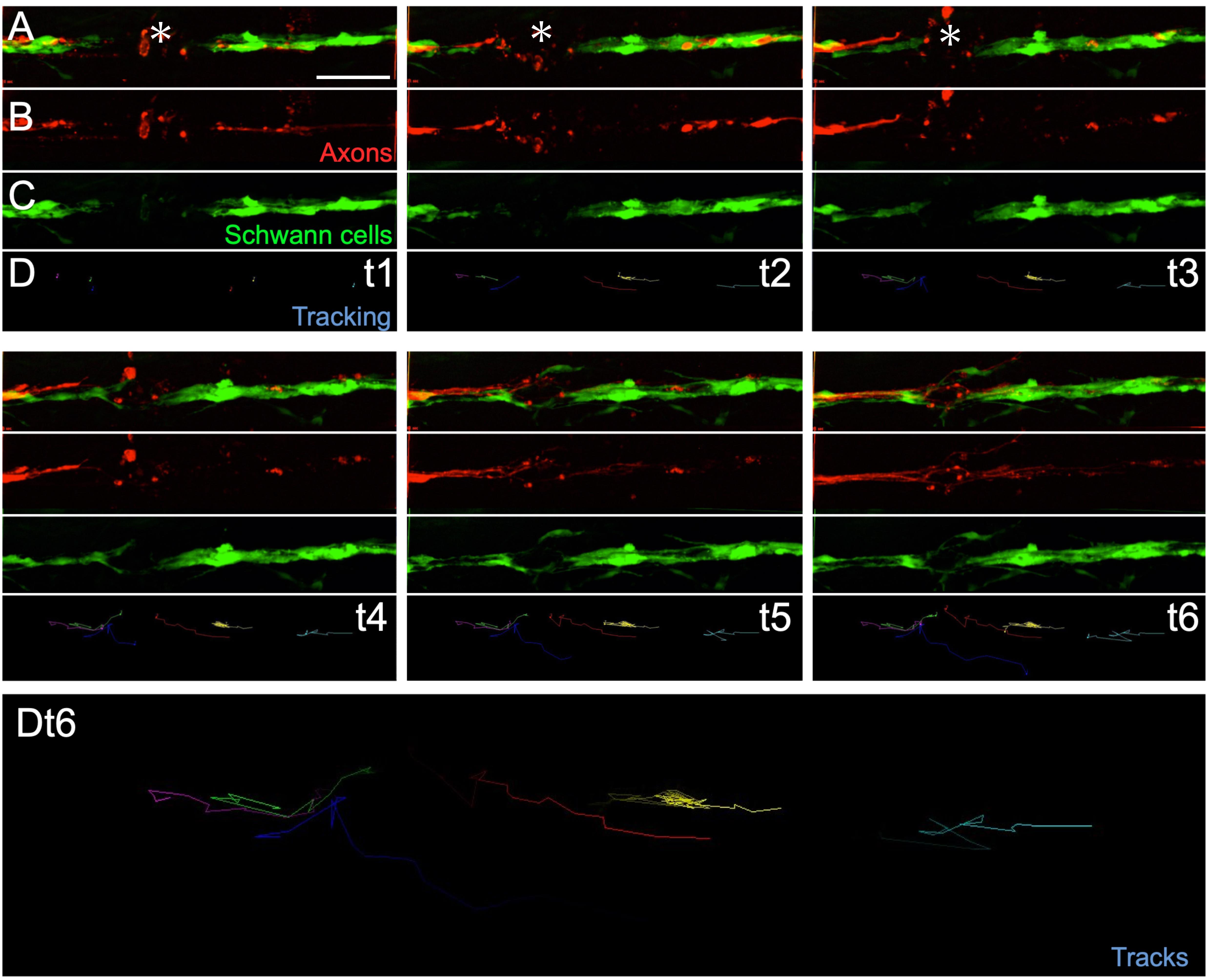

      Figure 4. Example of in toto videomicroscopy of axons and Schwann cells. A–C. Fluorescence images from a high-resolution time-lapse recording of the movement of Schwann cells (green) and the regeneration of a lateralis afferent nerve (red) after transection. A shows the merge of the two fluorescence channels, labelling the sensory nerve (Red) and the Schwann cells (green).The respective individual channels are show in B and C. D shows the tracks of the moving Schwann cells. t1, t2, t3, t4, t5, t6 indicate different time points extracted from the time-lapse. Dt6. It a zoom-in of the entire track of Schwann cells of at t6.

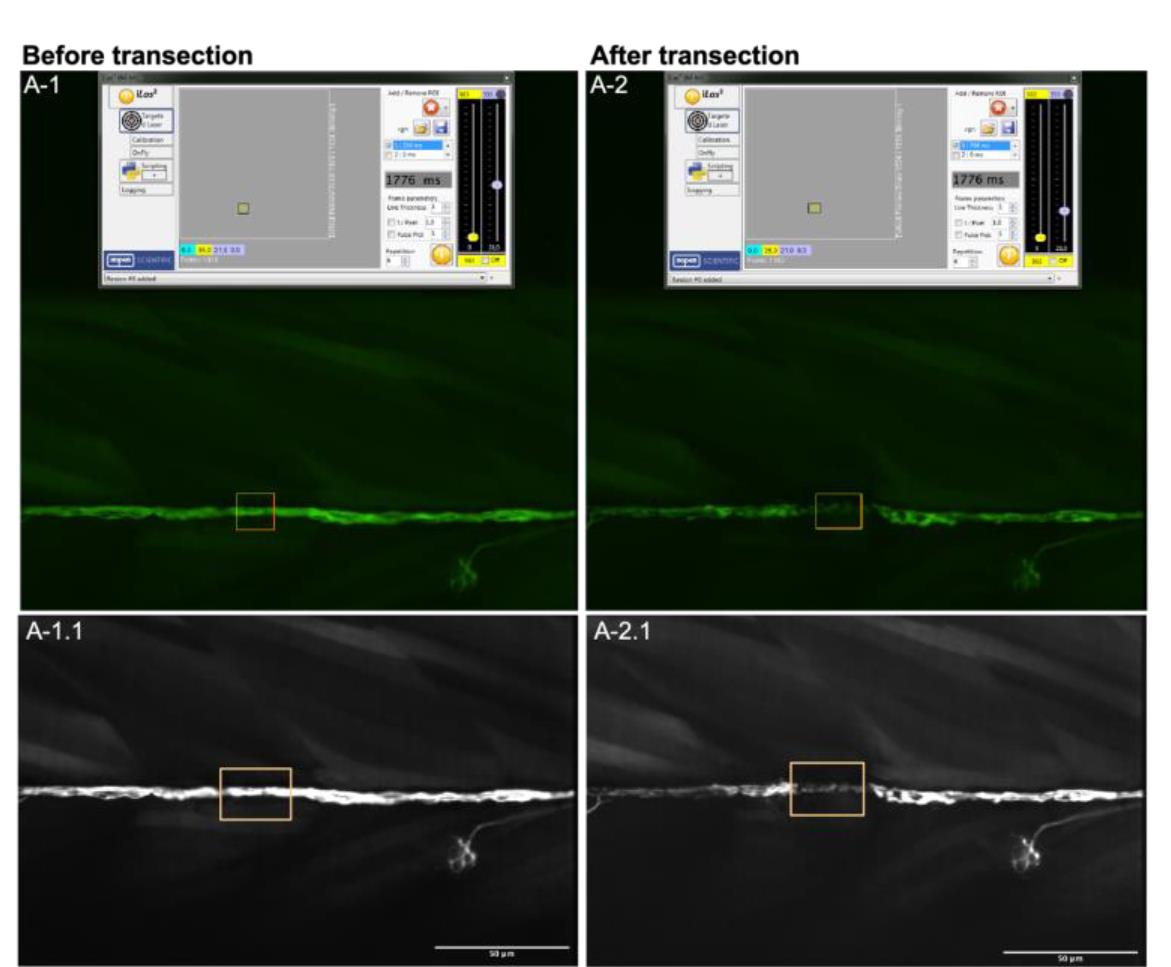

      Figure 5. Example laser-mediated nerve transection. A-1 and A-2. Screenshots from the transection, before and after laser-mediated wounding, respectively. Images show the VISION software settings used during this procedure, as well as the targeted region within the nerve axon (yellow rectangle). A-1.1 and A2.1. Spinning-disk images render the nerve axon targeted by the bean laser (yellow rectangle), from before and after transection.




      Video 1. Intravital videomicroscopy of neurons and macrophages





      Video 2. Intravital videomicroscopy of neurons and Schwann cells

Notes

1. Prepare fresh plasmids and check the quality of the DNA one day before the injections. Plasmid DNA quality needs to be check first by analysis of its correct nucleotide sequence data using a bio-tool software (e.g., snapgene, https://www.snapgene.com/). The plasmids were extracted from fresh overnight-cultured transformed DH5alpha. The quality of plasmids should be confirmed with Nanodrop. The 260/280 ranges from 1.8–2.0. The same plasmid preparation, kept in cold storage, can be used for 1–2 consecutive days if no sign of degradation is seen.

2. Keep the low-melting-point agarose in a small glass Erlenmeyer partially submerged in a water bath set at 40–42 °C.

3. Aim the laser beam to the axons. Ensure full transection by looking at a gap along the axons and evident signs of peripheral axon degradation (pearling) between 10 and 30 min after exposure to the laser.

4. For long-term live imaging, the laser power must be adjusted to around 10 mW. Higher power or more frequent imaging intervals cause tissue damage and decrease fish survival.

5. After imaging, check the condition of fish. Only data from healthy fish with no signs of physical injury and that can swim after being released from the agarose should be used. This, of course, is not applicable if the experiment itself must result in a behavioral dysfunction, for instance if transecting the spinal cord.

6. In case images are shifting within the imaging plane, use the Template matching plugin in Fiji to re-align the images.

Recipes

1. E3 embryo medium (10×)

   50 mM NaCl

   1.7 mM KCl

   3.3 mM CaCl₂·2H₂O

   3.3 mM MgSO₄, dissolved in 1 L deionized water




2. Tris-HCl (1 M pH 9.0)

   12.1 g of Tris base dissolved in 80 mL of deionized water. Adjust the pH to 7.0 with HCl and then make the final volume to 100 mL.




3. Tricaine (MS-222) (25×)

   2 g of MS-222 in 480 mL of deionized water; adjust the pH to 7.0 with 1 M Tris-HCl (pH 9.0) and then make the final volume to 500 mL. Store at 4 °C.




4. Low-melting agarose (1% w/v)

   30 mg of low-melting agarose dissolved in 30 mL of 1× E3 medium by heating in microwave oven. Keep in a 40–42 °C water bath.

Acknowledgments

This work was supported by the Helmholtz Association and BMBF grant 01GQ1904.

This protocol has been adapted from previous work by our laboratory (Xiao et al., 2015a and 2015b; Lozano-Ortega et al., 2018; Tian and Lopez-Schier, 2020; Tian et al., 2020; Asgharsharghi et al., 2021).

Competing interests

HL-S is scientific advisor and paid consultant for Sensorion (France). The company had no role in this study. No competing interests exist with any vendor cited in this work.

Ethics

Procedures were conducted in accordance with the Ethical Committee of Animal Experimentation of the Helmholtz Zentrum München, the German Animal Welfare act Tierschutzgesetz §11, Abs. 1, Nr. 1, Haltungserlaubnis, to European Union animal welfare, and to protocols number Gz.:55.2-1-54-2532-202-2014 and Gz.:55.2-2532.Vet_02-17-187 from the “Regierung von Oberbayern”, Germany.
