Optimized Expression and Isolation of Recombinant Active Secreted Proteases Using Pichia pastoris

Materials and Reagents

1. 96-well assay plate with black wall and clear, flat bottom (Corning, catalog number: 3904)

2. PYREX^® Delong shaker Erlenmeyer flask with extra-deep baffles, 250 and 1,000 mL (Corning, catalog numbers: 4450-250, 4446-1L)

3. 1.5 mL microcentrifuge tubes (USA Scientific, catalog number: 1615-5500)

4. 15 mL centrifuge tubes, conical, sterile, polypropylene (VWR, catalog number 89039-664)

5. Serological pipettes, sterile wrapped (Corning, catalog numbers: 4487, 4488, 4489, 4490)

6. 250 mL centrifuge tube (Corning, catalog number: 430776)

7. 10 kDa NMWL Ultra-4 centrifugal filter unit (Amicon, catalog number: UFC803008)

8. Peptone (Research Products International, catalog number: P20250); store at room temperature

9. Yeast extract (Thermo Scientific, catalog number: J23547-A1); store at room temperature

10. Dextrose (VWR, BDH Chemicals, catalog number: BDH9230); store at room temperature

11. Sorbitol (Sigma-Aldrich, CAS 50-70-4); store at room temperature

12. Methanol (Sigma-Aldrich, CAS 67-56-1); store at room temperature

13. Bacto agar (VWR, Life Sciences, catalog number: J637); store at room temperature

14. G418 sulfate (Fisher Bioreagents, CAS 108321-42-2); store at 4 °C

15. PureCube INDIGO Ni-MagBeads (magnetic beads) (Cube Biotech, catalog number: 75225)

16. Magnet, >835 KA/m (Magneto Inc., Amazon)

17. Pierce fluorescent protease activity kit (Thermo Fisher Scientific, catalog number: 23266)

    1. FTC-Casein (5 mg/mL in ultrapure water)

    2. TPCK-trypsin (50 mg/mL in tris-buffered saline)

    3. Tris-buffered saline (25 mM Tris, 150 mM NaCl, pH 7.2)

18. Yeast media (see Recipes)

    BMGY

    BMMY

    YPD

    YPD + G418 (4 mg/mL) agar plate

19. Buffers (see Recipes)

    Binding buffer pH 8.0

    Wash buffer pH 8.0

    Elution buffer pH 8.0

    Phosphate-buffered saline, pH 7.4

20. Solutions (see Recipes)

    10% glycerol

    5% methanol

    1 M potassium phosphate buffer, pH 6.0

    10× YNB

    500× biotin




Strains

1. Pichia pastoris GS115 (Invitrogen, catalog number: C18100)

2. Pichia pastoris GS116 <Cn MPR1> (Aaron and Gelli, 2020)

Equipment

1. -80 °C freezer

2. -20 °C freezer

3. 4 °C refrigerator

4. pH meter

5. Vortex (Scientific Industries, SKU: SI-0236 or equivalent)

6. Swing-bucket centrifuge (Beckman Coulter, model: Allegra X-15R; 208 V, 60 Hz)

7. Innova 4200 incubator shaker (New Brunswick) or equivalent temperature-controlled shaker

8. Pipetman (Eppendorf, P20, P200, P1000)

9. Power supply (Bio-Rad, model: PowerPac Universal Power Supply)

10. Protein gel electrophoresis equipment (Bio-Rad, model: Mini-PROTEAN)

11. Microplate reader (Molecular Devices, model: SpectraMax M5e)

Procedure

The steps in the following segments were done using a methylotrophic yeast, Pichia pastoris, for the expression of recombinant proteins. The recombinant Mpr1^6XHIS protein of focus was isolated from a strain of P. pastoris transformed with a construct composed of MPR1 cDNA isolated from Cryptococcus neoformans KN99 with a 6XHIS tag at the C-terminus in a pPIC9K backbone, as described in the main article (Aaron and Gelli, 2020). This plasmid confers resistance to G418, which was added to agar plates (4 mg/mL) in both the original selection of transformed P. pastoris and while expanding frozen (-80 °C) stocks for the current protocol. We handled open cultures in a sterile field under an open flame throughout this protocol, checking for bacterial contamination at least once every 24 h by brightfield microscopy. The volumes and concentrations described below were optimal for our purposes but may need to be scaled for other experiments. The protocol below can be divided into three stages: (1) growth, induction, and expression; (2) isolation and purification; and (3) verification and storage.

1. Expression of recombinant Mpr1 protein

   1. Streak the Pichia pastoris GS116 <Cn MPR1> strain (Aaron and Gelli, 2020) on a YPD + G418 (4 mg/mL) agar plate. Incubate the plate at 30 °C for 72 h.

      Note: Any gene of interest can be subcloned in expression vectors for P. pastoris.

   2. Select a single colony from the G418 plate and transfer directly to a 250 mL baffled Erlenmeyer flask containing 50 mL of BMGY media (see Recipes) using a flame-sterilized inoculating loop.

      Note: Using a baffled Erlenmeyer flask greatly increases biomass production compared to a non-baffled Erlenmeyer flask.

   3. Incubate the P. pastoris culture at 30 °C for 24 h, shaking at 300 rpm. Cover the flasks loosely with aluminum foil allowing for gas exchange.

   4. After 24 h, decant cultures into 50 mL centrifuge tubes and spin down at 3,724 × g for 5 min.

      Note: The culture is easily contaminated due to the nutrient-rich BMGY medium; thus, examine the culture for any possible contamination after every 24 h period. In our case, the cultures were examined by brightfield microscopy to rule out contamination.

   5. Discard the supernatant and wash the pellet 1–3 times using 25 mL of BMMY (see Recipes) and vortex the pellet until it is fully resuspended. Spin down the pellet at 3,724 × g between washes. Resuspend cells in BMMY and measure the optical density at 600 nm (OD₆₀₀).

      Note: Following steps 1–5, we typically see an OD₆₀₀ of approximately 25 in 20 mL of BMMY.

   6. Add the cell mixture to the desired volume of BMMY, in order to dilute the culture to a final OD₆₀₀ = 1. Cover the flask with sterile cheesecloth, allowing for appropriate gas exchange.

   7. Incubate the induced culture at 30 °C, shaking, for 24 h.

   8. Add sorbitol and methanol to the culture to a final concentration of 50 g/L and 0.5%, respectively. Incubate at 30 °C, shaking, for 24 h.

      Note: Sorbitol is a non-repressing carbon source and we found that a co-feeding regime of methanol with sorbitol increases biomass production (Figures 1 and 2).





      Figure 1. Visualization of Pichia biomass production. A. Initiating induction in BMMY with OD₆₀₀ = 1.0. B. Following 24 h induction in BMMY and just prior to co-feeding with 50 g/L sorbitol and 0.5% methanol. C. Following 24 h of co-feeding with sorbitol and methanol. At this stage, measurements of OD₆₀₀ are typically well over 18.

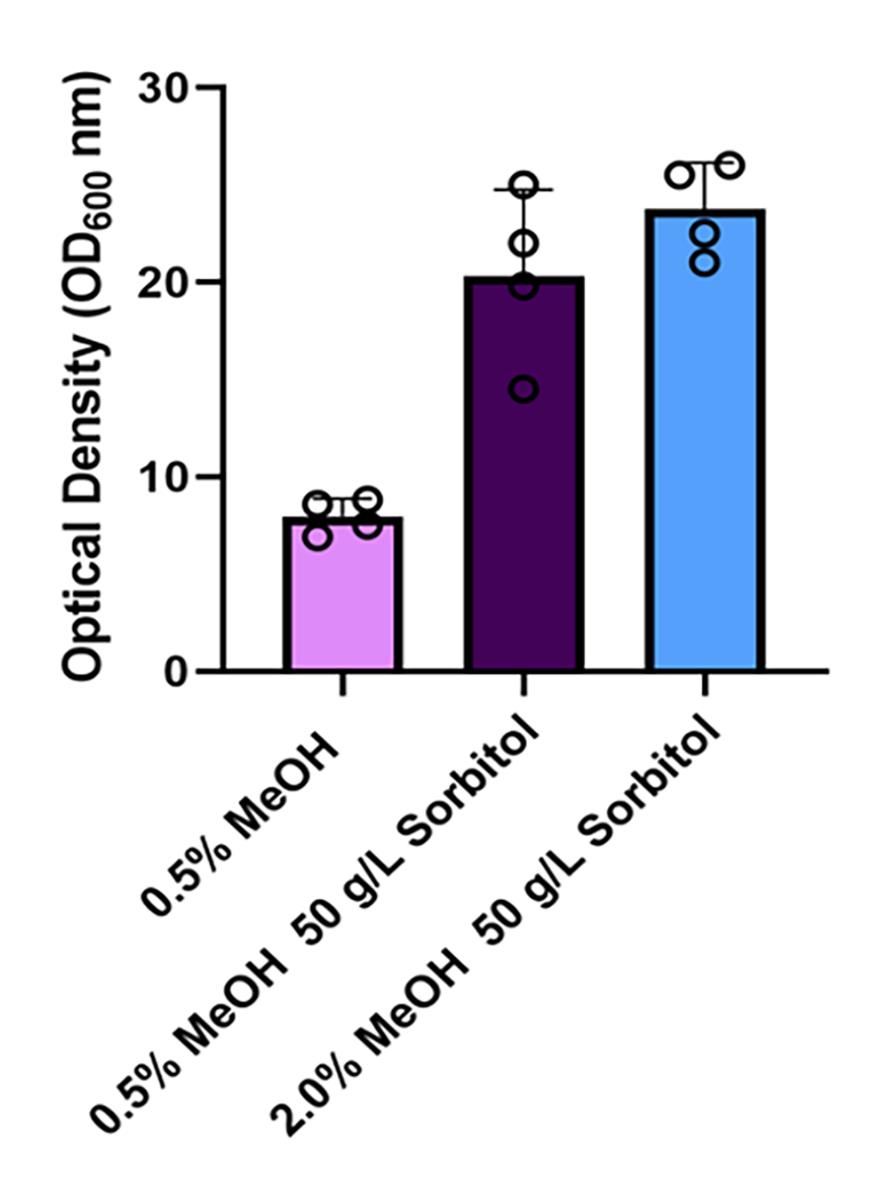

      Figure 2. Optical densities of Pichia cultures supplemented with sorbitol. A comparison of the optical densities (OD₆₀₀) of cultures with 0.5% methanol (MeOH) or co-fed with 0.5% MeOH and 50 g/L of sorbitol or 2% MeOH and 50 g/L of sorbitol. The cultures were co-fed following 24 h inoculation of the Pichia strain in BMMY media at a starting OD₆₀₀ of 1. The OD₆₀₀ measurements of the cultures were recorded 24 h after the co-feeding was initiated.




2. Isolation and purification of recombinant Mpr1 protein

   1. For PureCube INDIGO Ni-MagBeads, mix and aliquot beads in a 15 mL conical centrifuge tube and briefly centrifuge the beads; then, place the aliquot near a strong magnet in order to remove and replace the storage buffer supernatant with phosphate-buffered saline, pH 7.4. Keep the beads on ice and see protocols provided by the manufacturer (PureCube) for further information.

      Note: If inducing a 250 mL culture, use 750 µL of beads from storage. This equals approximately 188 µL of beads (25% of storage solution contains beads with binding capacity of 70 mg/mL).

   2. Autoclave the beads for 15 min on liquid cycle. Allow beads to cool before proceeding.

   3. Measure the final OD₆₀₀ of the P. pastoris culture. Decant the culture into centrifuge bottles.

      Note: The addition of sorbitol with cultures induced with 0.5% methanol (MeOH) significantly increased the optical density (OD₆₀₀) of the Pichia cultures from ~8 to >20 (Figure 2).

   4. Centrifuge at 3,724 × g for 5 min at 30 °C. Decant and keep the supernatant.

   5. Add 1.5 mL of 25% (v/v) Ni-MagBeads per 500 mL of collected culture supernatant. Incubate at 30 °C, shaking at 250 rpm, for 30 min.

   6. Collect the Ni-MagBeads from the supernatant using a strong magnet. Decant the supernatant into a fresh vessel, then remove the magnet and resuspend the beads in 6 mL of binding buffer. Transfer resuspended beads in a 15 mL conical tube. Repeat at least twice. Wash with 10 mL of binding buffer until all beads have been collected.

   7. Place the collected beads in a centrifuge tube and centrifuge at 3,724 × g for 5 min at 4 °C.

   8. Magnetically pellet the MagBeads and remove binding buffer. Add 10 times the bead volume of wash buffer to the beads. Remove the magnet and vortex for at least 2 min.

      Note: Each 250 mL culture volume, receiving 188 µL of beads initially, is washed with 1.88 mL wash buffer at this step. We found that washing once was sufficient to remove any foreign matter, but still washed thrice without appreciable loss of MagBeads.

   9. Briefly centrifuge and collect beads at the bottom of the tube with a magnet to facilitate the exchange of wash buffer for elution buffer. Use twice the initial bead volume of elution buffer. Vortex beads for 5 min and centrifuge at 3,724 × g for 5 min at 4 °C.

      Note: Multiple elution steps can be performed at this stage to enrich for Mpr1; however, we found that one elution step was sufficient.

   10. Transfer the protein-containing elution buffer supernatant to a 10 kDa NMWL Ultra-4 centrifugal filter unit.

   11. Centrifuge and concentrate the sample at 4,000 × g for 15 min at 4 °C. Measure protein concentration by the method of Bradford (Bradford, 1976).

       Note: Timing for this step may vary depending on desired final concentration and quantity of elution buffer added. In our case, the above conditions yielded approximately 300 µL of protein suspended in elution buffer. PBS was exchanged for elution buffer following step 11, centrifuging for 8 min instead of 15. On average, 2.5 mg of Mpr1 was extracted from a 500 mL BMMY culture (Figure 3).

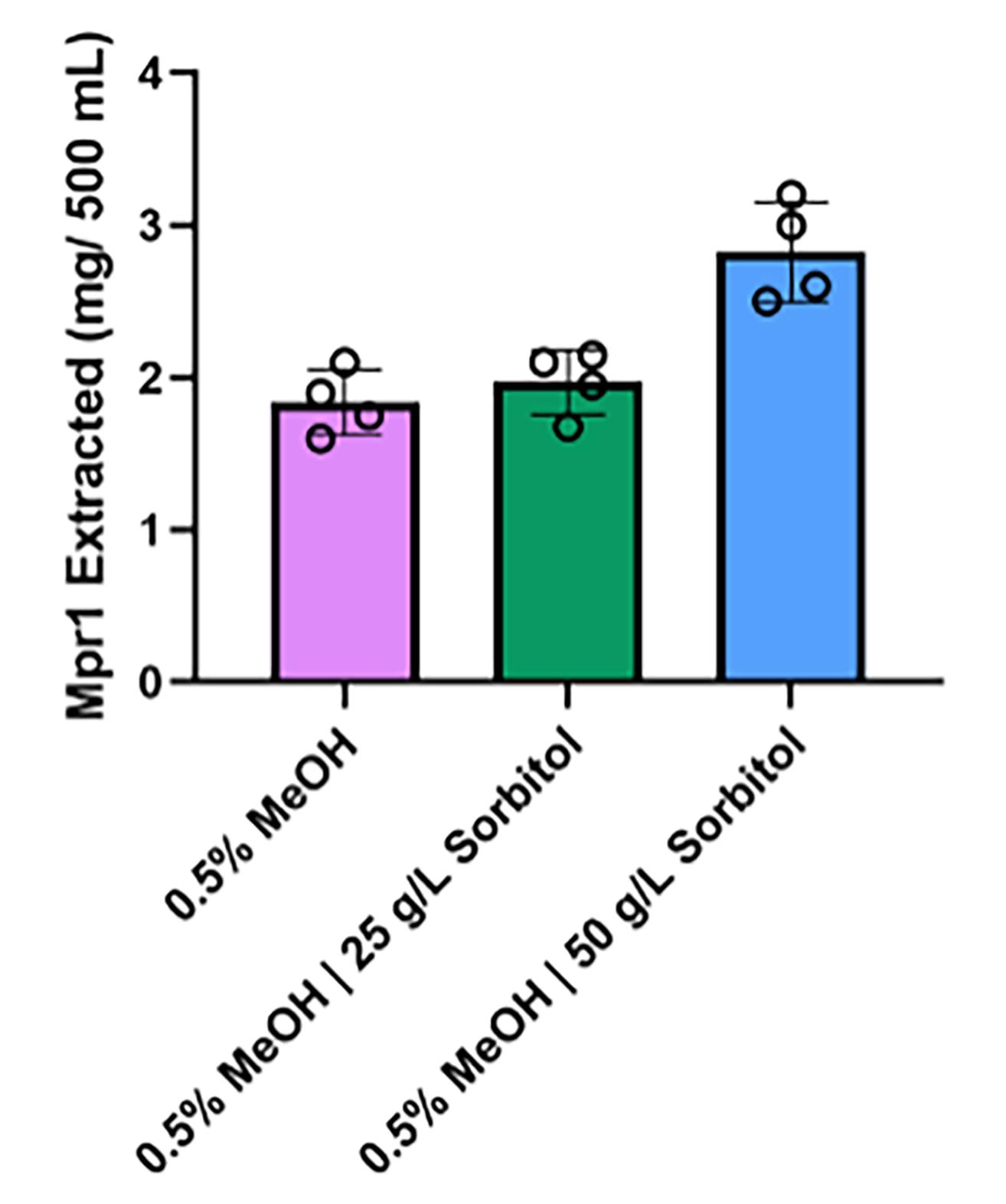

       Figure 3. Mpr1 production in media supplemented with sorbitol. A comparison of the quantity of Mpr1 recombinant protein extracted from cultures grown with 0.5% methanol (MeOH), 0.5% MeOH supplemented with 25 g/L of sorbitol, or 0.5% MeOH with 50 g/L of sorbitol. Data represent Mpr1 extractions from four different cultures. The addition of sorbitol boosted Mpr1 protein production when MeOH concentrations were maintained at 0.5%.




   12. Assess the purity of the recombinant protein by SDS-PAGE electrophoresis.

       Note: Coomassie or silver-stained SDS-PAGE polyacrylamide gels will visualize isolated recombinant proteins. Silver protein stains are an ultra-sensitive method of protein detection, which could be used to examine whether contaminating proteins were present in the isolation. Following step 11, examination of Mpr1 recombinant protein by silver-stained SDS-PAGE electrophoresis yielded a single polypeptide band (Figure 4).




3. Activity, purity, and storage of Mpr1

   1. After saving a portion of the Mpr1 recombinant protein for proteolytic activity and other assays, flash freeze the remainder in liquid nitrogen and store at -80 °C.

      Note: Proteolytic activity determination requires 50 µL or approximately 10% of the final eluted volume. We conducted proteolytic activity assays under various storage conditions (data not shown) and found that cryopreservation in liquid nitrogen produced only a small loss of proteolytic activity compared to protein that had not been subjected to freeze-thaw.

   2. Program the microplate reader to measure fluorescence (485/538 nm excitation/emission) at 5 min intervals over at least one hour, shaking between reads. Sensitivity should be set to medium or low.

   3. Following the manufacturer’s instructions, thaw aliquots of FTC-casein (5 mg/mL) and TPCK-trypsin (50 mg/mL) gradually at 4 °C. Dilute FTC-casein in tris-buffered saline to 10 µg/mL and store temporarily at 4 °C.

      Note: 10 mL of 10 µg/mL FTC-Casein is sufficient for a 96-well plate.

   4. Dilute Mpr1 recombinant protein in TBS to 200 µg/mL and 20 µg/mL, such that there is at least 350 µL of each dilution when finished. Set aside 350 µL of the TBS used in these dilutions to serve as a blank.

   5. Dilute a thawed TPCK-trypsin aliquot to 1 µg/mL in TBS.

   6. Add 100 µL of 200 µg/mL Mpr1, 20 µg/mL Mpr1, 1 µg/mL TPCK-trypsin, and TBS blank to triplicate wells in an opaque-walled (black or white), clear-bottom 96-well plate.

   7. Add 100 µL of 10 µg/mL FTC-casein to each well.

      Note: This is best done with a multichannel pipette due to the time-sensitivity of this step, although a serological pipette may suffice.

   8. Remove the lid on the plate and place it in the plate reader. Begin the program at 5 min post FTC-casein addition. Proteolytic activity is measured by the decrease in fluorescence resonance energy transfer signal (Figure 5).

Data analysis

Figure 4. Purification of recombinant Mpr1 metalloprotease. SDS-PAGE analysis of isolated Mpr1 recombinant protein with (A) Coomassie-stained and (B) silver-stained 10% SDS-page gel run under reducing conditions with protein molecular marker (right lane, kDa). Bold arrow indicates recombinant Mpr1 protein as a single band (left lane).

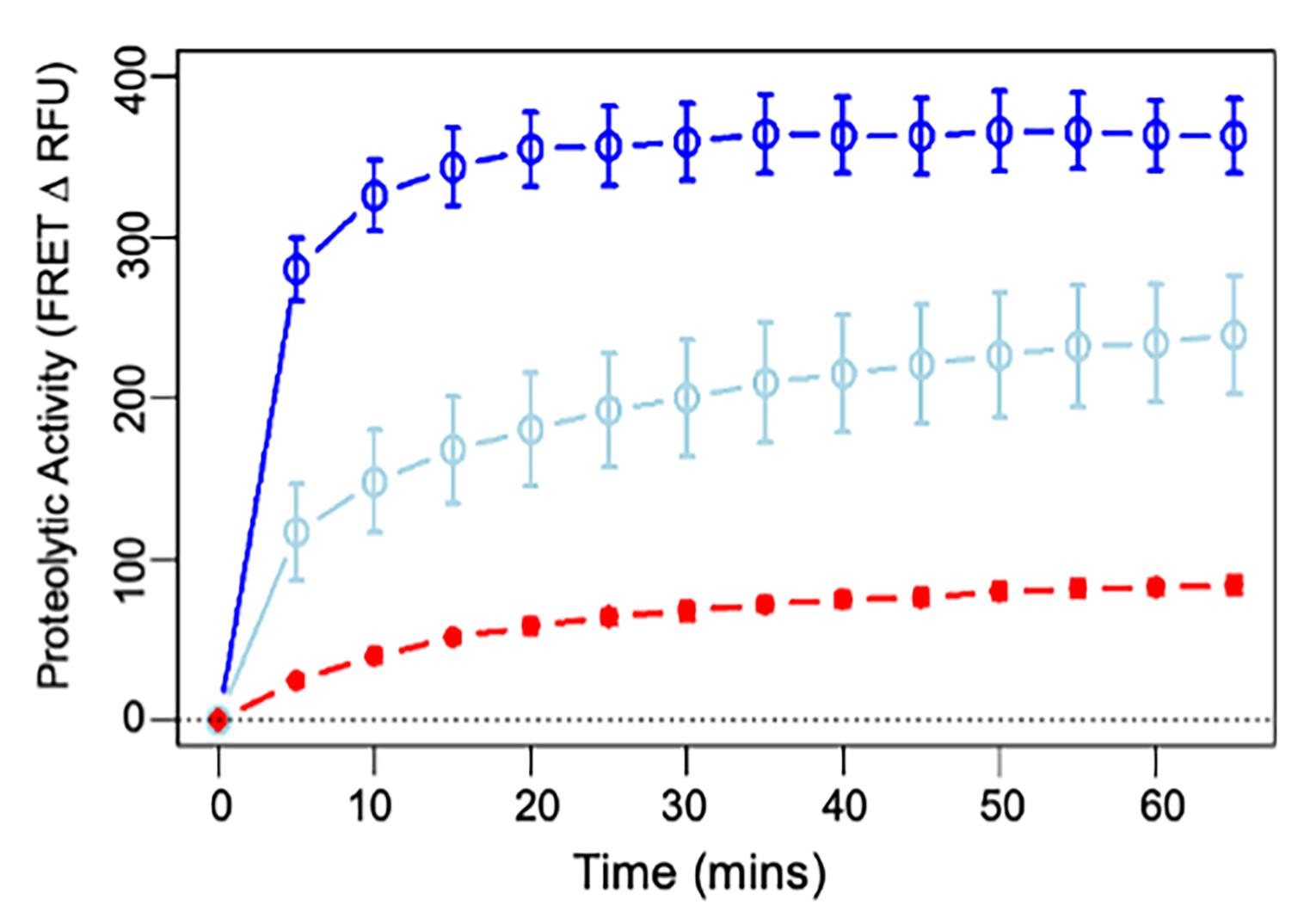

Figure 5. Proteolytic activity of Mpr1 at 100 (dark blue) and 10 µg/mL (light blue) compared with 0.5 µg/mL trypsin (red). Proteolytic activity was measured by the decrease in fluorescence resonance energy transfer (FRET) signal using a Pierce fluorescent proteases assay kit. The average fluorescence intensity in control wells containing only the proteolytic substrate (FITC-conjugated casein) was subtracted at each time point. Each data point represents the average of three readings (bars: SD). This assay was repeated with Mpr1 protein from five different extractions with similar results. Mpr1 retained proteolytic activity after flash-freezing and several weeks in storage (not shown).

Notes

1. Co-feeding optimization: We optimized sorbitol and methanol concentrations for production of our protein of interest, a metalloprotease with potentially unusual properties. The optimal concentration of sorbitol and methanol for other proteins may well differ from what we report here.

2. Sterility considerations: The media used during the initial growth of P. pastoris can easily become contaminated; hence, good sterile technique is vital for the success of your protein extraction.

3. Variability: This protocol is robust to minor deviations. For instance, the duration of incubation periods was not always exactly 24 h.

4. Environmental impact: Significant plastic waste was generated in the maintenance of sterile conditions throughout this protocol. Alternatives may be available, although such alternatives may have their own environmental drawbacks (e.g., the use of caustic chemicals in cleaning procedures).

Recipes

1. Yeast media




   1. BMMY media

      (1% yeast extract, 2% peptone, 100 mM potassium phosphate pH 6.0, 1.34% YNB, 5% biotin, 0.5% methanol)

      1. Mix 20 g of peptone and 10 g of yeast extract and add deionized H₂O to 700 mL.

      2. Sterilize media by autoclave (liquid cycle 121 °C, 20 min).

      3. Under sterile conditions, add 100 mL potassium phosphate, pH 6.0, 100 mL of 10× YNB, 100 mL of 5% methanol, and finally 2 mL of 500× biotin.




   2. BMGY media

      (1% yeast extract, 2% peptone, 100 mM potassium phosphate pH 6.0, 1.34% YNB, 5% biotin, 1% glycerol)

      1. Mix 20 g of peptone and 10 g of yeast extract and add deionized H₂O to 700 mL.

      2. Sterilize media by autoclave (liquid cycle 121 °C, 20 min).

      3. Under sterile conditions, add 100 mL 1 M potassium phosphate, pH 6.0, 100 mL of 10× YNB, 100 mL of 10% glycerol, and finally 2 mL of 500× biotin.




   3. YPD

      (1% yeast extract, 2% peptone, 2% dextrose, 2% agar)

      1. Mix 20 g of peptone and 10 g of yeast extract and add deionized H₂O to 950 mL.

      2. Sterilize media by autoclave (liquid cycle 121 °C, 20 min).

      3. For liquid media: add 50 mL of sterile 40% (w/v) glucose and mix.

      4. For agar plates: While stirring the autoclaved mixture on a magnetic stir plate, add 50 mL of sterile 40% glucose per liter of YPD media.

      5. While still warm, pour media into plastic Petri dishes (9 cm diameter)

      6. Allow agar mixture to cool and solidify.




2. Buffers




   1. Binding buffer pH 8.0

      50 mM NaH₂PO₄, 300 mM NaCl, and 10 mM imidazole




   2. Wash buffer pH 8.0

      50 mM NaH₂PO₄, 300 mM NaCl, and 20 mM imidazole




   3. Elution buffer pH 8.0

      (50 mM NaH₂PO₄, 300 mM NaCl, and 500 mM imidazole)




3. Solutions




   1. 10% glycerol

      1. Mix 100 mL of glycerol with 900 mL of deionized H₂O.

      2. Sterilize by autoclaving, store at room temperature.




   2. 5% methanol

      1. Mix 50 mL methanol with 950 mL of deionized H₂O.

      2. Filter-sterilize and store at 4 °C.




   3. 1 M potassium phosphate buffer, pH 6.0

      1. Mix 132 mL of 1 M K₂HPO₄ with 868 mL of 1 M KH₂PO₄. Adjust to pH 6.0 with KOH.

      2. Sterilize by autoclaving, store at room temperature.




   4. 10× YNB

      1. Weigh 34 g of YNB without ammonium sulfate and amino acids. Then, mix with 100 g of ammonium sulfate and fill up to 1 L of deionized H₂O.

      2. Filter-sterilize and store at 4 °C.




   5. 500× biotin

      1. Dissolve 20 mg of biotin in 100 mL of deionized H₂O.

      2. Filter-sterilize and store at 4 °C.
