X-ray Crystallography: Seeding Technique with Cytochrome P450 Reductase

Materials and Reagents

1. MRC 2-well crystallization plate (Swissci, Hampton Research, catalog number: HR3-082)

2. 24-well XRL plate (Molecular Dimensions, catalog number: MD3-11)

3. Additive screen (Hampton Research, catalog number: HR2-428)

4. Microscope cover glass (Fisher Scientific, Fisherbrand, catalog number: 19803)

5. Glass capillary (Charles Super Company, catalog number: 02-SG)

6. Amicon 8050 ultrafiltration cell (Amicon, catalog number: UFSC05001)

7. 30 kDa ultrafiltration discs (EMD Millipore Corporation, Biomax, catalog number: PBTK04310)

8. Escherichia coli Rosetta 2 (DE3) competent cells (Sigma-Aldrich, Millipore Sigma, catalog number: 71402)

9. pET-30a(+) vector (Sigma-Aldrich, Millipore Sigma, catalog number: 69909)

10. Sorghum bicolor CPR2c gene (Sobic.006G245400) (synthesized by Genscript)

11. Kanamycin (IBI Scientific, catalog number: IB02120)

12. IPTG (GoldBio, catalog number:I2481C100)

13. NADP⁺ (Alfa Aesar, catalog number: T23B015)

14. PEG 3350 (Sigma-Aldrich, catalog number: P4338)

15. Nickel-NTA resin (G-biosciences, catalog number: 786-940)

16. Index crystal screen kit (Hampton Research, catalog number: HR2-144)

17. Luria-Bertani (LB) medium (see Recipes)

18. Lysis/wash buffer (see Recipes)

19. Elution buffer (see Recipes)

20. Hydroxyapatite column buffer A (see Recipes)

21. Hydroxyapatite column buffer B (see Recipes)

22. Final buffer (see Recipes)

23. Crystallization buffer (crystal screen F12) (see Recipes)

Equipment

1. Crystal Phoenix (Art Robbins Instruments)

2. ÄKTA pure (GE Healthcare, ÄKTA pure, catalog number: 29014834)

3. Model 450 sonicator (Branson Ultrasonics, catalog number: 22-309783)

Software

1. HKL2000 (https://hkl-xray.com/hkl-2000)

2. Phenix (https://phenix-online.org/)

3. Coot (https://www2.mrc-lmb.cam.ac.uk/personal/pemsley/coot/)

Procedure

1. Gene cloning

   1. Clone the Sorghum bicolor CPR2c gene (Sobic.006G245400) with a N-terminal 6×His tag and without the native N-terminal hydrophobic membrane–anchoring region (Δ1–50) into vector pET-30a(+) for overexpression.




2. Cell transformation

   1. Put E. coli Rosetta 2 (DE3) competent cells on ice.

   2. Add 1 μL of plasmid (20 ng/μL) into 20 μL of competent cells.

   3. Incubate on ice for 5 min.

   4. Heat shock for 30 s.

   5. Incubate on ice for 2 min.

   6. Add 80 μL of LB medium to competent cells.

   7. Shake at 37 °C at 220 rpm for 1 h.

   8. Plate all the cells on an LB agar plate with 50 ng/μL of kanamycin and incubate overnight.




3. Protein expression

   1. Pick a single colony from the LB agar plate and grow in 5 mL of LB medium supplemented with 50 ng/μL kanamycin overnight at 37 °C.

   2. Grow 20 mL of starting culture from the 5 mL culture with 50 ng/μL kanamycin overnight at 37 °C.

   3. Transfer 20 mL of starting culture to 3 L of LB medium with 50 ng/μL kanamycin.

   4. Shake at 220 rpm and 37 °C until reaching a OD₆₀₀ of 0.4–0.6.

   5. Cool down the medium to 25 °C and add 0.5 mM of IPTG to induce.

   6. Induce the cells at 25 °C for 16 h.

   7. Harvest the cells at 8,000 × g and 4 °C for 10 min.




4. Protein purification

   1. Resuspend the cells with lysis buffer.

   2. Set the output control at 9 and duty cycle at 90%. Sonicate the cells for 30 s followed by resting on ice for 5 min until homogenous.

   3. Centrifuge at 34,000 × g and 4 °C for 1 h to remove the cell debris.

   4. Load the clear lysate on a gravity column containing 20 mL of nickel-NTA resin pre-equilibrated with lysis buffer.

   5. Wash with 200 mL of the same buffer.

   6. Elute the protein with 100 mL of elution buffer.

   7. Concentrate and buffer exchange against hydroxyapatite column buffer A using an Amicon 8050 ultrafiltration cell with a 30 kDa cutoff membrane.

   8. Load the buffer-exchanged protein on the hydroxyapatite column.

   9. Wash with 100 mL of 5% hydroxyapatite column buffer B.

   10. Elute protein with 10% hydroxyapatite column buffer B.

   11. Concentrate and buffer exchange against final buffer using an Amicon 8050 ultrafiltration cell with a 30 kDa cutoff membrane.




5. Initial crystallization setup

   1. Concentrate the purified protein to 30 mg/mL, determined by the molar extinction coefficient of CPR (21.4 mm⁻¹ cm⁻¹).

   2. Add 1.2 mM of NADP⁺ prior to crystallization.

   3. Run Crystal Phoenix with an MRC 2-well crystallization plate with the index crystal screen kit and set up at room temperature (22 °C). The drop contains 0.2 μL of protein solution and 0.2 μL of screening solution.

   4. Small crystals show up in condition F12 (see crystallization buffer in Recipes) in two days (Figure 1A).

   5. Reproduce and optimize the crystal by mixing 1.6 μL of crystallization buffer, 2 μL of protein solution, and 0.4 μL of additive screen on a cover glass.

   6. Set up the hanging drop vapor diffusion in 24-well plates with 0.5 mL of crystallization buffer in reservoir.

   7. Needle-shaped crystals show up with additive screen condition 31 (1,5-diaminopentane dihydrochloride) in 3–5 days (Figure 1B).




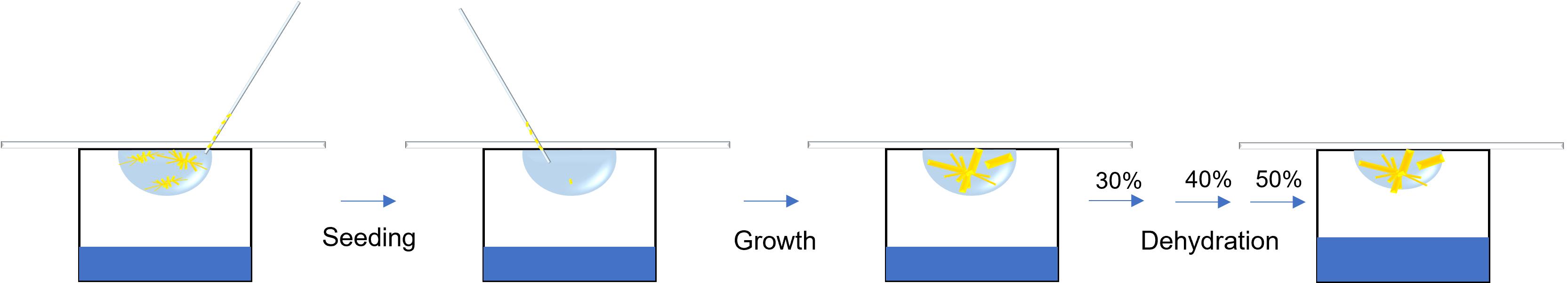

6. Crystal seeding

   1. Mix 2.4 μL of crystallization buffer, 3 μL of protein solution, and 0.6 μL of additive screen.

   2. Suck one needle crystal from the previous drop, place into the new 6 μL crystallization drop, and set up the hanging drop.

   3. Large crystals show up in one week (Figure 1C).

   4. Transfer the cover glass to the reservoir filled with 0.5 mL of 30% (v/w), 40% (v/w), and 50% (v/w) PEG 3350 every third day for sequential dehydration.

   5. Fast freeze the dehydrated crystals in liquid nitrogen for X-ray diffraction after equilibrating in 50% (v/w) PEG 3350 for two days.





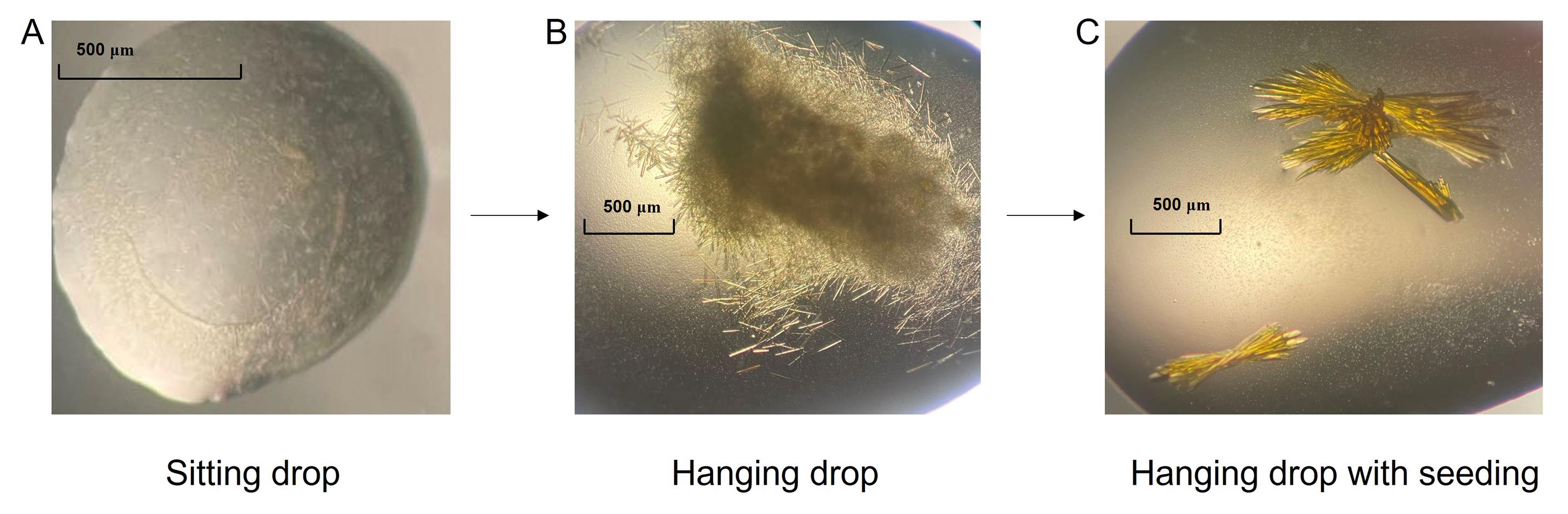

   Figure 1. Optimization of SbCPR2c crystals. (A) Crystals obtained from the hit [index condition F12 (see crystallization buffer in Recipes)] of screening. (B) Crystals obtained from hanging drop with additive solution optimization. (C) Crystals obtained from seeding technique.




7. Data collection and structure determination

   1. Diffract the crystals at the beamline by using beam size 100 × 100 μm, 10 s, and 1 degree per frame and 180 degrees in total.

   2. Index, integrate, and scale the data using HKL2000.

   3. Do molecular replacement with the proper model [in our case, SbCPR2b (PDBID: 7SUX)] with PHENIX, run AutoBuild, and refine the structure with PHENIX and Coot.

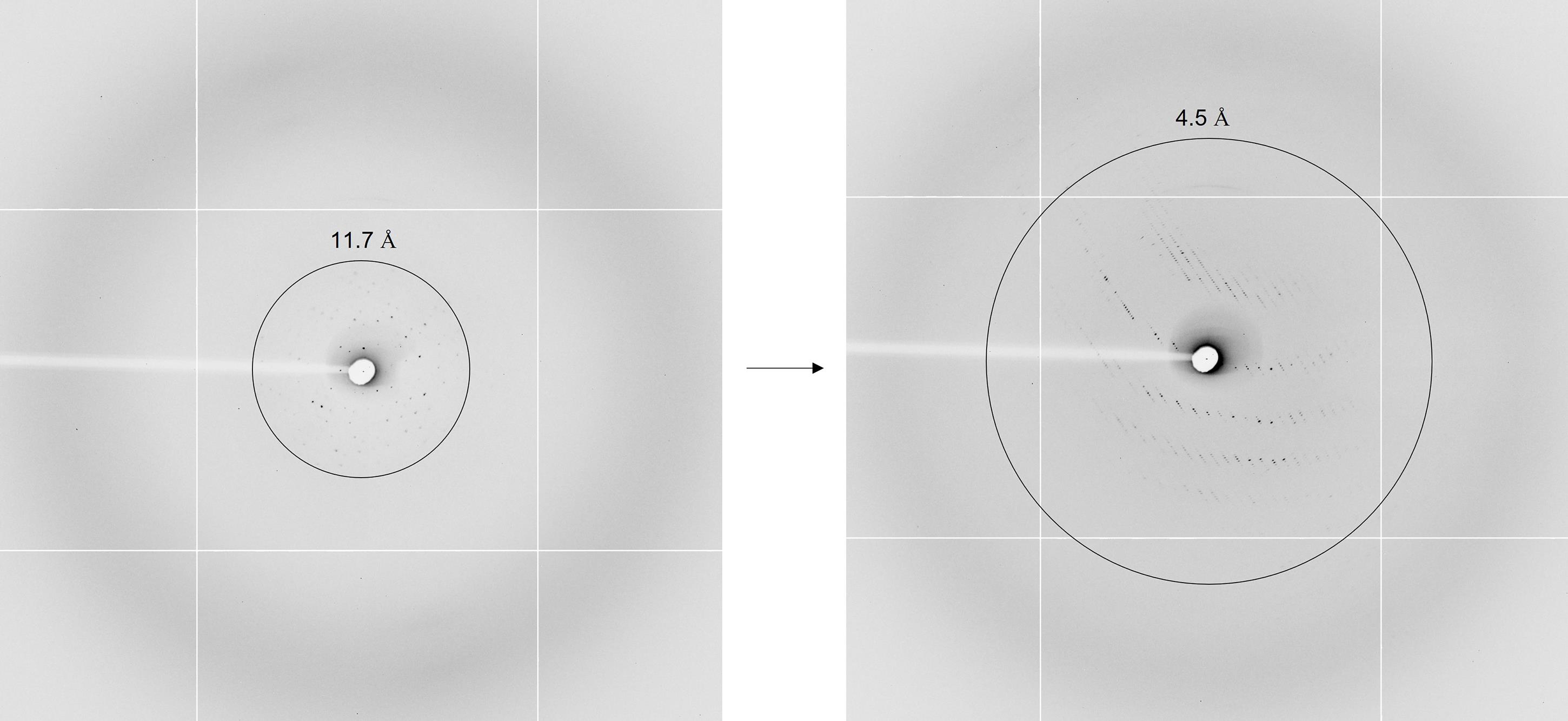

   Figure 2. The resolution of the crystal has been improved from 11.7 Å (from non-seeding hanging drop crystals) to 4.5 Å (seeding crystals)

Data analysis

The diffraction data was indexed, integrated, and scaled with HKL2000. The molecular replacement was performed with the SbCPR2b structure (PDBID: 7SUX) and with Phaser-MR (full-featured) in the PHENIX software. The number of molecules in an asymmetric unit was calculated with Matthews coefficients (Matthews, 1975). AutoBuild was then run for model building with the SbCPR2c sequence. A rigid body refinement was completed before full refinement of XYZ (reciprocal-space), XYZ (real-space), and individual B-factors with phenix.refine. The individual residues were refined in Coot.

Notes

1. The crystallization and additive solutions are specific for SbCPR2c. It is necessary to initially screen for the optimal condition for the protein of interest. If crystals are of poor shape, using additive screen solution can rectify poor crystal edges.

2. Using additive screen solution may cause precipitation. When placing the crystal seed, you should avoid disruption to the drop, which can mix the solutions and will impede crystal growth.

Recipes

1. Luria-Bertani (LB) medium

   Reagent	Final concentration	Amount
   Tryptone	10 g/L	10 g
   Yeast extract	5 g/L	5 g
   NaCl	10 g/L	10 g
   dH2O	n/a	n/a
   Total	n/a	1,000 mL




2. Lysis/wash buffer

   Reagent	Final concentration	Amount
   NaCl	300 mM	17.532 g
   Tris	50 mM	6.057 g
   Imidazole	20 mM	1.36 g
   dH2O	n/a	n/a
   HCl (12 M)	n/a	As needed to adjust pH to 8
   Total	n/a	1,000 mL




3. Elution buffer

   Reagent	Final concentration	Amount
   NaCl	300 mM	17.532 g
   Tris	50 mM	6.057 g
   Imidazole	250 mM	17.02 g
   dH2O	n/a	n/a
   HCl (12 M)	n/a	As needed to adjust pH to 8
   Total	n/a	1,000 mL




4. Hydroxyapatite column buffer A

   Reagent	Final concentration	Amount
   KH2PO4	5 mM	0.68 g
   NaOH	n/a	As needed to adjust pH to 6.8
   dH2O	n/a	n/a
   Total	n/a	1,000 mL




5. Hydroxyapatite column buffer B

   Reagent	Final concentration	Amount
   KH2PO4	500 mM	68 g
   NaOH	n/a	As needed to adjust pH to 6.8
   dH2O	n/a	n/a
   Total	n/a	1,000 ml




6. Final buffer

   Reagent	Final concentration	Amount
   Hydroxyapatite column buffer B	50 mM	100 mL
   dH2O	n/a	900 mL
   Total	n/a	1,000 mL




7. Crystallization buffer (crystal screen F12)

   Reagent	Final concentration	Amount
   NaCl (2 M)	200 mM	5 mL
   HEPES (1 M, pH 7.5)	100 mM	5 mL
   dH2O	n/a	n/a
   PEG 3350 (50%, m/v)	25% (w/v)	25 mL
   Total	n/a	50 mL
