A Behavioural Assay to Investigate Judgment Bias in Zebrafish

Materials and Reagents

1. Adult zebrafish (Tübingen strain)

2. Acrylic dividers (Toyuto, catalog number: B07BF477K1)

3. Reverse osmosis purified water supplemented with 60 mg/L instant ocean sea salt (Aquariums Systems, catalog number: 210083)

4. Colored cards (white acrylic custom-made cards with green/red adhesive films)

5. Cultivated bloodworms (Ocean Nutrition, catalog number: I120E00)

6. Syringe 12 mL (Terumo, catalog number: SS-10S)

7. Airline tubing (Marina, catalog number: A1130)

Equipment

1. 29×14×17 glass tanks (custom-made aquariums)

2. Half radial maze (custom-made aquarium, designed in-house; see Procedure for further details)

3. Camera for behavioral recording (HP, catalog number: HD 4310)

4. Two fish nets (Marina, catalog numbers: 11274, 11276; see Procedure for further details)

Software

1. Eyeline Video Surveillance System (NCH Software, version 2.06)

2. Observer XT (Noldus Technology, version 9)

Procedure

1. Fish housing through the procedure (Day 0)

   General description: Fish (see Materials and Reagents #1) are kept in semi-isolation conditions (i.e., olfactory and visual cues from conspecifics are present) during the 24 h prior to the beginning of the behavioral protocol, to minimize any stress associated with individual testing (the zebrafish is a highly social species). Isolation tanks consist of 6 L tanks (Figure 1A, see Equipment #1) divided with transparent and perforated partitions (Figure 1B, see Materials and Reagents #2).

   1. Fill isolation tanks with 5 L of system water (see Materials and Reagents #3) at 28°C, 750 μS, and pH 7.0. These water quality parameters are maintained through the procedure. System water of isolation tanks is renewed on a daily basis.

   2. Select the experimental zebrafish that will be exposed to the judgment bias assay.

   3. Place the selected fish in the individual compartments of the isolation tank (four fish per isolation tank). Fish are food-deprived in the isolation tanks.

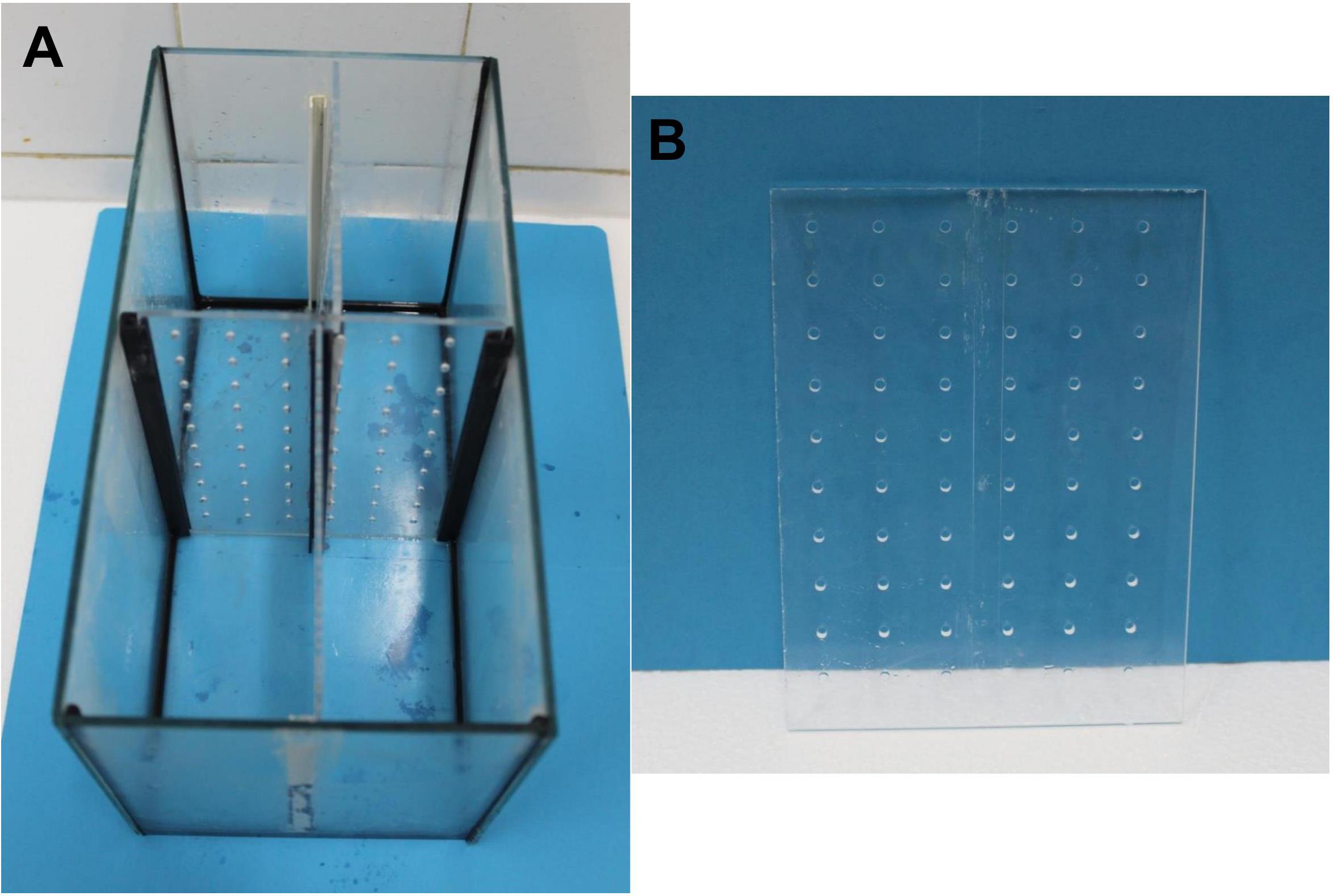

      Figure 1. Material for fish housing. (A) Isolation tanks where fish are housed during the protocol. (B) Transparent, perforated dividers used in the isolation tanks in order to allow visual and olfactive cues from conspecifics.




2. Preparation of the behavioral apparatus (Day 1)

   General description: The behavioral apparatus (see Equipment #2) consists of a half arm radial maze (Figure 2A) made of white acrylic. It contains removable colored cards (Figure 2B; see Materials and Reagents #4) placed at the end of each arm. Manually operated guillotine doors containing color cues (Figure 2C) separate the starting box from the arms of the radial maze. The two reference (training) arms [positive (P) and negative (N)] are positioned at 180° from each other and are equipped with full-colored cards (green or red). The three ambiguous (test) arms [near-positive (NP), ambiguous (A), and near-negative (NN)] are positioned at equidistant angles (each separated by 45°) between the two reference arms and contain mixed colored cards (green and red), with color proportions of 3:1, 1:1 and 1:3, respectively. The location of each arm is also considered as cue stimulus (in addition to color cues), since the central test arm (A) is located midway between P and N (90°), and the other two (NP and NN) halfway between A and each reference arm (45° and 135°, respectively). Researchers operate from behind a curtain, so that they are not visible to the experimental zebrafish during the behavioral assay. Visualization and recording of fish behavior is enabled by a personal computer linked to an overhead video camera (see Equipment#3). The judgment bias assay consists of three phases, which are performed over three consecutive days: habituation (day 1), training (two sessions, on days 1 and 2), and test (day 3) phases.

   1. Fill the behavioral apparatus with 15 L of system water at 28°C, 750 μS, and pH 7.0.

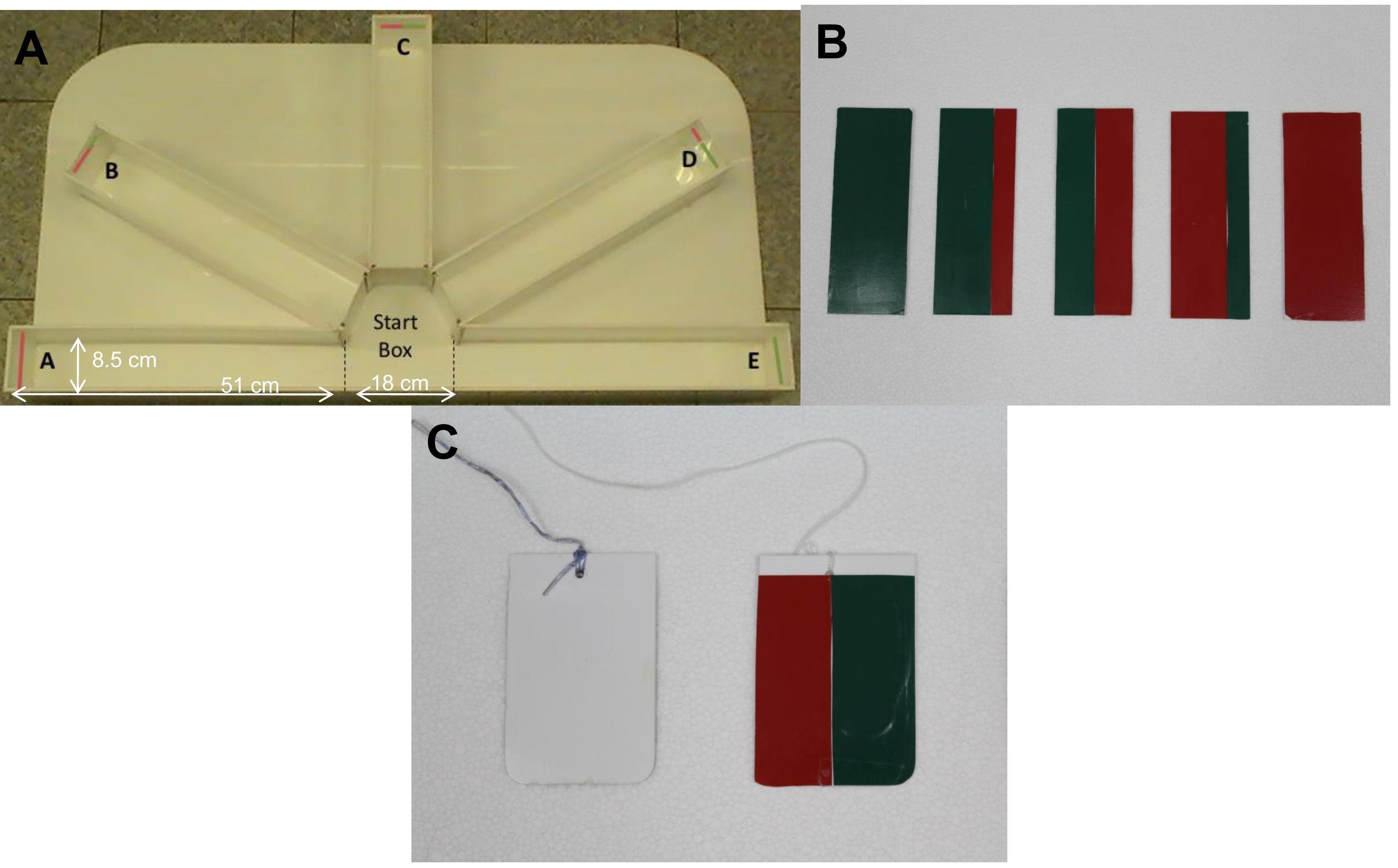

      Figure 2. Behavioral apparatus. (A) Experimental setup showing the two reference locations [e.g., positive/rewarded (A) and negative/aversive (E)] and the three ambiguous locations [e.g., near-positive (B), ambiguous (C) and near-negative (D)]. (B) Removable colored cards are placed at the end of each arm. (C) Manually operated guillotine doors that link the starting box with each arm.




3. Habituation phase (day 1)

   General description: Zebrafish are individually exposed to the behavioral apparatus for the first time during this phase. The time between the doors being opened and the fish leaving the arm (once the specific outcome is displayed) is recorded for each trial.

   1. Transfer an individual from its isolation tank to the behavioral apparatus with the transportation net (see Equipment #4). All the doors of the behavioral setup are opened at the beginning of the session.

      Note: It is important to have two different nets in size and color (Figure 3), to avoid transportation of the fish between tanks being wrongly associated with punishment by using the same net. A bigger black net is used for fish transport (transportation net), and a smaller green and white net is used for punishment (punishment net).

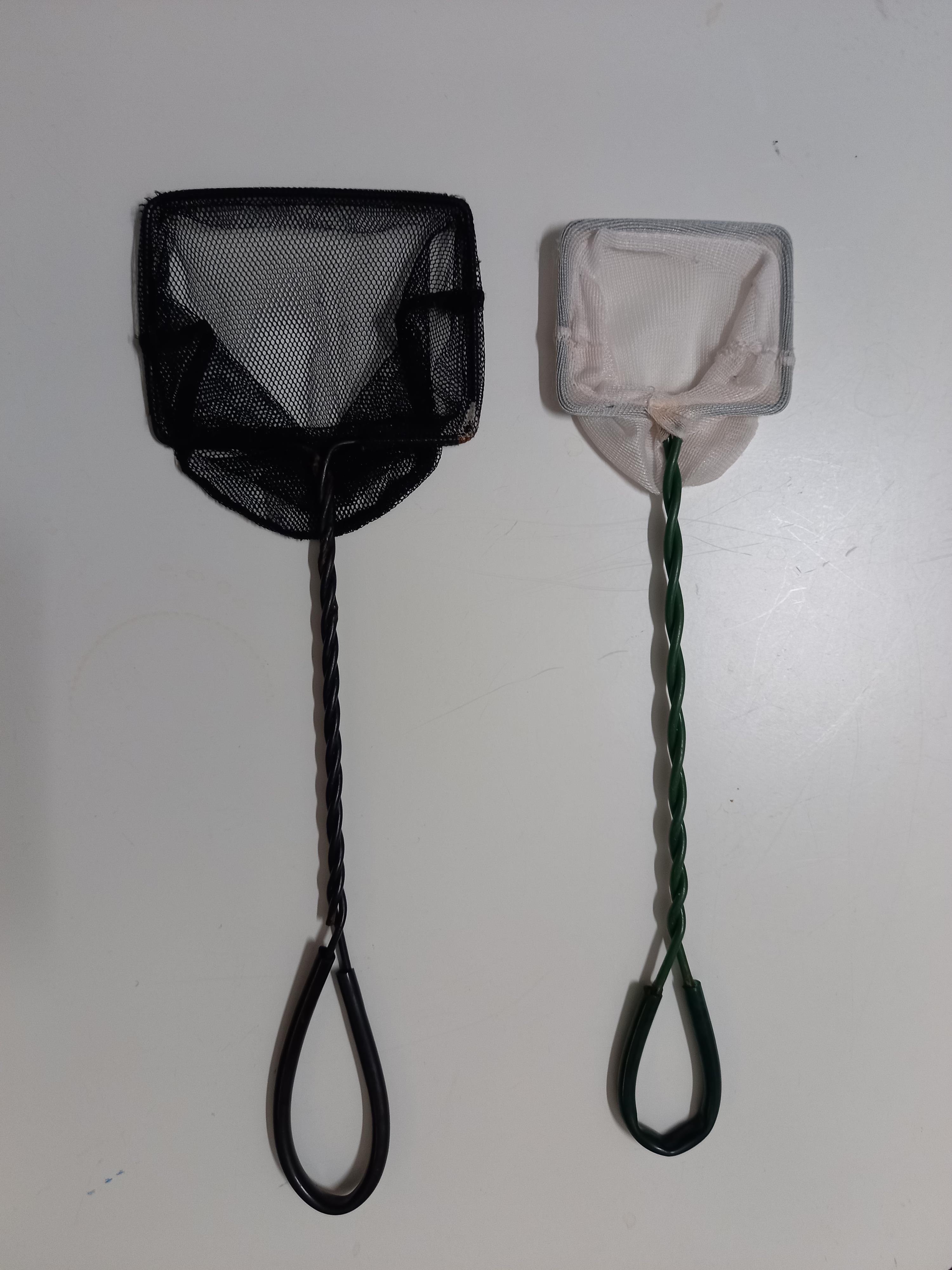

      Figure 3. Nets used in the procedure of the judgment bias assay.




   2. Allow the fish to explore the whole tank for 10 min.

   3. After 10 min, close all the doors and place the fish in the starting box of the experimental setup with the transportation net.

   4. Randomly assign either left or right arm as the location for positive (P) training.

   5. Randomly select either full green or full red as the color for positive (P) training. Add a fully colored card (green or red) to the previously selected arm.

   6. Apply 1 min of inter-trial interval (ITI).

   7. Manually open the guillotine door located at the entrance of the P arm to allow the fish to enter the arm.

   8. Deliver a 1-mm piece of bloodworms (see Materials and Reagents #5) with the manual dispenser (Figure 4) at the end of the arm when the fish enters the arm. The manual dispenser consists of a 12 mL syringe (see Materials and Reagents #6) joined to a 3 mm transparent PVC tube (see Materials and Reagents #7). The dispenser allows the researchers to not be visible to the experimental zebrafish during this procedure.

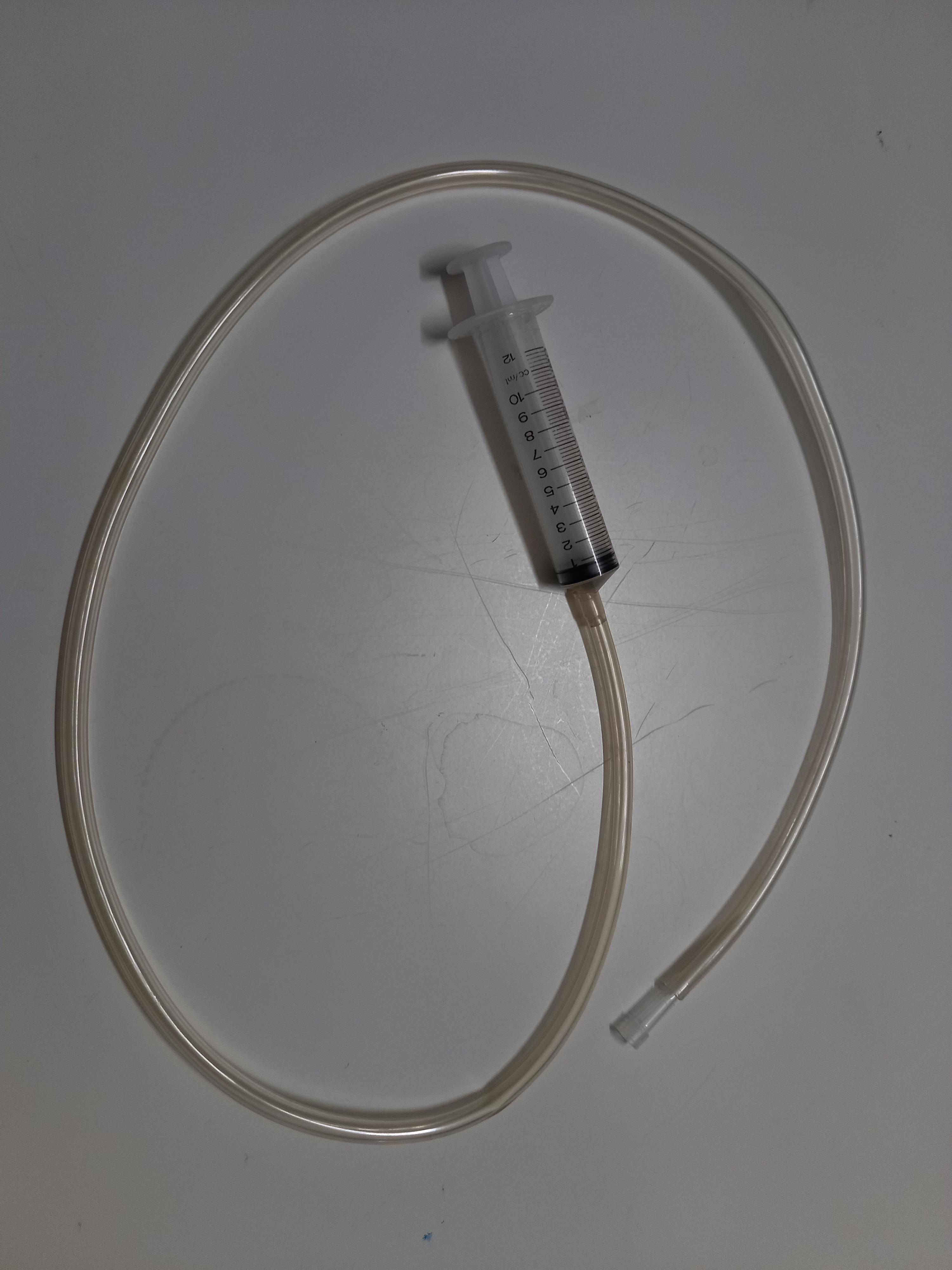

      Figure 4. Manual dispenser used in the procedure of the judgment bias assay.




   9. Perform Steps C7–C8 for a total of four consecutive times, with 1 min of ITI between trials.

   10. Return the fish to its isolation tank with the transportation net.

   11. Change water between individuals.




4. Training phase session 1 (day 1)

   General description: After habituation, fish are trained in a discrimination task for two consecutive days. The session 1 of the training phase is performed once the habituation phase ends for each experimental fish (inter-phase interval of 4–6 h). This phase consists of eight entries in total [four positive (P) and four negative (N)] in a pseudo-random sequence (i.e., P P N N P N P N). During this session, only one door is opened in each trial, either the one associated with the P (rewarded) or the N (aversive) outcome (Figure 5). The position (i.e., right or left) and the associated color cue (i.e., red or green) of the training arms (P and N) have to be counterbalanced between individuals. The time between the doors being opened and the fish leaving the arm (once the specific outcome is displayed) is recorded for each trial.

   1. Transfer an individual from its isolation tank to the behavioral apparatus with the transportation net. All the doors of the behavioral setup are closed at the beginning of the session.

   2. Place the fish in the starting box of the experimental setup for 1 min.

   3. Manually open the guillotine door located at the entrance of the P arm to allow the fish to enter the arm.

   4. Deliver a 1-mm piece of bloodworm with the manual dispenser at the end of the arm when the fish enter the arm.

   5. Allow the fish to eat the piece of food and return to the starting box by itself. Close the guillotine door for the P arm and apply 1 min of ITI.

   6. Manually open the guillotine door located at the entrance of the Negative (N) arm (including the second color cue; green or red) to allow the fish to enter the arm.

   7. Perform a negative outcome (punishment) when the fish enters the N arm by catching the fish in the punishment net and gently shaking it for 10 s.

   8. Allow the fish to return to the starting box and close the guillotine door of the N arm.

   9. Perform Steps D3–D5 or D6–D8 for a total of eight consecutive times [four positive (P) and four negative (N)] in a pseudo-random sequence (i.e., P P N N P N P N).

   10. Return the fish to its isolation tank with the transportation net.

   11. Change water between individuals.





       Figure 5. Schematic representation of the Training phase. (A) The fish is placed in the starting box of the experimental setup before starting each trial. (B) After 1 min of inter-trial interval (ITI), the guillotine door located at the entrance of the P arm is manually opened to allow the fish to enter the arm and receive the positive outcome (food reward; 1-mm piece of bloodworm), which is delivered at the end of the arm. Fish is then allowed to return by itself to the start box once the trial ends. (C) After an additional 1 min of ITI, the guillotine door located at the entrance of the N arm is manually opened to allow the fish to enter the arm and to receive the negavive outcome (punishment; fish is caught in a net inside the N arm and gently shaken in the net for 10 seconds). Eight entries [four positive (P) and four negative (N)] are performed in a pseudo-random sequence (i.e., P P N N P N P N).




5. Training phase session 2 (day 2)

   General description: The second session of the training phase is performed on day 2 similarly to the first session.

   1. Perform Steps D1–D11 of the training phase session 1 (see section D of Procedure).




6. Test phase (day 3)

   General description: The test session consists of six pre-training trials (i.e., P P N N P N) followed by the presentation of cue tests. Each cue test is interspersed with one P and one N outcome presentation (i.e., training trials). Both a pre-training session and interspersed training trials were included in an attempt to ensure rapid and accurate discrimination of the task, by a potential enhancement of the short-term memory performance. In fact, the time that it took for the fish to learn the task was shortened, and the number of fish that learned the task was increased (personal observation from our pilot experiments). Therefore, the test sequence consisted of 19 trials in total (e.g., P P N N P N P P N NP N NP P N A P N NN; cue testing in bold). Reinforcements are absent in the cue tests. The order of presentation of the three ambiguous cues is counterbalanced between individuals. During this session, only one door is opened in each trial, either the one of the P (rewarded) or the N (aversive) outcome (Figure 6). The time between the doors being opened and the fish leaving the arm (once the specific outcome is displayed) is recorded for each trial.

   1. Transfer an individual from its isolation tank to the behavioral apparatus with the transportation net. All the doors of the behavioral setup are closed at the beginning of the session.

   2. Place the fish in the starting box of the experimental setup for 1 min.

   3. Manually open the guillotine door located at the entrance of the P arm to allow the fish to enter the arm.

   4. Deliver a 1-mm piece of bloodworm with the manual dispenser at the end of the arm, when the fish enter the arm.

   5. Allow the fish to eat the piece of food and return to the starting box by itself. Close the guillotine door of the P arm and wait for 1 min of ITI.

   6. Manually open the guillotine door located at the entrance of the Negative (N) arm (including the second color cue; green or red) to allow the fish to enter the arm.

   7. Perform a negative outcome (punishment) when the fish enters the N arm, by catching the fish in the punishment net and gently shaking it for 10 s.

   8. Allow the fish to return to the starting box and close the guillotine door of the N arm. Apply 1 min of ITI.

   9. Perform Steps F3–F5 or F6–F8 for a total of six consecutive times [three positive (P) and three negative (N)] in a pseudo-random sequence (i.e., P P N N P N; pre-training trials). Apply 1 min of ITI between trials.

   10. Manually open the guillotine door located at the entrance of the P arm to allow the fish to enter the arm (positive cue test). No reinforcement is delivered. Apply 1 min of ITI.

   11. Perform Steps F3–F5 and F6–F8 [one positive (P) and one negative (N)] in a consecutive sequence (i.e., PN; interspersing training trials). Apply 1 min of ITI between trials.

   12. Manually open the guillotine door located at the entrance of the N arm to allow the fish to enter the arm (Negative cue test). No reinforcement is delivered. Apply 1 min of ITI.

   13. Perform Step F11.

   14. Manually open manually the guillotine door located at the entrance of the NP arm to allow the fish to enter the arm (Near Positive cue test). No reinforcement is delivered. Apply 1 min of ITI.

   15. Perform Step F11.

   16. Manually open the guillotine door located at the entrance of the A arm to allow the fish to enter the arm (Ambiguous cue test). No reinforcement is delivered. Apply 1 min of ITI.

   17. Perform Step F11.

   18. Manually open the guillotine door located at the entrance of the NN arm to allow the fish to enter the arm (Near Negative cue test). No reinforcement is delivered. Apply 1 min of ITI.

   19. Return the fish to its isolation tank with the transportation net.

   20. Change water between individuals.

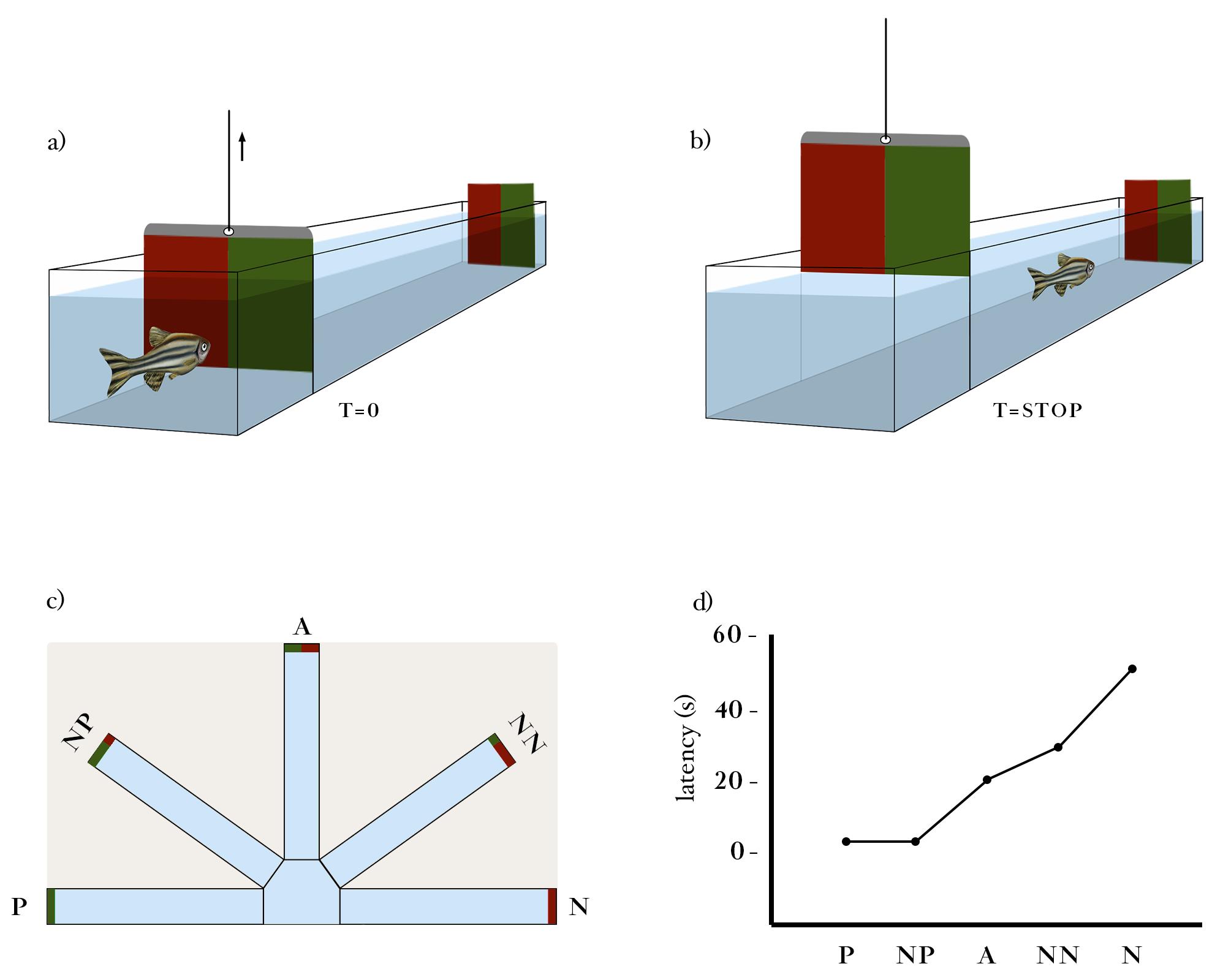

       Figure 6. Schematic representation of the Test phase. The procedure for recording latencies consists of (A) starting the timing as the guillotine door is open and (B) stopping it as the fish enter the targeted arm. (C) The latency to enter in the target arm (60 s maximum) is recorded for each test trial (P, NP, A, NN, and N). The test sequence consists of 19 trials in total (e.g., P P N N P N P P N NP N NP P N A P N NN; test trials in bold). (D) Significant differences in the latency for each test trial are expected, with fish showing a lower latency to enter the P arm and progressively increasing it towards the color cue/location near N.

Data analysis

The latency to enter the target arm (60 s maximum) is recorded (see Software #1) and analyzed for each probe trial using a multi-event recorder software (see Software #2). Fish showing a difference <20 s in the latency between P and N (i.e., fail in the discrimination between P and N testing) are excluded from posterior analyses. In pilot experiments, we observed a consistent and well-differentiated response in the latencies between the learned stimuli tests (P and N), showing an average difference in latencies between P and N of 47.9 ± 6.1 s. We have established a threshold of 20 s to obtain a “window” wide enough to facilitate an accurate categorization of the ambiguous stimuli, since a narrow range could weaken the categorization of the individuals. In our previous study (Espigares et al., 2021), zebrafish showed significant differences in the latency to enter the different arms (P, NP, A, NN, and N), which reflected a generalization response, with fish showing a lower latency to enter P and progressively increasing the latency as the color cue/location neared N. If we assume that each full color (i.e., green or red) predicted a specific consequence (i.e., positive or negative; as it has been learned by the training with full colors), we can claim that the responses to the ambiguous cues are associated to color proportions instead of the recognition of just one color. Importantly, the A stimulus should not have any kind of bias (i.e., use always a fixed 1:1 color proportion) towards P or N, since this is the base on which fish are categorized in an optimistic/pessimistic dimension. For each individual fish, a judgment bias score (JBS) is calculated from the latencies (L) to enter the P, N, and A arms for each fish [JBS = (L_A–L_P)*100/(L_N–L_P)]. A JBS below 50 indicates an overall positive judgment and ‘optimistic’ interpretation of the ambiguous cue (fish perceived the ambiguous stimulus as a positive one), while higher JBS values indicate a negative (pessimistic) expectation bias (fish perceived the ambiguous stimulus as a negative one). However, selecting the extremes of the phenotype distribution (e.g., upper and lower quartiles of the JBS) would improve power to detect behavioral and/or physiological differences between phenotypes, since JBS in zebrafish falls into a bimodal distribution (unpublished data).

Notes

Due to the fundamental requirement for associative learning to successfully perform the discrimination task, stressed fish, as well as transgenic or mutant lines with impaired learning phenotypes, may not be suitable for performing the judgment bias assay. Furthermore, the amount of food delivered (i.e., 1-mm pieces of bloodworms) during each session was designed to avoid fish satiety. In fact, our previous results show that fish consumed all food rewards delivered throughout the assay. Fish not fully consuming food rewards at any point of the assay should be excluded from the experiment.

Acknowledgments

This work was supported by the BIAL Foundation through grant no. 130/12 awarded to R.F.O. and by a grant from Fundação para a Ciência e a Tecnologia (FCT, PTDC/BIA-COM/31010/2017 awarded to F.E. and R.F.O.). F.E. was supported by a Marie Skłodowska-Curie Actions - Individual Fellowship (H2020-MSCA-IF/703285) under the Horizon 2020 Framework Programme (H2020). The authors thank the Fish Facility Platform of the Instituto Gulbenkian de Ciência (Portugal) for animal care. The authors also acknowledge Lara Chapuis for the illustrations presented in Figures 5 and 6. This protocol was adapted from previous work (Espigares et al., 2021).

Competing interests

The authors declare they have no competing interests.

Ethics

All procedures were performed in accordance with Institutional and National regulations and guidelines, reviewed by the Ethics Committee of the Instituto Gulbenkian de Ciência, and approved by the competent Portuguese authority (Direcção Geral de Alimentação e Veterinária; permit no. 0421/000/000/2019).
