High-throughput 3D Spheroid Formation and Effective Cardiomyocyte Differentiation from Human iPS Cells Using the Microfabric Vessels EZSPHERE^TM

Materials and Reagents

1. EZSPHERE Dish 100 mm Type 900 (AGC Techno Glass, IWAKI, catalog number: 4020-900)

2. EZSPHERE Dish 35 mm Type 903 (AGC Techno Glass, IWAKI, catalog number: 4000-903)

3. EZ-BindShut II 100 mm Dish (AGC Techno Glass, IWAKI, catalog number: 4020-800LP)

4. Cell culture T25 Flask (AGC Techno Glass, IWAKI, catalog number: 3100-025)

5. 5 ml Pipet (AGC Techno Glass, IWAKI, catalog number: 7103-005)

6. Cell scraper (AGC Techno Glass, IWAKI, catalog number: 9010-320)

7. 70 μm cell strainer (Corning, Falcon, catalog number: 352350)

8. Pasteur pipettes (AGC Techno Glass, IWAKI, catalog number: IK-PAS-9P)

9. Human induced pluripotent stem cell (hiPSC) strains 253G1 and 201B7 (iPS Academia Japan)

10. Maintenance culture media mTeSR1 (Stemcell Technologies, catalog number: 5850)

11. Biolaminin 521 LN (LN521) (BioLamina, catalog number: LN521-03)

12. DPBS (FUJIFILM Wako Pure Chemical, Wako, catalog number: 045-29795)

13. HBSS, no calcium (Thermo Fisher Scientific, Gibco, catalog number: 14170112)

14. DMEM (4.5g/L Glucose) with L-Gln, without Sodium Pyruvate, liquid (Nacalai, catalog number: 08459-35)

15. 0.5 mol/L-EDTA solution (pH 8.0) (Nacalai, catalog number: 06894-14)

16. Fetal bovine serum, FBS (MP Biomedicals, CELLECT, catalog number: 2916154)

17. Accutase (Merck, Sigma-Aldrich, catalog number: A6964-100ML)

18. AccuMax (Innovative Cell Technologies, catalog number: AM105)

19. TrypLE select Enzyme (1×), no phenol red (Thermo Fisher Scientific, Gibco, catalog number:12563011)

20. StemPro^TM-34 SFM (1×) (Thermo Fisher Scientific, Gibco, catalog number: 10639011)

21. Penicillin-Streptomycin (10,000 U/ml) (Thermo Fisher Scientific, Gibco, catalog number: 15140122)

22. L-Glutamine (200 mM) (Thermo Fisher Scientific, Gibco, catalog number: 25030081)

23. holo-Transferrin human (Merck, Sigma-Aldrich, catalog number: T0665-100MG)

24. L-Ascorbic acid (Merck, Sigma-Aldrich, catalog number: A92902-100MG)

25. 1-Tioglycerol (Merck, Sigma-Aldrich, catalog number: M6145-25ML)

26. ROCK inhibitor Y-27632 (Wako Pure Chemical Industries, Wako, catalog number: 253-00513)

27. Recombinant Human BMP-4 Protein (Bio-Techne, R&D Systems, catalog number: 314-BP-010)

28. Fibroblast Growth Factor (basic), Human, recombinant (154 aa) (FUJIFILM Wako Pure Chemical, Wako, catalog number: 064-04541)

29. Recombinant Human VEGF 165 Protein (Bio-Techne, R&D Systems, catalog number: 293-VE-010)

30. Recombinant Human/Mouse/Rat Activin A Protein (Bio-Techne, R&D Systems, catalog number: 338-AC-010)

31. Stemolecule Wnt Inhibitor IWP-4 (REPROCELL USA, Stemgent, catalog number: 04-0036)

32. DNase I, Bovine Pancreas (Merck, Millipore, catalog number: 260913)

33. 30 w/v% Albumin D-PBS (-) Solution, from Bovine Serum (BSA), Fatty Acid Free (FUJIFILM Wako Pure Chemical, Wako, catalog number: 015-23871)

34. 4% Paraformaldehyde Phosphate Buffer Solution (Wako Pure Chemical Industries, Wako, catalog number: 163-20145)

35. Antibodies used in flow cytometry analysis (Table 1)




    Table 1. Antibodies used in flow cytometry analysis

    Antibodies	Distributor	Cat. No.	Dilution ratio
    APC-KDR	BioLegend	359915	2.5:100
    APC-Mouse IgG1, kappa Isotype control	BioLegend	400121	2.5:100
    PE-PDGFRα	BioLegend	323505	5:100
    PE-Mouse IgG1, kappa Isotype control	BioLegend	400113	5:100
    PE anti-cardiac Troponin T	BD Pharmingen	564767	2.5:100
    PE-Isotype control	BD Pharmingen	554680	2.5:100




36. Cell culture Reagents (see Recipes)

37. Cytokines and small molecular compounds (see Recipes)

38. Modified StemPro-34 (see Recipes)

39. Spheroid formation medium (see Recipes)

40. Stage-1 medium (2×) (see Recipes)

41. Stage-2 medium (see Recipes)

42. Stage-3 medium (see Recipes)

Equipment

1. Laminar flow hood (Hitachi, model: SCV-Class II type A/B)

2. Water bath (AS ONE Corporation, model: TR-1AR)

3. TC10 Automated Cell Counter (Bio-Rad, catalog number: 145-0001)

4. EVOS FL Auto Cell Imaging System (Life Technologies, EVOS, catalog number: AMAFD1000)

5. EVOS Onstage Incubator (Life Technologies, EVOS, catalog number: AMC1000)

6. BD FACSVerse flow Cytometer (BD Bioscience, catalog number: 651154)

7. Pipet-Aid XPress 110V (Drummond Scientific Company, catalog number: 4-040-135)

8. Centrifuge (Himac, CF16RX, model: S101812)

9. Vortex mixer Vortex Gwnie 2 (Scientific Industries, Inc., catalog number: SI-0236)

10. HERAcell CO₂ incubator (Kendro Laboratory Products)

11. Vacuum pump (Model JN726 FT.18)

Software

1. ImageJ (NIH, https://imagej.nih.gov/ij/)

2. AGDRec AG-Desktop recorder (AmuseGraphics, http://t-ishii.la.coocan.jp/hp/ag/index.html)

3. FlowJo software (FlowJo LLC, https://www.flowjo.com/)

Procedure

Note: Perform the culture operation in a biosafety level 2 laboratory in a dedicated laminar flow hood. All waste (tubes, tips, plates) should be inactivated by autoclaving and then properly disposed of according to the rules of your facility.

1. High-throughput spheroid formation from hiPSCs

   1. Culture the hiPSCs in the medium mTeSR1 in Flasks coated with Biolaminin 521 LN.

      Note: Subculture the hiPSCs as single cells, not cell clumps, without adding the ROCK inhibitor.

   2. Prepare Spheroid formation medium (see Recipes: Table 5) and pre-warm at 37°C in a water bath.

   3. Use 90% confluent hiPSCs.

   4. Aspirate medium from the cells and wash with 2.5 ml of room temperature DPBS. For aspiration, use the vacuum pump with the pipette and an appropriate tube.

   5. Add 2.5 ml of TrypLE select and incubate at 37°C for 4 min.

   6. Aspirate TrypLE select and add 2.5 ml of Spheroid formation medium.

   7. Detach the cells by flushing the medium to the cells using the Pipet-Aid with a 5 ml pipette. If the cells do not detach, scrape them with a Cell Scraper.

   8. Flush the cells 2-8 times by pipetting, to dissociate the cell clumps into single cells, and collect them into a 15 ml centrifuge tube.

   9. Centrifuge at 100 × g for 4 min at 20°C.

   10. Aspirate supernatant and resuspend pellet with 1-5 ml of Spheroid formation medium.

   11. Measure cell density using the TC10 Automated Cell Counter.

   12. Dilute cells to the density of 3 × 10⁵ cells/ml with Spheroid formation medium, and inoculate 10 ml of the suspended cells to the EZSPHERE Dish 100 mm Type 900 (see Figure 1).

   13. Place the EZSPHERE Dish in a 37°C, 5% CO₂ incubator and culture for 24 h.

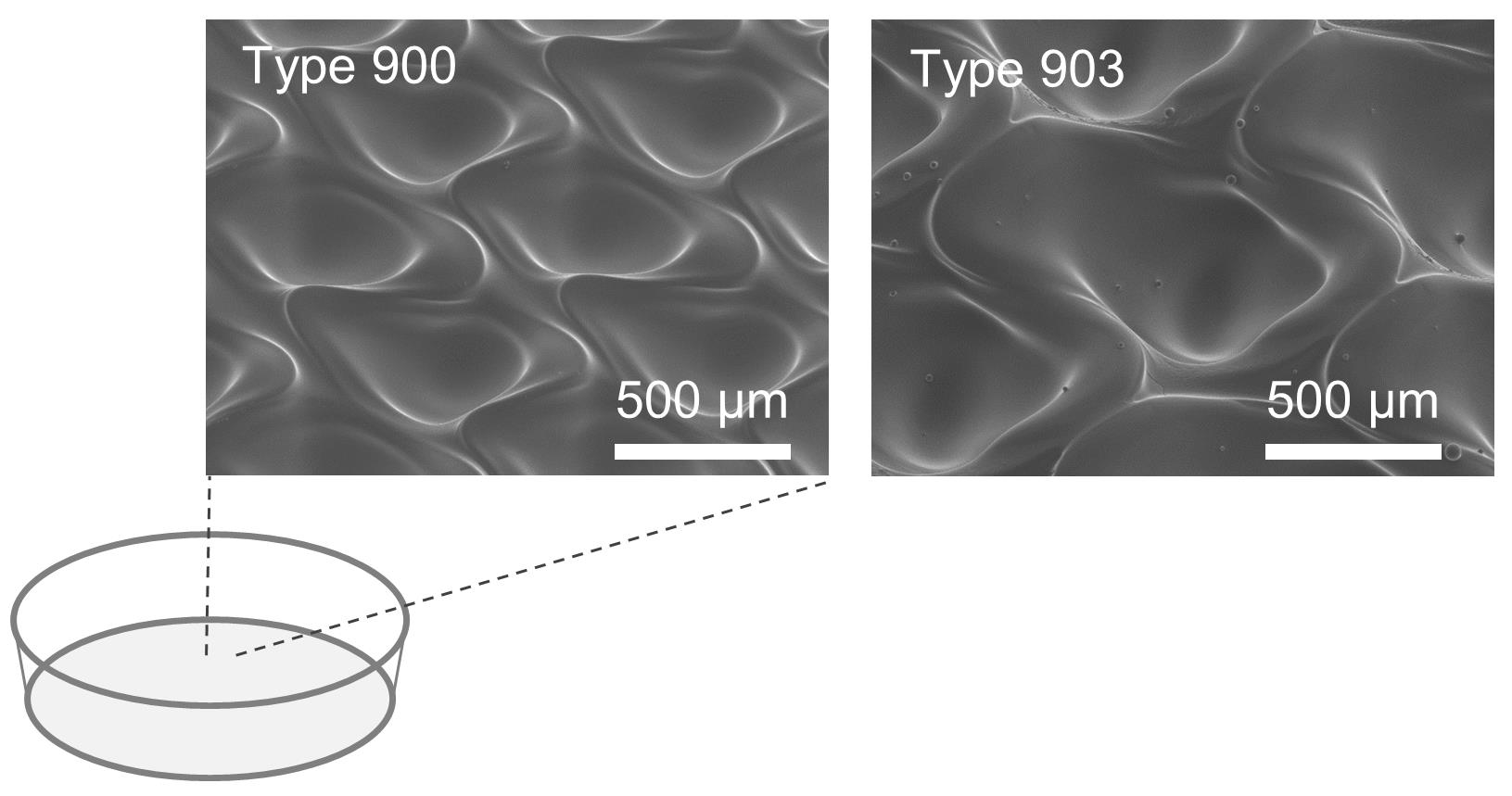

       Figure 1. Images of the microfabric vessels “EZSPHERE” with a dish type




2. Stage-1 of cardiac differentiation

   1. Move on to Stage-1 of the cardiac differentiation process, 24 ± 2 h after spheroid formation.

   2. Prepare Stage-1 medium (2×) (see Recipes: Table 6) and pre-warm at 37°C in a water bath.

   3. Take out the EZSPHERE dish from the CO₂ incubator and check if spheroids have formed in each micro-well of the EZSPHERE, under a phase contrast microscope.

   4. Carefully add an equal volume (10 ml) of Stage-1 medium (2×) to the spheroids.

      Note: We recommend taking 10 ml of Stage-1 medium (2×) with a 10 ml pipette, placing the tip of the pipette on the liquid surface around the center of the EZSPHERE dish, standing the pipette vertically, and pouring the medium carefully.

   5. Return the EZSPHERE dish to the 37°C, 5% CO₂ incubator, and culture for 89 h.




3. Stage-2 of cardiac differentiation

   1. Move on to Stage-2 of the cardiac differentiation process, 89 ± 2 h after the Stage-1 mentioned above.

   2. Prepare Stage-2 medium (see Recipes: Table 7) and IMEM medium, then pre-warm at 37°C in a water bath.

   3. Harvest spheroids from EZSPHERE dish into a 15 ml or 50 ml tube.

      (Optional)

      1. Transfer spheroids to a 100-mm flat bottom dish and place on the stage of the microscope.

      2. Shake the dish finely in a circular motion to place the spheroids in the center of the dish.

      3. Take a picture of spheroids with the microscope (see Figure 2).

      4. Measure the size of spheroids using the ImageJ software (see Data analysis A).

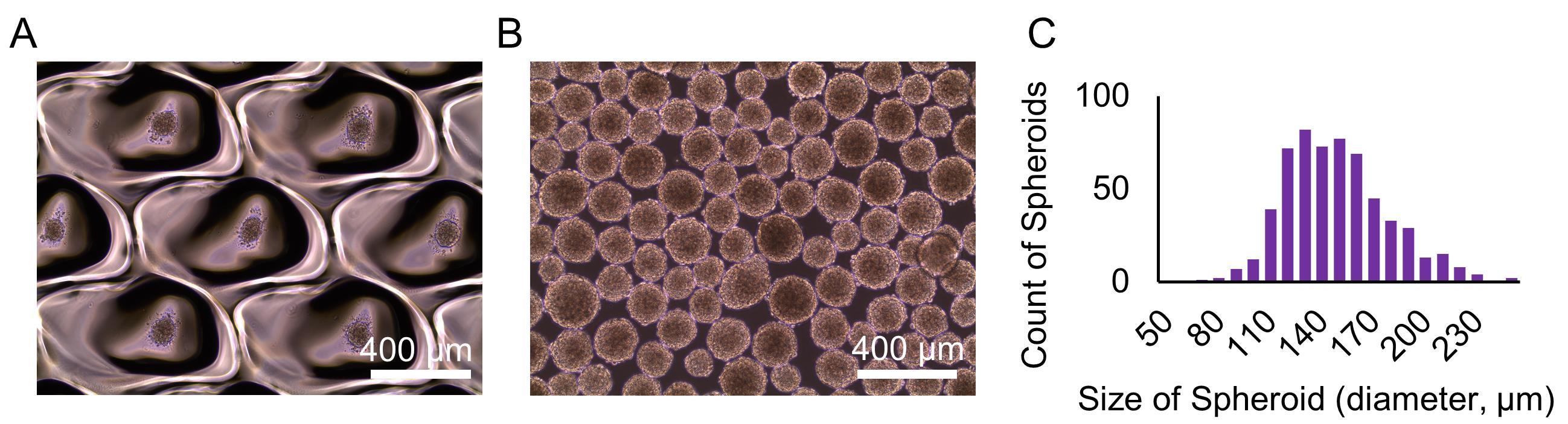

      Figure 2. Images and size of the hiPSC spheroids generated at Procedure C. Spheroids on the EZSPHERE dish (A) and transferred onto a flat bottom dish (B). Histogram of the size (diameter) of the spheroids (μm) (C).




   4. Loosen the cap of the tube for ventilation, and place the tube in the 37°C CO₂ incubator for 10 min to precipitate the spheroids.

   5. Carefully remove the supernatant from spheroids as much as possible using a pipette, and add 5 ml of pre-warmed IMEM medium to wash the spheroids.

   6. Centrifuge spheroids at 50 × g for 3 min at 20°C, removing the supernatant as much as possible.

   7. Add 20 ml of pre-warmed Stage-2 medium to spheroids, and transfer spheroids to a 100-mm low cell adhesion dish (EZ-BindShut II).

   8. Place the dish into the 37°C CO₂ incubator.

      Note: We recommend shaking the dish three times back and forth and left and right to distribute the spheroids evenly in the dish.

   9. Shake the dish every morning and evening as described above to equally disperse the spheroids.




4. Stage-3 of cardiac differentiation and re-aggregation of spheroids

   Note: The re-aggregation of spheroids increases the purity in the cardiac differentiation process. As a negative control, do not re-aggregate the spheroids at this step. To confirm the effect of re-aggregation, analyze the purity of CTNT positive iPS-CMs by flow cytometry after Procedure G.

   1. On day 6 of cardiac differentiation, move on to Stage-3 for re-aggregation of the spheroids.

      Note: While it is recommended that this re-aggregation step be performed on day 6, day 7 is also acceptable.

   2. Prepare Stage-3 medium (see Recipes: Table 8) and pre-warm at 37°C in a water bath.

   3. Collect spheroids from the 100-mm EZ-BindShut II dish into a 50 ml tube and place it in the 37°C CO₂ incubator for 10 min to precipitate the spheroids.

   4. Remove supernatant from the collected spheroids and add 5 ml of room temperature DPBS to wash them.

   5. Centrifuge at 50 × g for 3 min at 20°C and remove the supernatant.

      Note: For a negative control, skip Steps D6-D9 and proceed to Step D10.

   6. Add 1 ml of Accutase to the spheroids and incubate at 37°C in the water bath for 8 min to dissociate the spheroids into single cells. During this incubation, mix the cells vigorously by vortexing the tube for 10 s every 4 min.

   7. If cell aggregates remain after 8 min of incubation, as mentioned above, enforce additional incubation: collect only the remaining cell aggregates from single dissociated cells using a pipette and transfer to a new tube. Then, add double the amount (2 ml) of Stage-3 medium to the single dissociated cells and add 1 ml of Accutase to the aggregates. Incubate the aggregates at 37°C in the water bath for 8 min again. During the incubation, mix the cells vigorously, as mentioned above.

   8. Add double the amount (2 ml) of Stage-3 medium to the single dissociated cells in Accutase, centrifuge at 200 × g for 4 min at 20°C, and then remove supernatant.

   9. Resuspend the collected cell pellet with 5 ml of Stage-3 medium, and count the number of cells with diameter ranging 8-27 μm. If cell aggregates remain, remove them using a 70 μm Cell Strainer.

   10. Dilute the cells with Stage-3 medium to the density of 1 × 10⁵ cells/ml and inoculate 3 × 10⁵ cells into a 35-mm EZSPHERE Type 903 dish.

       Note: For a negative control, add 20 ml of Stage-3 medium to the spheroids obtained from the one 100-mm EZ-BindShut II dish at step 5 and dispense 3 ml each into 35-mm EZ-BindShut II dish.

   11. Change half volume of medium every 2 or 3 days.




5. Harvest cardiomyocyte differentiated cells

   1. Around day 10 to 14 of the cardiac differentiation process, harvest the obtained hiPSC-CMs or negative control.

   2. Prepare 4 ml of dissociation buffer (0.05% Trypsin-EDTA:AccuMax = 3:1) and 4 ml of quench buffer (DMEM:FBS 1:1 + 200 units ml^-1 of DNase I).

   3. Observe the beating state of the cardiac spheroids under the microscope (see Videos 1 and 2).

      Note: Beating of the cardiac spheroids might decay as the EZSPHERE dish grows colder at room temperature. Therefore, we recommend using an on-stage incubator to keep the dish warm at 37°C during microscopic observation. The EVOS FL Auto Cell Imaging System and EVOS on-stage incubator were used for observation, and an AGDRec AG-Desktop recorder was used for capturing videos.





      Video 1. Representative video of the cardiac spheroids re-aggregated in the micro-wells of EZSPHERE. The spheroids were re-aggregated on day 6 and began beating from day 8. This video was recorded on day 14.







      Video 2. Video of a population of beating cardiac spheroids recovered after the re-aggregation process. The cardiac spheroids were transferred from the EZSPHERE dish to a flat dish and then videotaped as they were beating.



   4. Collect the spheroids into a 15 ml tube and let stand for 2-3 min until they settle.

   5. Remove supernatant and add 5 ml of DPBS to wash the spheroids.

   6. Centrifuge the tube at 50 × g for 3 min and remove the supernatant, taking care not to lose the spheroids.

   7. Add 1 ml of dissociation buffer to the collected spheroids and incubate at 37°C in the water bath for 8 min, to dissociate the spheroids into single cells. During the incubation, mix the cells vigorously, as mentioned above.

   8. If cell aggregates still remain after 8 min of incubation, enforce an additional incubation step. Collect only the remaining cell aggregates from single dissociated cells using a pipette and transfer into a new tube. Then, add equal volume (1 ml) of quench buffer to the dissociated cells and add 1 ml of dissociation buffer to the aggregates. Incubate the aggregates again at 37°C in the water bath for 8 min. During the incubation, mix the cells vigorously, as mentioned above.

   9. Add equal volume (1 ml) of quench buffer to the dissociated cells.

   10. Centrifuge the tube at 200 × g for 5 min and remove the supernatant by careful pipetting. Do not use an aspirator to prevent the inhalation of cell aggregates entwined with some broken cell-derived DNA.

   11. For cytometry analysis, resuspend the harvested cells with DPBS. For cultivation in the next step, resuspend the cells with DMEM containing 10% FBS.

   12. Count the number of cells within 8-30 μm in diameter.




6. Flow cytometry analysis of Cardiac Mesoderm.

   1. Use the cells harvested on day 6 (Step D8).

   2. Prepare two tubes (#1 and #2) and transfer 0.5 × 10⁶ cells into each tube respectively for cell staining and its isotype control.

   3. Prepare 20 ml of flow cytometry buffer [HBSS (-), 3% FBS, 0.03 mM EDTA].

   4. Add 2 ml of flow cytometry buffer to the cells.

   5. Centrifuge the cells at 300 × g for 5 min at 20-25°C and aspirate supernatant.

   6. Repeat Steps F4-F5.

   7. Resuspend 0.5 × 10⁶ cells in 100 μl of flow cytometry buffer.

   8. Add APC-KDR and PE-PDGFRα antibodies into tube #1 for cell staining, and add APC- and PE-isotype control into tube #2 for isotype control (Table 1).

   9. Incubate each tube at room temperature for 45 min in the dark.

   10. Add 2 ml of flow cytometry buffer into each tube.

   11. Centrifuge the cells at 300 × g for 5 min at 20-25°C and aspirate the DPBS.

   12. Repeat Steps F10-F11.

   13. Resuspend the cells in 300 μl of flow cytometry buffer.

   14. Measure the cells using the flow cytometer (BD FACS Verse) and analyze the data using the FlowJo software (Figure 3).

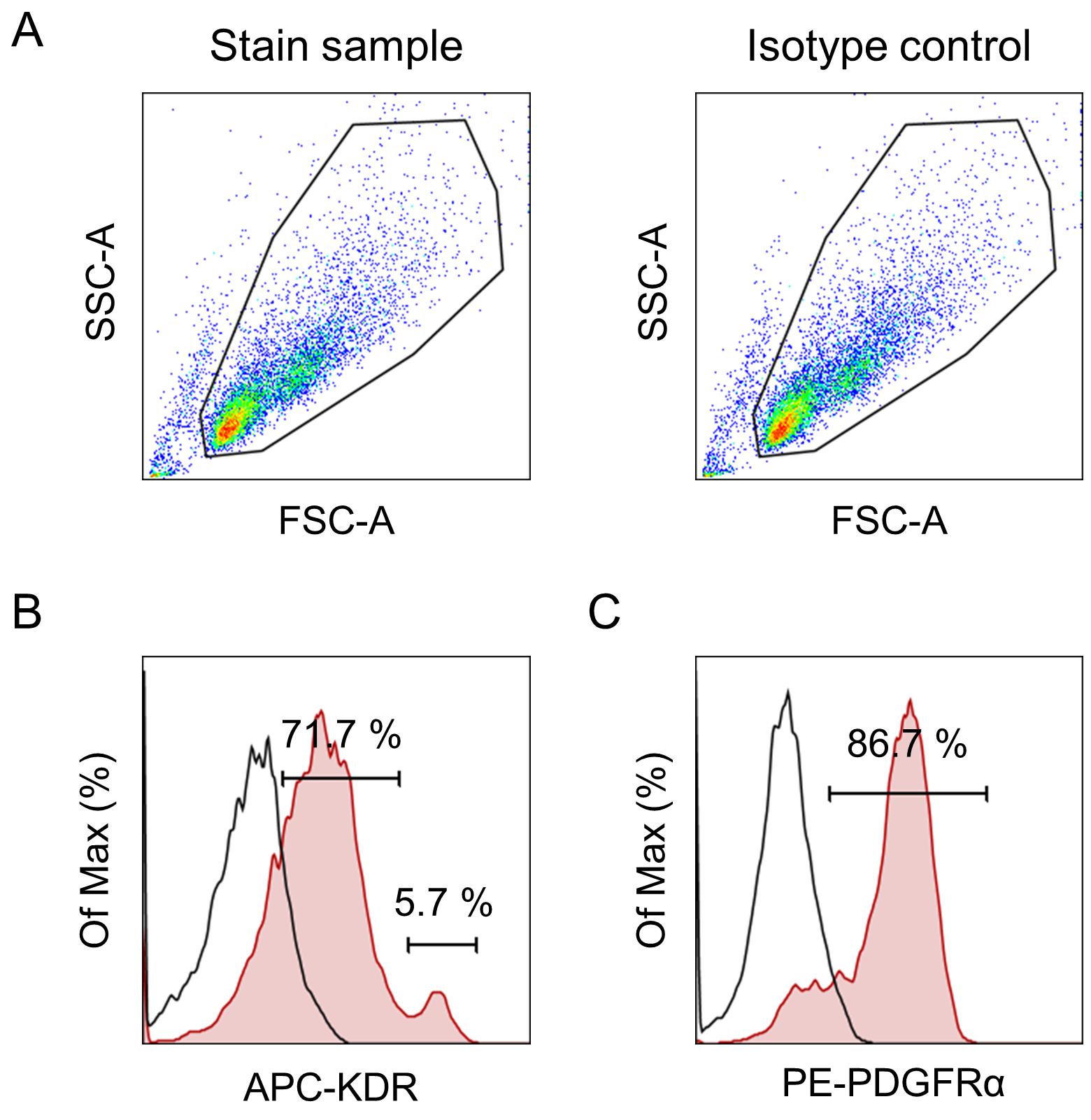

       Figure 3. Representative flow cytometry profile of iPSC-derived cardiac mesoderm on day 6. Events were acquired using the flow cytometer (BD FACS Verse) and analyzed with the FlowJo software. First, the major population was selected by gating in the SSC vs. FSC dot plots (A). Histograms are shown for each antibody: APC-KDR (B) and PE-PDGFRα (C). The plots show isotype control (open histogram) versus stained sample (red histogram). The main population present on day 6 is KDR and PDGFRα positive (5.7% of the cells were KDR^high, 71.7% of the cells were KDR^low, and 86.7% PDGFRα⁺). This result suggests that the main population present on day 6 is considered as cardiac mesoderm-like cells.




7. Flow cytometry analysis of the hiPSC-derived cardiomyocytes (hiPSC-CMs)

   1. Use 1 × 10⁶ of the differentiated or negative control cells obtained in Step E10.

      Note: If the cells were harvested in the medium, wash them with DPBS.

   2. Centrifuge the cells at 300 × g for 5 min at 20-25°C and aspirate the supernatant.

   3. Add 200 μl of 4% paraformaldehyde phosphate buffer solution and incubate at room temperature for 20 min to fix the cells.

   4. Add 2 ml of DPBS to the cells and centrifuge at 300 × g for 5 min at 20-25°C.

   5. Remove the supernatant containing paraformaldehyde solution and discard it into an appropriate waste bottle.

   6. Resuspend the cell pellets in 2 ml of DPBS. The cells could be stored at this step for up to 7 days.

   7. Centrifuge the cells at 300 × g for 5 min at 20-25 °C and aspirate the supernatant.

   8. Resuspend the cell pellets in 200 μl (0.5 × 10⁶ cells per 100 μl) of Flow Cytometry Permeabilization/Wash Buffer I and incubate at room temperature for 30 min.

   9. Transfer 100 μl (0.5 × 10⁶ cells) of resuspended cells into one well of a 96-well round-bottom plate as a staining sample. Transfer remaining 100 μl (0.5 × 10⁶ cells) of resuspended cells into one well of another 96-well round-bottom plate as an isotype control.

   10. Add 2.5 μl of PE anti-cardiac Troponin T antibodies to the sample and 2.5 μl of PE-isotype control antibodies to the isotype control (Table 1) and incubate at room temperature for 30 min in the dark.

   11. Add 100 μl of Flow Cytometry Permeabilization/Wash Buffer I to each well and shake the plate gently for 5 min at room temperature in the dark.

   12. Centrifuge the plates at 300 × g for 5 min at 20-25°C and remove the supernatant by decanting or pipetting.

   13. Carefully add 200 μl of Flow Cytometry Permeabilization/Wash Buffer I to each plate without breaking the cell pellets.

   14. Centrifuge the plates at 300 × g for 5 min at 20-25°C and remove the supernatant of each plate by decanting or pipetting.

   15. Repeat Steps G13-G14.

   16. Resuspend the cell pellets with 200 μl of DPBS in each plate and mix well.

   17. Measure the cells in each plate with the flow cytometer (BD FACSVerse) and analyze the data using FlowJo software (Figure 4).

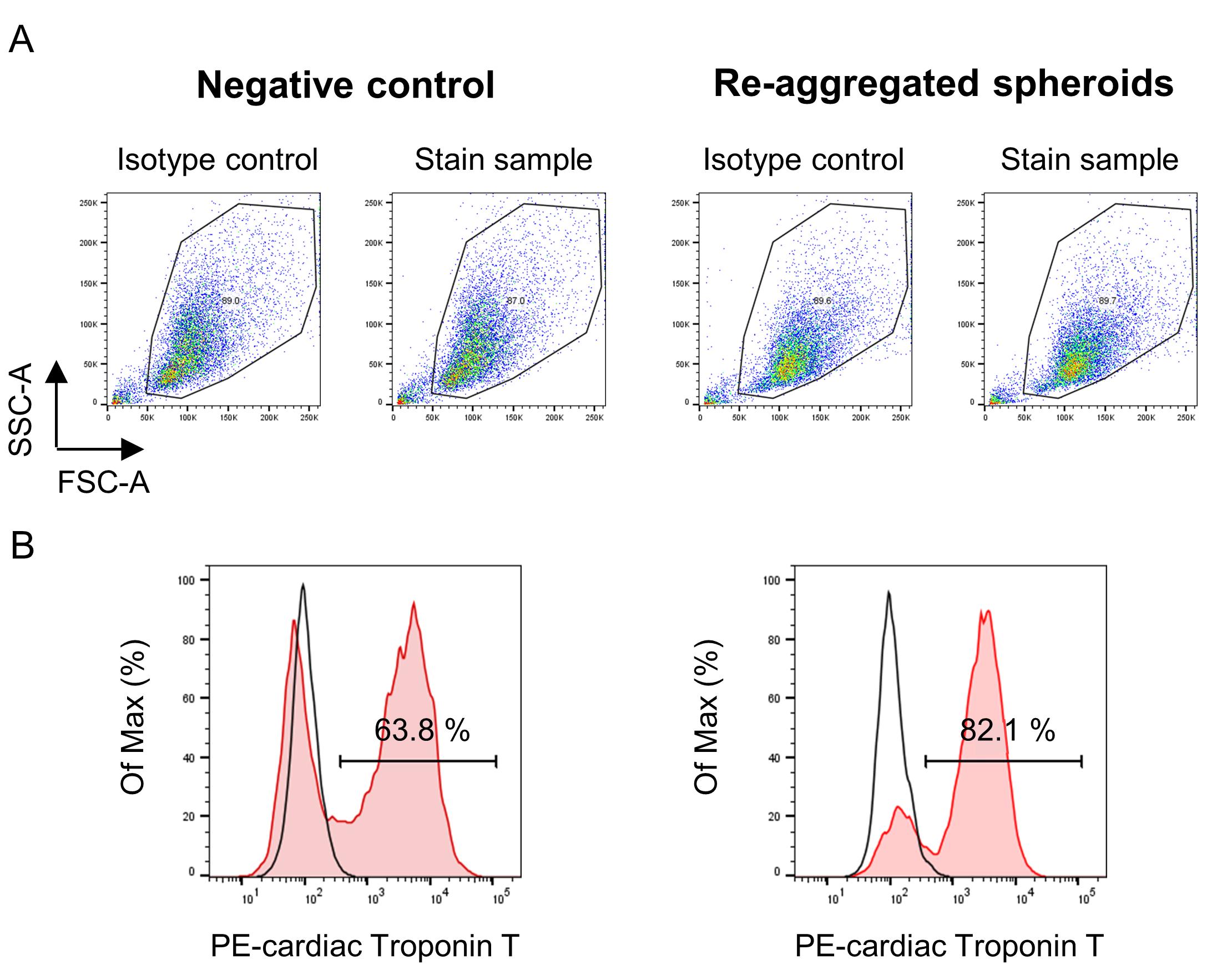

       Figure 4. Representative flow cytometry profile of hiPSC-CMs. Events were acquired using the flow cytometer (BD FACS Verse) and analyzed with the FlowJo software. First, the major population was selected by gating in the SSC vs. FSC dot plots (A). The histograms show the Cardiac Troponin T positive hiPSC-CM populations for no re-aggregated negative control (left) and re-aggregated spheroids (right), respectively (B). The plots show isotype control (open histogram) versus stained sample (red histogram). The histograms show that the purity of cardiac Troponin-T hiPSC-MS in the re-aggregated spheroids increased when compared with the negative control.

Data analysis

1. Measurement of spheroid size using ImageJ software

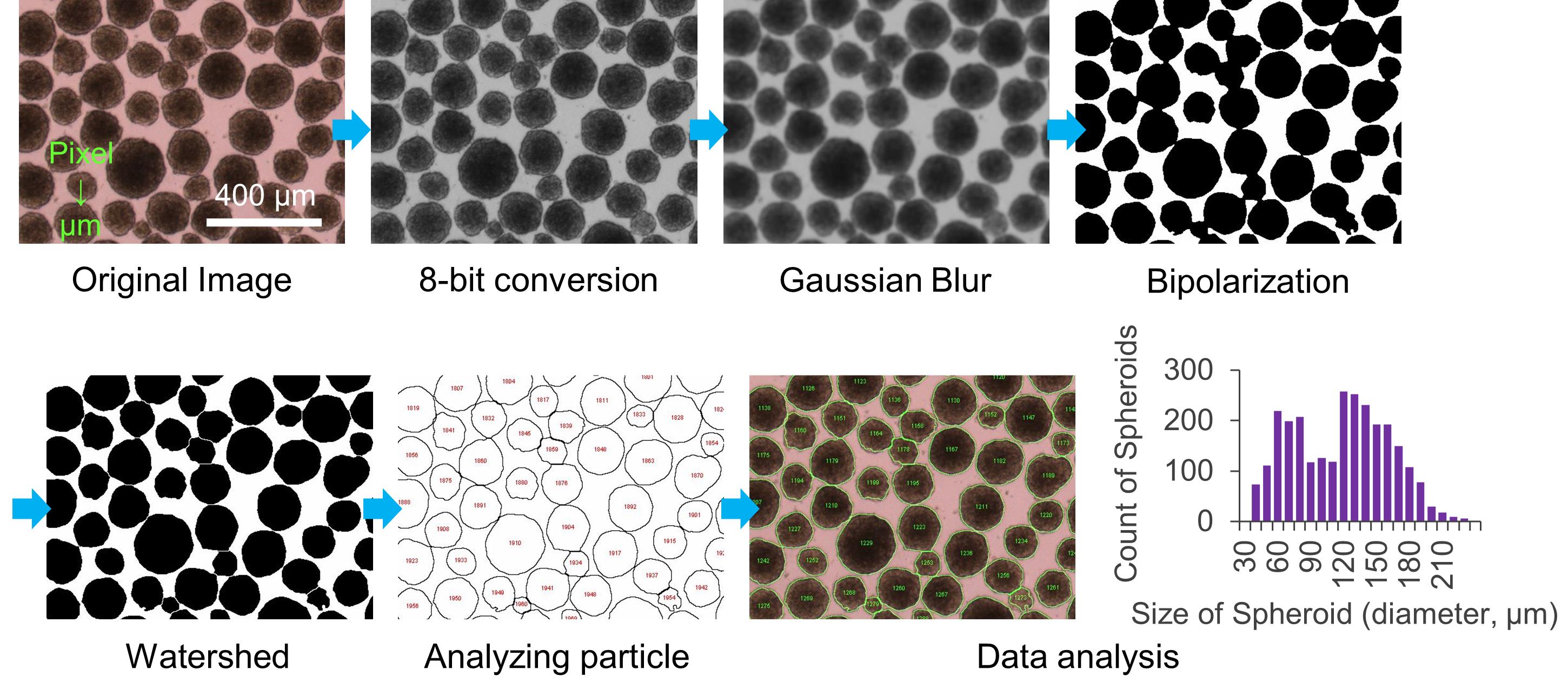

   Figure 5 shows the flow of spheroid size analysis.

   1. Open an image of spheroids with the ImageJ software.

   2. If the distance is shown in pixel, set the known distance using the “Set Scale” command in ImageJ. For example, 450 pixels = 1,000 μm.

   3. Convert the image type to 8-bit.

   4. (Option) Filter the image using “Gaussian Blur (Sigma 2.0)” command if the next step of “bipolarization” does not work.

   5. Bipolarize the image using the “Threshold” command.

   6. (Option) Divide overlapping spheroids using the “Watershed” command.

   7. To measure the surface area for each spheroid, use “Analyze Particles” with parameters “Size: 706.5 (Φ30 μm)” – infinity, “Circularity:” 0.50-1.00, “Show:” Outlines; check “Display results,” “Exclude on edges,” and “Include holes.”

   8. (Option) Overlay the Outlines in the original image to ensure the spheroids are recognized correctly.

      1. Change the color of the Outlines using “Lookup Tables > Green” command.

      2. Invert the color of the Outlines using “Lookup Table > Invert LUT” command.

      3. Overlay the Outlines on the original image using “Image Calculator (Image 1: original image, Image 2: outlines)” command.

   9. Analyze the data set consisting of the surface area of each spheroid with Excel.





      Figure 5. Flow of spheroid size analysis with ImageJ at Data analysis A

Recipes

Cell culture reagents and media preparation

1. Reagents (Table 2)




   Table 2. Reagent preparation

   Reagents	Preparation method	Stock concentrations
   L-Ascorbic Acid	Dissolve L-Ascorbic Acid at 4°C with pre-cooled ultrapure water at 5 mg/ml and mix using a vortex mixer until completely dissolved. Sterilize using a 22 μm syringe filter. Aliquot the solution into 1 ml volumes and freeze at -20°C. Freshly thaw the solution at 4°C or on ice in the dark when preparing the medium.	5 mg/ml
   Monothioglycerol (MTG)	Aliquot MTG to 1 ml volumes and freeze at -20°C. Use thawed MTG within 3 months. To prevent oxidation of MTG, minimize the opening and closing of the cap of the stock tube. On the day of media preparation, dilute 13 μl MTG in 1 ml StemPro-34.	100% (1.3%(v/v) in use)
   Transferrin	Dissolve Transferrin at the concentration of 30 mg/ml with sterilized ultrapure water. Aliquot the transferrin solution to 1 ml volumes and freeze at -20°C.	30 mg/ml
   4 mM Hydrochloric acid (HCl), 0.1% BSA Buffer	In a draft chamber, transfer 30 μl of 6.0 N HCl into 50 ml of sterilized ultrapure water. Sterilize using a 22 μm syringe filter. Add 1 ml of 30% BSA into the 30 ml of HCl solution.	4 mM HCl 0.1% BSA
   DPBS, 0.1% BSA Buffer	Add 10 μl of 30% BSA into 3 ml of DPBS.	0.1% BSA




2. Cytokines and small molecular compounds (Table 3)




   Table 3. Stock preparation of cytokines and small molecular compounds

   Growth factors/small molecular compounds	Buffers	Stock concentrations
   BMP4	4 mM Hydrochloric acid, 0.1% BSA	10 μg/ml
   bFGF	PBS, 0.1% BSA	10 μg/ml
   VEGF	PBS, 0.1% BSA	5 μg/ml
   Activin A	PBS, 0.1% BSA	10 μg/ml
   IWP-4	Dimethyl sulfoxide	1.2 mM

   Dissolve cytokines or small molecular compounds using their appropriate buffers at the stock concentration shown in Table 2. Aliquot each solution if needed and freeze at -20°C.




3. Modified StemPro-34 (Table 4)




   Table 4. Preparation of Modified StemPro-34

   Compositions	Final concentration	Volume
   StemPro-34	-	48.5 ml
   Pen/Strep (100×)	1×	500 μl
   L -glutamine (100×)	1×	500 μl
   Transferrin (30 mg/ml)	150 μg/ml	250 μl
   Ascorbic Acid (5 mg/ml)	50 μg/ml	500 μl
   1.3% (v/v) MTG	0.0039% (v/v)	150 μl




4. Spheroid formation medium (Table 5)




   Table 5. Preparation of Spheroid formation medium

   Compositions	Final concentration	Volume
   Modified StemPro-34	-	50 ml
   BMP4 (10 μg/ml)	1 ng/ml	5 μl
   Y-27632 (10 mM)	10 μM	50 μl




5. Stage-1 medium (2×) (Table 6)




   Table 6. Preparation of Stage-1 medium (2×)

   Compositions	Final concentration	Volume
   Modified StemPro-34	-	50 ml
   BMP4 (10 μg/ml)	20 ng/ml	100 μl
   bFGF (10 μg/ml)	10 ng/ml	50 μl
   Activin A (10 μg/ml)	12 ng/ml	60 μl




6. Stage-2 medium (Table 7)




   Table 7. Preparation of Stage-2 medium

   Compositions	Final concentration	Volume
   Modified StemPro-34	-	50 ml
   VEGF (5 μg/ml)	10 ng/ml	100 μl
   IWP-4 (1.2 mM)	2.5 μM	104 μl




7. Stage-3 medium (Table 8)




   Table 8. Preparation of Stage-3 medium

   Compositions	Final concentration	Volume
   Modified StemPro-34	-	50 ml
   VEGF (5 μg/ml)	10 ng/ml	100 μl
   bFGF (10 μg/ml)	5 ng/ml	25 μl

Acknowledgments

A part of this work was supported by the “Network Program for Realization of Regenerative Medicine” from the Japan Agency for Medical Research and Development (AMED). This protocol was adapted from a previously published work (Miwa et al., 2020).

Competing interests

There are no conflicts of interest or competing interests.

References

1. Bauwens, C. L. and Ungrin, M. D. (2014). Scalable cardiac differentiation of human pluripotent stem cells as microwell-generated, size controlled three-dimensional aggregates. Methods Mol Biol 1181: 15-25.
2. Birket, M. J., Ribeiro, M. C., Verkerk, A. O., Ward, D., Leitoguinho, A. R., den Hartogh, S. C., Orlova, V. V., Devalla, H. D., Schwach, V., Bellin, M., et al. (2015). Expansion and patterning of cardiovascular progenitors derived from human pluripotent stem cells. Nat Biotechnol 33(9): 970-979.
3. Blinova, K., Stohlman, J., Vicente, J., Chan, D., Johannesen, L., Hortigon-Vinagre, M. P., Zamora, V., Smith, G., Crumb, W. J., Pang, L., et al. (2017). Comprehensive Translational Assessment of Human-Induced Pluripotent Stem Cell Derived Cardiomyocytes for Evaluating Drug-Induced Arrhythmias. Toxicol Sci 155(1): 234-247.
4. Chen, M., Qian, C., Bi, L. L., Zhao, F., Zhang, G. Y., Wang, Z. Q., Gan, X. D. and Wang, Y. G. (2015). Enrichment of cardiac differentiation by a large starting number of embryonic stem cells in embryoid bodies is mediated by the Wnt11-JNK pathway. Biotechnol Lett 37(2): 475-481.
5. Cohen, E. D., Miller, M. F., Wang, Z., Moon, R. T. and Morrisey, E. E. (2012). Wnt5a and Wnt11 are essential for second heart field progenitor development. Development 139(11): 1931-1940.
6. Hwang, Y. S., Chung, B. G., Ortmann, D., Hattori, N., Moeller, H. C. and Khademhosseini, A. (2009). Microwell-mediated control of embryoid body size regulates embryonic stem cell fate via differential expression of WNT5a and WNT11. Proc Natl Acad Sci U S A 106(40): 16978-16983.
7. Kattman, S. J., Witty, A. D., Gagliardi, M., Dubois, N. C., Niapour, M., Hotta, A., Ellis, J. and Keller, G. (2011). Stage-specific optimization of activin/nodal and BMP signaling promotes cardiac differentiation of mouse and human pluripotent stem cell lines. Cell Stem Cell 8(2): 228-240.
8. Kempf, H., Olmer, R., Kropp, C., Ruckert, M., Jara-Avaca, M., Robles-Diaz, D., Franke, A., Elliott, D. A., Wojciechowski, D., Fischer, M., et al. (2014). Controlling expansion and cardiomyogenic differentiation of human pluripotent stem cells in scalable suspension culture. Stem Cell Reports 3(6): 1132-1146.
9. Loh, K. M., Chen, A., Koh, P. W., Deng, T. Z., Sinha, R., Tsai, J. M., Barkal, A. A., Shen, K. Y., Jain, R., Morganti, R. M., et al. (2016). Mapping the Pairwise Choices Leading from Pluripotency to Human Bone, Heart, and Other Mesoderm Cell Types. Cell 166(2): 451-467.
10. Pal, R., Mamidi, M. K., Das, A. K. and Bhonde, R. (2013). Comparative analysis of cardiomyocyte differentiation from human embryonic stem cells under 3-D and 2-D culture conditions. J Biosci Bioeng 115(2): 200-206.
11. Panakova, D., Werdich, A. A. and Macrae, C. A. (2010). Wnt11 patterns a myocardial electrical gradient through regulation of the L-type Ca²⁺ channel. Nature 466(7308): 874-878.
12. da Rocha, A. M., Campbell, K., Mironov, S., Jiang, J., Mundada, L., Guerrero-Serna, G., Jalife, J. and Herron, T. J. (2017). hiPSC-CM Monolayer Maturation State Determines Drug Responsiveness in High Throughput Pro-Arrhythmia Screen. Sci Rep 7(1): 13834.
13. Sato, H., Idiris, A., Miwa, T. and Kumagai, H. (2016). Microfabric Vessels for Embryoid Body Formation and Rapid Differentiation of Pluripotent Stem Cells. Sci Rep 6: 31063.
14. Shiba, Y., Gomibuchi, T., Seto, T., Wada, Y., Ichimura, H., Tanaka, Y., Ogasawara, T., Okada, K., Shiba, N., Sakamoto, K., et al. (2016). Allogeneic transplantation of iPS cell-derived cardiomyocytes regenerates primate hearts. Nature 538(7625): 388-391.
15. WHO. (2018). World health statistics 2018: monitoring health for the SDGs, sustainable development goals.
16. Yamazaki, D., Kitaguchi, T., Ishimura, M., Taniguchi, T., Yamanishi, A., Saji, D., Takahashi, E., Oguchi, M., Moriyama, Y., Maeda, S., et al. (2018). Proarrhythmia risk prediction using human induced pluripotent stem cell-derived cardiomyocytes. J Pharmacol Sci 136(4): 249-256.
17. Yang, L., Soonpaa, M. H., Adler, E. D., Roepke, T. K., Kattman, S. J., Kennedy, M., Henckaerts, E., Bonham, K., Abbott, G. W., Linden, R. M., et al. (2008). Human cardiovascular progenitor cells develop from a KDR+ embryonicstem-cell-derived population. Nature 453(7194): 524-8.
