Ligand and Carbohydrate Engagement (LACE) Assay and Fluorescence Quantification on Murine Neural Tissue

Materials and Reagents

Materials

1. 7 ml bijou tubes (Greiner, catalog number: 189170 )

2. Pipette tips (Greiner, catalog number: 739288 )

3. 1.5 ml microcentrifuge tubes (Greiner, catalog number: 616201 )

4. Peel-A-Way^® Embedding Molds (Square-S22, Polysciences)

5. Sterilin^TM Standard 90 mm Petri Dishes (Thermo Fisher, catalog number: 101R20 )




Animals

Mice used in our original study were maintained on a CBA background. Mice used for timed matings were aged between 6 and 24 weeks.

Reagents

1. Sucrose (Thermo Fisher, catalog number: S25590 )

2. 1× PBS (Thermo Fisher, catalog number: 14190094 )

3. Tris-HCl (Thermo Fisher, catalog number: 10812846001 )

4. CaCl₂ (Thermo Fisher, catalog number: 10657662 )

5. Ethanol (Thermo Fisher, catalog number: AC615090010 )

6. Bovine serum albumin (Merck, catalog number: A1933 )

7. Paraformaldehyde (Merck, catalog number: 158127 )

8. OCT embedding matrix (Cellpath, catalog number: KMA-0100-00A )

9. Sodium borohydride (Merck, catalog number: 452882 )

10. Glycine (Merck, catalog number: G8898 )

11. Bovine serum albumin (Merck, catalog number: 05470)

12. Heparinase I and III blend (Millipore Sigma, catalog number: H3917 )

13. Recombinant Human FGFR1 beta (IIIc) Fc Chimera Protein (R&D Systems, catalog number: 661-FR-050 )

14. Recombinant Human/Mouse FGF-8b Protein (R&D Systems, catalog number: 423-F8 )

15. Recombinant Mouse FGF-17 Protein (R&D Systems, catalog number: 7400-FG )

16. Anti-Human IgG (Fc specific)-Cy3 antibody (Merck, catalog number: C2571 )

17. DAPI (Thermo Fisher, catalog number: D1306 )

18. Vectashield Hardset (Vector Labs, catalog number: H-1400 )

19. Heparinase Buffer (see Recipes)

Equipment

1. Pipettes

2. Dissecting microscope (Euromex, catalog number: DZ1100 )

3. Cryostat (Leica, catalog number: CM3050 S )

4. Incubator (37 °C)

5. Forceps, size 5 (Fine Science Tools, catalog number: 11251-20 )

6. Microscissors, 5 mm cutting edge (Fine Science Tools, catalog number: 15003-08 )

7. Scissors, 9 cm (Fine Science Tools, catalog number: 14060-09 )

8. Super-frost Plus slides (Thermo Fisher, catalog number: J1800AMNZ )

9. Coplin jar (Millipore Sigma, catalog number: S6016 )

10. Analog Rocking Platform Shaker (VWR, catalog number: 10127-872 )

11. Hydrophobic barrier pen (VectorLabs, catalog number: H-4000 )

12. Humidified chamber/slide staining tray (Heathrow Scientific, catalog number: HS15951A )

13. Epifluorescence or confocal microscope with image capture software (e.g., Leica AF6000 epifluorescence microscope )

Software

1. ImageJ/FIJI, version 1.53 (https://imagej.net/Fiji)

Procedure

Summary: This protocol is divided into two sections. In part A we describe the LACE assay beginning with the dissection of the embryonic brain, the embedding of the tissue and cryo-sectioning. We then detail the LACE assay itself including the incubation of recombinant ligand and receptor proteins with the tissue sections followed by the detection of bound receptor protein using a fluorescent conjugated antibody. In part B we describe the imaging of reacted tissue sections and the quantification of fluorescent LACE signal using FIJI software.

1. LACE Assay

   1. Cull pregnant female mouse at desired embryonic stage. Using scissors, open the abdomen and remove the uterus which should be clearly visible.

      Note: In our testing we have successfully performed the LACE assay using mouse brain tissue aged between E11.5 and E18.5. Other groups have successfully used embryonic heart, lung and liver tissue in addition to CHO cell lines (Allen and Rapraeger, 2003).

   2. Place the uterus in a dish of chilled PBS. Using forceps open the uterus, carefully remove the embryos and transfer to a fresh dish of PBS.

   3. Cut the head from the body of the embryo using scissors and transfer to fresh, chilled PBS. Use forceps to peel away the skin from the head to expose the skull, cut down the midline of the skull using microscissors and peel back the skull to expose the brain. Carefully detach the brain from the base of the head and remove using forceps (Figures 1A-1D).

      Note: Take a tissue sample for genotyping if required.

   4. Fix the brains in 4% paraformaldehyde (PFA) in PBS in 7 ml bijou tubes, overnight at 4 °C, with shaking (20 rpm).

      Note: 7 ml PFA is sufficient for embryonic brains. Postnatal brains up to P3 should be fixed in 20 ml tubes, older brains should be fixed by trans-cardial perfusion.

   5. Wash brains briefly with 1× PBS and cryoprotect tissue using 30% sucrose in PBS at 4 °C overnight, or until the tissue has sunk.

      Note: PFA and PBS can be poured off without needing to change containers.

   6. Transfer the brain to an embedding mold and cover the tissue in 50% OCT embedding matrix; 50% Sucrose/PBS. Position the tissue at the desired orientation and freeze on dry ice (Figures 1E, 1F).

   7. Section tissue using a cryostat at a thickness of 10 µm and collect sections on Superfrost Plus slides. (Figures 1G-1I).

      Note: Sections can be stored at -20 °C until needed.





      Figure 1. Images of the dissection, embedding and sectioning of embryonic mouse brain tissue. A. The head of the embryo is detached from the body. B. An incision is made along the midline of the skull (dashed red line). C. The skull is peeled away to reveal the brain. D. The brain is detached from the head. E. The brain is placed in an embedding mold and submerged in OCT/sucrose solution. F. Brain tissue is then frozen on dry ice. G-I. Frozen tissue can then be sectioned using a cryostat and sections mounted on superfrost slides.




   8. Select slides to be used for the LACE assay, remember to include slides for the heparinase digest and no-ligand controls.

   9. Place slides in 95% ethanol at room temperature for 5 min.

   10. Post fix the sections by placing slides in 4% PFA in PBS at room temperature for 10 min, with shaking

   11. Wash sections in 1× PBS at room temperature with shaking, 2 × 5 min.

       Note: All wash steps should be performed at room temperature, placing the slides in a colpin jar, covering with 1× PBS and shaking at 50 rpm.

   12. Incubate sections with 0.05% Sodium borohydride solution in a coplin jar for 5 min at room temperature.

       Note: Bubbles of hydrogen gas should form on the tissue sections during incubation, if bubbles do not form make up fresh Sodium borohydride solution and repeat.

   13. Replace with fresh 0.05% Sodium borohydride and incubate sections for a further 10 min.

   14. Wash sections in 1× PBS, 2 × 5 min.

   15. Incubate sections in 0.1 M Glycine in 1× PBS at 4 °C overnight with shaking.

       Note: Sodium borohydride/glycine treatment reduces aldehyde fixation-induced autofluorescence, reducing background fluorescence and therefore allowing easier detection of LACE signal.

   16. Wash sections in 1× PBS, 2 × 5 min.

   17. Dilute heparinase in heparinase buffer (0.5 mU/ml working concentration).

   18. Select slides for heparinase digest control and ligand negative control, draw around sections using a hydrophobic barrier pen.

       Note: Heparinase digest and ligand negative controls are included to ensure that observed LACE signal is the result of HS:ligand:receptor complex formation. If signal is detected after heparinase digestion (i.e., removing HS) or in the ligand negative control this indicates that the receptor is binding to the tissue directly without complex formation.

   19. Apply heparinase solution to the selected slides, leave untreated slides in 1× PBS.

   20. Place slides in a sealable humidified chamber and incubate at 37 °C for 2 h.

   21. Replace with fresh heparinase solution and incubate at 37 °C for a further 2 h.

   22. Wash treated slides in ddH₂O, 1 × 5 min.

   23. Wash all slides in 1× PBS, 1 × 5 min.

   24. Block sections using a blocking solution of 1% bovine serum albumin in 1× TBS for 1 h.

   25. FGFR1/FGF treatment, at 4 °C overnight.

       1. In our experiments we have used FGFR1 and FGFR3 at a concentration of 9 µM and 100 nM respectively. FGF8 and FGF17 were used at a concentration of 30 nM and 3 µM respectively.

       2. Recombinant FGFR and FGF is diluted in 1% bovine serum albumin in 1× TBS.

       3. 100 µl FGFR/FGF solution is applied to each slide.

       4. Slides should be placed in a humidified chamber for overnight incubation.

       Notes:

       1. The recombinant Fc chimeric fusion proteins used in this protocol are proteins (in our case FGFR1/3) to which the Fc domain of IgG has been genetically linked. This Fc tag allows for easy detection of the protein of interest using antibodies. Fc fusion proteins are commercially available for a wide range of different receptors including FGFRs, VEGFRs, Robos, Neuropilins and DCC.

       2. FGFR/FGF concentrations used here were obtained from the literature which originally described these binding assays (Friedl et al., 2001; Allen and Rapraeger, 2003). In our testing we have always maintained a roughly 3:1 receptor/ligand ratio for the FGFR/FGF combinations we have used. To perform this assay using other receptor/ligand pairs, users would need to titrate these concentrations however we would recommend starting with the concentrations used here and maintaining the 3:1 receptor/ligand ratio.

   26. Wash sections in 1× TBS, 4 × 5 min.

   27. Apply fluorescent conjugated secondary antibody (anti-human IgG, Fc-specific Cy3) diluted 1 in 200 in blocking solution.

   28. Wash sections in 1× TBS, 4 × 5 min.

   29. Counterstain with DAPI diluted at 1 in 1,000 in 1× PBS for 5 min.

       Note: DAPI stock solution is at a concentration of 1 mg/ml.

   30. Wash all slides in 1× PBS, 1 × 5 min

   31. Coverslip slides using Vectashield Hardset and leave to dry at room temperature for 1 h.

   32. Once dried, slides can be imaged using epifluorescence or confocal microscopy.




2. LACE Quantification

   1. Image slides using epifluorescence or confocal microscopy.

      Note: All images acquired for quantification must be imaged at constant exposure time and gain using the same objective lens. Care should also be taken to make sure no pixels within the images are over exposed.

   2. LACE signal should be apparent in those tissue sections treated with both ligand and Fc-tagged receptor which have not undergone heparinase digestion (Figures 2A, 2E). Control sections in which the ligand was omitted should be blank (Figures 2D, 2H). Sections which have undergone heparinase digestion should see LACE signal reduced compared to undigested sections (Figures 2C, 2G), this indicates that binding of the ligand/receptor pair is HS dependent.

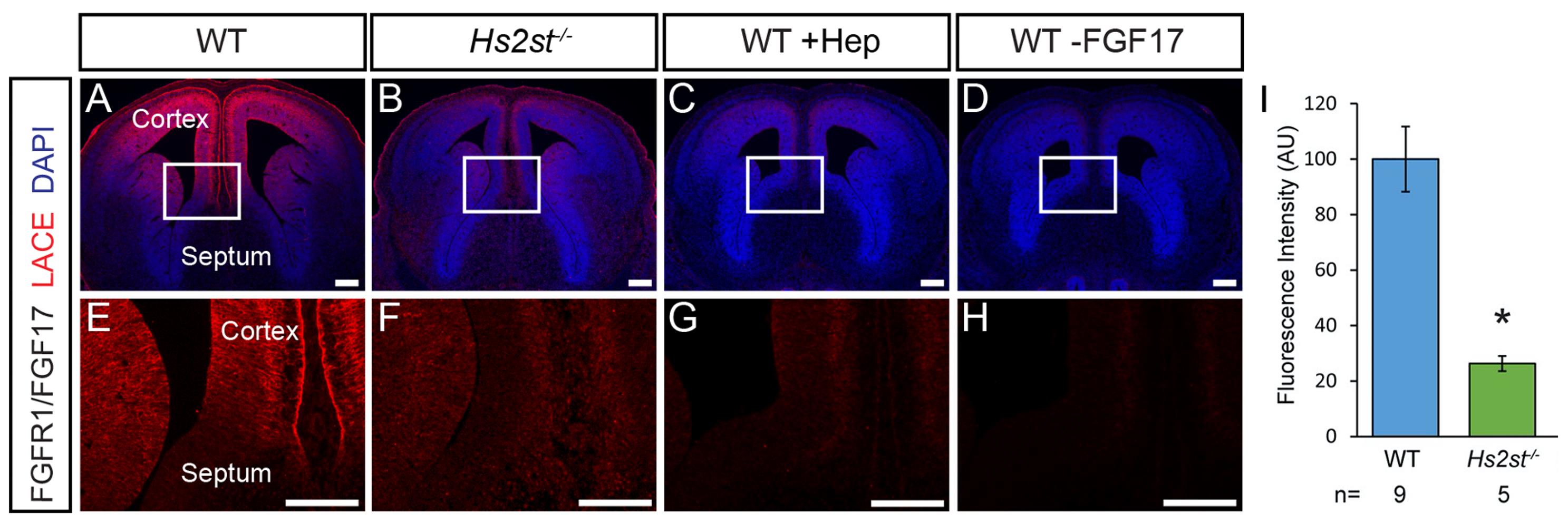

      Figure 2. FGFR1/FGF17 LACE assay on E14.5 mouse brain tissue. A, E. LACE signal (red) is visible in the cortex of WT embryos. B, F. LACE signal is greatly reduced in Hs2st^-/- embryos. C, G. LACE signal is greatly reduced in WT tissue after heparinase digestion. D, H. LACE signal is completely abolished when FGF17 ligand is omitted from the binding step. I. Quantification of LACE signal in the WT and Hs2st^-/- cortex shown in E and F. LACE signal is significantly reduced in Hs2st^-/- cortex compared to WT (t-test, P = 0.014). E, F, G, H. are higher magnification images of the boxed regions in A, B, C, D respectively. Scale bars = 200 µm.




   3. LACE images should be opened in ImageJ (or FIJI) software (Figure 3A).

      Note: Images should not be modified in any way between acquisition and quantification.

   4. Click ‘Analyze’ on the menu bar and select ‘Set Measurements’, in the resulting pop-up window ensure that ‘Mean grey value’ is checked (Figure 3B).

      Note: Any other desired measurements can be selected in this window.

   5. Open the ligand-negative control in ImageJ software and using either the rectangle, oval or polygon tool, draw a shape around the region to be quantified, the shape used should be of a known size that can be kept consistent throughout the quantification (Figure 3C).

   6. Click ‘Analyze’ and select ‘Measure’, the resulting pop-up window will give the mean greyscale value of the quantified region under ‘Mean’ (Figure 3D). Repeat this process on at least 2 other ligand-negative control tissue sections and calculate a mean greyscale value. This can then be used as the background fluorescence value for sections within the same LACE experiment.





      Figure 3. LACE Fluorescence Quantification using FIJI software. A. Open image file in Fiji software. B. Ensure ‘Mean grey value’ is checked in ‘Set Measurements’ window. C. Draw a shape of consistent size at the region to be quantified. D. Click ‘Measure’ and record mean greyscale value.




   7. Open experimental image in ImageJ and draw the chosen shape around the region to be quantified as in Step B5. Ensure that the shape is the same size and in the same anatomical position within the tissue section.

   8. Click ‘Analyze’ and select ‘Measure’ as in Step B6 and record the mean greyscale value. Perform background fluorescence subtraction by subtracting the background fluorescence value from the greyscale value recorded for the section.

   9. Repeat Step B8 using at least 2 more tissue sections and calculate a mean greyscale value for that individual animal.

   10. Repeat Steps B8 and B9 for tissue sections from all other animals included in the experiment.

Recipes

1. Heparinase Buffer

   20 mM Tris-HCl

   4 mM CaCl₂

   0.1 mg/ml BSA
