Live Intravital Intestine with Blood Flow Visualization in Neonatal Mice Using Two-photon Laser Scanning Microscopy

Materials and Reagents

Note: All reagents may be substituted with appropriate alternatives from other manufacturers.

Consumables

1. Sterile 1.0 ml syringe with 26 Gauge needle or smaller (VWR, catalog number: 309597 )

2. Sterile gauze (VWR, catalog number: CA95041-740 )

3. Soft absorbable pad (VWR, catalog number: 95057-862 )

4. Rubber grove

5. Kimwipes (VWR, catalog number: 102097-615 )

6. Microscope slides (VWR, catalog number: 48311-703 , 1.0 mm thickness)

7. Microscope cover glass (VWR, catalog number: 48393-172 , 0.13-0.17 mm thickness)

8. Falcon tube (15 ml) (VWR, catalog number: CA60819-761 )

9. Adhesive tape (VWR, catalog number: 89097-912 )




Animals

Neonatal ROSA^mT/mG;Tie2-Cre mice of both sexes were used to visualize the hemodynamics of small intestinal microcirculation and leukocyte movement. Table 1 shows a comprehensive list of transgenic mouse lines carrying fluorescent reporters that could be used in this protocol. Alternative transgenic reporter lines expressing fluorescent proteins can also be used in this method.

!Caution: Please note that all animal experiments should be performed following ethical guidelines and regulations of both the animal and imaging facilities. Research should not begin until use live animals is approved by the facility’s Animal Care Committee.

Table 1. Fluorescent positive mouse lines

Reagents

1. Sterile Phosphate-buffered saline (PBS, 1×, pH 7.2)

2. Ultra-purified water

3. Disinfectant: 70% ethanol solution (70 ml of 100% ethanol added to 30 ml of water)

Equipment

Note: All equipment may be substituted with appropriate alternatives from other manufacturers.

General Equipment

1. Appropriate microscope stage (Zeiss LSM710 motorized X, Y stage with Z focus) with heating pad (FHC Inc., catalog number: 40-90-2-07 , Bowdoin, ME, USA)

2. Gas anesthesia vaporizer ( IsoTec4 ; Datex-Ohmeda GE Healthcare, Waukesha, WI, USA)

3. Oxygen gas

4. Hair removal cream (Nair^® hair remover cream for face)

5. Curved blunt forceps (VWR, catalog number 76319-850)

6. Fine forceps (VWR, catalog number 82027-408)

7. Scissors

   !Caution: Only use the tip of sharp scissors when conducting fine neonatal mouse surgery. This will allow for more precise work with less tissue damage.

8. Solder lug terminal; 0.3 mm; M4 (Manufacturer OSTERRATH, manufacturer part number 60-2814-51/0030 , Figure2A)

9. Holding devices for both the cover glass and solder lug terminal (TEKTON 7521 Helping Hand with Magnifier, Figure 2C)

1. Inverted two-photon laser scanning microscope (TPLSM, e.g., Zeiss LSM710 )

2. Laser: Ti:Sapphire Chameleon Vision (Coherent)

3. Objectives: 20× (Water immersion lens, e.g., Zeiss W Plan APOCHROMAT, 1.0 DIC (UV) VIS-IR∞/0.17)

4. Software application: ZEN (Zeiss, imaging software)

Note: Magnifiers are not needed in this study and can be removed from the device.

Anesthesia

1. Portable anesthesia machine

2. Isoflurane vaporizer

3. Anesthesia breathing circuit

4. O₂ gas flow regulator for E-cylinders (Praxair)

5. O₂ tank (E-cylinder)

6. Anesthesia breathing circuit and nose cone

Procedure

Stage setup

1. Make sure the heating pad of the stage is plugged in and that the stage is at 37 °C before starting the animal procedure.




2. Turn on the laser source, microscope and start the imaging applications, and all imaging components (data analysis workstation/computer, monitor, laser sources, camera, raster scanning unit, and detectors).

   !CAUTION: Prepare all microscopic settings before subjecting the animals to anesthesia.




3. Uncouple the normal sized anesthetic cone from the anesthetic breathing circuit and cover the end with a cut-out finger from a rubber glove. Cut a small hole at the tip of the rubber finger to fit the size of the neonatal mouse head (Figure 1A).

   !CAUTION: The hole size of the rubber glove finger should fit tightly around the head of the neonate mouse head, otherwise the isoflurane gas might leak.




4. A neonatal ROSA^mT/mG;Tie2-Cre mouse of either sex is used in this protocol to visualize the hemodynamics of the small intestinal microcirculation.

5. Place the mouse in the chamber for anesthesia with 2% isoflurane in oxygen. Confirm appropriate anesthesia by the absence of the withdrawal reflex after a toe pinch, as well as physiological responses including reduced respiratory and heartbeat rate. Once the mouse is anesthetized, reduce the isoflurane gas flow to 1-1.5%.

6. Put the mouse on the preheated heating pad on a diaper pad, and the mouse head into the end of the anesthetic breathing circuit, with the mouse’s upper extremities fixed to the rubber finger with tape (Figure 1B).

   !CAUTION: To ensure that the animal is unconscious during the procedure, isoflurane is delivered continuously via the end of the anesthetic breathing circuit with the rubber finger covering the nose.

7. Tape the lower extremities of the mouse to fix the body on the stage of the microscope and position it with a downward slope towards the tail (Figure 1C).

8. The level of the downward slope should be such that it makes a triangular space on the neonatal abdomen from a lateral view. The angle θ from 30 to 45 degree is the best range for this experiment (Figure 1D, see also Table 2).

   ▲ CRITICAL STEP: Making this triangular space is critical to stabilize the image or movie. The top side of this triangle should be aligned at the same height as the sternum, and the bottom of the angle should be positioned above the Anterior Superior Iliac Spine (Figure 1D).




   Table 2. Troubleshooting table

   Step	Problem	Possible reason	Solution
   8	Can not make the triangle space	The level of downward slope is not enough	Put a small back pillow made by Kimwipe or a small folded cloth between the soft absorbable pad and mouse's back. See also Figure 1D.
   12	Bleeding from the abdominal wall	Incision line may have transversed the inferior epigastric artery and vein	Make a muscle incision vertically at the middle of abdominal wall. You can distinguish the vertical abdominal midline from other muscle lesion because only the midline can see through to the inside of the abdominal wall clearly.
   13	Bleeding from the intestine or mesenteric lesion	Too much force was used to pulled the intestine outside of the abdominal cavity	During picking up of the intestine and putting it back into the abdominal cavity, be careful not to pull the intestine lower than the superior interior iliac spine level to avoid the intestinal and mesentric injury induced by tensile force.
   17	Having a difficulty making the gentle curve of the solder lug	Fine manual work could be difficult by hand	Use two fine pliers and gently make the curve.
   23	The fixed intestinal color is getting dark after putting the cover glass on it	The pressure on the fixed intestine is too high	Remove the cover glass quickly and release the compressed intestine. Re-check the diameter of both the intestine and the space created by the curved solder lug, and regulate the shape of the solder lug to fit the intestinal diameter.
   24	Can not keep the optimal intestinal observation position without intestinal physical injury.	Pulling up the intestine over the heart level or pulling down the intestine over the superior anterior iliac spine level.	Re-check the anesthetic mouse body condition. Make sure that there is a enough trianglular square under the horizontal line of sternum. See also step 5 troubleshooting.
   27	Noisy background signal	Laser power is too high	Too high of a laser power can cause not only photobleaching or photo-damage to the observed intestine but also non-specific autofluorescence. Decreasing the laser power (regulation of both laser intensity and fluorescent gain) is necessary, and then keep the imaging lesion clear as long as possible when long observation time is needed.
   	Difficulty focusing the images	Focusing area is outside of the contact area	Control the x and y axes and find the appropriate contact region. Possible intestinal scan area is limited in the attached lesion with coverglass. See also step 20.




9. Disinfect the whole abdominal skin area with 70% ethanol. Note that normally, mice have no hair in the neonatal period. If the mice have the hair on the operational skin area, you should use the hair remover gel to remove the hair softly with a small cotton swab.

10. Put a sterile gauze on top of the disinfected abdominal area. The sterile gauze should have a small hole in the middle large enough to allow making a small incision.

11. Make a vertical skin incision at the lower to middle abdominal area. This incision will expose the intestine and urinary bladder through the abdominal muscle layer.

12. Cut the abdominal muscle and peritoneal layer vertically in the middle (Figure 1E, see also Table 2).

    !CAUTION: The length of the abdominal muscle incision should be shorter than the length of the skin incision to prevent intestinal protrusion and allow the mouse’s body to maintain its position throughout the imaging.

13. Push gently on the lateral sides of the abdominal wall to allow a portion of the intestine to be completely externalized from the abdominal cavity. Using the cecum as a landmark, locate the segment of the small intestine that is of interest to your study, and place the rest of the intestinal length back into the abdominal cavity (Figure 1F, see also Table 2).

    ▲CRITICAL STEP: It is not recommended to use forceps to locate the cecum because even with gentle maneuvers, picking with forceps could easily injure the neonatal intestine. Additionally, it is possible that with an intestinal disease model, the microcirculation of the target area is already compromised, making the intestine and blood vessels even more delicate. With confirmation of the location of the cecum, which allows to distinguish the small intestine from the colon, the intestine should be carefully handled from a region away from the target area. The rest of the intestine should be put back into the abdominal cavity using blunt forceps.

    !CAUTION: Gentle maneuvers are necessary while moving the intestine around. Using blunt forceps, try to move the intestine by grasping tissue away from target region. Avoid unnecessary picking of the intestine with the forceps to reduce the number of contact points and to prevent puncturing/injuring the intestine. Avoid grasping the mesentery when moving the intestine.

14. For the small intestine section that is selected for observation, use blunt forceps to gently pull out a small portion of the intestine that you will be observing. It is important to do this gently and allow the tissue to be under no tension to prevent potential ischemia or damage. Place one drop of PBS on the intestine to avoid drying.

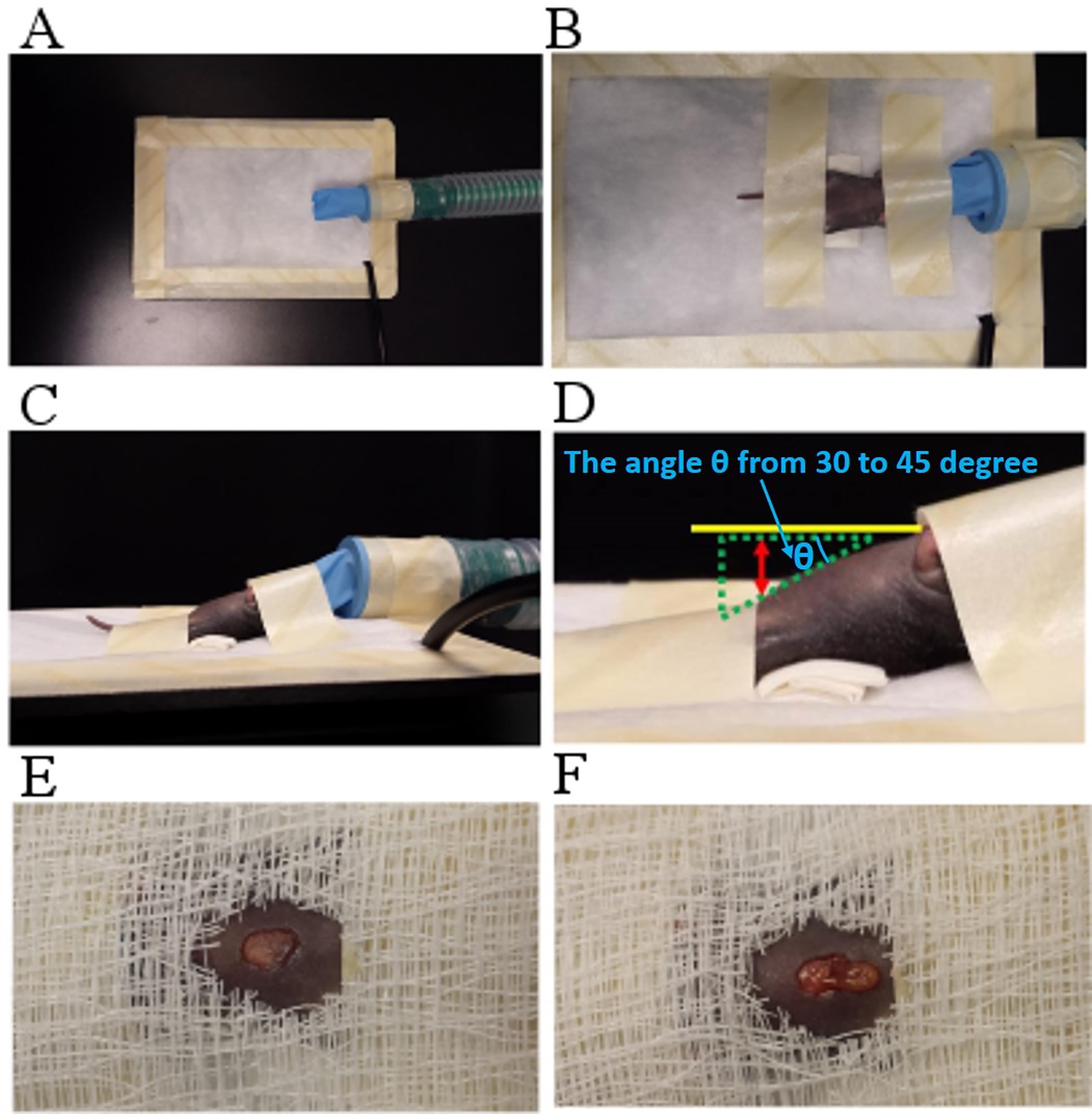

    Figure 1. Neonatal mouse preparation for the TPLSM analysis. (A-D) Mouse anesthesia and appropriate positioning. (E, F) Intestine exposure.




Preparation of custom fixing device

15. Bend the solder lug to a gentle curve, creating a space to sandwich the intestine between the ring of the solder lug and the cover glass (Figures 2A, 2B).

16. Attach the other end of the bent solder lug to the holding device with tape (Figure 2C).

17. Put the cover glass on the end of the solder lug that is attached to the holding device and clip it in place using the holding device. Ensure that there is space between the ring of the solder lug and the cover glass. The thickness of the space between the cover glass and the ring of the solder lug should be exactly the same as the maximum diameter of the intestine (Figure 2D, see also Table 2).

    !CAUTION: Maintaining a fixed space between the solder lug and cover glass according to the actual diameter of the intestine is crucial to keep the intestine in place while allowing proper intestinal blood circulation.

18. Bend the ring of the solder lug to a complete horizontal plane parallel to the cover glass (Figure 2E, 2F).

    ▲CRITICAL STEP: Precise bending of the solder lug to sandwich the intestine between the ring of the solder lug and the cover glass is crucial to keep the small intestine in position during microscopic observation.

19. After creating the appropriate space between the bent solder lug and cover glass and orienting the solder lug ring parallel to the cover glass on a horizontal plane, remove the cover glass.

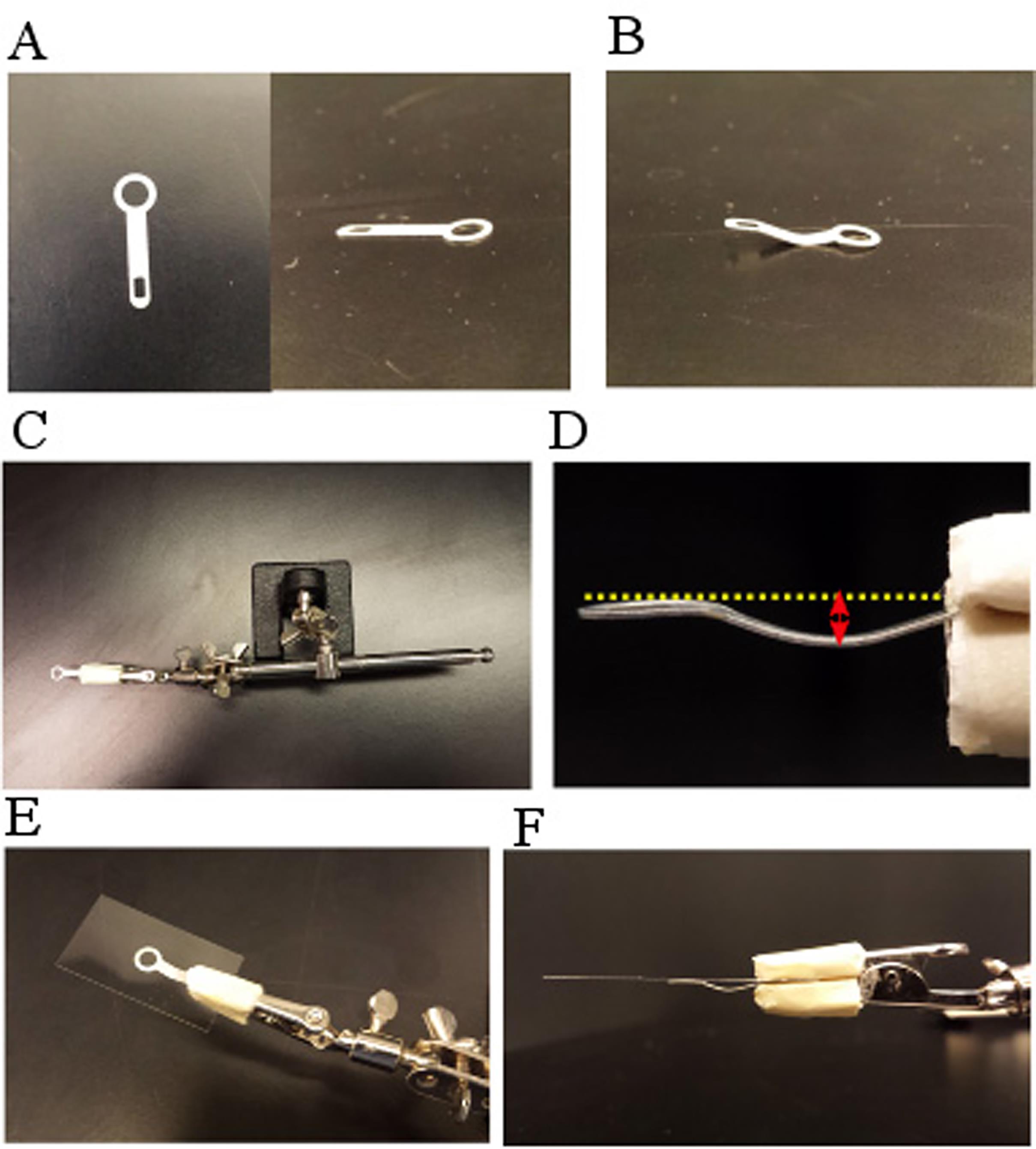

    Figure 2. Fixing device setup for intestinal microscopic observation. (A, B) Solder lug. (C, D). Solder lug attached to holding device with appropriate spacing, the spacing should be the same as the diameter of the intestine being used (generally between 1 and 3 mm). (E, F) Cover glass attached on top of the solder lug and clipped with the holding device.




Preparation of the microscopic stage

20. Transfer the customized fixing device to the microscopic stage where the mouse is mounted.

21. Put the ‘U’ shaped intestine on the ring of the solder lug. Wet the intestine with a drop of PBS and place the cover glass directly on top of the area, fixing the cover glass with the clip of the holding device. The bottom area of the ‘U’ shaped intestine should be slightly over the solder lug (Figure 3A).

    CRITICAL STEP: If the bottom area of ‘U’ shaped intestine is not over the solder lug, the position of the intestine should be moved, as miss positioning may prevent stable intravital imaging.

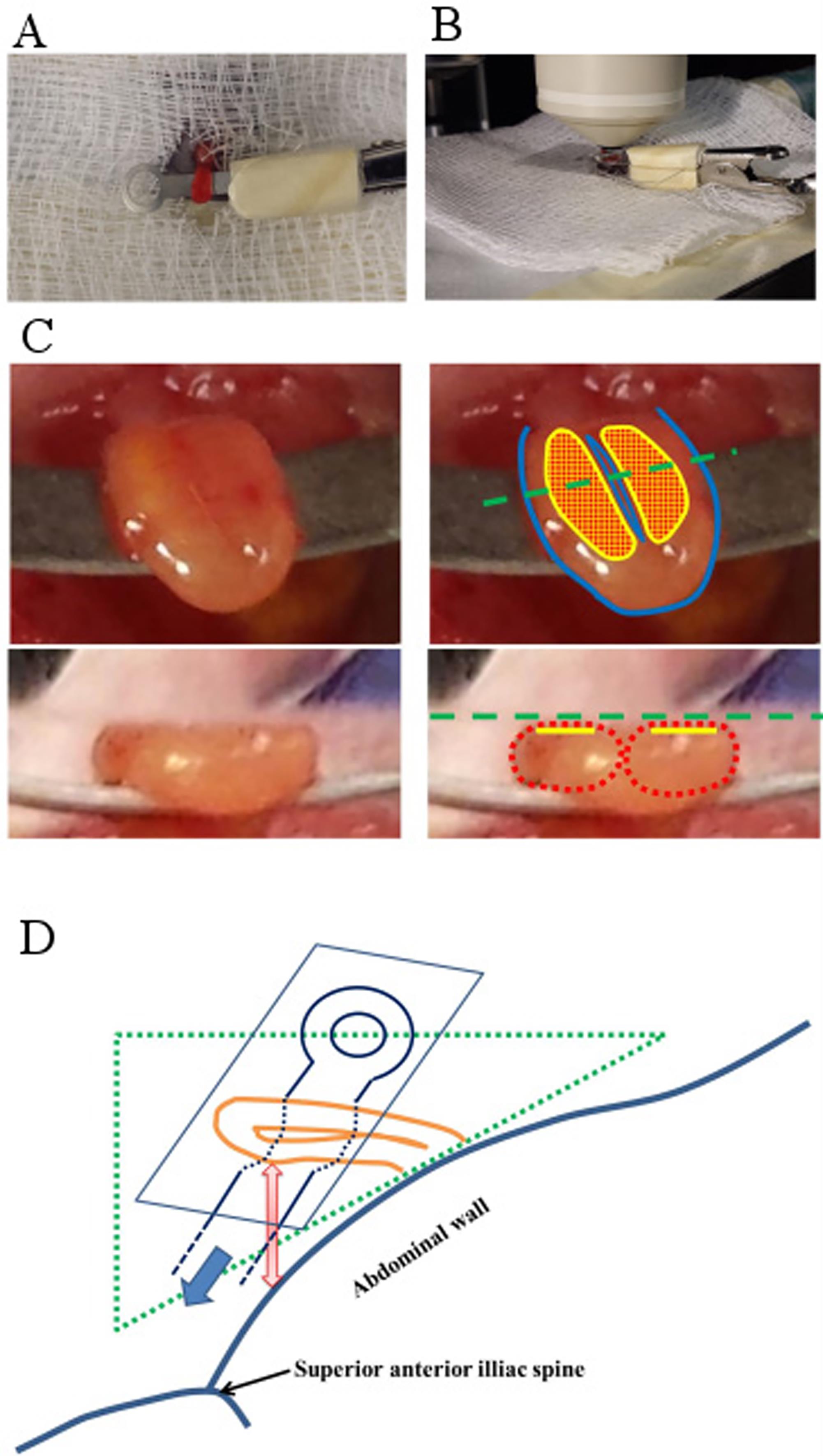

    Figure 3. Neonatal mouse intestine exposed for TPLSM observation. (A-C) Mouse intestine preparation and areas of observation. The yellow marking or alternatively in the red dotted area shows the contact lesion area between small intestinal wall and the cover glass. The green dashed line (under image) shows the cover glass level (the top picture in C: view from above the cover glass, the bottom picture in C: view from the frontal view. The observable area is between the green dotted line and the yellow line from the frontal view. The red dashed circle represents the outer intestinal wall line from the frontal view. (D) Illustration of mouse intestine for microscopic observation.




22. Put one drop of distilled water on the cover glass where the intestine is touching the cover glass. Bring down the objective lens immersion into the waterdrop dome and begin the microscopic observation (Figure 3B).

23. Figure 3C shows the ideal set up of the customized holding device, the microscope, and the mouse. After putting the cover glass on top of the intestine, only a small portion of the intestine will be in contact with the cover glass (shown in Figure 3C inside the yellow marking or alternatively in the red dotted area). This area will be the best location to observe the whole intestinal wall from the serosa level to the villi. When viewing the set up from the side, the segment of intestine sandwiched between the solder lug and the cover glass should look slightly oval shaped (Figure 3C red dotted circles). This positioning of the intestine is essential to prevent ischemia (see also Table 2).

    ▲CRITICAL STEP: Make sure that the intestine is not damaged after fixation on the device and putting on the coverglass. Damaged tissue can be identified by increased redness. If the color of the intestine turns dark soon after fixation, remove the cover glass immediately and release the compression to restore intestinal blood flow circulation.

    !CAUTION: Placing of the cover glass and securing it with the clip must be done very carefully. Applying too much pressure with the clip can break the cover glass.

24. Once the intestine is fixed, ensure that any parts of the device are not in direct contact with the mouse body (Figure 3D). Additionally, confirm that the fixed intestine that is being observed lies between the sternum and the Anterior Superior Iliac Spine in position (see also Table 2).

    !CAUTION: Do not pull the intestine above the level of the heart (towards the head) to avoid both the potential positional effects on blood pressure and the potential effects on blood flow from stretching the tissue. As well, do not pull the intestine below the level of the Anterior Superior Iliac Spine, this would impose too much tension and cause ischemia.




25. Intravital observation can now be performed using a Zeiss LPM710 inverted microscope (Zeiss) with ×20 water immersion objective lens (W Plan-Apochromat 20×/1.0 DIC, VIS-IR M27 75mm). TPLSM images are acquired at 512 × 512 pixels of spatial resolution from a 386.45 μm field of view. The excitation wavelength to detect GFP is 910 nm. The scan speed should be set at 1.27 μs/pixel. Two-photon fluorescence signals are collected by an internal detector (non-descanned detection method) at an excitation wavelength.

    !CAUTION: The laser power is adjusted according to the imaging depth and intestinal diameter. When imaging at greater depths, the laser power level should be increased (up to 100%) manually using the laser power level controller. The laser power should be adjusted slowly from a low to high level to avoid photo-bleaching of the target area, which may occur at higher laser power. If the observation area is photo-bleached the stage must be moved to focus on another area.

26. Each area of interest is scanned at a high magnification (water-immersion objective 20× or higher if desired) by manually setting the X/Y plane and adjusting the Z axis to obtain high-resolution, clear TPLSM images.

27. In our experimental setting, the imaging depth ranged from 100 μm to 400 μm. Optimal high-resolution images were obtained from the tissue surface up to 200 μm in depth. For optimal simultaneous imaging of EGFP and tdTOMATO, detection gain should be adjusted for EGFP (to 500-570) or tdTOMATO (to 580-650)

    !CAUTION: The range of gain value should be changed according to each intestinal region. A higher gain produces a stronger signal; however, it also produces more background.

    ▲CRITICAL STEP: The combination of laser power and gain value determines the intensity of the laser signal. The settings of these two values depend on the quality of image focus and on the length of time of continuous imaging (see also Table 2).

28. Start the observation and recording by TPLSM and save the acquired data. Saving the data as a czi file is recommended because czi files can be used to analyze the blood flow dynamics or make Z-stack movies/3-dimentional images using ZEN 2 lite software after imaging.

    !CAUTION: For the analysis of blood flow dynamics, including blood flow velocity, blood flow volume, and leukocyte rolling speed, we recommend capturing 80-100 frames within 30 s.

29. After microscopic intravital observations, euthanize the mouse under general anesthesia according to approved protocols.

Data analysis

Processing of image data

1. Launch the ZEN 2.0 lite software (freely available from the ZEISS company website after registration).

2. Open the saved czi files and place a properly sized scale bar. The czi file contains information about each imaging setting, as well as scanned area size and time. To create image data from sequential time course images, choose one image and select the ‘export/import’ button from the file tag. Then, select ‘export’ and choose the appropriate file type (e.g., JPEG, TIFF, PNG etc.). To create a movie from the data, select the ‘movie export’ function and choose the appropriate file type (e.g., AVI, WMF, MOV etc.). The czi files can be used for the analysis.




Blood flow velocity

The blood flow velocity (V) is calculated as described in several studies that quantified the blood flow in vessels of different caliber, from arteries to capillaries (Tang et al., 2015). In one movie (20-30 s), select a sequence of the four to six most clear images of a blood vessel. Measure the tangent length that is parallel to the blood flow direction (ΔX) and the cosine length of the strand that is vertical to the blood flow direction (ΔT). The blood flow velocity is calculated using the following formula (Figures 4A, 4B and Figure 5):

V [µm/ms] = ΔX/ΔT

Velocity can be defined as a mean value calculated from four or six strands selected from the movie.

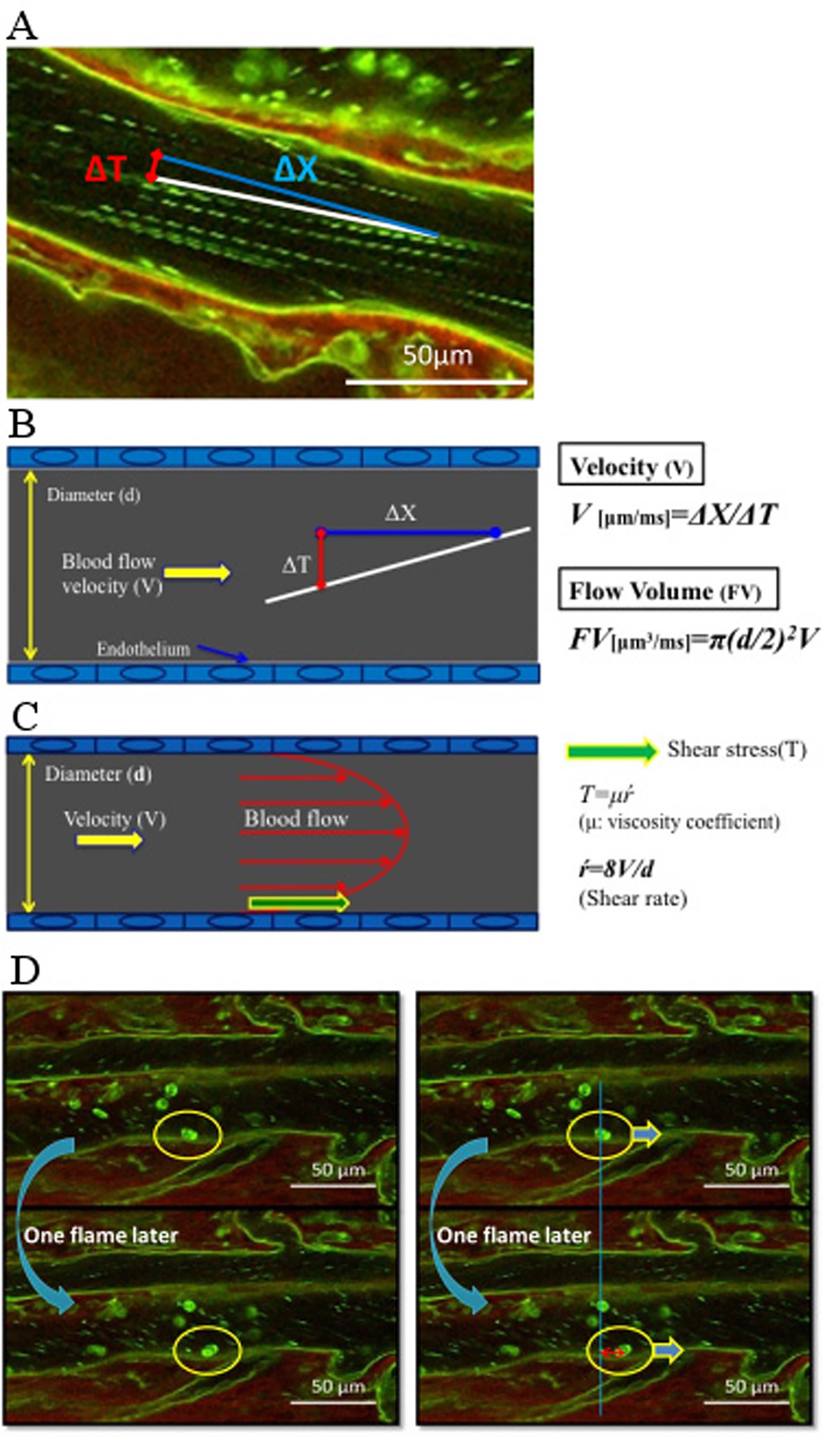

Figure 4. Dynamic intestinal microcirculation in neonatal mice. A. Intestinal microcirculation image obtained by TPLSM. B. Blood flow volume calculation. C. Blood vessel wall shear rate calculation. D. Leukocyte rolling speed calculation.

Blood flow volume

Blood flow volume (FV) is calculated using the following formula (Figure 4B and Figure 5):

FV [µm³/ms] = π(d/2)²ΔX/ΔT

[d] is the maximum diameter of the blood vessel

Shear rate of blood vessel wall

Blood vessel wall shear rate (W) is calculated in a 100-µm segment of the vessel using the formula based on the Newtonian definition (Russell et al., 2003) (Figure 4C and Figure 5):

W [1/ms] = 8V/d

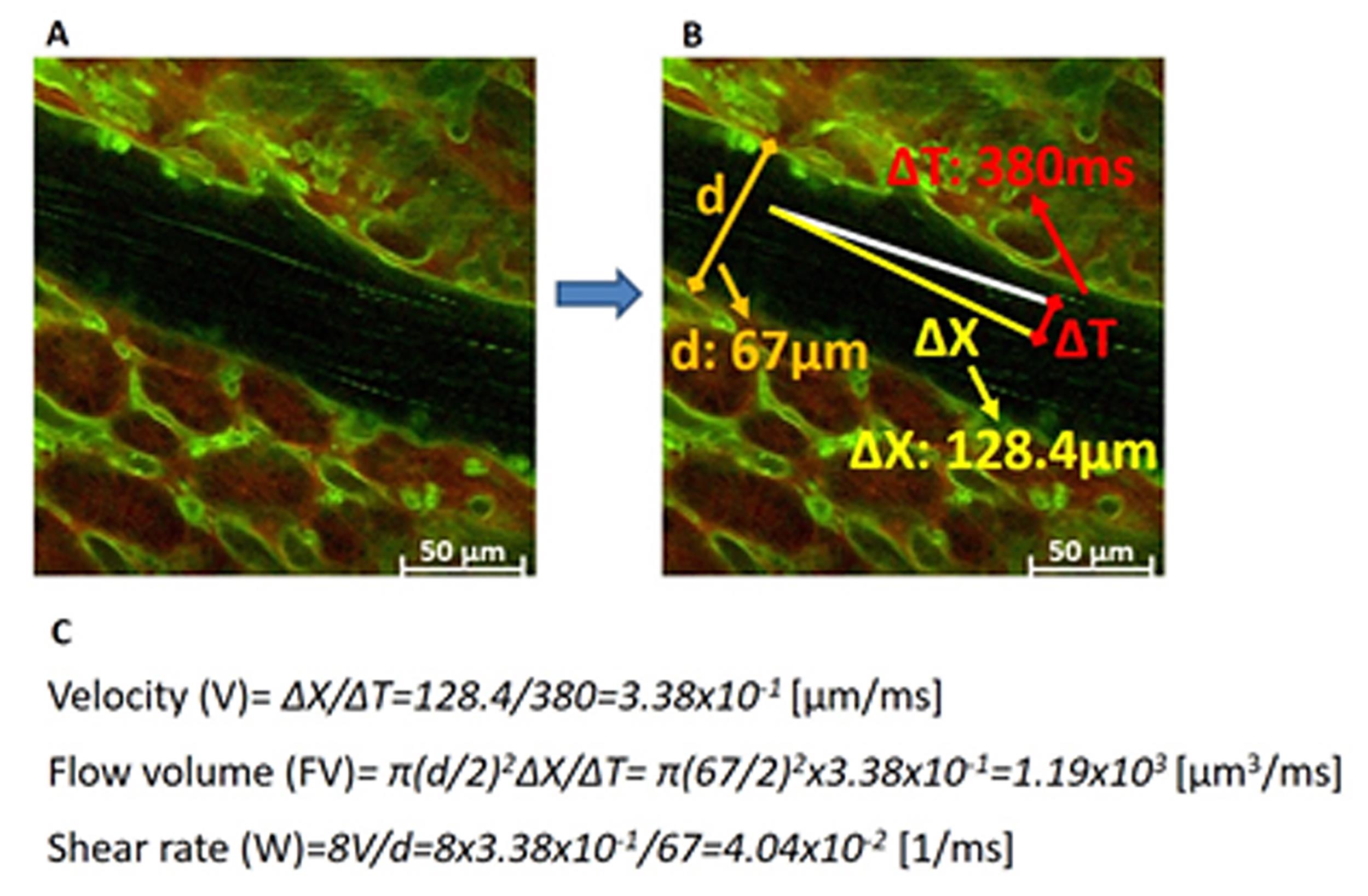

Figure 5. Example of experimental result and data analysis. A. One still/flame image cutting from the recorded video (one flame scan speed: 380 ms). From this find a straight line of the platelet. B. Measure the tangent length of the straight line that is parallel to the blood flow direction (ΔX), scan time (ΔT), and blood vessel maximum diameter (d). C. Calculate the velocity, flow volume, and shear rate using the specific formula.

Number of adherent leukocytes

Adherent leukocytes can be defined in each vessel segment as cells that do not move or detach from the endothelial lining within a specified observation period of 5-10 s. Quantification is done by counting the number of adherent leukocytes sticking to the endothelial surface within a 100-µm length of a single vessel (Kubes et al., 2003; Nakagawa et al., 2006).

Leukocytes rolling speed

Leukocytes’ rolling phenomenon is observed mainly in the post capillary venule. The post capillary venule is a V1 or V2 level vein that is located in the submucosal level, made from the combined branches of the capillary vessels (Yu et al., 2009). The maximum diameter of this venule in the neonatal mouse intestine is approximately 20-60 µm. Choose a frame in which there is a consistent maximum diameter of post-capillary venules and select a single rolling leukocyte to follow as it rolls on the inner venule wall. Measure the distance travelled by the leukocyte and record the length of travel time, as determined by the time from the first frame observed to the last frame observed. Leukocyte rolling speed [µm/ms] is calculated in [µm/ms] (Figure 4D):

Leukocyte rolling speed = [µm/ms]

Where: leukocyte traveled distance length [µm]/ the scan time span between the two selected time frames [ms].

Anticipated results

By using this method of TPLSM imaging of the neonatal intestine, we are able to observe and analyze the microcirculation and blood flow dynamics of the neonatal small intestine in detail (Video 1). Video 1 starts at tips of the villi and travels downwards towards the based of the villi and then through the underlying vascular supply and smooth musculature at the end. Moreover, acquisition of z-stack and x-y data allows creating three-dimensional images of the entire structure of the small intestine, from the top of the villi to the bottom, including the submucosal area. Administration of additional fluorescent dyes such as SYTOX green or red prior to imaging enables the localization of affected cells in a disease model (Video 2). Using this approach, we revealed that the top of the villi is the main area affected by necrosis in the experimental NEC mouse model (Video 2). This approach is also useful for long-term analysis of the effects of drugs and other procedures on the neonatal small intestine. Furthermore, this approach allows the user to visualize changes in intestinal microcirculation in a target area.

In summary, the combination of the organ stabilizing method for TPLSM described in this protocol yields reliable results for studying neonatal intestine development and intestinal pathophysiology.
