Simultaneous Imaging of Single Protein Size, Charge, and Binding Using A Protein Oscillation Approach

Materials and Reagents

1. ITO coated cover slips, 22 × 22 mm, thickness #1, 70-100 Ohms resistivity (SPI Supplies, catalog number: 06470-AB )

2. Silver wire (Alfa Aesar, catalog number: 11468-G9 )

3. Platinum wire (Alfa Aesar, catalog number: 10958-CB )

4. Reusable silicone well (SARSTEDT, flexiPERM^®, catalog number: 94.6032.039 )

5. Streptavidin (VWR, catalog number: 97062-810 )

6. (3-glycidyloxypropyl) trimethoxylsilane (Sigma-Aldrich, catalog number: 440167 )

7. Bovine serum albumin (Sigma-Aldrich, catalog number: 0 5470 )

8. Goat IgG (MW = 150 kDa) (Abcam, catalog number: ab76907 )

9. Rabbit anti-goat IgG (MW = 150 kDa) (Invitrogen, catalog number: A16138 )

10. Biotin-PEG10k-NHS (Nanocs, catalog number: PG2-BNNS-10k )

11. Polystyrene (PS) nanoparticles, diameters of 50, 100, 150 and 200 nm (Bangs Laboratories, catalog numbers: PS2002 , PS2004 , PS2006 , and PS2008 )

12. (Optional) Sodium azide purification kit (Nanopartz, catalog number: PPZ-KIT-10-MAG )

13. 1× phosphate buffered saline (Corning, catalog number: 21-040-CV )

14. Immersion oil type A (Cargille, catalog number: 16482 )

15. Isopropanol (Sigma-Aldrich, catalog number: 109827 )

16. Acetone (VWR, BDH^®, BDH2002 )

17. Ethanol (Koptec’s Pure Ethanol 200 Proof, Decon Labs, catalog number: V1001 )

18. Ammonium Hydroxide (Mallinckrodt Chemicals, catalog number: 3256 )

19. Hydrogen peroxide (VWR, catalog number: BDH7814-3 )

20. H₂O₂/NH₃·H₂O/H₂O (1:3:5) mixture (see Recipes)

21. 0.1 mg/ml BSA blocking solution (see Recipes)

22. 100 times diluted PBS buffer (see Recipes)

Equipment

1. Inverted optical microscope (Olympus, model: IX-81 )

2. 60× NA 1.49 oil immersion TIRF objective (Olympus, model: APON60XOTIRF )

3. Antivibration optical table (Newport, model: RS2000 )

4. XYZ translation stage (Thorlabs, model: PT3 )

5. Superluminescent light emitting diode (SLED) (Superlum, model: SLD-260-HP-TOW-PD-670 )

6. SLED current driver (Superlum, model: PILOT4-AC )

7. CMOS camera (Hamamatsu, model: ORCA-Flash 4.0 )

8. Function generator (Agilent, model: 33521A )

9. Potentiostat (Pine Instrument Company, model: AFCBP1 )

10. USB data acquisition card (National Instruments, model: NI USB-6251 )

11. Vacuum pump (TOPSFLO, model: TM30A-B6-P9504 (V6004 ))

12. Plastic tubing, 0.02” ID × 0.06” OD (Saint-Gobain, TYGON^®, model: AAD04103 )

13. Syringe with Luer-Lok^TM tip, 20 ml (Fisher Scientific, catalog number: 22-124-967 )

14. Perfusion manifold, 4 to 1 ports (Warner Instruments, model: MM-4 )

15. Syringe 1-way stopcock (B. Braun Medical Inc., catalog number: 455980 )

16. Dispensing needles (Weller, catalog number: KDS2312P )

17. Cover glass staining jars (Fisher Scientific, catalog number: 02-912-636 )

18. Ultrasonic cleaner (Fisher Scientific, model: FS20D )

19. Tweezers (Electron Microscopy Sciences, catalog number: 72750-D )

20. Computer (Processor: Intel Xeon E-2274G; RAM: 64 GB; Hard drive: Samsung SSD 970 PRO 1TB)

Software

1. HCImage Live (Hamamatsu)

2. MATLAB (MathWorks)

3. Fiji (https://imagej.net/Fiji)

4. Origin 2019 (OriginLab)

5. Office 365 (Microsoft)

Procedure

1. Cleaning and silanization of ITO surface

   1. Put the ITO chips in a staining jar and sonicate the chips sequentially in acetone, ethanol, and DI water each for 20 min to remove surface contaminates.

   2. Incubate the clean ITO chips in another jar filled with a mixture of H₂O₂/NH₃·H₂O/H₂O (1:3:5) at room temperature for 1 h to increase the surface density of OH.

   3. Rinse the ITO chips with DI water and dry with N₂.

   4. Fill a pre-dried staining jar with 1% (3-glycidyloxypropyl) trimethoxylsilane in isopropanol, place the dried ITO chips in the jar and incubate at room temperature overnight to functionalize the chips with terminal epoxy groups (Figures 2A and 2B).

   5. Rinse the ITO chips with isopropanol and water, each for 3 times, and dry with N₂. Mount a silicone well on the ITO side of the chip before fabricating protein oscillators.




2. Preparation of protein-PEG complex

   1. Dilute the protein with PBS to reach a final concentration of 100 nM with a volume of 100 μl.

      Note: The protein sample should not contain any NHS-reactive additives such as BSA and azide. If azide-free protein sample is unavailable, sodium azide purification kits can be used to remove the azide (example: Nanopartz, catalog number: PPZ-KIT-10-MAG ).

   2. Prepare 10 nM NHS-PEG10k-biotin in 100 μl PBS.

      Note: NHS degrades fast in water, always use fresh solution for the reaction.

   3. Mix the 100 μl protein solution and the 100 μl NHS-PEG10k-biotin solution and incubate the mixture at 4 °C overnight (Figures 2D-2E).

      Note: The 10/1 molar ratio of protein/PEG prevents multiple PEG molecules linking to the same protein molecule.




3. Assembly of protein oscillators

   1. Add 200 μl 0.1 mg/ml streptavidin (dissolved in PBS) to the ITO chip in the sample well and incubate for 2 h to allow immobilization of streptavidin (Figure 2C).

   2. Wash the chip with PBS for 3 times.

   3. Add 0.1 mg/ml BSA solution to ITO and incubate for 20 min to block non-specific binding sites.

   4. Wash the chip with PBS for 3 times.

   5. Add 200 μl protein-PEG complex solution to the chip and incubate for 2 h to allow the terminal biotin in the PEG couple to the streptavidin on the ITO surface (Figure 2F).

   6. Slowly remove 100 μl solution from the well, and then gently add 400 μl of 100 times diluted PBS to the well. Do not generate fast flow in the solution because it may break the tethered protein.

   7. Slowly remove 400 μl solution from the well. Repeat Steps C6-C7 for ~10 times to reduce the amount of free protein molecules and unbound protein-PEG complexes remaining in the solution.

      Note: The surface should always be covered with at least 100 μl solution, drying out the surface will lead to irreversible adhesion of the tethered proteins to the surface. Also, avoid generating air bubbles on the surface when pipetting.

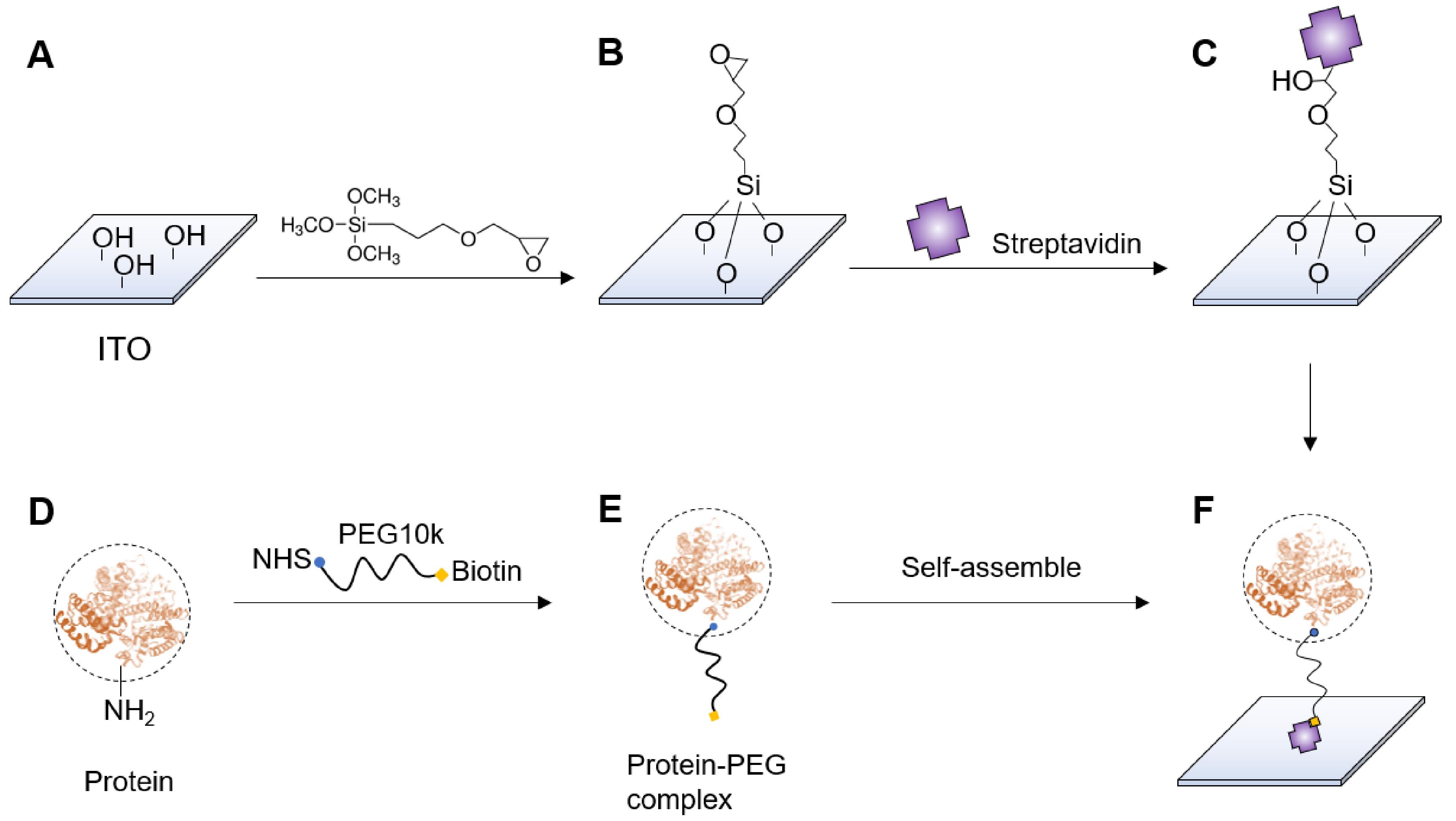

      Figure 2. Fabrication of protein oscillators. A-C. Immobilization of streptavidin on ITO surface. D-F. Assembly of protein-PEG complex and protein oscillator.




4. Measuring the electromechanical response of protein oscillators

   1. Mount the ITO chip on the microscope with half drop of immersion oil placed between the objective and the chip. Set the camera exposure time to 1 ms. Set the camera frame rate to 800 fps at 2048 × 256 pixels. Turn off the camera cooling fan to reduce mechanical noise.

   2. Park the incident angle above the total internal reflection angle, where all the incident light is reflected. Increase the incident power by tuning the SLED current until the camera is saturated (maximum image intensity ~65,535).

   3. Slowly lower the incident angle until it is slightly below the total internal reflection angle, and half of the light is reflected to the camera (image intensity ~30,000).

   4. Set up the electrochemical system and gravity sample delivery system as shown in Figures 3A and 3B.

   5. Double-check if the electrodes are correctly connected. Short circuit or open circuit can damage the ITO surface.

   6. Find a large impurity on the surface and roughly adjust the focus until the pattern of the impurity turns to V-shape (Figure 3C) from parabolic shape (Figure 3D). Move the stage and find a clean region with no impurities (Figure 4A).

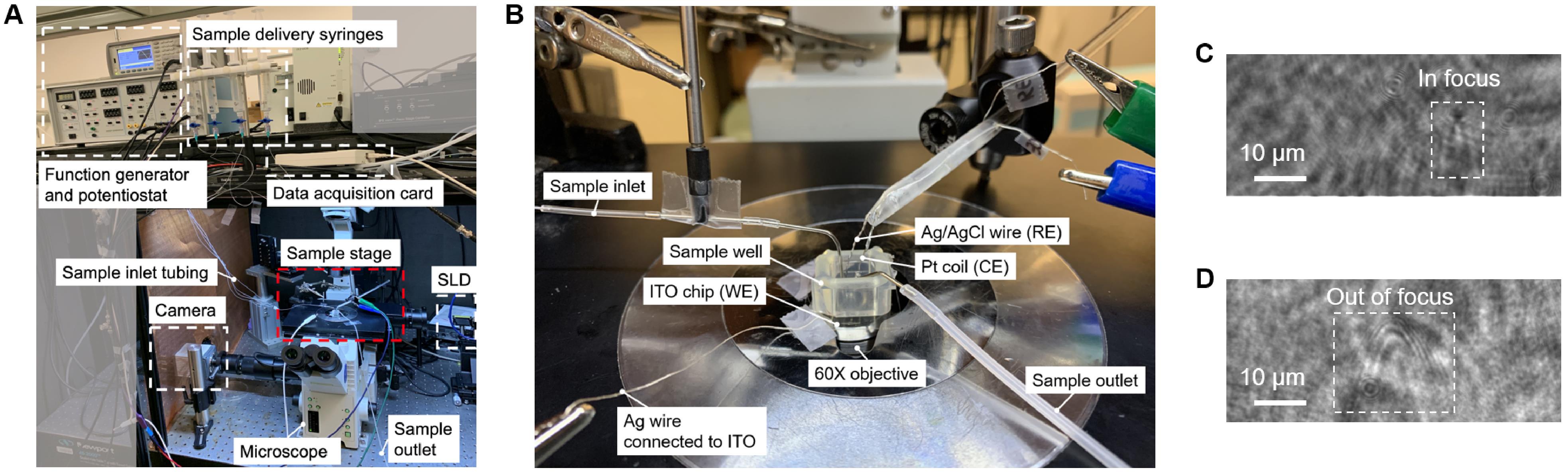

      Figure 3. Experimental setup for measuring protein oscillation. A. A picture showing the whole setup. B. A zoom-in of the sample stage (the red square in A). The ITO chip is placed on the objective. A self-adhesion silicone well is sticked to the chip for holding solution. The ITO surface, an Ag/AgCl wire, and a Pt coil serve as the working electrode (WE), reference electrode (RE), and counter electrode (CE), respectively. The sample inlet directs the sample to the surface within the field of view to minimize diffusion. The outlet tubing (connected to a vacuum pump) is fixed near the upper edge of the well and continuously removing excess solution from the well. C. An image showing a large impurity that is properly focused (inverted V shape). D. An image showing an impurity that is out of focus (parabolic patterns).




   7. Apply a sinusoidal potential of 6 V at 80 Hz to the ITO surface, and record the images for 1 s (Video 1).




      Video 1. An image sequence recorded at 800 fps for 1 s.  Any applied potential between 0 V to 10 V should generate only minor changes to the raw images that are not observable without image processing. The top video shows the raw image sequence recorded by the camera, and the bottom video shows differential images obtained by subtracting the first frame from each frame in the raw image sequence (the background is removed). The applied potential in the video is 8 V at 80 Hz. The sensor surface is modified with IgG oscillators.



   8. Extract the oscillation signal at 80 Hz using a custom MATLAB fast Fourier transform (FFT) filter. The program can be found in the supporting information in Ma et al. (2020) .

   9. Examine the FFT image to see if there are sufficient amount of protein molecules oscillating in the field of view and whether they are correctly focused. If there are not enough proteins, move the stage to another region. If the focus is incorrect, slightly tune the focus knob and repeat Steps D7-D9.

   10. Apply sinusoidal potentials from 0 V to 10 V with 1 V or 2V interval at 80 Hz. Record 1 s video at 800 fps for each potential. If needed, record the applied potential and current simultaneously using data acquisition card.




5. Measuring binding induced size and charge changes using Anti-IgG and IgG oscillators as an example

   1. Add 20 ml of 100 times diluted PBS buffer and 2 ml of 130 nM anti-IgG in 100 times diluted PBS buffer to two different syringes in the sample delivery system (Figure 3A).

   2. Turn on the buffer channel to flow buffer over the ITO surface modified with IgG oscillators (the flow rate is about 300 μl/min if the valve is fully turned on).

   3. Apply a potential with 9 V amplitude at 80 Hz to the ITO (which fully stretches the PEG). Start recording images and if needed, use data acquisition card to record the potential and current.

   4. After flowing the buffer for 20 s to establish a baseline, turn off the buffer syringe and turn on the anti-IgG channel to start the association process. Flow anti-IgG for 30 s.

   5. Switch back to the buffer channel and flow buffer for 30 s for dissociation measurement.

   6. For charge detection, use a lower potential to oscillate the protein (~5 V) so that the PEG is not completely stretched. Do not apply high potential to fully stretch the PEG because charge change can be either positive or negative, which will either increase or decrease the oscillation amplitude.




6. Size calibration using PS nanoparticles

   1. Dilute each PS nanoparticle stock solution (50, 100, 150, 200 nanometers) with PBS for 1000 times.

   2. Add 300 μl PBS to the sample well mounted on a bare ITO surface, and then inject 50 μl of diluted 50 nm nanoparticle solution to allow nanoparticles binding to the surface. Upon injection, start recording images at 400 fps (512 × 2048 pixels) for 1 min.

   3. Repeat Step F2 to measure the other sizes. Use a new ITO chip for each measurement.

   4. Note that the optimal nanoparticle concentration should lead to ~5 binding events per image. Particle concentration may vary, adjust the concentration if it is not appropriate.

Data analysis

1. Constructing a size calibration curve

   1. Use Fiji software to obtain a differential image sequence showing nanoparticle binding by subtracting the first frame from each frame in the sequence (remove the background) (Video 2).

   2. Select 10 × 10 pixels regions of interest (ROIs) on the center of the particle images (red squares in Video 2) and calculate the mean intensity (I) within each ROI.




      Video 2. Nanoparticle of different sizes binding to the surface.  Each video is cropped from the original video showing a single particle (50, 100, 150, and 200 nm) binding to the surface. For better visualization, background noise is reduced by averaging every 11 neighboring frames using the moving average function in Fiji software (Select “Plugins>Stowers>Jay_Unruh>Detrend Tools>stack divide moving average jru v2”).




   3. Measure ~100 individual nanoparticles for each size (D).

   4. Plot log(I) vs. log(D) and find the slope of the curve, which should be around 2.




2. Single protein analysis – temporal fast Fourier transform

   1. Perform fast Fourier transform (FFT) on the image sequence recorded in Procedure D (Figure 4A) using a custom MATLAB program (the same program mentioned in Procedure D8).

   2. Use the 81st image in the FFT image sequence, which shows the signal at 80 Hz, for single protein analysis (Figure 4B).




3. Single protein analysis – background removal

   1. Perform k-space FFT to the temporal FFT image obtained above and convert the image to k-space (Figure 4C) using Fiji (Select “Process>FFT>FFT”).

   2. Apply a band-block filter (Figure 4D) which filters out the low-frequency background patterns while keeping the signal. Use the rectangle selection tool to select the low-frequency region, and then use “Edit>Clear” to remove the selected region.

   3. Use “Process>FFT>Inverse FFT” to transform the image back to time domain (Figure 4E).




4. Oscillation amplitude vs. applied potential

   1. Select ROIs (10 × 10 pixels) on the bright spots which are tethered proteins (Figure 4F). Measure the mean intensity of each ROI and subtract background intensity (the mean intensity of the whole image).

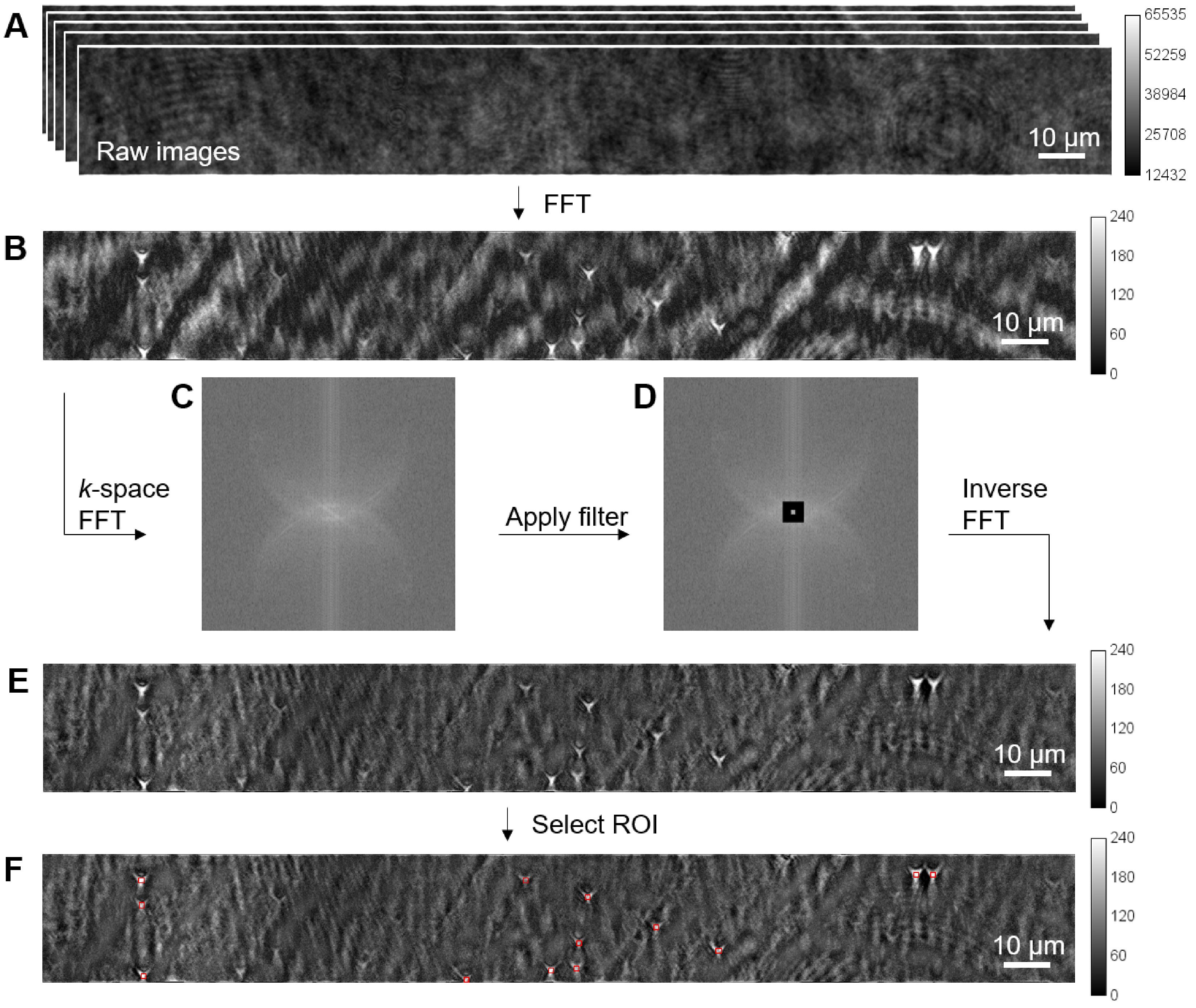

      Figure 4. Image processing. A. Raw image sequence obtained in Procedure D. The calibration bar shows the image intensity in gray scale. B. Temporal FFT image of IgG molecules obtained by performing FFT on the image sequence. Applied potential: 8 V at 80 Hz; FFT integration time: 1 s. C. k-space FFT is performed on the temporal FFT image. D. A band-block filter (black region) is applied to partially remove the background. E. Image after background removal. F. ROIs of 10 × 10 pixels are selected for single protein size and charge analysis.




   2. Measure the mean intensity (with background subtraction) of each tethered protein at different applied potentials.

   3. Plot intensity (y-axis) vs. applied potentials (x-axis). The intensity increases linearly with applied potential at first and reaches a plateau at high potentials (often > 6 V) because the tether is fully stretched (Figure 5).

   4. Convert the intensity to oscillation amplitude in nanometers using the equation:



      where ∆z₀ is the oscillation amplitude, I is the evanescent wave scattering intensity of a protein, ∆I(∆z₀ ) is the protein oscillation intensity at z₀, and d is the decay constant of evanescent field. I is determined from the oscillation plateau regime when ∆z₀ is 63 nm (the length of the PEG) and ∆I(∆z₀=63 nm) is the maximum FFT image intensity of the protein.




5. Single protein size analysis

   1. Find the ∆I(∆z₀=63 nm) value for each individual protein using the intensity vs. applied potential plots (Figure 5). Determine I for each protein using equation [1].

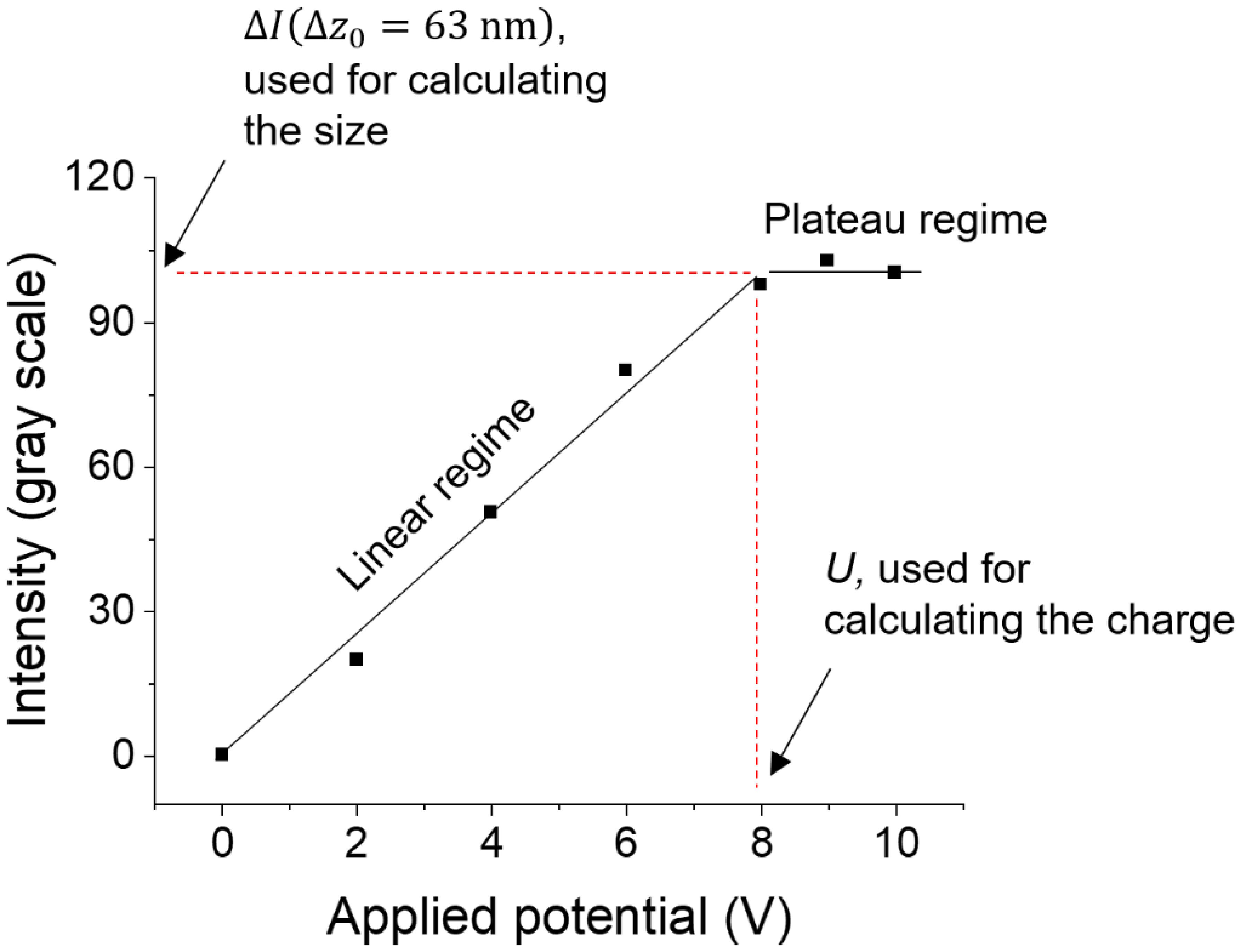

      Figure 5. Calculating the size and charge. The plot shows the oscillation response (intensity) vs. the applied potential of a single IgG molecule. At low potentials, the oscillation increases with the potential in a roughly linear manner, because the PEG is stretched by the electric field. At high potentials, the PEG is fully stretched, and the oscillation (intensity) reaches the maximum value. The protein size is determined by the intensity at the plateau (∆I(∆z₀=63 nm)), and the charge is determined by the potential (U) or field when the PEG is fully stretched. The positions for ∆I(∆z₀=63 nm) and U are marked on the plot.




   2. Convert I to diameter D_app using the size calibration curve. Here, D_app is the effective diameter of the protein-PEG complex.

   3. Calculate the diameter of protein using , where D_PEG is the diameter of PEG coil measured by dynamic light scattering. D_PEG is ~4.5 nm for PEG10k in 100 times diluted PBS according to our dynamic light scattering measurement.




6. Single protein charge analysis

   1. Find the potential U on the intensity vs. applied potential plot where the oscillation amplitude reaches the plateau (Figure 5).

   2. Convert the potential U to electric field E₀ using the equation E₀ = 3.53×106 U/m.

      Note: This relationship is determined on our system, and we recommend the readers to calibrate it before experiment in consideration of system differences. Please refer to Ma et al. (2020) for details.

   3. Determine the charge q using , where k_PEG is the entropic spring constant of the PEG tether. For PEG10k, k_PEG~3.62×10^-4 N/m.

   4. Determine the mobility μ of each protein by μ=q/(3πηD), where η is the solution viscosity.

Recipes

1. H₂O₂/NH₃·H₂O/H₂O (1:3:5) mixture

   To make 45 ml:

   5 ml H₂O₂

   15 ml NH₃·H₂O

   25 ml DI water

2. 0.1 mg/ml BSA blocking solution

   Add 1 mg of BSA to 10 ml PBS buffer (pH 7.4)

3. 100 times diluted PBS buffer

   To make 40 ml:

   400 μl PBS

   39.6 ml H₂O
