Quantification of the Surface Expression of G Protein-coupled Receptors Using Intact Live-cell Radioligand Binding Assays

Materials and Reagents

1. 6-well plates (Thermo Fisher Scientific, catalog number: 130184 )
2. 12-well plates (Thermo Fisher Scientific, catalog number: 130185 )
3. HEK293 cells (ATCC, catalog number: CRL-1573 )
4. NG108-15 cells (ATCC, catalog number: HB-12317 )
5. MCF-7 cells (ATCC, catalog number: HTB-22 )
6. [6,7-³H(N)]-RX821002 (PerkinElmer, catalog number: NET1153250UC )
7. [7-methoxy-³H]-Prazosin (PerkinElmer, catalog number: NET823025UC )
8. [5,7-³H]-CGP12177 (PerkinElmer, catalog number: NET1061250UC )
9. [¹²⁵I]-Angiotensin II, [¹²⁵I]-Ang II (PerkinElmer, catalog number: NEX105050UC )
10. [N-methyl-³H]-Scopolamine methyl chloride, [³H]-NMS (PerkinElmer, catalog number: NET636250UC )
11. Phentolamine hydrochloride (Sigma, catalog number: P7547 )
12. Rauwolscine hydrochloride (Tocris, catalog number: 0 891 )
13. Alprenolol hydrochloride (Sigma, catalog number: A8676 )
14. Angiotensin II, Ang II (Calbiochem, catalog number: 05-23-0101 )
15. Atropine (Sigma, catalog number: A0132 )
16. Doxycycline hyclate (Sigma, catalog number: D9 891 )
17. Dulbecco’s modified Eagle’s medium, DMEM (Sigma, catalog number: D6429-500ML )
18. Fetal bovine serum, FBS (HyClone, catalog number: SH30396.03 )
19. Penicillin-streptomycin solution (HyClone, catalog number: SH40003.01 )
20. Hypoxanthine (Sigma, catalog number: H9377 )
21. Aminopterin (Sigma, catalog number: A3411 )
22. Thymidine (Sigma, catalog number: T9250 )
23. Poly-L-lysine hydrobromide (Sigma, catalog number: P1274 )
24. Trypsin-EDTA (0.25%) (Sigma, catalog number: T4049-100ML )
25. Opti-MEM (Gibco, catalog number: 31985-070 )
26. Lipofectamine 2000 (Invitrogen, catalog number: 11668-019 )
27. 10× Phosphate buffered saline, 10× PBS (Sigma, catalog number: P5493-4L )
28. NaOH (Sigma, catalog number: S5881-500G )
29. Scintillation solution, ScintiVerse^TM BD cocktail (Fisher Chemical, catalog number: SX18-4 )
30. High density polyethylene vials, 20 ml capacity (RPI, catalog number: 121043 )
31. Poly-L-lysine (see Recipes)
32. NG108-15 growth medium (see Recipes)
33. DMEM complete medium (see Recipes)
34. ³H-RX821002 binding solution (see Recipes)
35. ³H-RX821002 binding solution containing 10 µM rauwolscine (see Recipes)


Equipment

1. Low speed orbital shaker (Southwest Science, catalog number: SBT30 )
2. Hemocytometer (Hausser Scientific, catalog number: 1483 )
3. Cell culture incubator (Thermo Scientific, Forma series II water jacketed CO₂ incubator)
4. Tissue culture microscope (Nikon, model: Eclipse TS100 )
5. Scintillation counter (Hitachi, model: AccuFLEX LSC-8000c )


Software

1. Microsoft Excel

Procedure

1. Quantification of endogenous α_2B-AR at the cell surface
   There are three different α₂-AR subtypes: α_2A-AR, α_2B-AR and α_2C-AR. NG108-15 neuroblastoma-glioma cells express only α_2B-AR but not α_2A-AR and α_2C-AR, whereas MCF-7 breast cancer cells express both α_2B-AR and α_2C-AR but not α_2A-AR.
   1. Cell culture
      1. To pre-coat 6-well plates, add 2 ml of poly-L-lysine (Recipe 1) each well and incubate at 37 °C for 15 min. Wash the plate twice, each with 1 ml of sterilized MilliQ-water.
      2. Seed NG108-15 or MCF-7 cells on 6-well plates at a total of 5 × 10⁵ cells per well. For each experiment, a total of 6 wells are needed; 3 wells are used to measure total radioligand binding and other 3 wells used to measure non-specific radioligand binding.
      3. Culture NG108-15 cells in NG108-15 growth medium (Recipe 2) under 95% air and 5% CO₂ at 37 °C.
      4. Culture MCF-7 cells in DMEM complete medium (Recipe 3) under 95% air and 5% CO₂ at 37 °C.
      5. When cells become 70-90% confluent, conduct radioligand binding.
   2. Radioligand binding
      1. Aspirate the growth medium completely.
      2. To measure total radioligand binding, add 500 µl of ³H-RX821002 at a concentration 2 nM diluted in DMEM (Recipe 4).
      3. To measure non-specific radioligand binding, add 500 µl of ³H-RX821002 at 2 nM containing nonradioactive rauwolscine at 10 μM (Recipe 5).
      4. Incubate cells for 90 min at room temperature (RT) on a low speed orbital shaker with constant shaking at 20-40 rpm.
      5. Aspirate radioligand binding solution and wash cells twice, each with 1 ml of 1× PBS (10× PBS diluted with MilliQ-water) for 5 min at RT with shaking to remove the excess radioligand.
      6. Remove PBS and add 500 µl of 1 M NaOH to digest cells for 2 h at RT with shaking.
      7. Add 4 ml of scintillation solution to each high density polyethylene vial, transfer cell lysates to vials, and mix vigorously by inverting the tubes or using a vortex.
      8. Count radioactivity in a scintillation counter.
      9. In a separate vial, add 4 ml of scintillation solution and 5 µl of radioligand binding solution, mix and count radioactivity. This number will be used as input to calculate receptor numbers.


2. Quantification of transiently expressed α_2B-AR at the cell surface
   1. Cell culture
      1. Seed HEK293 cells into 6-well plates pre-coated with poly-L-lysine at a total of 5 × 10⁵ cells per well and culture cells in DMEM complete medium at 37 °C overnight.
      2. Check the cell density under a tissue culture microscope. When cells become 70-90% confluent, aspirate culture medium and add 1.8 ml of DMEM.
   2. Transient transfection
      1. α_2B-AR plasmids in any mammalian expression vectors can be used. For example, we have used the pEGFP-N1 vector to generate α_2B-AR tagged with GFP at the C-terminus (Dong et al., 2010a and 2010b). Based on our experience, transfection of 1 µg of α_2B-AR plasmids in each well of 6-well plates is sufficient to achieve the maximal receptor expression.
      2. In an Eppendorf tube, add 125 µl of serum-free Opti-MEM and 1 µg of α_2B-AR plasmids, mix gently, and incubate for 5 min at RT.
      3. In another tube, add 125 µl of Opti-MEM and 2.5 µl of Lipofectamine 2000, mix and incubate for 5 min at RT.
      4. Combine two solutions, mix gently by pipetting 3-4 times, and incubate for additional 20 min at RT.
      5. Add the mixture slowly into cells cultured in 1.8 ml of DMEM, mix gently, and culture cells for 6 h at 37 °C.
      6. Remove cell culture medium and wash cells once with 1 ml of sterilized 1× PBS.
      7. Treat cells with 100 µl of trypsin-EDTA for 2 min at 37 °C and add 1 ml of DMEM complete medium.
      8. Split cells from each well of 6-well plates into four wells of 12-well plates pre-coated with poly-L-lysine (0.27 ml each well). Two wells are used to measure total radioligand binding and other two wells used to measure non-specific radioligand binding.
      9. Culture cells in DMEM complete medium for 24-36 h at 37 °C.
   3. Radioligand binding
      1. Aspirate the growth medium completely.
      2. For measurement of total radioligand binding, add 200 µl of ³H-RX821002 at 20 nM diluted in DMEM (Recipe 4) into cells
      3. For measurement of non-specific radioligand binding, add 200 µl of ³H-RX821002 at 20 nM plus rauwolscine at 10 μM (Recipe 5) into cells.
      4. Incubate cells for 90 min at RT with constant shaking at 20-40 rpm.
      5. Aspirate radioligand binding solution and wash cells twice, each with 0.5 ml of 1× PBS for 5 min at RT with shaking.
      6. Remove PBS and add 500 µl of 1 M NaOH to digest cells for 2 h at RT with shaking.
      7. Transfer cell lysates to a vial containing 4 ml of scintillation solution, mix well and count radioactivity in a scintillation counter.
      8. Add 5 µl of radioligand binding solution and 4 ml of scintillation solution to a vial, mix and count radioactivity. This number will be used as input to calculate receptor numbers.


3. Quantification of inducibly expressed α_2B-AR at the cell surface
   1. Stable HEK293 cells inducibly expressing α_2B-AR were generated by using Tet-On 3G tetracycline-inducible gene expression system as described previously (Zhang et al., 2016a and 2016b).
   2. Seed cells into 12-well plates pre-coated with poly-L-lysine at a density of 2 × 10⁵ cells per well and culture cells in DMEM complete medium at 37 °C overnight.
   3. To measure doxycycline dose-dependent induction of α_2B-AR expression, add doxycycline to the final concentrations of 0, 2.5, 5, 7.5, 10, 20, 40, 60, 80 and 100 ng/ml and incubate for 24 h at 37 °C.
   4. To measure time-dependent induction of α_2B-AR expression, add doxycycline at the final concentration of 40 ng/ml and incubate cells for 2, 4, 6, 8, 10, 12, 14, 16, 20, 24, and 36 h.
   5. Conduct radioligand binding as described in Procedure B.



4. Measurement of the cell surface expression of other GPCRs
   Over the past years, we have used intact live-cell ligand binding assays to quantify the cell surface expression of several family A GPCRs, including α_1A-AR, α_1B-AR, α_2A-AR, α_2B-AR, α_2C-AR, β₁-AR, β₂-AR, Ang II type 1 (AT1R) and type 2 (AT2R) receptors, and M3-muscarinc receptor (M3-MR) using different radioligands (Table 1). One issue associated with intact cell radioligand binding assays is that radiolabeled ligands may be able to induce receptor internalization. For example, Ang II is an agonist of AT1R, thus incubation with ¹²⁵I-Ang II may induce the internalization of AT1R from the cell surface to the endosomal compartment. One strategy to limit receptor internalization during incubation with radiolabeled agonists is to carry out ligand binding assays at low temperature (Filipeanu et al., 2004).

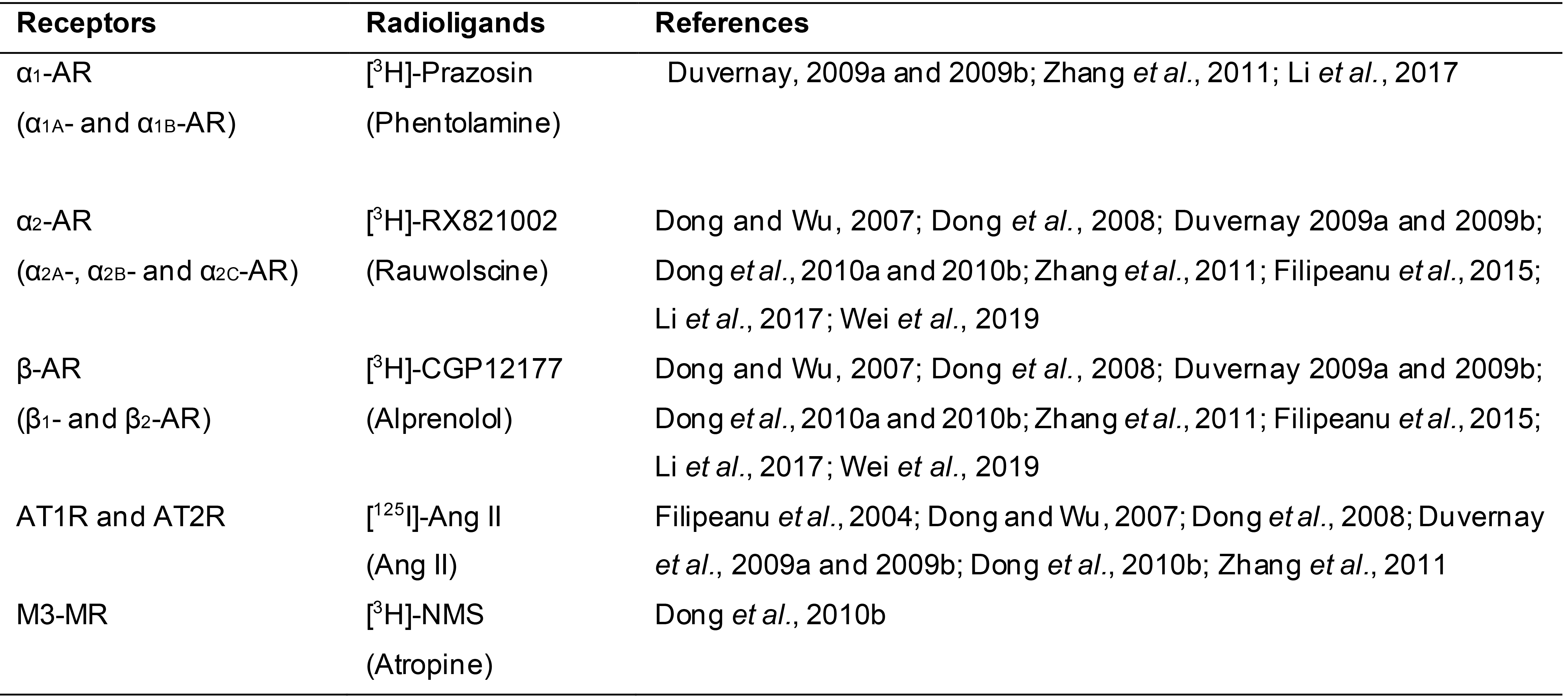

   Table 1. Measurement of the surface expression of GPCRs by intact cell ligand binding assays


   Drugs indicated in ( ) are used for measurement of non-specific radioligand binding.


5. Data analysis
   1. Calculate specific radioligand binding to receptors using the values of disintegrations per minute (DPM):

      Specific binding (DPM) = total binding (DPM) - non-specific binding (DPM)


   2. Calculate surface receptor numbers per cell
      In order to calculate the receptor numbers at the surface in each cell, the total cell numbers used in ligand binding assays need to be determined. This can be done by preparing cell cultures in exactly the same way as for ligand binding and count the cell numbers in each well by using a hemocytometer.
      1. Endogenous receptors


         As 1 mole = 6.02 × 10²³ molecules,
         Sample ligand number per well (molecules)
         = Sample DPM × 10^-14 moles × 6.02 × 10²³ ÷ Input DPM
         = Sample DPM × 6.02 × 10⁹ ÷ total input DPM
         Sample ligand number per cell (molecules)
         = Sample DPM × 6.02 × 10⁹ ÷ total input DPM ÷ cell number
      2. Overexpressed receptors





6. Experimental results
   1. Inducible expression of the surface expression of α_2B-AR
      By using intact live-cell radioligand binding assays as described in the section C, we have measured the surface expression of α_2B-AR in a stable HEK293 cell line which inducibly expresses α_2B-AR. Our data have shown that doxycycline incubation induces the expression of α_2B-AR at the cell surface in a dose- (Figure 1A) and time-dependent (Figure 1B) fashion. Doxycycline-induced α_2B-AR expression reaches a plateau at a concentration of about 40 ng/ml (Figure 1A) and after 20 h of induction (Figure 1B), resulting in a total of 8.5 × 10⁵ α_2B-AR at the surface per cell (Zhang et al., 2016a and 2016b).

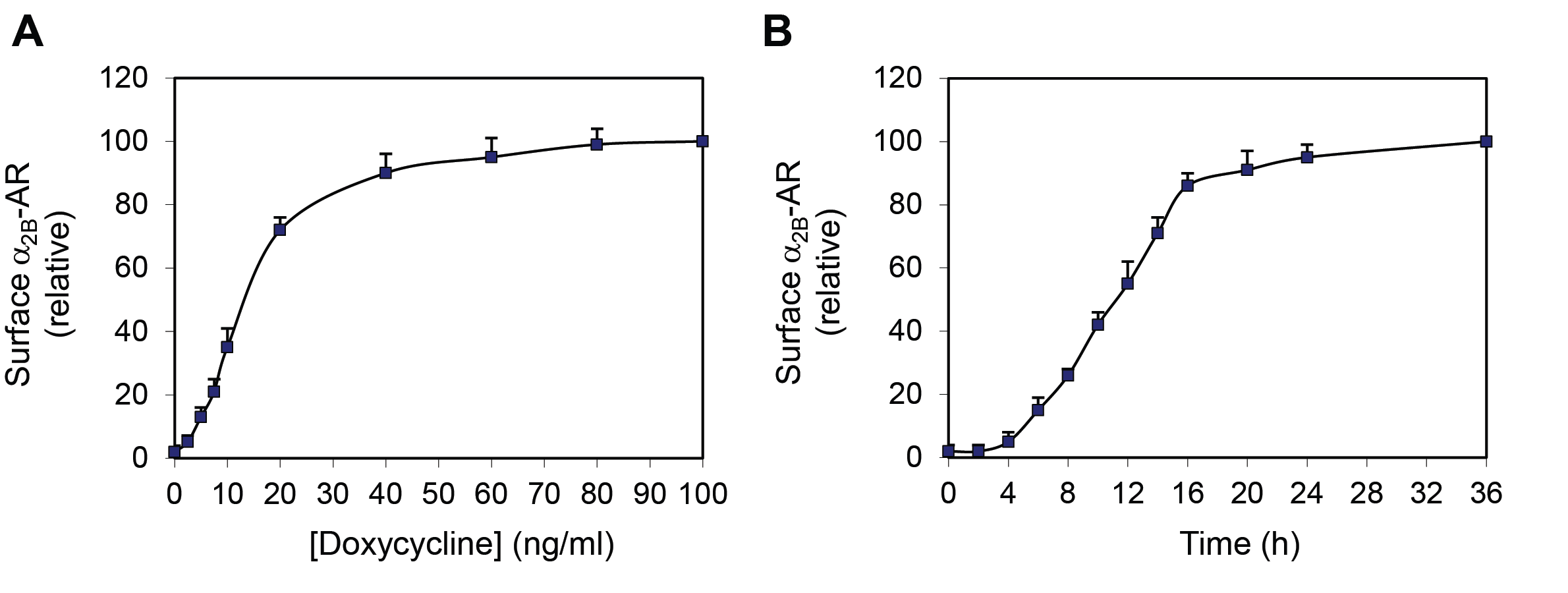

      Figure 1. Dose- (A) and time-dependent (B) induction of α_2B-AR expression at the cell surface by doxycycline in HEK293 cells. The data shown are percentages of specific binding obtained from cells treated with doxycycline at 100 ng/ml (A) or from cells after induction for 36 h (B) (Zhang et al., 2016a and 2016b).


   2. Structural determinants of α_2B-AR transport to the cell surface
      Over the past decades, most studies on GPCR trafficking have focused on the events involved in receptor internalization from the cell surface to the endosomal compartments and recycling of internalized receptors back to the cell surface (Tan et al., 2004; Hanyaloglu and von Zastrow, 2008; Marchese et al., 2008; Kang et al., 2014). In contrast, the molecular mechanisms underlying the cell surface transport of newly synthesized receptors along the biosynthesis pathways are much less well understood. By using intact live cell radioligand binding assays as described above, we have successfully identified a number of motifs or specific residues which are essential for receptor transport to the cell surface either from the endoplasmic reticulum (ER) or from the Golgi apparatus. For example, we have demonstrated that mutation of the residues Y12/S13 in the N-terminus, L48 in the first intracellular loop, and I443/F444 and F436 in the C-terminus markedly reduces the cell surface expression of α_2B-AR (Figure 2) (Dong and Wu, 2006; Duvernay, Dong et al., 2009a and 2009b), indicating important roles of these residues in α_2B-AR biosynthesis.

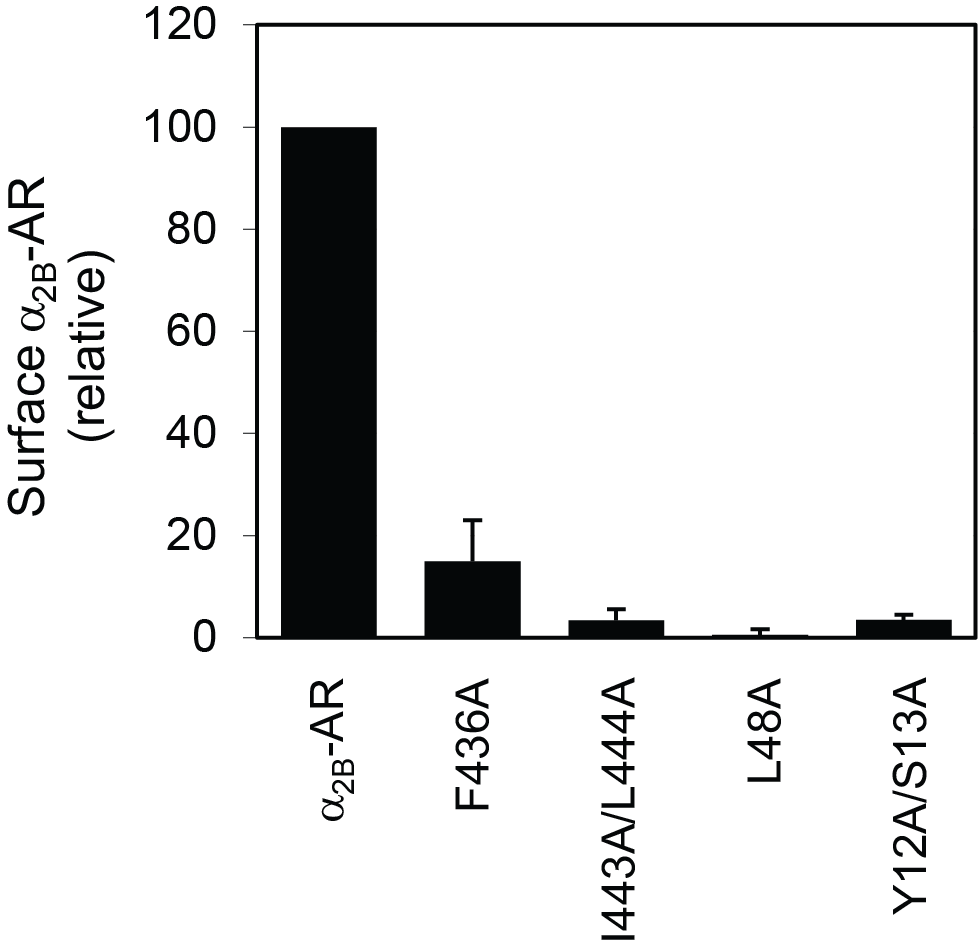

      Figure 2. Inhibition of the cell surface transport of α_2B-AR by mutating residues Y12/S13, L48, F436 and I443/L444. Wild-type and mutated α_2B-AR were transiently expressed in HEK293 cells and their surface expression was measured by radioligand binding of intact live cells using [³H]-RX821002.


   3. Identification of α_2B-AR surface transport regulators
      We have also employed intact live cell radioligand binding assays in searching for proteins that regulate α_2B-AR cell surface transport. For instance, in recent studies we have investigated the function of 48 Rab GTPases (Li et al., 2017) and 44 putative Rab GTPase-activating proteins (GAPs) (Wei et al., 2019) in the cell surface transport of α_2B-AR. In these experiments, individual Rab mutants or Rab GAPs were transiently expressed in stable HEK293 cells expressing α_2B-AR and their effects on the cell surface expression of α_2B-AR were measured by radioligand binding of intact live cells as described above. Our results have shown that the expression of Rab43 mutants and six TBC domain-containing proteins, namely TBC1D5, TBC1D6, TBC1D8B, TBC1D20, TBC1D22A and RN-tre significantly reduces the cell surface numbers of α_2B-AR (Figure 3) (Li et al., 2017; Wei et al., 2019). These results demonstrate important functions of Rab43 and the six TBC proteins in the forward trafficking of nascent GPCRs and reveal novel regulatory mechanisms underlying GPCR targeting to the functional destination.

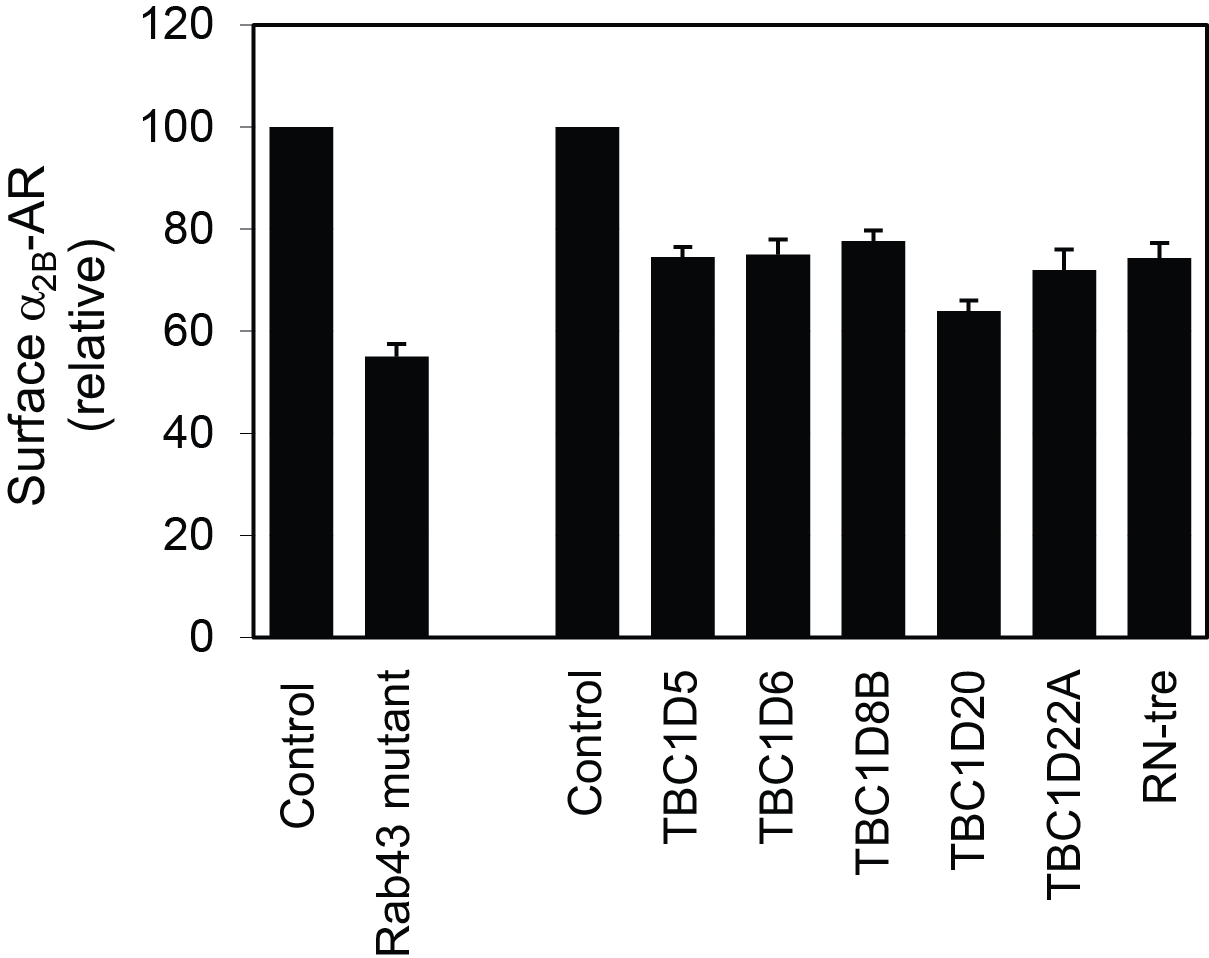

      Figure 3. Inhibition of the cell surface transport of α_2B-AR by mutated Rab43 and TBC domain-containing proteins. The Rab43 mutant or individual TBC proteins were transiently expressed in HEK293 cells stably expressing α_2B-AR and α_2B-AR expression at the surface was measured by intact cell ligand binding using [³H]-RX821002.

Recipes

1. Poly-L-lysine
   Dissolve poly-L-lysine hydrobromide in sterilized Milli-Q water to a final concentration of 25 μg/ml
2. NG108-15 growth medium
   DMDM
   10% FBS
   100 units/ml penicillin
   100 μg/ml streptomycin
   100 μM hypoxanthine
   0.4 μM aminopterin
   16 μM thymidine
3. DMEM complete medium
   DMEM
   10% FBS
   100 units/ml penicillin
   100 μg/ml streptomycin
4. ³H-RX821002 binding solution
   As the concentration of ³H-RX821002 varies in different batches, the following is just an example of concentration calculation of the radioligand in a vial containing 250 µCi in a total volume of 250 µl with specific activity of 63.9 Ci/mmol.



   Dilute ³H-RX821002 in DMEM to 2 nM for measurement of endogenous receptors or to 20 nM for measurement of overexpressed receptors.
5. ³H-RX821002 binding solution containing 10 µM rauwolscine
   1. To prepare 5 mM rauwolscine stock solution, dissolve 19 mg of rauwolscine hydrochloride in 10 ml of Milli-Q water
   2. Dilute rauwolscine stock solution to 10 µM in radioligand binding solution prepared as Recipe 4
