Flow Cytometry Measurement of Glucocerebrosidase Activity in Human Monocytes

Materials and Reagents

1. Ethanol wipes (Livingstone, catalog number: LWMS )
2. Plasters (Livingstone, catalog number: ASP23N )
3. Needles 23G (BD Biosciences, catalog number: 367288 )
4. BD vacutainer one-use holders (BD Biosciences, catalog number: 364815 )
5. BD CPT sodium citrate Vacutainer Glass Cell Preparation Tubes (BD Biosciences, catalog number: 362782 )
6. 10 μl XL Biotix Filter Tip (Interpath, catalog number: M00119FC )
7. 100 μl Aerosol Barrier Tip (Interpath, catalog number: 24600 )
8. 1,000 μl Aerosol Barrier Tip (Interpath, catalog number: 24800 )
9. Falcon 5 ml round bottom polystyrene test tube with cell strainer cap, 12 x 75 mm (In Vitro Technologies, catalog number: FAL352235 )
10. 1.5 ml Eppendorf^TM Safe-Lock microcentrifuge tubes (Sigma-Aldrich, catalog number: T9661 )
11. Countess cell counting chamber slides (Life Technologies, catalog number: C10312 )
12. Sterile syringe filter 0.22 µm (Millipore, catalog number: SLGVV255F )
13. 1.5 ml and 15 ml centrifuge tubes
14. PPE (lab coat, safety glasses, disposable gloves)
15. MilliQ water
16. Ice box and ice
17. RPMI 1640 Medium (Thermo Fisher Scientific, catalog number: 1187093 )
18. Fetal Bovine Serum (FBS) (Thermo Fisher Scientific, catalog number: 10100147 )
19. Dimethyl sulfoxide (DMSO) (Sigma-Aldrich, catalog number: D2438 )
20. Penicillin-Streptomycin (100x) (Thermo Fisher Scientific, catalog number: 15140122 )
21. L-Glutamine (Thermo Fisher Scientific, catalog number: 25030081 )
22. CD3 for T-lymphocytes (BD Biosciences, catalog number: 560365 )
23. CD19 for B-lymphocytes (BD Biosciences, catalog number: 555415 )
24. CD16 for non-classical monocytes (BD Biosciences, catalog number: 560475 )
25. 5-(Pentafluorobenzoylamino) Fluorescein Di-beta-D-Glucopyranoside (PFB-FDGlu) (Thermo Fisher Scientific, catalog number: P11947 )
26. PE-Cy7 Mouse Anti-Human CD14 antibody (BD Biosciences, catalog number: 557742 )
27. PE-Cy7 Mouse IgG2a, k Isotype Control (BD Biosciences, catalog number: 557907 )
28. 1x DPBS (Ca²⁺/Mg²⁺ free) (Thermo Fisher Scientific, catalog number: 14190144 )
29. 1 M HEPES (Sigma-Aldrich, catalog number: H0887 )
30. Ethylenediaminetetraacetic acid disodium salt dihydrate (EDTA) (Merck, catalog number: E5134 )
31. Sodium Hydroxide (NaOH) (Merck, catalog number: 221465 )
32. Trypan blue 0.4% (Thermo Fisher Scientific, catalog number: T10282 )
33. Culture media (500 ml) (see Recipes)
34. 0.1 M EDTA solution (500 ml) (see Recipes)
35. Fluorescence-activated cell sorting (FACS) Buffer (500 ml) (see Recipes)
36. CBE 50 mM stock solution (see Recipes) (Sigma-Aldrich, catalog number: C5424-5MG )
37. PFB-FDGlu 37.5 mM stock solution (see Recipes)


Equipment

1. Tube rack to hold 1.5, 5, 15 ml tubes
2. Class II Biosafety cabinet
3. Micropipettes (P10, P100, P1000)
4. S1 Pipette Filler (Thermo Fisher Scientific, catalog number: 9521 )
5. Heraeus Multifuge X1 Centrifuge with inserts for 15 ml conical tubes (Thermo Fisher Scientific)
6. Centrifuge (Eppendorf, model: 5415 R )
7. Countess II FL automated cell counter (Thermo Fisher Scientific)
8. Hotplate magnetic stirrer
9. Magnetic stir bar
10. Magnetic stirring pad
11. pH meter
12. 4 °C refrigerator
13. -20 °C freezer
14. 37 °C 5% CO₂ incubator
15. Vortex
16. Flow cytometer equipped with a 488 nm laser and 530 nm-FITC filter (i.e., BD LSR Fortessa X-20)
17. Computer for analysis


Software

1. BD FACSDiva^TM software (BD Biosciences)
2. FlowJo software (Tree Star, OR, USA)
3. GraphPad Prism software (GraphPad Software Inc., CA, USA)


Procedure

1. Aseptic technique
   Conduct experiments in a class II biological safety cabinet using appropriate PPE to maintain safety and sterility.


2. Isolation of human peripheral blood mononuclear cells (PBMC)

   1. Perform venepuncture with the arm in a downward position. Collect venous blood into 8 ml BD Vacutainer Cell Preparation Tubes (CPT), keeping tubes upright following blood collection. Immediately prior to centrifugation, invert tubes 8 times to remix the blood sample.
   2. Centrifuge at 1,800 x g for 20 min at room temperature (21 °C) in a swing bucket centrifuge with acceleration and deceleration set at 9.
   3. Collect PBMC layer with sterile glass pipette (whitish layer just beneath the plasma) and transfer to a 15 ml tube. For more specific details and images on collecting the PBMC layer from CPT tubes please refer to the following Bio-protocol publication https://bio-protocol.org/e2103 (Puleo et al., 2017).
   4. Add room temperature 1x DPBS to bring volume to 15 ml and invert tube 5 times, followed by centrifugation for 15 min at 300 x g at room temperature.
   5. Aspirate supernatant and resuspend pellet in 10 ml of warmed (37 °C) culture media for cell counting.
   6. Dilute PBMC suspension 1:1 in Trypan blue, transfer mixture to a cell counting chamber slide, and count PBMCs using an automated cell counter.
   7. Determine the required volume to obtain 1 x 10⁶ cells.
   Note: Cell Preparation Tubes should be centrifuged within 2 h of blood collection as GCase activity declines if blood is left longer.


3. Distribution of PBMCs into Eppendorf tubes
   1. Add 1 x 10⁶ PBMCs per Eppendorf tube, with a total of three Eppendorf tubes for each subject, as shown in Table 1. One tube receives CBE (tube 1) and one tube receives DMSO (tube 2), with each of these followed by the addition of PFB-FDGlu substrate. The third tube is an isotype control.

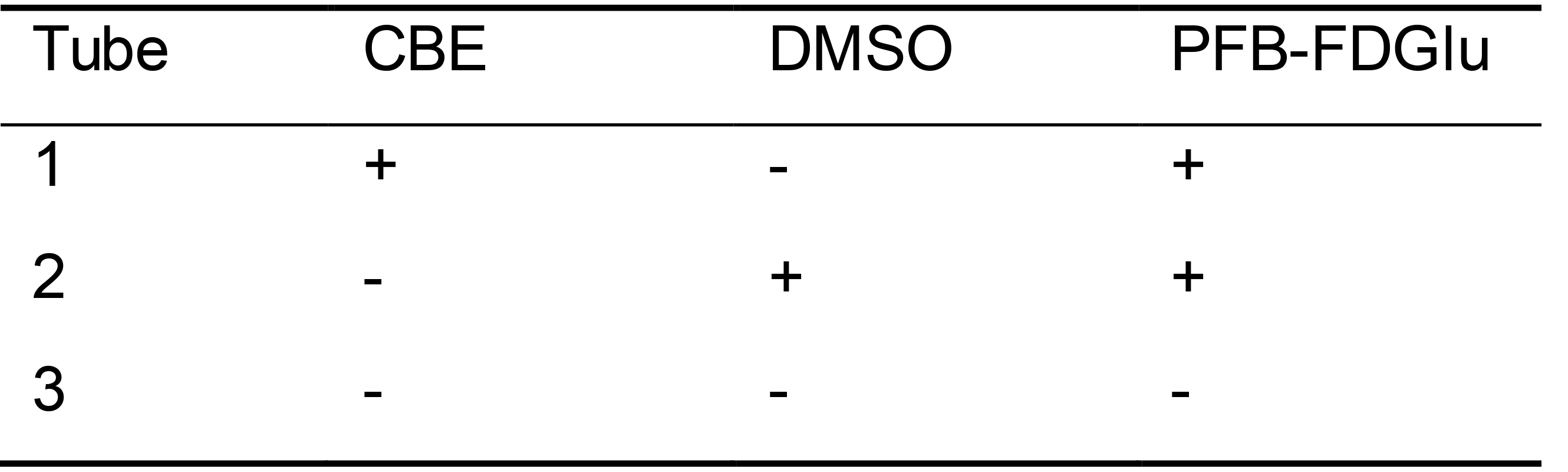

      Table 1. Distribution of PBMCs into Eppendorf tubes




4. Addition of CBE or DMSO to appropriate tubes
   1. Centrifuge tubes at 300 x g for 5 min at room temperature and decant supernatant.
   2. Gently resuspend cells in 96 μl of culture media.
   3. Add 2 μl of 50 mM CBE stock solution into tube 1 to achieve a final concentration of 1 mM, and add 2 μl of DMSO into tube 2
   4. Vortex tubes gently to mix.
   5. Incubate at 37 °C with 5% CO₂ for 60 min.


5. Addition of PFB-FDGlu substrate to appropriate tubes
   1. Following the 60 min incubation, add 2 μl of 37.5 mM PFB-FDGlu stock solution into tubes 1 and 2 to achieve a final concentration of 0.75 mM.
   2. Vortex tubes gently to mix.
   3. Incubate at 37 °C with 5% CO₂ for 30 min.
   Note: If adapting this protocol for cell types other than PBMCs it is recommended to perform time course experiments to ensure the assay remains in the linear range.


6. Termination of reaction
   1. To terminate the reaction, add 1 ml of ice-cold FACS buffer.
   2. Pellet cells via centrifugation at 300 x g for 5 min at 4 °C and decant supernatant.


7. Staining for CD14 positive monocytes
   1. Resuspend cells in 95 μl of ice-cold flow buffer and add 5 μl of anti-CD14 antibody into tubes 1 and 2.
   2. Add 5 μl of isotype control antibody into tube 3 if using BD. For other brands of isotype control, ensure usage at the same concentration as the BD anti-CD14 antibody.
   3. Vortex tubes gently to mix.
   4. Incubate for 20 min at 4 °C, protected from light.
   5. Add 1 ml of FACS buffer to tubes, centrifuge at 300 x g for 5 min at 4 °C, and discard supernatant.
   6. Resuspend cells in 350 μl FACS buffer.
   7. Pass each cell suspension through the cell strainer cap into the 5 ml polypropylene tube compatible with the flow cytometer.
   8. Store tubes shielded from light at 4 °C until flow cytometry data acquisition.
   Note: Other surface marker antibodies for lymphocyte or monocyte populations can be included. Antibodies we have successfully used are CD3 for T-lymphocytes, CD19 for B-lymphocytes and CD16 for non-classical monocytes. However, fixing the cells and performing intracellular staining is detrimental to the PFB-FDGlu signal and not recommended.


8. Data acquisition
   1. Acquire data on a BD LSR Fortessa X-20 Cell Analyser using FACSDiva or equivalent cytometer and software, collecting a minimum of 50,000 events per tube.
   2. Export FCS files from FACSDiva software.

Data analysis

1. Gating strategy
   1. Analyse FCS files using FlowJo software. To remain objective, create the gates described below using tube 3 (isotype control tube), and then apply the gates to tubes 1 and 2 by selecting and dragging the gate series to the “All Samples” tab under the “Group” tab.
   2. Firstly, perform doublet and debris exclusion by plotting area against height for forward scatter (FSC: Figure 1A), and then for side scatter (SSC: Figure 1B), to ensure only single cells are included in the analysis. Label these “singlets FSC” and “singlets SSC”, respectively.
   3. Use FSC (size) and SSC (granularity) parameters to gate the mononuclear cell population (Figure 1C), and label this “mononuclear cells”.
   4. Next, plot CD14-PE-Cy7 fluorescence against SSC-A and select the CD14-positive population (Figure 1D), from which GCase activity will be measured. The isotype negative control tube can be used to identify and eliminate non-specific binding of the antibody, as any signal above isotype control signal can be interpreted as true CD14 positive fluorescence. Label the CD14 positive population as “CD14⁺ monocytes”.


      Figure 1. Representative biaxial flow cytometry plots depicting the gating strategy used to assess GCase activity in live monocytes. Events were acquired using a BD LSR Fortessa Cell Analyser. First, two singlet gates were made, using FSC (A) and SSC (B), followed by gating on PBMCs (C), and then CD14⁺ monocytes (D). The median fluorescence intensity resulting from PFB-FDGlu metabolism within the monocyte population was then quantified (E).



2. Calculating GCase activity
   Express GCase activity as an index, obtained by dividing the median fluorescence intensity of cells treated without CBE by the median fluorescence intensity of cells treated with CBE. To find the median fluorescence intensity resulting from PFB-FDGlu metabolism in each tube, right-click on the “CD14⁺ monocytes” tab under the tube name, click “Add Statistic”, and then co-select “Median” and “FL1-A” (or equivalent channel used to detect PFB-FDGlu fluorescence). Click “Add”, and a tab displaying the median fluorescence intensity of PFB-FDGlu metabolism will appear under the “CD14⁺ monocytes” tab.


3. Statistical analysis
   Perform statistical analyses using GraphPad Prism software to compare the GCase activity index between groups of interest. As an example, in our original research article (Atashrazm et al., 2018) analyses were performed to compare GCase activity between PD patients (n = 48) and healthy controls (n = 44) and this data can be found in Figure 3F.


Notes

1. This assay may also be performed on PBMCs which have been cryopreserved. We recommend a recovery incubation period of ~2 h upon thawing, prior to beginning the assay.
2. We have experienced large variation with different lots of PFB-FDGlu and recommend using a single lot number per experiment.
3. We have also experienced a decline in PFB-FDGlu performance with prolonged storage after reconstitution. We recommend using reconstituted PFB-FDGlu within 1 week.


Recipes

1. Culture media (500 ml)
   1. Combine 440 ml of RPMI 1640 with 5 ml of penicillin/streptomycin 100x, 5 ml of L-Glutamine, and 50 ml of fetal bovine serum
   2. Filter sterilize and store at 4 °C for up to one month
2. 0.1 M EDTA solution (500 ml)
   1. Combine 18.61 g of EDTA with 500 ml MilliQ Water, using a magnetic stirring pad with heating to dissolve
   2. Adjust pH to reach 8.0 using sodium hydroxide (NaOH)
   3. Autoclave at 125 °C for 25 min to sterilize
   4. Store at room temperate for several months
3. Fluorescence-activated cell sorting (FACS) Buffer (500 ml)
   1. Combine DPBS (Ca²⁺/Mg²⁺ free) with 1 mM EDTA, 25 mM HEPES, and 5% v/v FBS to produce FACS buffer
   2. Filter sterilize and store at 4 °C for several months
4. CBE 50 mM stock solution
   1. Bring one 5 mg vial of CBE to room temperature and aseptically combine with 616.9 μl DMSO to achieve a stock solution of 50 mM
   2. Store as single use aliquots at -20 °C for several months
5. PFB-FDGlu 37.5 mM stock solution
   1. Bring one 5 mg vial of PFB-FDGlu to room temperature and aseptically combine with 154 μl dimethyl sulfoxide (DMSO) to achieve a stock solution of 37.5 mM
   2. Store as single use aliquots at -20 °C for no longer than one week

Acknowledgments

This protocol is derived from a published study (Atashrazm et al., 2018) which was jointly funded by the Michael J Fox Foundation for Parkinson’s disease research and the Shake it up Australia Foundation. It is important to note that this derived protocol was itself adapted from earlier pioneering studies establishing the use of PFB-FDGlu to asses GCase activity (Lorincz et al., 1997; van Es et al., 1997; Rudensky et al., 2003).

Competing interests

The authors have no financial or non-financial competing interests to declare.

Ethics

All human blood samples were obtained with informed consent. Experiments were conducted in accordance with relevant guidelines and regulations and were approved by the University of Sydney Human Research Ethics Committee (#2016/363).
