Intracellular cAMP Measurements in Candida albicans Biofilms

Materials and Reagents

1. Stainless steel tweezer (Thermo Fisher Scientific, Thermo Scientific^TM, catalog number: DS0399-0001)
2. Pipettes (Eppendorf, P1000, catalog number: 3120000062; P200, catalog number: 3120000054; P10, catalog number: 3120000020; P2.5, catalog number: 3120000011, respectively)
3. Flasks (Duran, 50 ml, catalog numbers: 21-216-17; 100 ml, catalog number: 21-216-24, respectively)
4. Cell culture dish (Thermo Fisher Scientific, Thermo Scientific^TM, Nunc^TM EasYDish^TM, catalog number: 150466)
5. 1.5 ml microtubes (Axygen^®, catalog number: MCT-150-C)
6. Tubes (Eppendorf, 15 ml, catalog number: 0030122151; 50 ml, catalog number: 0030122178, respectively)
7. Cell scraper (Costar, catalog number: 3010)
8. Pipette tips (Eppendorf, 1,000 µl, catalog number: 0030000919; 200 µl, catalog number: 0030000870; 10 µl, catalog number: 0030000811, respectively)
9. Aluminum foil
10. Parafilm
11. Strain (Candida albicans, SC5314) (ATCC, catalog number: 10231)
12. Yeast extract (BD Biosciences, catalog number: 212750)
13. Peptone (BD Biosciences, catalog number: 211677)
14. Dextrose (BD Biosciences, catalog number: 215530)
15. Agar (BD Biosciences, catalog number: 214040)
16. RPMI 1640 medium (Sigma-Aldrich, catalog number: R6504)
17. Sodium phosphate monobasic monohydrate (Thermo Fisher Scientific, catalog number: S369-500)
18. Sodium phosphate dibasic anhydrous (Thermo Fisher Scientific, catalog number: BP332-500)
19. Sodium chloride (Thermo Fisher Scientific, catalog number: S671-3)
20. Sodium hydroxide (NaOH) (Sigma-Aldrich, catalog number: 59223C)
21. Distilled water
22. 2-(N-Morpholino)ethanesulfonic acid (MES) (Sigma-Aldrich, catalog number: M5287)
23. Trichloroacetic acid (Sigma-Aldrich, catalog number: T9159)
24. Ice
25. Liquid nitrogen
26. YPD medium
27. Ether (Sinopharm Chemical Reagent Co., Ltd, catalog number: 10009318)
28. cAMP Enzyme Immunoassay Kit (Sigma-Aldrich, catalog number: CA200)

    1. Goat Anti-Rabbit IgG Coated 96-well
    2. cAMP-Alkaline Phosphatase Conjugate
    3. cAMP EIA Antibody Rabbit Anti-cAMP
    4. 0.1 M Hydrochloric Acid
    5. 0.1 M HCI in water
    6. Neutralizing Reagent
    7. Wash Buffer Concentrate
    8. Cyclic AMP Standard
    9. p-Nitrophenyl Phosphate Substrate Solution
    10. Stop Solution
    11. Triethylamine
    12. Acetic Anhydride
    13. Plate Sealer
29. MES Buffer (see Recipes)
30. Sabouraud dextrose agar medium (SDA) (see Recipes)
31. YPD broth (see Recipes)
32. YPD agar medium (see Recipes)
33. 1x PBS (see Recipes)


Equipment

1. Ultrasonic cell crusher (Celton, model number: UH-500B)
2. 30 °C shaking incubator (Infors, model number: Multitron Standard)
3. CO₂ incubator (ESCO, CelMate^®, model number: CLM-170B-8-NF)
4. Multiwell plate shaker (Thermo Fisher Scientific, Thermo Scientific^TM, Sorvall^TM ST 40R, catalog number: 75004524)
5. Multi-mode Microplate Reader (Molecular Devices, SpectraMax M5)
6. Autoclave

7. Centrifuge


Procedure

1. Growth of Candida albicans and biofilm formation
   1. Subculture Candida albicans on Sabouraud dextrose agar medium at 35 °C.
   2. Pick a single colony and inoculate 10 ml of YPD medium at 30 °C in a shaking incubator (200 rpm). Grow overnight.
   3. Centrifuge the culture (2,100 x g, 10 min) and discard the supernatant. Use 10 ml of 1x PBS to wash the cells, centrifuge the cells for 5 min at 2,100 x g and discard the supernatant, repeat twice. Then, discard the supernatant and harvest the cells.
   4. Re-suspend the cells and dilute them to an optical density at 600 nm (OD_600nm) of 0.4 in RPMI 1640 medium (10 ml RPMI 1640 medium for per cell culture dish).
   5. Inoculate the suspensions into the cell culture dishes at 37 °C without shaking (inoculum should spread to cover the entire bottom of the dish). After 2 h, gently remove the inoculum (avoid scratching away the newly forming biofilms), wash with 5 ml 1x PBS twice to remove non-adherent cells. Add 10 ml fresh RPMI 1640 medium to each dish. Then, incubate at 37 °C without shaking to form biofilms.



2. Process biofilm cell samples
   1. Remove the medium from the dishes and gently wash the biofilms with 2 ml distilled water (slowly add distilled water using a pipet to avoid disturbing the biofilms). Add 1 ml distilled water to the dishes and scrape the dishes to isolate the biofilms, and add the samples to the 15 ml tubes. Then repeat this process, add 1 ml distilled water to collect remaining samples.
   2. Centrifuge the samples for 5 min at 2,100 x g at room temperature and discard the supernatant. Add 1 ml MES buffer and transfer the samples to the 1.5 ml microtubes, centrifuge the samples for 5 min at 2,100 x g, discard the supernatant.
   3. Then, dry the samples in a desiccator, add 10% trichloroacetic acid (not more than half volume of MES buffer), here we add 0.5 ml.
   4. Freeze the samples in liquid nitrogen, then thaw the samples on ice, repeat this process twice. Use an ultrasonic cell crusher to sonicate the samples under chilled conditions (twice at 130 W for 2 min).
   5. Add 1 ml water-saturated ether, centrifuge the samples for 5 min at 600 x g at room temperature and discard the supernatant. Repeat four times to make sure the trichloroacetic acid is extracted.



3. Measure the intracellular cAMP content (Table 1)
   Note: The cAMP content was measured with a cAMP enzyme immunoassay system following the manufacturer’s instructions. Allow all reagents to warm to room temperature for at least 30 min before opening and don’t use polystyrene tubes.

   Table 1. The procedure for measurement of intracellular cAMP content



   1. Add 0.5 ml of acetic anhydride to 1 ml of triethylamine to prepare the Acetylation Reagent. Dilute 10 ml Wash Buffer Concentrate with 90 ml distilled water to prepare 1x Wash Buffer.
   2. Prepare cAMP Standard solutions:
      1. Label five 12 x 75 mm tubes from 1 to 5.
      2. Add 990 µl of 1 M HCI into tube 1 and 750 µl into tubes 2-5. Add 10 µl of the Cyclic AMP Standard to tube 1 and mix thoroughly.
      3. Then, transfer 250 µl solution from Tube 1 to Tube 2. Dilute the cAMP from Tube 2 to Tube 5 in series. The concentration of cAMP in Tubes 1 through 5 will be 20, 5, 1.25, 0.312, and 0.078 pmol/ml, respectively (Table 2).
      4. Label one 12 x 75 mm tube as the Zero Standard/NSB tube.

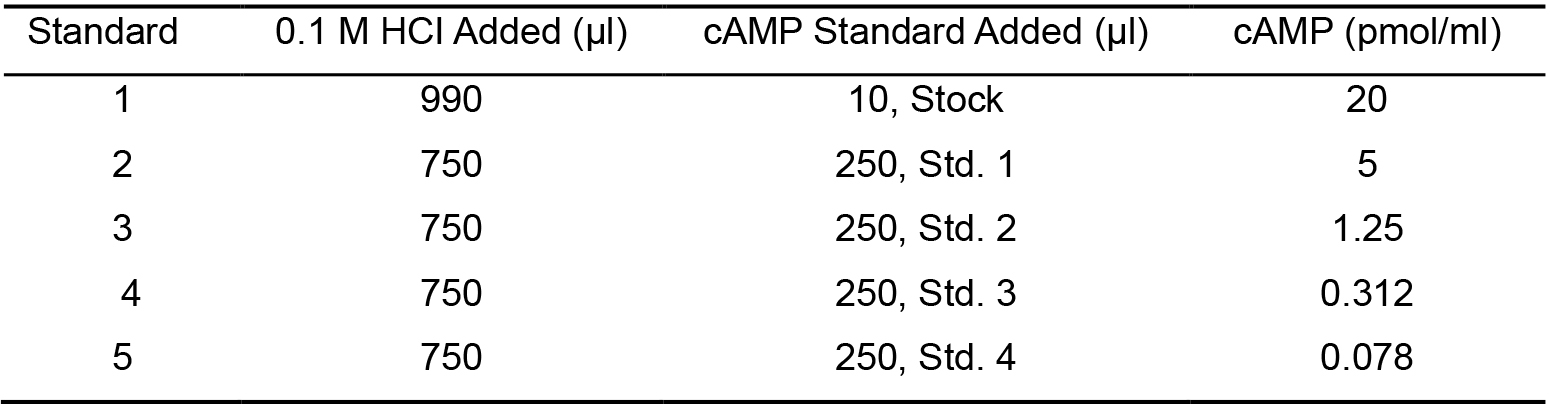

         Table 2. Preparation of cAMP standard solution




   3. Add 50 µl Neutralizing Reagent into each well of the ELISA plate, except wells A1-D1 (Figure 1). Add 100 µl 0.1 M HCI into the wells E1-H1, respectively. Add 100 µl of standard solutions 1-5 into wells A2-B3.
   4. Add 100 µl of the samples into the appropriate wells.
   5. Add 50 µl 0.1 M HCI into wells E1-F1 (NSB wells, non specific binding wells).
   6. Add 50 µl blue cAMP-Alkaline Phosphatase Conjugate into each well except wells A1-D1. Add 50 µl yellow cAMP EIA antibody into all of the wells except A1-F1 (Figure 1).

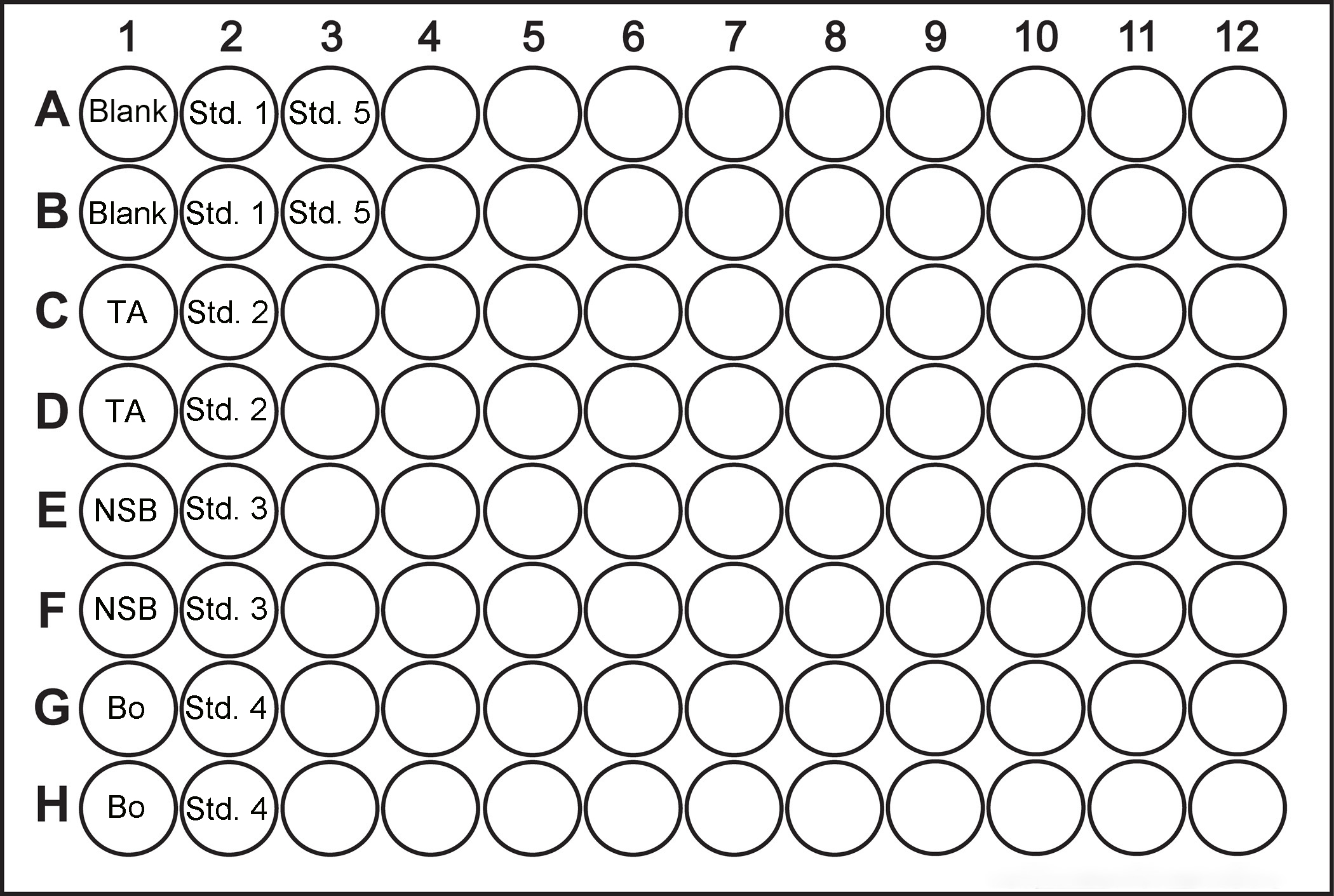

      Figure 1. Plate layout for the cAMP measurement


   7. Incubate the plate at RT for 2 h on a plate shaker (500 rpm).
   8. Empty the contents of the wells and use 1x Wash Buffer to wash every well. Repeat twice and discard the remaining wash buffer.
   9. Add 50 µl of blue cAMP-Alkaline Phosphatase Conjugate to the TA wells. Add 200 µl of the p-Nitrophenyl Phosphate Substrate Solution to every well.
   10. Incubate the plate at RT for 1 h without shaking.
   11. Add 50 µl of Stop Solution to every well. Read the optical density (OD) at 405 nm, preferably with correction between 570 and 590 nm.

Data analysis

Calculate the concentration of cAMP as follows (Table 3):

1. Calculate the Average Net Optical Density (OD) bound for each standard and sample:
   Average Net OD = Average Bound OD – Average NSB OD
2. Calculate the binding of each pair of standard wells as a percentage of the maximum binding wells (Bo):
   Percent Bound = Net OD/Net Bo OD x 100
3. Use the Logit-Log paper plot Percent Bound versus Concentration of cAMP for the standards and draw a straight line through those points. Then, determine the concentration of cAMP by interpolation.

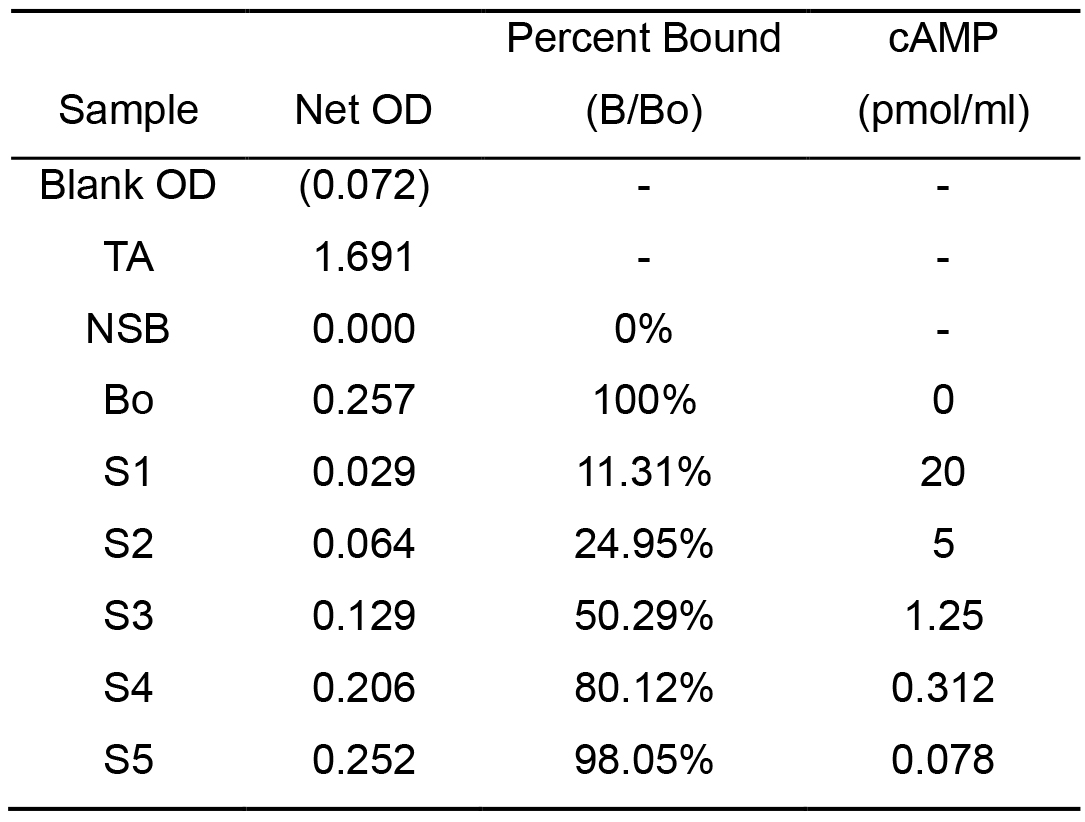

   Table 3. Typical results for calculating the concentration of cAMP





Repeat the test in triplicate for each assay, and test each group in triplicate on different days.

Recipes

1. MES Buffer (1 L)
   21.3 g MES
   5 M NaOH (adjust pH to 6.0)
   1 L Distilled water
   Autoclave (120 °C, 120 kPa for 20 min)

2. SDA agar medium (1 L)
   10 g Peptone
   40 g Dextrose
   20 g Agar (2%)
   1 L Distilled water
   Autoclave (120 °C, 120 kPa for 20 min)
3. YPD broth (1 L)
   10 g Yeast extract (1%)
   20 g Peptone (2%)
   20 g Dextrose (2%)
   1 L Distilled water
   Autoclave (120 °C, 120 kPa for 20 min)
4. YPD agar medium (1 L)
   10 g Yeast extract (1%)
   20 g Peptone (2%)
   20 g Dextrose (2%)
   20 g Agar (2%)
   1 L Distilled water
   Autoclave (120 °C, 120 kPa for 20 min)
5. 1x PBS
   2.62 g Sodium phosphate monobasic monohydrate
   11.5 g Sodium phosphate dibasic anhydrous
   43.84 g Sodium chloride
   500 ml Distilled water
   Adjust pH to 7.2 (1 M NaOH)
   Autoclave (120 °C, 120 kPa for 20 min)


Acknowledgments

This protocol was adapted from our previously published work (Chen et al., 2018). This work was supported by the National Natural Sciences Foundation of China under Grant No. 81970945 and No. 81371156 and the Foundation of the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD, 2018-87).

Competing interests

The authors declare that there are no conflicts of interest or competing interests.

References

1. Brown, G. D., Denning, D. W., Gow, N. A., Levitz, S. M., Netea, M. G. and White, T. C. (2012). Hidden killers: human fungal infections. Sci Transl Med 4(165): 165rv13.
2. Kim, J. Y. (2016). Human fungal pathogens: Why should we learn? J Microbiol 54(3): 145-148.
3. Lohse, M. B., Gulati, M., Johnson, A. D. and Nobile, C. J. (2018). Development and regulation of single- and multi-species Candida albicans biofilms. Nat Rev Microbiol 16(1): 19-31.
4. Parrino, S. M., Si, H., Naseem, S., Groudan, K., Gardin, J. and Konopka, J. B. (2017). cAMP-independent signal pathways stimulate hyphal morphogenesis in Candida albicans. Mol Microbiol 103(5): 764-779.
5. Rajendran, R., Sherry, L., Nile, C. J., Sherriff, A., Johnson, E. M., Hanson, M. F., Williams, C., Munro, C. A., Jones, B. J. and Ramage, G. (2016). Biofilm formation is a risk factor for mortality in patients with Candida albicans bloodstream infection-Scotland, 2012-2013. Clin Microbiol Infect 22(1): 87-93.
6. Tao, L., Zhang, Y., Fan, S., Nobile, C. J., Guan, G. and Huang, G. (2017). Integration of the tricarboxylic acid (TCA) cycle with cAMP signaling and Sfl₂ pathways in the regulation of CO₂ sensing and hyphal development in Candida albicans. PLoS Genet 13(8): e1006949.
7. Wang, Y. (2013). Fungal adenylyl cyclase acts as a signal sensor and integrator and plays a central role in interaction with bacteria. PLoS Pathog 9(10): e1003612.
8. Yun, C. W., Tamaki, H., Nakayama, R., Yamamoto, K. and Kumagai, H. (1998). Gpr1p, a putative G-protein coupled receptor, regulates glucose-dependent cellular cAMP level in yeast Saccharomyces cerevisiae. Biochem Biophys Res Commun 252(1): 29-33.
9. Chen, S., Xia, J., Li, C., Zuo, L., Wei, X. (2018). The possible molecular mechanisms of farnesol on the antifungal resistance of C. albicans biofilms: the regulation of CYR1 and PDE2. BMC Microbiol 4;18(1): 203.
