Genome-wide Estimation of Evolutionary Distance and Phylogenetic Analysis of Homologous Genes

Equipment

1. Linux/Unix cluster
   In this study, we use the Purdue Halstead supercomputer, which contains 508 nodes in total. Each node contains 20 cores, two 10-Core Intel Xeon-E5 processors, and 128 GB memory. Please refer to the website for more information: https://www.rcac.purdue.edu/compute/halstead.
2. Personal computer for post data processing (Lenovo, T430s, Intel Core i5-3320M CPU, 4 GB RAM)


Software

1. Blastall or Blast+ (Altschul et al., 1997)
   https://blast.ncbi.nlm.nih.gov/Blast.cgi?PAGE_TYPE=BlastDocs&DOC_TYPE=Download
   This program is developed and distributed by NCBI to do blast searches.
2. MCScanX (Wang et al., 2012), http://chibba.pgml.uga.edu/mcscan2/
   This toolkit is for detection and evolutionary analysis of gene synteny and collinearity. This program also can generate tandemly duplicated genes.
3. Multiple Sequence Comparison by Log-Expectation (MUSCLE) (Edgar, 2004), https://www.drive5.com/muscle/
4. ClustalW (Thompson et al., 1994), http://www.clustal.org/clustal2/
   Both Muscle and ClustalW are software for multiple sequence alignment for nucleotide and protein sequences.
5. Phylogenetic Analysis by Maximum Likelihood (PAML) (Yang et al., 2007), http://abacus.gene.ucl.ac.uk/software/paml.html
   PAML is a package of programs for phylogenetic analyses of DNA or protein sequences using maximum likelihood.
6. Molecular Evolutionary Genetics Analysis (MEGA X) (Kumar et al., 2018), https://www.megasoftware.net/
   This software contains many sophisticated methods and tools for phylogenetic analysis, including constructing phylogenetic trees as well as evolutionary distance estimation.
7. Perl, https://www.perl.org/, or Python, https://www.python.org/, programming languages
   These languages make it possible to post-process the primary data generated from some of the software used above.
8. SAS software, https://www.sas.com/en_us/home.html
   SAS is a software for statistical analysis.


Procedure

1. Identification of Syntenic Genes among Closely Related Species

   1. Retrieve gene sequence
      For given plant genomes of which the genome annotation is available, download the coding sequences (CDS) and protein sequences of all the protein-encoding genes from corresponding databases. Some species have their respective websites, such as Arabidopsis TAIR (https://www.arabidopsis.org/), soybean SoyBase (https://soybase.org/), and maize MaizeGDB (https://www.maizegdb.org/), etc. The sequences of many of other species were deposited at NCBI (https://www.ncbi.nlm.nih.gov/), CoGe (https://genomevolution.org/coge/), Phytozome (https://phytozome.jgi.doe.gov/pz/portal.html) or other relevant databases. We downloaded all the genome sequences and gene annotation of soybean (v1.1, Schmutz et al., 2010) and common bean (Schmutz et al., 2014) from Phytozome.
   2. Removal of transposon-related and hypothetical proteins
      In order to detect highly confident syntelogs among closely related species, transposon-related and hypothetical proteins were first removed using BLAST (Altschul et al., 1997). Taking soybean (v1.1) as an example, in total 53,927 annotated genes from the 20 soybean chromosomes were BLASTN queried against the soybean transposon database SoyTEdb (Du et al., 2010, https://www.soybase.org/soytedb/). Any genes over the 80% of the total length matching the transposon-related sequences with the sequence similarities of greater than 80% were removed. Genes annotated as hypothetical proteins were excluded as well (Figure 1). Here is a typical setting for doing local blast.

      formatdb -i SoyBase_TE_Fasta.txt -p F -o T
      blastall -p blastn -i Soybean_gene_cds.fa -d SoyBase_TE_Fasta.txt -m 8 -a 8 -o Soybean_gene_cds_blast_TEs

      Note: Hypothetical proteins were identified based on the gene annotation file. The genes annotated as hypothetical proteins were not included in the analysis. Here formatdb is to format the nucleotide source database “SoyBase_TE_Fasta.txt” before it can be searched using blastall. blastall is used to compare the gene sequences in the file “Soybean_gene_cds.fa” with the database “SoyBase_TE_Fasta.txt”. A detailed description of each parameter can be found in the software manual.

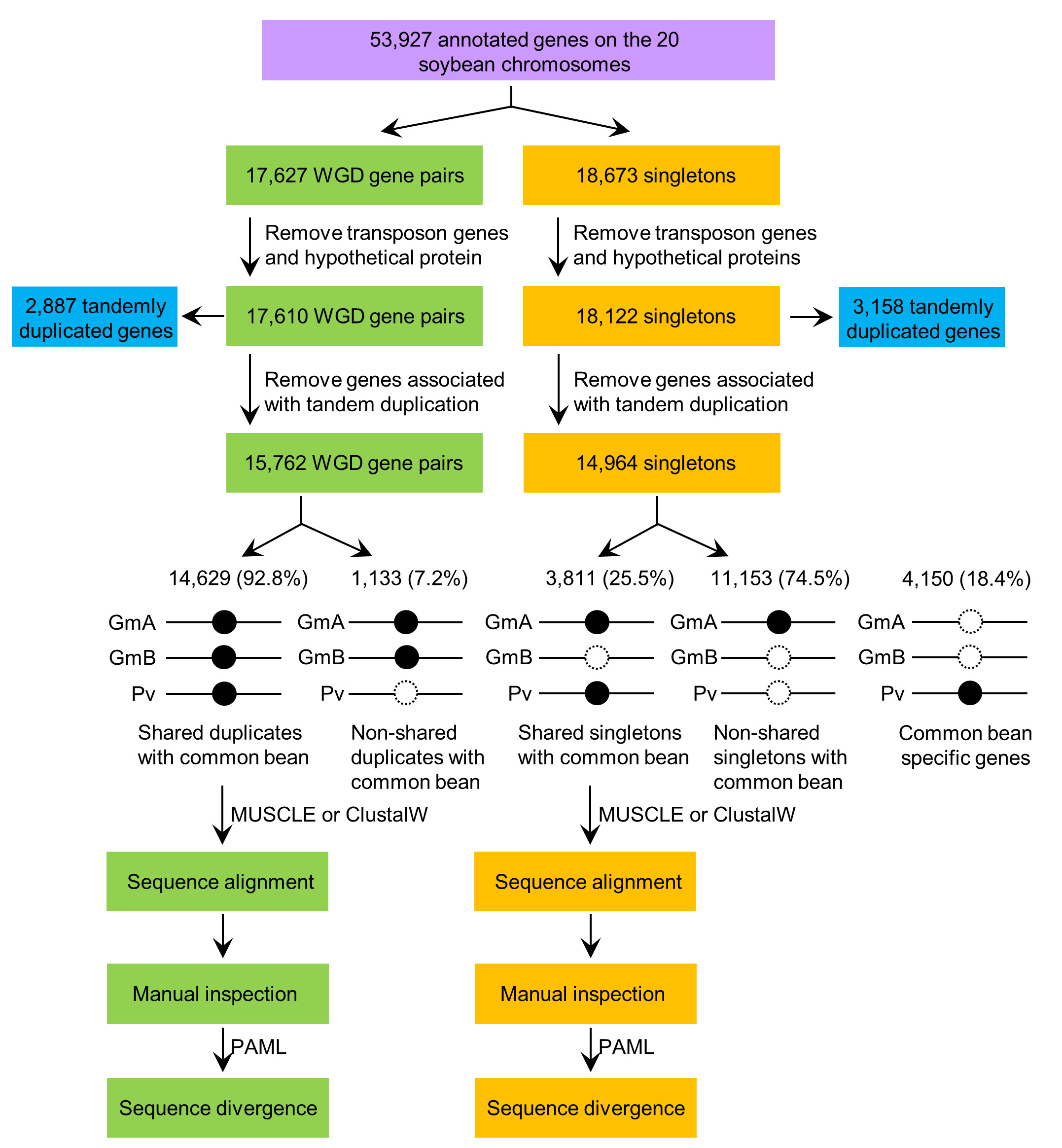

      Figure 1. Bioinformatics pipeline for identification and comparison of the syntenic homologous genes in soybean and common bean. The solid and the dotted circles indicate the presence and absence of the genes in the corresponding genomes, respectively. GmA and GmB represent either of the duplicated genes in soybean. Gm, Glycine max, soybean; Pv, Phaseolus vulgaris, common bean. This figure was modified from Zhao et al., 2017.


   3. Detection of candidate syntelogs
      The remaining protein-encoding genes in soybean and common bean were used to do an all-against-all BLASTP search using default parameters, with the E-value cutoff 10^-10 (Altschul et al., 1997). For each pair of genes, BLAST hits were loaded to the software MCScanX (Wang et al., 2012) to scan the syntelog homologous gene pairs.

      blastall -p blastp -i Soybean_gene_pep.fa -d Commonbean_gene_pep.fa -m 8 -a 8 -F F -o Soybean _blast_Commonbean
      MCScanX Soybean_CommonBean

      Note: The setting of E-value is based on the rough divergence time. You can leave it as default setting if the divergence time is unknown. Please prepare the required gff file for all gene locations to MCScanX. Syntenic gene pairs between soybean and common bean were identified with MCScanX’s default settings (Match Score = 50, Match Size = 5, Gap Penalty = -1, Overlap Window = 5, Max Gaps = 25 and an E-value cutoff 10^-10).
   4. Post process the candidate syntelogous genes
      Since soybean has undergone a whole genome duplication after its split with common bean, the genes in the common bean genomes were corresponding to one or two copies in the soybean genome, depending on the duplication status of the genes retained in soybean. MCScanX provided all the homologous gene pairs in addition to syntelogous gene pairs. In order to remove the false positive syntelogous genes, the duplicated block information from the reference genome was incorporated (Schmutz et al., 2014) to keep the homologous gene pairs detected in the duplicated regions and showing syntenic relationship between soybean and common bean.
        Example of the final list of candidate syntelogous genes was shown in Table 1. Genes involved in tandem duplication have an ambiguous retention status and thus were put aside for separate analysis.

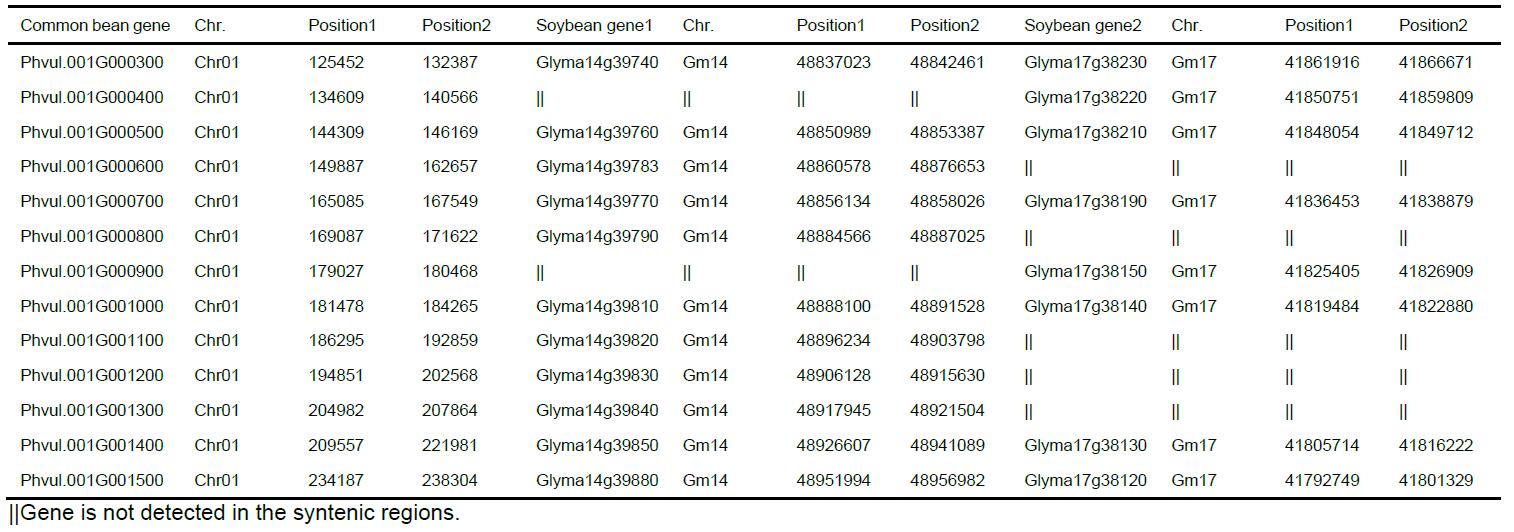

      Table 1. Example of syntenic homologous genes identified in the common bean and soybean genomes




2. Estimation of Evolutionary Distance for Syntelogous Genes

   1. Sequence alignment
      Although many genes have several alternative transcripts, only the primary transcripts of the genes based on the gene annotation were used to estimate the sequence divergence between different syntenic genes of soybean and common bean. The nucleotide sequences of the syntenic genes were aligned using the MUSCLE program (Edgar, 2004) or ClustalW (Thompson et al., 1994) using default parameters. The alignment can be viewed by Jalview (Figure 2A).

      muscle -in input -out output or clustalw input

      Note: The primary transcripts of the genes were determined based on the gene annotation file which shows the primary transcripts of the genes. MUSCLE or ClustalW can only run one group of syntelogs at a time. For whole genome level analysis, we recommend that the authors write a Perl or Python script to automatically load each pair of sequences to MUSCLE or ClustalW to do the alignment. At this step, we used MUSCLE to run the alignment first, and then performed ClustalW for the remained gene pairs of which the nucleotide alignments were not integer multiples of three after MUSCLE alignment.
   2. Manual inspection
      The output alignment was manually inspected to modify incorrectly aligned nucleotides. This step is very important although it may not be practical if there is a very large amount of data to verify (Figure 2B).

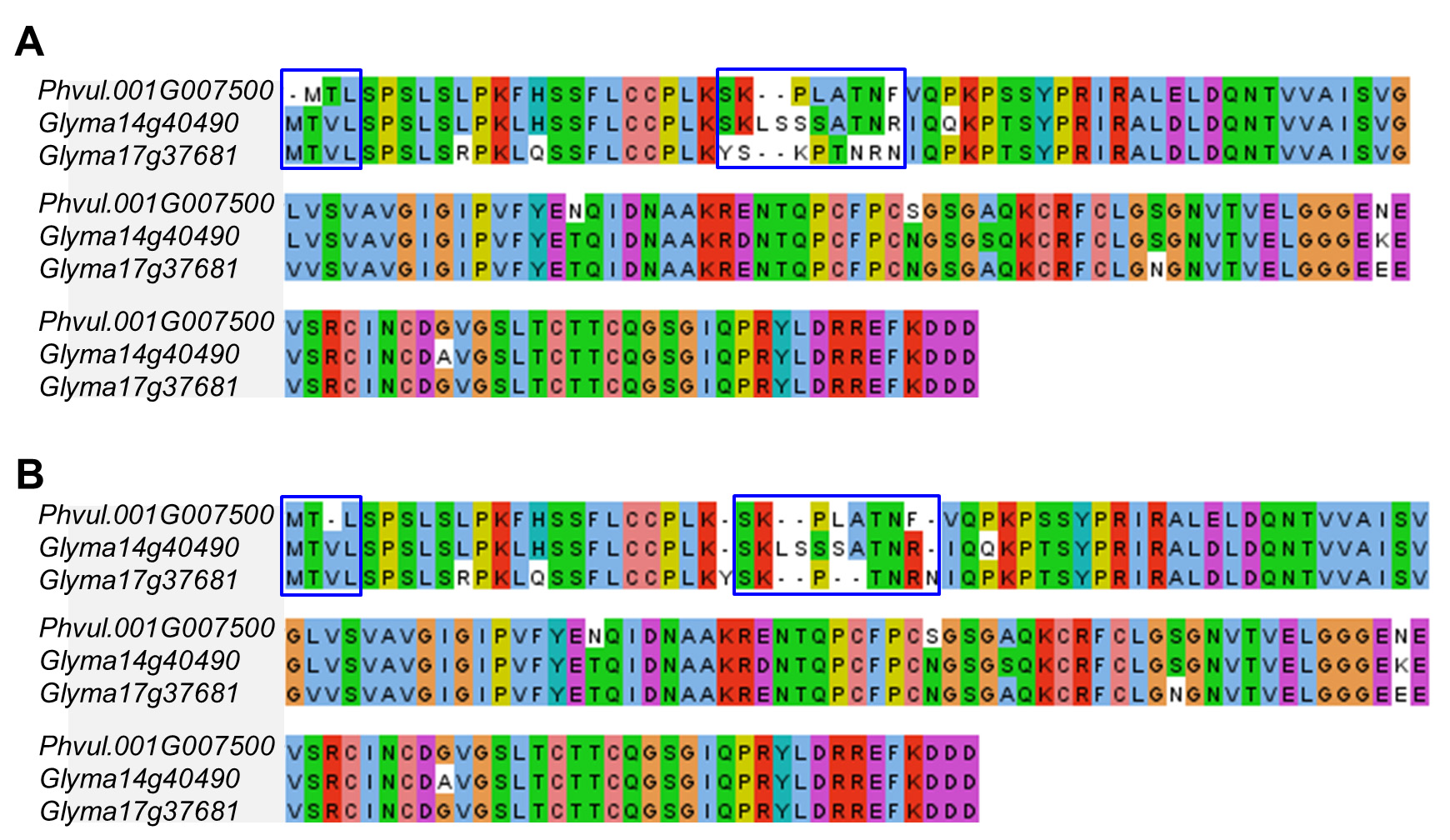

      Figure 2. An example of sequence alignments of syntenic homologous genes in soybean and common bean. A. Original alignment generated by MUSCLE (Edgar, 2004). B. Manually modified alignment. Blue boxes indicate modified regions.


   3. Sequence divergence
      All pairwise alignments of the syntenic genes were prepared into the required format by the PAML software using Perl or Python programming in order to calculate non-synonymous (Ka) and synonymous (Ks) substitution using the yn00 and baseml modules with the default parameters except model was set to 1 instead of 0 (Yang, 2007). Please refer to the manual for more information about running programs in the PAML package.


3. Phylogenetic analysis
   Phylogenetic trees are used to tell the phylogenetic relationship among homologous genes.

   1. Sequence Alignment
      The nucleotide sequences or protein sequences of the syntenic genes were aligned using the MUSCLE program (Edgar, 2004) or ClustalW (Thompson et al., 1994) using default parameters.

      muscle -in input -out output or clustalw input


   2. Phylogenetic Tree Construction
      The sequence alignments of the homologous genes were transferred to MEGA software to construct the phylogenetic trees using the neighbor-joining maximum composite likelihood model integrated for nucleotide sequences and Poisson correction for protein sequences with pairwise deletions (Kumar et al., 2018). Bootstrap values were calculated from 1,000 replicates.

Data analysis

Student’s t-test was performed to compare the evolutionary distance between duplicates and singletons using the SAS software. The Bonferroni correction was further performed to correct the P values. P < 0.05 was considered to be significant, and P < 0.0001 was considered to be significant under the Bonferroni correction. Experimental values are reported as mean ± standard deviation or in a box plot (Figure 3).

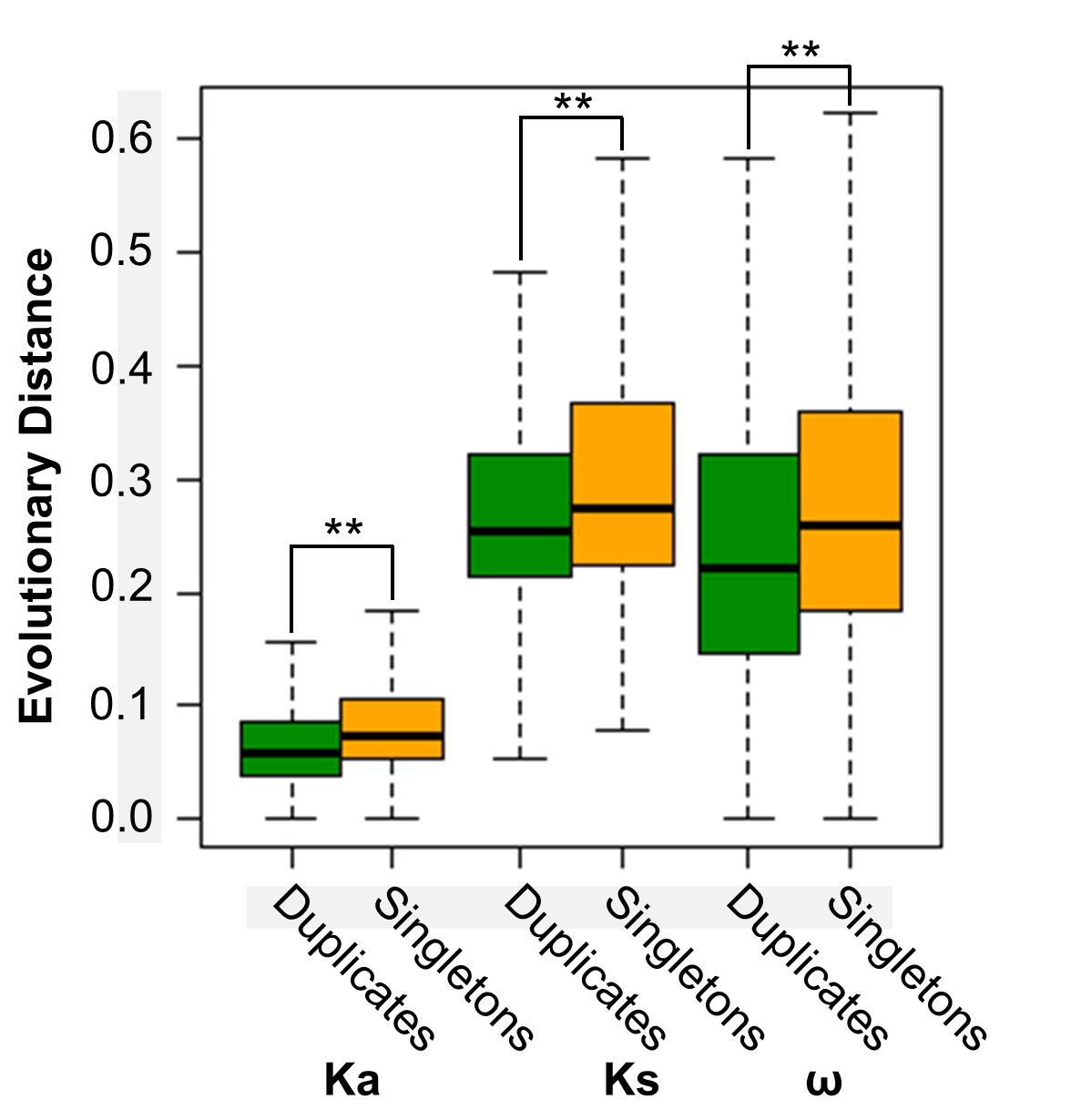

Figure 3. Comparison of the evolutionary distance between duplicates and singletons in soybean. Ka and Ks were calculated by pairwise comparison between soybean and common bean. The statistical analysis was conducted by Student’s t-test. **, P < 0.0001. Ka, non-synonymous substitution; Ks, synonymous substitution; ω, Ka/Ks. The bottom and top boundaries of the box are the first and third quartiles, and the bold lines within individual boxes are the medians, which are referred to as the second quartiles. The ends of the whiskers (the dotted lines) represent the minimum values and maximum values of the data.

Notes

1. Some designated singleton genes, the homologs of which were not found in the syntenic region, may belong to duplicated pairs because of potential gene transposition. The homologs of the singletons may be transposed or translocated from the original syntenic regions to elsewhere in the genome, rather than being deleted.
2. Genes involved in tandem duplication always have an ambiguous retention status, and thus were separately analyzed.


Acknowledgments

This protocol was adapted from Zhao et al. (2017). This work was supported by soybean check-off funds from the United Soybean Board and Indiana Soybean Alliance and National Science Foundation Grant DBI-0822258 to J.M., by National Science Foundation Grant DBI-1237931 to D.L. and Purdue Startup Funds to D.L, and by Miami University Startup Funds to M.Z.

Competing interests

The authors declare that there are no conflicts of interest or competing interests.
