Purification of Soluble Recombinant Human Tau Protein from Bacteria Using Double-tag Affinity Purification

Materials and Reagents

1. 1 ml micropipette tips
2. Microcentrifuge tubes
3. Amicon Ultra-0.5 Centrifugal Filter Unit with Ultracel-10 membrane (Merck, catalog number: UFC501024 )
4. Plasmid pGEX_GST-Tau0N4R-8xHis
   Note: This plasmid can be generated by cloning a cDNA encoding human MAPT into a pGEX-6P-1 vector backbone (such as the BamHI/EcoRI restriction sites of Addgene plasmid number 46408). The cDNA should be at downstream of N-terminal GST fusion with PreScission Protease cleavage site. The 8xHis tag can be inserted into the 3’ primer used to amplify the hTau cDNA. In this protocol, we use human MAPT cDNA corresponding to the 0N4R isoform.

5. Rosetta^TM bacteria cells (Merck, catalog number: 70953 )
6. LB Broth (Sigma-Aldrich, catalog number: L3522 )
7. Ampicillin (Sigma-Aldrich, catalog number: A9393 )
8. Chloramphenicol (Sigma-Aldrich, catalog number: C0378 )
9. Anti-His antibody (such as Thermo Fisher Scientific, catalog number: 37-2900 ) or anti-Tau antibody (such as Agilent Technologies, DAKO, catalog number: A0024 )
10. Isopropyl β-D-thiogalactoside (IPTG) (Sigma-Aldrich, catalog number: I6758 )
    Note: Prepare 100 mM stock in sterile H₂O and freeze aliquots at -20 °C. Do not re-freeze after thawing.
11. Glutathione Sepharose 4B (GE Healthcare, catalog number: 17075601 )
12. Complete protease inhibitor tablets, EDTA-free (Roche Diagnostics, catalog number: 11873580001 )
13. Phenylmethanesulfonyl fluoride (PMSF), 100 mM solution (Sigma-Aldrich, catalog number: 93482 )
14. Benzonase Nuclease, 250 units/μl (Sigma-Aldrich, catalog number: E1014 )
15. PreScission Protease, 2,000 units/ml (GE Healthcare, catalog number: 27084301 )
    Note: Upon receiving stock, thaw on ice and prepare ~10 μl aliquots and freeze at -20 °C. Do not re-freeze aliquots after thawing.
16. Ni-NTA Profinity^TM IMAC Resin, Ni-charged (Bio-Rad Laboratories, catalog number: 1560131 )
17. Quick Start^TM Bradford Protein Assay (Bio-Rad Laboratories, catalog number: 5000201 )
18. PageBlue^TM Protein Staining Solution (Thermo Fisher Scientific, catalog number: 24620 )
19. Triton X-100 (Sigma-Aldrich, catalog number: X100 )
20. Glycerol (Sigma-Aldrich, catalog number: G5516 )
21. Lysozyme (Sigma-Aldrich, catalog number: L6876 )
22. Sodium phosphate dibasic anhydrous (Na₂HPO₄) (Sigma-Aldrich, catalog number: 795410 )
23. DL-Dithiothreitol (DTT), 1 M stock solution in H₂O (Sigma-Aldrich, catalog number: 646563 )
24. Potassium chloride (KCl) (Sigma-Aldrich, catalog number: P9541 )
25. Sodium chloride (NaCl) (Sigma-Aldrich, catalog number: S3014 )
26. Ethylenediaminetetraacetic acid (EDTA) (Sigma-Aldrich, catalog number: E6758 )
27. Tween-20 (Sigma-Aldrich, catalog number: P1379 )
28. Sodium hydroxide (NaOH) (Sigma-Aldrich, catalog number: S8045 )
29. Imidazole (Sigma-Aldrich, catalog number: 792527 )
30. Bacteria lysis buffer (see Recipes)
31. Phosphate buffered saline (PBS) (see Recipes)
32. PBS + 250 mM NaCl (see Recipes)
33. PreScission protease cleavage buffer (see Recipes)
34. Ni-NTA wash buffer (see Recipes)
35. Ni-NTA elution buffer (see Recipes)


Equipment

1. Pipettes
2. Table-top microcentrifuge capable of speeds up to 16,000 x g
3. Microplate reader or spectrophotometer capable of absorbance readings at 600 nm for bacterial density measurements and at 595 nm for Bradford protein assay


Procedure

Notes:

1. The following procedure is given for purifying Tau protein from a 50 ml culture volume of bacteria, which yields approximately 4 μg pure protein. This protocol can easily be scaled up if more protein is required.
2. To guarantee the solubility of Tau, it is essential that the protein is purified fresh and is used for experiment immediately upon finishing purification. Freezing purified Tau protein nucleates aggregation and results in loss of solubility and function.
3. Perform all purification procedures at 4 °C and/or on ice, and pre-chill all tubes on ice.

1. Bacterial cell induction and harvest

   1. Transform a suitable bacterial strain for protein production with the pGEX_GST-Tau0N4R-8xHis plasmid (ampicillin-resistant). We recommend using Rosetta bacteria that carry a chloramphenicol-resistant tRNA plasmid to enhance expression of mammalian proteins.
   2. Starter culture: In the afternoon, inoculate 5 ml LB media containing appropriate antibiotics (100 μg/ml ampicillin for pGEX_GST-Tau0N4R-8xHis plasmid; additionally, 25 µg/ml chloramphenicol if using Rosetta cells, highly recommended) with a single colony of bacteria (or 10 μl from a glycerol stock) and let grow overnight at 37 °C with shaking at 220-250 rpm.
   3. Main culture: The following morning, dilute the saturated overnight 5 ml culture (OD₆₀₀ ~2.0) into 45 ml fresh LB medium containing appropriate antibiotics (1:10 dilution, to OD₆₀₀ ~0.2), and incubate for 1 h at 37 °C with shaking at 220-250 rpm to allow bacteria to recover to exponential growth phase.
   4. After 1 h, add IPTG to a final concentration of 0.4 mM and let bacteria grow at 37 °C for 2 h.
      Optional: Confirm bacteria have re-entered exponential growth phase by measuring the density of the culture at OD₆₀₀. Bacteria should have recovered from OD₆₀₀ ~0.2 to at least OD₆₀₀ ~0.4 before induction.
   5. Two hours following induction, pellet bacteria by centrifugation at 5,000 x g for 15 min at 4 °C. Freeze bacterial cell pellet at -80 °C until use.
      Note: Bacterial cell pellets are stable for at least 3 months at -80 °C. We routinely prepare 0.5-2 L batches of bacteria, freeze 50 ml cell culture volume pellets in aliquots, and take single aliquots for purification on experiment days.


2. Bacterial cell lysis

   1. Take a single bacterial cell pellet from a 50 ml culture and thaw on ice. Thoroughly resuspend pellet in 1.5 ml ice-cold bacteria lysis buffer by pipetting up and down using 1 ml micropipette tip that has been cut to make it wide-bore and transfer the lysate to a microcentrifuge tube on ice.
      Note: Be sure to freshly prepare lysis buffer (see Recipes).
   2. Incubate lysate for 30 min at 4 °C on a rotating wheel to allow for complete lysis.
   3. Centrifuge lysate at 16,000 x g for 20 min at 4 °C to pellet insoluble material and debris, and transfer the supernatant (cleared lysate) to a new microcentrifuge tube on ice. Complete lysis will be evident as the lysate becomes light brown in color.


3. Purification against N-terminal GST tag

   1. Preparation of glutathione sepharose: Using a cut pipette tip, transfer 75 μl of Glutathione Sepharose 4B slurry into a microcentrifuge tube and add 1 ml ice-cold PBS to wash.
      Note: Make sure glutathione sepharose slurry is thoroughly mixed by gentle shaking for 30 sec before using.
   2. Pellet sepharose by centrifugation at 3,500 x g for 3 min.
   3. Discard supernatant. Wash sepharose again with 1 ml ice-cold PBS, centrifuge and discard supernatant.
   4. Transfer the total volume of the cleared bacterial lysate (approximately 1.5 ml lysate from 50 ml bacterial culture) into the tube containing washed glutathione sepharose beads.
   5. Incubate lysate with glutathione sepharose for 2 h at 4 °C with rotation to allow GST tag to bind glutathione.
   6. After binding, pellet sepharose (3,500 x g for 3 min at 4 °C) and wash with 1 ml of PBS + 250 mM NaCl. Pellet again and discard supernatant. Repeat washing 2 more times.


4. Cleavage of the N-terminal GST tag

   1. Prepare PreScission protease cleavage buffer by adding fresh DTT to a final concentration of 1 mM immediately before use.
   2. Equilibrate beads (GST-Tau-8xHis bound sepharose) by washing twice each with 1 ml PreScission protease cleavage buffer with DTT (same washing procedure as in Procedure C).
   3. After the second wash, discard supernatant and resuspend bead slurry in 240 μl PreScission protease cleavage buffer with DTT.
   4. Transfer the suspension to a smaller tube (e.g., 0.5 ml tube) and add 10 μl (20 U) PreScission protease.
   5. Incubate the cleavage mixture overnight at 4 °C with rotation. Ensure tube is of appropriate volume to allow for sufficient mixing of the reaction.
      Note: The minimum cleavage time recommended by GE Healthcare is 4 h at 4 °C, but we recommend overnight incubation.


5. Purification against the C-terminal His tag

   1. The next morning, pellet the sepharose slurry by centrifugation at 3,500 x g for 5 min at 4 °C. Transfer the supernatant to a new microcentrifuge tube and discard the sepharose bead slurry. This supernatant contains the cleaved Tau-His as well as residual PreScission protease.
   2. Prepare fresh glutathione sepharose slurry (50 μl), wash twice in cleavage buffer containing DTT, then incubate supernatant from Step E1 wish fresh glutathione sepharose for 1 h at 4 °C with mixing.
      Note: This step will remove the residual GST-tagged PreScission protease as well as any residual uncleaved GST-Tau-His protein in the mixture.
   3. After 1 h, pellet the sepharose by centrifugation at 3,500 x g for 5 min at 4 °C, and transfer the supernatant, which contains the free Tau-His protein, to a new microcentrifuge tube on ice.
   4. Prepare Ni-NTA resin by pipetting 25 μl of Ni-NTA slurry into a microcentrifuge tube and wash twice in ice-cold PreScission protease cleavage buffer to equilibrate the resin.
   5. Apply the supernatant containing Tau-His protein to the Ni-NTA resin and allow to bind for 45 min at 4 °C with mixing.
   6. After 45 min, pellet Ni-NTA slurry at 3,500 x g for 3 min at 4 °C and discard supernatant. Wash beads three times with ice-cold 1 ml Ni-NTA wash buffer.
   7. Elute the bound Tau-His protein by resuspending washed beads in ice-cold 500 μl Ni-NTA elution buffer and incubating for 10 min at 4 °C with rotation.
   8. Pellet Ni-NTA beads by centrifugation at 10,000 x g for 2 min at 4 °C. Collect the supernatant, being careful not to transfer any sedimented Ni-NTA beads, and transfer to a new microcentrifuge tube on ice.
   9. Concentrate the 500 μl protein eluate down to a volume of approximately 100 μl by applying the eluate to an Amicon Ultra-0.5 ml Centrifugal Filter Unit (30 kDa molecular weight cutoff) and centrifuging at 14,000 x g for approximately 8 min at 4 °C, or longer until the volume has reached 100 μl. Recover solution by inverting the filter unit into a clean collection tube and centrifuging at 1,000 x g for 2 min at 4 °C.
   10. Measure protein concentration using the Bradford Protein Assay, or other appropriate protein quantification method. Confirm protein purity by SDS-PAGE and staining with PageBlue colloidal Coomassie reagent.
       Note: Expect the protein concentration to be approximately 20-60 μg/ml, which requires putting up to 10 μl of protein sample into a 200 μl Bradford reaction for detection.


Data analysis

1. To evaluate the purity of the final product, run 1 μg protein on an SDS-PAGE gel and stain with colloidal Coomassie. We routinely observe greater than 90% protein purity using this protocol (Figure 2).
2. The identity of the purified protein product can be confirmed by immunoblotting using an anti-His antibody or anti-Tau antibody. For examples of immunoblots detecting full-length and truncated Tau proteins purified using this protocol see Zhou et al. (2017) and McInnes et al. (2018).
3. The aggregation status of purified Tau protein can be assessed by ultracentrifugation of the sample at 100,000 x g for 1 h at 4 °C, followed by analyzing the presence of Tau aggregates in the pellet by SDS-PAGE. Analyzing freshly purified protein using this protocol, we observe minimal Tau protein in the insoluble fraction. In contrast, freezing and thawing the purified protein results in abundant Tau protein in the pellet upon centrifugation at 100,000 x g, indicating aggregation.

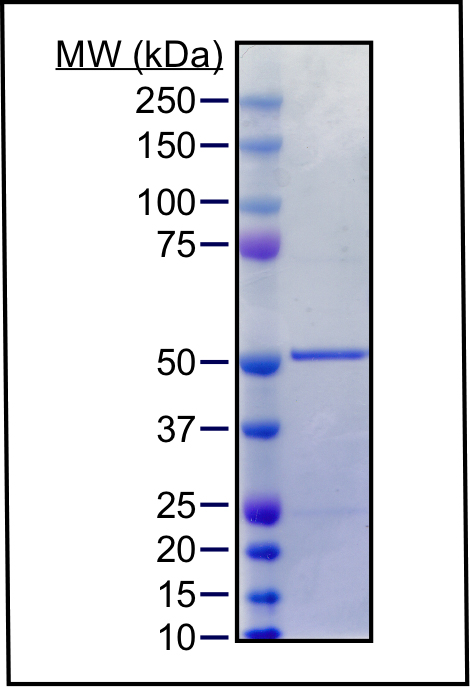

   Figure 2. Purity of Tau-His protein. One microgram purified protein was mixed with 1x NuPAGE LDS sample buffer (Invitrogen^TM) containing 1% β-mercaptoethanol, heated at 70 °C for 10 min, and separated on a NuPAGE 4-12% Bis-Tris Protein Gel (Invitrogen^TM) with MOPS running buffer. The gel was stained with PageBlue colloidal Coomassie solution.

Recipes

1. Bacteria lysis buffer
   1x PBS (from 10x stock solution)
   1% Triton X-100 (from 10% stock solution)
   10% glycerol (from 50% stock solution)
   1 mg/ml lysozyme (dissolve fresh from powder)
   1x Complete Protease Inhibitor cocktail, EDTA-free (Roche Diagnostics)
   1 mM PMSF (from 100 mM stock solution)
   250 U/ml Benzonase (1:1,000 from enzyme stock)
   Note: Add Complete protease inhibitor cocktail, PMSF, lysozyme and Benzonase fresh immediately before use.
2. Phosphate buffered saline (PBS)
   10 mM Na₂HPO₄
   2.7 mM KCl
   137 mM NaCl
   Adjust pH to 7.4
3. PBS + 250 mM NaCl
   Dilute a 5 M stock of NaCl into PBS to give a final concentration of 250 mM NaCl
4. PreScission protease cleavage buffer
   20 mM Tris-HCl
   50 mM NaCl
   0.5 mM EDTA
   0.01% Tween-20
   1 mM DTT
   Adjust pH to 7.0 with NaOH
   Notes:

   1. Buffer (without DTT) can be kept at 4 °C for up to 1 month.
   2. Immediately before use, take an aliquot of buffer and supplement with DTT.
5. Ni-NTA wash buffer
   50 mM NaH₂PO₄
   300 mM NaCl
   20 mM imidazole
   pH 8.0
   Store at 4 °C
6. Ni-NTA elution buffer
   50 mM NaH₂PO₄
   300 mM NaCl
   250 mM imidazole
   pH 8.0
   Store at 4 °C


Acknowledgments

This work was supported by a European Research Council consolidator grant (646671), the Fonds voor Wetenschappelijk Onderzoek Vlaanderen (FWO), and an academic-industrial collaboration between the VIB-KU Leuven Center for Brain and Disease Research and Janssen Pharmaceutical Companies of Johnson & Johnson.

Competing interests

The authors declare no conflicts of interest or competing interests.

References

1. Crimins, J. L., Rocher, A. B. and Luebke, J. I. (2012). Electrophysiological changes precede morphological changes to frontal cortical pyramidal neurons in the rTg4510 mouse model of progressive tauopathy. Acta Neuropathol 124(6): 777-795.
2. Iqbal, K., Liu, F. and Gong, C. X. (2016). Tau and neurodegenerative disease: the story so far. Nat Rev Neurol 12(1): 15-27.
3. Koss, D. J., Jones, G., Cranston, A., Gardner, H., Kanaan, N. M. and Platt, B. (2016). Soluble pre-fibrillar tau and beta-amyloid species emerge in early human Alzheimer's disease and track disease progression and cognitive decline. Acta Neuropathol 132(6): 875-895.
4. McInnes, J., Wierda, K., Snellinx, A., Bounti, L., Wang, Y. C., Stancu, I. C., Apostolo, N., Gevaert, K., Dewachter, I., Spires-Jones, T. L., De Strooper, B., De Wit, J., Zhou, L. and Verstreken, P. (2018). Synaptogyrin-3 mediates presynaptic dysfunction induced by Tau. Neuron 97(4): 823-835 e8.
5. Polydoro, M., Dzhala, V. I., Pooler, A. M., Nicholls, S. B., McKinney, A. P., Sanchez, L., Pitstick, R., Carlson, G. A., Staley, K. J., Spires-Jones, T. L. and Hyman, B. T. (2014). Soluble pathological tau in the entorhinal cortex leads to presynaptic deficits in an early Alzheimer's disease model. Acta Neuropathol 127(2): 257-270.
6. Wang, Y. and Mandelkow, E. (2016). Tau in physiology and pathology. Nat Rev Neurosci 17(1): 5-21.
7. Zhou, L., McInnes, J., Wierda, K., Holt, M., Herrmann, A. G., Jackson, R. J., Wang, Y. C., Swerts, J., Beyens, J., Miskiewicz, K., Vilain, S., Dewachter, I., Moechars, D., De Strooper, B., Spires-Jones, T. L., De Wit, J. and Verstreken, P. (2017). Tau association with synaptic vesicles causes presynaptic dysfunction. Nat Commun 8: 15295.
