A Bioinformatics Pipeline for Whole Exome Sequencing: Overview of the Processing and Steps from Raw Data to Downstream Analysis

Equipment

1. Computer
   64GB RAM with 8 core CPUs in an Ubuntu operating system (14.04 LTS machine)


Software

All the software can be downloaded/used from following locations:

1. FastQC https://www.bioinformatics.babraham.ac.uk/projects/fastqc/

2. Bowtie2 http://bowtie-bio.sourceforge.net/bowtie2/index.shtml

3. Samtools http://samtools.sourceforge.net/

4. VarScan http://varscan.sourceforge.net/

5. Bcftools https://github.com/samtools/bcftools

6. Vcftools https://vcftools.github.io/index.html

7. PANTHER http://pantherdb.org/

8. dbSNP https://www.ncbi.nlm.nih.gov/projects/SNP/

9. 1000 genomes dataset http://www.internationalgenome.org/

10. GeneMania http://genemania.org/


Procedure

The raw file (fastq) is subjected to different steps such as quality check, indexing, alignment, sorting, duplication removal, variant calling, variant annotation and finally downstream bioinformatics annotation (Pabinger et al., 2014) (Figure 1). The pipeline is integration of tools, viz. bowtie2 (Langmead and Salzberg, 2012), samtools (Li et al., 2009), FastQC (Andrews, 2010), VarScan (Koboldt et al., 2012) and bcftools (Li et al., 2009), apart from necessary files containing the human genome (Venter et al., 2001), alignment indices (Trapnell and Salzberg, 2009), known variant databases (Sherry et al., 2001; Landrum et al., 2014; Auton et al., 2015). A workflow of given pipeline is shown in Figure 1. In view of the fact that the benchmark metrics for pipelines is an essential step, we have ensured that our pipeline is benchmarked on a sample fastq file taken from a human genome project. As the pipeline runs on Linux, all commands are case sensitive wherever used. Whereas this pipeline was run on a 64 GB RAM with 8 core CPUs in an Ubuntu operating system (14.04 LTS machine), this can also be run on a minimum 16 GB RAM machine based on the size of raw fastq file. A shell script (with an extension sh) was created with all the commands as detailed below.

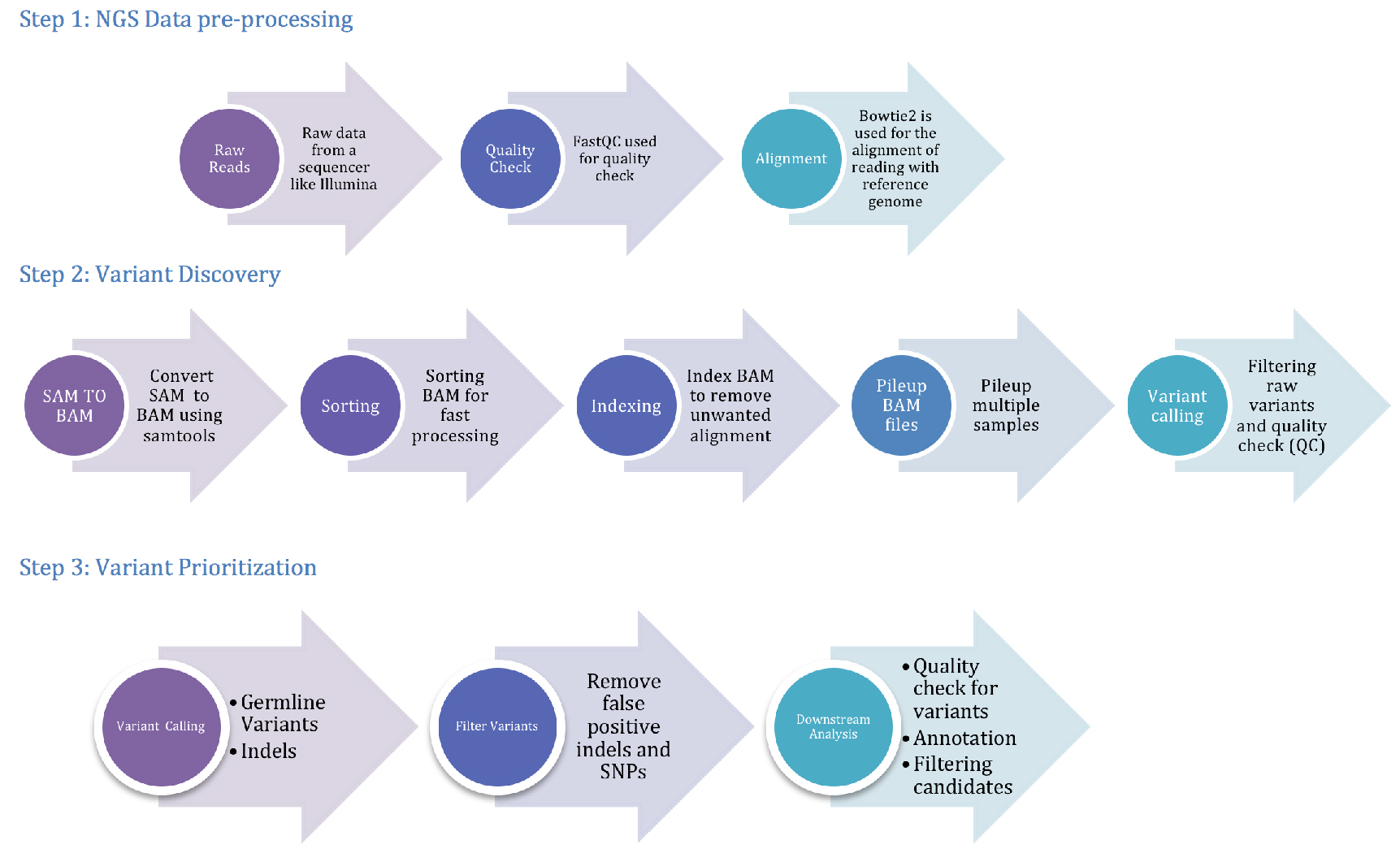

Figure 1. The pipeline involving three important phases, viz. preprocessing, variant discovery and prioritization of variants

1. Preprocessing the raw data
   Quality check: NGS data analysis depends on the raw data control as it provides a quick insight into the quality of the sequences. This will potentially reduce the amount of further downstream analyses with early identification of questionable samples. The ideal base quality scores for Phred (Cock et al., 2010) have paved the way for the best quality scores for GC content (ca. 50% threshold) and the nucleotide distribution across all reads. In our pipeline, we used FastQC (with default Phred = 20 value) as it plots the read depth and quality score besides a host of other statistical inferences.
   1. ./fastqc ~/samples/sample1.fastq
      FastQC generates an HTML formatted report with box plots and graph plots for mean quality scores for sequences, read length and depth along with the intended coverage (see Figure 2).

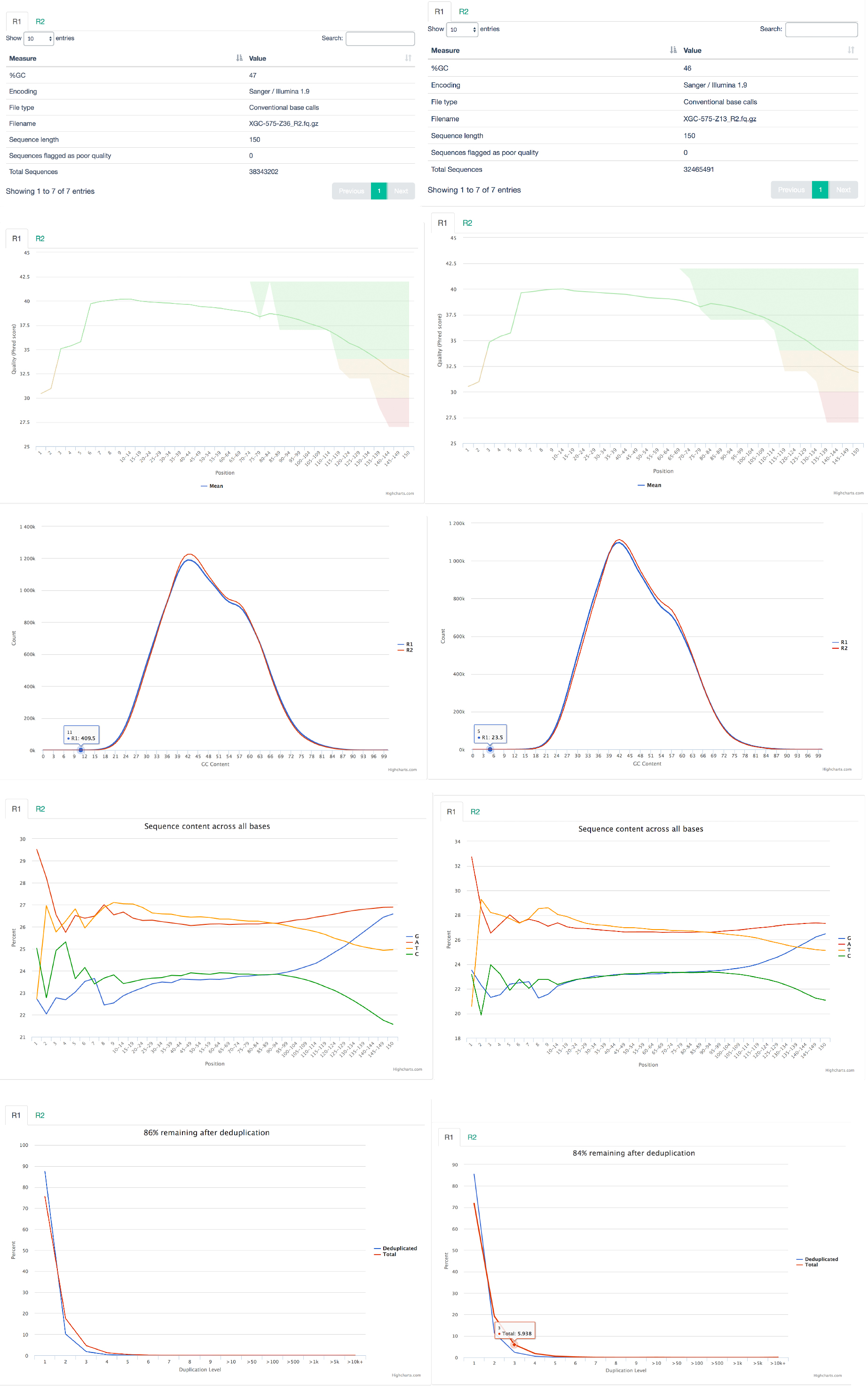

      Figure 2. A pictorial representation containing the box plots and figures of FASTQC run containing information on statistics, quality, read coverage, depth, yield, based per read call, etc.

      Indexing human genome using bowtie2: Bowtie2-build is used to index reference genome which works at high speed and memory efficient way.

   2. ./bowtie2-build −u 10 indexes/references/reference.fq reference
      When the command is expedited, the current directory will contain six new files that all start with reference and end with .1.bt2, .2.bt2, .3.bt2, .4.bt2, .rev.1.bt2, and .rev.2.bt2. While the first four files are the forward strands, the rev files indicate the reverse indexed sequences.
      Alignment and post processing of alignment: Bowtie2 is used for short read alignment. What makes bowtie2 interesting is the use of very little RAM with accuracy and modest performance in indexing the alignment (Langmead and Salzberg, 2012). The mismatch or any sequencing errors or small genetic variation between samples and reference genome could be checked using the following commands:

   3. ./bowtie2 -x reference_filename -1 path/filename1 -2 path/filename2 > filename.sam
      Note: The -2 option may be omitted for single-end sequences.
      Bowtie2 aligns a set of unpaired reads (in fastq or .fq format) to the reference genome using the Ferragina and Manzini (FM)-index (Langmead and Salzberg, 2012). The alignment results output in SAM format (Li et al., 2009) and a short alignment summary is written to the console.
      Samtools is a collection of tools to manipulate the resulting alignment in SAM/BAM format. SAM stands for sequence alignment/map format and its corresponding format is binary mapped format (BAM). SAM could be converted into different alignment format, sort, merge, alignment, remove duplicates, call SNPs and short indel variants; whereas the BAM and following indices (.bai) are used to view the index of the binary aligned sequences. The basic necessity of having the binary mapped files is to save the memory.

   4. ~/samtools view -bS sample1.sam > sample1.bam
      Sorting BAM: A sorted BAM file is used for streamlined data processing to avoid extra alignment when loaded into memory. Whereas it can be easily indexed for faster retrieval of alignment, overlapping is needed to retrieve alignment from a region.

   5. ~/samtools sort sample1.bam sample1.sorted
      Samtools sort is used to convert the BAM file to a sorted BAM file and samtools index to index BAM file.

   6. ~/samtools index sample1.sorted.bam
      Pileup all samples: Samtools mpileup step is used to analyze multiple samples across all samples thus giving coverage to all mappable reads.

   7. ~/samtools mpileup -E -uf reference.fa sample1.bam > sample1.mpileup



2. Variant calling
   To call variants from NGS data, VarScan among other tools provide heuristic statistical approaches, which give the desired threshold for reading depth, base quality, variant allele frequency and statistical confidence over other bayesian methods. VarScan uses SAMtools mpileup data as input and there are a number of options included for variant calling. For each position, the variants, which don’t meet the user input criteria of coverage, number of reads, variant alleles frequency and Fisher's exact test, P-value are filtered out. This step is a prerequisite to identify those candidate mutations underlying the phenotype/disease.
   Germline variants: For germline variants, mutations that an individual inherits from their parents, or SNV calling VarScan mpileup2snp protocol is used.
   1. java –jar VarScan.jar mpileup2snp sample.mpileup > sample.varScan.snp
      Indel calling: Detecting of insertion and deletion (Indels) is the second most abundant source of finding genetic mutations in human population in a reliable manner. VarScan mpileup2indels protocol is used to call indels. The sensitivity and range for calling indels are determined by the respective alignments.

   2. java –jar VarScan.jar mpileup2indel sample.mpileup > sample.varScan.indel
      Variant filter: To get rid of false variants call and remove overlapping between SNP and indels, a filtering option is applied on the resultant variant calling files which provide SNV and indels with higher confidence. An option to generate readcount report can also be used with VarScan (see Table 1).

      Table 1. Variant calling pipelines and their respective arguments



   3. java –jar VarScan.jar filter sample.varScan.snp –-indel-file sample.varScan.indel –-output-file sample.varScan.snp.filter

   4. java –jar VarScan.jar filter sample.varScan.indel –-output-file sample.varScan.indel.filter

   5. java –jar VarScan.jar readcounts sample.mpileup.sam > sample.mpileup.readcounts
      Contamination check: Once the BAM files and IDs are generated, we could end up checking whether or not the BAMids are error prone or contaminated across the samples using VerifyBAMID (Jun et al., 2012).



3. Downstream processing the files
   VCF, an acronym for variant call format, is a popular format to store variants calling data as it stores both SNPs and indel information succinctly. While BCF is a binary version of VCF, the format can be written and read using BCFtools tool using the following commands:
   1. samtools mpileup -uf sample.sorted.bam | bcftools view - > sample.var.raw.bcf
      While generating BCF file from BAM using samtools, -u is used for generating uncompressed VCF which can be piped as BCFtools designed for stream data and -f for the faidx-indexed reference file in the FASTA format.

   2. bcftools view sametools.var.raw.bcf | vcfutils.pl varFilter -D100 > sample.var.flt.vcf

   3. samtools calmd -Abr sample.sorted.bam ~/hg38/hg38.fa > sample.baq.bam

   4. samtools mpileup -uf ~/hg38/hg38.fa sample.baq.bam | bcftools view - > sample.baq.var.raw.bcf

   Annotation and curation: Post processing the files, annotation and curation of the data followed by prioritizing the candidate SNPs/variants involves a great deal of user's discretion. There are a host of tools and annotation methods meant for this. Population stratification can be one such step in this process. While the 1,000 genomes dataset (Auton et al., 2015) or Genome Aggregation database (gnomAD) (see Reference 5) containing the datasets are already used to summarize worldwide population, estimating individual ancestries using ADMIXTURE would help researchers to (Alexander et al., 2009) project the samples. On the other hand, downstream bioinformatics annotation can then be supplemented to integrate the results with different pathway tools, viz. PANTHER (Mi et al., 2016) which assesses the ontology/pathways affecting the ‘mutated’ genes. This can be further supplemented by usage of assorted databases like Clinvar and dbSNP. In addition, global enrichment analysis and association networks using GeneMania (Warde-Farley et al., 2010) would allow creating and visualizing gene networks by evidence in pathways and gene-gene/protein-protein interactions (predicted and experimental).


Data analysis

Benchmarking yielded a good recovery rate for validation of variants/ SNPs (Figures 3, 4 and 5) while VarScan with default values was found to have highest overall sensitivity with VarScan strict parameters having the lowest overall sensitivity (Figures 6 and 7). However, we observed that the preprocessing steps have little impact on the final output, with base recalibration step using GATK Unified Genotyper identifying fewer validated SNPs when compared to VarScan. On the other hand, we found that the recovery of exon variants among the exome samples was typically high when compared to the two whole genome datasets (Figure 5B). When variant lists were confined to previously observed variants as observed from the benchmark analyses between Sentieon and GATK (Weber et al., 2015), we observed that the recovery of SNPs with default parameter was found to be considerably good. Whereas changing variant calling criterion especially using VarScan, for example, imposing strict coverage requirement (Figure 7) yielded less numbers of false positives giving the number of bona fide or de novo variants (Figures 5A and 5B). This subtly proves that our benchmarking the six WES and two WGS datasets (see Table 2) is variable with the capture, sequencing, processing and post-processing/analysis in the human genome and VarScan is comparable with the GATK in terms of identifying the de novo variants (Figures 5A and 5B). With the wet-lab components of NGS being cumbersome, analyzing the exons or for that matter intronic variants using bioinformatics pipeline is equally challenging. More pictorial representtaions such as density plots (Figure 8) are helpful for further interpretation of variants. There must be significant in silico hurdles and organizational steps discussed from time to time and yet at the end of the analysis, one needs to arrive at the fittest in using the discretionary tools. Although technology challenges persist in setting up certain standards and guidelines, the end-user can enhance the pipeline with further tools. In this protocol, we have essentially shown how a WES pipeline can be run using batch file process and the comparison of VarScan over GATK using benchmarked datasets.

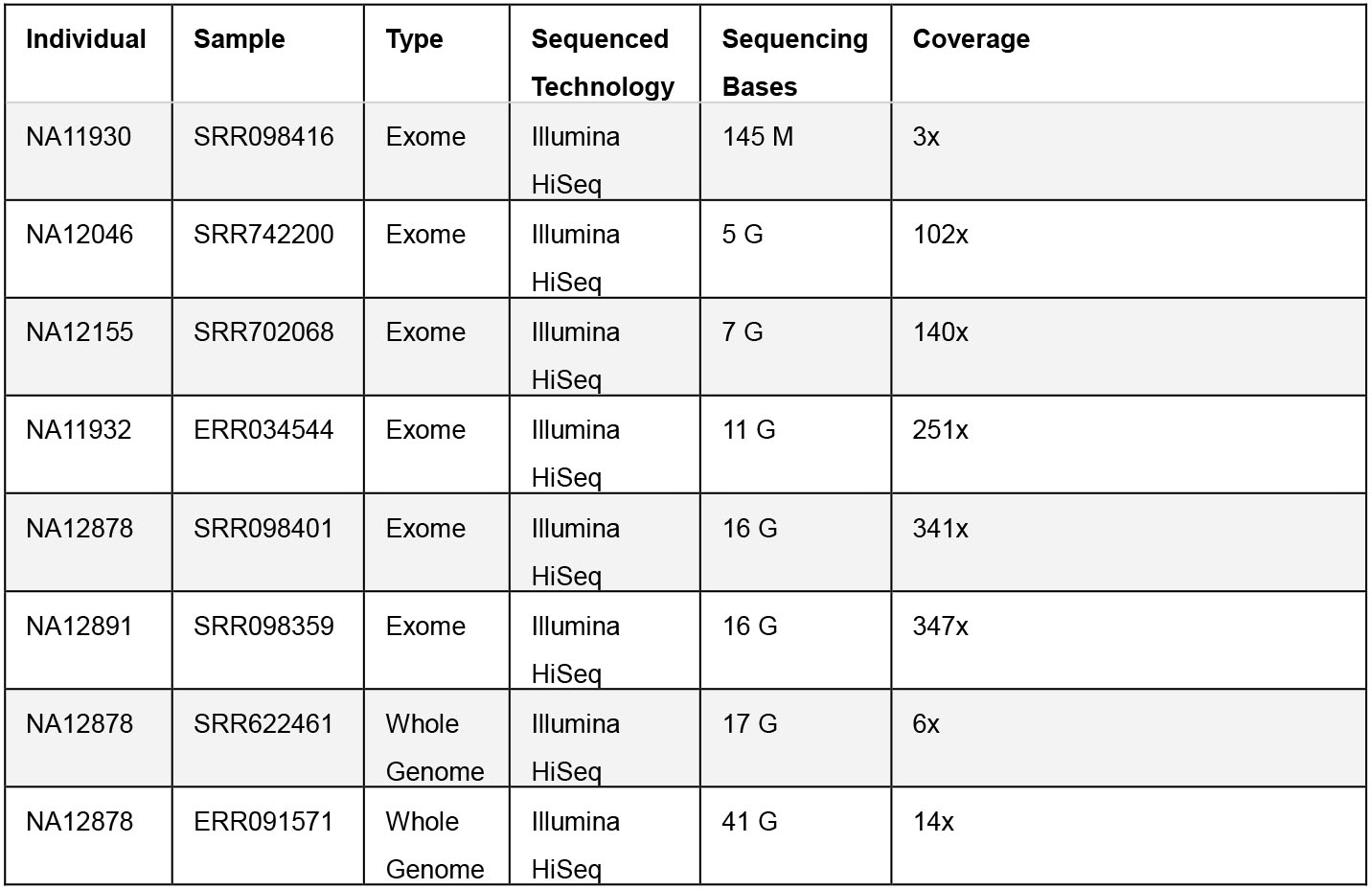

Table 2. 1,000 genomes samples used for benchmarking*

*The sequences can be provided by the author upon request.

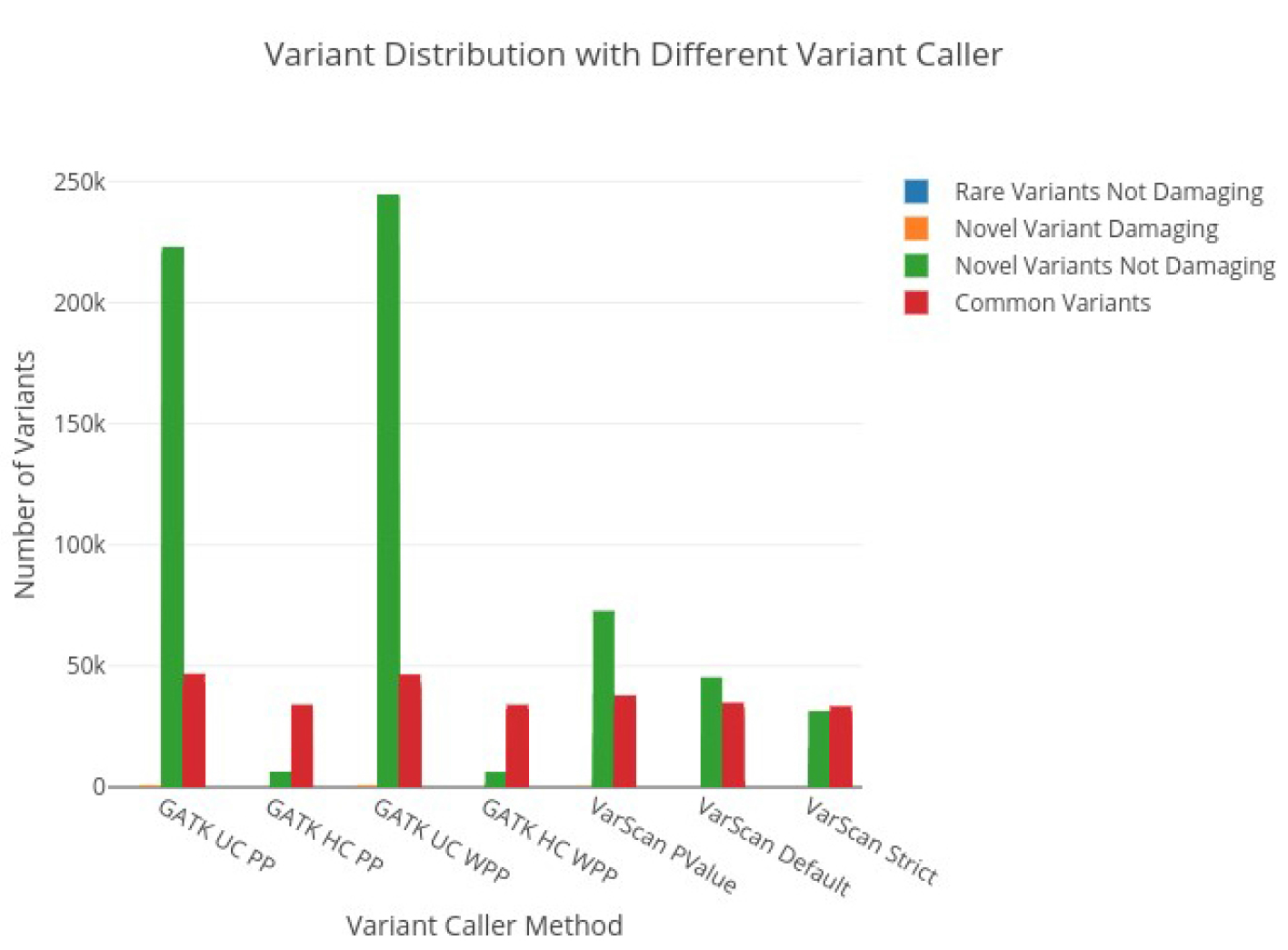

Figure 3. Number of variants obtained from GATK and VarScan with various parameters. We observe GATK Unified caller to have a large number of false positives while VarScan with strict parameters performed well with less number of false positives.

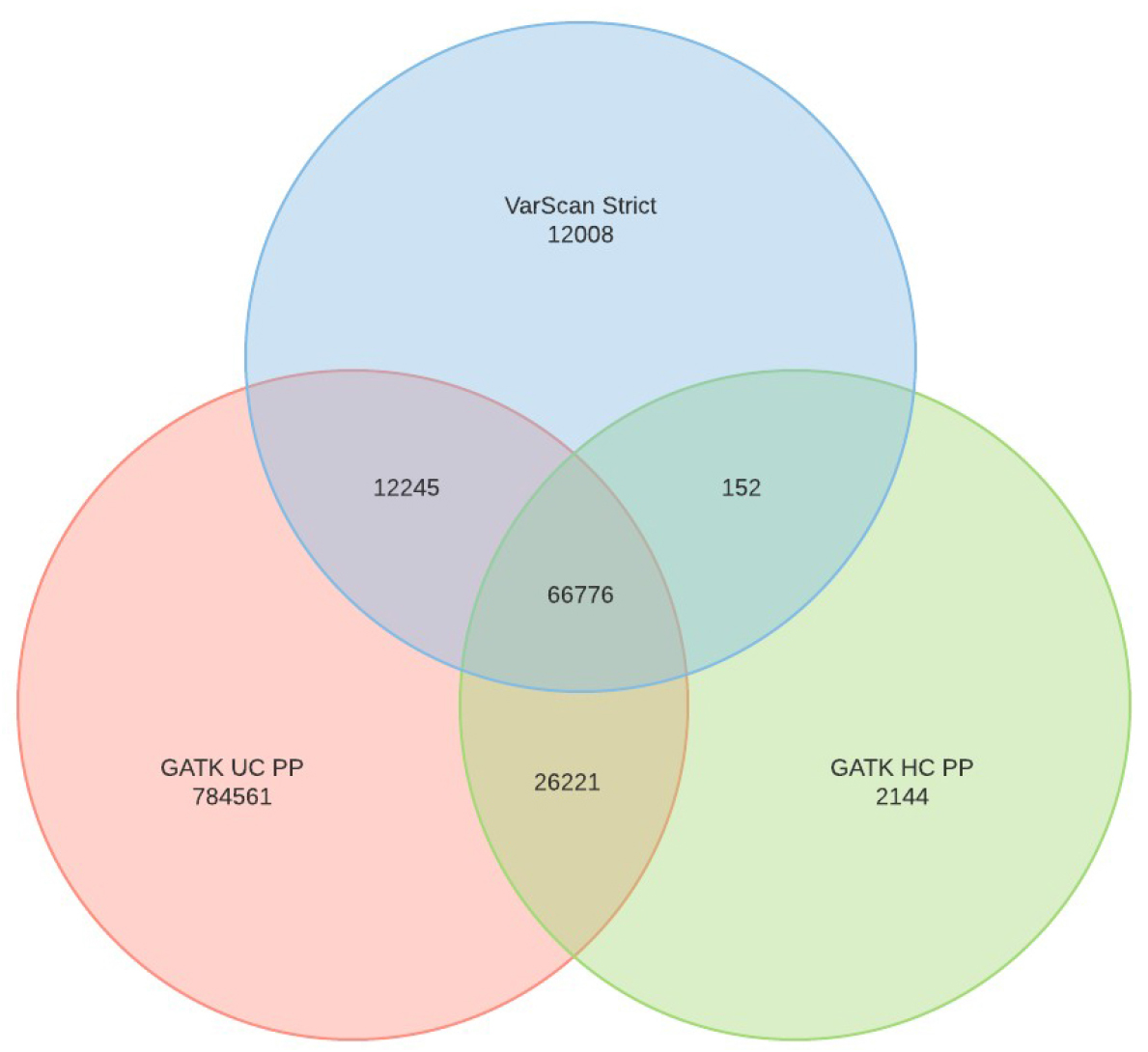

Figure 4. Venn diagram of three methods using Haplotype caller with preprocessing (HC-PP) and Universal genotype caller with preprocessing (UC-PP) and VarScan strict om sample SRR098359. We observed that all the three share the most true positive variants.

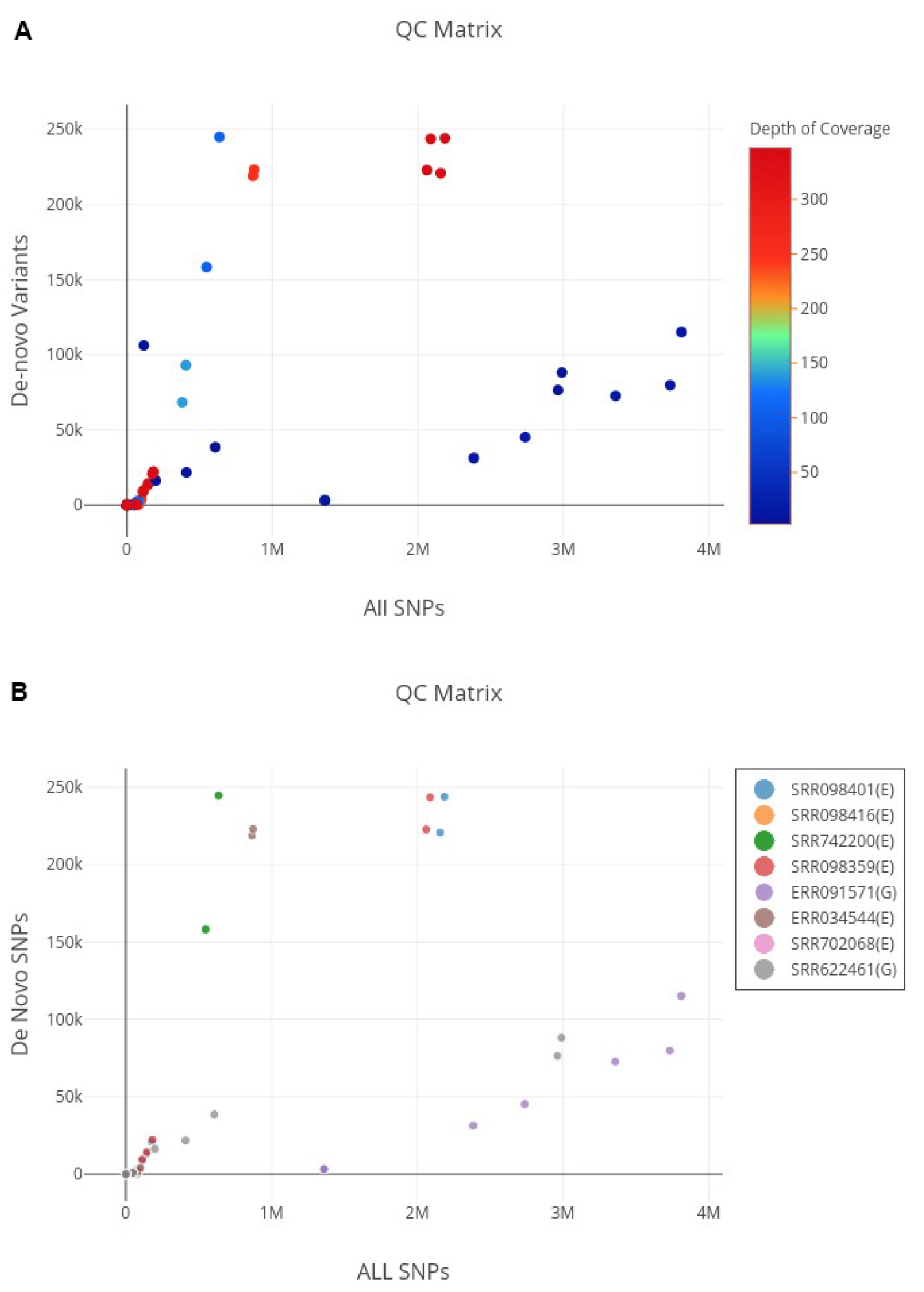

Figure 5. Distribution of de novo variants with the x-axis showing million reads with depth of coverage (right in the legend) and the y-axis showing the number of de novo variants. A. All variants in regards to the depth of coverage of NGS run; B. de novo variants in regards to all SNPs against each sample.

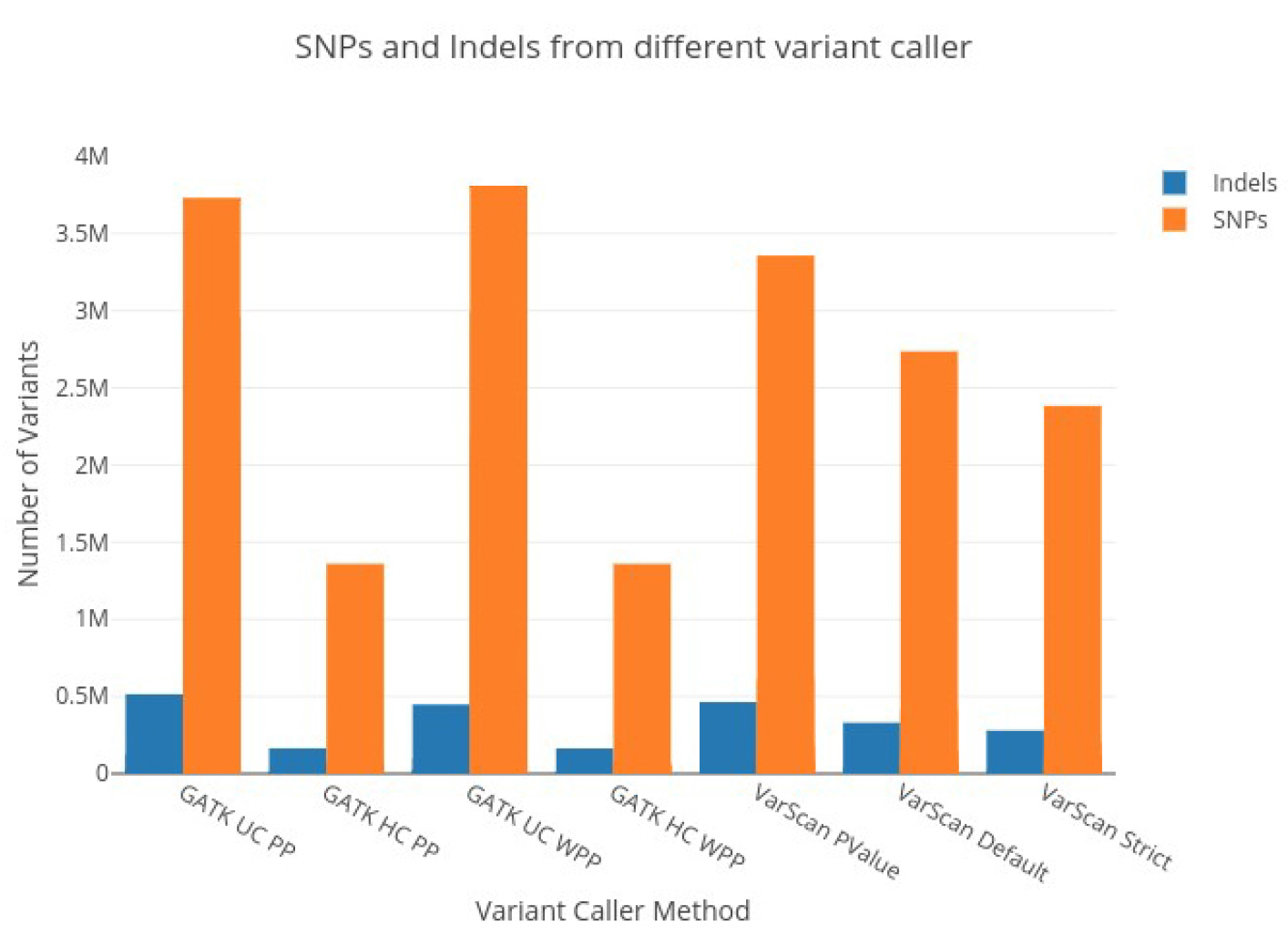

Figure 6. Number of SNPs and Indels called by GATK and VarScan using all parameters against the samples. We observed again that VarScan gave the best results with less false positive variants.

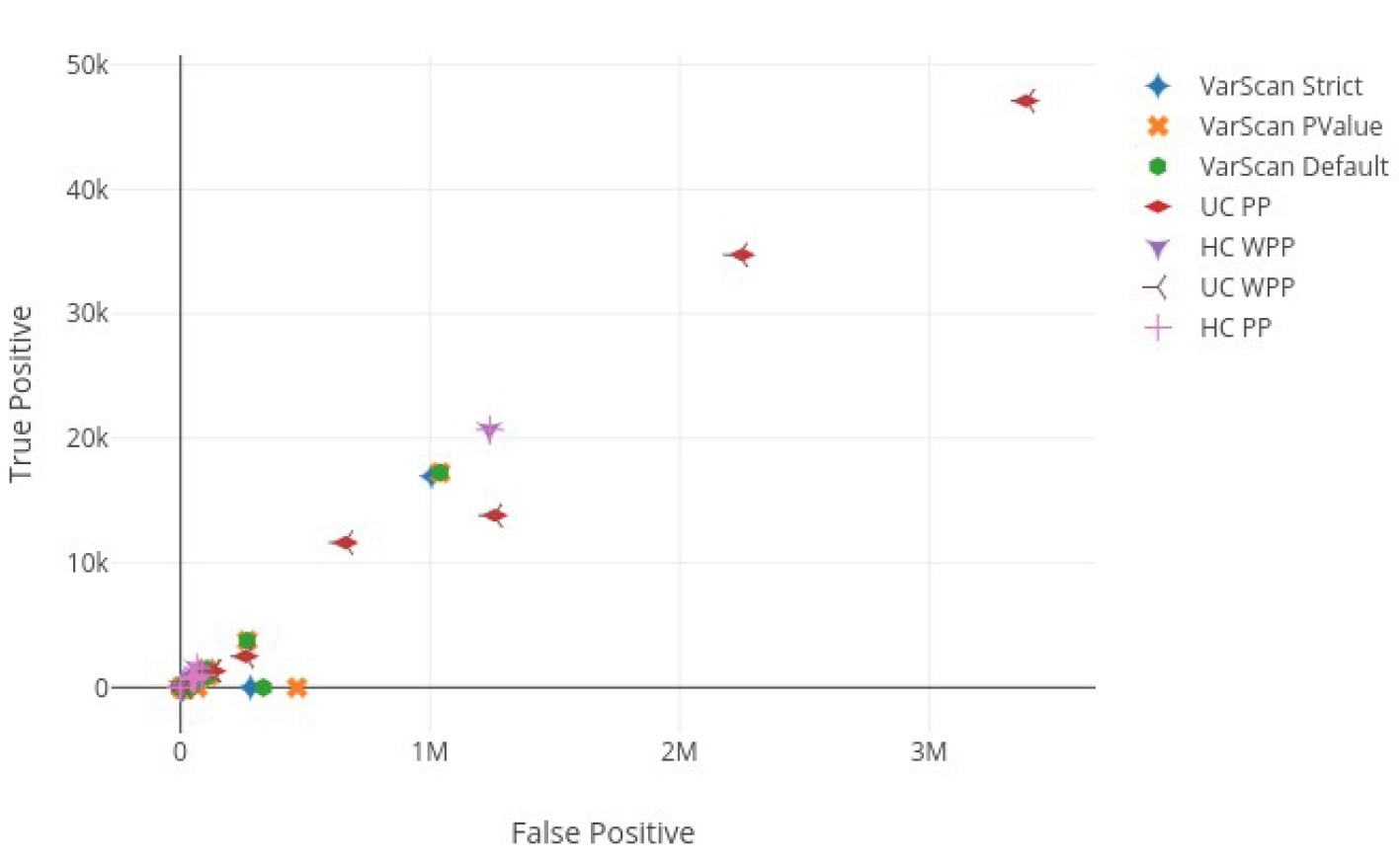

Figure 7. Scatter plot of the number of true positives/false positives for all variant calling parameter options

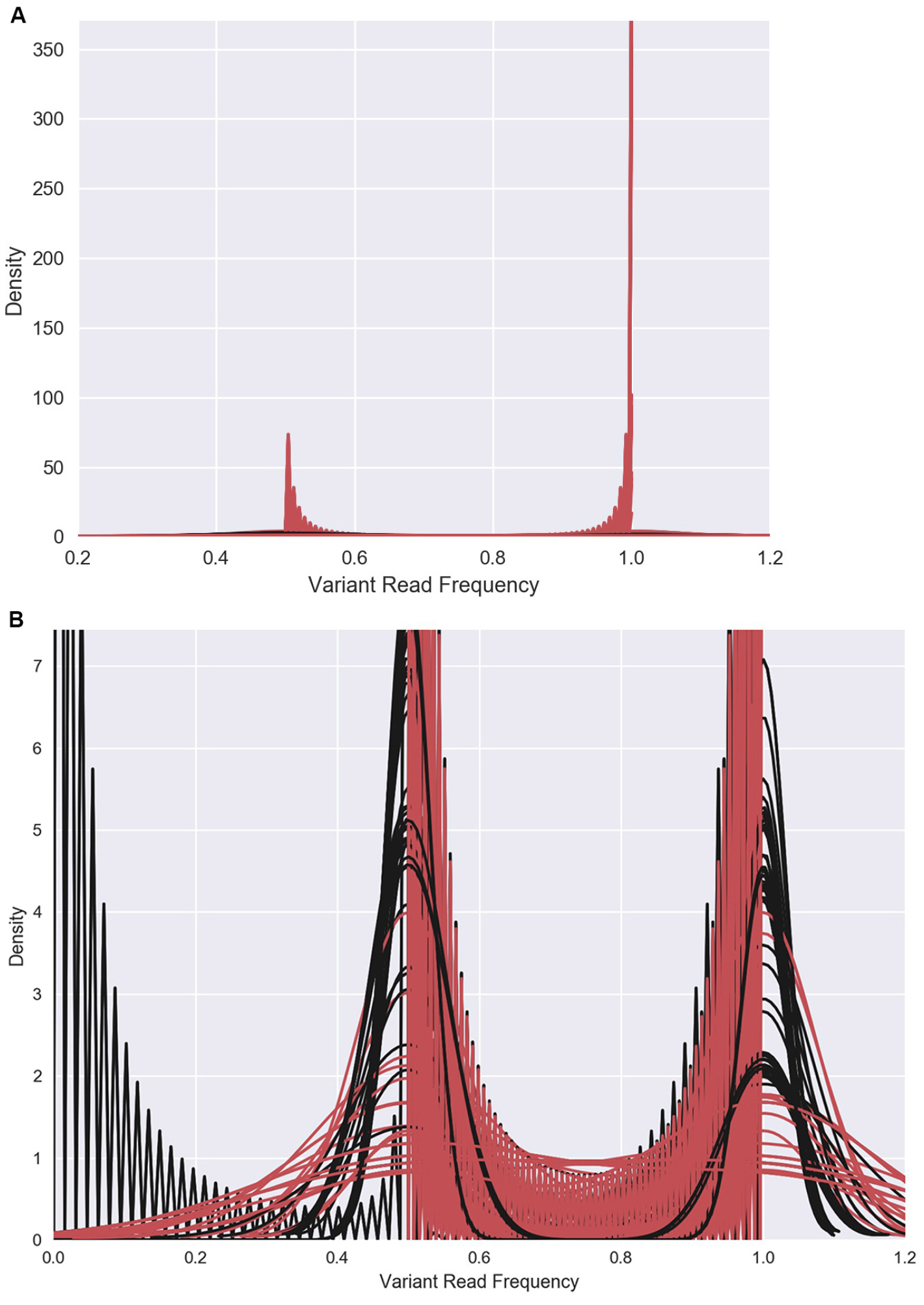

Figure 8. Density plot of an exome NGS run for de novo and known variants. The x-axis shows the variant read frequency against the density in y-axis. Panel B is the zoomed view of Panel A.
