Quantification of Chlorophyll as a Proxy for Biofilm Formation in the Cyanobacterium Synechococcus elongatus

Materials and Reagents

1. Custom-made Pyrex glass tubes for bacterial liquid cultures (200 x 32 mm, made from Pyrex tubing, Corning, catalog number: 8510-32-D)
   Note: Can order from http://www.degroot.co.il/.

2. ‘Sponge plug’ (Plastic foam stoppers, 27 x 34 mm) (Jaece Industies, catalog number: L800-C )

3. Pasteur pipettes (230 mm) (Romical, catalog number: 94-08401002 )

4. 0.45 µm syringe filter (Sartorius, catalog number: 16555 )

5. Filter Stericup-GP 250 ml Express Plus PES (0.22 μm) (EMD Millipore, catalog number: SCGPU05RE )

6. Silicone tubing (6 x 9 mm, 4 x 6 mm) (Degania Silicone, catalog numbers: 2110600234 , 2110400434 , respectively)

7. Sterile pipettes 1 and 25 ml
   1 ml pipettes (Corning, Costar^®, catalog number: 4011 )
   25 ml pipettes (Corning, Costar^®, catalog number: 4489)

8. Sterilized pipette tips (Corning, Axygen^®, catalog numbers: T-200-C , T-1000-C )

9. Eppendorf tubes (1.5 ml) (Corning, Axygen^®, catalog number: MCT-175-C )

10. Synechococcus elongatus PCC7942

11. Sodium nitrate (NaNO₃) (Sigma-Aldrich, catalog number: S8170 )

12. Magnesium sulfate heptahydrate (MgSO₄·7H₂O) (Merck, catalog number: K26364082)
    Note: This product has been discontinued. Alternatively, Merck, catalog number: 105886 can be used.

13. Calcium chloride dihydrate (CaCl₂·2H₂O) (ICN, catalog number: 10035-04-8)
    Note: This product has been discontinued. Alternatively, Bio-Lab, catalog number: 034205 can be used.

14. Potassium phosphate dibasic (K₂HPO₄) (Honeywell International, Riedel-de-Haen, catalog number: 04248 )

15. Ethylenediaminetetraacetic acid (Na₂Mg·EDTA) (Bio-Lab, catalog number: 05142359)
    Note: This product has been discontinued. Alternatively, Biosolve, catalog number: 051423 can be used.

16. Ferric ammonium citrate (C₆H₁₁FeNO₇) (MP Biomedicals, catalog number: 02158040 )

17. Citric acid (C₆H₈O₇) (Frutarom, catalog number: 2355511000)
    Note: This product has been discontinued. Alternatively, Biosolve, catalog number: 030205 can be used.

18. Boric acid (H₃BO₃) (Bio-Lab, catalog number: 02010591)
    Note: This product has been discontinued. Alternatively, Biosolve, catalog number: 020105 can be used.

19. Manganese chloride hexahydrate (MnCl₂·6H₂O) (Duchefa Biochemie, catalog number: M0533 )

20. Zinc sulfate heptahydrate (ZnSO₄·7H₂O) (CARLO ERBA Reagents, catalog number: 494907 )

21. Sodium molybdate dihydrate (Na₂MoO₄·2H₂O) (MP Biomedicals, catalog number: 194863 )

22. Copper sulphate pentahydrate (CuSO₄·5H₂O) (Honeywell International, Riedel-de-Haen, catalog number: 12849 )

23. Cobalt(II) nitrate hexahydrate (Co(NO₃)₂·6H₂O) (Honeywell International, Riedel-de-Haen, catalog number: 12922)
    Note: This product has been discontinued. Alternatively, Sigma-Aldrich, catalog number: 239267 can be used.

24. N-2-hydroxyethylpiperazine-N’-2-ethanesulfonic acid (HEPES) (Sigma-Aldrich, catalog number: H3375 )

25. Sodium hydroxide (NaOH) (Frutarom, catalog number: 5553510 )

26. Acetone ((CH₃)₂CO), A.C.S. reagent (Avantor Performance Materials, J.T. Baker^®, catalog number: 9006-03 )

27. Sodium bicarbonate (NaHCO₃) (DAEJUNG CHEMICAL & METALS, catalog number: 7566-4100 )

28. Sodium thiosulfate (Na₂S₂O₃) (Sigma-Aldrich, catalog number: 217247 )

29. Bacto agar (BD, Bacto^TM, catalog number: 214010 )

30. LB agar (Lennox) (BD, Difco^TM, catalog number: 240110 )

31. Antibiotics (added as appropriate according to the resistance of the particular strain)
    1. Spectinomycin dihydrochloride pentahydrate (Duchefa Biochemie, catalog number: S0188 )

    2. Kanamycine sulphate monohydrate (Duchefa Biochemie, catalog number: K0126 )

    3. Gentamycin sulphate (Duchefa Biochemie, catalog number: G0124 )

    4. Chloramphenicol (Duchefa Biochemie, catalog number: C0113 )

32. Liquid BG11-medium (see Recipes)
    1. Stock I (100x concentrated)

    2. Stock II (100x concentrated)

    3. Stock III (100x concentrated)

    4. Stock V (1,000x concentrated)

33. Solid BG11-medium (see Recipes)


Equipment

1. Laminar flow hood

2. Fume hood

3. Autoclave

4. Spectrophotometer (Agilent Technologies, model: Cary 100 , catalog number: 10069000) and respective cuvettes (Cell type P.L = 10 mm/EA) (Starna Cells, catalog number: 9-SOG-10)

5. Benchtop centrifuge (MiniSpin, max. centrifugal force: 12,100 x g) (Eppendorf, model: MiniSpin^® , catalog number: 5452000018)

6. Refrigerator (4-7 °C)

7. Growth rooms (30 ± 2 °C and 24 ± 2 °C for liquid cultures and cultures on solid medium, respectively)
   Note: Growing cultures on solid medium at 24 °C rather than 30 °C allows maintaining the cultures for longer periods.

8. Light source
   For liquid cultures–incandescent light producing a flux of 20-30 μmol photons m^-2  sec^-1; Cultures on solid-BG11 are illuminated by fluorescent light (5 μmol photons m^-2  sec^-1)

9. Pipet-aid

10. Single-channel pipettes 200 and 1,000 μl

11. Bubbling system
    1. Air compressor (Oil free air compressor) (Assouline Compressors, model: vs 204 50 )

    2. Cylinder carbon dioxide (CO₂, compr. 99.5%) (Maxima, catalog number: GCDCU2.527)

    3. Flow meters (Tuttnauer company, 0-0.1 L/min, 1-10 L/min)

    4. High-flow air pressure regulator (0-2 PSI) (Marsh Bellofram, model: Type 70 , catalog number: 960-129-000)

    Note: To bubble cultures with 3% CO₂ in air the following setup is used (Figure 1): CO₂ gas is mixed with compressed air using flow meters to yield 3% CO₂ in air. This mixture is humidified by bubbling into 1.5 L double distilled water (DDW) in a 2 L bottle to prevent water evaporation during bubbling of the cultures. The outlet from this bottle is passed through an empty 2 L bottle (serving to trap residual liquid) and through an air pressure regulator (200 mbar is appropriate for bubbling of ~300 culture tubes). Bubbling of CO₂ enriched air from the latter into multiple cultures is obtained using home-made manifolds constructed from silicone tubing and appropriate T-bar connectors. The gas in each manifold channel is passed through a 0.45 µm filter (Figure 1). A short video is provided to demonstrate the flow rate in individual cultures tubes (Video 1).


    Figure 1. A scheme describing the setup used to bubble cultures with CO₂-enriched air



    Video 1. Cyanobacterial cultures under bubbling

Procedure

1. Growing liquid cultures of Synechococcus elongatus PCC 7942 and biofilm-forming mutants thereof
1. Round-bottom Pyrex tubes (20 cm in length, 3 cm in diameter) are used as growth vessels.

2. A cotton-plugged Pasteur pipette (23 cm long) is inserted through a sponge-plug such that the tip of the Pasteur pipette is placed 1-2 cm above the bottom of the tube (Figure 2A, ‘growth set’).

3. Growth sets are autoclaved in liquid cycle.

4. Sterile liquid BG11-medium (25-50 ml) (see Recipes) is transferred into the Pyrex tube. The culture volume is adjusted to the biomass required for the designated experiment.

5. Cells are scraped from solid-BG11 medium (see Recipes) with a 1 ml sterile plastic pipette and the biomass is shaken in the liquid medium (see Note 4).
   Important: To reproducibly observe biofilm formation, it is crucial to add the ferric ammonium citrate and citric acid components from a freshly made stock (see note in Recipe 1f). Autoclaved BG11 should be used within 4 days to inoculate cultures.

6. Connect the growth set to the bubbling system (see description above) via 1 ml pipette tip (Figure 2A).

7. The use of manifolds allows simultaneous bubbling of multiple cultures (Figure 2B, see Note under Equipment).


   Figure 2. Growing cyanobacterial cultures. A. Growth set connected to a single manifold channel; B. Cultures in the growth room.


2. Quantification of biofilm
1. Cells are cultured under continuous bubbling of 3% CO₂ in air at 30 °C under continuous illumination with incandescent light (20-30 μmol photons m^-2  sec^-1).

2. Starting cultures at the exponential phase are diluted (usually following 3 days of growth) to an optical density at 750 nm of 0.5.

3. Experiments are initiated by an additional dilution of the cultures to an optical density at 750 nm of 0.5 (see Note 5).

4. Biofilm development under this setup typically begins after 2-3 days.

5. To verify that cultures are axenic ‘spot’ a 20 μl aliquot on solid LB agar.

6. Percentage of chlorophyll in suspended cells serves to quantify biofilm formation as follows (Figure 3):
1. Extraction of chlorophyll in planktonic cells is performed in 1.5 ml Eppendorf tubes. Remove an aliquot from the upper part of the suspended culture (see Note 6). In cases where the suspended fraction appears especially dense (planktonic strains or poor biofilm formers), a 0.2 ml sample is used for extraction. When robust biofilms are formed, 15 ml of planktonic cells are removed and concentrated 3 to 6-fold by centrifugation (5,000 x g, 10 min) prior to the chlorophyll extraction in 80% acetone (final concentration).

2. Extraction of chlorophyll in the biofilm is performed in the growth tube. To separate the biofilm fraction, slowly remove the suspended cells. Biofilms tend to collapse during removal of the last few ml of liquid. Therefore, once clumps of biofilm detach and fall into the liquid, stop removing the culture. Measure the volume remaining in the tubes using a pipette (in our hands 2-5 ml are left) as well as the volume removed from the culture. The sum of these volumes (V_total) serves for calculation of the amount of chlorophyll in the suspended cells (see Data analysis). Extraction of chlorophyll is performed in 80% acetone at a final volume equal to V_total.

3. Extraction of chlorophyll is carried out overnight in the refrigerator and chlorophyll is quantified based on absorbance as previously described (Arnon, 1949; Ritchie, 2006). Chlorophyll may be extracted with methanol instead of acetone. A step-by-step protocol for measurement of chlorophyll a concentration in cyanobacteria is described by Zavřel et al. (2015).


   Figure 3. Quantification of biofilm based on chlorophyll measurement


Data analysis

The percentage of chlorophyll in suspension is calculated from the amount of chlorophyll in the planktonic and biofilm fractions. These values are calculated based on measured chlorophyll absorbances, sample volumes, and dilution factors, as described below. An example calculation is provided in Table 1.

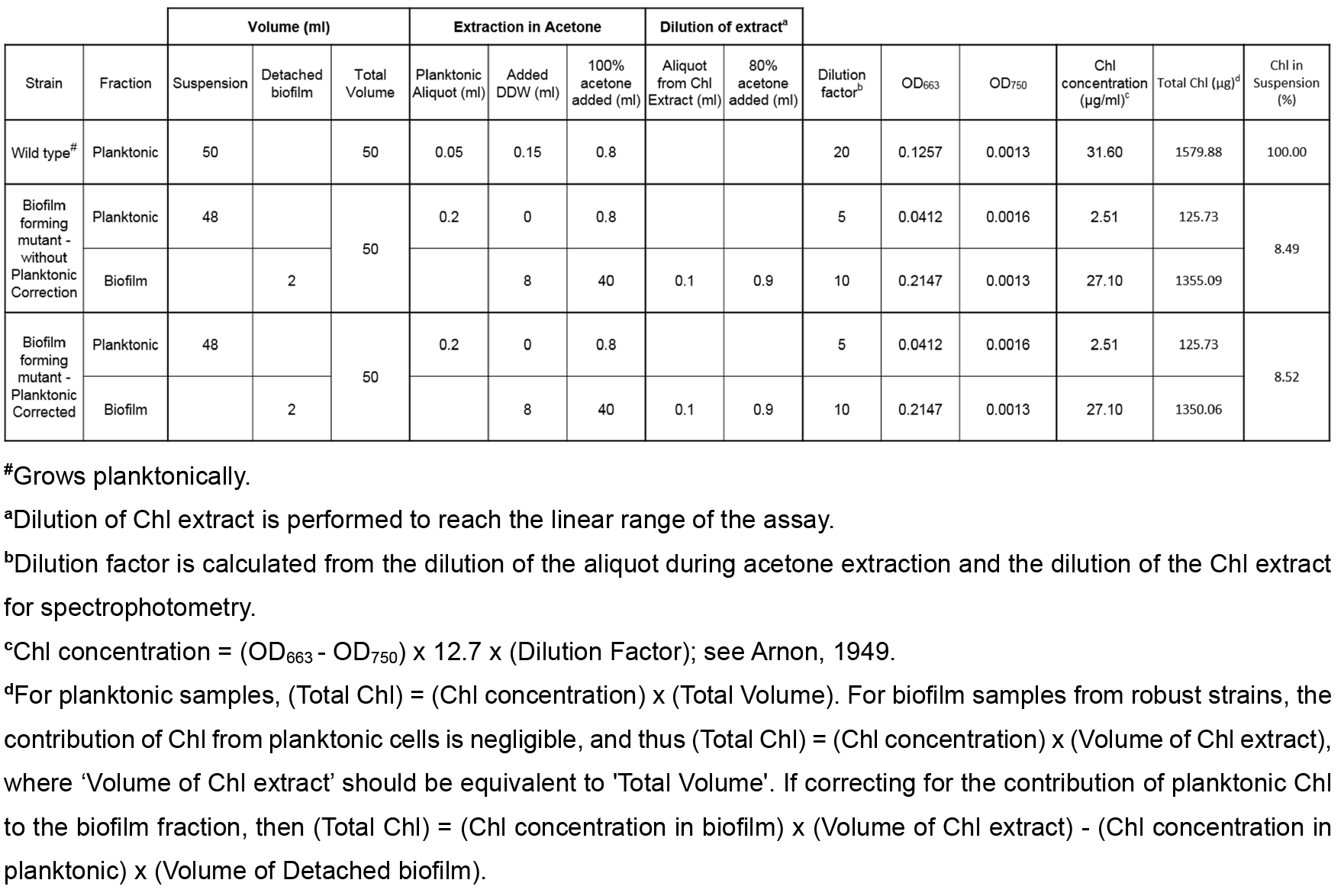

Table 1. An example of calculations of chlorophyll (Chl) in planktonic and biofilm cells

1. Calculate the amount of chlorophyll in suspended cells based on measured chlorophyll concentration and the volume of the suspended culture (V_total).

   Total Chl Planktonic (µg) = (OD₆₆₃ - OD₇₅₀) x 12.7 x (Dilution Factor) x V_total


2. Calculate the amount of chlorophyll in the biofilm based on measured chlorophyll concentration and the volume of the acetone extraction, which should be V_total.
1. If robust biofilm formation is observed, then the contribution from the remaining planktonic cells in the biofilm fraction is negligible and the total chlorophyll is calculated as follows:

   Total Chl Biofilm (µg) = (OD₆₆₃ - OD₇₅₀) x 12.7 x (Dilution Factor) x V_total


2. To account for the contribution of remaining planktonic cells in the biofilm fraction, subtract the planktonic chlorophyll present in the fraction’s volume from the above value:

   Total Chl Biofilm Corrected (µg) = (Chl concentration in biofilm) x V_total - (Chl concentration in planktonic) x (Volume of Detached biofilm)


3. Total chlorophyll in the culture is the sum of the amount of chlorophyll in planktonic cells and in the biofilm.

   Total Chl (µg) = Total Chl Biofilm + Total Chl Planktonic

   Or

   Total Chl (µg) = Total Chl Biofilm Corrected + Total Chl Planktonic


4. The extent of biofilm formation is presented as percent of chlorophyll in planktonic cells.

   Chl in suspension (%) = (Total Chl Planktonic)/(Total Chl) x 100%


Notes

1. All work with cyanobacterial cultures is carried out under sterile conditions using a laminar flow hood.

2. The sponge plug is punched using an awl.

3. For bubbling of a small number of cultures, a mini aquarium pump (e.g., JBL ProAir a50, Art. No. 6054600) may be used instead of a compressor. As an alternative to mixing air and CO₂ one may purchase 3% CO₂ cylinders.

4. A previous study revealed that a biofilm inhibitory substance is present in extracellular fluids from wild type culture as well as in old cultures of the biofilm forming mutant, T2SEΩ (Schatz et al., 2013). To avoid possible inhibitor accumulation in cultures of biofilm-forming mutants, cultures are initiated by inoculation of cells grown from solid agar. Make sure to dilute these starter cultures for ‘biofilm quantification assays’ while yet at exponential phase of growth.

5. Starter cultures are inoculated from cultures grown on solid agar. Due to variations in the inoculum, the resulting liquid cultures vary in cell density. The dilution steps are important to ensure that experiments are initiated at the same density and a similar physiological state.

6. First, take an aliquot from the upper part of the suspended culture and then remove the rest of the suspended fraction to avoid contamination of the extraction aliquot with biofilm cells.


Recipes

1. Liquid BG11-medium (based on Stanier et al., 1971)
1. Stock I, 100x concentrated (autoclave)
   150.00 g/L NaNO₃
   6.50 g/L MgSO₄·7H₂O
   3.60 g/L CaCl₂·2H₂O

2. Stock II, 100x concentrated (autoclave)
   3.05 g/L K₂HPO₄
   0.10 g/L Na₂Mg·EDTA

3. Stock III, 100x concentrated (prepare fresh, no need to sterilize)
   0.60 g/L C₆H₁₁FeNO₇
   0.60 g/L C₆H₈O₇

4. Stock V, 1,000x concentrated (sterilize by filtration using Filter Stericup [0.22 μm])
   2.86 g/L H₃BO₃
   1.84 g/L MnCl₂·4H₂O
   0.22 g/L ZnSO₄·7H₂O
   0.39 g/L NaMoO₄·2H₂O
   0.08 g/L CuSO₄·5H₂O
   0.05 g/L Co(NO₃)₂·6H₂O

5. HEPES 119.15 g/L (25x concentrated) titrated to pH 8.0 with 10 N NaOH (399.97 g/L) (autoclave)

6. Preparation of 1 L liquid-BG11:
   Start with ~500 ml DDW, add the required volume from the stock solutions and complete with DDW up to 1 L. Solution is sterilized by autoclaving (sterilization time: 40 min). Immediately remove from autoclave once the cycle is over (Long exposure to the high temperature may affect precipitation of minerals). Do not autoclave the medium more than once. Mix before aliquoting the medium to growth tubes
   Note: To reproducibly observe biofilm formation, it is crucial to use freshly made stock III each time liquid BG11 is prepared. Autoclaved BG11 is stored at room temperature. The medium should be used within 4 days to inoculate cultures.

2. Solid BG11-medium
1. Stock solutions as for liquid BG11

2. Sodium bicarbonate 42 g/L (100x concentrated)

3. Sodium thiosulfate 470 g/L (100x concentrated)

4. Prepare two-fold concentrated liquid BG11 (BG11X2) by diluting appropriate volumes from stock solutions

5. Prepare 3% Bacto agar in DDW

6. Autoclave BG11X2 and 3% agar in separate containers

7. Immediately following sterilization, combine equal volumes of BG11X2 and 3% agar to get 1.5% agar in BG11

8. Cool to ~50-55 °C, dilute 100-fold NaHCO₃ and Na₂S₂O₃ stock solutions (at this step antibiotics may be added):
   Spectinomycin dihydrochloride pentahydrate (final concentration: 50 μg/ml)
   Kanamycine sulphate monohydrate (final concentration: 50 μg/ml)
   Gentamycin sulphate (final concentration: 7.5 μg/ml)
   Chloramphenicol (final concentration: 7.5 μg/ml)

9. Pour ~50 ml into 90 mm Petri-dish


Acknowledgments

This protocol is modified from previous studies (Schatz et al., 2013; Parnasa et al., 2016). Growth medium is based on the protocol by (Stanier et al., 1971). Chlorophyll measurements are based on previous protocols (Arnon, 1949; Ritchie, 2006). Rakefet Schwarz and Susan Golden are supported by the program of the National Science Foundation and the US-Israel Binational Science Foundation (NSF-BSF 2012823). This study was also supported by a grant from the Israel Science Foundation (ISF 1406/14) to Rakefet Schwarz.
