Mouse Liver Mitochondria Isolation, Size Fractionation, and Real-time MOMP Measurement

Materials and Reagents

1. 50 ml conical centrifuge tube (Santa Cruz Biotechnology, catalog number: sc-200251 )

2. Petri dish, 100 x 15 mm (Fisher Scientific, catalog number: FB0875712 )

3. 15 ml conical centrifuge tube (Santa Cruz Biotechnology, catalog number: sc-200250 )

4. 1.5 ml Micro centrifuge tube (USA Scientific, catalog number: 1615-5510 )

5. Gravity chromatography column (Thermo Fisher Scientific, Pierce^TM, catalog number: 29920 )

6. Pasteur pipet (Santa Cruz Biotechnology, catalog number: sc-204537 )

7. 96-well plate, flat bottom, black polystyrene (Corning, Costar^TM, catalog number: 3915 )

8. C57BL/6 mice (Charles River Laboratories, catalog number: 027 )

9. 1x phosphate buffered saline (PBS), pH 7.4 (137 mM NaCl, 2.7 mM KCl, 10 mM Na₂HPO₄, 2 mM KH₂PO₄) (Fisher Scientific, catalog number: BP24384 )

10. Trehalose (Sigma-Aldrich, catalog number: 1673715 )

11. Sucrose (Sigma-Aldrich, catalog number: S0389 )

12. [4-(2-hydroxyethyl)piperazine-1-ethanesulfonic acid]-KOH (HEPES) (Sigma-Aldrich, catalog number: H0527 )

13. KCl (Sigma-Aldrich, catalog number: P9541 )

14. Ethylenediaminetetraacetic acid (EDTA) (Sigma-Aldrich, catalog number: E9884 )

15. Ethyleneglycoltetraacetic acid (EGTA) (Sigma-Aldrich, catalog number: E3889 )

16. Bovine serum albumin-fraction V (Sigma-Aldrich, catalog number: A9418 )

17. Protease inhibitor cocktail (Thermo Fisher Scientific, HALT^TM, catalog number: 78430 )

18. Sepharose CL-2B resin (Sigma-Aldrich, catalog number: CL2B300 )

19. 5,5’,6,6’-tetrachloro-1,1’,3,3’-tetraethylbenzimidazolylcarbocyanine iodide (JC-1) (Thermo Fisher Scientific, catalog number: T3168 )

20. Triton X-100 (Fisher Scientific, catalog number: BP151-500 )

21. Carbonyl cyanide 4-(trifluoromethoxy)phenylhydrazone (FCCP) (Sigma-Aldrich, catalog number: C2920 )

22. Recombinant BAX [purified using the IMPACT (Intein Mediated Purification with an Affinity Chitin-binding Tag) system (New England Biolabs, catalog number: E6901S )]

23. β-octylglucoside (OG) (Sigma-Aldrich, catalog number: O8001 )

24. Dimethylsulfoxide (DMSO) (Fisher Scientific, catalog number: BP231-100 )

25. Magnesium Chloride Hexahydrate (Fisher Scientific, catalog number: M33-500 )

26. Trehalose isolation buffer (TIB) (see Recipes)

27. JC-1 loading buffer (see Recipes)

28. Liposome buffer (see Recipes)

Equipment

1. Dissection tools (scissors, scalpel, forceps)

2. Razor blade (Daigger Scientific, catalog number: EF7281A )

3. 15 ml Potter-Elvehjem dounce homogenizer (Omni International, catalog number: 07-358044 )

4. Swing bucket centrifuge (Thermo Fisher Scientific, Thermo Scientific^TM Sorvall^TM, model: Legend XTR )

5. Spectrophotometer (Fisher Scientific, GE Healthcare Ultrospec^TM, model: Ultrospec 7000 )

6. Water bath (Fisher Scientific, IsoTemp^TM, model: 215 )

7. Tabletop centrifuge (Thermo Fisher Scientific, Sorvall^TM Legend^TM, model: Micro 21 )

8. Fluorescence plate reader (Biotek, model: Synergy H1 )


Procedure

1. Liver mitochondria isolation
   Animal handling, euthanasia, and dissection must be done following the Institutional Animal Care and Use Committee guidelines. We have successfully utilized carbon dioxide asphyxiation before cervical dislocation to euthanize the mice. However, we advise the reader to consult and follow the Animal Care and Use guidelines of their own institute for the appropriate procedure. Following steps involved in animal handling and dissection are executed wearing gloves.

   1. Visualize the liver, the bile duct, and gallbladder. The bile duct and gallbladder must be removed or kept separate from the liver to avoid contamination of the mitochondria with bile (Figure 1a-c).

   2. Excise the four liver lobes and transfer immediately to a 50 ml conical tube containing ice-cold PBS. In case of blood contamination, soak the liver in ice-cold PBS until no more blood is washed out (Figure 1d-e).
      Note: From this point, all the steps must be performed using reagents and materials at 4 °C to minimize the activation of proteases and phospholipases.


      Figure 1. Mouse dissection


   3. Transfer the liver with forceps to a clean Petri dish placed on ice and drain off the excess PBS.

   4. Mince the liver using a clean razor blade until forming a homogeneous paste (Figure 2).

   5. Transfer half of the liver paste using the razor blade as a spoon into a chilled Potter-Elvehjem dounce homogenizer containing 10 ml TIB.

   6. Insert the pestle into the homogenizer and gently push it downwards. Early resistance is common during the first strokes, and no excessive force should be applied to the liver paste. Instead, move the pestle upwards to resuspend the liver paste and slowly repeat those steps until all the material is able to go past the pestle without strong resistance. The homogenization step can be done on the bench as long the whole procedure is done quickly enough to maintain the temperature close to 4 °C.

   7. Homogenize the paste five times, pour into a 15 ml conical tube and store on ice until all the liver paste is processed (Figure 2).

   8. Repeat steps 6-8 with the second half of the liver paste.

   9. The following differential centrifugation steps are required to obtain the mitochondrial fraction. All the steps should be performed in a swinging bucket centrifuge at 4 °C. Resuspension of pellets is done gently by pipetting using a P1000 pipette (Figure 2).

      1. 600 x g for 10 min. Transfer the supernatant (S/N) to a clean, pre-chilled 15 ml conical tube.

      2. 3,500 x g for 10 min. Discard the S/N. Resuspend the pellet in 10 ml TIB.

      3. 1,500 x g for 5 min. Transfer the S/N to a clean, pre-chilled 15 ml conical tube.

      4. 5,500 x g for 10 min. Discard the S/N. Resuspend the pellet in 10 ml TIB.

      5. Repeat steps A9b to A9d, but resuspend the final pellet in 500 μl TIB.

   10. To quantify the amount of isolated material in the resuspended pellet (step A9e), add 5 μl of the resuspended pellet to 995 μl of TIB (1:200 dilution) and measure the OD520 with a spectrophotometer. Dilute the mitochondria with TIB to standardize the sample to an OD520 value of 0.25 (~20 μg/μl of protein).

   11. At this point the isolated mitochondria can be aliquoted (50 µl), frozen in dry ice-ethanol to prevent formation of water crystals, and stored at -80 °C.
       Note: Freshly isolated mitochondria from the previous step should be kept on ice and used within 2 h to ensure integrity of the outer membrane. If frozen mitochondria are used, thaw the sample in a 30 °C water bath and continue using TIB in the subsequent procedures.

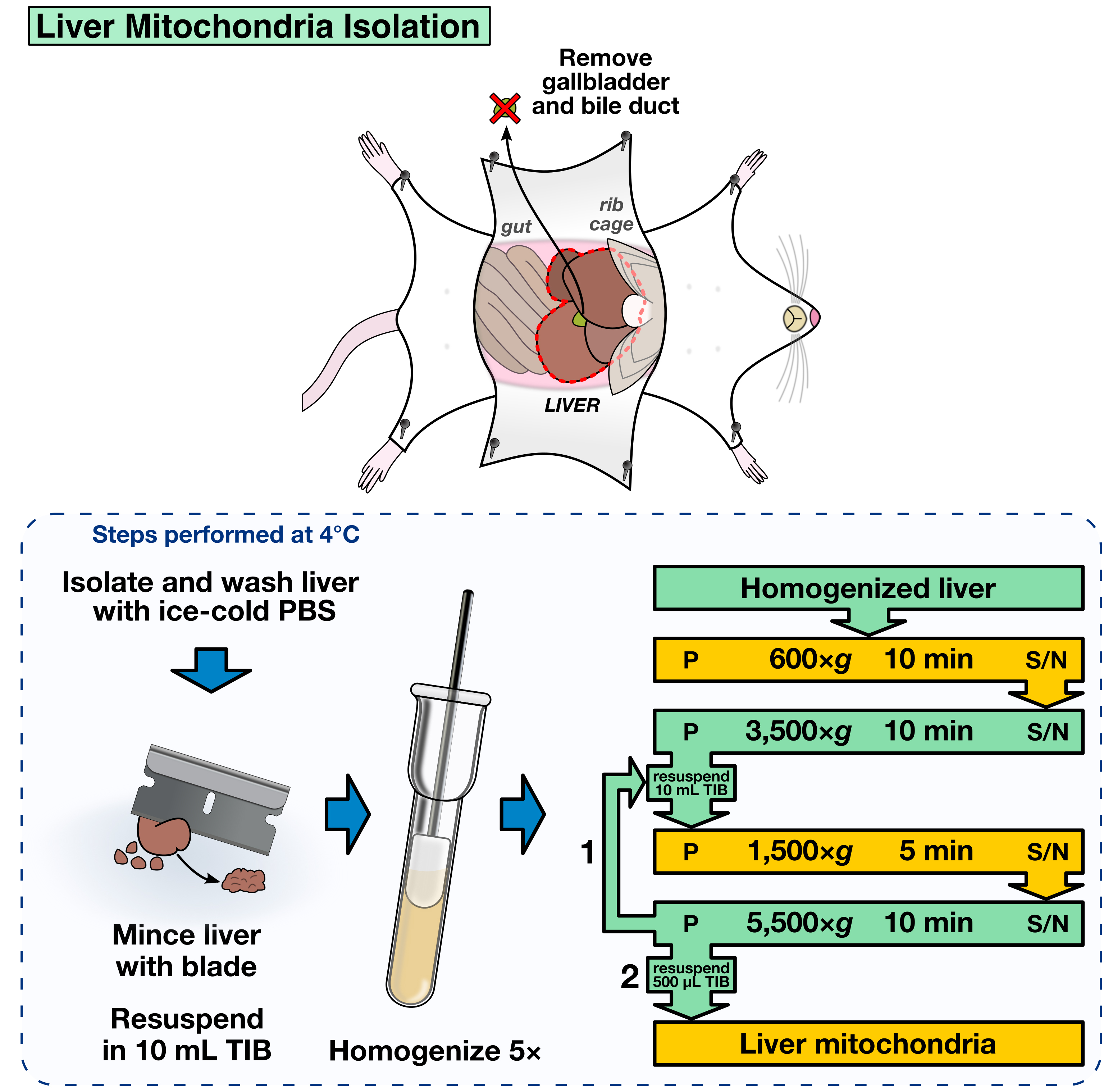

       Figure 2. Liver mitochondria isolation


2. Mitochondria labeling with JC-1 and size fractionation
   Labeling mitochondria with JC-1, a potential-dependent mitochondrial dye that changes color as membrane potentials increase during MOMP, allows to standardize the mitochondria fractions and to record MOMP in real-time (as example, see Renault et al., 2015, Figure 4F). The labeling and fractionation step offers the opportunity to select the mitochondria by size: big mitochondria will be eluted prior to smaller ones. This fractionation step is optional and requires to calibrate the column using liposomes of a known size as a standard. Another option is to determine the average mitochondrial size in each fraction a posteriori, using for example dynamic light scattering. If fractionation by size is not desired, all the mitochondria-containing fractions can be combined in step B8.
   1. Dilute 50 µl of mitochondria in 250 µl TIB buffer.

   2. Add JC-1 (200 µM) to the diluted mitochondria to a final concentration of 15 µM and incubate for 10 min at 30 °C (Figure 3).

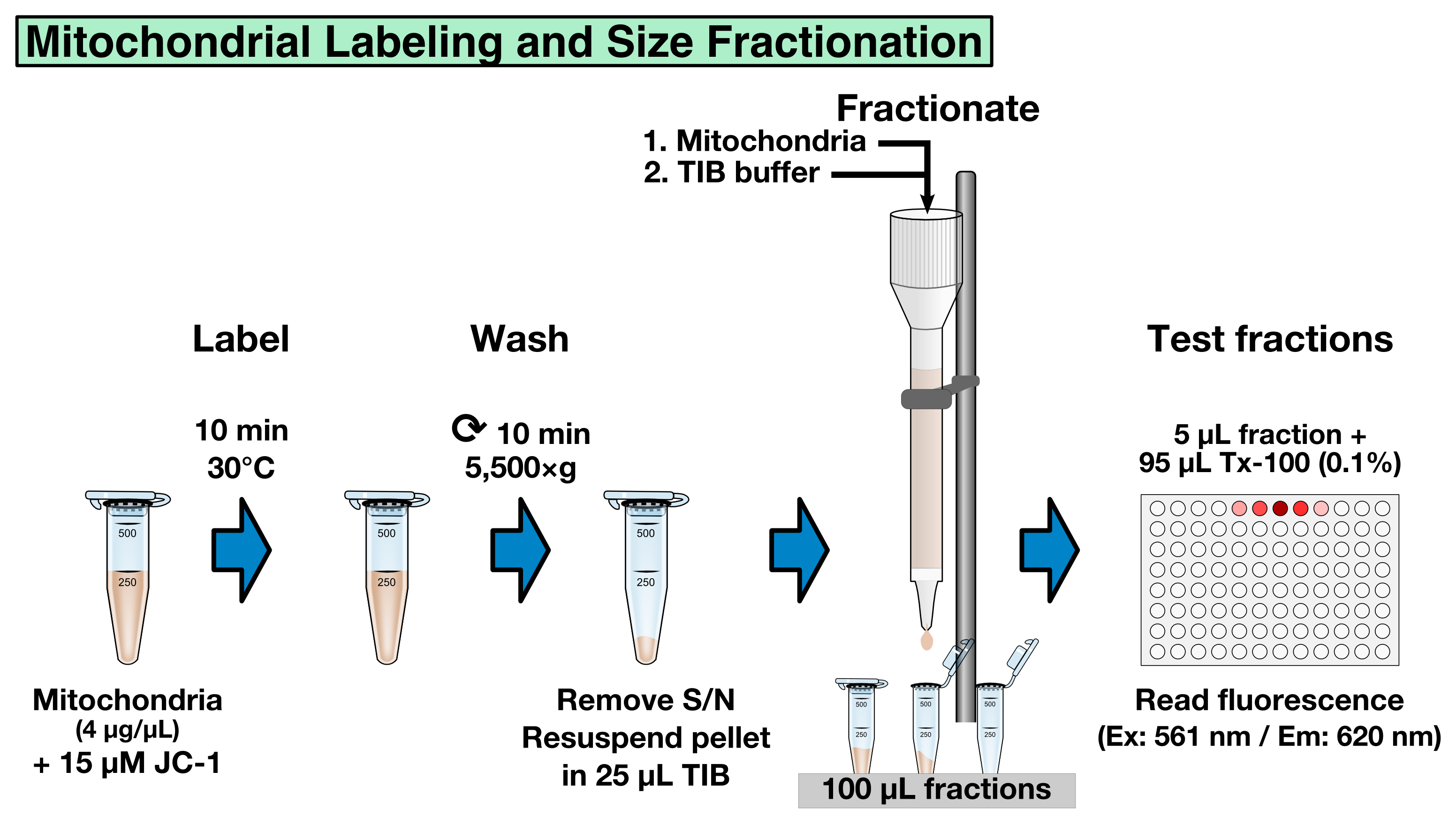

      Figure 3. Mitochondrial labeling and size fractionation


   3. To remove unbound JC-1, centrifuge the mitochondria at 5,550 x g for 10 min at room temperature and resuspend the pellet in 25 µl TIB.

   4. Pre-equilibrate a 2 ml CL-2B gravity-column with 2 column volumes of TIB (4 ml) using gravity to let the TIB to flow through the CL-2B resin, load the resuspended JC-1 mitochondria onto the column, and allow sample to flow through.
      Note: Make sure the resin does not run dry before loading the JC-1 labeled mitochondria.

   5. Slowly apply 4 column volumes of TIB (4 x 2 ml) to the column using a clean Pasteur pipet and collect 20 x 100 µl (~2-3 drops) fractions in micro-centrifuge tubes.

   6. To determine which fractions contain labeled mitochondria, pre-fill a 96-well plate with 95 µl of 0.1% Triton X-100 in water (0.1% Triton X-100 permeabilizes mitochondria) and add 5 µl sample of each fraction to a separate well.

   7. Measure the fluorescence using a spectrophotometer (Ex: 561 nm/Em: 620 nm) to identify the mitochondria-containing fractions (typical values are 10,000-50,000 Relative Fluorescence Units for big mitochondria, and > 500 RFU for small size mitochondria).

   8. Combine the desired fractions containing JC-1 labeled mitochondria and standardize the samples using relative JC-1 fluorescence intensity (determine the fluorescence of each combined sample as described in step B6-7 and dilute the most concentrated samples with TIB buffer to reach the concentration of the lowest sample).
      Note: In our experience 0.05-1 µm liposomes were subjected onto the CL-2B gravity-column and used as reference for selecting appropriate fractions. Briefly, fluorescent liposomes of several sizes (0.05, 0.2, and 1 µm) were prepared according to Asciolla et al., 2012. The liposomes were loaded onto the CL-2B gravity column and 100 µl fractions were collected, as described in steps B4-6 of this protocol. Identification of liposome-containing fractions for each liposome size allows to determine in which fractions vesicles of a given size should be expected.


3. Real-time MOMP measurements
   Real-time MOMP quantification is determined by measuring the mitochondrial membrane potential (ΔΨ_M) using the fluorescent JC-1 dye. The JC-1 dye exhibits potential-dependent accumulation in mitochondria, indicated by a fluorescence emission shift from green (~529 nm) to red (~590 nm). MOMP and the subsequent loss of ΔΨ_M are indicated by a decrease in the red/green fluorescence intensity ratio. There is a plethora of options to investigate a subset of inducers and regulators of MOMP in real-time. It is important to have internal and experimental controls. An example is given in Table 1. For the positive internal control, we use FCCP that uncouples the electron transport from oxidative phosphorylation in mitochondria and completely depolarizes the mitochondrial membrane.
   To generate a positive experimental control, we use detergent-activated recombinant BAX (Hsu and Youle, 1997). The detergent, β-octylglucoside (OG), artificially triggers BAX activation, and therefore BAX^OG (20-50 nM) can be used as a reliable positive control (for 100 µl of 2.3 µM BAX^OG: 5 µg BAX + 0.7% OG in liposome buffer, incubate for 60 min at 4 °C, aliquot and store at -80 °C).
   Real-time measurements
   1. Prepare a 2x proteins/inducers solution in TIB and dispense 50 µl in each well in a 96-well plate. The plate should contain the following internal and experimental controls (Figure 4; Table 1)
      1. Negative internal control: TIB only

      2. Positive internal control: FCCP (10 µM final concentration)

      3. Negative experimental control: purified recombinant BAX (20-50 nM final concentration)

      4. Positive experimental control: β-octylglucoside-activated BAX (BAX^OG, 20-50 nM final concentration)

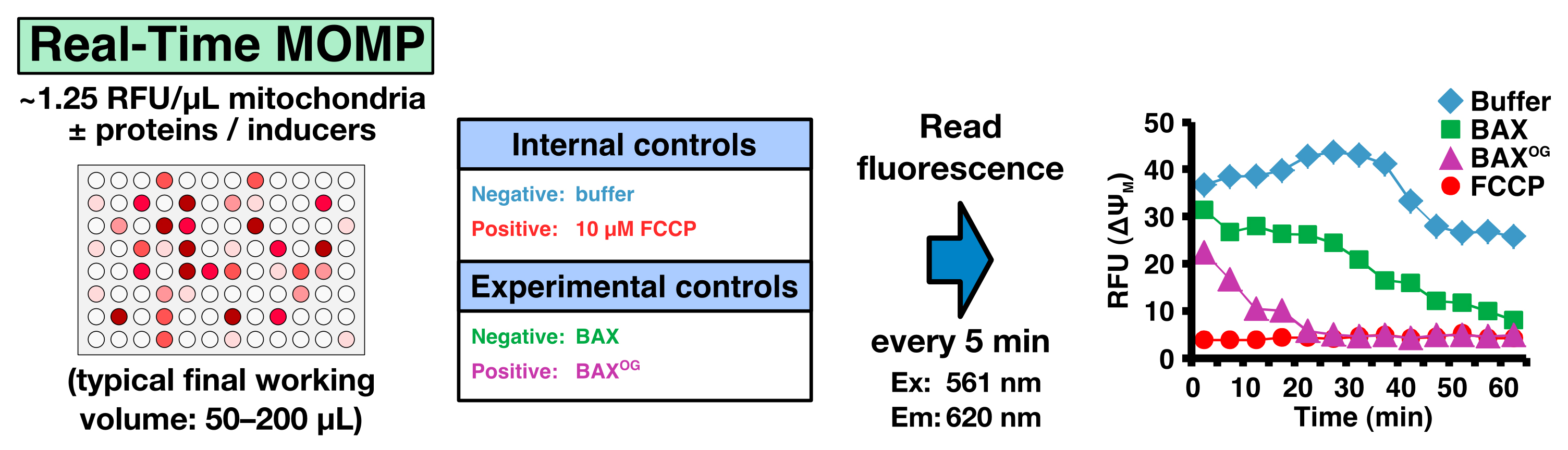

      Figure 4. Real-Time MOMP


   2. Prepare a 2x suspension of JC-1 loaded mitochondria (~2.5 RFU/μl) and add 50 μl to each well to reach a final concentration of 1.25 RFU/μl.
      Note: ~50-100 RFUs per reaction is ideal.

   3. Measure fluorescence every 5 min in a plate reader for 60 min (Ex: 561 nm/Em: 620 nm) at 37 °C.

   4. Calculate the percentage of mitochondria that have undergone MOMP using the following formula:
      % MOMP = (RFU_buffer − RFU_sample) / (RFU_buffer − RFU_FCCP)
      Where RFU_buffer and RFU_FCCP represent the fluorescence of the negative and positive internal controls, respectively, and RFU_sample the fluorescence of the sample (see Figure 4G-H as example in Renault et al., 2015).

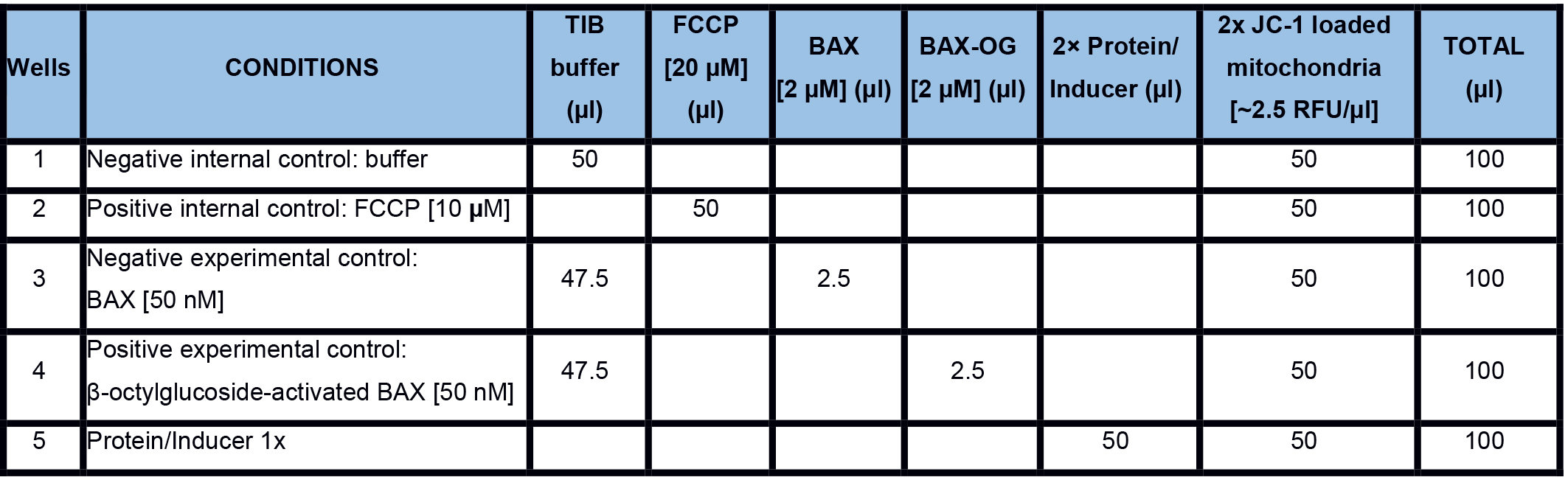

      Table 1. An example to measure MOMP in real-time with internal and experimental controls



Recipes

1. Trehalose isolation buffer (TIB)
   200 mM trehalose
   68 mM sucrose
   10 mM HEPES-KOH, pH 7.4
   10 mM KCl
   1 mM EDTA
   1 mM EGTA
   0.1% BSA
   Protease inhibitors cocktail (freshly added according to manufacturer's instructions)
   Note: TIB should be prepared using BSA-Fraction V to eliminate fatty acid and lipid contaminants that promote non-specific BAK/BAX activation.

2. JC-1 loading buffer
   200 μM stock solution is prepared in dimethylsulfoxide (DMSO) and diluted accordingly in TIB.

3. Liposome buffer
   0.2 mM EDTA
   10 mM HEPES-KOH, pH 7.4
   200 mM KCl
   5 mM MgCl₂
