Protocol for Microfluidic System to Automate the Preparation and Fractionation of the Nucleic Acids in the Cytoplasm Versus Nuclei of Single Cells

Materials and Reagents

1. Microfluidic chip fabrication
   Fabricate a microfluidic device (Figure 1) from polydimethylsiloxane (PDMS) (Dow Corning, Sylgard^® 184 Silicone Elastomer Kit) and glass slides by using soft lithography. The nominal channel width and depth of the microfluidic device are 90 μm and 35 μm, respectively. The basic design is similar to the microchannel used by Shintaku et al. (2014) except for a downstream branch channel. We have made available the CAD file for the device in the supporting information.

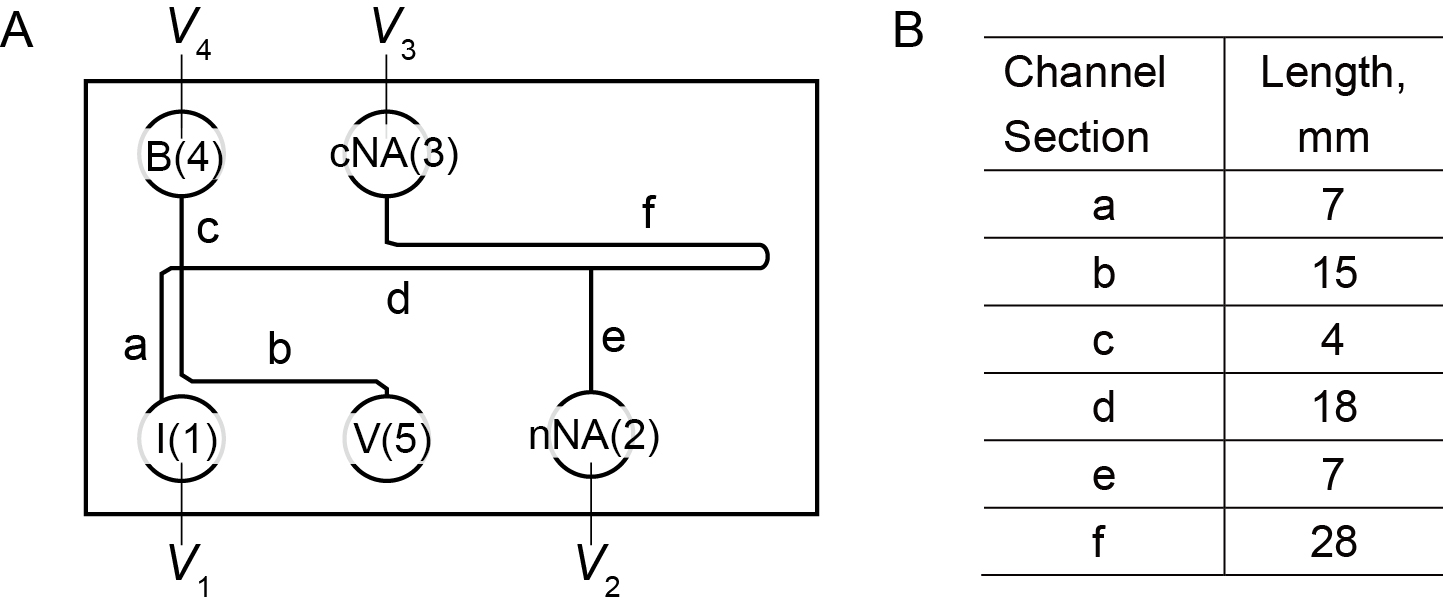

   Figure 1. Schematic of channel geometry. A. The letters (a to f) in the figure identify the various channel sections. Vi (for I = 1 to 5) refer to the voltages applied to platinum electrodes placed in respective reservoirs. The numbers also refer to the reservoirs, e.g., 1 = I, 2 = nNA, 3 = cNA, 4 = B, and 5 = V. B. The lengths of channel sections in the chip.


2. Reagents for extraction
   Prepare following solutions in UltraPure DNase-/RNase-free deionized (DI) water (Thermo Fisher Scientific, Invitrogen^TM, catalog number: 10977 ). Prepare buffer solutions under DNA/RNA free and DNase/RNase free environment (e.g., clean room conditions)

   1. Cells (A20, mouse B cell lymphoma)

   2. Sodium hydroxide (NaOH) (Sigma-Aldrich, catalog number: S8045 )

   3. Triton^TM X-100 (Sigma-Aldrich, catalog number: X100 )

   4. Tris (Sigma-Aldrich, catalog number: 93362 )

   5. Hydrochloric acid (HCl) (Sigma-Aldrich, catalog number: 258148 )

   6. Polyvinylpyrrolidone (PVP) (Sigma-Aldrich, catalog number: 437190 )

   7. HEPES (Sigma-Aldrich, catalog number: PHG0001 )

   8. Sucrose (Sigma-Aldrich, catalog number: S0389 )

   9. Leading electrolyte (LE) (see Recipes)

   10. Trailing electrolyte (TE) (see Recipes)

   11. Cell suspension buffer (see Recipes)


3. Reagents for RT-qPCR and qPCR
   The reagents described here are for an experiment similar to Kuriyama et al. (2015) wherein we performed quantitation of gDNA for the nucleus and cytoplasmic RNA for the cytoplasm. However, we note the general lysing, fractionation, and preparation protocol described here is well applicable to other studies (e.g., analysis of nuclear versus cytoplasmic fractions of RNA from single cells).
   1. TaqMan^® RT-PCR mix (2x)*

   2. TaqMan^® gene expression assay

   3. TaqMan^® RT enzyme mix (40x)*

   4. TaqMan^® RNA-to-CT^TM 1-step kit (Thermo Fisher Scientific, Applied Biosystems^TM, catalog number: 4392653 )

   5. Primer set (forward primer, reverse primer) (TaqMan^® probe)

   6. DI water

   7. RT-qPCR master mix for cytoplasmic RNA analysis for two reactions (see Recipes)

   8. qPCR master mix for gDNA analysis for one reaction (see Recipes)
      *Note: TaqMan^® RNA-to-CT^TM 1-step kit contains both reagents.

Equipment

1. Microscope
   A phase contrast microscope fitted with a CCD camera enables monitoring the lysing and cytoplasmic nucleic acid fraction focusing via isotachophoresis (ITP) [see on-line movies by Garcia-Schwarz et al. (2012) for a typical on-chip ITP experiment.]. It also helps monitor migration of nucleus and its fractionation from the cytoplasmic fraction in the ITP zone. Avoid using fluorescence-based visualization, e.g., intercalation dye, which may interfere specificity and stringency of downstream assay.

2. High voltage sequencer
   A voltage sequencer (e.g., LabSmith, Inc., model: HVS448-3000D) automates the lysis, extraction, and fractionation via ITP.
   Note: A current measurement helps monitor the ITP zone migration and fractionation of the nucleus.

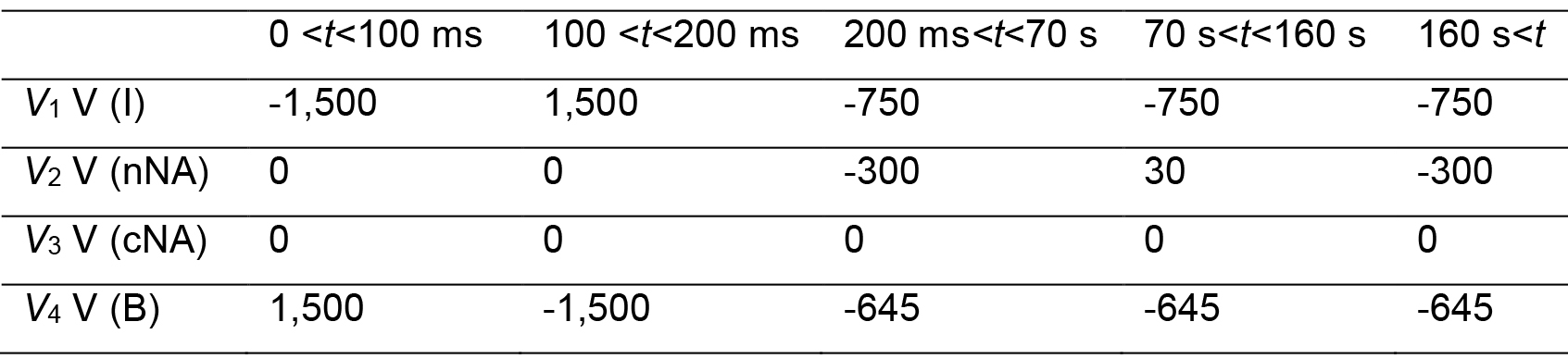

1. Send the voltage sequence to the voltage sequencer.




2. Connect the voltage outputs to platinum wire electrodes that will be placed to the reservoirs.


Procedure

1. Filling and preparation of microfluidic system
   Each experiment should start with a new microfluidic system to avoid contaminating the sample. The washing protocol further decontaminates the microfluidic system and the associated platinum wire electrodes. Precondition the microchannel by filling reservoirs cytoplasmic nucleic acids out (cNA), nuclear nucleic acids out (nNA), and vacuum (V) with washing solutions (see below) and applying vacuum at reservoirs input (I) and branch (B) using a Y-connection and a single vacuum line. The washing solutions and the process are as follows (Video 1):
   1. 1 M NaOH with 0.1% Triton X-100 for 1 min. Wash platinum wire electrodes by dipping them into the same solution.

   2. 1 M HCl with 0.1% Triton X-100 for 1 min. Wash platinum wire electrodes by dipping them into the same solution.

   3. Deionized water with 0.1% Triton X-100 for 1 min. Wash platinum wire electrodes by dipping them into the same solution.

   4. Dry the microchannel by applying vacuum to reservoirs I and V for 1 min.

   5. Load LE to reservoirs cNA, nNA and V, and apply vacuum to reservoirs I and B for approximately 1 min.



      Video 1. Filling and preparation of microfluidic system



2. Loading single cell and extraction (Video 2)
   The protocol described here ends up with 20 μl of cytoplasmic RNA sample. The protocol for 10 μl of cytoplasmic RNA sample is also available using the volumes in parentheses.
   1. Remove the residual solution from all the reservoirs and load 20 μl (10 μl) of LE to reservoirs cNA, nNA, and V, and 20 μl (10 μl) of TE to reservoir B.

   2. Load a 2 μl (1 μl) cell suspension (approximately 5 cells/μl) into reservoir I. Introduce individual cells from this low concentration solution by applying a vacuum to reservoir V.

   3. Visually confirm an isolated single cell in the section a of the channel, between reservoir I and the cross-junction, and add 20 μl (10 μl) of the TE buffer to reservoir I.

   4. Place platinum wire electrodes into reservoirs I, B, cNA, and nNA, and initiate the voltage sequence for lysis, extraction and fractionation.

   5. Extract a nucleus from DNA Out with a 1 μl micropipette and transfer to a PCR tube containing 19 μl of the qPCR master mix.

   6. Extract 20 μl (10 μl) of RNA sample from RNA Out and transfer to a PCR tube.

   7. Mix 9 μl of RNA sample with an 11 μl of the RT-qPCR master mix.

   8. Perform RT-qPCR and qPCR analysis with 20 μl of total assay volume.




      Video 2. Loading single cell and extraction



Recipes

1. Leading electrolyte (LE) (pH 8.1)
   50 mM Tris
   25 mM HCl
   0.4% PVP

2. Trailing electrolyte (TE) (pH 8.3)
   50 mM Tris
   25 mM HEPES
   0.4% PVP

3. Cell suspension buffer (pH 8.3)
   50 mM Tris
   25 mM HEPES
   225 mM sucrose
   ~5 cells/μl cells

4. RT-qPCR master mix for cytoplasmic RNA analysis for two reactions
   20.0 μl TaqMan^® RT-PCR mix (2x)^*
   2.0 μl TaqMan^® gene expression assay
   1.0 μl TaqMan^® RT enzyme mix (40x)^{*
   *}Note: TaqMan^® RNA-to-CT^TM 1-step kit contains both reagents.

5. qPCR master mix for gDNA analysis for one reaction
   10.0 μl TaqMan^® RT-PCR mix (2x)
   1.0 μl primer set (forward primer, reverse primer, and TaqMan^® probe)^*
   8.0 μl DI water
   ^*Note: Off-the-shelf primer sets can be available from TaqMan^® copy number assays.

Acknowledgments

We gratefully acknowledge funding from the National Science Foundation under CBET-1159092. H. S. acknowledges funding from Japan Society for the Promotion of Science under 22686021, 26289035, and 26630052. H. S. was supported by fellowships from the John Mung Program of Kyoto University and Marubun Research Promotion Foundation, Japan.

References

1. Garcia-Schwarz, G., Rogacs, A., Bahga, S. S. and Santiago, J. G. (2012). On-chip isotachophoresis for separation of ions and purification of nucleic acids. J Vis Exp (61): e3890.

2. Kuriyama, K., Shintaku, H. and Santiago, J. G. (2015). Isotachophoresis for fractionation and recovery of cytoplasmic RNA and nucleus from single cells. Electrophoresis 36(14): 1658-1662.

3. Shintaku, H., Nishikii, H., Marshall, L. A., Kotera, H. and Santiago, J. G. (2014). On-chip separation and analysis of RNA and DNA from single cells. Anal Chem 86(4): 1953-1957.
