Alcian Blue – Alizarin Red Staining of Mouse Skeleton

Materials and Reagents

1. Neural buffered formalin (Sigma-Aldrich, catalog number: HT5014 )

2. Alcian blue 8GX (Sigma-Aldrich, catalog number: A5268 )

3. Trypsin (Sigma-Aldrich, catalog number: T1426 )

4. Saturated sodium borate (Sigma-Aldrich, catalog number: S9640 )

5. Alizarin red (Sigma-Aldrich, catalog number: A3882 )

6. Thymol (EM Life Science, catalog number: TX0615-1 )

7. Ethanol

8. Glacial acetic acid

9. Potassium hydroxide

10. Glycerol

11. KOH

12. Trypsin solution (see Recipes)


Equipment

1. Conical tube

Procedure

1. Adults:
   1. Fix mouse skeleton in 10% neutral buffered formalin for at least 24 h.

   2. Rinse the sample in ddH₂O O/N (1 h for embryos) with gentle shaking, and post-fix it in 70% ethanol.
      Note: At this point, samples can be stored in 70% ethanol for a long period.

   3. Remove skins and internal organs carefully from the sample.
      Note: Remove all skins, even those on the small toes.

   4. Stain the sample with 0.02% Alcian blue 8GX (prepared in ethanol/ glacial acetic acid, 7:3) for 1 to 2 days.
      Note: Cartilage tissues will be stained blue.

   5. Wash the sample with plain ethanol/ glacial acetic acid (7:3) for 1 h.

   6. Soak the sample in 100% ethanol O/N, and then in ddH₂O for 1 to 2 days.

   7. Treat the sample with 1.0% trypsin (prepared in water solution containing 30% saturated sodium borate) O/N.

   8. Should limp and blue cartilage be readily observed at this point, proceed to stain the sample with Alizarin red (prepared in 0.5% KOH) O/N.
      Note: Add enough (no specific amount) saturated Alizarin red until the solution appears dark purple. Mineralized bones will be stained red.

   9. Treat the sample with a gradient series of 0.5% KOH/ glycerol (i.e., 2:1, 1:1, 1:2 and 100% glycerol, 2 days for each step), and store it in glycerol with a crystal of thymol.



2. Embryos:
   1. A similar protocol can be used to stain embryos. To do this, fix embryos in 90% ethanol for at least 1 week.

   2. Treat the sample with 0.01% Alcian blue 8GX for 3 days, and then perform rehydration through a gradient series of ethanol (70% ethanol, 2 to 3 h, twice; 40% ethanol, 2 to 3 h; 15% ethanol, 2 to 3 h; ddH₂O, until the sample sinks to the bottom of a conical tube). Treat the sample further with fresh 1% KOH for 1 to 2 days until it becomes clear.

   3. Treat the sample with 0.001% Alizarin red for 2 to 3 days until the bone becomes purple.

   4. Rinse the sample ~ 3 times in 1% KOH, several hours each time.

   5. Treat the sample through a gradient series of glycerol-KOH (20% glycerol/ 1% KOH, 24 h; 50% glycerol/ 1% KOH, 24 h; 80% glycerol/ 1% KOH, 24 h; 100% glycerol, 24 h x 2).


Representative data

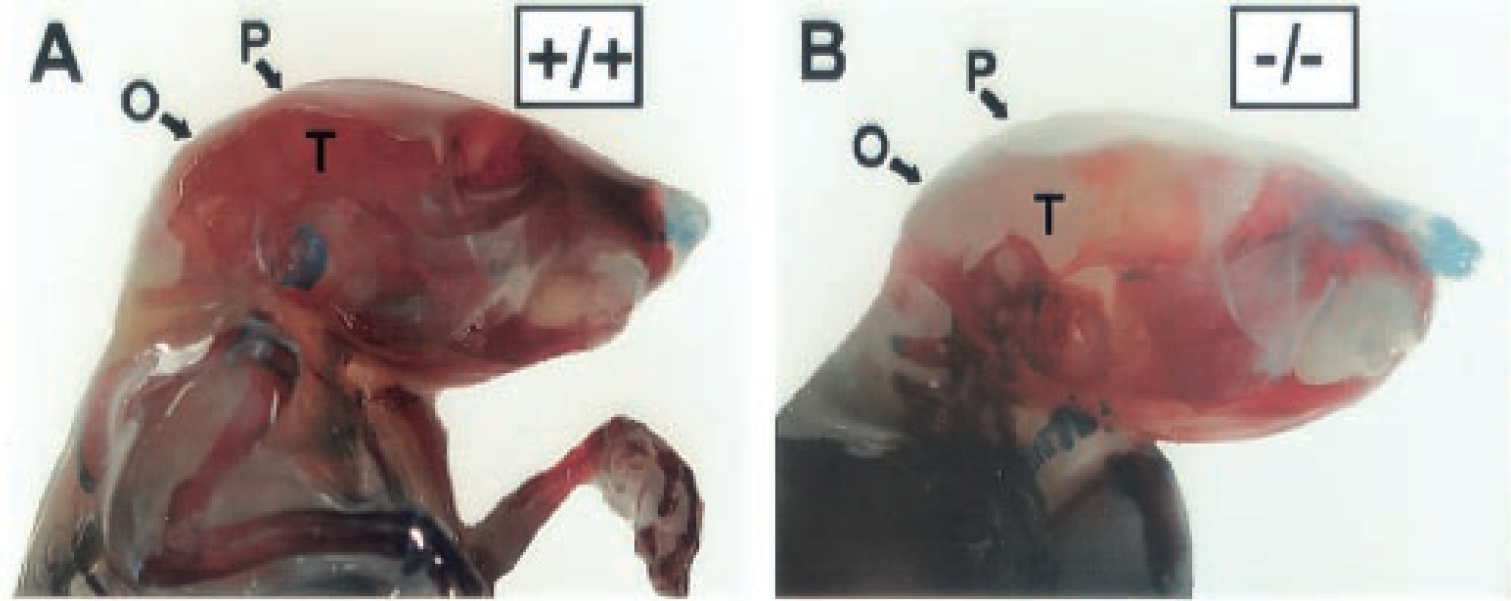

Figure 1. This figure is adapted from the original (Zhang et al., 2002). Shown here is Alizarin Red (mineralized bone) and Alcian Blue (cartilage) skeletal staining of 18-day-old wild-type A and Perk^-/- mutant mice B. The mineralization of the flat bones of the skull (P, parietal; O, occipital; T, temporal) is greatly reduced in the Perk^-/- mutant mouse.

Recipes

1. Trypsin solution
   1.0% trypsin
   30% saturated sodium borate
   H₂O


Acknowledgments

This protocol was adapted from previously described work by Hanken and Wassersug (Hanken and Wassersug, 1981). PZ was supported by a research assistantship in the Cavener lab at the Pennsylvania State University. This work was supported by an NIH R01 grant awarded to DC.
