Intracellular Cytokine Staining on PBMCs Using CyTOF^TM Mass Cytometry

Materials and Reagents

1. PBMC (fresh or thawed frozen)

2. RPMI-1640 (Hyclone, catalog number: SH30027.01 )

3. FBS (Atlanta Biologicals, catalog number: S11150 )

4. Pen-strep-Glutamin 100X (Hyclone, catalog number: SV30082.01 )

5. Benzonase (2.5 x 10⁵ U/ml) (Pierce, catalog number: 88701 )

6. Brefeldin A (Sigma-Aldrich, catalog number: B7651 )

7. Monensin (Sigma-Aldrich, catalog number: M5273 )

8. 0.5 M EDTA (Hoefer, catalog number: GR-123-100 )

9. Sodium azide (10% w/v solution) (Teknova, catalog number: S0209 )

10. 16% para-formaldehyde (PFA) (Alfa Aesar, catalog number: 43368 ))

11. 10x PBS (ROCKLAND, catalog number: MB-008 )

12. BSA (Sigma-Aldrich, catalog number: A7284 )

13. Maleimide-DOTA (Macrocyclics, catalog number: B-272 )

14. Lanthanum (III) chloride heptahydrate (Sigma-Aldrich, catalog number: 203521 )

15. Indium (III) chloride (Sigma-Aldrich, catalog number: 203440 )

16. MilliQ water
    Note: Beakers or bottles used here are not washed with soap due to barium content of most commercial soaps.

17. Phenotyping antibodies (filtered with 0.1 µm spin filters) (Millipore, catalog number: UFC30VV00 )

18. Ir-intercalator stock solution (Fluidigm, catalog number: 201192 )
    Note: Rh103-intercalator can be used.

19. 10x saponin-based permeabilization buffer (eBioscience, catalog number: 00 8333-56 )

20. Phorbol 12-myristate 13-acetate (PMA) (Sigma-Aldrich, catalog number: P8139 )

21. Ionomycine (Sigma-Aldrich, catalog number: I0634 )

22. Phytohemagglutinin (PHA) (Sigma-Aldrich, catalog number: 61764 )

23. SEB (Sigma-Aldrich, catalog number: S0812 )

24. Anti-CD3/CD28 (various vendors)

25. Peptide mixes (JPT)

26. Complete RPMI (see Recipes)

27. CyPBS (see Recipes)

28. CyFACS buffer (see Recipes)

29. Live-dead stain (see Recipes)


Equipment

1. 96- well round-bottom plates

2. 37 °C water bath

3. Biosafety cabinet

4. Centrifuge

5. CO₂ incubator at 37 °C

6. Calibrated pipettes


Procedure

1. Thaw PBMC

   1. Warm complete RPMI media to 37 °C in water bath. Each sample will require 22 ml of media with benzonase. Calculate the amount needed to thaw all samples, and prepare a separate aliquot of warm media with 1:10,000 benzonase (final concentration 25 U/ml). Benzonase is added into the media to prevent dead cell aggregation. Thaw no more than 3 samples at a time. Run one control PBMC with each batch of samples.

   2. Remove samples from liquid nitrogen and transport to lab on dry ice.

   3. Place 10 ml of warmed benzonase media into a 15 ml tube, making a separate tube for each sample.

   4. Thaw frozen vials in 37 °C water bath.

   5. When cells are nearly completely thawed, carry to hood.

   6. Add 1 ml of warm benzonase media from appropriately labeled centrifuge tube slowly to the cells, then transfer the cells to the centrifuge tube. Rinse vial with more media from centrifuge tube to retrieve all cells.

   7. Continue with the rest of the samples as quickly as possible.

   8. Centrifuge cells at 1,550 rpm (RCF = 473) for 8 min at room temperature.

   9. Remove supernatant from the cells and resuspend the pellet by tapping the tube.

   10. Gently resuspend the pellet in 1 ml warmed benzonase media. Filter cells through a 70 micron cell strainer if needed. Add 9 ml more warmed benzonase media to the tube.

   11. Centrifuge cells at 1,550 rpm (RCF = 473) for 8 min at room temperature. Remove supernatant from the cells and resuspend the pellet by tapping the tube.

   12. Resuspend cells in 1 ml warm media.

   13. Count cells with Vicell (or hemocytometer if necessary). To count, take 20 μl cells and dilute with 480 μl PBS in Vicell counting chamber. Load onto Vicell as PBMC with a 1:25 dilution factor.

   14. Adjust the cell concentration to 5-10 x 10⁶ cells/ml with warm media (no more benzonase at this point).

   15. Using a multichannel pipette, add 200 µl cells (for at least 1 x 10⁶ cells) into each well of a 96-well deep well plate. Split each sample equally into two or more wells keeping one as an unstimulated control and the others for different types of stimulation.

   16. Rest overnight (6-18 h) at 37 °C in CO₂ incubator.



2. Stimulate cells

   1. After overnight rest at 37 °C, add the activation reagents and secretion inhibitor (brefeldin A/monensin) to the well for stimulation. Add only the secretion inhibitor to the unstimulated control well. If doing CD107a staining, add CD107a antibody during the stimulation.

      Table 1. Protein secretion inhibitors


      Reagent	Stock concentration	Intermediate dilution	Final concentration
      Brefeldin A	5 mg/ml in DMSO (stored in aliquots at -20 °C)	1:10 in PBS	10 μg/ml (1:50) or 5 μg/ml (1:100) with monensin
      Monensin	5 mg/ml in ethanol (stored at -20 °C)	1:10 in PBS	10 μg/ml (1:50) or 5 μg/ml (1:100) with brefeldinA


      Table 2. Activators


      Reagent	Stock concentration	Intermediate dilution	Final concentration
      Phorbol 12-myristate 13-acetate (PMA)	1 mg/ml in DMSO (stored in aliquots at -20 °C)	1:1,000 in PBS	10 ng/ml
      Ionomycine	1 mg/ml in DMSO (stored in aliquots at -20 °C)	1: 10 in PBS	1 µg/ml
      Phytohemagglutinin (PHA)	1 mg/ml in DMSO (stored at 4 °C)	1:10 in PBS	1 µg/ml
      SEB	50 μg/ml in PBS	None	1 μg/ml (1:50)
      Anti-CD3/CD28	Follow manufacturer instruction	-	-
      Peptide mixes	0.5-1 mg/ml/pep in DMSO (stored in aliquots at -20 °C)	1:10 in PBS	1 μg/ml/peptide (1:50 - 1:100)


      Notes:

      1. It is important to avoid solvent toxicity. Final DMSO+ethanol concentration from all sources (peptides, brefeldin A, monensin) should not exceed 0.5%.

      2. For most cytokines: Use brefeldin A at 10 μg/ml final concentration (see stock preparation table). For CD107 and CD154: Use monensin at 10 μg/ml final concentration (see stock preparation table). For assays combining cytokines and CD107 or CD154: Use brefeldin A and monensin at 5 μg/ml final concentration each.

      3. Metal-labeled CD107 and CD154 can be added into the culture during the stimulation at a concentration of 2 μg/ml. This allows for staining of target molecules that are re-internalized by cells during the activation process.

      4. Addition of costimulatory antibodies is optional. Add 1 μg/ml final concentration of CD28 and/or CD49d (labeled antibody can be used if analysis of the marker is desired).
   2. Incubate the cells for 4 h (PMA + ionomycin stimulation, PHA + ionomycin stimulation) or 6-8 h (SEB, anti-CD3/CD28 stimulation, peptide stimulation) at 37 °C, in a CO₂ incubator.
      Note: For most cytokines 6-12 h incubation at 37 °C is sufficient; For IL-10 optimal incubatation time is 12-24 h, but it is possible to detect in 6 h.

   3. At the end of stimulation, add EDTA to a final concentration of 2 mM and incubate for 15 min at room temperature.


3. Staining

   1. Wash 2x with 250 µl CyFACS buffer per well 1,550 rpm (RCF = 473), 10 min at room temperature. The same volume and centrifuge conditions are used in additional wash steps before fixation with PFA (step C6).

   2. Make surface Ab cocktail in CyFACS buffer (filter with 0.1 µm spin filter) 100 µl per reaction. Incubate on ice for 45 min. Use vendor’s recommended concentration (or optimal titer as determined for self-made conjugates) for each antibody.

   3. Wash 2x in CyFACS buffer.

   4. Resuspend cells in 100 µl of 1:3,000 diluted 5 mg/ml 115-DOTA maleimide (titrated if new stock) in CyPBS, Incubate 30 min on ice.

   5. Wash 3x in CyFACS buffer.

   6. Resuspend in 100 µl of 2% PFA in CyPBS, Incubate 4 °C overnight.

   7. Wash 2x in 1x eBioscience perm buffer (1x in milliQ water), 2,000 rpm (RCF = 787), 10 min at 4 °C. The same volume and centrifuge conditions are used in the following wash steps.

   8. Make intracellular staining cocktail in 1x perm buffer and filter with 0.1 µm spin filter, 100 µl per reaction. Incubate on ice for 45 min.

   9. Wash 3x in CyFACS buffer.

   10. Resuspend in 100 µl 1: 2,000 Ir-Interchelator diluted in 2% PFA (in CyPBS).

   11. Incubate 20 min at room temp.

   12. Wash 2x in CyFACS buffer.

   13. Wash 3x in MilliQ water.

   14. Resuspend in MilliQ water (1 to 1.5 ml) for running on CyTOF.


Representative data

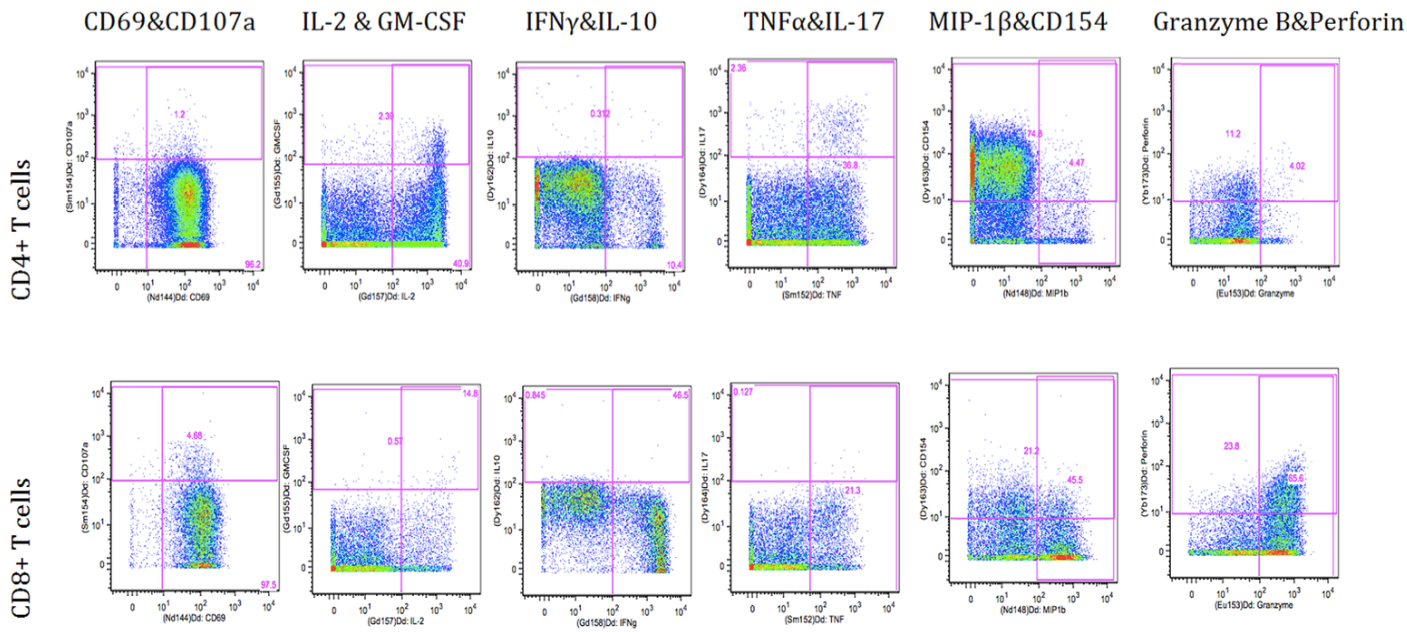

Figure 1. Flowjo gating of intracelluar markers upon PMA/Ionomycin stimulation

Recipes

1. Complete RPMI
   RPMI1640
   10% FBS
   1x pen-strep -Glutamine

2. CyPBS
   1x PBS without heavy metal contaminants, such as 10x PBS
   Made in MilliQ water

3. CyFACS buffer
   1x CyPBS with 0.1% BSA
   2 mM EDTA and 0.05% sodium azide
   Made in MilliQ water
   Note: Do not use FBS!

4. Live-dead stain
   5 mg/ml maleimide-DOTA loaded with 139-Lanthanum* or 115-Indium*
   (*Natural-abundance metal chloride salt used; >95% specified isotope; trace-metal pure 99.99%)


Acknowledgments

This work was supported by grants # S10RR027582 and 5U19AI057229 from the National Institutes of Health. We thank Evan Newell and Mark Davis for help in the initial protocol development.

References

1. Newell, E. W., Sigal, N., Bendall, S. C., Nolan, G. P. and Davis, M. M. (2012). Cytometry by time-of-flight shows combinatorial cytokine expression and virus-specific cell niches within a continuum of CD8⁺ T cell phenotypes. Immunity 36(1): 142-152.

2. Bendall, S. C., Simonds, E. F., Qiu, P., Amir el, A. D., Krutzik, P. O., Finck, R., Bruggner, R. V., Melamed, R., Trejo, A., Ornatsky, O. I., Balderas, R. S., Plevritis, S. K., Sachs, K., Pe'er, D., Tanner, S. D. and Nolan, G. P. (2011). Single-cell mass cytometry of differential immune and drug responses across a human hematopoietic continuum. Science 332(6030): 687-696.

3. Maecker, H. T. (2009). Multiparameter flow cytometry monitoring of T cell responses. Methods Mol Biol 485: 375-391.
