DNA Immunization Using in vivo Electroporation for Generating Monoclonal Antibodies Against Mouse IL-9R

How to cite Favorites Q&A Share your feedback Cited by

In this protocol

Original research article

A brief version of this protocol appeared in:
Nature Immunology
Sep 2018



Abstract

Membrane proteins such as cytokine receptors and G protein-coupled receptors can be drug targets. Recently, we have generated specific monoclonal antibodies (mAbs) against the mouse IL-9 receptor (IL-9R) and found that IL-9R on memory B cells have critical roles in T-dependent immune response. So far, most antibodies against cell surface proteins have been generated by immunization of animals with recombinant proteins produced in Escherichia coli (E. coli) or peptides derived from the protein. However, such antibodies often fail to recognize native proteins on cell surfaces because these antigens lack posttranslational modification and natural protein conformations. To circumvent such problems, we have developed a mouse immunization method, the DNA-immunization utilizing hyaluronidase and E. coli GroEL. Herein, we report an application of the original mouse immunization method in rats to generate anti-mouse IL-9R mAbs which could react with the native form of mouse IL-9R on cell surfaces. Thus, we suggest that the DNA-immunization method is feasible for generating monoclonal antibodies against cell surface proteins in rats.

Keywords: IL-9 receptor, Monoclonal antibodies, In vivo electroporation, GroEL, Hyaluronidase

Background

Membrane proteins such as cytokine receptors and G protein-coupled receptors have been regarded as medicinal drug targets, and generation of antibodies reactive with the native form of such membrane proteins would lead to antibody-drug development. However, most antibodies generated so far by immunization with a recombinant protein produced in Escherichia coli react only with the immunizing recombinant proteins, but not with the native proteins on cell surfaces. The same problems have often been experienced with immunization with peptides as antigens. In order to generate mAbs which could recognize the native proteins, we have developed the original DNA-immunization method in which plasmid DNA is directly transferred into mouse skeletal muscle in vivo utilizing Escherichia coli (E. coli) GroEL (Fujimoto et al., 2009; Takatsuka et al., 2011) and hyaluronidase. E. coli GroEL, is a molecular chaperone that is responsible for the transportation and refolding of proteins and GroEL fusion proteins are highly expressed in the soluble fraction (Furutani et al., 2005). Further, E. coli GroEL also acts as an adjuvant via TLR4 (Fujimoto et al., 2012). Pre-treatment with hyaluronidase enhances gene expression by prevention of tissue damage (McMahon et al., 2001). Furthermore, low molecular weight hyaluronan produced by hyaluronidase in vivo provides adjuvant effects via TLR2 and TLR4 (Scheibner et al., 2006, Gariboldi et al., 2008). The striated muscle is an excellent tissue for taking up and expressing genes that are transferred in the form of plasmid DNA (Wolff et al., 1990 and 1992, Davis et al., 1993; Ulmer et al., 1993; Aihara and Miyazaki, 1998). The longevity of myofibers allows the stable expression of transfected exogenous genes. Once induced, the expression of the transduced gene can last for at least 70 days thereafter (Wolff et al., 1990 and 1992; Davis et al., 1993; Ulmer et al., 1993; Yamazaki et al., 2011) and the expressed antigens are continuously exposed to the host immune system.

In the present paper, we report an application of the mouse DNA-immunization method in rats in order to generate anti-mouse IL-9R mAbs. IL-9 receptor (IL-9R) is composed of the IL-9Rα and common γ chains and is expressed on mast cells, basophils, ILC2 cells and others (Renauld et al., 1992, Bauer et al., 1998; Noelle and Nowak, 2010; Wilhelm et al., 2011; Licona-Limón et al., 2013). IL-9 is produced by various immune cells, such as activated T cells (exemplified by TH9 cells), mast cells, eosinophils, and type 2 innate lymphoid cells (ILC2 cells), and induces various functions depending on the target-cell types expressing its receptor (IL-9R) (Gounni et al., 2000; Stassen et al., 2000; Noelle and Nowak, 2010; Wilhelm et al., 2011; Licona-Limón et al., 2013). Thus, IL-9/IL-9R signaling is mainly involved in immune responses such as allergic inflammations. We successfully generated four rat-mouse hybridomas producing mAbs that react with the native form of mouse IL-9R on cell surfaces. Using these mAbs, we found that IL-9R is selectively expressed on memory B cells among B-lineage cells in the T-cell-dependent immune response. We also found that IL-9R is induced on B cells by stimulation through CD40, but suppressed by IL-4 or IL-21, which may explain the minimum expression of IL-9R on germinal center B cells (Takatsuka et al., 2018). Thus, rat mAbs generated by the DNA-immunization method turned out to be quite reliable tools in staining cell surface proteins, and this method can be extended to immunization for various cell surface antigens against which specific mAbs are yet to be obtained.

Materials and Reagents

  1. Absorbent cotton
  2. 1 ml syringes (Terumo, catalog number: SS-01T)
  3. 26 G needles (Terumo, catalog number: NN-2613S)
  4. Micro slide glass (Matsunami, catalog number: S-2226)
  5. Cell strainer (Thermo, catalog number: 08-771-2)
  6. Cell lines
    1. B300-19 cells
      IL-9R/B300-19 and EV/B300-19 cells: B300-19 cells (a mouse pre-B cell line), transduced with a retroviral vector containing Il9r cDNA (pMXs-IL9R-IRES-hNGFR) or an empty vector (EV; pMXs-IRES-hNGFR). The B300-19 cell line was provided by Dr. Takashi Nakayama. The retroviral vectors and B300-19 transfectants generated by us will be available upon request.
    2. Plat-E cells
      The Plat-E cell line and an original pMXs vector were provided by Dr. Toshio Kitamura.
  7. Lew/SSN rats (Female Lew/SSN rats were purchased from Sankyo Lab Service. Rats were immunized at 4 weeks of age)
  8. Depilatory cream (general commercialized product)
  9. Sodium pentobarbital (Kyoritsu Seiyaku, Somnopentyl Injection)
  10. QIAGEN Plasmid Giga Kit (QIAGEN, catalog number: 12191)
  11. Fugene HD (Promega, catalog number: E2311)
  12. FITC-conjugated secondary antibodies [FITC-conjugated goat anti-rat IgG (H+L)] (SouthernBiotech, catalog number: 3050)
  13. FITC-anti-IgG1 (BD Bioscience, catalog number: 562580)
  14. PE-anti-CD138 (Biolegend, catalog number: 142503)
  15. PE-anti-IgM (Thermo, catalog number: 12-5790-81)
  16. PE-anti-IgD (Biolegend, catalog number: 405705)
  17. PerCP/Cy5.5-anti-T and -B Cell activation antigen clone GL-7 (Biolegend, catalog number: 144609)
  18. PE/Cy7-anti-CD38 (Thermo, catalog number: 25-0381-80)
  19. APC/Cy7-anti-B220 (Biolegend, catalog number: 103223)
  20. Biotin-NP14-BSA (in house)
  21. Brilliant Violet 421 Streptavidin (Biolegend, catalog number: 405226)
  22. MEM medium (Thermo, catalog number: 11095080)
  23. Hyaluronidase (Sigma, catalog number: H3631-30KU)
  24. 70% (v/v) Ethanol
  25. Phosphate buffered saline (pH 7.4)
  26. Tris
  27. EDTA
  28. Sodium azide
  29. Hyaluronidase solution (see Recipes)
  30. Tris-EDTA buffer (see Recipes)
  31. FACS Buffer (see Recipes)
  32. Plasmid DNA solution (see Recipes)

Equipment

  1. Electroporator (BTX, Electro Square Porator ECM830, Figure 1A)
  2. Copper cables with IC hook (Toyoshima, made-to-order or general commercialized product, length: more than one meter, Figure 1A-1B)
  3. 26 G two-stage needle (Toyoshima, made-to-order, Figure 1C-1D)
  4. Gamma irradiation device (Atomic Energy of Canada Limited, Gammacell 40)
  5. BD FACS Calibur
  6. BD FACS CantoII


    Figure 1. Details of the experimental equipment for DNA immunization. A. Electroporator. B. Electrodes and copper cables with IC hook. C. 1 ml syringe with a 26 G two-stage needle. D. 26 G two-stage needle.

Software

  1. FlowJo (Tree Star, https://www.flowjo.com)

Procedure

  1. Prepare and set up the electroporator (Figure 1A):
    Voltage: 100 V
    Pulse length: 50 ms
    Pulse number: 6 (1 s interval)
    Periodicity: 1 kHz.
  2. Anesthetize rat with 24-36 mg/kg sodium pentobarbital. (Duration time: 30-60 min)
  3. Depilate hindlimbs with depilatory cream (cream should stay for about 3 min) (Figure 2A).
  4. Sterilize hindlimbs using absorbent cotton impregnated with 70% (v/v) ethanol.
  5. Inject 50 μl of hyaluronidase solution into the quadriceps muscle using a 1 ml syringe with a 26 G two-stage needle (Figure 2B).
  6. Leave to stand for 10 min.
  7. Stab electrodes into the quadriceps muscle (Figures 1B and 2C).
  8. Inject 30 μl of plasmid DNA solution into the same place where hyaluronidase solution pretreatment was done (Figure 2D).
  9. Pulse by electroporator (100 V, 50 ms pulse length, 1 kHz, 6 times with each 1 s interval).
  10. Repeat the same operation (Steps 3-9) to the other hindlimb (Figure 2A-2D).
    Note: The required time of operation (Steps 3-10) is about 20 min.

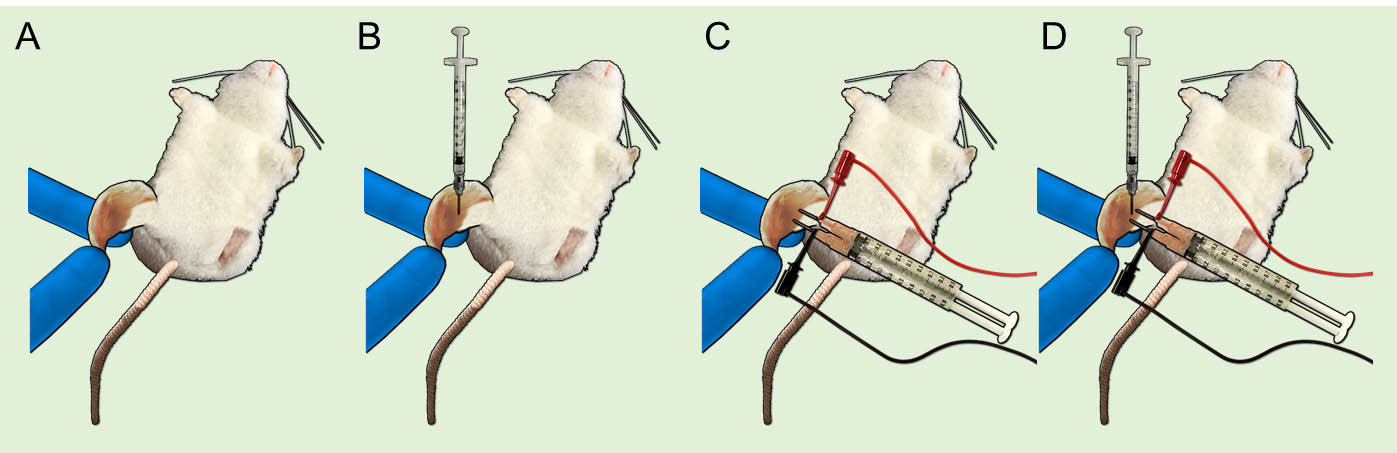

    Figure 2. Experimental procedure of DNA immunization using in vivo electroporation. A. Depilate hindlimbs. B. Inject hyaluronidase solution into quadriceps muscle and leave to stand for 10 min. C. Stab the electrodes into the quadriceps muscle. D. Inject plasmid DNA solution into the same place where hyaluronidase solution pretreatment was done. Subsequently, pulse by electroporator. Repeat the same operation (A-D) to the other hindlimb.

  11. Repeat the same DNA-immunization protocol 1, 3, 4, 7 and 9 weeks after the primary immunization, respectively (Figure 3).

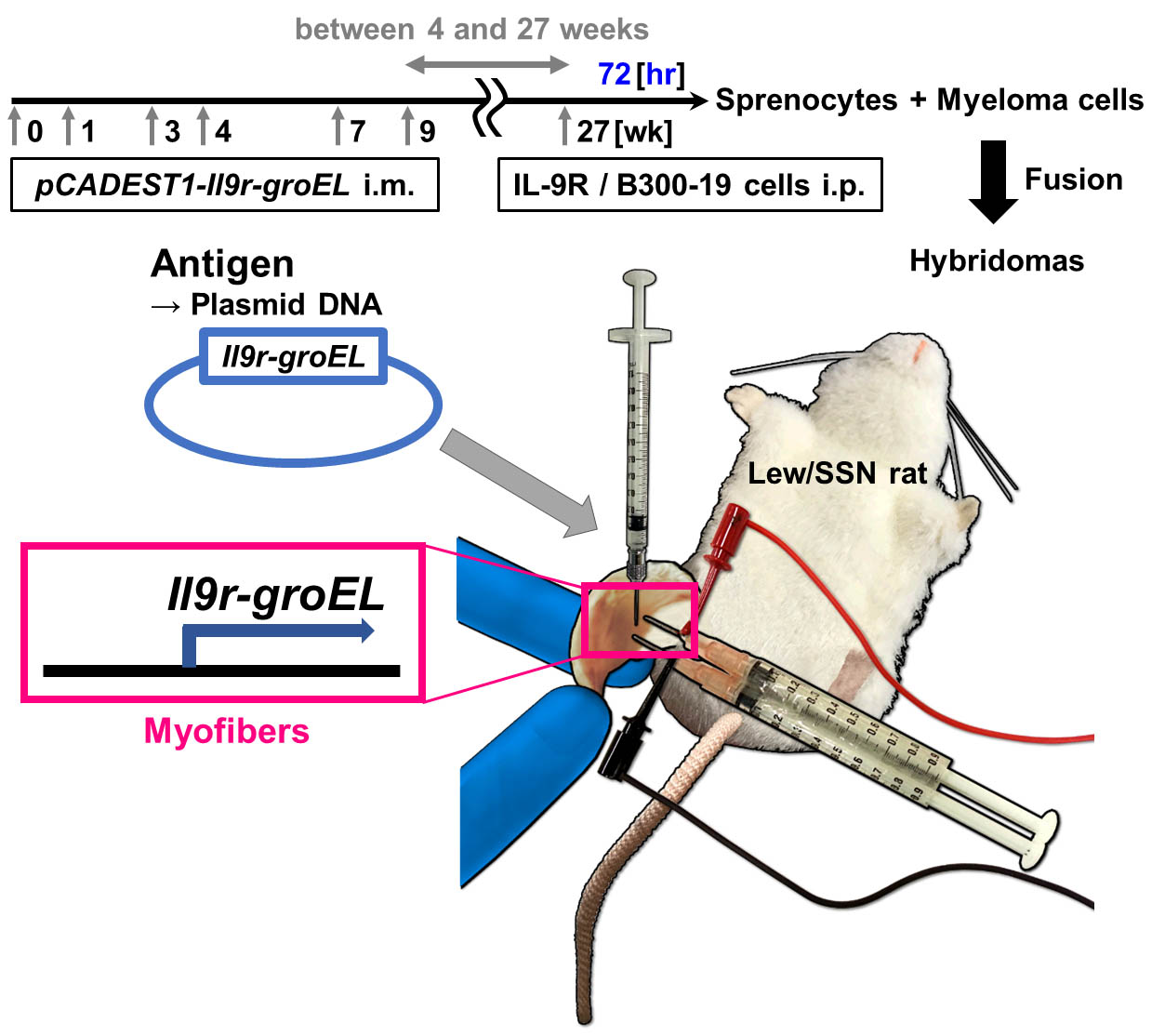

    Figure 3. Overview of DNA immunization using rats. Scheme of DNA immunization using in vivo electroporation.

  12. Irradiate (30 Gy) 1 x 109 IL-9R/B300-19 cells in PBS (preferably on ice) using Gamma irradiation device.
  13. Transfer 1 x 109 irradiated IL-9R/B300-19 cells intraperitoneally 4-27 weeks after the final immunization.
  14. Six or eleven weeks after the primary immunization, check sera of the immunized rats for anti-IL-9R IgG by flow cytometry using IL-9R/B300-19 cells. Detection with sera diluted by 1:104 or more is desirable (Figure 4A).
  15. In order to generate hybridomas that produce monoclonal antibodies, collect splenocytes from the immunized rats 3 days after the cell transfer, and fuse them with mouse myeloma cell line (e.g., SP2/0) by a conventional method (e.g., Köhler and Milstein, 1975).
  16. Screen the hybridomas for secretion of IgG Ab that stains IL-9R/B300-19 cells (and does not stain EV/B300-19 cells) using flow cytometry (Figure 4B).

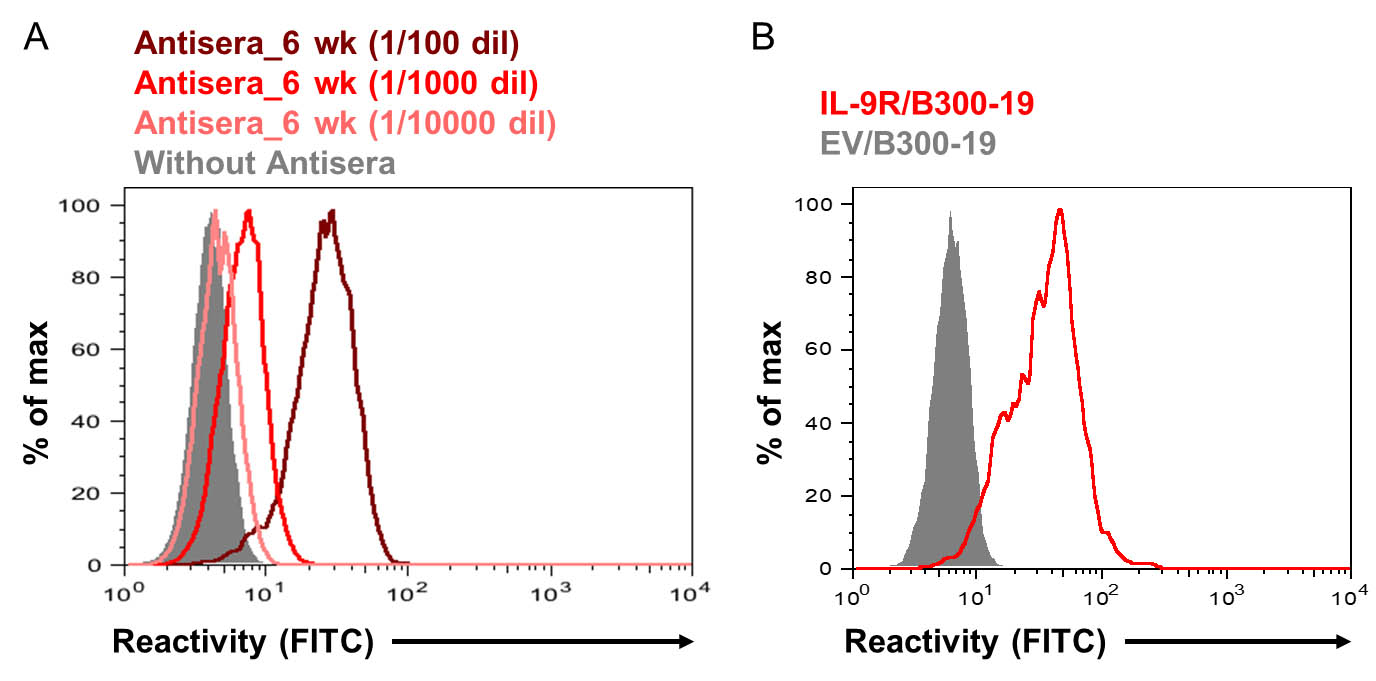

    Figure 4. Titration of antisera and hybridoma screening. A. Titration of anti-IL9R antisera using flow cytometry. IL-9R/B300-19 cells were stained with sera, diluted (dil) as indicated, of a rat, immunized 6 weeks previously. B. An example of flow cytometric analysis in hybridoma screening. IL-9R/B300-19 or EV/B300-19 cells were stained with hybridoma supernatant. (A-B) Bound IgGs were revealed with FITC-conjugated anti-rat IgG Ab.

  17. Stain the cells expressing IL-9R utilizing anti-mouse IL-9R (e.g., Figure 5) (Takatsuka et al., 2018).

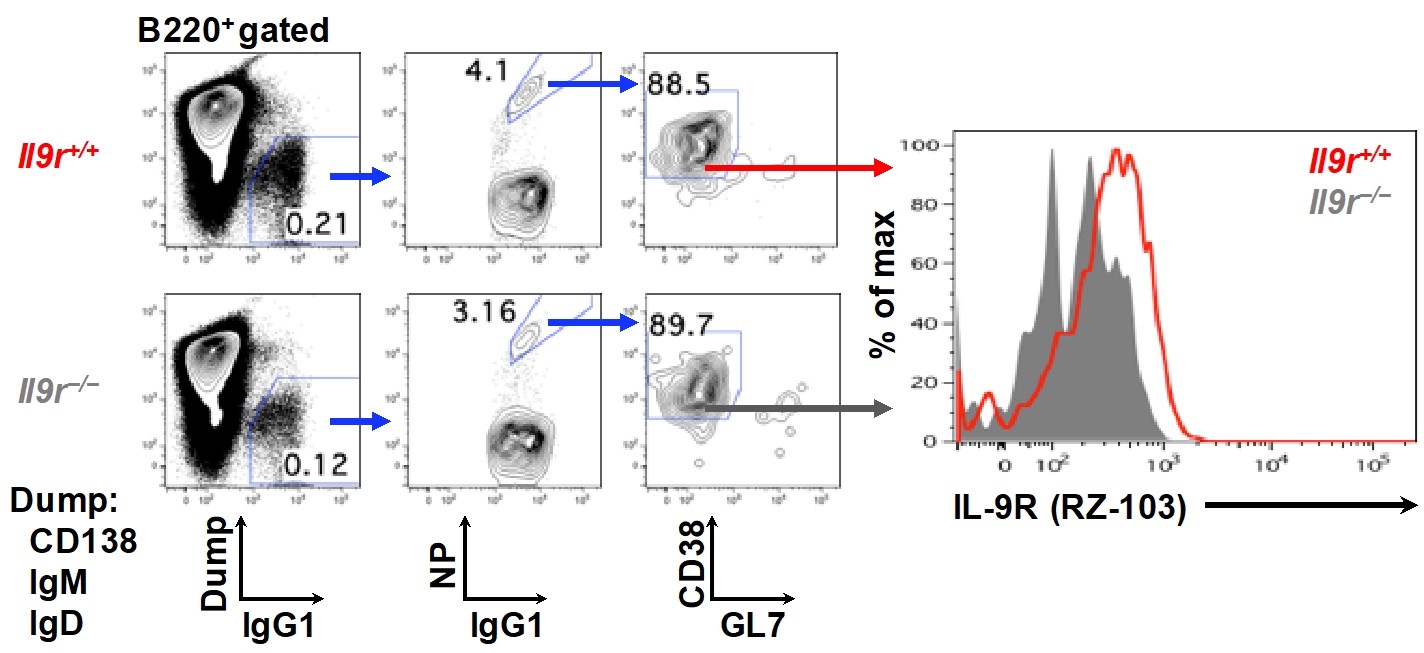

    Figure 5. Detection of IL-9R expression on memory B cells. Flow cytometry analysis of IL-9R expression using anti-IL-9R mAb, RZ-103, (right panel) on NP-specific IgG1+ memory B cells in the spleen (gating strategies are shown on the left) of Il9r+/+ or Il9r−/− mice immunized i.p. with a hapten NP conjugated with chicken gamma globulin (NP-CGG) in alum 16 weeks earlier.

Data analysis

Flow cytometry analysis: For analysis, collect > 5,000 events (Figure 4) or > 5,000,000 events (Figure 5) for each sample. Exclude dead cells and cellular debris from analysis. Define singlet cells in a lymphocyte gate by forward, and side scatters. These cells can be visualized by the fluorescently labeled antibodies. (e.g., Figure 5: the analysis of the Flow Cytometry assay is done via FlowJo.)

Notes

  1. Retroviral transduction
    1. Transfect pMXs-IL9R-IRES-hNGFR vectors into Plat-E cells by Fugene HD.
    2. Two days after transfection, harvest the virus-containing supernatant and add to B300-19 cells.
  2. Preparation of serum
    1. Cut up rat’s tail using a surgical knife and collect the peripheral blood (50-100 μl).
    2. Leave to stand the peripheral blood at 4 °C, overnight.
    3. Centrifuge the peripheral blood at 2,500 x g, 4 °C for 10 min.
    4. Collect the serum (20-40 μl) and store at -20 °C.
  3. Preparation of Single-cell suspensions from spleens
    1. Grind the spleen by frosted glass portion of the slide glass in the MEM medium.
    2. Filter splenocytes through a cell strainer.
  4. Serum titer check using flow cytometry
    1. Dilute the serum with FACS Buffer and add to 5 x 104 IL-9R/B300-19 cells.
    2. Leave to stand on ice for 20 min.
    3. Wash two times each with 200 μl of FACS Buffer.
    4. Add to FITC-conjugated secondary antibodies.
    5. Leave to stand on ice for 20 min.
    6. Wash two times each with 200 μl of FACS Buffer.
    7. Go to flow cytometry analysis (see Data analysis).
  5. Hybridoma screening using flow cytometry
    1. Collect culture supernatants (25-50 μl) of hybridomas and add to 5 x 104 IL-9R/B300-19 cells.
    2. Leave to stand on ice for 20 min.
    3. Wash two times each with 200 μl of FACS Buffer.
    4. Add to FITC-conjugated secondary antibodies.
    5. Leave to stand on ice for 20 min.
    6. Wash two times each with 200 μl of FACS Buffer.
    7. Go to flow cytometry analysis (see Data analysis).

Recipes

  1. Hyaluronidase solution
    Prepare a 1 Unit/μl bovine hyaluronidase solution in phosphate buffered saline
  2. Tris-EDTA buffer
    10 mM Tris, pH 7.5
    1 mM EDTA
  3. FACS Buffer
    PBS (-)
    0.5 % BSA
    2 mM EDTA
    0.05 % sodium azide
  4. Plasmid DNA solution
    Prepare a 10 mg/ml DNA solution (in Tris-EDTA buffer) of a plasmid carrying a gene encoding IL-9R-GroEL fusion protein, driven by a CAG promoter, as previously described (Fujimoto et al., 2009)

Acknowledgments

We thank Y. Takatsuka for figure preparation; K. Sano for proofreading. This work was supported by the Japan Society for the Promotion of Science KAKENHI, Grant-in-Aid for Scientific Research (B) (16H05206) and Grant-in-Aid for Scientific Research on Innovative Areas (25111512).

Competing interests

All authors declare that they have no competing interests.
