A Novel Hygrotaxis Assay for Assessing Thirst Perception and Water Sensation in Drosophila

How to cite Favorites Q&A Share your feedback Cited by


Water is essential for the survival of terrestrial animals. Animals obtain water from their food, from metabolism and, more importantly, by drinking. It is therefore vital for dehydrated animals to efficiently locate water sources in the wild. Traditional paradigm for studying the genetic basis of humidity sensation and preference use an apparatus consisting of two chambers providing a binary choice between flows of dry and moist air that maintain steep humidity gradients. Here, we introduce a novel assay to study water-seeking behavior (hygrotaxis) in Drosophila, in which dehydrated flies detect a humidity gradient and rapidly aggregate near an inaccessible water source. Our previous work using this method demonstrated that hygrotactic behavior relies on both specific sensory organs and central brain neurons.

Keywords: Hygrotactic behavior, Water-seeking, Water deprivation, Drinking motivation, Drosophila


Detection of water and regulation of water intake are essential requirements for terrestrial animals to maintain proper osmotic homeostasis (Bourque, 2008; Cameron et al., 2010). Acute loss of one-tenth of body water can result in death in humans, while chronic water imbalance causes multiple disorders and accelerates the aging process (Minassian et al., 1989; Dmitrieva and Burg, 2011 and 2015; Hbibi et al., 2012; Kim et al., 2013). Water-seeking behavior has been well studied in a number of animal groups, but the neural circuits and molecular mechanisms involved in water-seeking are still poorly understood. The experimental method described below could be used to study the genetic mechanisms and neural circuits that regulate hygrotactic behavior, drinking motivation, thirst perception and water sensation in Drosophila.

Preference for specific relative humidities in flies is well established (Perttunen and Erkkila, 1952). Previous studies on humidity sensation in adult flies have generally used a binary-choice chamber (T-maze) (Sayeed and Benzer, 1996; Liu et al., 2007; Montell, 2008). In this design, dry and moist air are circulated to produce and maintain steep humidity gradients (Russell and Pierce-Shimomura, 2014). Recently, Stensmyr and colleagues devised a behavioral assay in which flies were given a choice between different levels of relative humidity (RH) (Enjin et al., 2016). These authors took advantage of the hygroscopic features of super-saturated salt solutions (Winston and Bates, 1960) to create niches with different RH levels in a multi-well plate. Super-saturated solutions of LiCl, NaCl, and KH2PO4 generated stable humidities of 20%, 70%, and 85% RH, respectively. Using this method, they showed that the preference for a specific humidity range depends on specialized neurons (Enjin et al., 2016). Furthermore, using a similar experimental protocol in which flies were allowed to choose between 20%, 70%, and 85% RH, Garrity and colleagues identified that IR93a, an ionotropic receptor, is important for hygrosensation in Drosophila (Knecht et al., 2016).

Here, we present a novel assay that we developed to study hygrotactic behaviors in dehydrated flies that have been deprived of water for several hours. A continuous humidity gradient was first established in a chamber with an inaccessible water source. Then, the characteristic behavior of dehydrated flies to rapidly aggregate near a water source was observed. The simplicity of this assay makes it useful for screening a large number of fly strains to investigate hygrotactic behaviors, drinking motivation, thirst perception, and water sensation. This new assay has helped us to identify the synaptic output from the mushroom-body α/β surface and posterior neurons as the critical step for both hygrotactic behavior and water sensation (Ji and Zhu, 2015).

Materials and Reagents

  1. 1 ml pipette tips (Haimen Moerde Laboratory Equipment Factory, catalog number: 20180411)
  2. Petri dishes, 35 mm diameter (Corning, catalog number: 430165)
  3. Acrylic sheet (Donchamp Science and Technology, thickness: 2.5 mm)
  4. 1.5 ml Eppendorf tubes (Haimen Moerde Laboratory Equipment Factory, catalog number: 20180315)
  5. Marker pen (Genvana Industrial Development
  6. Transparent tape (XiaoGan Shushi Group)
  7. Nylon mesh (Shanghai Xuhong Screen mesh, model: 100 mesh)
  8. Plastic tray (220 x 160 x 60 mm, L x W x H) (Jinwanyi Riyongbaihuo Pifahang)
  9. Canton-S fly (Provided by Cold Spring Harbor Laboratory)
  10. Cyanoacrylate glue type 502 (Guangdong Aibida Adhesive)
  11. Calcium chloride anhydrous (CaCl2) (Sinopharm Chemical Reagent, CAS No: 10043-52-4)
  12. Ethanol solution (Beijing Chemical Works, catalog number: 112412038320131)
  13. Corn meal (Beijing Shouhang Guoli Trading Co., LTD)
  14. Yeast (AB MANRI Company)
  15. Agar (Beijing Zhongsheng Wanda Biotechnology Co., LTD)
  16. Sucrose (Sinopharm Chemical Reagent, catalog number: 10021418)
  17. Glucose (Beijing Beihua Fine Chemicals Co., LTD)
  18. Potassium sorbate (Ningbo Wanglong Tech Co., LTD)
  19. Fly food (see Recipes)


  1. Incubator (Ningbo Jiangnan Instrument Factory, model: HWM-80)
  2. Video recorder (Sony, model: HDR-CX405)
  3. Stereo microscope (Olympus, model: SZ61)
  4. Electric drill (Dremel, model: LITHIUM-10N)
  5. CO2 flypad (Beijing Yiran Machine Processing Factory, model: 50 mm x 30 mm)
  6. LED array (Beijing Feiwu Zhenxing Electronic, model: LD-53404CWC03-A)
  7. Storage chamber (265 x 200 x 170 mm, L x W x H) (Beijing Xitianlong Plastic Products)
  8. Food vials (diameter 32 mm, height 80 mm) (Jiangsu Haimen Jayu Experimental Instrument Factory)
  9. Culture bottles (diameter 48 mm, height 100 mm) (Jiangsu Haimen Jayu Experimental Instrument Factory)


  1. MATLAB (MathWorks, R2013a)
  2. Prism 5.0 (GraphPad Software)


  1. Construction of chamber and preparation of assay components (Figure 1)
    1. Dish for water deprivation
      1. Punch a hole in the Petri dish lid
        Use the lid of a 35 mm Petri dish to make the chamber for water deprivation of flies. Punch a 4 mm diameter hole through the side of each lid with an electric drill.
      2. Cover the Petri dish lid with nylon mesh (Figure 1A)
        Cut a circle of nylon net (100 mesh) slightly larger than the Petri dish lid. Spread 502 glue evenly round the edge of the lid, and then press the cover onto the nylon net with a heavy weight for at least 15 min.
      3. Clean the finished dish
        To eliminate glue odors, wash the resulting experimental dish three times with distilled water and dry it in a ventilated space for at least five days before the experiment.

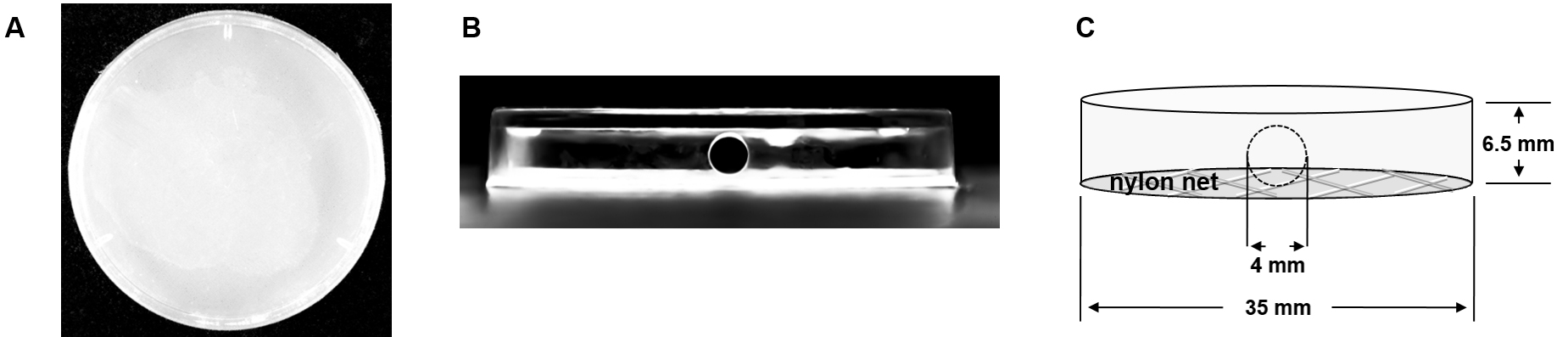

      Figure 1. Experimental dish used for water deprivation. A. Photograph of the top view of the dish used for water deprivation. B. Photograph of the side view of the dish used for water deprivation. C. Dimensions of the experimental dish used for water deprivation.

    2. Construction of the dry chamber for water deprivation of flies (Figure 2)
      1. Make the dry box
        Place 600 g anhydrous CaCl2 into a plastic tray (220 x 160 x 60 mm, L x W x H).
      2. Cut the acrylic sheet
        Cut a rectangle of acrylic sheet to cover the plastic tray containing CaCl2 (240 x 180 x 3 mm, L x W x H).
      3. Construct the dry chamber
        Transfer the covered plastic tray into a storage chamber (265 x 200 x 170 mm, L x W x H).

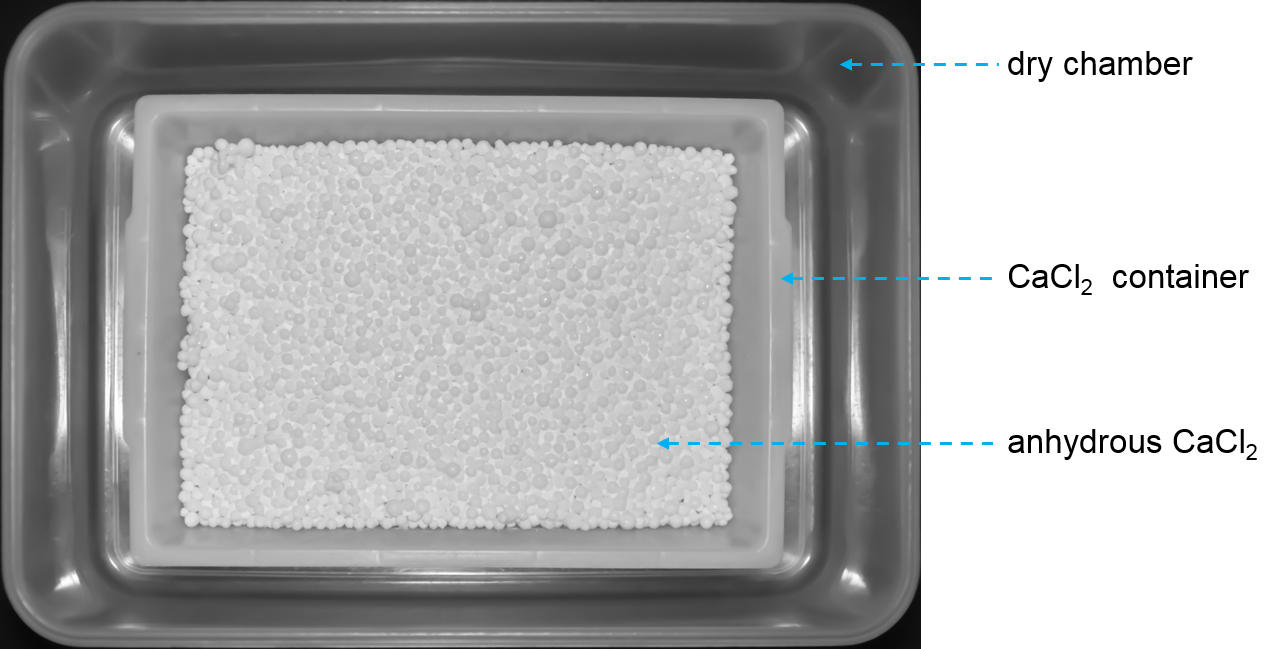

      Figure 2. Drying chamber for water deprivation. Anhydrous calcium chloride (600 g) is contained in a covered plastic tray, which is kept in a storage chamber.

  2. Make the humidity plate (Figure 3)
    1. Drill holes in an acrylic sheet
      Use an acrylic sheet with a thickness of 2.5 mm to make the humidity plate. Cut the sheet into rectangular pieces 300 x 200 mm. Drill ten 9 mm holes through each sheet (ensure the distance between holes is at least 70 mm, as shown in Figure 3B).
    2. Attach caps of Eppendorf tubes to surround the holes
      Remove the caps from 1.5 ml Eppendorf tubes. Apply 502 glue to these caps and press them onto the acrylic sheet to surround the holes, for 5 min. Leave the sheet overnight before the next step.
    3. Mark the positions of the experimental dishes on the humidity plate
      When the Eppendorf tube caps are tightly adhered to the acrylic sheet, draw a circle with a diameter of 40 mm using a marker pen with each hole as the center.
    4. Clean the humidity plate
      To eliminate glue odor, wash the humidity plate with distilled water three times and dry in a ventilated place for at least five days before the experiment.

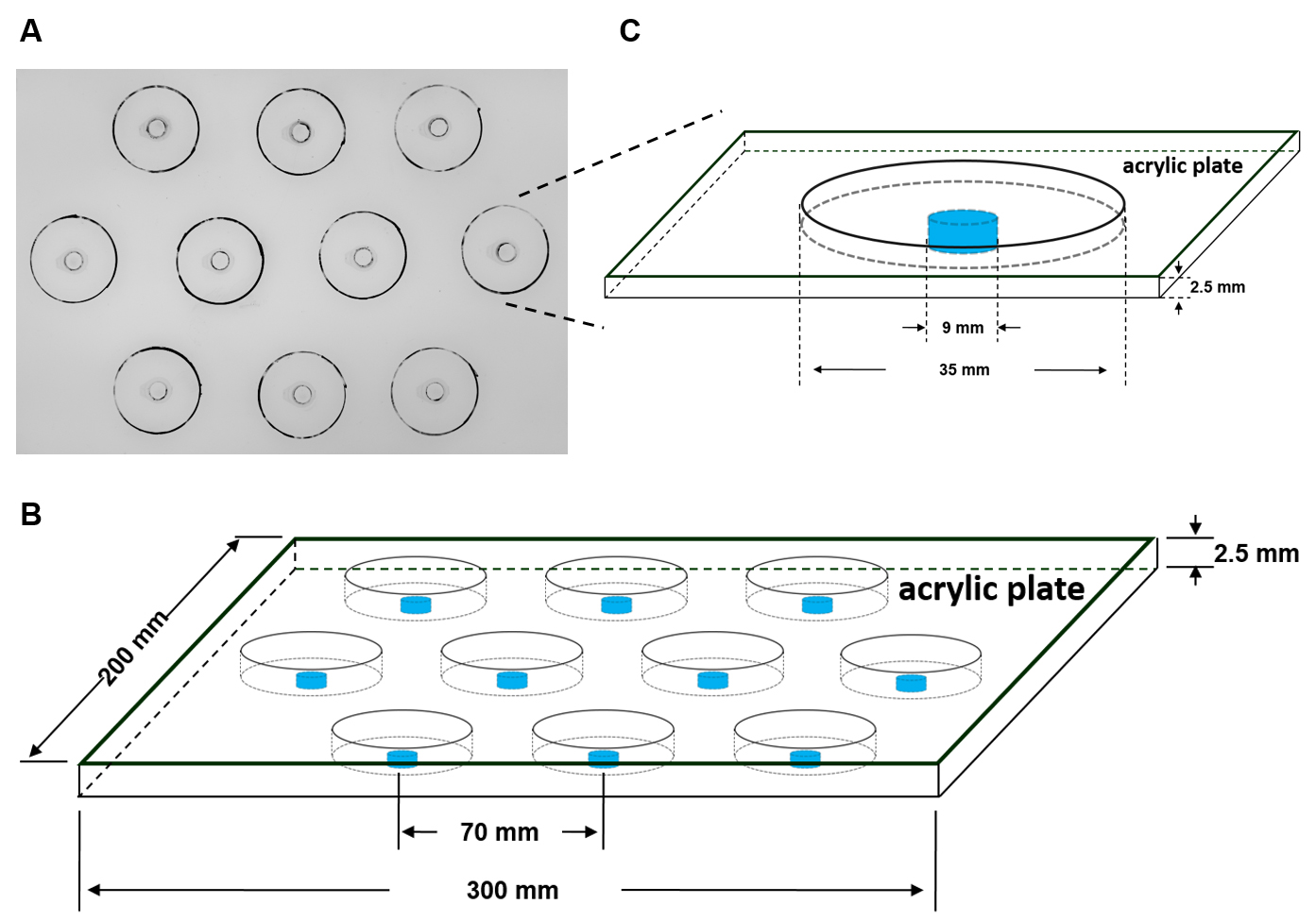

    Figure 3. Humidity plate. A. Plan view of a photograph of the humidity plate. B. Diagram of the humidity plate with dimensions. C. Diagram of one hole of the humidity plate with dimensions.

  3. Preparation of flies
    1. Fly Stocks
      Maintain flies at 25 °C and 60% RH under a 12:12 h light/dark cycle. Use adult flies 4-7 days after eclosion for hygrotactic assays.
    2. Fly rearing
      To maintain a suitable population density, transfer 20 females and 10 males of wild-type flies to a culture bottle (diameter 48 mm, height 100 mm) and allow females to lay eggs for two days; then discard the adult flies.
    3. Preparation of flies for behavioral tests
      Collect 20 male (or female) flies on a CO2 fly pad under a stereo microscope into a fresh food vial (diameter 32 mm, height 80 mm). Maintain the collected flies at 25 °C and 60% RH in the food vial under a 12:12 h light/dark cycle for two days before tests.

  4. Water deprivation (Figure 5)
    1. Transfer flies into a water deprivation dish
      Gently move the 20 flies from their food vial into the tip of a 1 ml pipette with an attached suction tube (Figure 4), and then gently blow the flies into a water-deprivation dish through its side hole. Seal the hole with transparent tape.

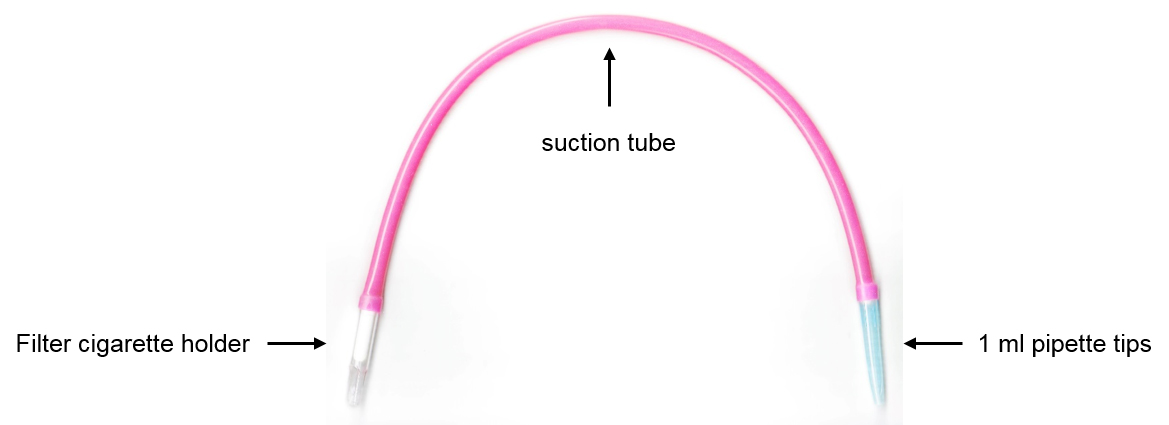

      Figure 4. Suction tube. Photograph of the top view of the suction tube for fly transfer from a culture tube into a water-deprivation dish.

    2. Transfer the experimental dishes into the dry chamber
      Gently position the water-deprivation dishes loaded with flies onto the acrylic sheet in a dry chamber with the nylon net facing upward (Figure 5A).
    3. Place the dry chambers in an incubator
      Seal the dry chambers by closing their lids. Transfer the dry chambers into an incubator at 25 °C and 60% RH (Figure 5B) for 8 h.

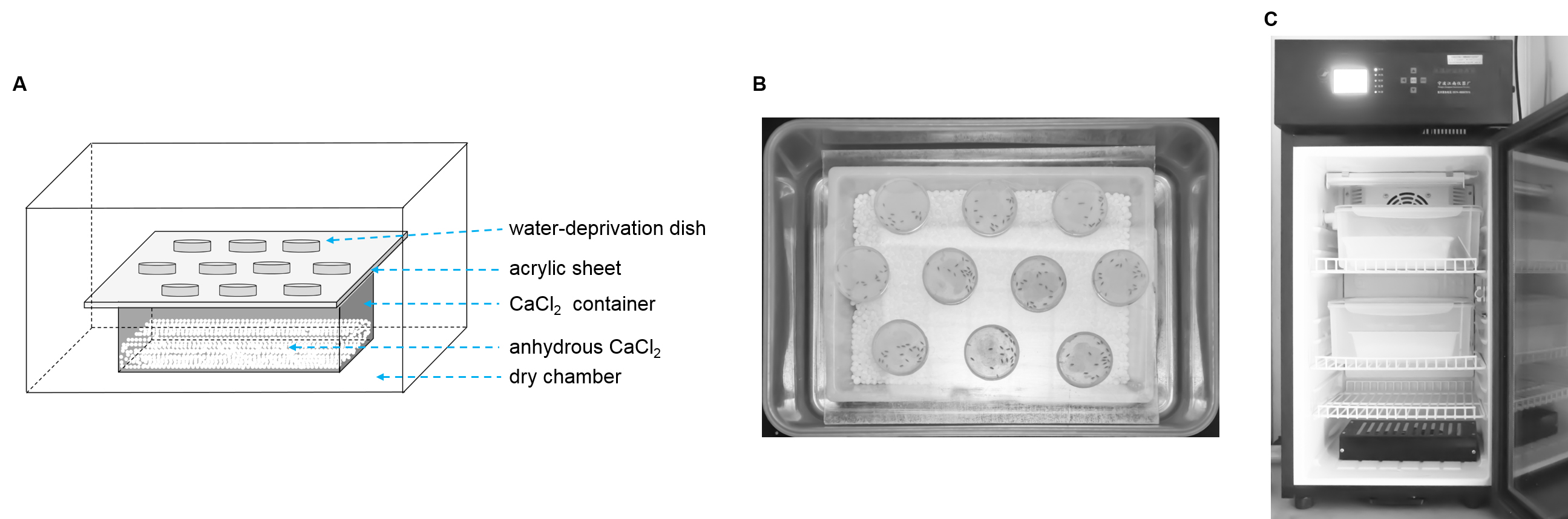

    Figure 5. Procedure for water deprivation. A. A schematic side view of water deprivation dishes covered with 100 mesh nylon net in a dry chamber. B. Photograph of a water-deprivation dish loaded with flies in the dry chamber. C. Photograph of dry chambers in an incubator.

  5. Observation of hygrotactic behavior in Drosophila
    1. Set the testing environment
      Before the behavioral experiment, set the room temperature to 24 ± 1 °C and the humidity to 40-60% RH.
    2. Add water to the humidity plate
      Place the humidity plate on a horizontal surface. Add 200 μl distilled water to fill each cap on the plate and allow the plate to equilibrate at room temperature (24 ± 1 °C) for 30 min.
    3. Environmental acclimatization of flies
      After water deprivation, gently remove the experimental dishes with flies from the dry chamber. Allow the flies (still in their dishes) to acclimate to the experimental environment, including temperature (24 ± 1 °C), humidity (40-60% RH), and illuminance (we use an array of white LEDs as the light source, 800-850 Lux) for 15 min.
    4. Record water-seeking behavior (see Video 1)
      Turn on the video recorder and adjust the focus to the top surface of the humidity plate; then start recording. Gently place the experimental dishes on the humidity plate with the nylon net side facing downward. Align the experimental dishes with the centers of the water-containing caps, one by one. A video recorder monitors ten dishes on one humidity plate. Turn off the video recorder after the last dish has been placed on the humidity plate for 5 min.
      Note: The control group (flies without water deprivation) and experimental group (flies with water deprivation) should be placed on the same humidity plate.

      Video 1. Recording of water seeking flies. The left dish contains water-deprived flies. The right dish contains hydrated flies. The video is played at a speed of four times of normal.

  6. Cleaning experimental dishes and chambers
    The dry chamber should be washed after use with distilled water and/or dilute ethanol solution (70%). The water-deprivation dish should only be washed with distilled water. We strongly recommend wearing gloves when handling deprivation dishes and chambers to prevent transfer of unwanted odors.

Data analysis

  1. To quantify the hygrotactic behavior, we defined a circular region of diameter 17.5 mm in the center of the dish and counted the number of flies in this region at different time points (Figure 6). The ‘hygrotaxis index’ was calculated using a script written in MATLAB as follows.
    Firstly, we calculated the hygrotaxis values at different time points during the test. The hygrotaxis values were calculated using the following formula:

    Hygrotaxis Value (HVt) = (Nt − N0)/Nsum

    Nt: the number of flies in the defined region at this time; N0: the number of flies in the region at the beginning of experiment; Nsum: the total number of flies in the dish. In our tests: Nsum = 20.
    The hygrotaxis index is defined as the average of all aggregation values measured at five-second intervals within a 5 min test {hygrotaxis index= (HV5s + HV10s+ HV15s+ … + HV300s)/60}.
    Note: For the flies positioned across the inner circle, if the head of fly towards to the inside, the fly was deemed to in the inner circle.

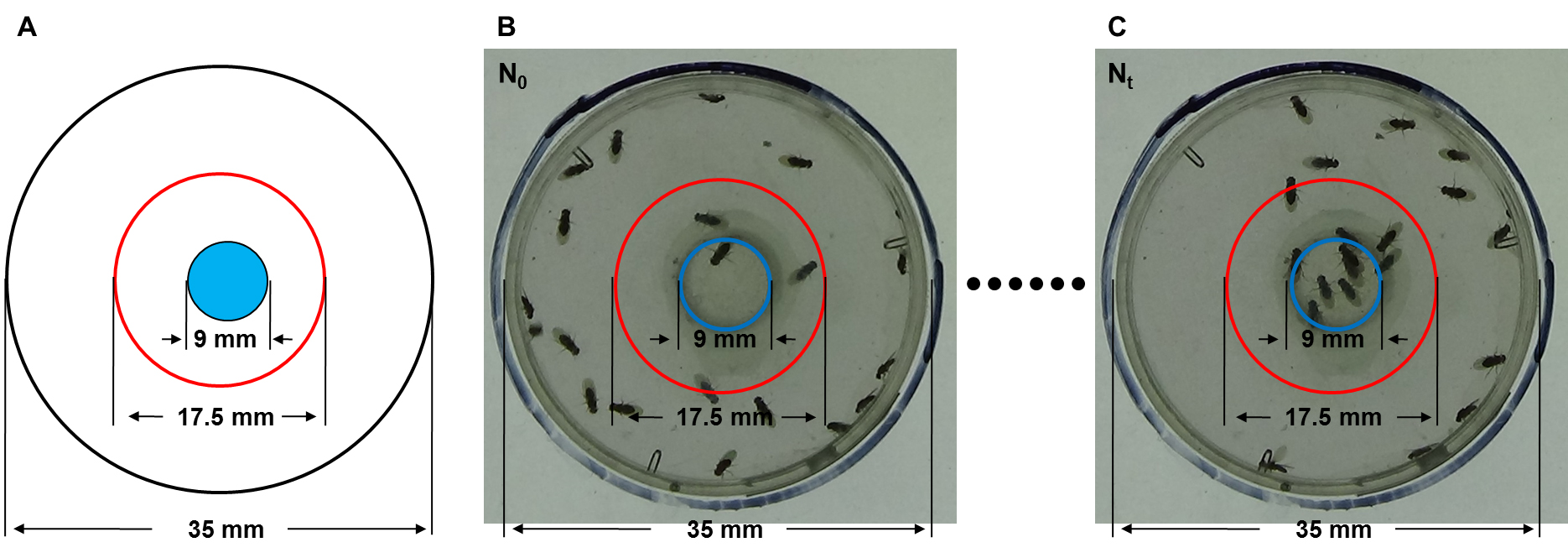

    Figure 6. Thirsty flies exhibit hygrotactic behavior. A. Diagram of the zones used to quantify the hygrotactic response for calculation of the hygrotactic index. The dish was placed above a water-containing hole, leaving a gap of 2.5 mm between the nylon net and the water surface. B. Photograph showing the distribution of flies at time zero. C. Thirty seconds later, the dehydrated flies quickly migrated to and aggregated above the water source.

  2. Hygrotaxis index data were entered into Prism for statistical analysis and graphical visualization. The statistical significance of differences in hygrotactic responses between different experimental groups was calculated. Unpaired t-tests were used to compare differences in the hygrotaxis indices of hydrated and dehydrated flies (Figure 7).

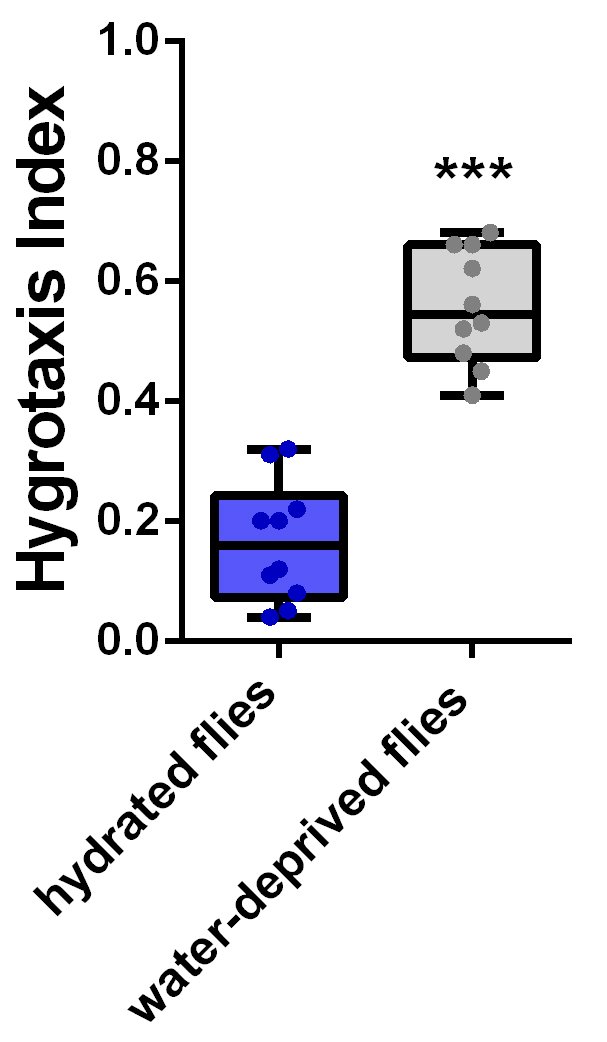

    Figure 7. Quantification of hygrotactic behavior in Drosophila. The hygrotaxis index was greatly increased in wild-type flies (Canton-S strain) after water deprivation for 8 h. The middle-line in the square represents mean of the distribution, the box represents 25%-75% of the distribution and dots represent average hygrotaxis index of one experiment (more than 5 dishes).


  1. Fly food (1 L, pH 7.2-7.4)
    77.7 g corn meal
    32.1 9 g yeast
    5 g agar
    0.726 g CaCl2
    31.62 g sucrose
    63.2 g glucose
    2 g potassium sorbate
