Part I: Cycling assay

Materials and Reagents

Plastic tips 10 (Thermo Fisher Scientific, Molecular Bioproducts, catalog number: 3511-05 )
Plastic tips 1,000 (Thermo Fisher Scientific, Molecular Bioproducts, catalog number: 3101 )
Plastic tips 200 (Thermo Fisher Scientific, Molecular Bioproducts, catalog number: 3551 )
1.5 ml Microcentrifuge tubes (USA Scientific, catalog number: 1415-2508 )
2.0 ml MCT Graduated tubes (Fisher Scientific, Fisherbrand, catalog number: 05-408-146 )
96-well Microfluor 1White flat-bottom plate (Thermo Fisher Scientific, catalog number: 7705 )
Combitips Advanced 10 ml (Eppendorf, catalog number: 0030089464 )
Disposable cell lifter (Fisher Scientific, Fisherbrand, catalog number: 08-100-240 )
Cells of interest: any cell can be used to measure NAD⁺/NADH levels
Tissues of interest: any tissue can be used to measure NAD⁺/NADH levels
Trichloroacetic Acid (TCA) (Sigma-Aldrich, catalog number: T4885-500G )
Sodium hydroxide (NaOH) 10 N (Fisher Scientific, Fisher Chemical, catalog number: SS267 )
Ethylenediaminetetraacetic acid (EDTA) (Sigma-Aldrich, catalog number: E5134 )
Bio-Rad Protein Assay Dye Reagent Concentrate (Bio-Rad Laboratories, catalog number: 5000006 )
1,2,2-Trichlorotrifluoroethane (TCTFE) (Fisher Scientific, Fisher Chemical, catalog number: T1781 )
Trioctylamine (Sigma-Aldrich, catalog number: T81000-500G )
Tris base, Trizma base (Sigma-Aldrich, catalog number: T6066 )
Diaphorase (Sigma-Aldrich, catalog number: D5540-500UN )
Alcohol dehydrogenase (ADH) (Sigma-Aldrich, catalog number: A3263-75KU )
Activated charcoal (Sigma-Aldrich, catalog number: C7606-125G )
Sodium phosphate monobasic (NaH₂PO₄) (Sigma-Aldrich, catalog number: S0751-500G )
Sodium phosphate dibasic (Na₂HPO₄) (Sigma-Aldrich, catalog number: S0876-500G )
Absolute Ethanol (Fisher Scientific, Fisher BioReagents^TM, catalog number: BP2818-500 )
Bovine Serum Albumin (Sigma-Aldrich, catalog number: A7906 )
β-NAD sodium salt (Sigma-Aldrich, catalog number: N0632-1G )
Riboflavin 5’-monophosphate sodium salt hydrate (FMN) (Sigma-Aldrich, catalog number: F8399 )
Resazurin sodium salt (Sigma-Aldrich, catalog number: 199303-5G )
Phosphate-buffered saline (PBS – pH 7.4) (Thermo Fisher Scientific, Gibco^TM, catalog number: 10010023 )
Organic solvent (see Recipes)
Sodium Phosphate Buffer (pH 8.0) (see Recipes)
20 mM Sodium Phosphate Buffer (pH 7.0) (see Recipes)
4% charcoal suspension (in 20 mM sodium phosphate, pH 7.0) (see Recipes)
Bradford Dye (see Recipes)
Tris Buffer (1 M, pH 8.0) (see Recipes)

Equipment

Note: The brands and models indicated are the ones used by our group, similar equipment can be used as well.

1 L volumetric flask
Pipettes (10, 200, 1,000 µl)
Repeat Pipette (Eppendorf, model: Repeater^® M4 )
Scissors
Homogenizer, Tissue Tearor (Bio Spec Products, catalog number: 780CL-04 )
Microcentrifuge (Eppendorf, model: 5424 )
Scale (Mettler-Toledo International, model: AG104 )
Sonic Dismembrator (Fisher Scientific, model: Model 100 )
Vortex (Scientific Industries, model: Vortex-Genie 2 , catalog number: G560)
-80 °C freezer
Plate reader (Molecular Devices, model: SpectraMax^® Gemini^TM XPS )
Spectrophotometer (BioTek Instruments, model: Epoch 2 )

Software

Gen5 Microplate Reader and Imager Software (BioTek Instruments)
Microsoft Excel (Microsoft Corporation)
SoftMax Pro 6 (Molecular Devices, LLC)
GraphPad Prism 7 (GraphPad Software, Inc)

Procedure

Sample preparation
If using cells, use at least 3 x 10⁶ cells. Aspirate media from plate, wash with PBS, collect the cells scratching the plate using disposable cell lifter, and pellet by centrifugation (30 sec, at 2,000 x g). Aspirate supernatant, and proceed to Step A1. If measuring NAD⁺ from tissue samples cut approximately 20 mg of tissue and put the piece in a 2 ml tube. Then proceed to Step A1. For all the following steps, samples should be kept on ice.
Considering either NAD⁺ or NADH quantification, the only step that distinguishes those two is the extraction part. From Step A2 on, the process is the same for both NAD⁺ and NADH.
1. Extraction:
  1. For NAD⁺: start extraction of NAD⁺ by adding 10% TCA (diluted in water).
  2. For NADH: NADH is extracted with 500 mM NaOH and 5 mM EDTA.
  Note: If using cells, add 250 µl of TCA; if using tissue, add 300 µl of TCA.
2. Homogenize tissue samples with scissors and mechanical homogenizer until there are no visible chunks. Keep samples always on ice during this process.
  Note: Skip this step if using cells.
3. Sonicate samples 3 times for 5 sec each. Configure equipment on medium power.
  Note: For NADH: at this point, heat for 30 min at 60 °C.
4. Pellet protein by centrifuging at 11,500 x g for 2 min, 4 °C. Transfer supernatant to a new 1.5 ml tube and use it for Step A6.
5. Save pellet for later protein determination. Re-suspend pellet in NaOH:
  1. Cells: 0.2 M NaOH, volume based on pellet size; around 100 µl (always better to use a lower volume and dilute the protein sample after, than to use a larger volume and dilute it too much). Samples should be kept on ice or a rocker platform at 4 °C until it is completely soluble.
  2. Tissue: 1 M NaOH, at least 300 µl. Leave samples on a rocker at 4 °C overnight and then measure protein concentration.
  3. We measure the protein concentration by the Bradford protein assay.
6. Remove TCA using organic solvent
  1. Organic solvent: prepare a fresh solution of TCTFE:Trioctylamine (3:1 ratio). Use only plastic tips and tubes (TCTFE = 1,1,2-trichloro-1,2,2-trifluoroethane).
  2. Add organic solvent to remove TCA (supernatant of Step A4) at a ratio of 2:1.
  3. Vortex vigorously for 15 sec allowing mixture to separate at room temperature for 3-5 min.
  4. Carefully remove the top aqueous layer containing the NAD⁺ (100 µl) with a plastic pipette (Figure 1), put it in a new 1.5 ml tube, and add 10 µl of 1 M Tris to adjust the pH to 8.0.
    Note: If by mistake the bottom organic layer is perturbed or aspirated, put it back, and repeat Steps A6c and A6d.
  5. Put samples on ice and proceed to enzyme preparing steps. At this point, samples can be frozen in a -80 °C freezer and procedure can be resumed at another time, although it is advised to proceed with the procedure and reading, if possible, to minimize risk of degradation in freeze-thaw cycles.

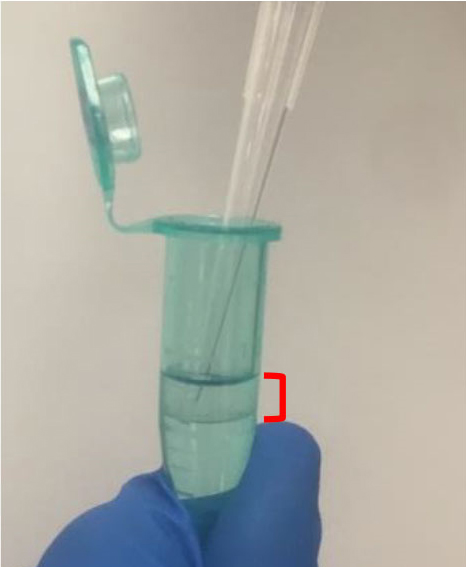

    Figure 1. Removing top aqueous layer
7. At this step, dilute NAD⁺ samples in sodium phosphate buffer considering the range of the standard curve. For all the samples NAD⁺/NADH measurement has to be within the curve. The dilution varies depending on the type and size of tissues or cells. It is basically empirical. Usually for 20 mg tissues, the dilutions range from 1:500 to 1:1,000. For cells, the dilution usually ranges from 1:50 to 1:200. Remember this is not rigid; sometimes a lower or higher dilution is needed. Dilute NAD⁺ samples, to a final volume of at least 250 µl.
Preparing NAD⁺ standard curve
1. In order to obtain a final NAD⁺ 1 µM concentration, it is necessary to perform a serial dilution as indicated below:
  1. In a 1.5 ml microcentrifuge tube, weigh β-NAD sodium salt (around 1 mg).
  2. Using the β-NAD sodium salt molecular weight find the specific volume to get a solution of 10 mM.
  3. To get the intermediate concentration of 10 µM, dilute the 10 mM 1:1,000 in sodium phosphate buffer.
  4. Finally, to get the solution concentration of 1 µM, dilute the 10 µM 1:10 in sodium phosphate buffer.
2. To obtain the standard curve, dilute the 1 µM stock of NAD⁺ in sodium phosphate buffer following Table 1 below.

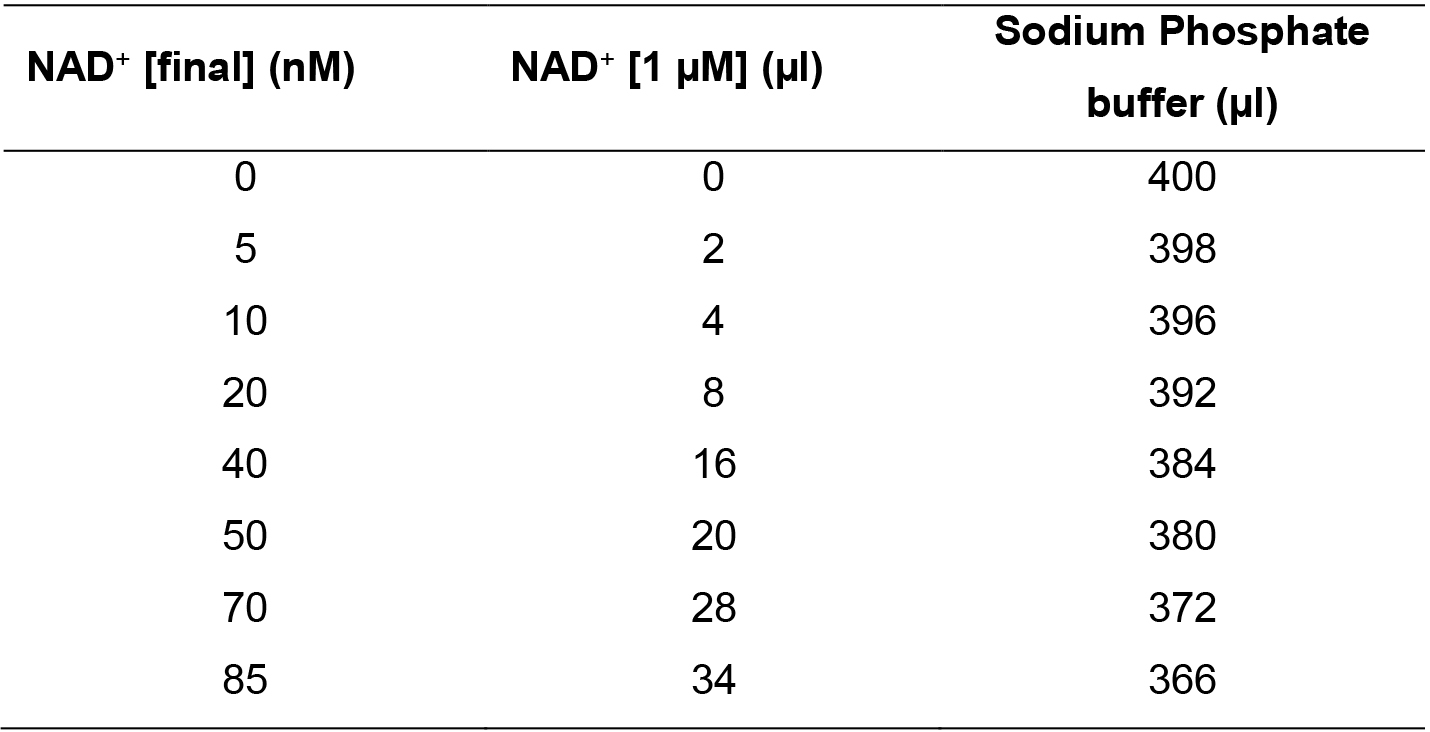

  Table 1. NAD⁺ Standard Curve
Preparing the enzymes
1. Based on Table 2:
  Stock for ADH has to be 3400 U/ml.
  Stock for Diaphorase has to be 100 U/ml.
2. Weigh the enzymes in a 1.5 ml tube for preparation of 1 ml solution. Check the amount of U/mg in the bottle being used as it might change depending on the lot number.
  Notes:
  1. Usually, we prepare 1 ml of each enzyme solution and divide in smaller aliquots in a size enough to prepare at least 1 plate (96 wells), in order to avoid thawing the whole amount each time.
  2. We suggest preparing approximately 3-4% more volume (100 wells instead of 96 wells for entire plate), considering that some volume can be lost when moving the solution to another tube (e.g., attached to the tube walls, to the pipet tips).
3. Remove bound NAD⁺ from Diaphorase and ADH by diluting the enzymes in 30% (300 µl) of sodium phosphate buffer and 70% (700 µl) of 4% charcoal suspension for a total of 1 ml solution. Gently mix the solution, and incubate it for 40 min at 37 °C. Mix gently every 10 min.
4. Remove charcoal by centrifuging for 5 min, 4 °C, and 13,500 x g. Transfer supernatant to a new tube and centrifuge for 2 min, 4 °C, and 13,500 x g.
Preparing the reaction mix
1. Thaw FMN on ice, and bring it to room temperature.
2. Whenever possible, prepare a Resazurin stock of 20 mM in water and use it on the same day (protect it from light until use).
  Note: According to manufacturer’s instructions, small aliquots of the Resazurin stock can be stored at -20 °C for up to 1 month (stock solutions should be protected from exposure to light). When needed to be used, thaw it on ice.
3. Prepare the reaction mix following Table 2 below, respecting the amount and the order in which each component has to be added.

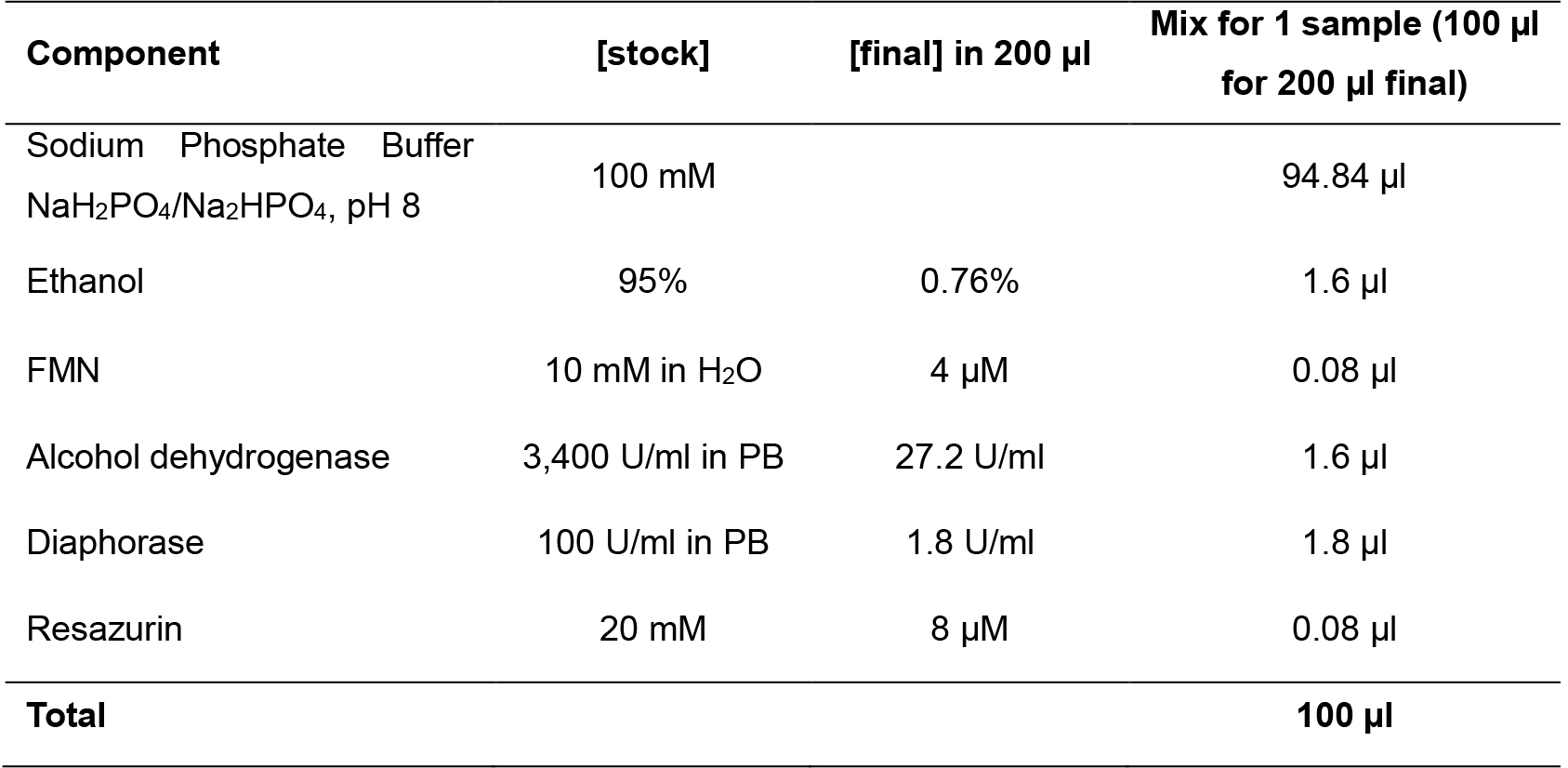

  Table 2. Reaction mix preparation
Setting up the plate
1. Add 100 µl of sample/standards into wells of a 96-well opaque plate.
2. Add 100 µl of reaction mix to each well with a repeat pipet. Put the 96-well plate into a fluorescence plate reader. Monitor for 60 min with an excitation wavelength of 544 nm and an emission wavelength of 590 nm (Video 1).

  Video 1. Setting up the plate reader
3. On template editor, configure dilution and unit for NAD⁺ Standards, and dilution of samples (Figure 2).

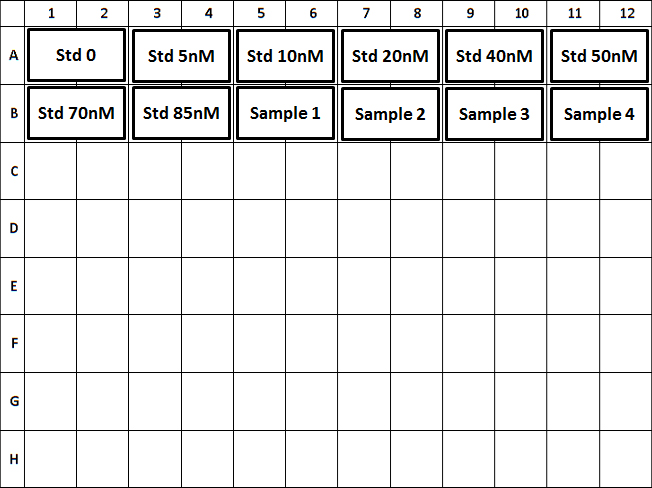

  Figure 2. Plate layout

Data analysis

Data needed: NAD⁺ values obtained in fluorescence plate reader (Figure 3A), protein concentration, volume of TCA 10% and NaOH used.
Calculate NAD⁺ concentration in nmol by dividing the NAD⁺ value obtained (in µM) by the volume of TCA (in ml).
Calculate the mass of protein (mg) present in the sample by dividing protein concentration (mg/ml) by volume of NaOH (ml) in which the pellet was re-suspended.
Divide the NAD⁺ concentration obtained in Step 2 by the mass of protein obtained in Step 3. This is the final result (Figure 3B).
Plot the results (nM/mg protein) in a graph.
Perform statistical analysis as needed.

Figure 3. Data analysis. A. Raw data from plate reader; the encircled detail shows the adjusted result based on dilution. B. Example of final graph.

Recipes

Organic solvent
Prepare a fresh solution of TCTFE:Trioctylamine (3:1 ratio)
Use only plastic tips and tubes (TCTFE = 1,1,2-trichloro-1,2,2-trifluoroethane)
100 mM Sodium Phosphate Buffer (pH 8.0)
In a 1 L volumetric flask:
Add 93.2 ml of 1 M Na₂HPO₄ followed by 6.6 ml of 1 M NaH₂PO₄
Bring the volume up to 1 L
The buffer can be stored up to 1 month at 4 °C
20 mM Sodium Phosphate Buffer (pH 7.0)
Use the 100 mM Sodium Phosphate Buffer (pH 8.0) to make a 1:5 dilution
For a final volume of 500 ml, add 100 ml of 100 mM Sodium Phosphate Buffer (pH 8.0) to a beaker
Adjust to pH 7.0 using 1 N HCl solution
Bring the volume up to 500 ml using a graduated cylinder
Store at room temperature
4% charcoal suspension (in 20 mM sodium phosphate, pH 7)
Weigh 4 g of charcoal
Transfer it to a graduated cylinder and add 100 ml of 20 mM Sodium Phosphate Buffer (pH 7.0)
Store at room temperature
Bradford Dye
Dilute Bio-Rad Protein Assay Dye Reagent Concentrate 1:5 in water
The diluted reagent may be used for approximately 2 weeks when kept at room temperature
Tris Buffer (1 M, pH 8.0)
Put 8 ml of distilled water in a suitable container
Add 1.21 g of Tris base to the solution
Adjust the solution pH to 8.0 with HCl
Add distilled water until the volume is 10 ml

Part II: Ultra-performance liquid chromatography (UPLC)-mass spectrometry

Materials and Reagents

Agilent Poroshell 120 EC-C18 pre-column (Agilent Technologies, catalog number: 693775-902 )
Agilent Poroshell 120 EC-C18 analytical column (Agilent Technologies, catalog number: 697975-902T )
Formic acid (Fisher Scientific, catalog number: A117-50 )
Acetonitrile (Sigma-Aldrich, catalog number: 271004 )
NAD (Sigma-Aldrich, catalog number: N3014 )
NADH (Sigma-Aldrich, catalog number: N6005 )
n-cyclohexyl benzamide (Internal Standard - IS) (Sigma-Aldrich, catalog number: R531332 )
Auto-sampler vials (Chrom Tech, catalog number: CTI-9405 )
Slick microfuge tubes (Fisher Scientific, Fisherbrand^TM, catalog number: 02-681-320 )
Primary stock solutions (see Recipes)

Equipment

LC-MS/MS system
Note: The LC-MS system consists of a Waters ACQUITY H class ultra-performance liquid chromatography (UPLC) system, containing a quaternary solvent manager and sample manager-FTN coupled to a Xevo TQ-S mass spectrometer (Waters, Milford, MA) equipped with electrospray ionization (ESI) source.

Software

Waters MassLynx v4.1 software

Procedure

The liquid chromatographic separation of NADH and NAD⁺ is accomplished using an Agilent Poroshell 120 EC-C18 pre-column (2.1 x 5 mm, 2.7 μm, Chrom Tech, Apple Valley, MN) attached to an Agilent Poroshell 120 EC-C18 analytical column (2.1 x 100 mm, 2.7 μm, Chrom Tech, Apple Valley, MN) at 40 °C.
Elute the column with a gradient mobile phase composed of water with 0.1% formic acid (A) and acetonitrile (ACN) with 0.1% formic acid (B) with a constant flow rate of 0.5 ml/min and a total run time of 10 min. The elution is initiated at 100% A and held for 2 min, then B is linearly increased from 0% to 60% B for 4 min, 60% B is held for 1 min, and returning to initial conditions in 2 min, finishing with 2.8 min at 100% A.
Auto-sampler temperature is 4 °C and sample injection volume is 10 μl. NAD⁺ and NADH should be eluted for 1.6 and 3.5 min, respectively. None of the other NAD⁺ related metabolites (including NADP, NADPH, ATP, NAADP, NAAD, ADP, cADPR, ADPR, nicotinamide and nicotinic acid) are co-eluted with either NAD⁺ or NADH.
Tissue samples are prepared as the same manner as described in “sample preparation” for the cycling assay. Samples should be thawed on ice and they are diluted in water containing 500 ng/ml of internal standard.
Samples for NAD⁺ measurement diluted 1:1,000 and 1:10,000, whereas the ones for NADH samples are diluted 1:1,000 in slick microfuge tubes. After dilution, the samples should be vortexed and transferred to 2 ml auto-sampler vials for immediate analysis.

Data analysis

Data were acquired and analyzed by Waters MassLynx v4.1 software. Detection of NAD⁺ and NADH is accomplished using the mass spectrometer in positive ESI mode using capillary voltage 3.5 kV, source temp 150 °C, desolvation temp 500 °C, cone gas flow 150 L/h, desolvation gas flow 500 L/h, using multiple reaction monitoring (MRM) scan mode with a dwell time of 0.075 sec (Figure 4). The cone voltages and collision energies were determined by MassLynx- Intellistart, v4.1, software. Values are as follows:
NAD⁺–m/z 664.27 > 136.09–cone voltage 54 V–Collision 42 eV
NADH–m/z 666.28 > 514.17–cone voltage 56 V–Collision 26 eV
n-Cyclohexyl benzamide–m/z 204.1 > 122.00–Cone voltage 80 V–Collision 20 eV

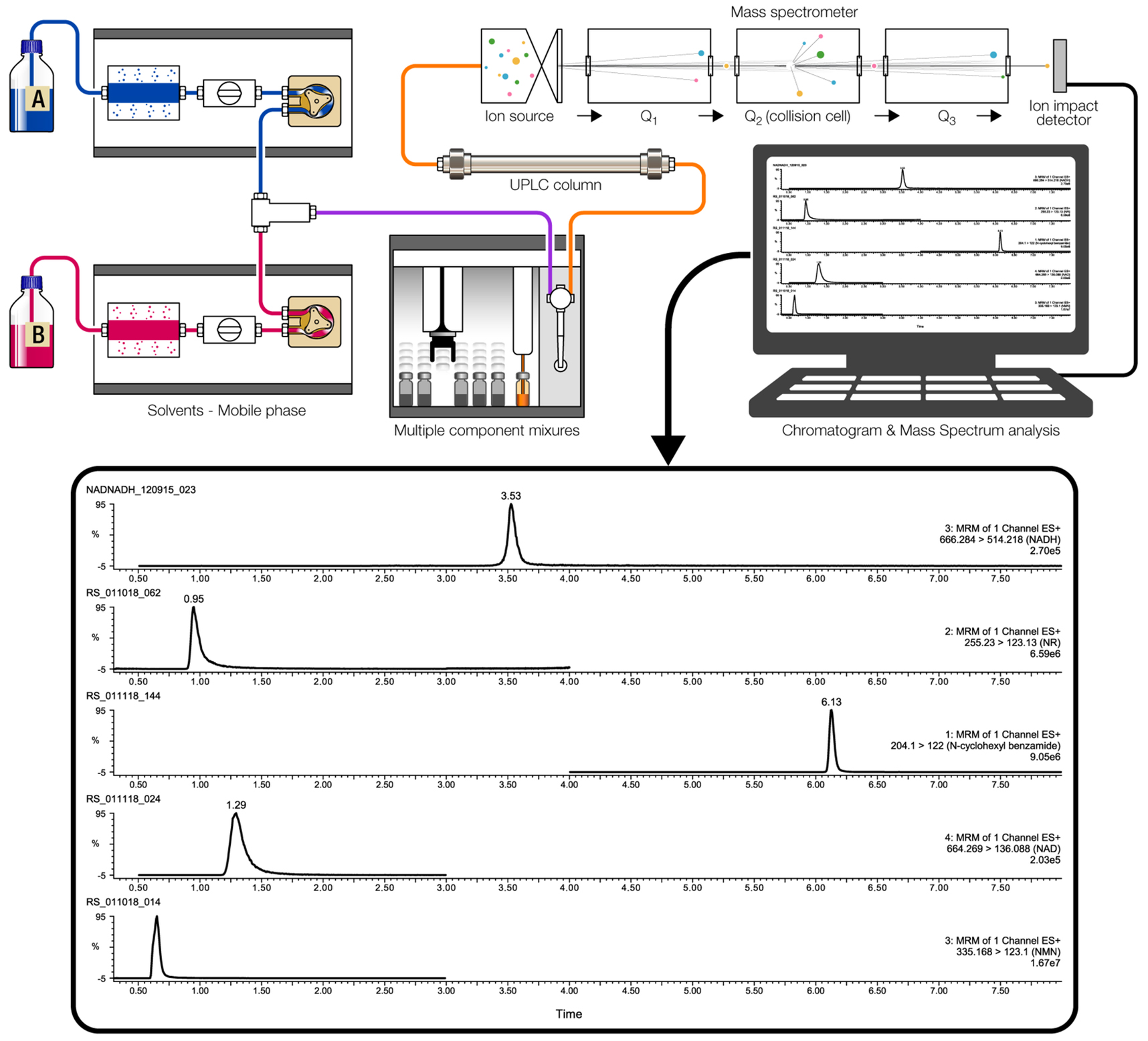

Figure 4. LC-MS tracing analysis

Recipes

Primary stock solutions
The primary stock solutions were stored at -80 °C and were prepared in silanized glass vials as follows:
NAD⁺ (10 mg/ml in water)
NADH (1 mg/ml in 0.01 N NaOH, pH 11.9)
n-cyclohexyl benzamide (IS) (100 µg/ml in EtOH)
For working standards:
Working standards were prepared by dilution of the stock solution into the same solutions mentioned above. Daily standard samples were prepared by diluting above stocks 1:20 in water containing 500 ng/ml internal standard
