Preparation of Crude Synaptosomal Fractions from Mouse Brains and Spinal Cords

Reviewed by
Anonymous reviewer
How to cite Favorites Q&A Share your feedback Cited by

In this protocol

Original research article

A brief version of this protocol appeared in:
Molecular Neurobiology
Jan 2017



Abstract

The current protocol describes the preparation of crude synaptosomal fractions from mouse brain or spinal cord samples. In detail, a sequential protocol yielding crude synaptosomal and light membrane fractions is provided. This fast and easy method might be sufficient to assess the amount of synaptic proteins in down-steam applications like Western-blot or ELISA in e.g., mouse models of Alzheimer’s disease or other neurodegenerative conditions.

Keywords: Brain, Synaptosome, Fractionation, Homogenization, Extraction, Synapse

Background

Analyzing synaptosomes, representing isolated synaptic terminals from neurons, can yield valuable information on synaptic integrity in diverse neurological diseases. They contain membrane-bound compartments that detach from axon terminals after brain homogenization under certain conditions. The current protocol describes a fast and easy method for the enrichment of crude synaptosomal fractions (see Figure 1). These can be either used for quantification of synaptic proteins by Western-blot or can be further purified using density gradient centrifugation to yield highly purified synaptosome subfractions (Gurd et al., 1974). The preparation of crude synaptosomal fractions might be sufficient to assess e.g., the amount of pre- and post-synaptic proteins like SNAP25 or post-synaptic density protein 95 (PSD95) in e.g., mouse models with a neurodegenerative phenotype (Breyhan et al., 2009; Saul and Wirths, 2017).


Figure 1. Flow-chart describing the sequential extraction procedure

Materials and Reagents

  1. Pipette tips
    10 µl pipette tips (SARSTEDT, catalog number: 70.1130 )
    200 µl pipette tips (SARSTEDT, catalog number: 70.760.002 )
    1,000 µl pipette tips (SARSTEDT, catalog number: 70.762 )
  2. Reaction tubes
    1.5 ml tubes (SARSTEDT, catalog number: 72.706 )
    2 ml tubes (SARSTEDT, catalog number: 72.691 )
  3. Mice (Protocol has been tested with male and female C57Bl/6 mice of 8-52 weeks)
  4. Sucrose (≥ 99.5%) (Sigma-Aldrich, catalog number: S0389 )
  5. HEPES (≥ 99.5%) (Sigma-Aldrich, catalog number: H3375 )
  6. Protease inhibitor cocktail (cOmpleteTM Mini EDTA-free EasyPack) (Roche Diagnostics, catalog number: 04693159001 )
  7. Phosphatase inhibitor cocktail 3 (Sigma-Aldrich, catalog number: P0044 )
  8. Sodium chloride (NaCl) (≥ 99.5%) (Carl Roth, catalog number: 3957 )
  9. Potassium chloride (KCl) (≥ 99%) (Carl Roth, catalog number: P017 )
  10. Di-Sodium hydrogen phosphate (Na2HPO4) (≥ 98%) (Carl Roth, catalog number: P030 )
  11. Potassium di-hydrogen phosphate (KH2PO4) (≥ 99%) (Carl Roth, catalog number: 3904 )
  12. Lysis buffer (pH 7.5) (see Recipes)
  13. Phosphate-buffered saline (PBS) (see Recipes)

Equipment

  1. Pipettes (Research 0.5-10 µl, 10-100 µl, 100-1,000 µl) (Eppendorf)
  2. Heraeus Biofuge Stratos ( Rotor) (Heraeus Holding, catalog number: 3332 )
  3. Ultrasound sonicator (Emerson Electric, BRANSON, model: 150 )
  4. Stirring device (Ingenieurbüro CAT M. Zipperer, model: R 50D )
  5. Glass homogenizer (2 ml) (Carl Roth, catalog number: TT57.1 )
  6. Teflon pestle (Carl Roth, catalog number: TT63.1 )

Procedure

Notes:

  1. The following protocol has been used to extract crude synaptosomal and free mitochondria fractions from mouse brain samples from mouse models of Alzheimer’s disease (see Breyhan et al. [2009] and Saul and Wirths [2017]). The user might need to modify the amount of solutions (e.g., lysis buffer) depending on the particulate downstream application (e.g., Western blotting or ELISA). For Western blots, we recommend to use 20 to 50 µg of total protein per well. This procedure will yield crude synaptosomal fractions with concentrations of approx. 7-10 µg/µl and microsomal and soluble enzyme fractions of approx. 4-6 µg/µl.
  2.  For mouse brain preparation, animals were anesthetized by carbon dioxide (CO2) and sacrificed by cervical dislocation. Tissues were carefully dissected and either directly used or kept at -80 °C until further use. No differences were noted in yield or quality of the protein fractions if fresh or frozen tissue has been used.
  1. Mechanically homogenize fresh or deep-frozen brain hemispheres in a weight:volume ratio of 1:10 using cold lysis buffer (1,000 µl buffer per 100 mg tissue, see Recipes) with 10 strokes in a glass-Teflon homogenizer at 800 rpm (Figure 2).
    Note: Our lab uses one brain hemisphere with cerebellum and olfactory bulb removed and flash frozen on a plate of dry ice, however the presence of cerebellum or olfactory bulb does not compromise the procedure. For convenience, we do not remove the meninges upon harvesting the tissue.

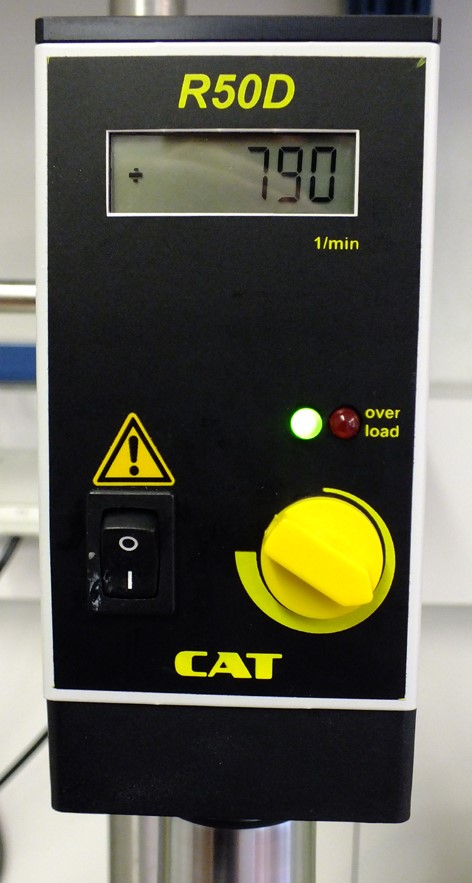

    Figure 2. Motor-driven homogenizer

  2. Transfer the homogenate to 1.5 ml reaction tubes.
  3. Spin the samples at 1,000 x g for 10 min at 4 °C to separate nuclei (Pellet P1).
    Note: Centrifuge should be pre-chilled to 4 °C.
  4. Remove the supernatant (S1) and transfer to a new 1.5 ml reaction tube. The pellet (P1) can be discarded.
  5. Spin the supernatant at 12,000 x g for 10 min at 4 °C and transfer the resulting supernatant (S2) containing the light membrane fraction and soluble enzymes to a new 1.5 ml reaction tube.
  6. Resuspend the pellet (P2) containing crude synaptosomes and mitochondria in 500 µl PBS (see Recipes).
  7. Homogenates can be stored at -80 °C until further use.

Data analysis

The protein fractions obtained by using this protocol can be used in down-stream applications like Western-blot. Successful enrichment of crude synaptosomes and mitochondria can be e.g., demonstrated by Western blot analysis using marker proteins like post-synaptic density protein 95 (PSD95) or cytochrome c oxidase (CoxIV) (Saul and Wirths, 2017) (Figure 3).

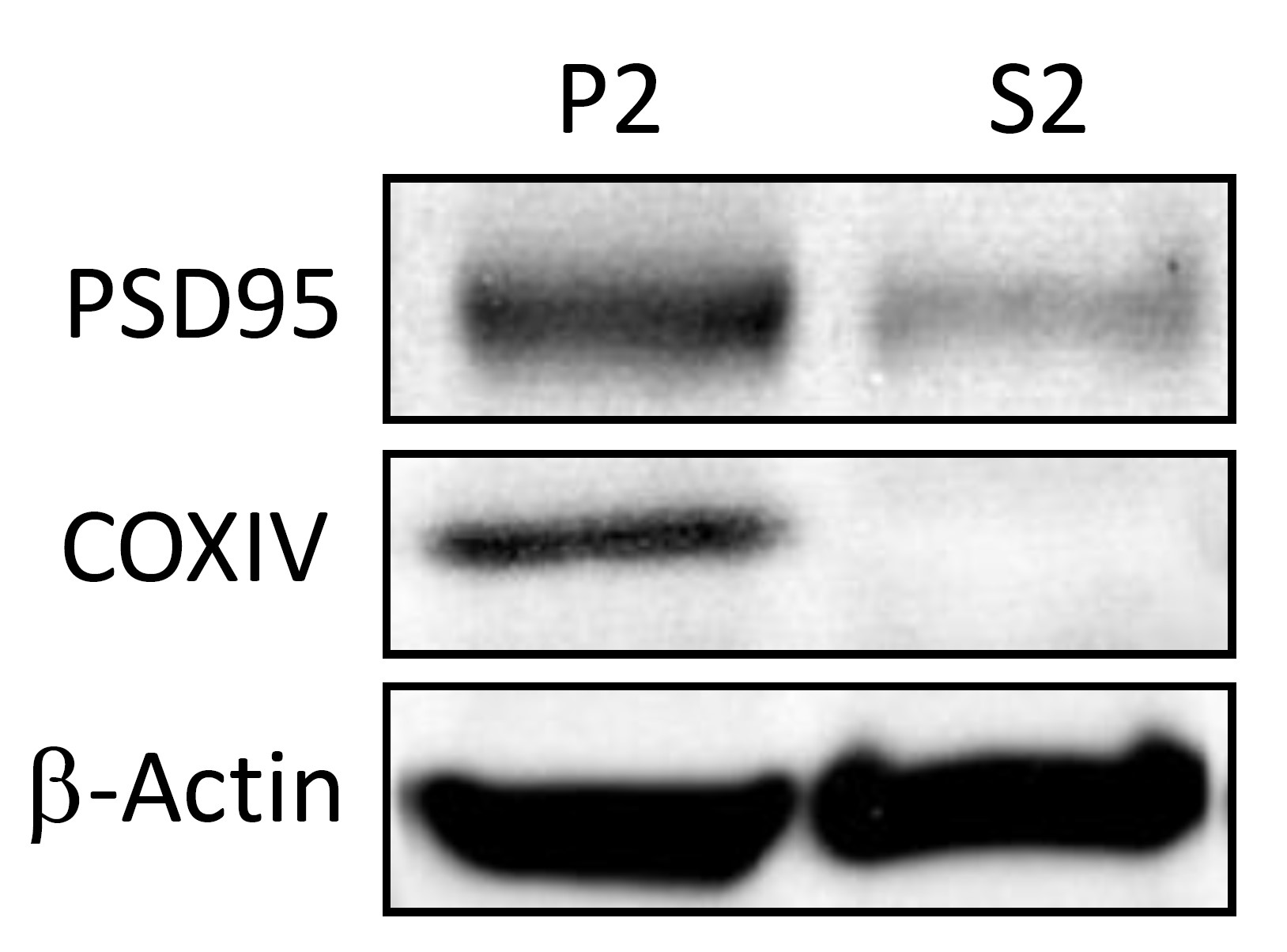

Figure 3. Exemplary Western blot using antibodies against PSD95 and COXIV with β-actin as loading control

Recipes

  1. Lysis buffer (pH 7.5)
    0.32 M sucrose
    5 mM HEPES
    cOmpleteTM protease inhibitor cocktail (1 tablet per 10 ml)
    Phosphatase inhibitor cocktail 3 (use at 1:100 dilution)
    Note: Can be stored at 4 °C for 1 month or at -20 °C for up to 3 months.
  2. PBS (1x working solution pH 7.4)
    137 mM NaCl
    2.7 mM KCl
    8 mM Na2HPO4
    2 mM KH2PO4

Acknowledgments

Financial support of the Alzheimer Forschung Initiative e.V. is gratefully acknowledged. This protocol was adapted from Gurd et al. (1974) with modifications.

References

  1. Breyhan, H., Wirths, O., Duan, K., Marcello, A., Rettig, J. and Bayer, T. A. (2009). APP/PS1KI bigenic mice develop early synaptic deficits and hippocampal atrophy. Acta Neuropathol 117(6): 677-685.
  2. Gurd, J. W., Jones, L. R., Mahler, H. R. and Moore, W. J. (1974). Isolation and partial characterization of rat brain synaptic plasma membranes. J Neurochem 22(2): 281-290.
  3. Saul, A. and Wirths, O. (2017). Endogenous Apolipoprotein E (ApoE) fragmentation is linked to amyloid pathology in transgenic mouse models of Alzheimer’s disease. Mol Neurobiol 54(1): 319-327.
Copyright: © 2017 The Authors; exclusive licensee Bio-protocol LLC.
How to cite: Wirths, O. (2017). Preparation of Crude Synaptosomal Fractions from Mouse Brains and Spinal Cords. Bio-protocol 7(15): e2423. DOI: 10.21769/BioProtoc.2423.
