Measuring Behavioral Individuality in the Acoustic Startle Behavior in Zebrafish

Carlos PantojaCarlos Pantoja*Adam HoaglandAdam Hoagland*Elizabeth CarrollElizabeth CarrollDavid SchoppikDavid SchoppikEhud Y. IsacoffEhud Y. Isacoff  (*contributed equally to this work)
DOI:   10.21769/BioProtoc.2200
Published:   Vol 7, Iss 7, April 05, 2017
Views:
How to cite Favorites Q&A Share your feedback Cited by

Abstract

The objective of this protocol is to provide a detailed description for the construction and use of a behavioral apparatus, the zBox, for high-throughput behavioral measurements in larval zebrafish (Danio rerio). The zBox is used to measure behavior in multiple individuals simultaneously. Individual fish are housed in wells of multi-well plates and receive acoustic/vibration stimuli with simultaneous recording of behavior. Automated analysis of behavioral movies is performed with MATLAB scripts. This protocol was adapted from two of our previously published papers (Levitz et al., 2013; Pantoja et al., 2016). The zBox provides an easy to setup flexible platform for behavioral experiments in zebrafish larvae.

Keywords: Zebrafish, Behavior, Individuality, Neuromodulation, High-throughput, Startle, Larvae

Background

Behavioral differences between individuals in a population are ubiquitous and likely play a role in adaptation to varying selective pressures during evolution. However, variation in behavior among individuals is often ignored when the quantitation of the behavior of groups is presented as means and associated dispersions. In this protocol, we describe an approach to characterize individuality in the habituation of the acoustic startle behavior at the population level in zebrafish (Danio rerio) larvae. Our approach and set-up can be easily adapted to studies of individuality in other zebrafish larval behaviors.

Materials and Reagents

  1. Petri dishes
  2. Pipette tip
  3. 48-well multi-well plate
  4. Zebrafish embryos
  5. Instant ocean sea salt mix (Spectrum Brands, catalog number: SS15-10 )
  6. DI H2O
  7. E3 medium (see Recipes)

Equipment

  1. P1000 PIPETMAN pipettor
  2. Stir plate
  3. zBox parts list (Table 1)

    Table 1. ZBox parts list
    Manufacturer/Item description
    		 Part number
    		 Quantity
    Newegg - Computer

    Minimum requirements: PC, 8 GB RAM, 2 GHz processor
    		1
    PCIe Firewire 800 card
    		 9SIA24G28M5974
    		1
    National Instruments (DAQ)

    NI PCI-6229
    		 779068-01
    		1
    RC68-68 Cable (1 m)
    		 192061-01
    		2
    CB-68LP - Unshielded
    		 777145-01
    		2
    McMaster Carr (Structural external)

    80/20 1”x1” framing 96”
    		 47065T123
    		4
    80/20 corners
    		 47065T177
    		20
    80/20 nuts 80x
    		47065T147
    		12
    Black PVC, 48”x48”x.
    		 84775K942
    		1
    236” (back)Black PVC 36”x48”x.236
    		 84775K742
    		3
    sides and top Super Adhesive Hook
    		 94985K614
    		10ft
    Loop
    		 9489K874
    		10ft
    Loctite Black Silicone sealant
    		 74945A81
    		1
    Black gaffer’s tape
    		 7612A94
    		1
    Right angle 80/20
    		 47065T223
    		2
    80/20 fastener
    		 47065T139
    		2
    Acrylic cement
    		 7528A13
    		1
    PTFE tape
    		 4591K11
    		1
    General Purpose Epoxy
    		 Permatex 84101
    		1
    Nylon 6/6 Thumb Screw
    		 96295A336
    		1
    Thorlabs (Structural internal)

    Breadboard 24”x36”
    		 MB2436
    		1
    XT66 Rail
    		 XT66-500
    		1
    XT66 Dovetail
    		 XT66DP-500
    		1
    XT66 Dovetail clamp 40 mm
    		 XT66C2
    		2
    XT66 right angle cross piece
    		 XT66CB
    		1
    XT66 base plate
    		 XT66P1
    		1
    XT66 pivot platform
    		 XT66RC
    		2
    Plate holder
    		 FP01
    		2
    10” mounting post
    		 P10
    		1
    Pedestal Base adapter
    		 PB4
    		1
     Clamping fork
    		 PF175
    		1
    Post mounting clamp
    		 C1501
    		1
    Blackout fabric
    		 BK5
    		1
    Right angle plate
    		 AP90
    		1
    Edmund Optics

    101 x 127 mm, 45 Degree AOI, Hot Mirror
    		 43-958
    		2
    Pike F-245 2/3” CCD camera
    		 59-221
    		1
    Pike Tripod adapter
    		 59-227

    Plastic IR filter
    		 43-949
    		1
    Navitar

    50MM F/2.8 TELECENTRIC LENS
    		 TC-5028
    		1
    Unibrain (1394store.com)

    1m (15 ft) IEEE-1394b 9p to 9p screw lock cable
    		1
    Digi-Key Electronics

    100Kohm resistor
    		 CMF100KHFCT-ND
    		4
    2-pin recipient
    		 A99613-ND
    		10
    2-pin socket
    		 A99620-ND
    		20
    2-pin header
    		 A30770-ND
    		10
    Yellow LEDs
    		 C503B-AAN-CY0B0251-ND
    		48
    IR LEDs
    		 475-2919-ND
    		48
    White LEDs
    		 C503C-WAS-CBADA151-ND
    		48
     Blue LEDs
    		 C503B-BAN-CY0C0461-ND
    		48
    1ohm resistor
    		 P1.0W-2BK-ND
    		3
    270 ohm resistor
    		 PPC270W-1CT-ND
    		16
    390 ohm resistor
    		PPC390W-1CT-ND
    		6
    Diode
    		 1N914B-ND
    		2
    12 V power supply
    		 EPS377-ND
    		1
    24 V power supply
    		 EPS357-ND
    		1
    LEDsupply

    BuckPuck DC LED Drivers
    		 0302x-D-x-xxxx
    		1
    Machine shop (plastics)

    Custom plastic fabrication
    		1
    Whatman (GE) plates

    Multi-well plate of desired well number

    Visaton (speakers)
    		 8006
    		2
    Pyle Audio (amplifier)
    		 PyleHome PCA1
    		1
    60 Watt incandescent bulb
    		1
    Simple designs home (lamp)
    		 LD1003-WHT
    		 1

    Notes: Assembly of zBox (see Figures 1-7):
    1. Use epoxy to adhere the two side walls into the grooves on the back panel (Figure 2).
    2. The screw holes in the LED platforms need to be drilled for 4-40 threads (Figure 3).
    3. Use the plastic thumbscrews to mount the 2 LED platforms (one for the imaging IR LEDs and one for LEDs for use in optogenetic experiments) to the slots in the side walls (Figure 4).
    4. LED arrays can be wired in 8 x 6 or 12 x 10 arrays depending on the desired amount of light. Due to perspective, the IR imaging LEDs are best arranged so that the arrays extend to the sides of the LED platform. Thus, given the distance from the plate, the IR LEDs can evenly light the extent of the multiwell plate.
    5. The BuckPack LED driver can be wired to power the LED arrays and be switched using TTL pulses from the DAQ
    6. The multiwell plate platform should be able to slide into the grooves on the side walls.
    7. Screw speakers to side of multiwell platform (Figures 4-6).
    8. Use diffuser paper to assure that IR light is evenly distributed throughout wells.
    9. Mount camera to P10 posts. XT66 rails should be constructed to hold IR mirrors (Figure 7).

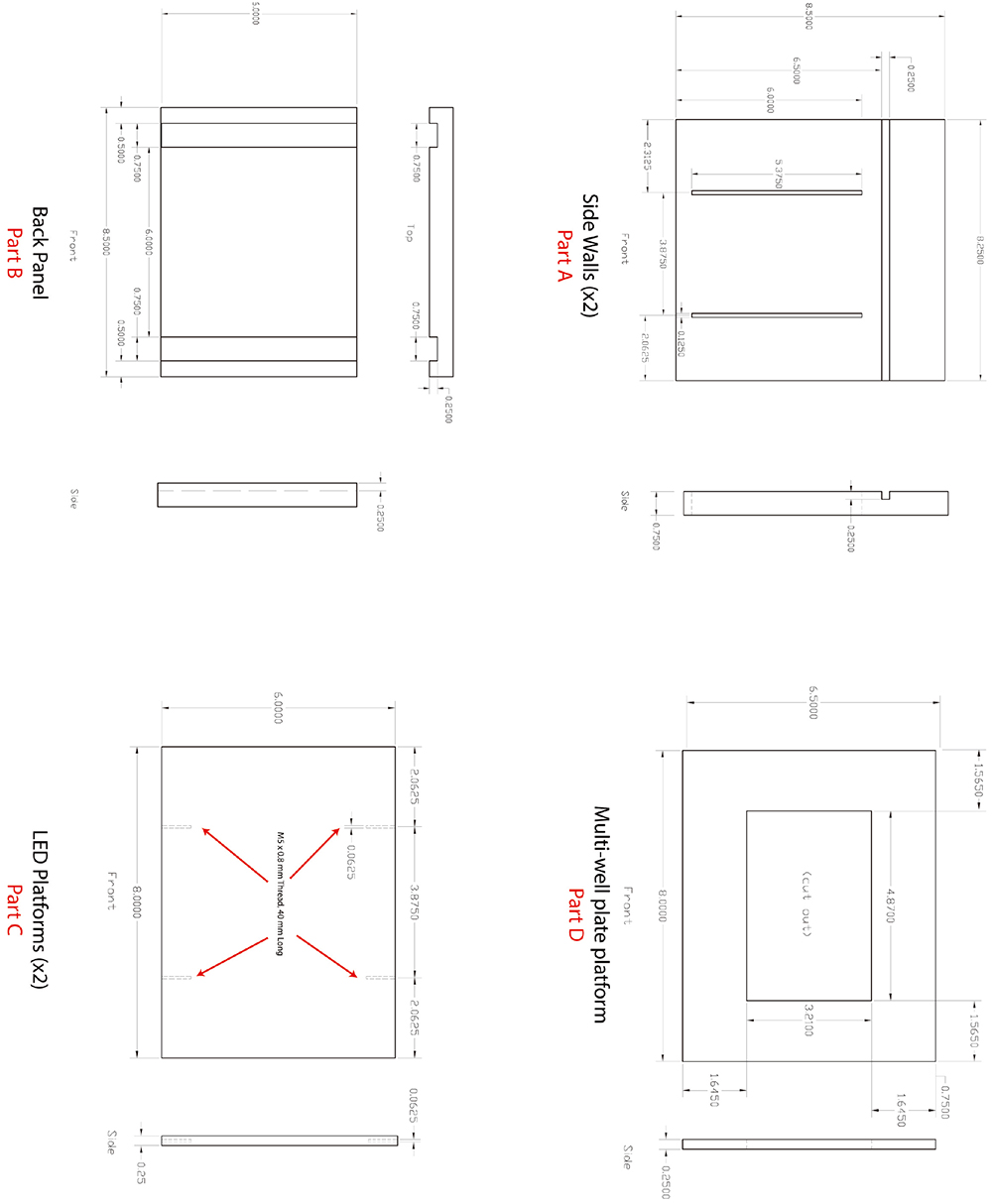

      Figure 1. zBox plans

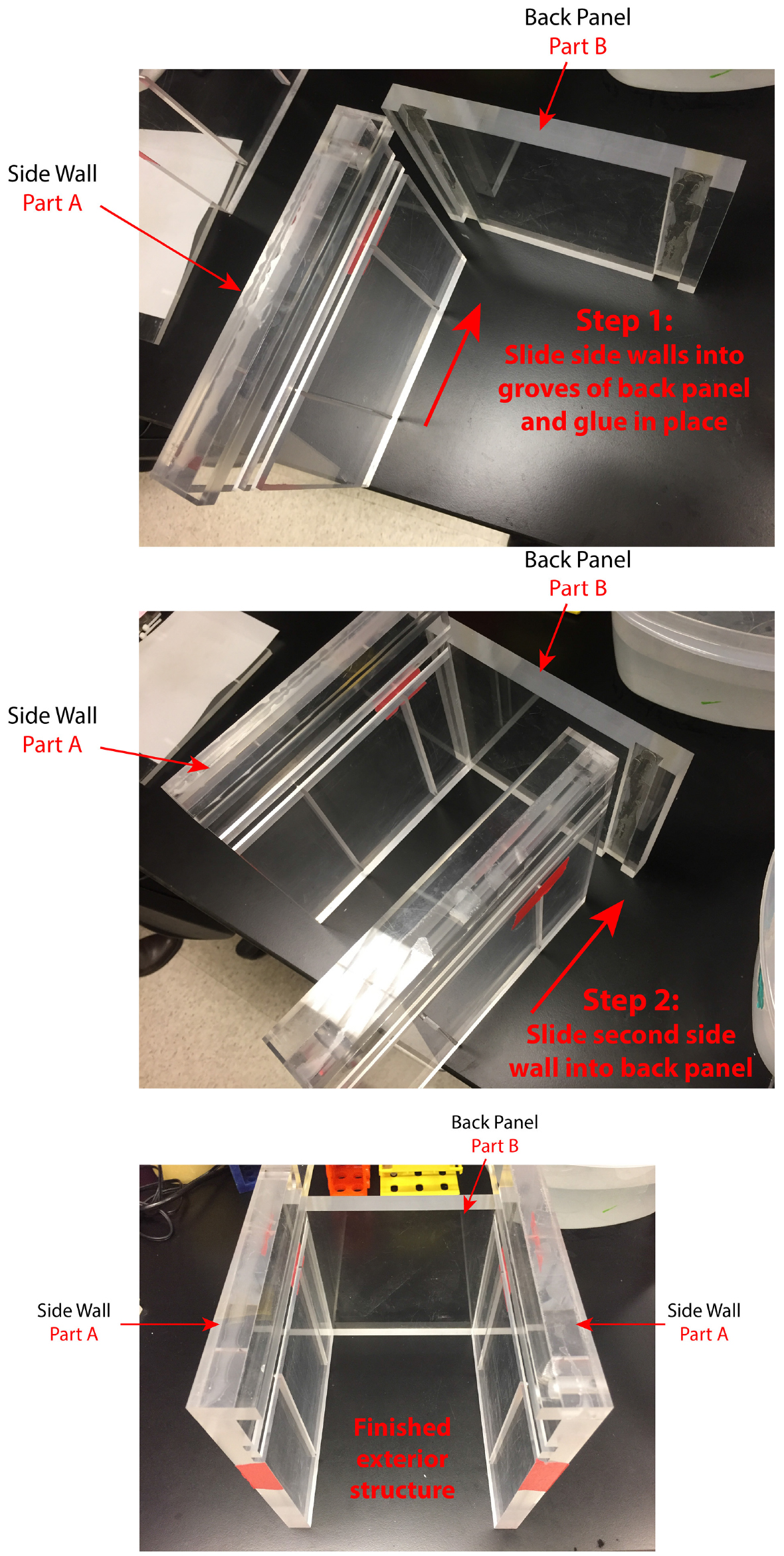

      Figure 2. Slide side walls into back panel grooves and epoxy in place

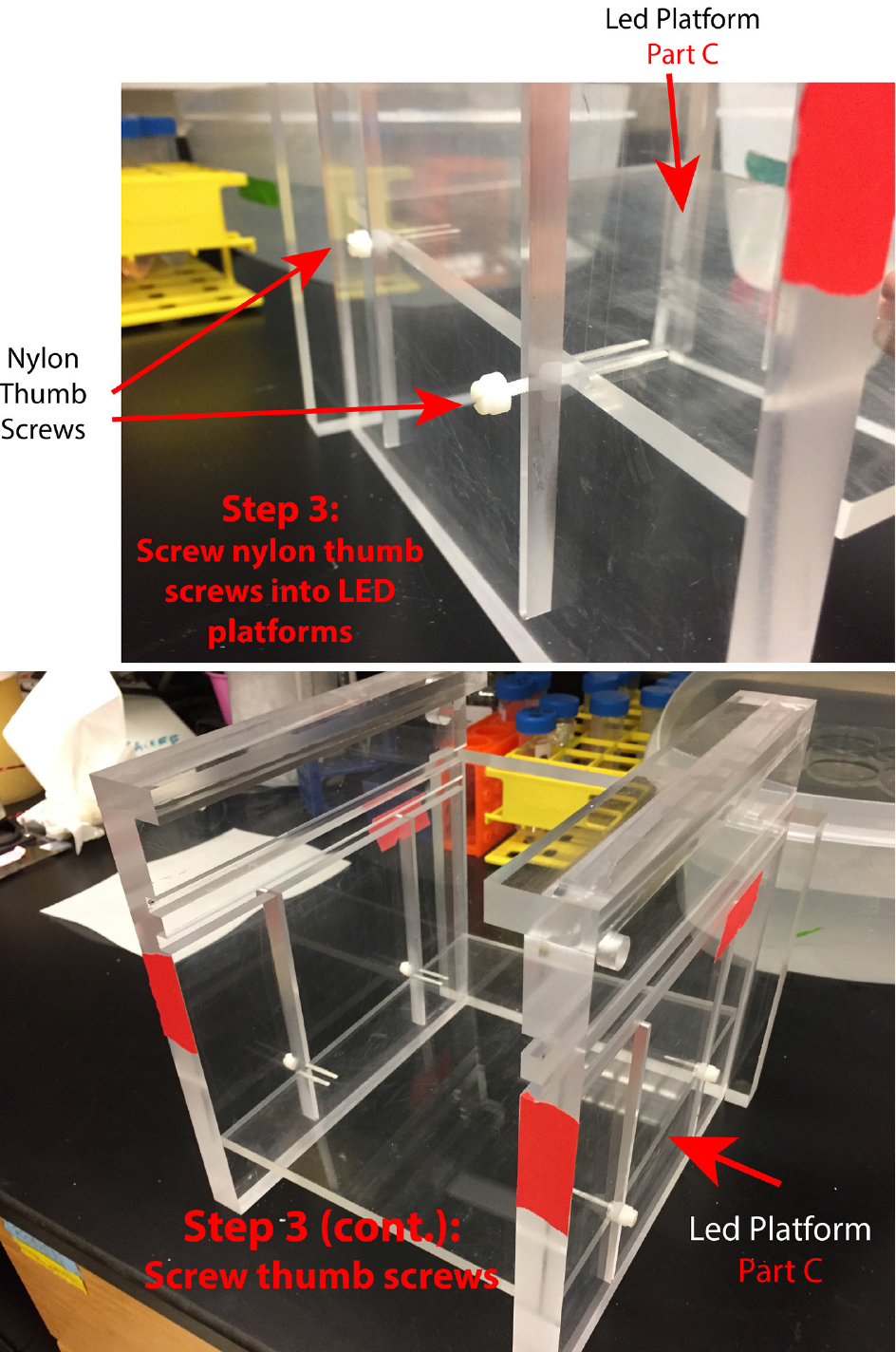

      Figure 3. Use thumb screws to mount LED platforms into side wall slots

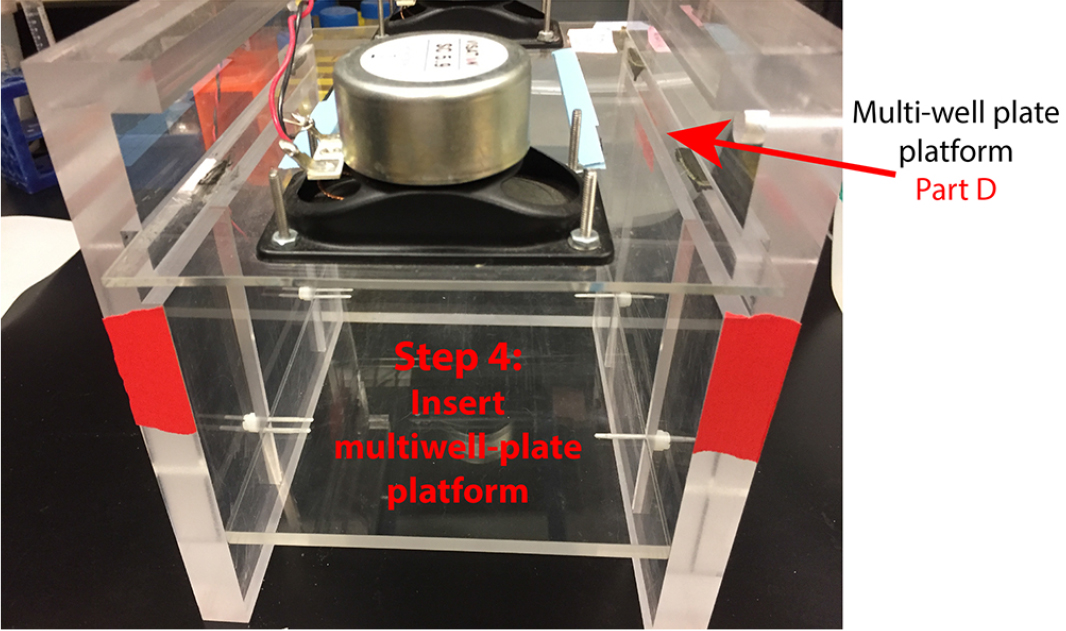

      Figure 4. Insert multi-well plate platform into top grooves of side walls

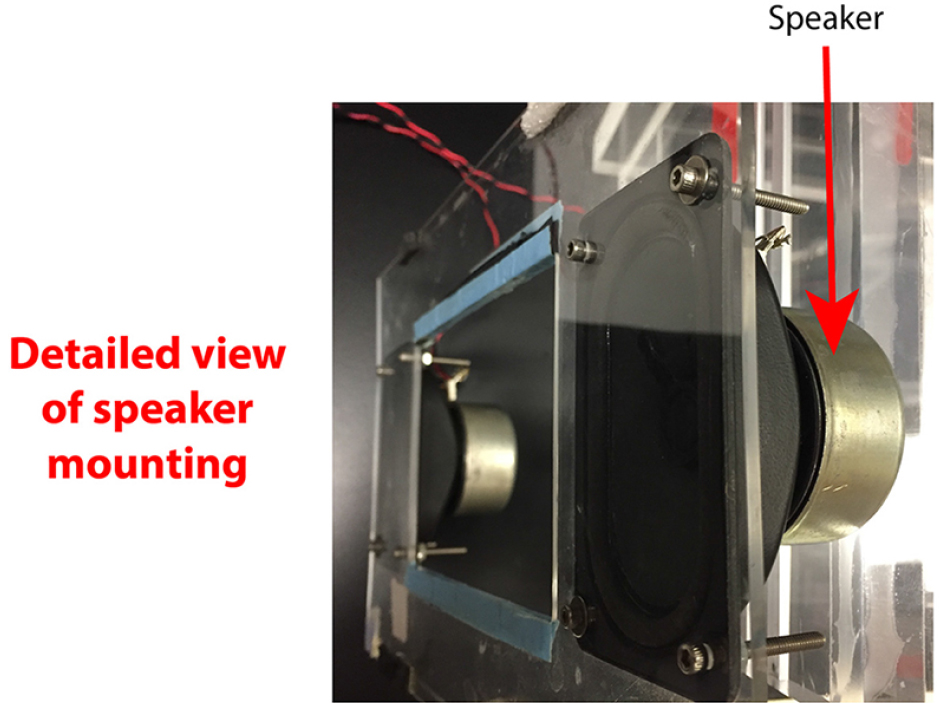

      Figure 5. Detailed view of eaker mounting

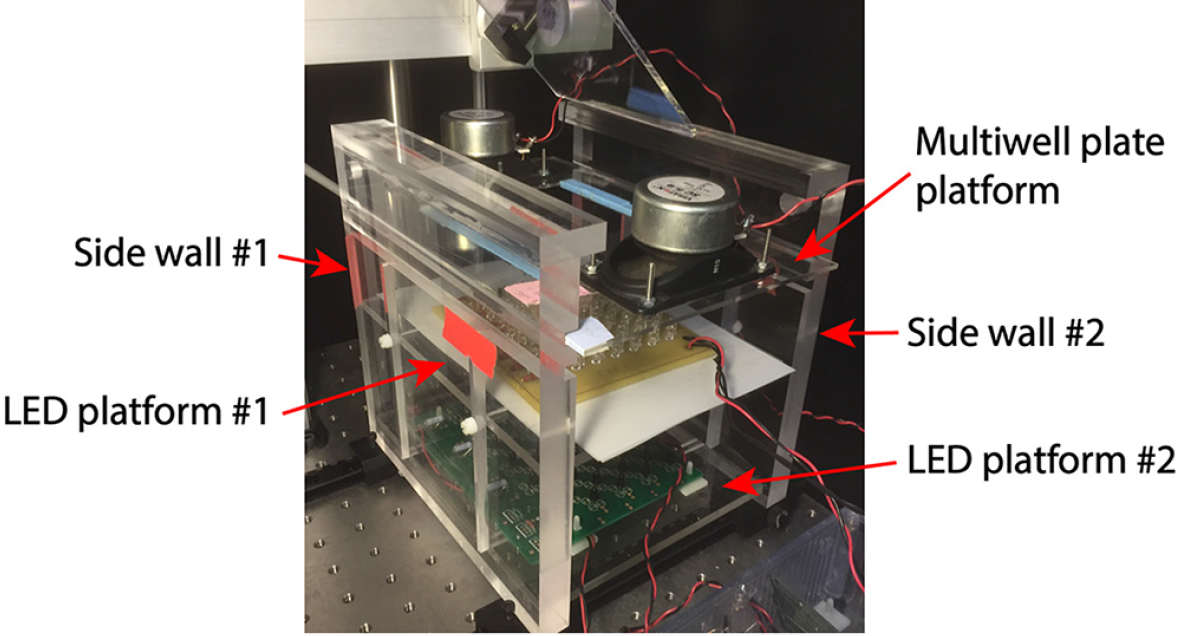

      Figure 6. Completed zBox

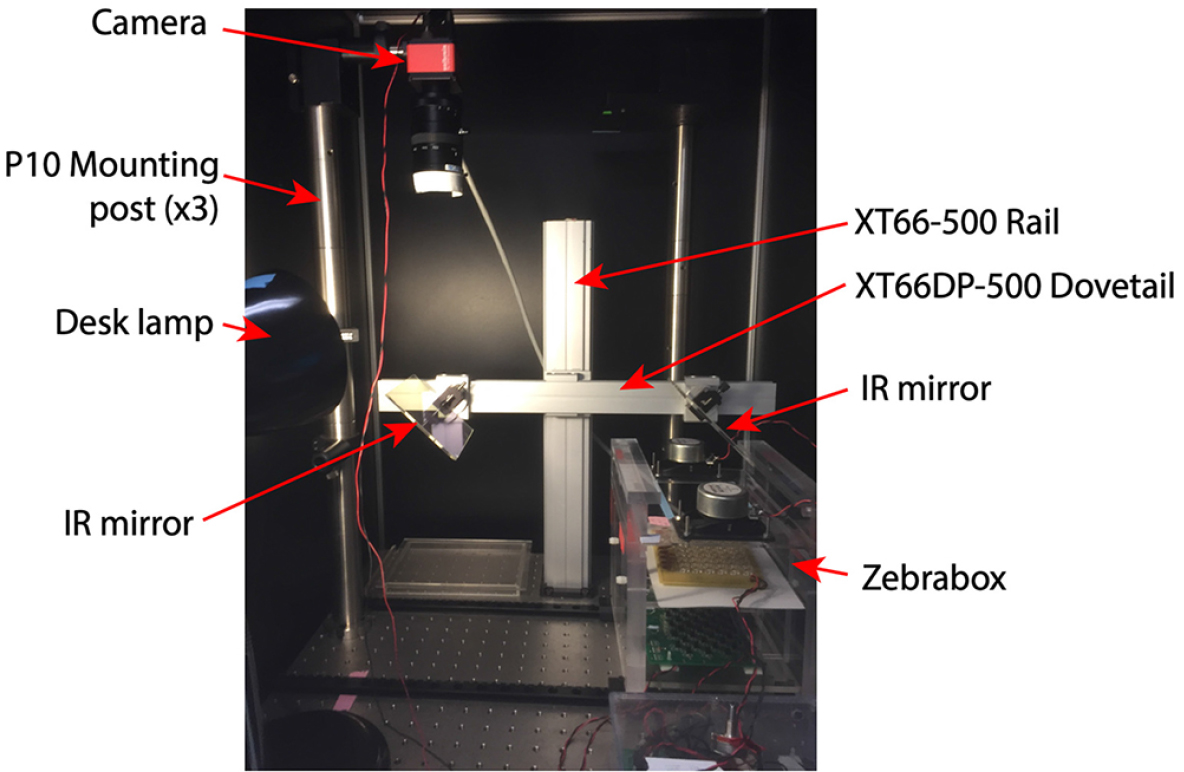

      Figure 7. Camera mounting

Software

  1. Matlab2014a or later with Imaging Processing and Data Acquisition toolboxes installed

Procedure

  1. Zebrafish embryos are raised in Petri dishes at low densities (~2 fish per ml) at 28.5 °C in E3 medium.
  2. Larvae without inflated bladders and that do not respond to light taps on the dish on 4 dpf are removed.
  3. Larvae are individually pipetted in 300 µl of E3 medium with a P1000 PIPETMAN pipettor, with the pipette tip cut to prevent damage to the larvae, and individually transferred from Petri dishes to the wells of a 48-well multi-well plate.
  4. To prevent experimenter selection bias zebrafish larvae are randomly chosen for transfer to the 48-well plate.
  5. 48-well microplate is transferred to a plexiglass box (Figures 4-7) kept inside an isolated dark chamber. Interior of chamber illuminated with constant diffuse white light is supplied by a 60 W bulb.
  6. The behavioral apparatus is housed in a climate controlled environment at 22 °C.
  7. If exposed to different treatments, larvae from different groups are tested simultaneously in the same micro-well plate.
  8. Larvae used in single-day experiments are 6 dpf, whereas those used in the three-day long experiments are 5-7 dpf. For the three-day experiments, the larvae are kept in the microplates with 1,300 µl E3 overnight at 28.5 °C between measurements. The medium is refreshed the next day and then readjusted to 300 µl for the next habituation trial.
  9. Behavioral activity within the microplate is recorded with a CCD camera, which is backlit by an array of infrared LEDs.
  10. The behavioral assay consists of 15 min of acclimation to the high-throughput apparatus, followed by 10 min of spontaneous activity recording, and then the habituation protocol.
  11. Sound stimuli are administered by two speakers mounted to the same platform as the microplate. The speakers are powered by a 15 W amplifier and delivered 900 Hz square waves of ~3 msec duration. Stimuli are delivered via a Native Instruments PCI-6229 DAQ controlled by MATLAB.
  12. Habituation protocol consists of 10 stimuli at 90 sec ISI (0.4 V, ~95 dB) followed by 100 stimuli at 5 sec ISI (0.4 V, ~95 dB).
  13. For each behavior experiment, data is analyzed from randomly sampled larval zebrafish derived from multiple clutches obtained on different days. We empirically determined that measuring behavior in approximately 100 larvae is sufficient to quantify behavioral variation at the population level.

Data analysis

  1. Behavioral analysis is performed with MATLAB scripts (supplemental materials and Figure 8). README.txt file contains detailed information on how to run scripts. Basic skills in MATLAB programming are recommended.

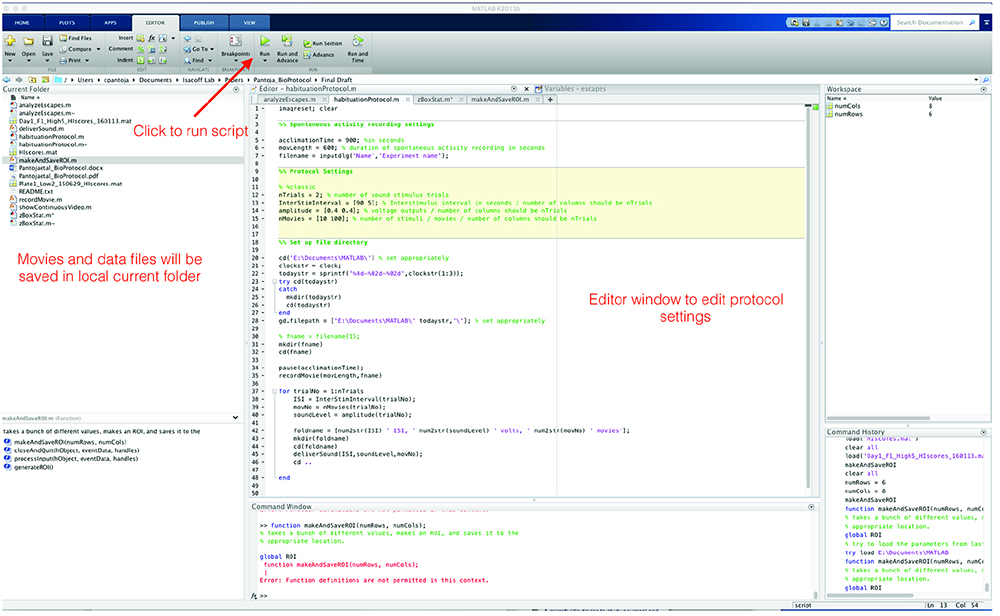

    Figure 8. Screenshot of MATLAB user interface

  2. Run habituationProtocol.m script. Escapes are detected using changes in pixel values between frames before and after sound stimulus presentation. An escape is counted if the difference of the integrated pixel values from the two frames immediately following the stimulus is statistically higher (P < 0.01, 2-sample t-test) than the distribution of pixel-change values taken from the non-escape portion spontaneous activity taken across all 120 movies (720 frames). The accuracy of this method was verified by visual inspection of the movies (Figure 9).

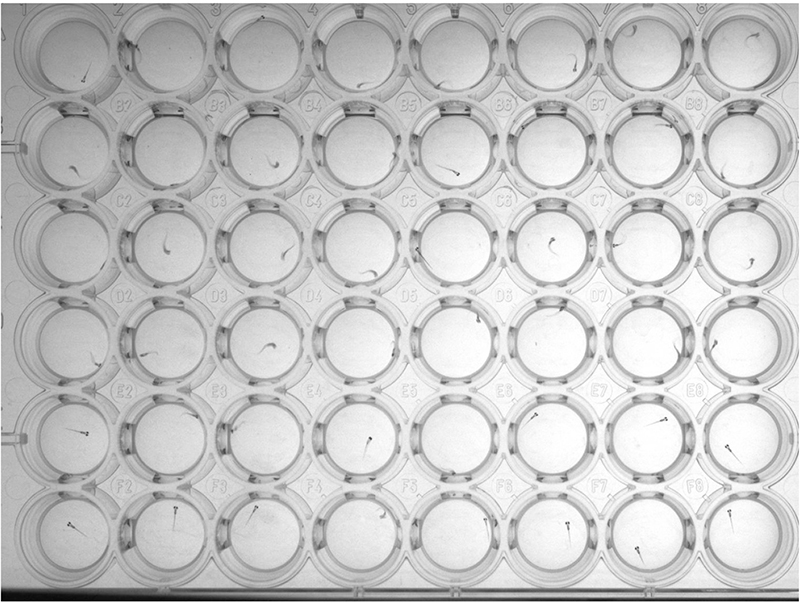

    Figure 9. Representative image of 48-well plate during sound-induced escape

  3. For analysis of behavioral movies run the analyzeEscapes.m script. We utilize the habituation index (HI) as a metric to describe acoustic startle habituation in individual larvae. The HI is defined as the difference in escape probability to the last 40 high-level stimuli under habituating conditions (10 sec inter-stimulus interval [ISI]) with the first 10 high-level stimuli under non-habituating conditions (90 sec ISI), divided by the probability of escape to the last 40 stimuli (HI =[Plast40 - Pfirst10]/Plast40). Only highly-responsive fish, probability of response 90% or more to the initial 10 high-level stimuli, are used in calculating the HI (Figure 10).

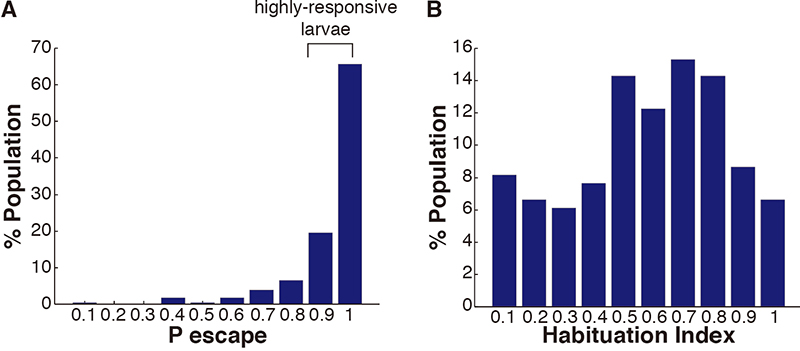

    Figure 10. Graphic example of acoustic startle repose quantification. A. Frequency distribution of probability of escape values during the first 10 stimuli (ISI = 90 sec, n = 230) of habituation series. B. Frequency distribution of HIs for highly responsive fish in (A) (ISI = 10 sec, n = 196).

  4. To determine if differences in HI between experimental groups are significant, we use the Mann-Whitney U-Test, which is included in the script zBoxStat.m. The HIscores.mat file in the supplemental materials provides an example of data to analyze.

Recipes

  1. E3 embryo medium
    Note: It is not necessary to use filtered or sterile solutions.
    1. Making 50x stock solution:
      15 g instant ocean sea salt mix
      1 L DI H2O
      Mix on stir plate for ~5 min
    2. Working solution:
      200 ml 50x E3
      10 L DI H2O
      2 drops (~0.1 ml) of methylene blue

Acknowledgments

This work supported by the National Institutes of Health Nanomedicine Development Center for the Optical Control of Biological Function (PN2EY018241) and the Human Frontier Science Program (RGP0013/2010).
The zBox was initially developed by Dr. David Schoppik in Dr. Alex Schier’s laboratory. The work and experimental approach described here have been adapted from previous research published in Nature Neuroscience (Levitz et al., 2013) and Neuron (Pantoja et al., 2016). Further information about uses for the zBox are reported in a study that investigated the role of neuropeptides in the partition of arousal behaviors in zebrafish (Woods et al., 2014). In addition, work by Zhou et al. can be used as a complementary set of methods for the utilization of this apparatus (Zhou et al., 2014).

References

  1. Levitz, J., Pantoja, C., Gaub, B., Janovjak, H., Reiner, A., Hoagland, A., Schoppik, D., Kane, B., Stawski, P., Schier, A. F., Trauner, D. and Isacoff, E. Y. (2013). Optical control of metabotropic glutamate receptors. Nat Neurosci 16(4): 507-516.
  2. Pantoja, C., Hoagland, A., Carroll, E. C., Karalis, V., Conner, A. and Isacoff, E. Y. (2016). Neuromodulatory regulation of behavioral individuality in zebrafish. Neuron 91(3): 587-601.
  3. Woods, I. G., Schoppik, D., Shi, V. J., Zimmerman, S., Coleman, H. A., Greenwood, J., Soucy, E. R. and Schier, A. F. (2014). Neuropeptidergic signaling partitions arousal behaviors in zebrafish. J Neurosci 34(9): 3142-3160.
  4. Zhou, Y., Cattley, R. T., Cario, C. L., Bai, Q. and Burton, E. A. (2014). Quantification of larval zebrafish motor function in multiwell plates using open-source MATLAB applications. Nat Protoc 9(7): 1533-1548.
