Acute Live/Dead Assay for the Analysis of Toxic Effects of Drugs on Cultured Neurons

Materials and Reagents

1. 24 well plates (Nunc)

2. Rat pups age P0, hippocampus (Figure 1)

3. L-15 (Thermo Fisher Scientific, Gibco^®, catalog number: 21083 )

4. Glucose (Sigma-Aldrich)

5. Gentamicin (Sigma-Aldrich, catalog number: G1272 )

6. Trypsine (Thermo Fisher Scientific, Gibco^®, catalog number: 150900046 )

7. DNase

8. Enriched MEM (Minimal Essential Medium, enriched with glucose (0.6%), Glutamax (2 mM), and gentamicin (15 μg/ml) (Thermo Fisher Scientific, Gibco^®, catalog number: 32360-026 )

9. B-27 (Thermo Fisher Scientific, Gibco^®, catalog number: 17504 )

10. Horse serum (Thermo Fisher Scientific, Gibco^®, catalog number: 16050 )

11. Fetal calf serum (Gibco)

12. 5-Fluoro-2-deoxyuridine (FUDR) (Sigma-Aldrich, catalog number: F0503 )

13. Calcein-AM (Sigma-Aldrich)

14. Zeta inhibitory peptide (ZIP) (AnaSpec)

15. Scr-ZIP (Anaspec, same amino acids as ZIP, in a scrambled order)

16. Propidium iodide (Sigma-Aldrich)

17. NaCl (Sigma-Aldrich)

18. KCl

19. MgCl₂ (Sigma-Aldrich)

20. CaCl₂ (Sigma-Aldrich)

21. HEPES (Sigma-Aldrich, catalog number: 83264 )

22. Standard extracellular medium (see Recipes)

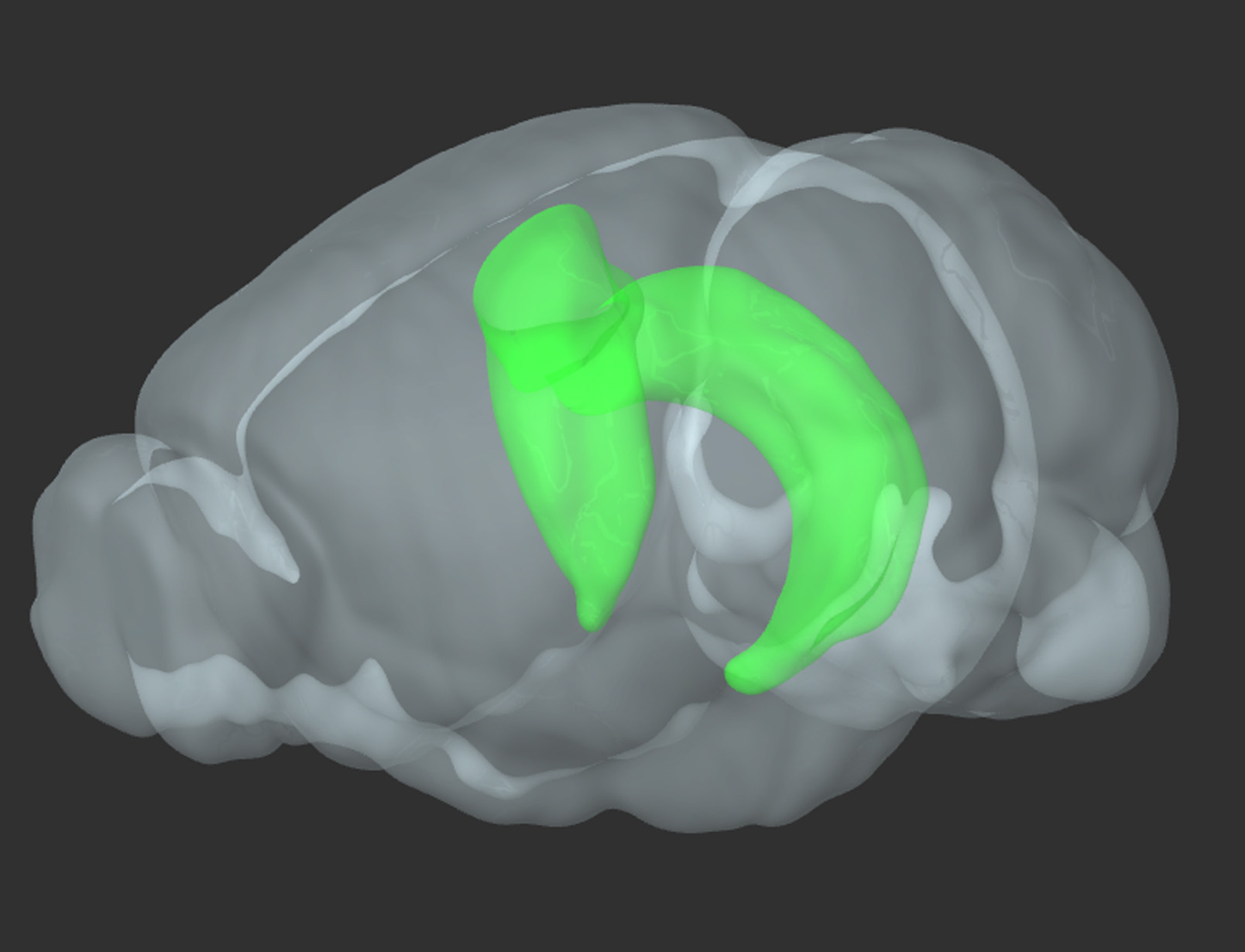

    Figure 1. 3D reconstruction of a rodent brain. In green-bilateral hippocampus (reproduced from Allen Brain Atlas)


Equipment

1. Biological hood (Haroshet Ltd.)

2. 37 °C/5% CO₂ humidified incubator (Tuttnauer, model: TUTT2424-2 )

3. Confocal laser scanning inverted microscope (Zeiss, model: LSM 510 ), with a 40x oil-immersion objective (1.3 NA)

4. Standard desktop centrifuge

5. Inverted microscope (Nikon) equipped with phase optics

6. Dissecting binocular microscope


Software

1. ImageJ

2. LSM 510 software


Procedure

1. Primary brain cultures
   1. Wistar Rat pups are decapitated on day of birth (P0), their brains removed and placed in a chilled (4 °C), oxygenated (by bubbling with a pipette tip) Leibovitz L15 medium enriched with 0.6% glucose and gentamicin (20 µg/ml) under a dissecting microscope. The hippocampus is removed and the meninges are carefully peeled off.

   2. Hippocampal tissue is mechanically dissociated by trituration after incubation with trypsin (0.25%) and DNase (50 µg/ml), for 20 min at 37 °C.

   3. 37 °C 5% CO₂, in a humidified incubator. The tissue is washed 3x with 2 ml of the L15 medium by centrifugation and passed to the plating medium. This consists of 1 ml minimum essential medium (MEM, Earl salts) containing 5% heat-inactivated horse serum (HS), 5% fetal calf serum, and B-27 (1 µl/1ml), enriched with 0.6% glucose, gentamicin (20 µg/ml), and 2 mM glutamax (enriched MEM). Cell number can either be determined by counting trypan blue-stained cells on a Neurobauer (Boeco, Germany), or estimated, assuming that each hippocampus contains appx. 1 million cells. About 10⁵ cells in 1 ml medium are plated in each well of a 24-well plate, onto a hippocampal glial feeder layer which is grown on the glass for 2 weeks prior to the plating of the neurons (Papa et al., 1995, Goldin et al., 2001).

   4. Cells are left to grow in the humidified incubator at 37 °C, 5% CO₂ for 4 days, at which time the medium is changed to 10% HS in enriched MEM, plus a mixture of 5´-fluoro-2-deoxyuridine/uridine (FUDR) (20 µg and 50 µg/ml, respectively), to block glial proliferation. Four days later the medium is replaced by 1ml 10% HS in MEM which does not contain FUDR, and no further changes are made.
      Note: We routinely use Wistar rats, but the procedure should be applicable to other rat strains and with small modifications, also to mouse cultures. The procedure is similar in other brain areas, and the neocortex or striatum have been used successfully using this method. We did not try cerebellar or spinal cord cultures. We use P0 rat pups, and this protocol is useful until P4-5, beyond that the yield of viable cells is reduced dramatically.


2. Viability assay

   1. Cells are incubated in standard extracellular medium at room temperature and imaged on a stage of a Zeiss LSM 510 laser scanning confocal microscope, with a 40x oil-immersion objective (1.3 NA).

   2. Cultures are initially loaded in 1 ml standard recording medium with 2 µM Calcein-AM for 30 min, and imaged in 1.8 ml of standard medium in the presence of PI (2.5 µM). A new vile of ZIP or Scr-ZIP (a scrambled peptide used as control) was used each day, diluted to a final concentration of 1mM and kept at -4 °C, or control medium are added at 5-10 min after onset of imaging.

   3. Two-channel images [Calcein-AM/Propidium Iodide (PI)] are acquired, where green (488 nm) and red (545 nm) fluorescent cells represent live and dead cells, respectively.

   4. Time-lapse imaging of cultures is performed at room temperature for 90 min at 4 min intervals. Several fields of view per coverslip are imaged repeatedly. Survival probability is calculated as [[no. live cells (cells stained green) (attime t)/no. live cells (t = 0)]*100]. Cells that either lose their color (Calcein-AM leaked out) or gain red staining (PI entering the cell) were not regarded as live (Figure 2). No co-staining of red and green is detected. Neurons can easily be distinguished from glial cells, in that the latter group consists of large flat cells, whereas the neuronal somata are more compact and 3-dimensional.

   5. Standard imaging software (ImageJ) is used to count the number of live cells for each image.

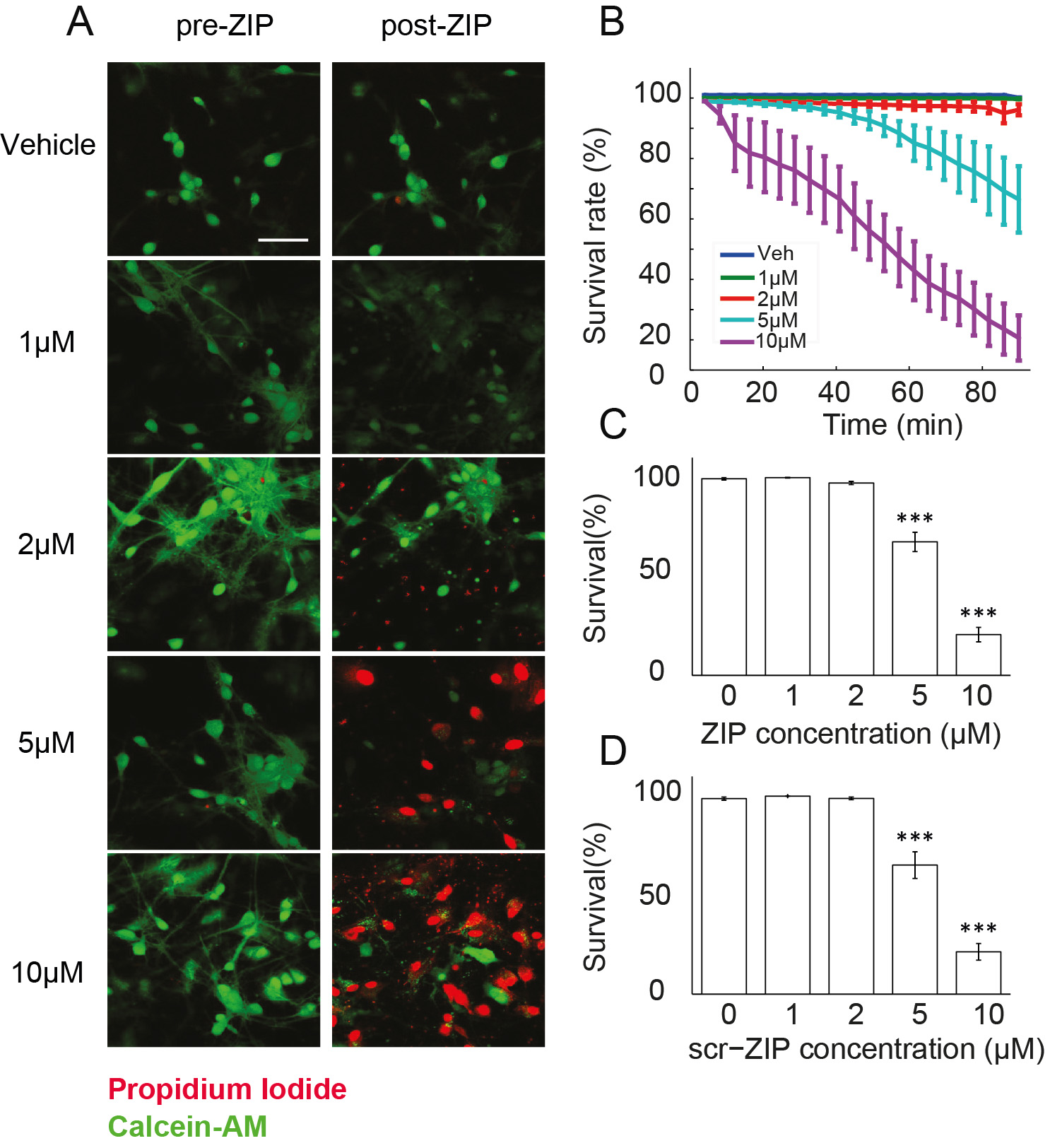

      Figure 2. Measuring viability of hippocampal cultures in response to ZIP application. A. Viability of cultured hippocampal neurons was determined using Calcein-AM (green) and propidium iodide (red). Cultures were exposed to different doses of ZIP [Vehicle (0 µM)/1 µM/2 µM/5 µM/10 µM]. Scale bar, 50 µm; B. Dose response curve was constructed from time-lapse images taken in 4 min intervals (Figure 3) to assess the rate of cellular death following treatment with ZIP; C. Bar graph summarizes total change in culture viability (n = 22 coverslips, 3,544 cells, values are mean ± SEM, 90 min post ZIP-treatment vs. viability pre-treatment, paired t-test, ***P < 0.005); D. Scr-ZIP induces similar changes in culture viability. Bar graphs summarize total change in culture viability (n = 13 coverslips, 2,365 cells, 90 min post scr-ZIP-treatment vs. viability pre-treatment, paired t-test, ***P < 0.005). (Adapted from Sadeh et al., 2015)

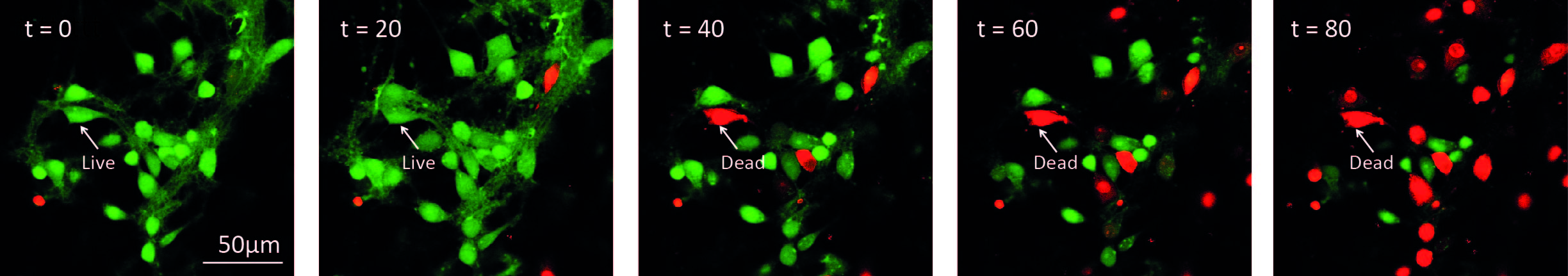

      Figure 3. Illustration of time-lapse imaging of hippocampal cultures. Cells were loaded with Calcein-AM and Imaged in the presence of propidium iodide. 10 μM ZIP was added to the culture at t = 0. A cell was considered alive in the cell count as long as it retained green fluorescence.


Notes

1. The method allows us to distinguish between cells that were already dead before the onset of drug treatment (those stained with PI but not stained earlier with Calcein-AM), those that died during and after the treatment (initially stained with Calcein-AM) and those which survived the damage (stained only with Calcein-AM).

2. In addition the procedure allows distinguishing between neurons and glia, based on their different morphology.

3. Additional stain for glia is possible with the use of selective live glia stains (Nimmerjahn et al., 2004).

4. Finally, the time-lapse imaging of the cells allows to trace the course of cell death in the neuronal population (e.g., Figure 3).


Recipes

1. Standard extracellular medium (filtered and stored in 0-4 °C refrigerator for up to 1 mo.)
   pH = 7.4, 32 mOsm
   129 mM NaCl
   4 mM KCl
   1 mM MgCl₂
   2 mM CaCl₂
   10.5 mM glucose
   10 mM HEPES


Acknowledgments

Adapted from “Zeta Inhibitory Peptide, a Candidate Inhibitor of Protein Kinase Mζ, Is Excitotoxic to Cultured Hippocampal Neurons” (Sadeh et al., 2015).
