Detection of Hydroxyproline O-galactoside by LC/MS

Materials and Reagents

1. Cotton

2. 1 ml Micropipette tip

3. Hyp O-galactosylated peptides or proteins

4. 0.22 M Ba(OH)₂

5. 0.32 M sulfuric acid

6. 1 M NaOH

7. 1 M HCl

8. 10% aqueous ammonia

9. 80% acetonitrile containing 0.1% formic acid

10. 99.9% acetonitrile (HPLC grade) containing 0.1% formic acid

11. Water (HPLC grade) containing 0.1% formic acid


Equipment

1. Heat block

2. Centrifugal evaporator

3. BT AG 50W-X8 Resin (100-200 mg resin, H+ form) (Bio-Rad Laboratories, catalog number: 143-5441 )

4. Micro centrifuge

5. Micro HPLC system (JASCO International Co., model: micro21 LC-01 )

6. LCQ Deca XP-plus ESI ion-trap mass spectrometer (Thermo Fisher Scientific)

7. TSK-gel Amide-80 (3 μm) column (2.0 x 150 mm) (Tosoh Bioscience LLC, catalog number: 21865 )


Procedure

1. Ba(OH)₂ hydrolysis

   1. Dissolve galactosylated peptide in 500 μl 0.22 M Ba(OH)₂ in a glass vial with cap.

   2. Incubate at 105 °C, 6 h.

   3. Incubate on ice for 5 min.

   4. Add 500 μl of 0.32 M sulfuric acid on ice.

   5. Centrifuge at 20,000 x g for 5 min.


2. Partial purification of Ba(OH)₂ hydrolysate (Figure 1)

   1. Plug a 1 ml micropipette tip with a small amount of cotton.

   2. Pack 200 mg AG 50W-X8 resin into the tip column.

   3. Wash the column with 1 ml of 1 M NaOH by gravity flow.

   4. Wash the column with 1 ml of 1 M HCl by gravity flow.

   5. Wash the column with 1 ml of water by gravity flow.

   6. Apply supernatant of the Ba(OH)₂ hydrolysate of the galactosylated peptide to the tip column.

   7. Wash the column with 1 ml of water by gravity flow.

   8. Elute with 1 ml of 10% aqueous ammonia by gravity flow.

   9. Evaporate the sample to dryness.

   10. Dissolve in 100 μl 80% acetonitrile containing 0.1% formic acid.

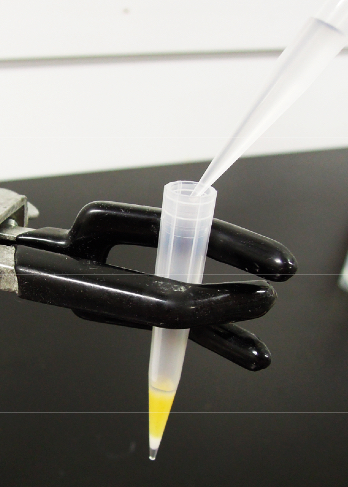

       Figure 1. Partial purification of Ba(OH)₂ hydrolysate. Supernatant of the Ba(OH)₂ hydrolysate of the galactosylated peptide was applied to the tip column.



3. LC/MS analysis
   10 μl aliquots of the assay solution will be analyzed by LC-MS using a micro HPLC (high pressure liquid chromatography) system connected to an LCQ Deca XP-plus ESI ion-trap mass spectrometer. Chromatographic separation is performed by normal-phase HPLC on a TSK-gel Amide-80 (3 μm) column (2 x 150 mm).

   1. The mobile phase is composed of HPLC grade water containing 0.1% formic acid (eluent A) and HPLC grade acetonitrile containing 0.1% formic acid (eluent B). The column temperature is maintained at 25 °C.

   2. The HPLC flow rate is 100 μl/min, and the elution gradient was 60 to 40% B over 10 min.

   3. Subject the HPLC eluate to coupled electrospray ionization (ESI) in the positive ionization mode.

   4. MS source parameters are as follows:

      1. Capillary temperature: 200 V

      2. Capillary voltage: 42 V

      3. Source voltage: 5 kV

      4. Source current: 8.5 μA

      5. Sheath gas flow: 50

      6. Aux gas flow: 0

      7. Sweep gas flow: 0

      8. The mass range: m/z 500-2000

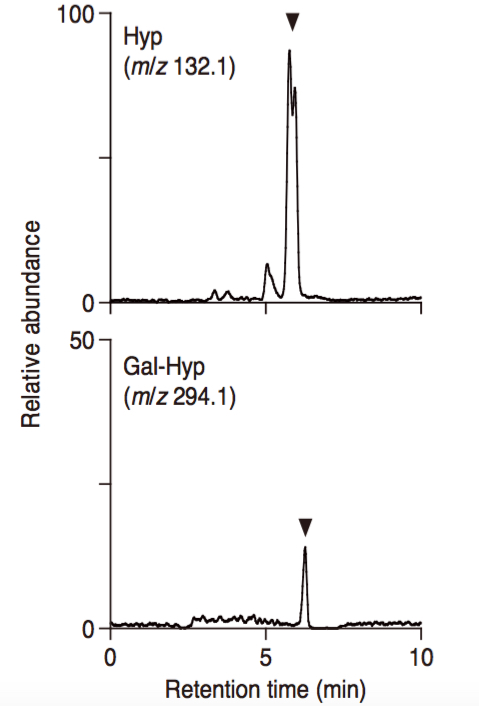

         Figure 2. Detection of Hyp O-galactoside in Ba(OH)₂ hydrolysates of in vitro galactosylated AGP14 by LC-MS. The sample was analyzed by selected ion monitoring of Hyp (m/z 132.1) and Gal-Hyp (m/z 294.1). Ba(OH)₂ hydrolysis yields a diastereomeric pair of amino acids.



   5. The mass spectra are obtained by selected ion monitoring in zoom scan mode (Hyp: m/z 132.1, Gal-Hyp: m/z 294.1).

Acknowledgments

This is the detailed protocol for the detection of HPGT activity described by Ogawa-Ohnishi and Matsubayashi (2015). This research was supported by a Grant-in-Aid for Scientific Research (S) from the Ministry of Education, Culture, Sports, Science, and Technology (No. 25221105).

References

1. Ogawa-Ohnishi, M. and Matsubayashi, Y. (2015). Identification of three potent hydroxyproline O-galactosyltransferases in Arabidopsis. Plant J 81(5): 736-746.

2. Ogawa-Ohnishi, M., Matsushita, W. and Matsubayashi, Y. (2013). Identification of three hydroxyproline O-arabinosyltransferases in Arabidopsis thaliana. Nat Chem Biol 9(11): 726-730.
