Introduction and Sequencing of Patient-isolated HBV RT Sequences into the HBV 1.2-mer Replicon

Reviewed by
Anonymous reviewer
How to cite Favorites Q&A Share your feedback Cited by

In this protocol

Original research article

A brief version of this protocol appeared in:
Journal of Virology
Jun 2014


Antiviral agents for the suppression of hepatitis B virus (HBV) have been used for treating chronic hepatitis B. However, the emergence of drug-resistant HBV is still a major problem for antiviral treatment. To identify and characterize the drug-resistant HBV, the construction of HBV replicon and in vitro drug susceptibility assay are essential. Here we describe the experimental methods to study drug-resistant HBV.

Keywords: Hepatitis B virus, Drug resistance, Replication, Reverse transcription

Materials and Reagents

  1. Sera of patients with chronic hepatitis B (100~200 μl)
  2. QIAamp MinElute virus spin kit (QIAGEN, catalog number: 57704 )
  3. Ex taq polymerase (Takara Bio Company, catalog number: RR001A )
  4. Forward primer (XhoI site is underlined): 5’-AAT CTT CTC GAG GAC TGG GGA CCC TGC ACC-3’
  5. Reverse primer (NcoI site is underlined): 5’-GAG CAG CCA TGG GAA GGA GGT GTA TTT CCG-3’
  6. Gel/PCR DNA Extraction kit (Real Biotech Corporation, catalog number: YDF100 )
  7. pGEM-T Easy vector (Promega Corporation, catalog number: A1360 )
  8. T4 ligase (Takara Bio Company, catalog number: 2011A )
  9. LB broth high salt (Duchefa Biochemie, catalog number: L1704 )
  10. MacConkey agar (BD, catalog number: 212123 )
  11. LaboPass Plasmid Mini Purification Kit (COSMO Genetech, catalog number: CMP0111 )
  12. HBV WT complete sequence (genotype C, GQ872210)
  13. Xho I (New England BioLabs, catalog number: R0146S )
  14. Nco I (New England BioLabs, catalog number: R0193S )
  15. CutSmart™ buffer (New England BioLabs, catalog number: B7204S )
  16. HBV 1.2 replicon (Figure 1)
  17. TE buffer (see Recipes)

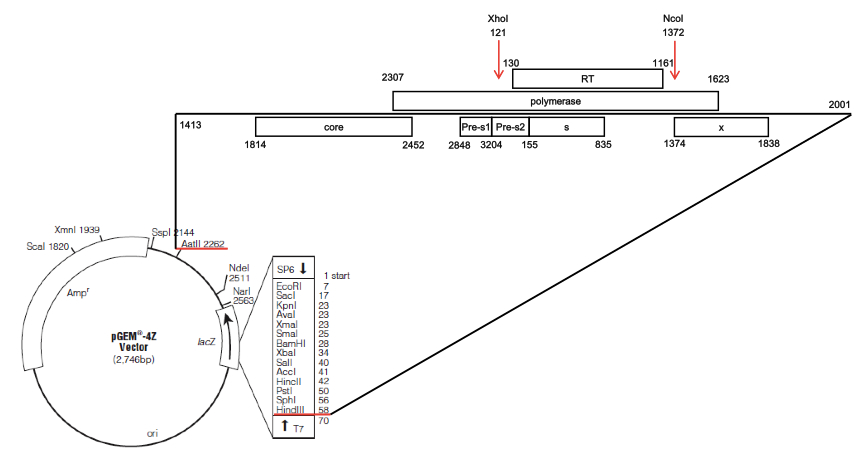

    Figure 1. A plasmid map of the HBV 1.2-mer replicon with XhoI and NcoI sites highlighted


  1. Centrifuge (Eppendorf, catalog number: 5415R )
  2. Pipet Aid XP (Drummond Scientific Company, catalog number: 4-000-202-E )
  3. MJ Mini 48-Well Personal Thermal Cycler (Bio-Rad Laboratories, catalog number: PTC-1148 )
  4. Nanodrop Spectrophotometer (Nanodrop, catalog number: ND-1000 )
  5. Heat block


  1. Amplification of HBV RT domain from patients’ sera
    1. Prepare 100~200 μl of patient’ serum.
    2. Extract the HBV DNA using QIAamp MinElute virus spin kit according to the manufacturer’s protocol and elute viral DNA in 50 μl of elution buffer (provided in the kit) or distilled water.
    3. Amplify HBV RT domain with primers following composition.
      HBV DNA (50 ng/μl)
      1 μl
      Forward primer (10 pM)
      1 μl
      Reverse primer (10 pM)
      1 μl
      10x Ex Taq polymerase buffer
      2 μl
      dNTP mixture (2.5 mM)
      2 μl
      Ex Taq polymerase (5 U/μl )
      Distilled water
      12.8 μl
      20 μl
    4. Run PCR as follows: 95 °C for 5 min, followed by 30 cycles of 95 °C for 50 sec, 62 °C for 50 sec, 72 °C 1 min 20 sec, and final extensions at 72 °C for 10 min.
    5. Identify the PCR products (HBV RT domain) on 1% agarose gel by electrophoresis (Figure 2) and purify with Gel/PCR DNA Extraction kit according to the manufacturer’s protocol (final elution volume is 30 μl of TE buffer).

  2. Sequencing of HBV RT domain
    1. Mix the ligation reactions in 1.5 ml tube as described below and incubate overnight at 4 °C.
      Purified PCR products (60 ng/μl )
      1 μl
      pGEM-T Easy vector (50 ng/μl )
      5 μl
      2x Rapid Ligation buffer
      0.3 μl
      T4 DNA ligase (3 Weiss units/μl )
      2.7 μl
      Distilled water
      1 μl
      10 μl
    2. To inactivate the T4 ligase, incubate the ligation reactions at 65 °C for 15 min and place in ice.
    3. During step B2, prepare the E.Coli (DH5α) competent cells from -80 °C storage and place in ice until thawed.
    4. Transfer 50 μl of competent cells into ligation reactions and incubate in ice for 15 min.
    5. Heat-shock the competent cells for 90 sec in heat block at 42 °C, then immediately incubate in ice for 15 min.
    6. Add 500 μl LB medium to tube from step B5 and incubate for 2 h at 37 °C with shaking.
    7. Centrifuge the tube at 3,000 rpm for 5 min at room temperate, and then remove the 350 μl of supernatant.
    8. Gently mix and plate the residue supernatant (approximate 150 μl) onto Ampr MacConkey agar plates using spreader.
    9. Incubate the plates overnight at 37 °C and check the number of white colonies (approximately 100 colonies should be observed).
    10. Pick the white colonies, then transfer into 2 ml of LB medium with ampicillin in 15 ml tube and incubate overnight at 37 °C with shaking.
    11. Extract the DNA plasmids contained the HBV RT domain from bacterial culture (step B10) using the LaboPass Plasmid Mini Purification Kit following the manufacturer’s protocol and elutes plasmids in 50 μl of EB buffer (provided in Kit) or TE buffer.
    12. Confirm the correct insert DNA by simultaneous digestion reactions for 2 h at 37 °C as described below.
      Plasmid DNA (200 ng)
      XhoI (20 U/μl )
      0.25 μl
      NcoI (10 U/μl )
      0.25 μl
      10x CutSmartTM Buffer
      1 μl
      Distilled water
      up to 10 μl
      10 μl
    13. Sequencing the HBV RT domain by T7 (5’-TAA TAC GAC TCA CTA TAG GG-3’) and SP6 (5’- ATT TAG GTG ACA CTA TAG-3’) promoter primers (located in pGEM-T Easy vector) and analyze the mutations compared with WT HBV (genotype C, GQ872210).

  3. Cloning of HBV RT domain into HBV 1.2 replicon
    1. Simultaneously digest 200 ng of plasmids [HBV RT plasmid (step B12) for insert DNA and HBV 1.2mer replicon for vector DNA] with digestion reactions (see the procedure C step 12).
    2. Identify 1.2 kb (insert DNA, step B12) and 4.8 kb (vector DNA) fragment on 0.8% agarose gel by electrophoresis (Figure 3) and purify the digested DNAs with Gel/PCR DNA Extraction kit according to the manufacturer’s protocol (final elution volume is 30 μl of TE buffer).
    3. Mix the ligation reactions in 1.5 ml tube as described below and incubate overnight at 4 °C.
      Insert DNA (40 ng/μl)
      1 μl
      Vector DNA (50 ng/μl)
      1 μl
      10x T4 ligase buffer
      1 μl
      T4 DNA ligase (3 Weiss units/μl)
      0.3 μl
      Distilled water
      6.7 μl
      10 μl
    4. Transform (see steps B2~7) and plate onto Ampr LB agar plates.
    5. Isolate and confirm the plasmid DNA (see steps B9~13).

Representative data

Figure 2. Representative data of amplified HBV RT gene. Prepared HBV DNA from patients sera were used as template. The product size is approximately 1.2 kb.

Figure 3. Confirmation of HBV 1.2-mer replicon. Completed HBV 1.2mer replicon was digested with XhoI, NcoI restriction enzyme and was separated on a 1% agarose gel.


  1. TE buffer
    10 mM Tris (pH 8.0)
    1 mM EDTA
