Measuring the Arsenic Content and Speciation in Different Rice Tissues

Materials and Reagents

1. Rice tissue (roots, shoots, husks) (Muehe et al., 2014)

2. Liquid nitrogen

3. 65% HNO₃ (Merck KGaA, catalog number: 100456 )

4. Double-distilled or MilliQ water

5. >30% H₂O₂ (Merck KGaA, catalog number: 107298 )

6. 85% phosphoric acid (Merck KGaA, catalogue number: 100563 )

7. 0.05 mol/L as stock solution as arsenite (Merck KGaA, catalog number: 106277 ), a 1,000 mg/L as stock solution as arsenate (Merck KGaA, catalog number: 119773 ) diluted to the appropriate concentrations

8. NH₄NO₃ (Merck KGaA, catalog number: 102596 )

9. Eluent A for LC-HPLC-ICP-MS (see Recipes)

10. Eluent B for LC-HPLC-ICP-MS (see Recipes)


Equipment

1. Mortar (diameter of at least 10 cm) and pestle (approximately 15 cm long)

2. Drying oven (adjustable to 60 °C)

3. Whatman^TM #1 filter papers (GE Healthcare, catalog number: 1440-125 )

4. Duran^® test tubes, straight rim (13 x 100 mm) (Duran Group, catalog number: 26 131 12 )

5. Polyethylene flanged plug caps for tubes, natural (Globe Scientific, catalog number: 118240 )

6. Polytetrafluoroethylene (PTFE)-coated spatula (Fisher Scientific, catalog number: 10081074 ) to minimize metal contamination of the plant material from the spatula

7. Volumetric flask with glass stopper (10 ml)

8. Tube rack

9. Water bath

10. Glass funnel

11. Inductively coupled plasma atomic emission spectrometry ICP-AES (CIROS)

12. Inductively coupled plasma mass spectroscopy ICP-MS (Agilent Technologies, model: 7700 )

13. Autosampler vials (8 mm, brown glass, WICOM, vials are free of As) and screw caps with Teflon septum

14. Liquid chromatography (Agilent Technologies, model: 1200 ) equipped with a Shodex RSpak NN-614 column (150 mm x 6 mm; Shodex) coupled to inductively coupled plasma mass spectroscopy HPLC-ICP-MS (Agilent Technologies, model: 7700 )


Procedure

1. Material preparation
   Glassware (tubes, volumetric flasks), pestle, and mortar are soaked in 1 M HCl (wear gloves and safety goggles) for 24 h and washed in distilled water three times and dried before use. This is done to remove metal contaminants sorbed to the equipment.


2. Harvesting of plant material

   1. Rice plant material is separated into different tissues (roots, shoots, husks, and seeds) using clean scissors and tweezers and wearing gloves.

   2. Plant material is dipped in distilled water for washing.

   3. (Approximately 1-5 g of fresh weight) tissue is ground in liquid nitrogen using a mortar and pestle (3 times, for 30 sec each, see Figure 1) (ground material can also be stored at -80 °C for molecular biology analysis) (Mueller et al., 2013).

   4. An approximately 1 g fresh weight aliquot of the liquid-nitrogen-ground plant material is filled into an opened falcon tube and immediately dried at 60 °C in an oven for a minimum of three days.

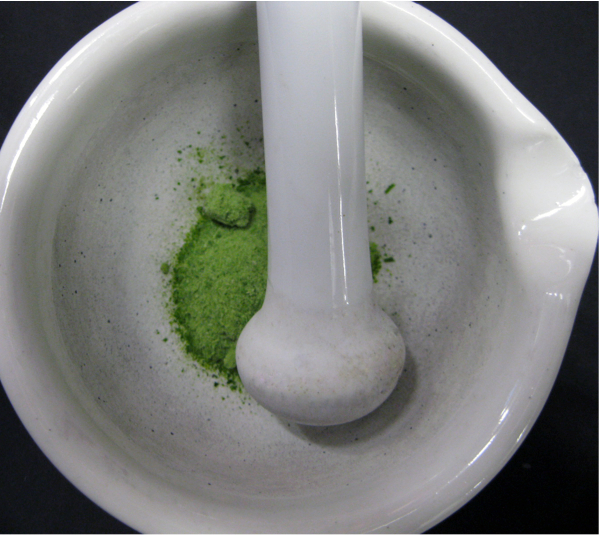

      Figure 1. Liquid N₂-ground rice shoots


3. Total arsenic quantification in rice material (wear gloves and goggles)

   1. 20-70 mg of the ground and dried material is weighed into Duran tubes (ensure that plant material is not aggregated).

   2. 2 ml of 65% HNO₃ is added to the plant material; followed by mixing the acid and plant material by gentle shaking/swirling of the tube.

   3. Duran tubes are closed with plastic lids.

   4. Rice material is digested over night at room temperature.

   5. Tubes are placed in a rack, which is placed in a water bath.

   6. The material is boiled for 2 h at 100 °C.

   7. 2 ml of ≥30% H₂O₂ is added to the tubes.

   8. The rice material is boiled until brown gasses stop evolving.

   9. Samples are cooled to room temperature by incubating on the lab bench for an hour.

   10. Material is fully digested if no more tissue pieces are present in the extract.

   11. (If plant material is not fully digested (visible by small bits of see-through tissue), the extract is filtered through Whatman #1 filter papers).

   12. The extract is filled into a volumetric flask.

   13. The Duran tubes are washed with a few ml of distilled water, which is then added to the extract in the volumetric flask.

   14. The extract is filled up to 10 ml with distilled water and stored cool and dark until analysis.

   15. Total As is determined by ICP-AES (concentrations > 0.1 mg/L) or for lower concentrations by ICP-MS (Limit of detection: 0.2 µg/L).


4. Arsenic speciation in rice material

   1. 20-50 mg of fresh plant material (roots, shoots, and husks) are cut into 1 cm long pieces and are weighed into Falcon tubes immediately after sampling.

   2. 10 ml 10 mM phosphoric acid is added to the plant material (Daus et al., 2008).

   3. Rice material is extracted for 2 h by shaking at 150 rpm and room temperature.

   4. The material is filtered through Whatman #1 filter paper.

   5. To prevent changes in As speciation, samples are immediately filled into the autosampler vials. If unavoidable, samples can be stored in the dark at low temperature (6 °C) until measurement.

   6. The redox species of arsenate and arsenite are analysed with HPLC–ICP–MS using brown glass autosampler vials.

   7. Additionally, the dry weight of the plant material is estimated by weighing an aliquot before and after drying at 60 °C.

   8. The amount of each As species in the fresh plant material is calculated per dry plant material and can be correlated to the total As content of the material.

   9. Please refer to Muehe et al. (2014) for representative amounts of As species calculated using this protocol.

Notes

1. Seeds can also be sampled, but should be ground in a grinder beforehand.

2. Grinding of the sample material in liquid nitrogen assures the destruction of the material and thorough mixing of the entire sample material, and thus, unbiased analysis when using small sample aliquots for further procedures.

3. Storing the liquid N₂-ground plant material at -80 °C allows for molecular analysis of the material as well. For example, in Muehe et al. (2014) we extracted RNA from these samples and performed qPCR on the cDNA product of the extracted RNA.

4. The use of the phosphoric acid as extractant yields an almost complete recovery of the total As present in the material. The As species in these extracts are stable up to 4 weeks if they are stored cool and dark (Daus et al., 2006).

5. More detailed information on ICP-AES and HPLC-ICP-MS can be obtained in Daus et al. (2002), Daus et al. (2006), Daus et al. (2008) and Noelte (2003).


Recipes

1. Eluent A for LC-HPLC-ICP-MS
   5 mM HNO₃

2. Eluent B for LC-HPLC-ICP-MS
   5 mM HNO₃ + 50 mM NH₄NO₃ [for As (III) and As (V) only 7 min isocratic 94% A]
   Flow: 1 ml/min, injection volume: 50 µl, LOD = 0.2 µg/L
