Identification of Proteins Interacting with Genomic Regions of Interest in vivo Using Engineered DNA-binding Molecule-mediated Chromatin Immunoprecipitation (enChIP)

Materials and Reagents

1. Target cells

2. 37% formaldehyde (Nacalai Tesque, catalog number: 16223-55 )

3. Glycine (Sigma-Aldrich, catalog number: G7126 )

4. NaCl (Sigma-Aldrich, catalog number: S9625 )

5. Agarose S (Wako Pure Chemical Industries, catalog number: 318-01195 )

6. 1 M Tris (pH 6.8) (AppliChem GmbH, catalog number: A4987 )

7. 1 M Tris (pH 7.5) (AppliChem GmbH, catalog number: A4263 )

8. 1 M Tris (pH 8.0) (AppliChem GmbH, catalog number: A4577 )

9. 0.5 M EDTA (pH 8.0) (Nacalai Tesque, catalog number: 14362-95 )

10. 0.1 M EGTA (Nacalai Tesque, catalog number: 08947-35 )

11. IGEPAL CA-630 (Sigma-Aldrich, catalog number: I8896 )

12. Triton X-100 (Nacalai Tesque, catalog number: 25987-85 )

13. 10% SDS solution (Nacalai Tesque, catalog number: 30562-04 )

14. 8 M LiCl solution (Nacalai Tesque, catalog number: 20077-84 )

15. 2-mercaptoethanol (Nacalai Tesque, catalog number: 21438-82 )

16. Sucrose (Nacalai Tesque, catalog number: 30404-45 )

17. Bromophenol blue (Nacalai Tesque, catalog number: 05808-61 )

18. Tween-20 (Sigma-Aldrich, catalog number: P5927 )

19. Deoxycholic acid sodium salt monohydrate (Nacalai Tesque, catalog number: 10712-12 )

20. 30% lauroylsarcosine (Nacalai Tesque, catalog number: 20135-14 )

21. Dynabeads-protein G (Life Technologies, catalog number: DB10004 )

22. Anti-FLAG M2 antibody (Sigma-Aldrich, catalog number: F1804 )

23. Normal mouse IgG (Santa Cruz, catalog number: sc-2025 )

24. 10x phosphate buffered saline (PBS) (pH7.4) (Nacalai Tesque, catalog number: 27575-31 )

25. PBS (10x dilution of 10x PBS with distilled water)

26. BSA fraction V (7.5%) (Life Technologies, catalog number: 15260 )

27. Complete, mini, EDTA-free protease inhibitor (Roche Diagnostics, catalog number: 4693159 )

28. 10 mg/ml RNase A (Sigma-Aldrich, catalog number: R6513 )

29. 20 mg/ml Proteinase K (Roche Diagnostics, catalog number: 3115828 )

30. 3x FLAG peptide (Sigma-Aldrich, catalog number: F4799 )

31. 2-propanol (Nacalai Tesque, catalog number: 29113-95 )

32. 3 M sodium acetate buffer solution (pH 5.2) (Nacalai Tesque, catalog number: 06893-24 )

33. 20 mg/ml glycogen (Roche Diagnostics, catalog number: 901393 )

34. 70% ethanol

35. 4-20% mini-PROTEAN TGX gel (10 well, 50 µl) (Bio-Rad Laboratories, catalog number: 456-1094 )

36. 10x running buffer solution for SDS-PAGE (Tris-Glycine) (Nacalai Tesque, catalog number: 30329-74 )

37. Coomassie brilliant blue R-250 staining solution (Bio-Rad Laboratories, catalog number: 161-0436 )

38. In-Gel Tryptic Digestion Kit (Thermo Fisher Scientific, catalog number: 89871 )

39. 1.25 M glycine solution (200 ml) (see Recipes)

40. 10% sodium deoxycholate (10 ml) (see Recipes)

41. 10% Tween-20 (10 ml) (see Recipes)

42. Cell lysis buffer (CLB) (40 ml) (see Recipes)

43. Nuclear lysis buffer (NLB) (40 ml) (see Recipes)

44. Modified lysis buffer 3 (MLB3) (10 ml) (see Recipes)

45. PBS-T (10 ml) (see Recipes)

46. PBS-T-BSA (10 ml) (see Recipes)

47. 5% Triton X-100 (in MLB3) (5 ml) (see Recipes)

48. Low salt buffer (LSB) (10 ml) (see Recipes)

49. High salt buffer (HSB) (10 ml) (see Recipes)

50. LiCl buffer (20 ml) (see Recipes)

51. TBS-IGEPAL CA-630 (10 ml) (see Recipes)

52. Elution buffer (500 µl) (see Recipes)

53. 2x sample buffer (50 ml) (see Recipes)


Equipment

1. Magnetic stand (magical trapper) (TOYOBO, catalog number: MGS-101 )

2. Centrifuge

3. 1.5 ml centrifuge tube (Sarstedt AG, catalog number: 72.690.001 )

4. 2 ml centrifuge tube (Eppendorf, catalog number: 0030.120.094 )

5. 50 ml centrifuge tube (BD Biosciences, catalog number: 352070 )

6. Vortex mixer

7. Rotator

8. Vaccum pump connected to a side-arm flask

9. Sonicator (ultrasonic disruptor UD-201 ) (TOMY SEIKO, catalog number: UD-201)

10. Shaker

11. Mass spectrometry facility: a nanoLC-MS/MS system, composed of LTQ Orbitrap Velos (Thermo Fisher Scientific) coupled with nanoLC (Advance CaptiveSpray SOURCE, Michrom BioResources) and HTC-PAL autosampler (CTC Analytics)


Procedure

1. Preparation of cells
   1. Design the DNA-binding modules of a TAL protein recognizing a specific sequence (approximately 20 bases) in your target genomic region.

   2. Express the TAL protein fused with 3x FLAG tags and the NLS in the cell to be analyzed. An example of the tagged TAL proteins for enChIP is shown in supplemental Figure 1 in the reference (Fujita et al., 2013).


2. Formaldehyde crosslinking of cells
   1. Culture target cells. Use 2 x 10⁷ cells x 2 (total 4 x 10⁷ cells) (e.g. Ba/F3) for chromatin preparation. Collect cells suspended in culture medium (2 x 10⁷ cells/30 ml) in a 50 ml centrifuge tube (if necessary, increase cell number). Prepare 2 tubes (total 4 x 10⁷ cells).

   2. Add 810 µl of 37% formaldehyde to 1% final concentration into 30 ml of the cell suspension. Formaldehyde solution is harmful, so handle it wearing gloves in a chemical hood. Incubate at 37 °C for 5-10 min (usually 5 min). Crosslinking makes color of cell suspension slightly yellowish.

   3. Stop crosslinking by adding 3.1 ml of 1.25 M glycine solution to 127 mM final concentration. Incubate at room temperature for 10 min.

   4. Collect cells by centrifugation (300 x g, 4 °C, 5 min). Discard carefully the supernatant including formaldehyde by decantation, and store it in a waste bottle.

   5. Resuspend the fixed cells (pellet) in 30 ml of PBS by vortexing. Collect cells by centrifugation (300 x g, 4 °C, 5 min). Discard carefully the supernatant including formaldehyde by decantation, and store it in a waste bottle.

   6. Repeat the step B5 (total twice). The formaldehyde wastes should be handled according to the chemical safety guideline of your laboratory.

   7. Proceed to the step C1, or the centrifuge tube with the fixed cells (pellet) can be frozen and stored at -80 °C.


3. Preparation of chromatin (per 2 x 10⁷ cells)
   1. Resuspend the fixed cells in 10 ml of CLB. If the fixed cells are frozen in the step B6, it should be thawed before addition of CLB. Incubate on ice for 10 min.

   2. Centrifuge at 930 x g at 4 °C for 8 min. Discard carefully the supernatant by vacuum suction.

   3. Resuspend the pellet in 10 ml of NLB. Incubate on ice for 10 min. Vortex at maximum setting for 2-3 sec every 2-3 min.

   4. Centrifuge at 930 x g at 4 °C for 8 min. Discard carefully the supernatant by vacuum suction.

   5. Resuspend the pellet in 10 ml of PBS. Centrifuge at 930 x g at 4 °C for 10 min. Discard carefully the supernatant by vacuum suction. The pellet is used as the chromatin fraction.

   6. Proceed to the step D1 or the centrifuge tube with the chromatin fraction can be stored at -80 °C after immediate freezing in liquid nitrogen.


4. Sonication of chromatin (per 2 x 10⁷ cells)
   1. Resuspend the collected chromatin fraction in 800 µl of MLB3. Transfer the suspension into a 1.5 ml microtube.

   2. Sonicate the chromatin by using ultrasonic disruptor UD-201. Conditions are as follows:
      Output: 3
      Duty: 100% (continuous)
      Time: Free
      10-18 cycles of sonication for 10 sec and cooling on ice for 20 sec
      2 min on ice after 5-6 cycles to avoid excessive heating
      Keep the position of the tip of the sonication bar approximately 0.5 cm away from the tube bottom using a clamp or hands to avoid foaming.

   3. Centrifuge at 16,000 x g at 4 °C for 10 min. Transfer the supernatant (800 µl) into a 1.5 ml tube. The 1.5 ml tube with the supernatant can be stored at -80 °C after immediate freezing in liquid nitrogen.


5. Evaluation of fragmentation of chromatin
   1. Resuspend 10 µl of the fragmented chromatin in 85 µl of distilled water.

   2. Add 4 µl of 5 M NaCl. Incubate at 65 °C overnight.

   3. Add 1 µl of 10 mg/ml RNase A. Incubate at 37 °C for 45 min.

   4. Add 2 µl of 0.5 M EDTA (pH 8.0), 4 µl of 1 M Tris (pH 6.8), and 1 µl of 20 mg/ml Proteinase K. Incubate at 45 °C for 1.5 h.

   5. Prepare 1% agarose gel without staining dye.

   6. Use 10 µl of the sample prepared in the step E4 for electrophoresis in 1% agarose gel without staining dye. Run the gel at 100 V for 30 min. 1 kbp DNA ladder marker should be loaded to estimate DNA fragmentation.

   7. Stain the gel with staining dye (e.g. ethidium bromide) for 0.5-1 h (Figure 1A). An example of DNA fragmentation is shown in Figure 1B. The acceptable range of DNA fragmentation is dependent on the length of your target genomic region. Usually, the range of DNA fragmentation should be generally 4-0.2 kbp (The average length of DNA fragments should be 0.5-2 kbp). If DNA is poorly or excessively fragmented, adjust output or cycles of sonication in the step D2.

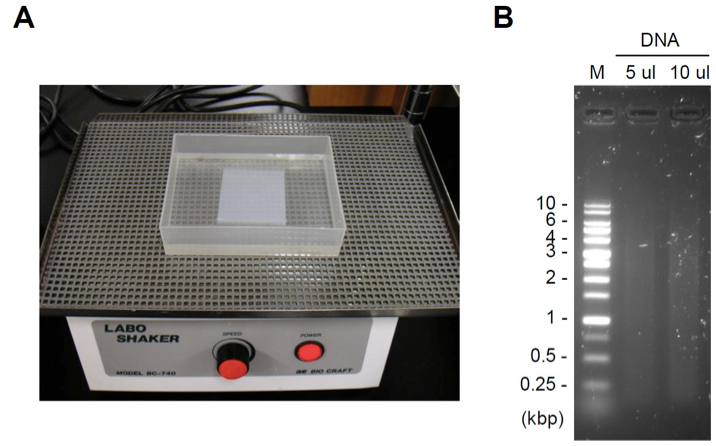

      Figure 1. Gel staining and an example of DNA fragmentation. A. Gel staining with staining dye using a shaker (speed: one turn/1-2 sec). B. An example of DNA fragmentation. M: DNA ladder marker.


6. Preparation of Dynabeads conjugated with antibody (anti-FLAG antibody or normal mouse IgG)
   1. Prepare two 2 ml tubes; one is for anti-FLAG antibody and the other is for normal mouse IgG. Add 300 µl of Dynabeads-Protein G in each tube (300 µl x 2 tubes). In this protocol, we describe preparation of one sample for analysis by mass spectrometry. In this regard, normal mouse IgG is used for pre-clear in the step G3 and anti-FLAG antibody is used for affinity purification in the step G5. If you analyze another sample as a negative control (e.g. affinity purification with normal mouse IgG instead of anti-FLAG antibody), you may prepare chromatin and Dynabeads for it separately.

   2. Put the tubes on a magnet stand and wait for 3 min. Discard the supernatant by pipetting. Handling of a magnet stand is shown in Figure 2.

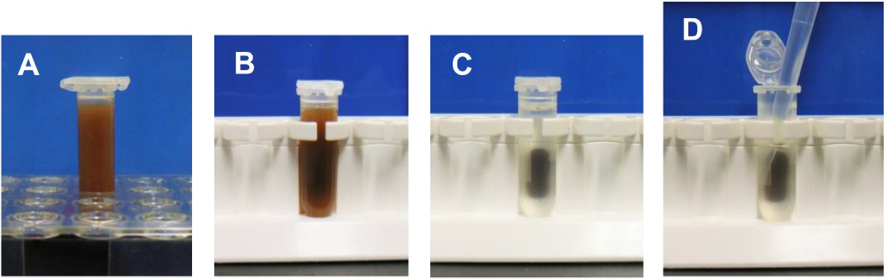

      Figure 2. Handling of a magnet stand in wash steps. A. Suspension of Dynabeads in a 2 ml tube. B. Setting of the tube on a magnet stand. C. 3 min after the setting. D. Removal of the supernatant by pipetting.


   3. Resuspend the pellet in 1 ml of PBS-T. Put the tubes on a magnet stand and wait for 2 min. Discard the supernatant by pipetting.

   4. Repeat the step F3 (total twice).

   5. Resuspend the pellet in 1.5 ml of PBS-T-BSA.

   6. Add 30 µg of antibody. One tube is for 30 µg of anti-FLAG antibody, and the other is for 30 µg of normal mouse IgG. Rotate at 4 °C overnight.

   7. Centrifuge briefly (400 x g for 2-3 sec). Put the tubes on a magnet stand and wait for 3 min. Discard the supernatant by pipetting.

   8. Resuspend the pellet in 1.5 ml of PBS-T. Invert several times and centrifuge briefly (400 x g for 2-3 sec). Put the tubes on a magnet stand and wait for 3 min. Discard the supernatant by pipetting.

   9. Repeat the step F8, twice (total three times). The Dynabeads are ready for the next step.


7. Chromatin immunoprecipitation
   1. Transfer 1.6 ml of the fragmented chromatin, which corresponds to chromatin extracted from 4 x 10⁷ cells, into a 2 ml tube.

   2. Add 400 µl of 5% Triton X-100 (in MLB3) to 1% final concentration.

   3. Add chromatin solution prepared in the step G2 (2 ml) in the tube, in which the Dynabeads conjugated with normal mouse IgG were prepared. Rotate at 4 °C for 1 h.

   4. Put the tube on a magnet stand and wait for 3 min.

   5. Transfer the supernatant into the tube, in which the Dynabeads conjugated with anti-FLAG antibody were prepared. Rotate at 4 °C overnight.

   6. Put the tube on a magnet stand and wait for 3 min. Discard the supernatant by pipetting.

   7. Wash 1: Add 1.8 ml of LSB. Rotate at 4 °C for 5 min. Put the tube on a magnet stand and wait for 3 min. Discard the supernatant by pipetting.

   8. Repeat wash 1 (total twice).

   9. Wash 2: Wash with HSB as described in the step G7. Repeat this wash (total twice).

   10. Wash 3: Wash with LiCl buffer as described in the step G7. Repeat this wash (total twice).

   11. Add 1.8 ml of TBS-IGEPAL CA-630. Rotate at 4 °C for 5 min. Put the tube on a magnet stand and wait for 3 min. Discard the supernatant by pipetting.

   12. Elution: Resuspend the pellet in 200 µl of elution buffer. Incubate at 37 °C for 20 min. Put the tube on a magnet stand and wait for 3 min.

   13. Add the supernatant (200 µl) in the 1.5 ml tube with 0.5 ml of 2-propanol, 25 µl of 3 M Sodium acetate buffer solution (pH 5.2), and 5 µl of 20 mg/ml glycogen. Precipitate proteins at -20 °C overnight.

   14. Centrifuge at 16,000 x g at 4 °C for 30 min. Discard the supernatant.

   15. Rinse with 1 ml of 70% ethanol. Centrifuge at 16,000 x g at 4 °C for 10 min. Discard the supernatant completely by pipetting.

   16. Add 40 µl of 2x sample buffer. Vortex at maximum setting for 5 min to completely dissolve the precipitate. Incubate at 100 °C for 30 min (protein denaturing and reverse-crosslinking).


8. SDS-PAGE, staining, mass analysis
   1. SDS-PAGE. Run the eluate on polyacrylamide gel until the dye reaches 1 cm from the well.

   2. Coomassie brilliant blue (CBB) staining or silver staining. An example of gel images is shown in Figure 3.

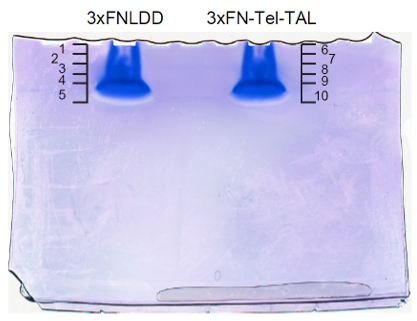

      Figure 3. An example of gel images after CBB staining. The original image is shown in Supplemental Figure 5 in the reference (Fujita et al., 2013).


   3. Cut the gel into 5 pieces x 2 mm.

   4. In gel digestion and mass analysis. You can use In-Gel Tryptic Digestion Kit. Our current system of mass analysis is a nanoLC-MS/MS system, composed of LTQ Orbitrap Velos coupled with nanoLC and HTC-PAL autosampler.


Recipes

1. 1.25 M glycine solution (200 ml)

   Glycine (MW: 75.07)	18.8 g
   H2O	to 200 ml

2. 10% sodium deoxycholate (10 ml)

   Deoxycholic acid sodium salt monohydrate	1 g
   H2O	to 10 ml

3. Cell lysis buffer (CLB) (40 ml)
   10 mM Tris (pH 8.0), 1 mM EDTA, 0.5% IGEPAL CA-630, 1x protease inhibitors

   1 M Tris (pH 8.0)	400 µl
   0.5 M EDTA	80 µl
   IGEPAL CA-630	200 µl
   Complete, mini, EDTA-free	4 tablets
   Double distilled water (DDW)	39.32 ml

4. Nuclear lysis buffer (NLB) (40 ml)
   10 mM Tris (pH 8.0), 1 mM EDTA, 0.5 M NaCl, 1% Triton X-100, 0.5% sodium deoxycholate, 0.5% lauroylsarcosine, 1x protease inhibitors

   1 M Tris (pH 8.0)	400 µl
   0.5 M EDTA	80 µl
   5 M NaCl	4 ml
   Triton X-100	400 µl
   10% sodium deoxycholate	2 ml
   30% lauroylsarcosine	666 µl
   Complete, mini, EDTA-free	4 tablets
   DDW	32.46 ml

5. Modified lysis buffer 3 (MLB3) (10 ml)
   10 mM Tris (pH 8.0), 1 mM EDTA, 0.5 mM EGTA, 150 mM NaCl, 0.1% sodium deoxycholate, 0.1% SDS, 1x protease inhibitors

   1 M Tris (pH 8.0)	100 µl
   0.5 M EDTA	20 µl
   0.1 M EGTA	50 µl
   5 M NaCl	300 µl
   10% sodium deoxycholate	100 µl
   10% SDS	100 µl
   Complete, mini, EDTA-free	1 tablet
   DDW	9.33 ml

6. 10% Tween-20 (10 ml)

   Tween-20	1 ml
   DDW	9 ml

7. PBS-T (10 ml)
   PBS (pH 7.4), 0.01% Tween-20

   PBS	10 ml
   10% Tween-20	10 µl

8. PBS-T-BSA (10 ml)
   PBS (pH 7.4), 0.01% Tween-20, 0.1% BSA

   PBS	10 ml
   10% Tween-20	10 µl
   7.5% BSA fraction V	133 µl

9. 5% Triton X-100 (in MLB3) (5 ml)

   MLB3	4.75 ml
   Triton X-100	250 µl

10. Low salt buffer (LSB) (10 ml)
    20 mM Tris (pH 8.0), 2 mM EDTA, 150 mM NaCl, 1% Triton X-100, 0.1% SDS

    1 M Tris (pH 8.0)	200 µl
    0.5 M EDTA	40 µl
    5 M NaCl	300 µl
    Triton X-100	100 µl
    10% SDS	100 µl
    DDW	9.26 ml

11. High salt buffer (HSB) (10 ml)
    20 mM Tris (pH 8.0), 2 mM EDTA, 500 mM NaCl, 1% Triton X-100, 0.1% SDS

    1 M Tris (pH 8.0)	200 µl
    0.5 M EDTA	40 µl
    5 M NaCl	1 ml
    Triton X-100	100 µl
    10% SDS	100 µl
    DDW	8.56 ml

12. LiCl buffer (20 ml)
    10 mM Tris (pH 8.0), 1 mM EDTA, 0.25 M LiCl, 0.5% IGEPAL CA-630, 0.5% sodium deoxycholate

    1 M Tris (pH 8.0)	200 µl
    0.5 M EDTA	40 µl
    8 M LiCl	625 µl
    IGEPAL CA-630	100 µl
    10% sodium deoxycholate	1 ml
    DDW	18.035 ml

13. TBS-IGEPAL CA-630 (10 ml)
    50 mM Tris (pH 7.5), 150 mM NaCl, 0.1% IGEPAL CA-630

    1 M Tris (pH 7.5)	500 µl
    5 M NaCl	300 µl
    IGEPAL CA-630	10 µl
    DDW	9.19 ml

14. Elution buffer (500 µl)
    50 mM Tris (pH 7.5), 150 mM NaCl, 0.1% IGEPAL CA-630, 500 µg/ml 3x FLAG peptide

    5 mg/ml 3x FLAG peptide in TBS	50 µl
    TBS-IGEPAL CA-630	450 µl

15. 2x sample buffer (50 ml)
    125 mM Tris (pH 6.8), 10% 2-mercaptoethanol, 4% SDS, 10% sucrose, 0.004% bromophenol blue

    1 M Tris-HCl (pH 6.8)	6.25 ml
    2-mercaptoethanol	5 ml
    SDS	2 g
    Sucrose	5 g
    Bromophenol blue	2 mg
    DDW	to 50 ml




Acknowledgments

This protocol was adapted from the previously published paper (Fujita et al., 2013). We thank F. Kitaura for technical assistance. This work was supported by Research Institute for Microbial Diseases (T.F. and H.F.), Program for Combined Research Fields from Immunology Frontier Research Center, Osaka University (H.F.), the Takeda Science Foundation (H.F. and T.F.), the Asahi Glass Foundation (H.F.), A-STEP from Japan Science and Technology Agency (H.F.), Grant-in-Aid for Young Scientists (B) (#22710185) (T.F.), Grant-in-Aid for Scientific Research on Innovative Areas ‘‘Cell Fate’’ (#23118516) (T.F.), ‘‘The Genofield’’ (#23114707) (H.F.), ‘‘Transcription Cycle’’ (25118512) (H.F.).

References

1. Fujita, T. and Fujii, H. (2011). Direct identification of insulator components by insertional chromatin immunoprecipitation. PLoS One 6(10): e26109.

2. Fujita, T. and Fujii, H. (2012). Efficient isolation of specific genomic regions by insertional chromatin immunoprecipitation (iChIP) with a second-generation tagged LexA DNA-binding domain. Advances Biosci Biotechnol 3(5): 626-629.

3. Fujita, T. and Fujii, H. (2013a). Efficient isolation of specific genomic regions and identification of associated proteins by engineered DNA-binding molecule-mediated chromatin immunoprecipitation (enChIP) using CRISPR. Biochem Biophys Res Commun 439(1): 132-136.

4. Fujita, T. and Fujii, H. (2013b). Locus-specific biochemical epigenetics/chromatin biochemistry by insertional chromatin immunoprecipitation. ISRN Biochem 2013, Article ID 913273.

5. Fujita, T., Asano, Y., Ohtsuka, J., Takada, Y., Saito, K., Ohki, R. and Fujii, H. (2013). Identification of telomere-associated molecules by engineered DNA-binding molecule-mediated chromatin immunoprecipitation (enChIP). Sci Rep 3: 3171.

6. Hoshino, A. and Fujii, H. (2009). Insertional chromatin immunoprecipitation: a method for isolating specific genomic regions. J Biosci Bioeng 108(5): 446-449.
