Membrane Preparation, Sucrose Density Gradients and Two-phase Separation Fractionation from Five-day-old Arabidopsis seedlings

Materials and Reagents

Note: All chemicals were purchased from Sigma-Aldrich (http://www.sigmaaldrich.com/united-states.html) unless otherwise specified.

1. Arabidopsis seedlings or mature tissue

2. Ice

3. Sucrose (Molecular Biology, Sigma-Aldrich, catalog number: 84097 )

4. HEPES (Sigma-Aldrich, catalog number: H-3375 )

5. EDTA (Research Products International, catalog number: E57020 )

6. PVP (40,000) (Fisher Scientific, catalog number: BP431 )

7. BSA (Sigma-Aldrich, catalog number: A-7906 )

8. DTT (Sigma-Aldrich, catalog number: D0632 )

9. Leupeptin (Sigma-Aldrich, catalog number: L2884 )

10. PMSF (Sigma-Aldrich, catalog number: P-7626 )

11. Benzamidine (Sigma-Aldrich, catalog number: B-6506 )

12. Pepstatin A (Sigma-Aldrich, catalog number: P5318 )

13. Aprotinin (Sigma-Aldrich, catalog number: A1153 )

14. BTP-MES (BIS-TRIS propane, Sigma-Aldrich, catalog number: B6755 ; MES, Research Products International, catalog number: M22040 )

15. Glycerol (Sigma-Aldrich, catalog number: G5516 )

16. Dextran (GE, catalog number: 17-0320-01 )

17. Polyethylene glycol 3350 (Union Carbide Corporation, catalog number: Carbowax 3350 )

18. EGTA (Sigma-Aldrich, catalog number: E3889 )

19. Protease inhibitor cocktail (Sigma-Aldrich, catalog number: P8340 )

20. Grinding buffer (see Recipes)

21. Resuspension buffer (see Recipes)

22. Stock solutions (see Recipes)

23. Phase mixture (see Recipes)

24. Phase system (see Recipes)


Equipment

1. Hermle Labnet Z383 centrifuge (Labnet International)

2. Optima^TM-L-90K ultracentrifuge (Beckman Coulter)

3. TLX centrifuge (TLA 100.3 rotor) (Beckman Coulter)

4. Waring blender jar (Waring Pro model: PBB212 )

5. Mortar and pestle

6. SW-28 rotor

7. Nylon SS-34 tube

8. SW-38 tube

9. 3.5 ml polycarbonate TLA 100.3 tube

10. 2 ml screwcap tubes

11. 10, 15 and 50 ml Falcon tubes

12. Polyallomer ultracentrifuge tube (Beckman Coulter)


Procedure

1. Membrane preparation
   1. Turn on Hermle Labnet Z383 centrifuge. Set temperature to 4 °C. Collect 3-5 g of tissue from 5-d seedlings or mature tissue. Squeeze balls of tissue dry and weigh.
      1. For large quantity samples (> 40 g), add tissue to Waring blender jar and fill jar so that no air is present. Fill a bucket with ice. Pulse the waring jar for 30 s, then incubate in ice for 5 min. Repeat 3x.

      2. For small quantity samples (< 10 g), this step can be skipped, and the seedlings can be ground in grinding buffer in a mortar and pestle (see step A2).

   2. Pour into pre-chilled motar and pestle on ice. Add a little bit of sand (acid washed, Sigma 18649).
      1. Immediately grind in a mortar and pestle for approximately 10 min.

      2. Pour through Miracloth lining a plastic power funnel set into nylon SS-34 tube. Squeeze through Miracloth to extract all of liquid homogenate. Fill tubes to 1 cm from top when standing upright.

      3. If the yield is poor, or the sample still look “unground”, it can be returned to mortar and pestle, and ground again in a small aliquot of grinding buffer.

   3. Balance the tubes and centrifuge at 8,000 x g, 4 °C for 15 min.
      1. Turn on Beckman Coulter Optima^TM-L-90K ultracentrifuge and set temperature to 4 °C.

      2. Carefully pour off supernatant from SS-34 tubes immediately without disturbing the pellet. Try not to collect any of the dark green pellet material in the supernatant fraction (the pellet is very easy to disturb).

      3. Collect the cellular debris pellet and store in liquid nitrogen until use, if desired.

   4. To obtain a microsomal pellet, centrifuge the supernatant from the 8,000 x g spin at 100,000 x g, 4 °C, for 50 min, 1 h. Store additional supernatant on ice.
      1. Use thin wall tubes in the SW-28 rotor. The entire bucket assembly must be balanced within 0.005 g. Be sure to place buckets in the correct position and verify that they have engaged the rotor properly.

      2. Pour off supernatant and store at -70 °C (if soluble proteins are needed).

      3. If you have additional supernatant (from the 8,000 x g spin) on ice, pour off enough supernatant (from the 100,000 x g spin) from the ultracentrifuge tubes to allow for refilling with extra 8,000 x g supernatant. Balance tubes with poured off 100,000 x g supernatant as needed. Repeat 50 min spin.

   5. Pour off all supernatants–save as above if desired. Wipe out inside of tubes above the pellet with a Kimwipe or paper towel. Place on ice.

   6. Re-suspend each SW-28 pellet in microsomal resuspension buffer (volume will depend on pellet size and intended use, usually 1-2 ml). Use a cut-off 1 ml pipet tip to resuspend initially. This will be difficult, as the microsomes are very stick and hydrophobic. Try not to let the pellet stick to the pipet tip or walls of the centrifuge tube.

      1. After the pellet has been fairly well resuspended (pipet up and down for 100 times), use a normal 1 ml pipet tip to “break up” the clumps a bit and resuspend the microsomes more thoroughly (pipet up and down for 100 times).

      2. Finally, use a 200 μl pipet tip to break up the clumps and completely homogenize the preparation (pipet up and down for 200 times).

      3. If a wash of the pellet is desired, transfer the resuspended pellet to 3.5 ml polycarbonate TLA 100.3 tube. Wash each SW-38 tube with a bit of additional buffer, and add this to the TLA tubes. Centrifuge at 100,000 x g, 4 °C for 30 min in the TLX centrifuge (TLA 100.3 rotor). Discard supernatant, wipe out walls of tubes, store on ice.

   7. Resuspend the microsomal pellet in resuspension buffer as in step A6. If fraction is being stored, aliquot into 500 μl–1 ml traction in 2 ml screwcap tubes. Freeze in liquid nitrogen, and store in either liquid nitrogen or -80 °C freezer until use.


2. Sucrose density gradients
   Note: Preparation of sucrose solution: Important! Sucrose must be ultra pure.

   1. Prepare 20%, 25%, 30%, 35%, 40%, 45%, 50%, 55% (w/v) sucrose solution with 20 mM HEPES pH= 7.8, 1 mM EDTA in 10 ml tubes.
      Note: Turn the tubes on a rotator for approximately 20 min until all sucrose has dissolved.

   2. On the bottom of tube (Beckman polyallomer ultracentrifuge tube) put first the drop of 55% Suc and after that 2 ml of 50%, 45%, 40%, 35%, 30%, 25% and 20% were carefully added on the top, the interface should be seen (see Figure 1). At the top of the tube upon which to pipette the 0.5 ml sample of resuspended microsomal fraction (from membrane preparation).
      Note: Allow sucrose to run down very slowly inside of tube. Sucrose layers should be visible when they are layering progressively. Place the tube with sucrose layers at 4 °C overnight to form continuous gradients.

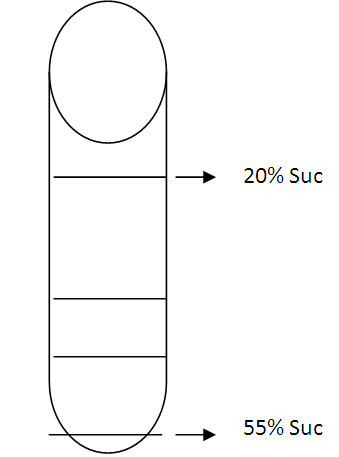

      Figure 1. A carton to show the interface of sucrose layers. All interfaces should be clearly seen between different concentrations. Please carefully add each concentration to obtain clear interface.


   3. Centrifuge (Optima L-90K ultracentrifuge) 100,000 x g for 12 h.

   4. Immediately after the run the tube should be removed from the rotor taking care not to disturb the layers of sucrose gradient.

   5. Collect the 0.5 ml fractions from top to bottom very carefully to Eppendorf’s tubes.


3. Two phase separation for plasma membrane and endomembrane fractions
   Stock solutions, Phase mixture (2.7 g) and Phase system (30 g) (see Recipes)

   1. Microsomal membranes are prepared as section A above.

   2. Fresh microsomal membranes are resuspended in 1 ml of buffer (0.33 M sucrose, 3 mM KCl, and 5 mM potassium phosphate, pH 7.8, and 20 mg/ml complete protease inhibitor cocktail from Sigma-Aldrich).

   3. Add 0.9 g resuspended membrane to 2.7 g two-phase separation mixture (can be scaled up).

   4. After mixing (inverting 30 times), the phases were separated by centrifugation (swinging rotor) at 1,500 x g for 5 min.

   5. The upper plasma membrane phase was carefully removed to a new tube, and mixed and repartitioned with equal weight of fresh lower phase solution (repeat one more time). Likewise, the lower phase (endosomal membrane phase) was repartitioned twice with equal weight of the upper phase.

   6. The final upper and lower phase were diluted, 3 fold and 10 fold, respectively, with 10 mM BTP-MES, pH 7.8, 1 mM EGTA, 1 mM EDTA, 0.29 M sucrose, and 20 mg/ml complete protease inhibitor cocktail, then centrifuged at 120,000 x g for 1 h.

   7. Pellets were resuspended in 10 mM BTP-MES, pH 7.8, 1 mM EGTA, 1 mM EDTA, 0.29 M sucrose, 20 mg/ml complete protease inhibitor cocktail.


Recipes

1. Grinding buffer
   Grinding buffer	100 ml	300 ml
   0.29 M Sucrose	10 g	30 g
   25 mM HEPES, pH =8.5	0.6 g	1.8 g
   20mM EDTA (disodium salt)	0.74 g	2.23 g
   PVP(40,000)	0.5 g	1 g
   0.2% BSA	0.2 g

   pH to 8.5
   Refrigerate
   Just before use, add:

   3 mM DTT (1 M Stock)	300 μl	900 μl
   200 ng/ml Leupeptin (200 μg/ml stock)	100 μl	300 μl
   PMSF (not AP assay) (100 mM in EtOH)	100 μl	300 μl
   200 μM Benzamidine	100 μl	100 μl
   (from 200 mM each stock in EtOH)
   Pepstatin A (2 mg/ml STOCK)	100 μl
   Aprotinin (1 mg/ml STOCK)	10 μl	30 μl

2. Resuspension buffer
   Resuspension buffer	100 ml
   10 mM BTP-MES, pH 7.8 (1 M stock)	1 ml
   250 mM sucrose	8.56 g
   20% glycerol	20 g

   --No GLYCEROL for membrane used in lipid raft purification
   Just before use, add:

   200 ng/ml Leupeptin (200 μg/ml stock)	100 μl
   PMSF (not AP assay) (1,000 mM in EtOH)	100 μl
   200 μM benzamide/benzamidine (from 200 mM each stock in EtOH)	100 μl
   Pepstatin A (2 mg/ml STOCK)	100 μl
   Aprotinin (1 mg/ml STOCK)	10 μl

3. Stock solutions
   20% (w/w) dextran in water
   40% (w/w) polyethylene glycol 3350 in water
   Incubate at 4 °C for 2-3 days

4. Phase mixture (2.7 g)
   1.116 g 20% dextran
   0.558 g 40% polyethylene glycol 3350
   0.305 g sucrose
   67.5 μl 0.2 M potassium phosphate (pH 7.8)
   4.1 μl 2 M KCl
   Add water to a final weight of 2.7 g

5. Phase system (30 g)
   9.3 g 20% dextran
   4.65 g 40% polyethylene glycol 3350
   3.389 g sucrose
   0.75 ml 0.2 M potassium phosphate (pH 7.8)
   45 μl 2 M KCl
   Add water to a final weight of 30 g
   The phase system is mixed and allowed to settle overnight at 4 °C
   The upper phase solution and the lower phase solution (for repartition) are collected
   Stored separately at 4 °C


Acknowledgments

The work was supported by the Department of Energy, Basic Energy Sciences, grant no. DE-FG02-06ER15804 to ASM. HY was supported as part of the Center for Direct Catalytic Conversion of Biomass to Biofuels (C3Bio), an Energy Frontier Research Center funded by the U.S. Department of Energy, Office of Science, Office of Basic Energy Sciences, Award Number DE-SC0000997.

References

1. Alexandersson, E., Gustavsson, N., Bernfur, K., Karlsson, A., Kjellbom, P. and Larsson, C. (2008). Purification and proteomic analysis of plant plasma membranes. Methods Mol Biol 432: 161-173.

2. Blakeslee, J. J., Bandyopadhyay, A., Lee, O. R., Mravec, J., Titapiwatanakun, B., Sauer, M., Makam, S. N., Cheng, Y., Bouchard, R., Adamec, J., Geisler, M., Nagashima, A., Sakai, T., Martinoia, E., Friml, J., Peer, W. A. and Murphy, A. S. (2007). Interactions among PIN-FORMED and P-glycoprotein auxin transporters in Arabidopsis. Plant Cell 19(1): 131-147.

3. Briskin, D. P. and Leonard, R. T. (1980). Isolation of tonoplast vesicles from tobacco protoplasts. Plant Physiol 66(4): 684-687.

4. Hodges, T. K., Leonard, R. T., Bracker, C. E. and Keenan, T. W. (1972). Purification of an ion-stimulated adenosine triphosphatase from plant roots: association with plasma membranes. Proc Natl Acad Sci U S A 69(11): 3307-3311.

5. Larsson, C., Widell, S. and Kjellbom, P. (1987). Preparation of high-purity plasma membranes. Methods Enzymol 148: 558-568.

6. Leonard, R. T. and Vanderwoude, W. J. (1976). Isolation of plasma membranes from corn roots by sucrose density gradient centrifugation: an anomalous effect of ficoll. Plant Physiol 57(1): 105-114.

7. Titapiwatanakun, B., Blakeslee, J. J., Bandyopadhyay, A., Yang, H., Mravec, J., Sauer, M., Cheng, Y., Adamec, J., Nagashima, A., Geisler, M., Sakai, T., Friml, J., Peer, W. A. and Murphy, A. S. (2009). ABCB19/PGP19 stabilises PIN1 in membrane microdomains in Arabidopsis. Plant J 57(1): 27-44.

8. Yang, H., Richter, G. L., Wang, X., Mlodzinska, E., Carraro, N., Ma, G., Jenness, M., Chao, D. Y., Peer, W. A. and Murphy, A. S. (2013). Sterols and sphingolipids differentially function in trafficking of the Arabidopsis ABCB19 auxin transporter. Plant J 74(1): 37-47.
