3D Reconstruction of Mature Arabidopsis Ovules Using FIB-SEM to Study Filiform Apparatus Morphology

利用 FIB-SEM 三维重建成熟拟南芥胚珠以研究丝状器形态

DS Daichi Susaki email

发布: 2026年05月20日第16卷第10期 DOI: 10.21769/BioProtoc.5695 浏览次数: 884

评审: Munenori IshibashiMelissa MikolaiCatalina I. Pislariu

PDF

Q&A

引用

Cited by

参见作者原研究论文

The authors used this protocol in:

Cover of The Plant Cell, featuring study using the protocol.

Apr 2023

Special Issue on Protocols for Organoid Research

实验方案合集

Cell Imaging - A Special Collection for Cell Bio 2023

相关实验方案

完整细胞壁莱茵衣藻藻株的简易电转化方法

Maximilian Meßmer [...] Krishna K. Niyogi

2026年07月20日 649 阅读

拟南芥根尖的双色tau-STED超分辨显微成像

Louise Fougère [...] Magali Grison

2026年08月05日 481 阅读

不同培养基质中水稻根系径向失水的测定方法

Lucas L. Peralta Ogorek [...] Bipin K. Pandey

2026年10月05日 219 阅读

Abstract

Volume electron microscopy based on serial sectioning allows for three-dimensional (3D) visualization and analysis of the internal structures of tissues, cells, and organelles. One such technique, focused ion beam (FIB) scanning electron microscopy (SEM), has the advantages of nanoscale sectioning and high z-resolution, but the disadvantage of limited volume processing. Because of this limitation, targeting localized objects by FIB-SEM is difficult. Here, we developed a FIB-SEM observation workflow that enables the analysis of the filiform apparatus of synergid cells enclosed in the Arabidopsis ovule. In this protocol, plant samples are stained, embedded, trimmed, and carbon-coated while maintaining their orientation within the tissue. Then, sequential observations are performed using Cut & See function of FIB-SEM, followed by image processing for 3D reconstruction. Utilization of multi-scanning and image cropping from high-resolution data helps to identify localized targets within plant tissue. The filiform apparatus, which is an invaginated cell wall structure of the synergid cells, shows distinct contrast in each image, allowing for segmentation using brightness-based binarization. Such segmentation avoids the need to manually trace complex structures and facilitates 3D reconstruction by volume electron microscopy.

Key features

• Sampling and trimming of the resin block enable directionally loading in FIB-SEM.

• Multi-scanning by FIB-SEM and target extraction by image processing software enable 3D reconstruction of local areas within the sample block.

• Binarization using distinctive brightness of cellular structures enables segmentation without manual tracing of complex structures such as the filiform apparatus cell wall.

Keywords: Carbon coating (碳镀膜)

Cell wall (细胞壁)

Chemical fixation (化学固定)

En bloc staining (整体染色)

Electron microscopy (电子显微镜)

Focused ion beam (聚焦离子束)

Plant (植物)

Ultramicrotomy (超薄切片技术)

Graphical overview

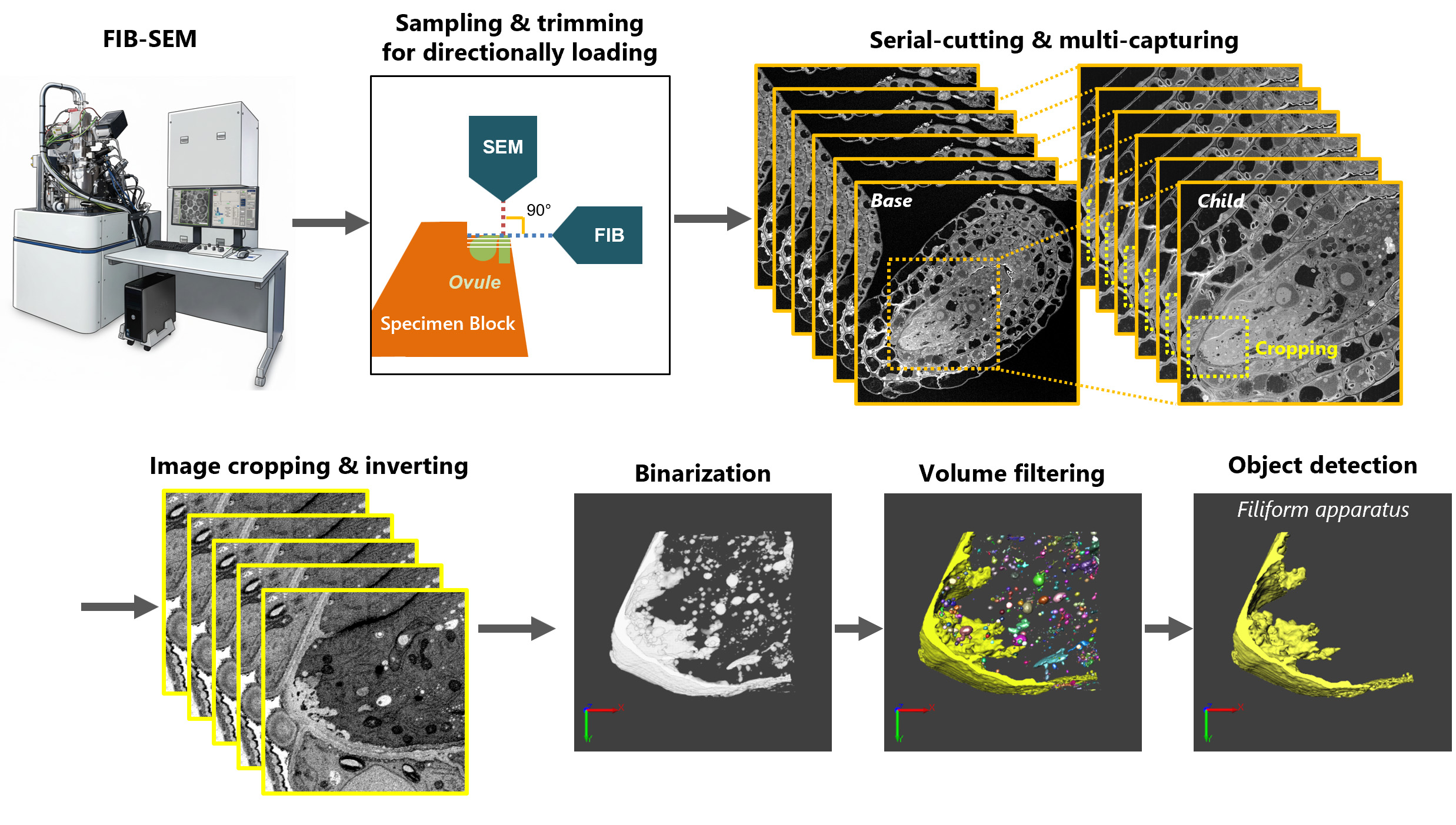

Workflow of 3D reconstruction of filiform apparatus morphology. Focused ion beam (FIB) scanning electron microscopy (SEM) is used for sectioning and observation. Set the ovule embedded in a resin block to align with the beam direction of the FIB and SEM. Serially cut the ovule and capture the SEM images with multiple positions and magnification (Base for a whole ovule and Child for synergid cells). Crop the serial images for the filiform apparatus and invert the grayscale. Detect the bright regions with binarization, filter based on object volumes, and select the largest one for the filiform apparatus without noise.
