Ion Transport Activity Assay for Microbial Rhodopsin Expressed in Escherichia coli Cells

大肠杆菌表达的微生物紫红质离子转运活性测定

MK Masae Konno
KI Keiichi Inoue
HK Hideki Kandori

发布: 2021年08月05日第11卷第15期 DOI: 10.21769/BioProtoc.4115 浏览次数: 3177

评审: Laxmi Narayan MishraAnonymous reviewer(s)

download pdf PDF PDF
ask Q&A
引用
收藏
Cited by

参见作者原研究论文

The authors used this protocol in:

Cover of Science Advances, featuring study using the protocol.

Apr 2020

Advertisement

Submit your protocol to the Special Issue on Technologies for RNA Detection
Presubmission Inquiry

实验方案合集

专注于特定技术或应用的、详细的、经过同行评审的实验方案合集

Cancer Research
Immunology
Developmental Biology
Microbiology
Neuroscience
Cell Imaging - A Special Collection for Cell Bio 2023
查看更多 more

相关实验方案

基于Azo-Xylan及其变体的Endo-1,4-β-D-木聚糖酶活性检测方法

基于Azo-Xylan及其变体的Endo-1,4-β-D-木聚糖酶活性检测方法

Luca Bombardi [...] Salvatore Fusco

2025年04月20日 1828 阅读

基于体外激活方法的X-琥珀酸合酶活化及其在富马酸加烷基反应中的应用

基于体外激活方法的X-琥珀酸合酶活化及其在富马酸加烷基反应中的应用

Anshika Vats [...] Mary C. Andorfer

2025年06月20日 2408 阅读

测定丙酮酸激酶动力学的优化酶偶联分光光度法

测定丙酮酸激酶动力学的优化酶偶联分光光度法

Saurabh Upadhyay

2025年08月20日 2277 阅读

Abstract

Microbial rhodopsins have diverse functions, including roles as light-driven ion pumps, light-gated ion channels, photosensors, and light-regulated enzymes. As the number of rhodopsin-like genes identified has increased in recent years, so has the requirement for rapid identification of their functions. The patch-clamp method is often used to investigate the ion transport mechanism of microbial rhodopsins in mammalian cells; however, this requires a dedicated system and advanced techniques. The ion transport assay using the Escherichia coli expression system described here evaluates the ion transport capacity by monitoring the pH change in E. coli suspensions; if the target rhodopsin has a light-dependent ion transport activity, a light-dependent pH change is observed. The pH increase or decrease corresponds to proton release from the cell or proton uptake into the cell, respectively. This method can be used to evaluate ion transport capacity in a high-throughput manner using a combination of general-purpose equipment and common techniques.

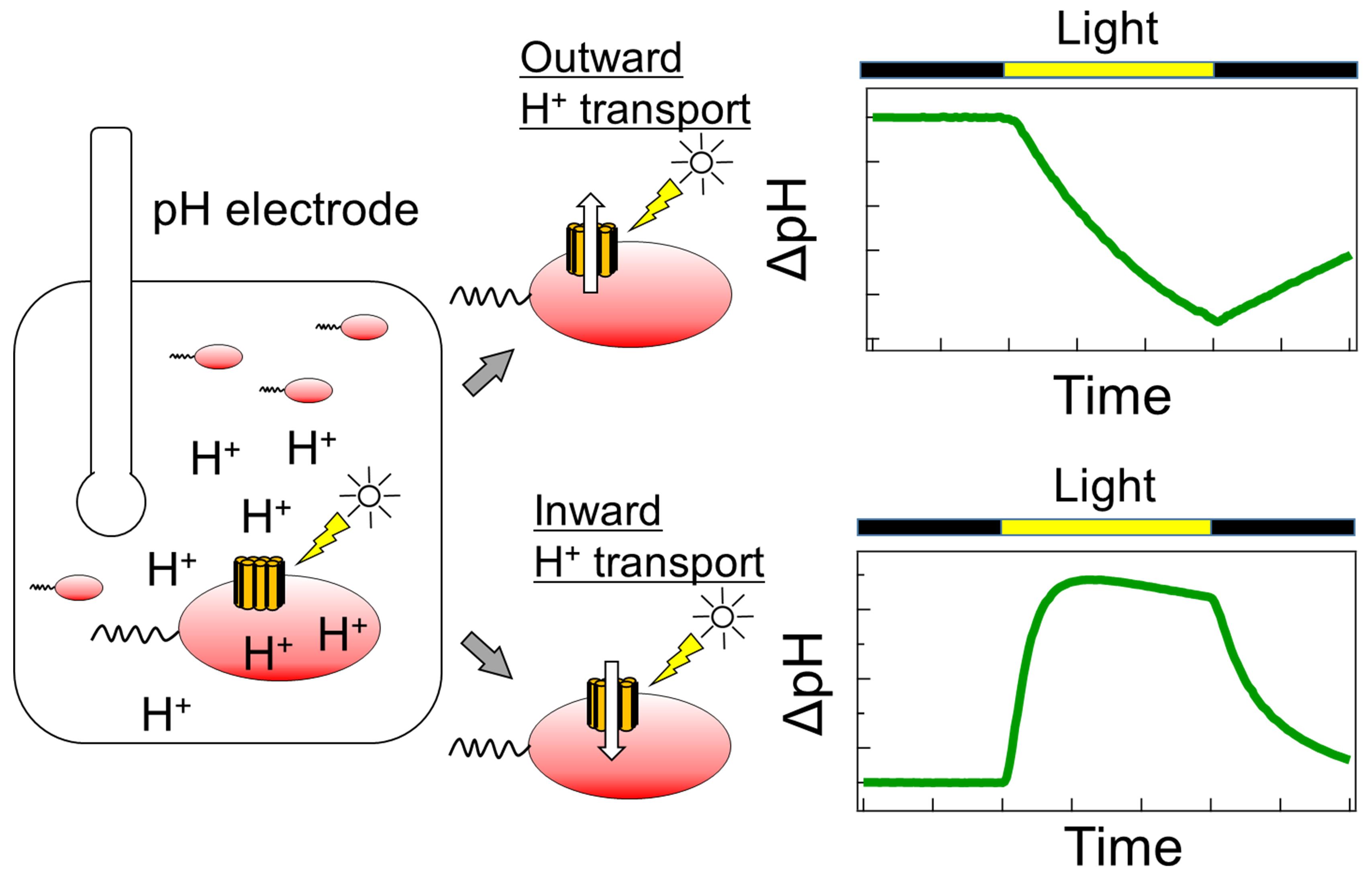

Graphic abstract:



Schematic diagram of the ion transport assay in rhodopsin-expressing E. coli cells.


Keywords: Microbial rhodopsin (细菌视紫红质) search Ion transport (离子传输) search Protein expression (蛋白表达) search Escherichia coli (大肠杆菌) search Light-dependent pH change (依赖光pH值变化) search

Background

Microbial rhodopsins are light-perceptive membrane proteins containing all-trans retinylidine chromophores, known as retinal. These proteins are found in many organisms, including bacteria, fungi, archaea, and giant viruses (Ernst et al., 2014). With the accumulation of genetic information, the number of genes predicted to be microbial rhodopsins is rapidly increasing; however, many of their molecular properties remain unknown.


Microbial rhodopsins have various functions, including roles as light-driven ion pumps, light-gated ion channels, photosensors, and light-regulated enzymes. In particular, rhodopsins that show ion transport activity are attracting attention for their use as optogenetic tools for the optical control of neural activity; therefore, rapid progress in gene screening is required. The patch-clamp method is often used to investigate the ion transport function and mechanism of microbial rhodopsin in mammalian cells (Klapoetke et al., 2014). In addition, the proteoliposome, into which purified rhodopsin protein is reconstituted, is used to measure ion transport (Waschuk et al., 2005); however, these methods require dedicated equipment and advanced techniques.


Simpler ion transport assays using rhodopsin-expressing Escherichia coli cells can also be used to evaluate ion transport capacity. In this method, rhodopsin-expressing cells are suspended in a salt solution, such as NaCl, KCl, or Na2SO4, and the light-dependent pH change in the cell suspension is subsequently monitored. This light-dependent pH change is caused by H+ transport across the plasma membrane, which is coupled with ion transport by rhodopsin. In contrast to the patch-clamp method, this method can be used to evaluate ion transport capacity in a high-throughput manner using general-purpose equipment, without the requirement for specialized instrumentation or expertise. In fact, this method has contributed to the discovery of novel microbial rhodopsins with various ion transport capacities (Inoue et al., 2013, 2016, 2020; Yoshizawa et al., 2014; Harris et al., 2015; Hasemi et al., 2016; Pushkarev and Béjà, 2016; Needham et al., 2019). The details of this method are described herein.

Materials and Reagents

  1. Disposable pipette tips, 0.1-10 μl (M&S Instrument, catalog number: F161630)

  2. Disposable pipette tips, 2.0-200 μl (M&S Instrument, catalog number: F161930)

  3. Disposable pipette tips, 100-1,000 μl (M&S Instrument, catalog number: F161670)

  4. Disposable pipette tips, 500-5,000 μl (M&S Instrument, catalog number: F161571)

  5. Glass test tubes, 18 × 150 mm

  6. Aluminum caps for glass tubes

  7. 300-ml shaking Erlenmeyer flasks with baffles

  8. Silicone stoppers (AS ONE, BIO-SILICO®, N-42, catalog number: 5-1100-03)

  9. Polypropylene conical centrifuge tubes (Thermo Fisher Scientific, catalog number: 3009650)

  10. Disposable cells for near-ultraviolet and visible light (AS ONE, Standard Type, catalog number: 1-2848-01)

  11. Sterile syringe filters, 0.2-μm (Pall, Acrodisc®, Product ID: 4612)

  12. E. coli C43 (DE3) cells (Lucigen, OverExpressTM strain, catalog number: 60446-1)

  13. Target microbial rhodopsin gene cloned into the pET21a(+) vector

    Note: The target gene was optimized for its codon for E. coli and synthesized (GenScript). The synthesized gene was cloned between the NdeI and XhoI sites in the pET21a(+) vector (Sigma-Aldrich, Novagen, catalog number: 69740).

  14. Yeast extract (BD, catalog number: 212750)

  15. Tryptone (Nacalai Tesque, catalog number: 35640-95)

  16. Sodium chloride (FUJIFILM Wako Pure Chemical, catalog number: 191-01665)

  17. Ampicillin sodium (FUJIFILM Wako Pure Chemical, catalog number: 014-23302)

  18. Antifoam PE-L (FUJIFILM Wako Pure Chemical, catalog number: 013-17201)

  19. Isopropyl-β-D-thiogalactoside (IPTG; Sigma-Aldrich, catalog number: I5502)

  20. All-trans-retinal (Toronto Research Chemicals, catalog number: R240000)

  21. Hydrochloric acid (FUJIFILM Wako Pure Chemical, catalog number: 080-01066)

  22. Sodium hydroxide (FUJIFILM Wako Pure Chemical, catalog number: 192-15985)

  23. Carbonyl-cyanide 3-chlorophenylhydrazone (CCCP) (Sigma-Aldrich, catalog number: C2759)

  24. Dimethyl sulfoxide (DMSO) (FUJIFILM Wako Pure Chemical, catalog number: 046-21981)

  25. Disodium hydrogenphosphate (FUJIFILM Wako Pure Chemical, catalog number: 042-30055)

  26. Hydroxylamine hydrochloride (FUJIFILM Wako Pure Chemical, catalog number: 081-01471)

  27. n-Dodecyl-β-D-maltoside (DDM) (Anatrace, catalog number: D310)

  28. Lysozyme from egg white (FUJIFILM Wako Pure Chemical, catalog number: 129-06723)

  29. Deoxyribonuclease I, from bovine pancreas, precrystalline (DNaseI) (FUJIFILM Wako Pure Chemical, catalog number: 043-26773)

  30. 2× YT medium (see Recipes)

  31. 50 mg/ml ampicillin stock solution (see Recipes)

  32. 30 mM CCCP stock solution (see Recipes)

  33. 2 M hydroxylamine stocks (see Recipes)

  34. Bleaching buffer (see Recipes)

Equipment

  1. Constant-temperature shaking incubator (TAITEC, Bioshaker BR-43FL·MR, Code number: 0053027-000)

  2. High-speed refrigerated centrifuge (Eppendorf Himac Technologies, model: CF15RN)

  3. Fixed-angle rotor (Eppendorf Himac Technologies, model: T15A42)

  4. Micropipettes (10- and 200-μl, and 5-ml; Gilson)

  5. Vortex mixer (Electro Scientific Industries, model: GENIE2, catalog number: SI-0286)

  6. Digital colorimeter (TAITEC, model: miniphoto518R, catalog number: 0040889-000)

  7. Tube rotator (AS ONE, model: ACR-100)

  8. pH meter (HORIBA, LAQUA, model: F-55)

  9. pH electrode (HORIBA, model: 9618S-10D)

  10. Benchtop darkroom

  11. pH electrode cover for light protection

    Note: We made a cover for the pH electrode by cutting the bottom of a 15-ml tube and covering it with black cloth tape.

  12. Water-jacketed glass cell vial

  13. Magnetic stirrer (AS ONE, model: CT-MINI)

  14. Low-temperature circulating bath (EYELA, model: NCB-1210)

  15. 300-W xenon arc light source (ASAHI spectra, model: MAX-303)

  16. Long-pass filter (AGC Techno Glass, model: Y-52)

  17. Heat-absorbing filter (SIGMAKOKI, model: HAF-50S-50H)

  18. Ultrasonic homogenizer (TAITEC, model: VP-300N)

  19. UV-visible spectrometer (JASCO, model: V-750)

  20. Integral sphere unit for a UV-visible spectrometer (JASCO, model: ISV-922)

  21. Suction pump (AIR LIQUIDE, model: SP30)

Software

  1. Data collection software for a pH meter (HORIBA)
