Total Triglyceride Quantification in Caenorhabditis elegans

How to cite Favorites Q&A Share your feedback Cited by


Several studies suggest an important role of lipid metabolism in regulating longevity of Caenorhabditis elegans. Therefore, assays to quantify lipids have enormous value in understanding aging and pathologies associated with it. Approximately 70% of lipid metabolism genes in the nematode have orthologs in humans. Amenability of C. elegans to genetic manipulations has allowed investigations into the role of specific genetic factors in lipid metabolism. Here, we describe a protocol to quantify total triglycerides in C. elegans, which can be extended to studies of the effects of altered environmental and genetic factors on stored fats. This protocol quantifies the picomoles of the triglycerides, in whole worm lysate. Due to the sensitivity of the assay, it could help in identifying subtle changes in the total stored fat which are not discernible with microscopy techniques.

Keywords: Caenorhabditis elegans, Triglycerides, Fluorometry, Fat, Metabolism


Excess calories are often stored in the form of triacylglycerol or glycogen (Cohen, 2018). Abnormal levels of triglycerides (TAGs) have been implicated in heart diseases, pancreatitis, and atherosclerosis in humans (Cameron et al., 1974; Lee et al., 2003; Walther and Farese, 2012; Onal et al., 2017). TAGs are packed into lipid droplets in the cytosol. Lipid droplets are present in eukaryotic cells and vary in size from 20 nm to 100 µm (Stobart et al., 1986; Suzuki et al., 2011). Lipid droplets consist of a hydrophobic core surrounded by a phospholipid monolayer on the outer side. These organelles undergo active biogenesis, maturation, and turnover. At the time of need, such as during caloric restriction or starvation, TAGs are hydrolyzed to generate energy (Walther and Farese, 2012). Like other eukaryotes, C. elegans also stores excess energy in the form of TAGs packed into lipid droplets (Ashrafi, 2007; Mak, 2012). The droplets are present predominantly in the intestine and hypodermis and can be easily visualized by staining with Sudan black, Oil-Red-O, BODIPY (Ex/Em=493/503), or Nile Red (Kimura et al., 1997; Ashrafi et al., 2003; O’Rourke et al., 2009; Yen et al., 2010; Dixit et al., 2020). However, these techniques do not provide an estimate of the absolute amounts of triglycerides. Here, we describe a biochemical method for the quantification of absolute levels of triglycerides in C. elegans, with sensitivity in picomolar concentration. In this assay, lipases hydrolyze TAGs to release free fatty acids and glycerol. Glycerol is further oxidized to generate a product that reacts with a probe to generate fluorescence at Ex/Em of 535/587. Outline of the protocol is shown in Figure 1. Biochemical quantification is useful for the detection of the glycerol moiety of the TAG, but it does not provide information on the fatty acid composition of stored fats in terms of saturated and desaturated fatty acids. This method can be utilized to study changes in total triglyceride content due to genetic pertubations, change in diet or pharmacological perturbations.

Figure 1. Triglyceride quantification procedure overview

Materials and Reagents

  1. 1 L and 2 L Conical flasks (ThermoFisher Scientific, FisherBrand)

  2. 60 mm Petri dish with triple vent (Tarsons, catalog number: 460061)

  3. 96-well flat bottom black fluorescent reading plates (SPL Life sciences, catalog number: 30496)

  4. 50 ml graduated centrifuge tube (Tarsons, catalog number: 546021)

  5. 15 ml graduated centrifuge tube (Tarsons, catalog number: 566041)

  6. 0.45 µm filters (GE Healthcare, WhatmanTM, catalog number: 9913-2504)

  7. 0.010-inch diameter Platinum wire

  8. Aluminum foil (PRS associates, MYFOIL)

  9. 1.5 ml microfuge tube (Trasons)

  10. Caenorhabditis elegans

  11. Escherichia coli OP50 (Glycerol stock)

  12. NaCl (ThermoFisher Scientific, Qualigens, catalog number: 7647)

  13. MgSO4 (ThermoFisher Scientific, SQ, catalog number: 10034)

  14. CaCl2 (Merk Life Science, EMPLURA, catalog number: QE5Q651429)

  15. K2HPO4 (AvantorTM, RANKEM, catalog number: P2607)

  16. KH2PO4 (ThermoFisher Scientific, Qualigens, catalog number: 7778)

  17. Na2HPO4 (ThermoFisher Scientific, Qualigens, catalog number: 7558)

  18. NaOH (SDFCL, catalog number: 20252 K05)

  19. Sodium hypochlorite solution (NaOCl) (Sigma-Aldrich, catalog number: 239305)

  20. Absolute ethanol (Merck Life Science, EMSURE, catalog number: 64-17-5)

  21. Molecular grade water (SIGMA, catalog number: W4502)

  22. Agar powder (HiMedia, catalog number: RM301)

  23. LB broth (BD Biosciences, DifcoTM LB Broth Miller (Luria-Bertani), catalog number: 244620)

  24. LB agar (BD Biosciences, BactoTM Agar, catalog number: 214010)

  25. Peptone (BD Biosciences, BactoTM Peptone, catalog number: 211677)

  26. Cholesterol (SIGMA, catalog number: C8667)

  27. Streptomycin (Alfa Aesar, catalog number: J61299)

  28. NP-40 solution (SIGMA, catalog number: 74385)

  29. BioVision triglyceride quantification colorimetric/fluorometric kit (BioVision, catalog number: K622)

    Reagents provided in the BioVision kit

    Triglyceride Assay Buffer (TAB)

    Triglyceride Probe


    Triglyceride Enzyme Mix

    Triglyceride Standard (1 mM)

  30. Nematode growth media (see Recipes)

  31. 1 M KPO4 (see Recipes)

  32. 1 M CaCl2 (see Recipes)

  33. 1 M MgSO4 (see Recipes)

  34. 5 mg/ml Cholesterol (see Recipes)

  35. 50 mg/ml Streptomycin (see Recipes)

  36. 5 N NaOH (see Recipes)

  37. LB media (see Recipes)


  1. Water bath

  2. Autoclave (JSR, model: JSAX-80)

  3. Laminar flow (JSR, model: JSCB-1200SB)

  4. BOD incubator (JSR, model: JSBI-840C)

  5. Rocker (SHALOM, GEL ROCKER, model: SLM-GR-100)

  6. Centrifuge (Hettich, Universal 320 R, 1406)

  7. Centrifuge (Eppendorf, Centrifuge 5424 R)

  8. Sonicator (BRANSON, DIGITAL SONIFIER 450)

  9. Spectrophotometer (TECAN, model: Infinite M200 pro)


  1. i-controlTM (TECAN, https://lifesciences.tecan.com/plate_readers/infinite_200_pro?p=Software)

  2. GraphPad Prism5 (PRISM, https://www.graphpad.com/scientific-software/prism/)


  1. C. elegans maintenance

    1. Streak E. coli OP50 on LB agar plates without any antibiotic (see Recipes) and incubate the plate for 12 h at 37 °C.

    2. Inoculate a single OP50 colony into 10 ml of LB media in a 50 ml graduated centrifuge tube and let it grow overnight (10-12 h) at 37 °C.

    3. Spot ~150 µl of overnight grown OP50 culture to 60 mm NGM plates and dry in laminar flow for ~30 min. These plates can be stored at room temperature (RT).

    4. Using a heat sterilized platinum wire pick, transfer 5-6 gravid worms (Figure 2A) to an OP50 seeded NGM plate and propagate them at 20 °C till they reach the adult stage and start laying eggs.

    5. Adults worms can again be transferred on to a new NGM OP50 plate for maintenance.

      Figure 2. Image of a (A) gravid adult, (B) young adult, and (C) eggs of C. elegans

  2. Lipid quantification

    1. Preparation of synchronized population by taking ~10 gravid adults (60-65 h old worms at 20 °C, see Figure 2A) and allowing them to lay eggs for 6-8 h on NGM plates seeded with OP50. This yields about 500 eggs per plate. Incubate these plates at 20 °C till worms reach the gravid adult stage.

    2. Collect the gravid worms from 3 dishes into 6 ml M9 buffer in a 15 ml graduated centrifuge tube.

    3. Let the worms settle down for 10 min.

    4. Remove excess M9 buffer without disturbing the pellet of worms and add 10 ml autoclaved water.

    5. Let the worms settle down and then remove water up to 2 ml mark in the 15 ml graduated centrifuge tube.

    6. Prepare a 2x bleach mix by adding 5 N NaOH and NaOCl (bleach) in water (see Recipes).

    7. Add 2 ml of 2x bleach mix to the suspension of worms in the water.

    8. Vortex vigorously for 30 s to break open the worms. Check under a microscope to ascertain the release of eggs in the solution (Figure 2).

      Note: The duration of vortexing can vary with the strength of the bleach. Vortex vigorously till worms break open and eggs are released in the solution.

    9. Add 15 ml M9 buffer immediately after eggs are released.

    10. Centrifuge at 850 x g for 3 min for eggs to settle down at the bottom. Remove excess M9 buffer without disturbing the pellet.

    11. Repeat Steps B9 and B10 twice.

    12. Resuspend the eggs in 1 ml of M9 buffer in the graduated centrifuge tube. Incubate on a tube rotator at 20 °C for 18-20 h.

    13. Examine the egg suspension for hatching after 18-20 h.

    14. Shake the tubes properly and spot three 5 µl drops on a plain NGM plate. Count the number of worms in each spot. Take the average of three reads to estimate total numbers of worms present.

    15. Spot hatched L1 larvae on five NGM OP50 plates with an average of 300-400 worms on each and propagate the worms at 20 °C till the young adult stage (45-48 h after spotting L1, see Figure 2).

    16. Collect the worms in a 15 ml graduated centrifuge tube using M9 buffer, wash twice with 10 ml M9 buffer (samples to be on ice till Step B23).

    17. Let the worms settle and remove excess M9 buffer.

    18. Resuspend worms in 15 ml of 5% NP-40 solution in water and let worms settle again.

    19. Remove excess NP-40 solution and resuspend worms in 2 ml of 5% NP-40 solution.

    20. Spot 50 µl of the suspension of worms and count the number of worms. Dilute, if necessary, to keep the same average number (~40-50 worms per 50 µl) of worms across different samples.

    21. Let the worms settle again on ice and resuspend in 500 µl of 5% NP-40 solution.

    22. Sonicate the worms in 5% NP-40 solution on ice for 30 min with 15 s ON and 10 s OFF at 60% amplitude. Change the ice, if required, every 10 min.

    23. Transfer the sonicated lysate to a fresh 1.5 ml microfuge tube.

    24. Heat the sample to 100 °C in a water bath for 2-5 min and then let it cool at RT temperature. This is important to completely solubilize all the triglycerides in the samples.

    25. Repeat Step B24 once.

    26. Centrifuge at 4 °C for 2 min at 12,130 x g.

    27. Transfer the supernatant to a fresh 1.5 ml microfuge tube without disturbing the pellet. Keep the supernatant on ice and discard the pellet.

    28. Make 1:100 dilution of the sample in water for measurement.

  3. Generation of a standard curve for triglycerides

    1. Heat the triglyceride standard, provided in the BioVision kit, to 100 °C in a water bath for 1 min and vortex for 1 min.

    2. Repeat Step C1 twice and let it cool. Make sure the solution is clear.

    3. Dilute the 1 mM triglyceride standard to 0.4 µM (0.4 pmol/µl) with triglyceride assay buffer (TAB).

    4. Prepare buffer control (TAB alone) along with 1:5, 2:5, and 4:1 dilutions of 0.4 µM triglyceride standard with TAB to generate 0, 4, 8, and 16 picomoles triglyceride per well for fluorometric quantification of triglycerides in a 96-well microtiter plate. Adjust volume to 50 µl with TAB.
      Note: For creating “0, 4, 8 and 16 pmol triglyceride”, we added 0, 10, 20, and 40 µl of 0.4 µM standard to 50, 40, 30, and 10 µl of TAB buffer respectively. For technical duplicates, a total reaction volume of 100 µl should be prepared for each standard in 1.5 ml microcentrifuge tubes.

    5. Add 2 µl lipase to each 50 µl of standard and mix well. For duplicates, add 4 µl of lipase to each 100 µl standard, mix well, and split 50 µl in each well of the 96-well microtiter plate. Incubate the mix at room RT on a rocker for 20 min.

      Note: Flat bottom black 96-well microtiter plate is used for this experiment.

    6. Prepare the TAG reaction mix by mixing 2 µl TAG enzyme mix, 0.4 µl TAG probe, and 47.6 µl of TAB for each well. Prepare a master mix for the total number of standard wells plus one buffer reaction to reduce variation. For example, for 4 standards (including buffer control) in duplicates, it will be 18 µl TAG enzyme mix, 3.6 µl TAG probe, and 428.4 µl of TAB buffer. A buffer reaction is added to take care of volume loss due to pipetting errors.

      Note: Protect the reaction from light.

    7. Add 50 µl of the TAG reaction mix to buffer control and each standard well of the 96-well microtiter plate. Incubate the reaction on the rocker for 60 min at RT.

    8. Measure the fluorescence at Ex/Em of 535/590 nm using TECAN Infinite M200 pro spectrophotometer (see Figure 3).

      Figure 3. Steps for generation of triglyceride standard curve using Biovision kit for triglyceride quantification

    9. Generate standard curve by plotting fluorescence vs triglycerides concentration (pmol) using PRISM (see steps in Figure 3). Obtain a fit by applying linear regression.

    10. The standard curve is used to interpolate values of x (triglyceride concentrations) for known values of y (follow steps in Figure 4).

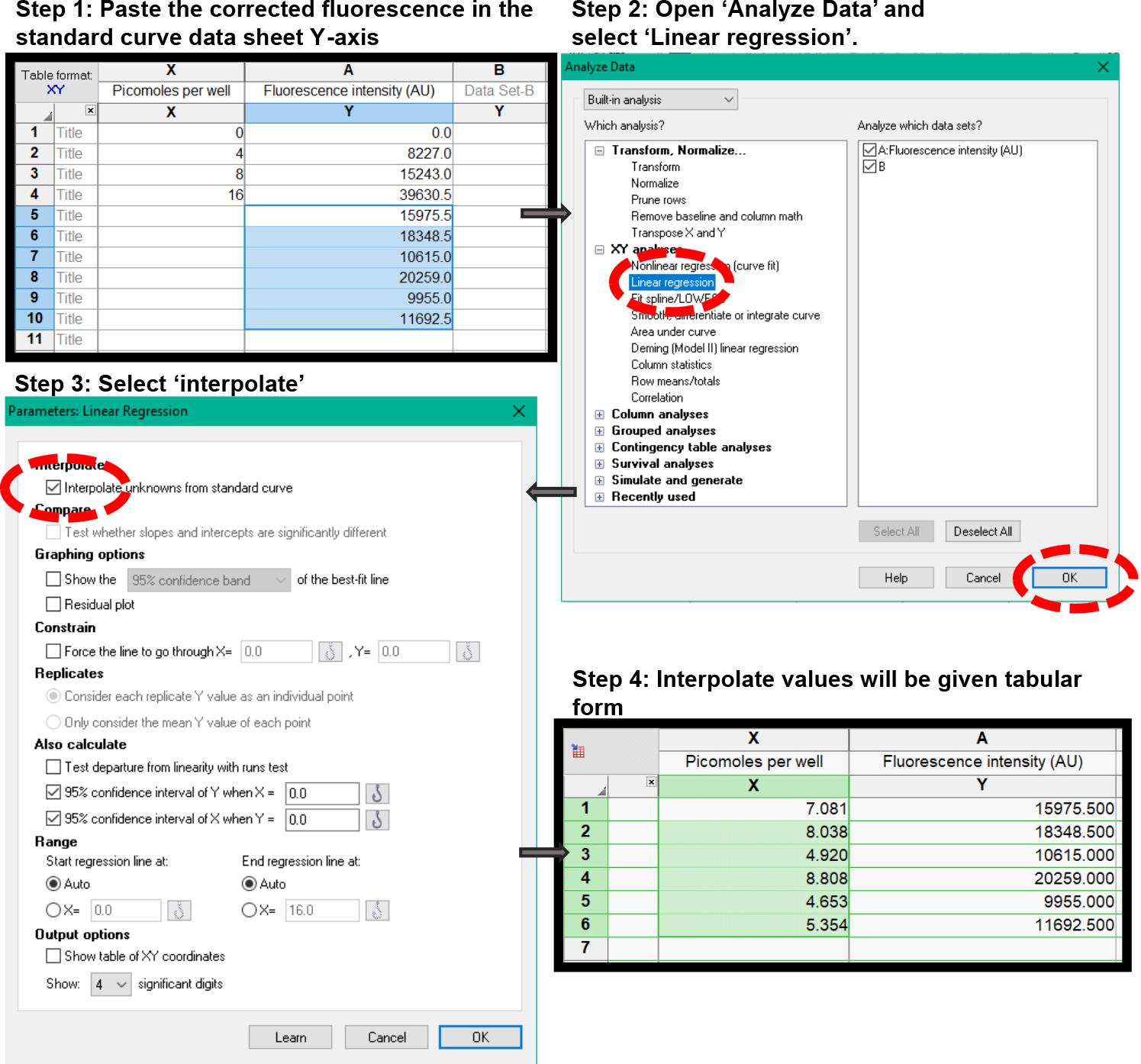

      Figure 4. Interpolation from the standard curve to obtain triglyceride concentration in biological samples

  4. Measurement of triglycerides in C. elegans samples

    1. Dilute worm supernatant (from Step B28) to 1:2, 1:5, and 1:10 with TAB to make up the final volume to 50 µl in a 96-well microtiter plate, in duplicates.

    2. Add 2 µl lipase to each sample and mix it well. Incubate the mix at RT on a rocker for 20 min.

    3. Include no lipase control for each sample to measure basal level glycerol present in the sample.

    4. For each well, prepare 50 µl of triglyceride reaction mix by adding 2 µl Triglyceride enzyme mix, 0.4 µl triglyceride probe, and 47.6 µl TAB. Prepare a single master mix for all the wells.

      Note: Protect the reaction from light.

    5. Add 50 µl of the triglyceride reaction mix to each sample well of the 96-well microtiter plate (from Step D2) and incubate at RT for 60 min.

    6. Measure the fluorescence at Ex/Em of 535/590 nm for each sample with lipase and respective no lipase control (raw values shown in the snapshot in Figure 5).

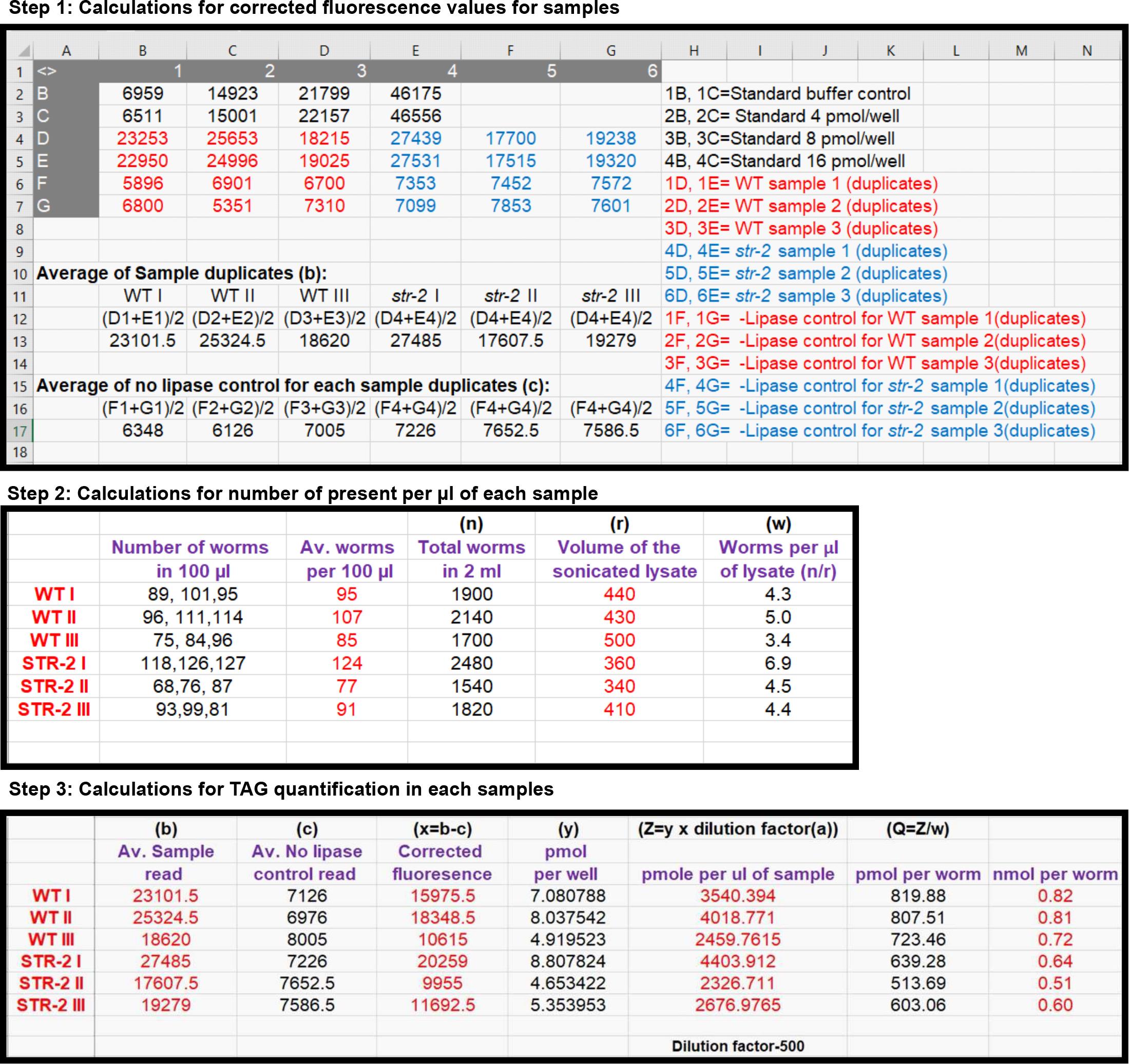

      Figure 5. Calculations for triglyceride quantification in C. elegans samples

Data analysis

  1. Subtract the fluorescence value of no lipase control from fluorescence value of respective worm sample with lipase. This provides corrected fluorescence value.

  2. Apply the corrected fluorescence values to the triglyceride linear regression fit line (from Step C9) to get the picomoles of TAGs present in sample per well by interpolation in GraphPad Prism5 (see Figure 4 and Figure 5).

  3. Calculate the concentration of triglycerides per µl in worm samples (Figure 5).


    Z: picomoles of triglycerides per µl of the sample

    a: volume of sample added to the well

    d: sample dilution factor

  4. Absolute amount of triglycerides present per worm can be calculated (Figure 5)


    Q: picomoles of triglycerides per worm

    w: number of worms per present ul of the sample


    n: total number of worms for each sample (from Step B20)

    r: volume of worm suspension in Step B19

    Here, we have shown an example of TAGs quantification in wild type N2 animals (denoted as WT) and str-2 (ok3148) animals. STR-2 chemosensory G-protein coupled receptor controls the life span of C. elegans at high temperatures by regulating fat metabolism. str-2 mutants have reduced total lipid content as confirmed by Oil-Red-O staining and triglycerides quantification by BioVision kit (Figure 6). For WT and str-2 (ok3148) animals, we found that the triglyceride level was 0.78 ± 0.03 and 0.58 ± 0.03 nanomoles per worm respectively (Dixit et al., 2020). One of the caveat of the biochemical method is that it can not provide information on the spatial distribution of stored fats in various tissues of worms. Thus, a combination of staining methods and biochemistry is desirable for the study of fat metabolism in worms.

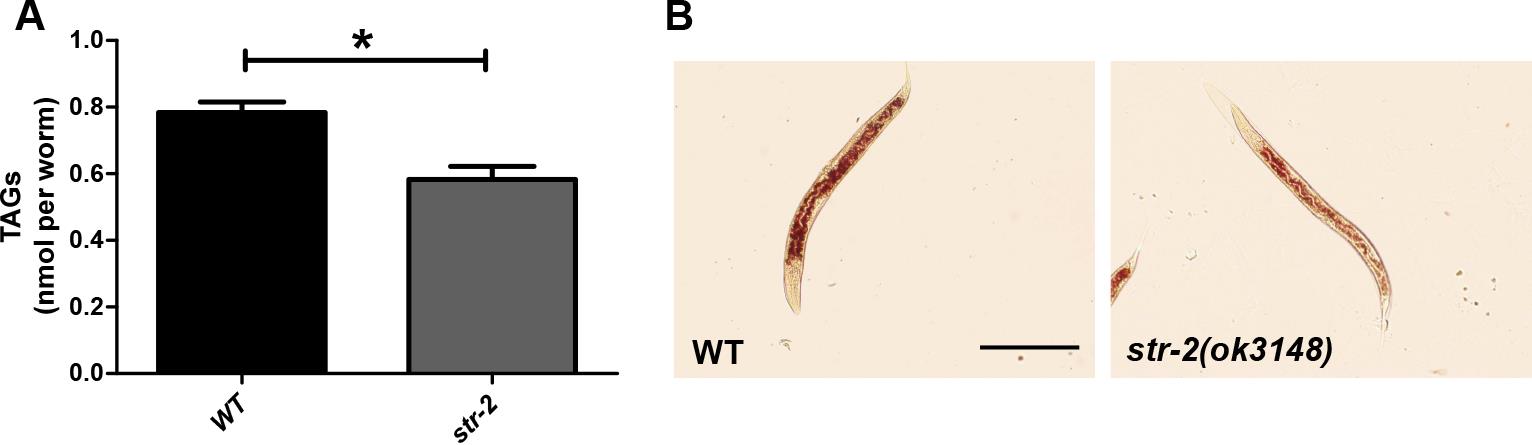

    Figure 6. Triglycerides levels in WT and str-2 (ok3148) mutant of C. elegans . A. Mean ± SEM triglycerides/worm in WT and str-2 animals. B. Lipids droplets stained by Oil-Red-O in WT and str-2 animals (Scale bar: 200 µm).


  1. Nematode growth media (1 L)

    3 g NaCl

    2.5 g Peptone

    17 g Agar

    Water up to 1 L

    Autoclave the medium at 121 °C and 15 psi for 30 min

    Cool down the media to ~50 °C and add the following: 

    1 ml 1 M CaCl2

    1 ml 1 M MgSO4

    1 ml of 5 mg/ml Cholesterol

    1 ml 50 mg/ml streptomycin

    25 ml 1 M KPO4

    Mix well and pour in 60 mm Petri dish

  2. 1 M KPO4 (200 ml)

    21.66 g of KH2PO4

    7.12 g of K2HPO4

    Water up to 200 ml

    Autoclave the preparation at 121 °C and 15 psi for 30 min

  3. 1 M CaCl2 (100 ml)

    14.7 g of CaCl2

    Water up to 100 ml

    Autoclave the solution at 121 °C and 15 psi for 30 min

  4. 1 M MgSO4 (100 ml)

    12.037 g of MgSO4

    Water of 100 ml

    Autoclave the solution at 121 °C and 15 psi for 30 min

  5. 5 mg/ml Cholesterol

    0.25 g of cholesterol

    50 ml absolute ethanol

    Filter sterilize the solution with 0.45 µm filter

  6. 50 mg/ml Streptomycin

    0.5 g of streptomycin

    Water up to 10 ml

    Filter sterilize with 0.45 µm syringe filter

  7. 5 N NaOH

    8 g NaOH

    Water up to 40 ml

    Filter sterilize with 0.45 µm syringe filter

  8. LB media

    2.5 g LB broth

    water up to 100 ml

    Autoclave the LB broth at 121 °C and 15 psi for 30 min

  9. LB agar

    2.5 g LB broth

    2 g agar

    Water up to 100 ml

    Autoclave the preparation at 121 °C and 15 psi for 30 min

    Cool down the media to ~50 °C and pour in 60 mm Petri dishes

  10. M9 buffer (500 ml)

    1.5 g KH2PO4

    3 g Na2HPO4

    2.5 g NaCl

    0.5 ml of 1 M MgSO4

    Water up to 500 ml

    Autoclave the solution at 121 °C and 15 psi for 30 min

  11. 2x Bleach Mix (2 ml)

    400 µl 5 N NaOH

    900 µl of NaOCl (bleach)

    Water up to 2 ml
