Tandem Tag Assay Optimized for Semi-automated in vivo Autophagic Activity Measurement in Arabidopsis thaliana roots

How to cite Favorites Q&A Share your feedback Cited by

Abstract

Autophagy is the main catabolic process in eukaryotes and plays a key role in cell homeostasis. In vivo measurement of autophagic activity (flux) is a powerful tool for investigating the role of the pathway in organism development and stress responses. Here we describe a significant optimization of the tandem tag assay for detection of autophagic flux in planta in epidermal root cells of Arabidopsis thaliana seedlings. The tandem tag consists of TagRFP and mWasabi fluorescent proteins fused to ATG8a, and is expressed in wildtype or autophagy-deficient backgrounds to obtain reporter and control lines, respectively. Upon autophagy activation, the TagRFP-mWasabi-ATG8a fusion protein is incorporated into autophagosomes and delivered to the lytic vacuole. Ratiometric quantification of the low pH-tolerant TagRFP and low pH-sensitive mWasabi fluorescence in the vacuoles of control and reporter lines allows for a reliable estimation of autophagic activity. We provide a step by step protocol for plant growth, imaging and semi-automated data analysis. The protocol presents a rapid and robust method that can be applied for any studies requiring in planta quantification of autophagic flux.

Keywords: Plant autophagy, Autophagic activity, Arabidopsis, Tandem tag, Autophagic activity in vivo, In planta autophagic activity assay, High-throughput autophagic activity measurement, Autophagic flux

Background

The Tandem Tag (TT) assay is a widespread approach for quantifying autophagic flux in yeast and mammalian cells (Zhou et al., 2012; Klionsky et al., 2016; Yoshii and Mizushima, 2017). It has been previously described to be applicable for plant cells in a study using tobacco BY-2 cell suspension cultures (Hanamata et al., 2013; Klionsky et al., 2016). Here we provide a detailed protocol for in planta quantification of autophagic flux in epidermal root cells of Arabidopsis thaliana seedlings (Figure 1). The TT assay employs ratiometric quantification of red and green fluorescence and allows to quantify relative induction or inhibition of autophagy. Another advantage of this method is that it provides valuable information on subcellular localization of ATG8, i.e., translocation of ATG8 from the nuclei to cytoplasm (Zhou et al., 2012), incorporation into puncta of different morphologies and motility, and its accumulation in the vacuole.

For this protocol we used stable transgenic Arabidopsis lines expressing the optimized TT (Huang et al., 2015) fused to AtATG8a and driven by a double 35S promoter. The TT-AtATG8a fusion was introduced into wild-type or atg5atg7 double knockout backgrounds, to produce reporter and control lines, respectively (Dauphinee et al., 2019). Under normal growth conditions TT-AtATG8a is localized in the cytoplasm and in the nuclei of the root epidermal cells, but upon induction of autophagy it is gradually translocated to the cytoplasm, then incorporated into autophagosome membranes and delivered together with the cargo to the lytic vacuole. While TagRFP shows relatively high tolerance to the pH of the lytic compartments (Huang et al., 2015), fluorescence of mWasabi is significantly reduced under the same conditions. Thus, ratiometric measurement of the TagRFP and mWasabi fluorescence allows to estimate the delivery rate of the fusion protein to the lytic compartment and eliminates potential bias coming from differences in fusion protein expression. Furthermore, since the assay relies on confocal microscopy image acquisition and analysis, it is possible to obtain time-resolved and dose-dependent data about the changes in autophagic activity. Although we describe only a protocol for detection of the TT-AtATG8a delivery to the vacuole, it is also possible to use the same imaging data to visualize and quantify dynamics of autophagosome formation.

We observed that response to known modulators of autophagic activity, such as AZD8055, which induces autophagy by inhibiting TORC1 activity, and concanamycin A (ConA) (Dauphinee et al., 2019), which inhibits autophagy by inactivating vacuolar vATPase and thus changing the pH of the lytic compartment, in Arabidopsis roots significantly varied depending on the area of the root zone scanned. By comparing data obtained from different root zones, we established that the most reproducible measurements could be obtained by analyzing images of root epidermal cells located in the beginning of the differentiation zone. Nevertheless, we still observed quite significant variation between responses in tricho- and atrichoblasts. Hence, a relatively large number of images was required for the data analysis to obtain a reliable mean value representative of average autophagic activity in root cells.

This assay provides a significant improvement of autophagic activity measurement in planta. It is based on high-throughput image analysis, thus improving reproducibility and robustness of the results. It relies on the use of designated macros written in ImageJ Macro Language (IJM) and R scripts. We ensured that it can be universally used for imaging data obtained using confocal laser scanning microscopes (CLSMs) of various manufacturers. Furthermore, to enable applicability of the protocol for images obtained on different CLSM systems that will naturally vary in efficacy of detection, we added an extra step of threshold values adjustments that will maximize the capacity of the vacuole area selection tool.

Importantly, the TT assay described here allows quantification of autophagy-dependent delivery of ATG8 to the lytic vacuole. Although it can be used as a very good indication for estimating autophagic activity, it is still preferable to combine this assay with other techniques verifying degradation of autophagic cargo e.g., the GFP-ATG8 cleavage assay or long-lived proteins assay (Dauphinee et al., 2019; Klionsky et al., 2016).

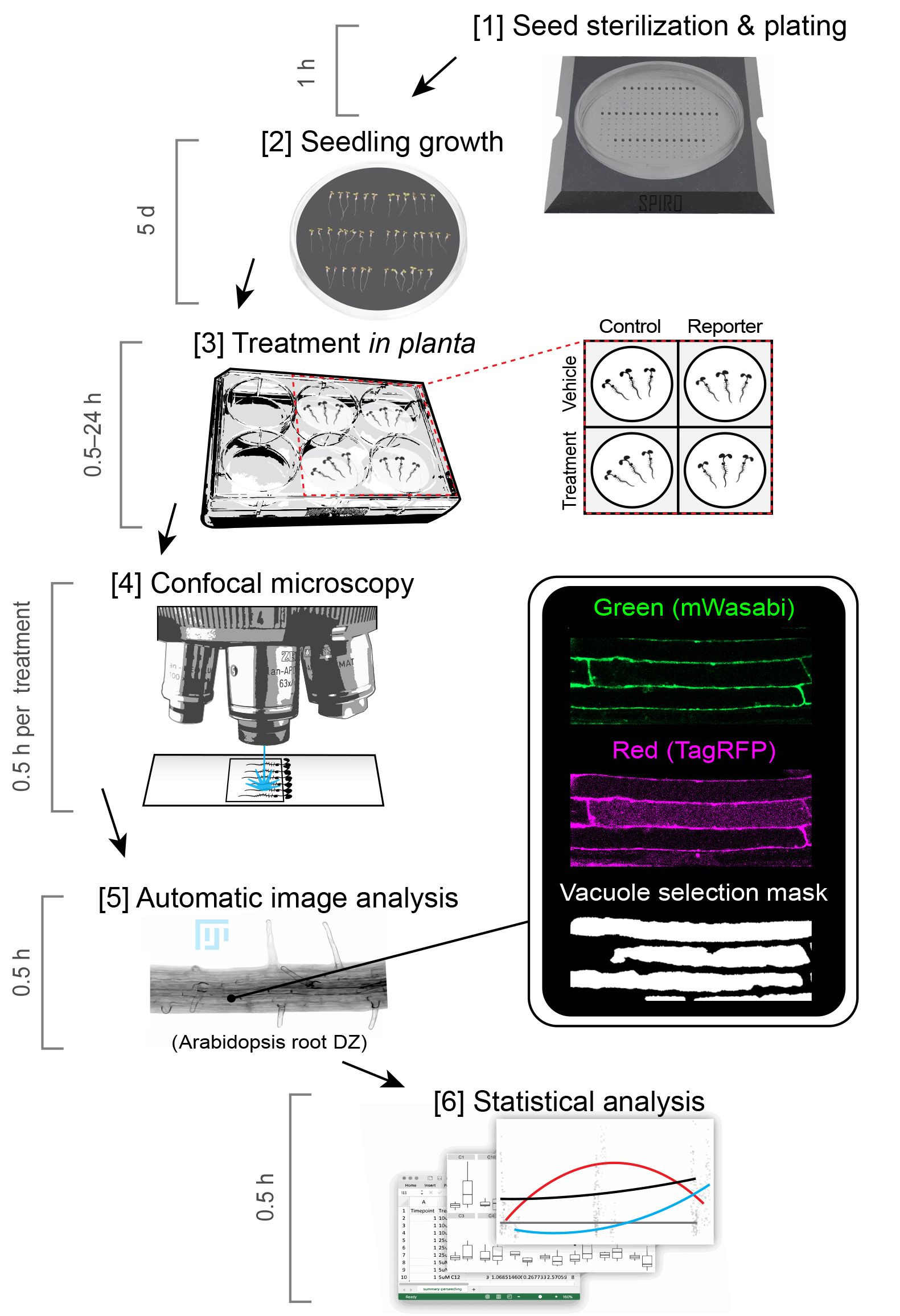

Figure 1. A workflow scheme of the Tandem Tag assay. The protocol for the assay comprises six major steps. The time required for each step was estimated based on experienced user progress. It is recommended to use a seed plating guide in the first step to establish equal distance between seedlings and reproducible growth conditions. In the second step, seedlings are grown on the vertically positioned plates to ensure that roots remain on the surface of the medium. We suggest to perform drug treatments in liquid medium for faster, more even and more reproducible delivery of the drugs into the root cells. The required treatment time will be compound-specific. The time required for confocal microscopy might vary depending on microscope configuration and software.

Materials and Reagents

  1. 1.5 ml Eppendorf tubes
  2. Petri dishes (Thermo Fisher Scientific, catalog number: 150239 )
  3. Pipette tips
  4. 6-well tissue culture plates (Thermo Fisher Scientific, catalog number: 15213338 )
  5. Micro cover glass 25 x 50 mm and 25 x 25 mm (VWR, catalog numbers: 48382-136 and 48366-089 )
  6. Sealing Film, PVC (Phytotechlab, Product ID: A003) or Parafilm (VWR, catalog number: 52859-079 )
  7. Bleach solution (Klorin, Colgate Palmolive)
  8. Tween-20, Polysorbate (VWR, catalog number: 97062 )
  9. 3D printed seed plating guide (https://www.thingiverse.com/thing:4016917)
  10. Murashige and Skoog, MS medium (Duchefa Biochemi, catalog number: M0222 ) liquid medium
  11. MES, 2-(N-morpholino) ethanesulfonic acid (Duchefa Biochemi, catalog number: M1503 )
  12. Sucrose (Duchefa Biochemi, catalog number: S0809 )
  13. KOH (VWR, catalog number: 470302 )
  14. Plant agar (Duchefa Biochemi, catalog number: P1001 )
  15. DMSO (Sigma-Aldrich, catalog number: 276855 ) or other vehicle
  16. AZD8055 (Selleckchem, catalog number: S1555 )
  17. Immersion oil (Zeiss, catalog number: 444960 )
  18. Transgenic Arabidopsis lines used to establish this protocol were published in Dauphinee et al. (2019)
  19. Milli-Q (MQ) water
  20. Liquid 0.5x MS medium (see Recipes)
  21. Solid 0.5x MS medium (see Recipes)
  22. Bleach solution (see Recipes)
  23. ConA 1 mM stock in DMSO (see Recipes)

Equipment

  1. Pipettes for 100-1,000 µl and 1-10 μl
  2. Forceps (Dumont, catalog number: 11251-10 )
  3. 4 °C fridge
  4. Arabidopsis growth cabinet/growth room: 20-22 °C, 50-70% humidity, 150 µM light
  5. Confocal Laser Scanning Microscope (CLSM; Zeiss, LSM 800)

Software

  1. Fiji, the version of ImageJ with included set of plugins (https://fiji.sc/, for this study, we utilized versions 1.51s and 2.0.0-rc-69/1.52i).
  2. AuTToFlux repository containing three ImageJ macro and three R script files (https://github.com/jonasoh/AuTToFlux/archive/master.zip):
    1. CalibrateThreshold.ijm
    2. ImageProcessor.ijm
    3. FluorescenceIntensity.ijm
    4. EvaluateCalibration.R
    5. Control-vs-Reporter.R
    6. Flux-vs-Time.R
  3. R (https://www.r-project.org, we used 3.5.2 and 3.5.1)
  4. RStudio (https://www.rstudio.com/, we used versions 1.1.453 and 1.2.1186).
  5. Git (https://git-scm.com/downloads, we used the version 2.24.1)
  6. R packages:
    1. dplyr (https://CRAN.R-project.org/package=dplyr)
    2. ggplot2 (https://CRAN.R-project.org/package=ggplot2)
    3. readr (https://CRAN.R-project.org/package=readr)

Procedure

  1. Seed sterilization (40 min)
    1. Place ca. 15 μl of seeds of reporter and control lines into 1.5 ml Eppendorf tubes. Generally, the aim is to have at least four-six biological replicates for each treatment and time point planned in the experiment.
    2. Add ca. 1.5 ml of the bleach solution.
    3. Incubate the seeds for ca. 30 min, agitating.
    4. Under sterile conditions, pipette out the bleach solution.
    5. Add sterile water to the seeds. Mix and pipette it out.
    6. Perform the wash with sterile water at least three times to wash out the leftovers of the bleach solution.
    7. Seeds can be vernalized either in the sterile water or as described in the Procesure C.

  2. Seed plating (40 min)
    1. Use 1 ml pipette to transfer single seeds onto a Petri dish with solid 0.5x MS medium. Keep ca. 2-5 mm distance between the seeds in the same row to avoid entanglement of roots. Keep ca. 5 cm distance between the rows (Figures 2A-2B). It is recommended to use a seed plating guide for this procedure (Figure 1, Figure 2A, https://www.thingiverse.com/thing:4016917).
    2. Seal the plates with a strip of Parafilm or sealing film.

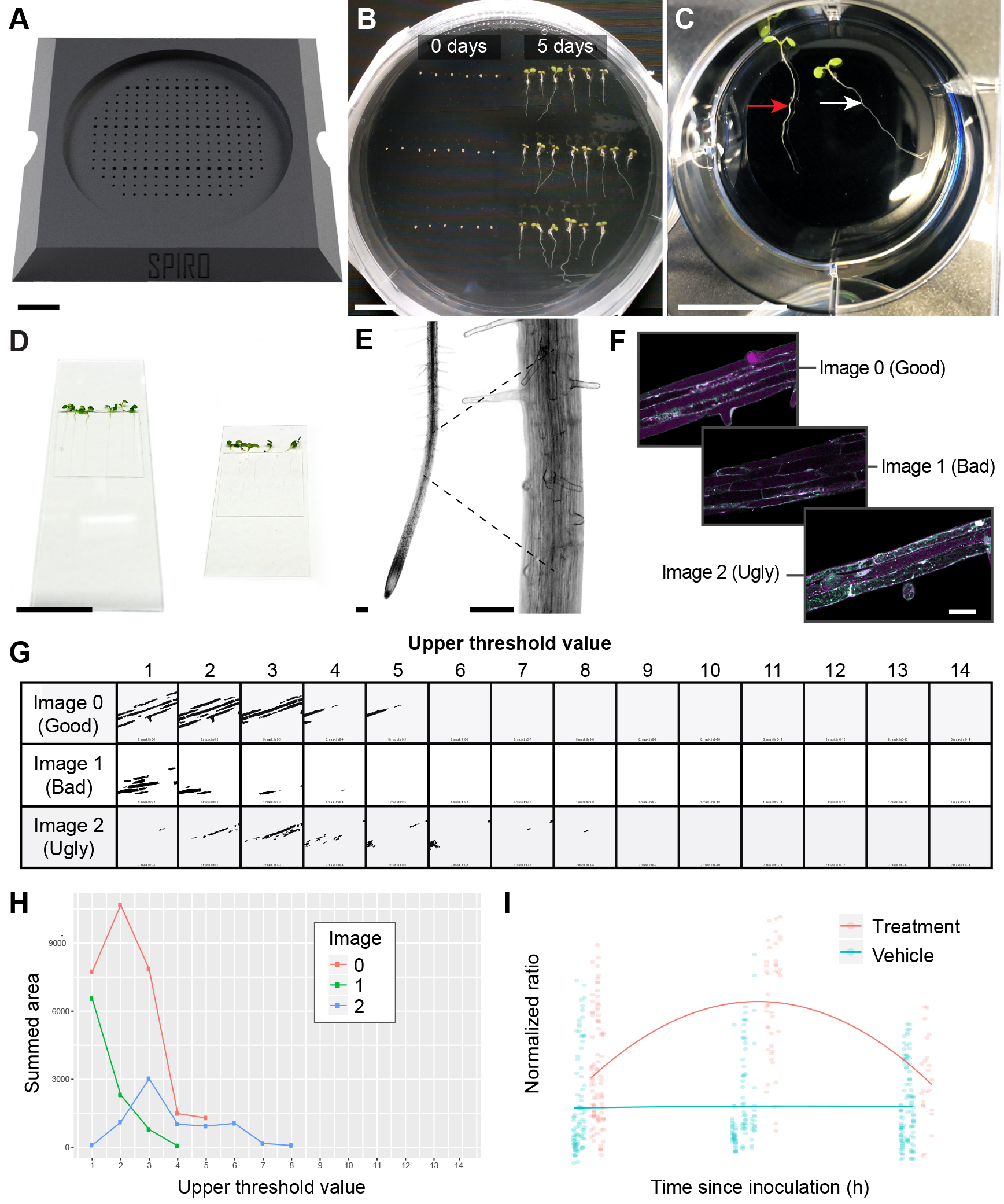

      Figure 2. Arabidopsis Tandem Tag autophagic flux assay. A. 3D printed seed plating guide for 9 cm Petri plates. B. Arabidopsis thaliana seeds plated using the seed plating guide (left half) and then grown with the plate positioned vertically for 5 days (right half). C. Arabidopsis seedlings placed in a 6-well plate for treatment. Note that the roots should be submerged gently (white arrow) and should not be floating on the surface (red arrow). D. Seedlings mounted on a glass slide (left) or coverslip (right) for CLSM. E. Approximate beginning of the root differentiation zone F. Images 0, 1 and 2 represent good, bad and ugly quality scans of differentiation zone vacuoles in the reporter line, respectively. G. Vacuole layer masks generated during calibration using the CalibrationThreshold.jim macro. Note that ugly scans F. may lead to complete or partial failure of vacuole detection. H. Sum vacuole areas detected on all analyzed images (2 is the recommended upper threshold value) vs. threshold values generated by the EvaluateCalibration.R script. I. Flux-vs-Time.R script output for vehicle and a compound treatment generated in R using ggplot2. Scale bars = 1.5 cm (B-D); 50 µm (E, F).

  3. Vernalization (24-48 h)
    Incubate the plates in the dark at 4 °C for 24-48 h.

  4. Growth on vertical plates (5 days)
    1. Place the plates into growth conditions (150 µM light, 22 °C for 16 h, 0 µM light, 20 °C for 8 h). Make sure the plates are perfectly vertical to ensure root growth on the top of the medium (Figure 2B).
    2. Grow the seedlings on the plates for ca. 5 days, the root length should reach ca. 2 cm.

  5. Drug treatment (2-24 h)
    1. Pipette 3 ml of liquid 0.5x MS into wells of a 6-well tissue culture plate. Add the chemical compounds of the required concentration.
    2. Using soft forceps, gently pick seedlings from the plates and transfer into liquid 0.5x MS (not more than 20 seedlings/well).
    3. Gently pipette the medium from the well onto the seedlings in the well to submerge the roots (white arrow, Figure 2C).
    4. Seal the plate with a sealing film or as trip of Parafilm.
    5. Incubate the plate under the same growth conditions for the required amount of time.

  6. Mounting the samples (1 min)
    1. Pipette a drop of medium, ca. 50 μl, from a well on the 25 mm x 50 mm cover slip.
    2. Using soft forceps, gently pick seedlings from the well and place it onto the drop of medium making sure that the root is straight. Avoid drying the roots during transfer!
    3. Place up to six seedlings on the cover slip.
    4. Cover the roots with 25 mm x 25 mm cover slip (Figure 2D).
    5. Apply immersion if needed to the objective lens and place the sample on the microscope stage.

  7. Setting up scanning parameters for confocal laser microscopy (30 min, required only once)
    1. To estimate optimal range of settings for scanning, it is advisable to perform a pilot experiment using three control treatments with 500 nM AZD 8055 for 4 h, 500 nM ConA for 6 h and corresponding amount of vehicle (e.g., 0.05% DMSO).
    2. Configure settings for sequential scanning of two channels:
      1. Channel 1 for detection of mWasabi: excitation at 488 nm, emission detection range 490-564 nm.
      2. Channel 2 for detection of TagRFP: excitation at 561 nm, emission detection range 564-700 nm.
      3. It is advisable to use the most sensitive detectors available in the system (i.e., GaAsp or HyD detcors for Zeiss or Leica CLSM, respectively).
      4. Using 40x objective is advisable to obtain images most applicable for automated analysis.
      5. Set switching between channels for each frame to minimize the crosstalk between channels and optimize the pinhole size. If possible, use the pinhole of 1 AU for each of the channels.
      6. If possible, use 16-bit resolution to increase the resolution of intensities.
      7. The sample treated with AZD 8055 will have the weakest fluorescence and should be used to adjust laser intensity and the Detector Gain (Master Gain) to the lowest possible values that do not result in oversaturated pixels.
      8. The sample treated with ConA will have the strongest fluorescence, at least in the green channel, and should be used to re-adjust laser intensity and the Detector Gain (Master Gain) to the lowest possible values that do not result in oversaturated pixels.
      9. The sample treated with the DMSO can be used to verify the applicability of the adjusted settings.
      10. Additionally, noise can be decreased by ramping down the scanning speed or increasing the averaging number. In our experience, scanning at the speed of ca 10 seconds per frame produced images with the quality appropriate for further analysis while also resulting in acceptable time for experiment.

  8. Scanning (ca. 30 min per treatment)
    1. The assay is optimized for measurement of autophagic activity in the epidermal root cells. Downstream image analysis relies on automated detection of the vacuoles in the green fluorescent channel. Thus optimally, images should be made in the focal plane where in each cell vacuole is surrounded by clearly visible cytoplasm.
    2. Most CLSM software will have an option for scanning at selected positions that will significantly decrease the time required for the experiment.
    3. Mark the positions at the beginning of the differentiation zone of the root (Figure 2E).
    4. Start fast scanning mode (live scan) and readjust the focal plane for each position to the middle section through the vacuole of the epidermal cells (Figure 2F with and without cortical cytoplasm)
    5. When all positions are readjusted, acquire and save the images. Please note, that automated statistical analysis will use information provided in the names of images. Please use the following rules to introduce the required parameters into the name of your images:
      1. separate parameters by underscores (_)
      2. Name the files as follows: line_treatment_seedlingX_imageY (e.g., Reporter_50uM.C12_seedling1_image2.czi)
        Where line and treatment are text variables or strings identifying the lines (either “Reporter” or “Control”) and treatments (i.e., “50uM.C12”) used. One treatment must be named “Vehicle”. X and Y are numbers indicating seedling and image replicates thus representing biological and technical replicates, respectively. Note that “seedling” and “image” are fixed strings and only the numbers X and Y are changed from image to image.

Data analysis

Data needs to be processed prior to the analysis. The processing is done in four steps: (i) conversion of confocal images into .TIF files; (ii) adjustment of the threshold values to optimize recognition of the vacuoles. This step must be performed when using the protocol for the first time and, if needed, can be redone for individual experiments; (iii) quantification of fluorescence intensities in the vacuoles; (iv) quantification of the ratios and plotting of the data as control vs reporter lines, or ratios vs time and concentration.
  We provide demo data (https://github.com/jonasoh/AuTToFlux), which can be used to ensure that the analysis works as expected.


  1. Set up the analysis pipeline
    For more detailed instructions see Video 1 (https://youtu.be/6oY3CyvGFPk).
    1. Place all images for processing into a single folder. If several experiments should be processed, place them as subfolders within a single folder.
    2. Download and install Fiji, the version of ImageJ with included set of plugins (https://fiji.sc/) for this study, we utilized versions 1.51s and 2.0.0-rc-69/1.52i).
    3. Download and install R (https://www.r-project.org, we used 3.5.2 and 3.5.1) and RStudio (https://www.rstudio.com/, we used versions 1.1.453 and 1.2.1186).
    4. Either clone the GitHub repository (https://github.com/jonasoh/AuTToFlux) or download it as a zip file. If cloning the repository, RStudio can be used to automate this task: In RStudio, start a new project (File -> New Project -> Version Control -> GIT and input the following URL:
      https://github.com/jonasoh/AuTToFlux. The repository is automatically cloned into the chosen location.
    5. Before running the R scripts for the first time you need to make sure its dependencies are installed. Either use RStudio’s interface for installing packages, and install the packages ggplot2, dplyr, and readr, or install them manually by typing the following command into the console:

      install.packages(c("ggplot2", "dplyr", "readr"))

    Video 1. Repository version control in R studio

  2. Convert images into TIFF files
    For more detailed instructions see Video 2 (https://youtu.be/nKPq0kNvW_U).
    1. Place all images for processing into a single folder. If several experiments are to be processed, place them as subfolders within a single folder.
    2. Run the Image Processor: launch ImageJ and go to Plugins -> Macros -> Run -> locate ImageProcessor.ijm.
    3. The image processor macro opens all compatible images in the target folder and saves them as .TIF files (with the file extension .tif); original acquisition dates of the images are saved in separate files. Multi-image files from experiments scanned using the “Positions“ function are split so that each image is saved as a separate .TIF file.

      Video 2. Image processing

  3. Select proper threshold values
    For more detailed instructions see Video 3 (https://youtu.be/Wkw3VXFj2is). Copy at least three TIFF images generated by the ImageProcessor into a separate folder. Aim to select images representing the best, the worst, and average quality.
    1. Launch ImageJ and go to Plugins -> Macros -> Run -> locate CalibrateThreshold.ijm. This runs the macro. In the file picker immediately presented, locate the folder with representative images. Macro will record the area sizes corresponding to the vacuoles and also save masks as tiff files containing threshold values in their names, e.g., file named *.thr0-3.tiff would correspond to the mask created with the threshold values (0;3). The results overview will be generated as threshold-overview.tif (Figure 2G).
    2. Launch RStudio.
    3. Open the RStudio project file (AuTToFlux.Rproj).
    4. To estimate what threshold values provide the largest selected vacuole area for all analyzed images, run the EvaluateCalibration.R script (select the R script, click Code -> Source and then choose the folder containing the .CSV files generated in the previous step–note: on non-Windows systems you need to type in the pathname of the folder).
    5. The script will plot average sum vacuole areas selected on all analyzed images vs threshold values. Select the threshold value that corresponds to the largest area (Figure 2H).
    6. Using the information gathered from the threshold-overview and the threshold graph, select an appropriate upper threshold value for marking. The masks should not contain any background areas.
    7. Before proceeding with image thresholding and data analysis, ensure that the calibration folder is removed from the directory containing the processed images.

      Video 3. Treshold callibration

  4. Measure fluorescence intensities
    For more detailed instructions see Video 4 (https://youtu.be/6jYqkYXOpiQ).
    1. Run the threshold macro: launch ImageJ -> Plugins -> Macros -> Run -> locate and open the macro file FluorescenceIntensity.ijm.
    2. Select the folder containing images to be analyzed, previously converted using the image processor macro (step B).
    3. The macro will prompt you to select the threshold value determined earlier in the calibration process. For each image the threshold macro automatically selects areas corresponding to the vacuoles using the GFP channel and saves the masks for the selected areas as TIFF files. The masks are then used to quantify intensities of RFP and GFP fluorescence in the corresponding channels of the image. Ratios of vacuolar RFP/GFP fluorescence intensities are saved to .CSV files with matching filenames.

      Video 4. Fluorescence intensity measurement

  5. Analyze data
    To estimate dose and time-dependent responses the RFP/GFP ratios are plotted vs time using Flux-vs-Time.R. For more detailed instructions see Video 5 (https://youtu.be/0_wDY7RN_hk).
    1. Create an info.txt file in the folder in the folder containing the .CSV files for analysis. The initial time of treatment (format YYYY-MM-DD HH:MM, 24-hour time) is user-specified by creating a tab-delimited text file (using any spreadsheet software, e.g., Microsoft Excel) with two columns, which should be saved as info.txt e.g.,
      Treatment     StartTime
      Vehicle          2018-07-06 09:50
      Treatment     2018-07-06 10:00
    2. Launch RStudio.
    3. Locate the R project file in the directory created from the GitHub repository and open it if it is not already opened:
      1. In R select Flux-vs-Time.R, click Code -> Source and then choose the folder containing the .CSV files generated in step D.
      2. A summary of the experiment data is generated with ratios normalized to the vehicle and grouped by treatment and seedling number (Figure 2I). To plot the data, we recommend ggplot2 (https://ggplot2.tidyverse.org/), axes (x=Elapsed time, y=Normalized ratios, color=Treatment)
      3. Further statistical analysis will depend on the treatments present in the experiment and can be performed using R or other software, e.g. Origin, JMP.
      4. The data can be also used to estimate IC50 using R, e.g., with the aid of the drc package (Ritz et al., 2015), or other software such as Prism.

    Video 5. Flux vs. time

    To demonstrate autophagy-dependent response, RFP/GFP ratios of control lines are plotted vs ratios of reporter lines. For more detailed instructions see Video 6 (https://youtu.be/PQRZ1oOBgws):
    1. Launch RStudio.
    2. Locate the R project file in the directory created from the GitHub repository and open it if it is not already opened:
      1. In R select Control-vs-Reporter.R, click Code -> Source and then choose the folder containing the .CSV files generated in step D.
      2. This script may take as its argument either a folder containing several treatments as subfolders, or a folder without subfolders that contains a single experiment.
      3. The script summarizes RFP/GFP ratios (normalized to vehicle) and groups by line (control or reporter), treatment and seedling number. An unpaired, two-tailed Student’s t-test is used to compare log-transformed normalized means of the control and reporter groups. A summary table named pvals.txt is generated. If P-values derived from permutation (i.e., exact P-values) are desired, uncomment the appropriate sections marked in the R script.

    Note: For both Control-vs-Reporter.R and Flux-vs-Time.R, data is saved both as raw data (as summary-full.txt in the experiment directory) and as per-seedling summary statistics (summary-perseedling.txt), to facilitate analysis using other statistical software.

    Video 6. Control vs. Reporter

Notes

See Table 1 for further troubleshooting steps.

Table 1. Troubleshooting

Recipes

  1. Liquid 0.5x MS medium
    1. 0.5x MS complete with vitamins,10 mM MES, 1% sucrose dissolved in MQ water
    2. Adjust pH to 5.8 using KOH and autoclave for 20’ at 120 °C
    3. Store at 4 °C for max. 2 months
  2. Solid 0.5x MS medium
    1. After adjusting pH of the liquid 0.5x MS medium, add 0.8% Plant agar and autoclave for 20 min at 120 °C
    2. Store at 4 °C for max. 2 months. If needed, the medium can be liquified in the microwave
  3. Bleach solution
    1. 5% Klorin (final concentration: 2.7 g/L sodium hypochlorite), 0.01% Tween-20 in MQ water
    2. Prepare in 50 ml Falcon tube and store at RT
    3. After ca. 1 month Tween-20 might form precipitates in the solution, however, this does not impact the efficacy of the sterilization
  4. AZD 8055 5 mM stock in DMSO
    Store at -20 °C for max. 2 years
  5. ConA 1 mM stock in DMSO
    Store at -20 °C for max. 1 year
