Part I: Guidelines for the excavation and collection of clay vessels for microorganisms’ isolation (field work)

Materials and Reagents

Lab gloves
50 ml Falcon tubes (MINIPLAST EIN SHEMER, catalog number: 835-050-21-111)
Clean plastic container
Aluminum foil
Tube markers

Equipment

Folding table
Recording device/s including camera, tablet, laptop, and cellular phones

Procedure

Note: In sites where containers intended for isolation of microorganisms are expected, do not allow any kind of food or beverage in the excavation area (primarily fruit, vegetables, beer, yogurt, bread, pickles, cheese but also others).

Before and while excavating
1. Define vessels that are to be collected for microorganisms’ isolation. For example:
  1. Vessels that are clearly meant for storing, serving and drinking of beverages or food or, vessels carrying beverage-related specific features, such as strainers (Figure 1).
  2. Vessels suggested to have been previously used for the preparation of fermented beverages and food such as dairy products (e.g., churns).
  3. For more examples see also Aouizerat et al. (2019).
2. Increase the awareness of the team so that they are prepared to collect vessels for microorganisms’ isolation based on the context of the site. For instance, in the case of the discovery of a drinking set in situ, or a possible production site.
3. Make sure that no fermented food of any kind, including unfiltered beer, sourdough and wine are being consume in the site. In addition, it is recommended that workers wash their hands and faces before starting.

  Figure 1. Putative beer jug. An example of a vessel thought to be a beer jug due to its shape and strainer.

Excavation and sample handling in the field
1. Identify vessels suitable for microorganisms’ isolation as soon as you can, in situ, before they are fully uncovered.
2. Visually record the excavation process, and fully document the vessel (drawing, photography, textual description) within its context, prior to its extraction from the soil.
3. Set up a folding table near the vessel and cover the table with clean aluminum foil.
4. From now on, work on this vessel using disposable lab or cotton gloves.
5. When the identified vessel is uncovered, decide if and how much of the vessel can be broken based on the policy of the excavators and government regulations.
6. Immediately after the initial uncovering, take small pieces (5-6 cm) of the vessel and transfer them to 50 ml tubes using gloves at all times.
  Note: Try to minimize vessel exposure time before the initial sampling.
7. Label the tubes with a tube marker and record the time, place, specific context, excavator, and type of sherd.
8. Carefully, using laboratory gloves, excavate the vessels according to the excavation’s regular protocol.
  Note: Only dedicated and guided personnel, preferably only one, should touch the sherds to avoid possible contamination.
9. While uncovering, identify parts of the vessel that are more likely to hold microorganisms such as the base, strainer and the side of the curve towards the neck. These parts of the vessel will be the focus of efforts from now on.
10. Transfer the collected fragments to the table, keep them in plastic containers and label them accordingly.
  Note: Do not wash the pieces meant for microorganisms’ isolation.
11. Label the other fragments of the uncovered vessel that are not to be sent to the lab with the same ID, to keep them for restoration and other analyses.
12. Always keep some fragments unwashed in case the lab would need more fragments.
13. Transfer the plastic containers with the sherds for microorganism analysis to the microbiology lab (see below).
  Note: In specific cases, an entire vessel can be chosen to be taken to the lab. In that case, try to minimize the time of the vessel exposure and excavate it, record and transfer it to a plastic container as soon as possible.

  Control vessels and control soil samples:
  Note: Non-related controls are a key component in the analysis, to ensure that the isolated microorganisms originated in the vessel and are not an environmental contamination.
14. Using gloves, collect as many samples as possible of: sediments, stones, plants, and roots from the vessel’s surroundings. Store them in 50 ml plastic tubes.
15. Identify vessels which in high probability are unrelated to microorganisms, such as burned cooking pots, small vessels/juglets (i.e., putative perfume containers), and other vessels, and process them as described above for the putative fermented food containers.
  Note: Containers suspected to have held oily products should not be considered as controls, since yeast are major inhabitants of oil (Aouizerat et al., 2019).
Delivery to the lab
1. Using gloves at all times, transfer the tubes, containers and their documentation to the lab.
2. Store in-doors at room temperature.

Part II: Isolation and characterization of yeast from environmental samples (in the lab)

Materials and Reagents

For yeast isolation
1. 50 ml sterile Falcon tubes (MINIPLAST EIN SHEMER, ref: 835-050-21-111)
2. 15 ml sterile Falcon tubes (MINIPLAST EIN SHEMER, ref: 835-015-40-111)
3. Lab strain of S. cerevisiae to serve as a control. We used Sefale S-04 (Fermentis)
4. YPD broth (Difco, catalog number: bbl242820)
5. Agar (Bacto^TM Agar, BD, catalog number: 214010)
6. Selective agar plates: Sabouraux dextrose agar supplemented with chloramphenicol and gentamicin 4 mg/ml (NOVAmed Israel, catalog number: BA-114)
For yeast DNA purification
1. AMPure XP beads (New England BioLabs, catalog number: E6270)
2. Acid washed glass beads (Sigma-Aldrich, catalog number: G4649)
3. Ice cubes
4. RNase A (10 mg/ml DNase- and Protease-free RNase, Thermo Fisher Scientific, catalog number: EN0531)
5. Sterile ddH₂O
6. Phenol:chlorophorm:Isoamyl alcohol in ratios of is 25:24:1 respectively, saturated with Tris (10 mM) and EDTA (1 mM) at pH 8 (Sigma-Aldrich, catalog number: P3803)
7. Tris-HCl, pH 8.0 (10 mM), EDTA, pH 8.0 (TE buffer, Thermo Fisher Scientific, catalog number: AM9858)
8. Ammonium acetate (Sigma-Aldrich, catalog number: A1542)
9. Ethanol (GADOT, Israel)
10. Nextera XT DNA kit (Illumina, catalog number: FC-131-1096)
11. Malt extract (Chen shmuel chemicals, Israel)
12. Hops (Hopsteiner, Hop pellets 90)
13. Glycerol (50%) (Bio-Lab)
14. PBS buffer
15. “Smash and Grab” lysis solution (Harju et al., 2004) (see Recipes)

Equipment

Lab Glass flasks
Pipettes of all sizes (Eppendorf)
Incubator that can heat to 30 °C (QSR Technologies)
Incubator Shaker (New Branswick scientific, Exella E24 incubator shaker)
Spectrophotometer (VWR, v-1200 spectrophotometer)
Centrifuge (Eppendorf, centrifuge 5430R)
Plate reader–Synergy^TM2 Multi-Mode Microplate Reader (BioTek)
DNA quantification device such as Qubit (Invitrogen, Qubit^® 2.0 fluorometer)
-80 °C freezer (Thermo Scientific^TM, catalog number: 5IDTSX)
Vortex (Fisher Scientific, Fisher STD mini vortexer 230v)
Fume hood of any kind for the work with the Phenol:chlorophorm:Isoamyl alcohol
Laminar hood (Thermo Scientific^TM, MSC-Advantage^TM)
PCR hood (Lab Companion)
PCR thermocycler (QSR Technologies, Thermal cycler GE48529)
Microscope (ZEISS, AXIO Lab.A1)
Microscope camera attached to PC (ZEISS, AXIOCAM 105 color)

Software

96-well plate reader software (BioTek, Gen5 2.07)
GraphPad Prism 8.0.2 (https://www.graphpad.com/)
Geneious Pro 2019 (https://www.geneious.com/)
Microscope software (ZEISS, ZEN2 blue edition)
Trimmomatic 0.36 (Bolger et al., 2014)
FastQC (http://www.bioinformatics.bbsrc.ac.uk/projects/fastqc)
Celera assembler 8.3rc2 (Myers et al., 2000)
BlobTools V1 (Laetsch and Blaxter, 2017)
R (https://www.r-project.org) with "growthcurver” package (https://cran.r-project.org/web/packages/growthcurver/vignettes/Growthcurver-vignette.html)

Procedure

Note: Work routinely with gloves and lab safety equipment (i.e., lab-coat, protective eye goggles). The beginning steps do not need sterile work conditions. However, after the initial isolation of the yeast, work in a laminar hood or near a burner.

Yeast isolation from vessels and control samples
1. Put the sherds in a plastic container and cover them with sterile liquid YPD medium.
2. Incubate at room temperature without shaking for 7 days.
3. Spread 0.1 ml samples from the medium on selective agar plates for fungal isolation and incubate at 30 °C for 12 to 48 h.
4. Inspect the plates frequently for the appearance of yeast colonies (Figure 2A).
  Note: Yeast colonies usually grow faster than molds and filamentous fungi. Do not wait for more than 48 h or the plate will be covered by molds and filamentous fungi.

  Figure 2. Yeast colonies and cells. Yeast have typical colonies and cell morphology both of which are distinct from molds and bacteria. A. several types of yeast colonies isolated from ancient vessels (Aouizerat et al., 2019). In general, yeast colonies are relatively large with a shiny white color in contrast to bacterial colonies which are usually small and matte. B. Yeast cells observed under light microscopy (60x). Note that yeast cells are usually bigger than typical bacteria and many kinds of yeast divide by budding rather than fission. C. Upper panel, a selective agar plate for fungal isolation was plated as described in the Procedure A of Part II. Note the low number of bacterial colonies due to the antibiotics (blue circle), structure of molds (green circle) and distinctive shiny colony of yeast (red circle). In the bottom panel, a yeast colony which was picked and re-streaked on a YPD plate (red arrow).
5. Collect any colony which seems to be a yeast colony, observe for typical yeast cells using light microscopy (Figure 2B) and plate it on solid YPD agar plates, containing 2% w/v Bacto-agar (Figure 2C).
6. Incubate the plates at 30 °C for 24-48 h until yeast colonies are clearly observed.
  Note: If a mixture of molds and yeast grow, re-pick a separate yeast colony to a new YPD plate and repeat Step A6.
7. Inspect the colonies visually and under light microscope (60x magnification) for typical yeast cells which are distinct from bacteria colonies (Figure 2).
8. To make a frozen stock of the yeast, pick a single colony to 5 ml YPD broth and incubate it for 24 h at 30 °C, in a shaker incubator under aerobic conditions with agitation (250-300 rpm).
9. Mix 0.5 ml of the culture with sterile 0.5 ml glycerol (50%), vortex to mix, aliquot and store at -80 °C.
Yeast Characterization
1. Yeast DNA isolation
  Note: Yeast cell DNA isolation was performed as previously described (Holm et al., 1986).
  1. Select a yeast containing tube from the -80 °C and allow to defrost at room temperature. When thawed, perform isolation streak on a YPD plate and incubate at 30 °C until colonies are observed (about 48 h).
  2. Transfer a single colony to 10 ml YPD broth in a sterile 100 ml flask. Grow the yeast overnight at 30 °C with 200 rpm shaking.
  3. Transfer the culture to 50 ml Falcon tube and centrifuge at 1,000 x g for 5 min. Pour out the supernatant, re-suspend the pellet in sterile water, re-centrifuge and discard the supernatant.
  4. In a fume hood, add 200 µl of Phenol:chlorophorm:Isoamyl alcohol, 0.3 g acid washed glass beads and 200 µl of Smash and Grab solution and vortex for 3 min in order to lyse the cells.
  5. Add 0.2 ml TE buffer and centrifuge the cells at 1,000 x g for 5 min at room temperature.
  6. Transfer the aqueous layer containing the DNA to 1 ml ethanol and incubate it for 20 min at -80 °C.
  7. Wash by centrifugation at 10,000 x g for 5 min and re-suspend in 0.4 ml TE buffer.
    Note: DNA pellet is transparent and can be difficult to see–avoid losing the pellet.
  8. Add 1 µl of RNase A.
  9. Incubate the solution at 37 °C for 5 min.
  10. Add 10 µl of ammonium acetate (4 M) and 1ml of 70% ethanol and incubate for 20 min at -80 °C.
  11. Centrifuge at maximal speed for 10 min (at least 15K x g) and discard the supernatant.
  12. Re-suspend the pellet in 50 µl of TE buffer.
  13. Quantify the DNA using Qubit, it should be 10-20 µg/ml.
  14. Store the extracted DNA at -20 °C.
2. Yeast identification by internal transcribed spacer (ITS)
  Note: For rapid and cheap identification you can use sanger sequencing of the ITS region. Keep in mind that the specific yeast species might not be represented in the database and thus full genome sequencing is preferable.
  1. Amplify the ITS region using Standard PCR kit and program with Illumina’s primers: ITS1F; ACACTGACGACATGGTTCTACACTTGGTCATTTAGAGGAAGTAA and ITS2R; TACGGTAGCAGAGACTTGGTCTGCTGCGTTCTTCATCGATGC.
  2. Send the PCR fragments for Sanger sequencing.
  3. BLAST the sequence results against the ISHAM barcoding database (http://its.mycologylab.org) and the NCBI database (https://blast.ncbi.nlm.nih.gov/ Blast.cgi).
3. Full genome sequencing and assembly
  Note: DNA sequencing can be performed using any common NGS technology. Our libraries were prepared using a Nextera XT DNA kit (Illumina, San Diego, CA), and the DNA was amplified by a limited-cycle PCR followed by purification using AMPure XP beads. The DNA libraries were normalized, pooled, and tagged in a common flow cell at 2 x 250 base-paired-end reads using the NextSeq platform. For more detailed protocols see Aouizerat et al. (2019). The assembly also can be performed using numerous NGS analysis tools. Here we describe the analysis we performed (Aouizerat et al., 2019).
  1. Remove Illumina adaptors using Trimmomatic 0.36.
  2. Determine the quality of the reads using FastQC.
  3. Perform De-novo assembly with the Celera assembler 8.3rc2.
  4. Exclude non-target-species scaffolds using BlobTools V1.
4. Growth curve analysis (in wort)
  Note: This procedure is used for the comparison of various growth parameters of yeast or bacteria in liquid under various conditions such as varying media, temperatures and addition of different compounds. Here, the growth of yeast in beer wort was performed, in order to test whether the isolated yeast might have been selected for in the past under such conditions. As a positive control we used a modern beer-producing strain of S. cerevisiae which is commercially available and as a negative control the pathogen yeast Candida parapsilosois which does not produce beer.

  Wort Preparation
  Note: The wort is prepared according to a standard recipe (Kunze and Manger, 2004).
  1. Heat water (5 L) to a pasteurization temperature of 72 °C.
  2. Add malt extract to a final concentration of 100 g/L, while thoroughly stirring, and allow to infuse together for 30 min in temperatures between 63 and 67 °C.
  3. Increase the solution temperature to 100 °C.
  4. Add 1 g/L of hops.
  5. Boil the solution for 45 min.
  6. Meanwhile prepare 5 L ice-cold water by mixing water with ice cubes.
  7. Add 1 g/L of hops once more.
  8. Let boil for an additional minute.
  9. Add the previously prepared ice-cold water (from Section f) to the mixture.
  10. Transfer the wort to a sterile flask and keep at 4 °C.
  Growth curve comparison
  1. Perform isolation streak of yeast from frozen stock on YPD agar plate.
  2. Incubate the plate at 30 °C for 48 h.
  3. Transfer a colony to 20 ml liquid YPD and incubate it at 30 °C, under aerobic conditions with agitation (250-300 rpm).
  4. Centrifuge the yeast at 1,000 x g for 5 min, wash in sterile PBS buffer and re-suspend the pellet in wort.
  5. Dilute the solution 1:100 in wort.
  6. Add 200 μl of the diluted solution/well of 96-well plate in triplicates or more repeats.
  7. Incubate the plate in a plate reader at 30 °C with linear shaking of 5 s every 20 min followed by an optical density (OD₆₀₀) reading for 48-96 h.
  8. Export the results to a text file (Figure 3A).
  9. Fit a logistic equation using R package “growthcurver” (Figure 3B).
  10. Compare the statistical significance of the differences between the various parameters using Student's t-test.
  11. Determine the relative distance between the samples using Principal Components Analysis (PCA, R prcomp () command) (Figure 3C).

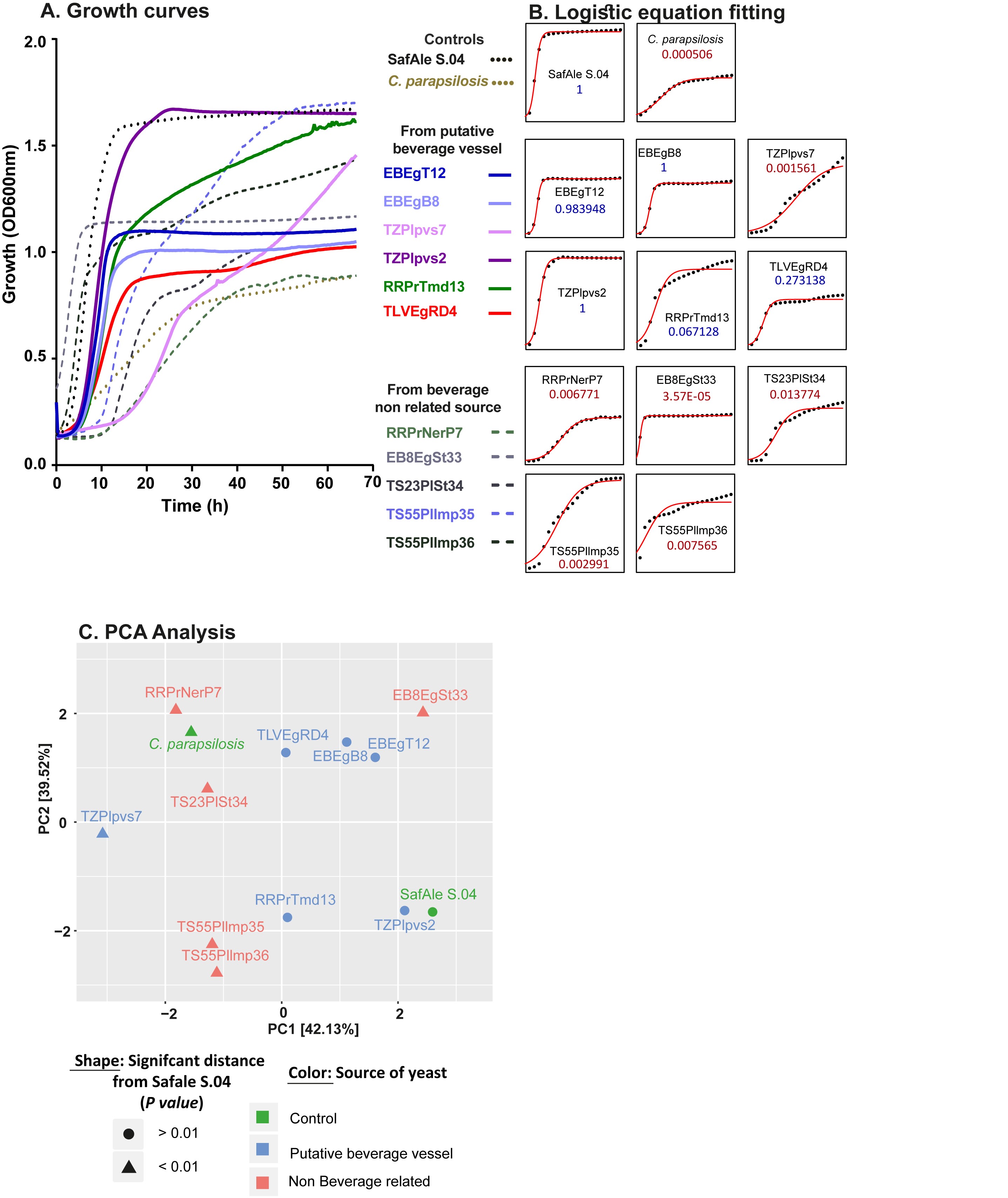

  Figure 3. Example of growth curve analysis. A. Growth curves were read as output from the plate reader. B. A logistic curve was fitted to each curve using R growthcurver. C. A PCA representation of the distance between the various parameters of the logistic equations of each sample. These results were adapted from Aouizerat et al., 2019.

Notes

For DNA sequencing we enlisted the help of the interdepartmental equipment unit of the Ein-Kerem Campus, Hebrew University of Jerusalem.

Recipes

“Smash and Grab” lysis solution
Triton X-100 (2%)
SDS (1%)
NaCl (100 mM)
Tris-HCl, pH 8.0 (10 mM)
EDTA, pH 8.0 (1 mM)

Acknowledgments

This protocol was adapted from Aouizerat et al. (2019). Isolation and characterization of live yeast cells from ancient vessels as a tool in bio-archeology. mBio 10(2): e00388-19. We thank Prof. Christina Warinner from University of Jena for her helpful suggestions.

Competing interests

Conflict of interest statement: None declared.
